校正代码 1630012122 FRT 1.14 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

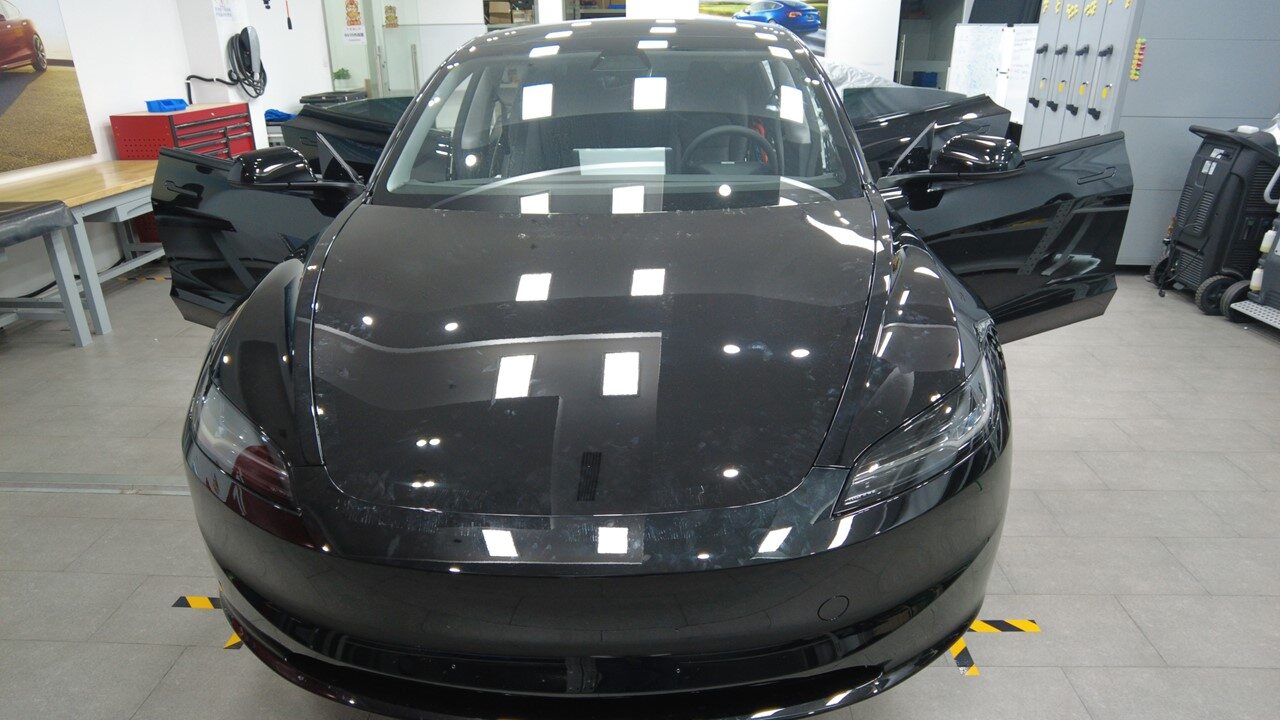

1. Open all four doors

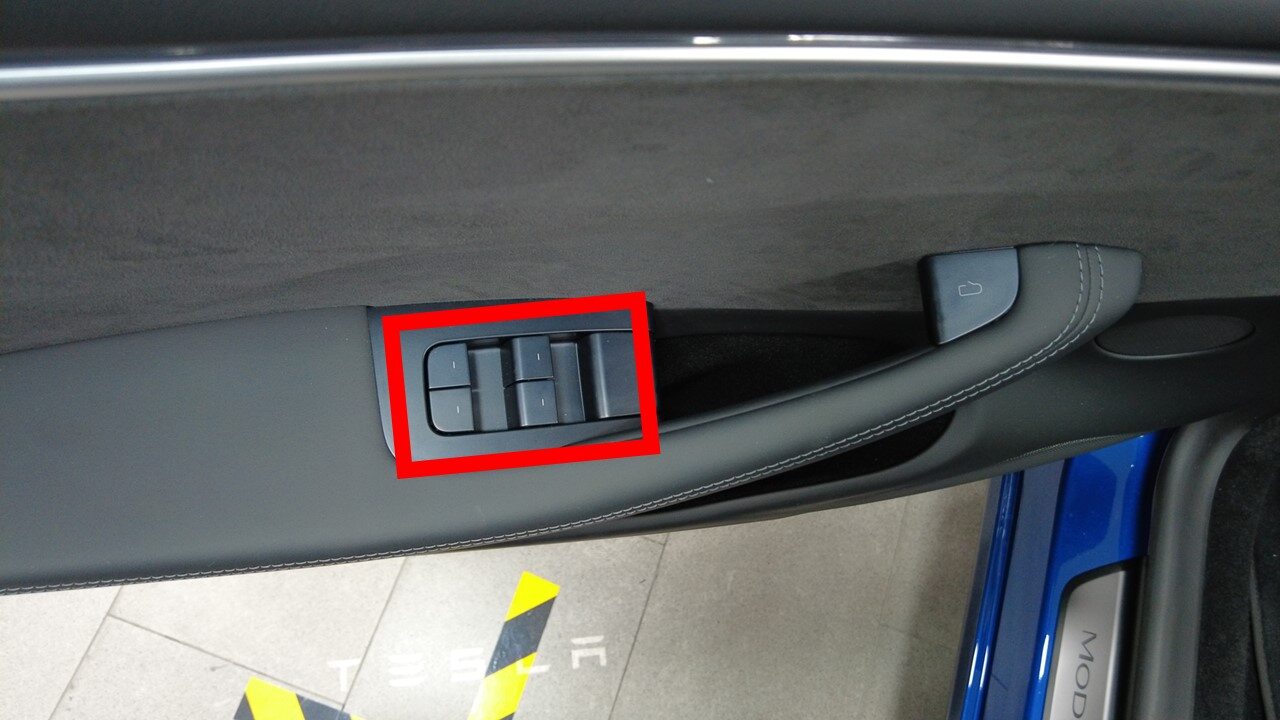

2. Lower all four windows

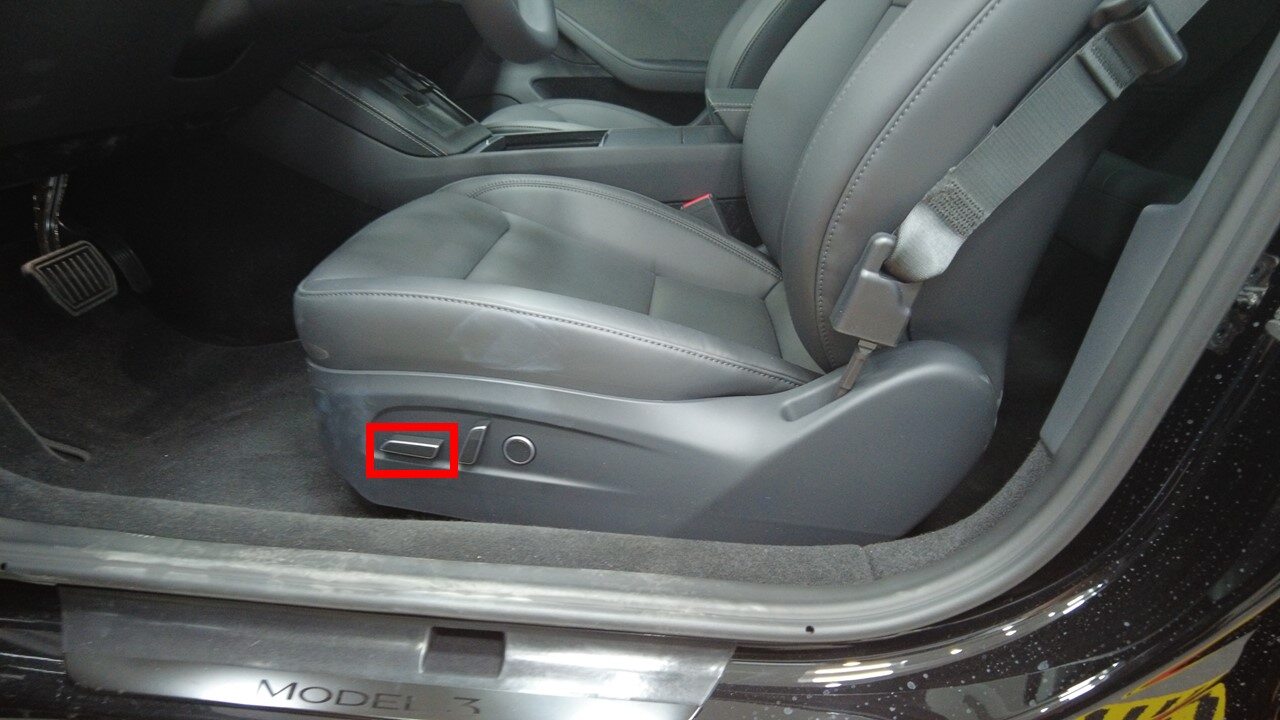

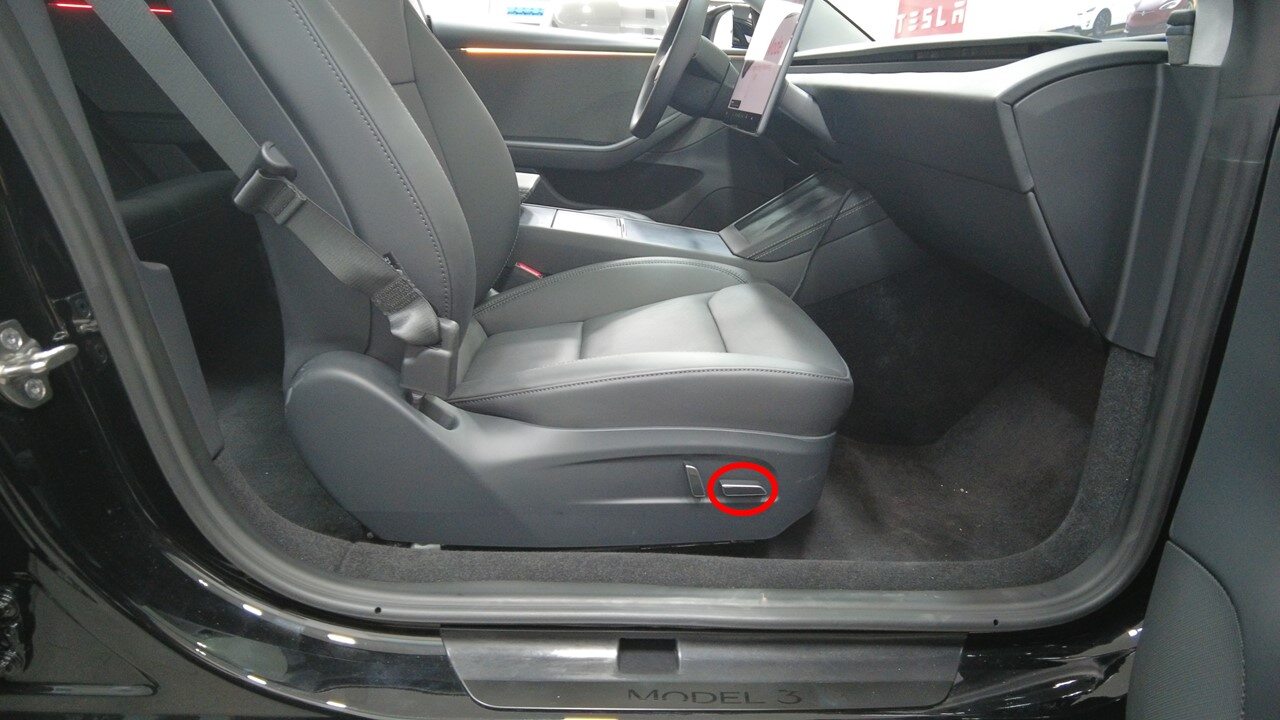

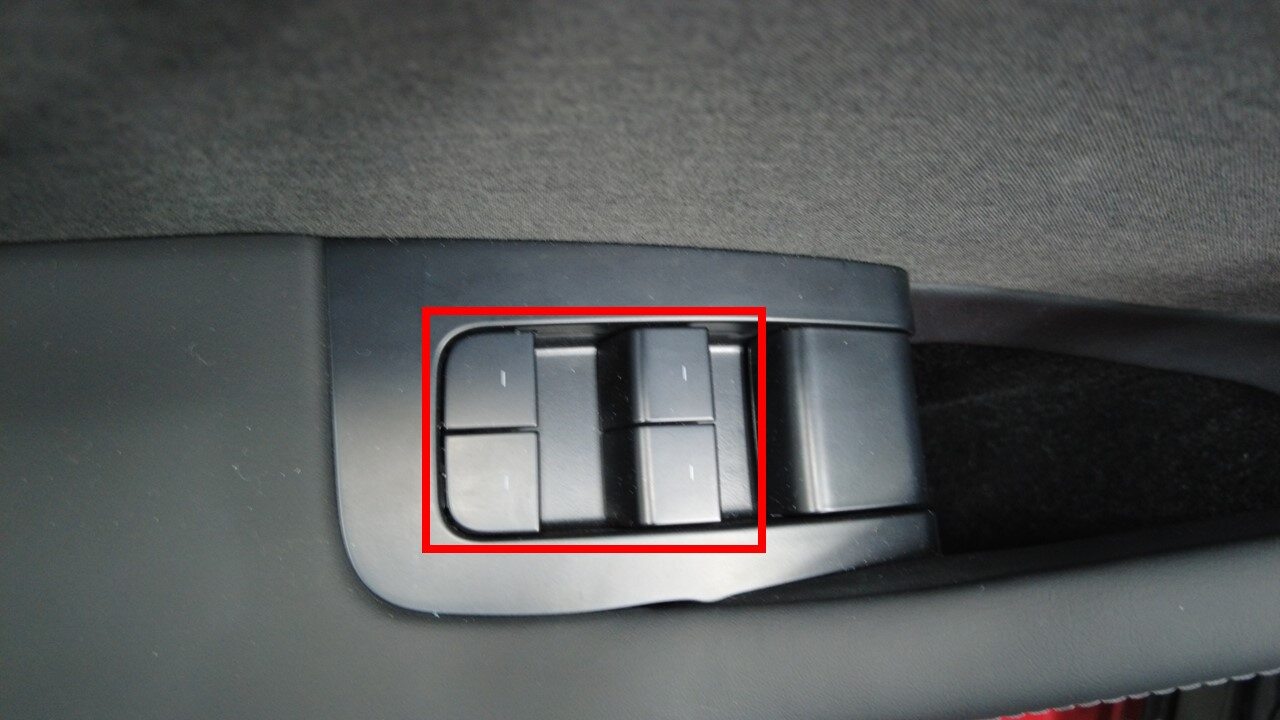

3. Move LH front seat forward



4. Move RH front seat forward

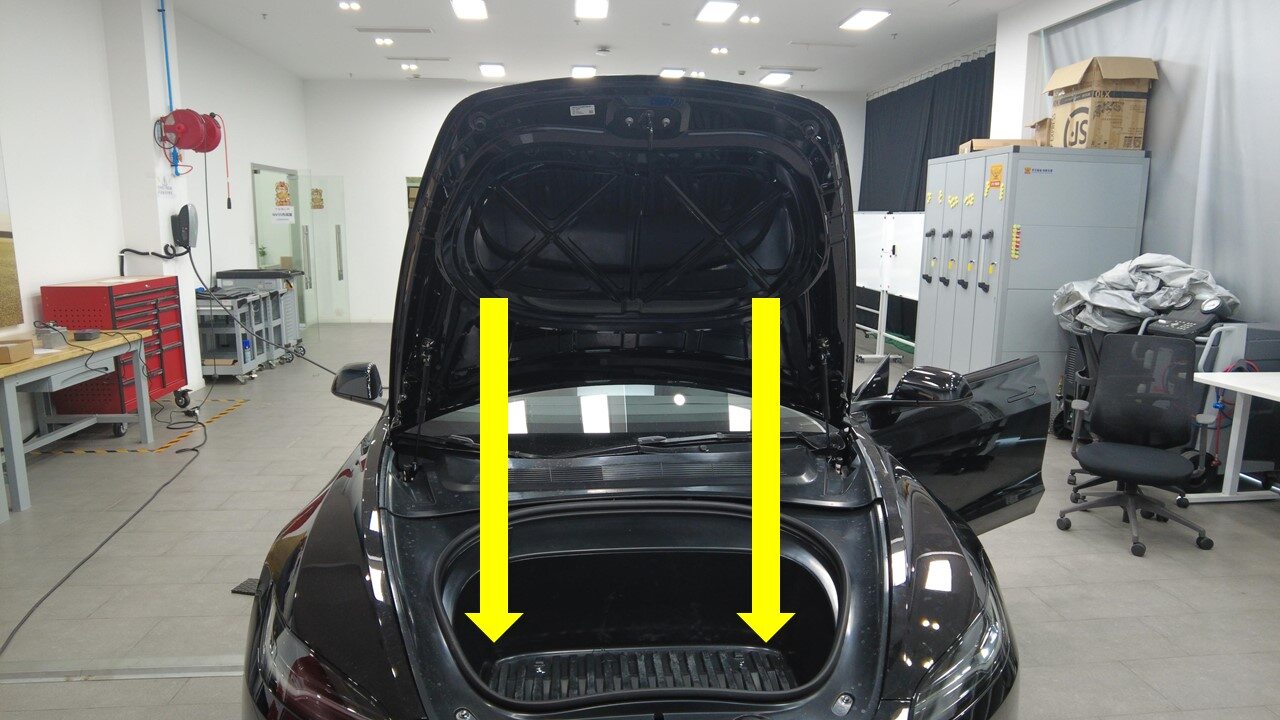

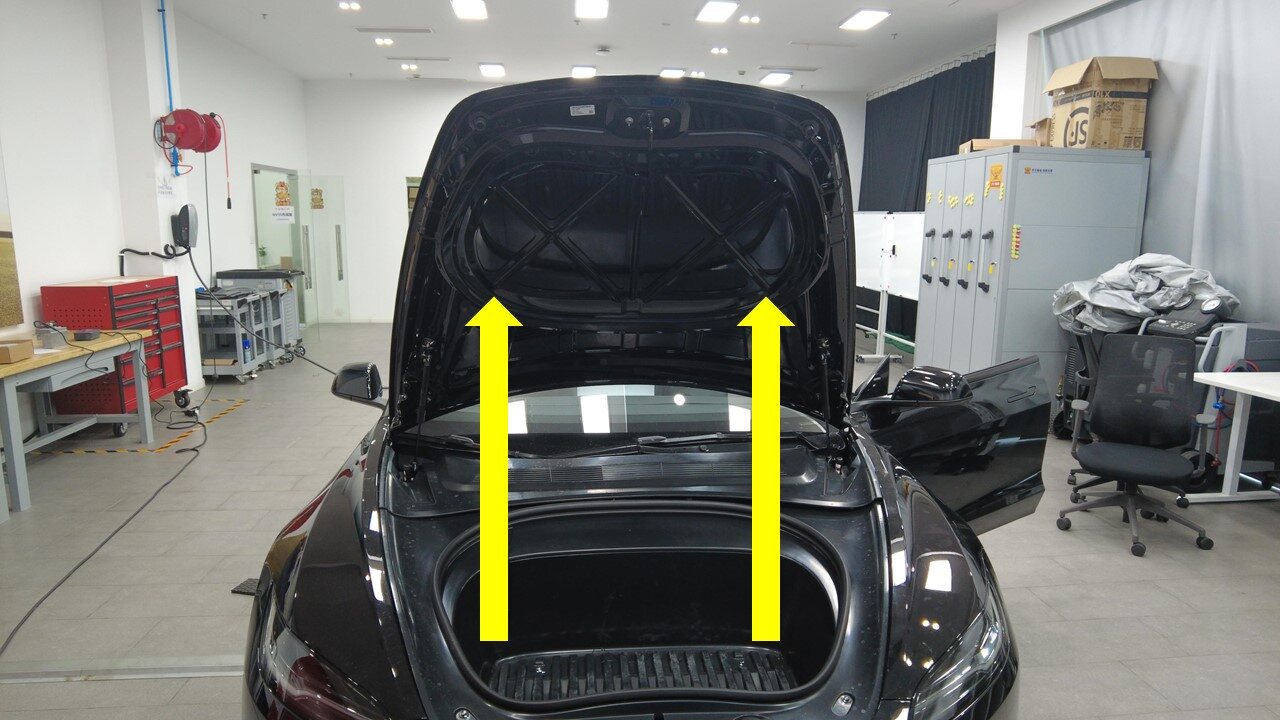

5. Open hood

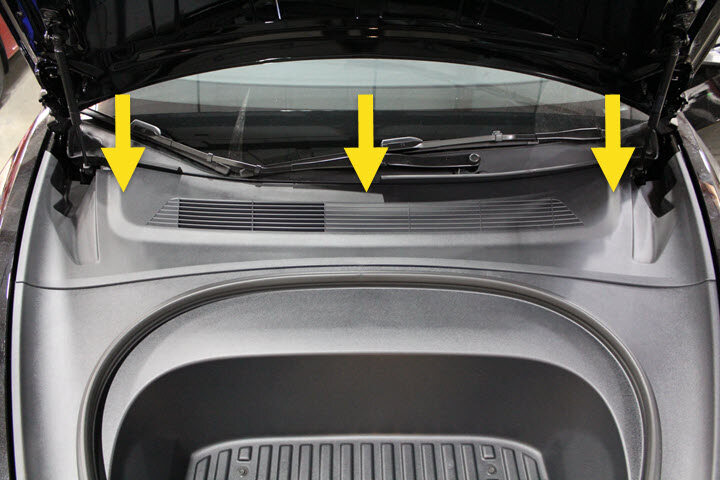

6. Remove rear underhood apron

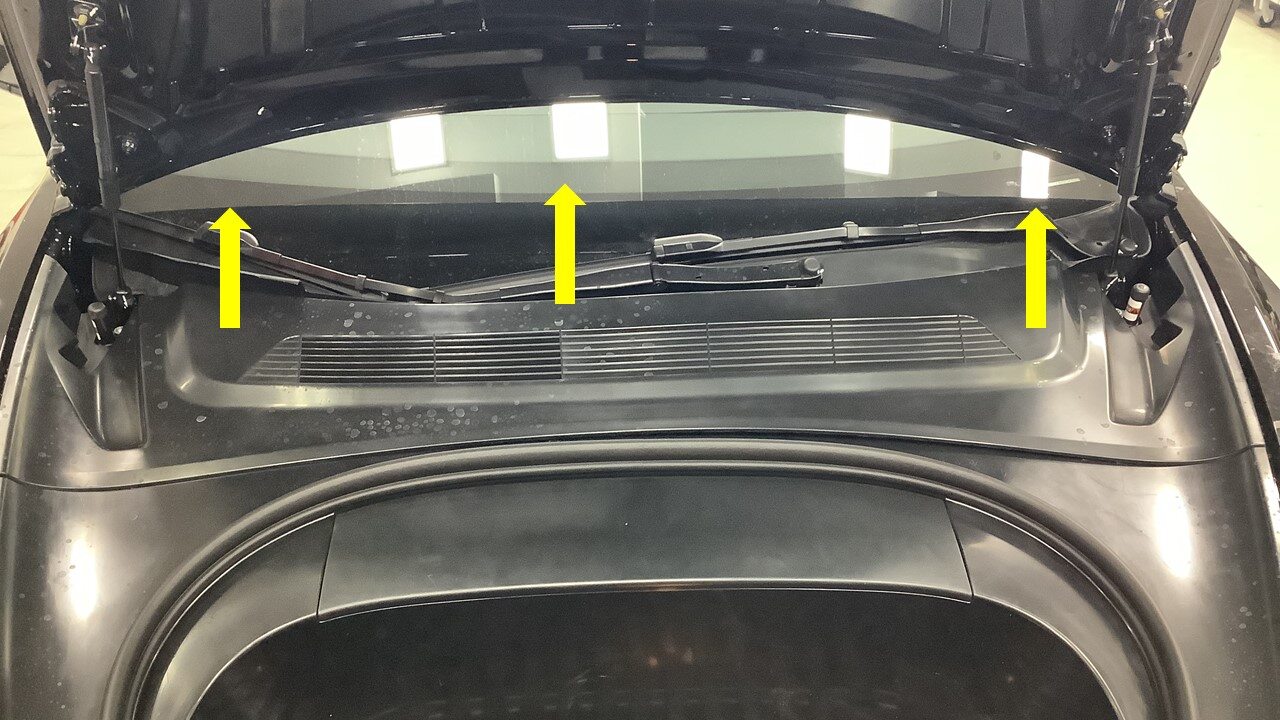

   注

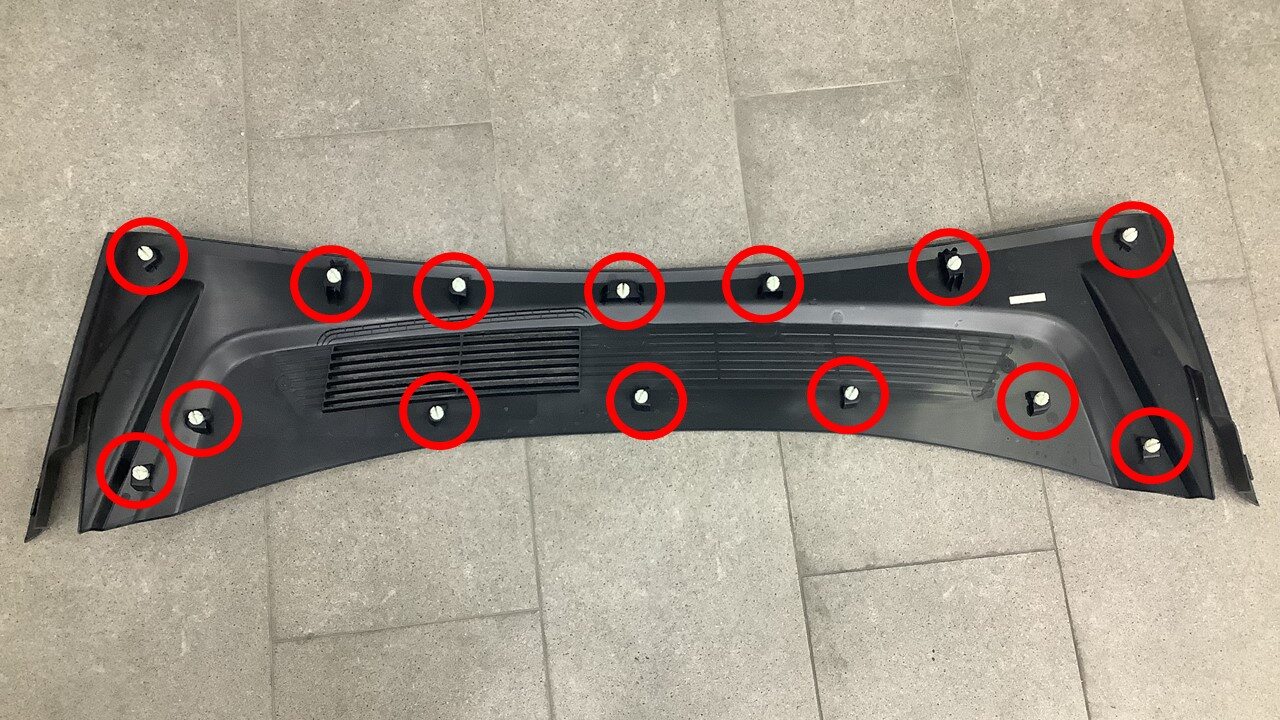

   14x clips

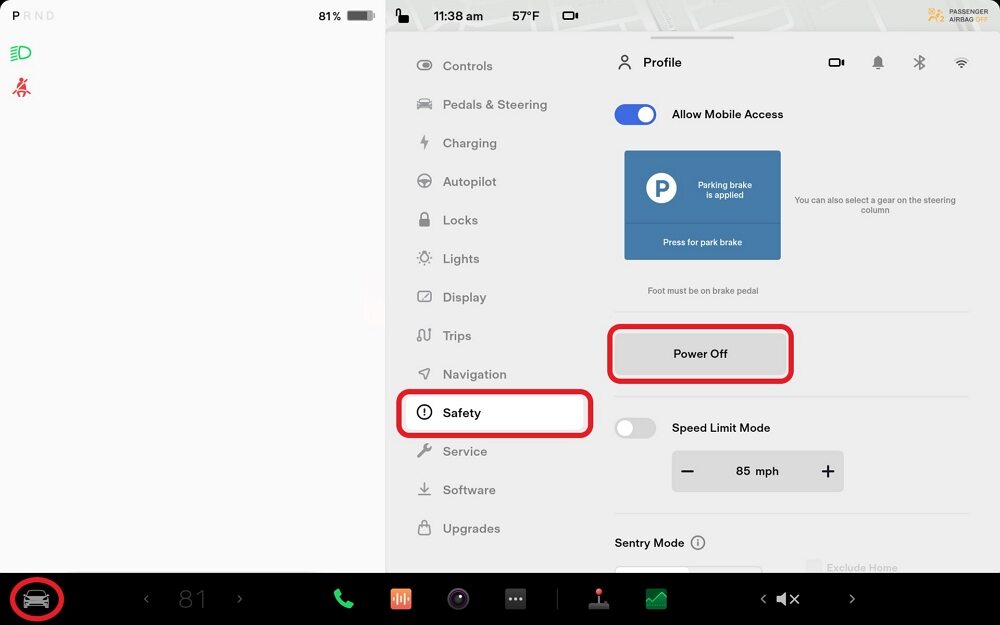

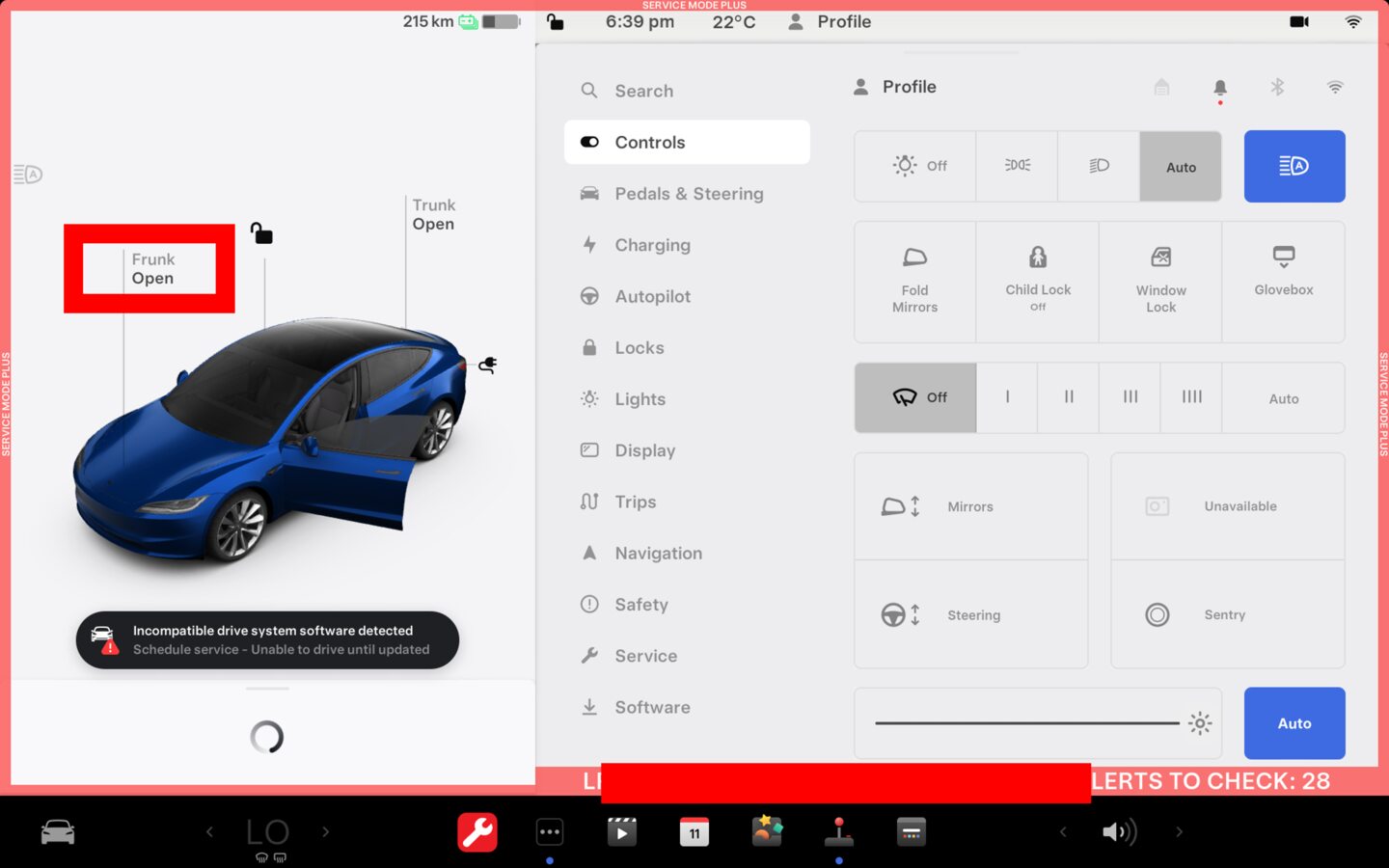

7. Power off vehicle from center display
   注

   Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

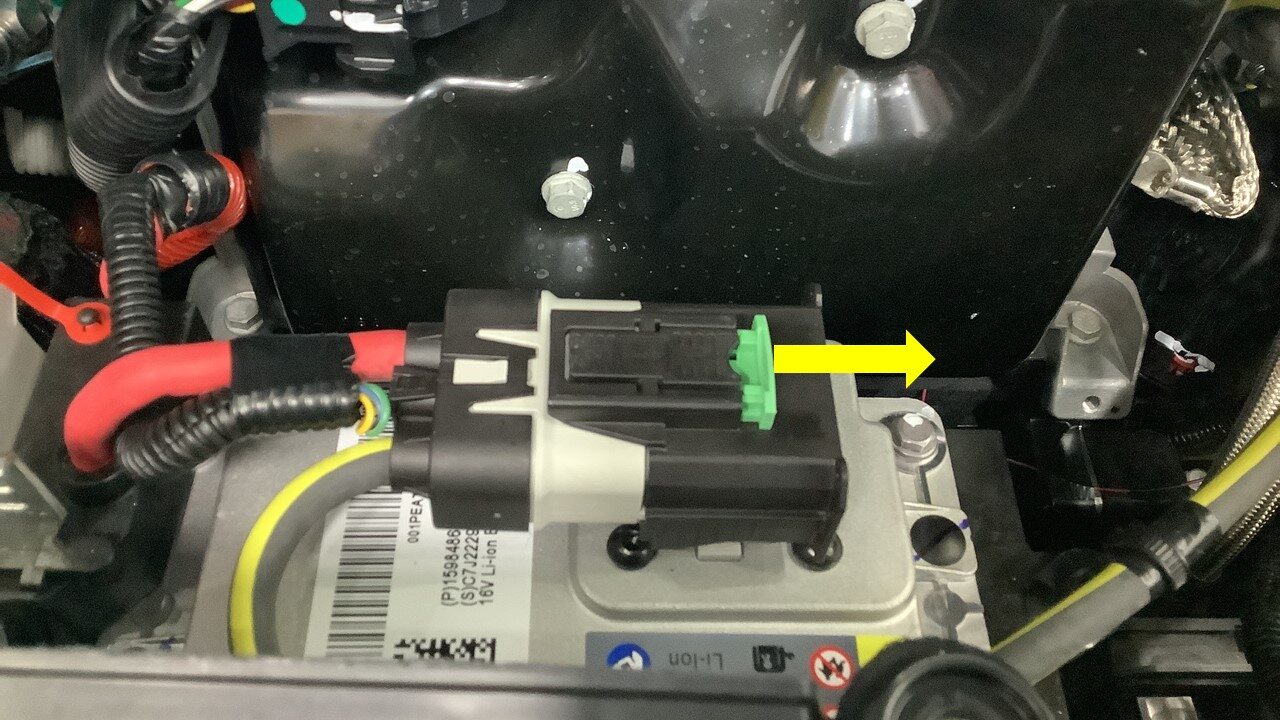

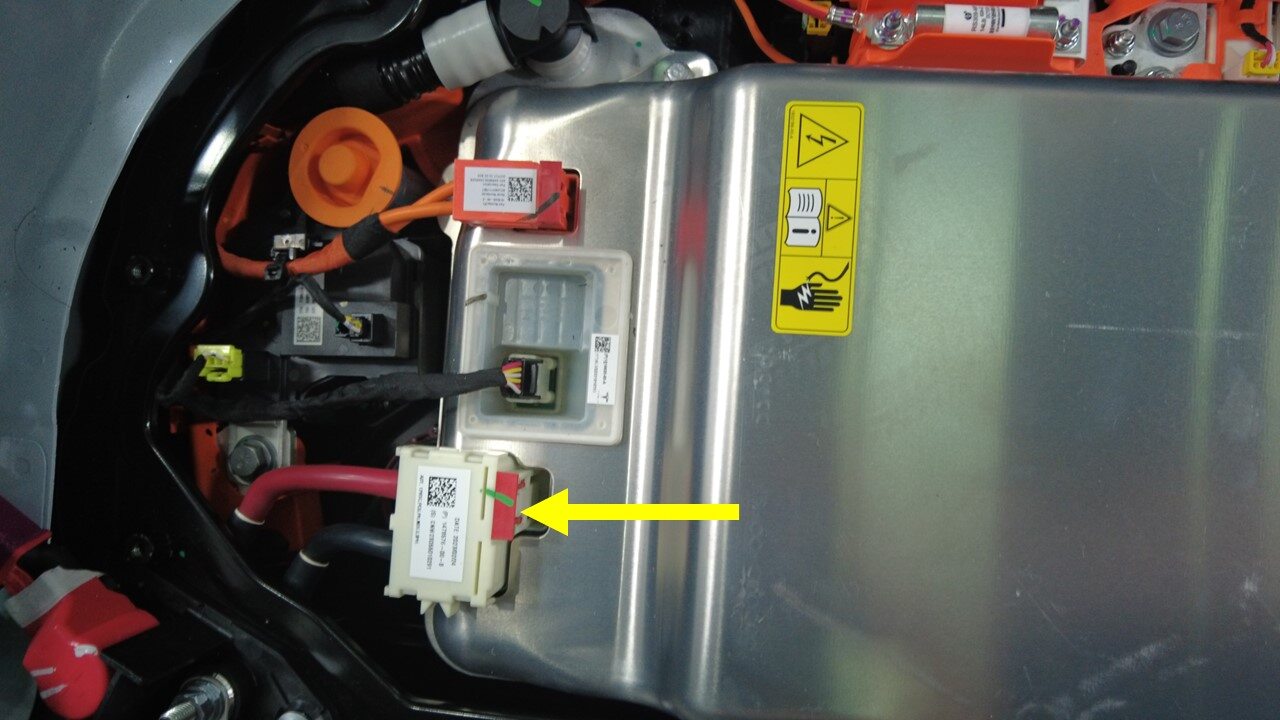

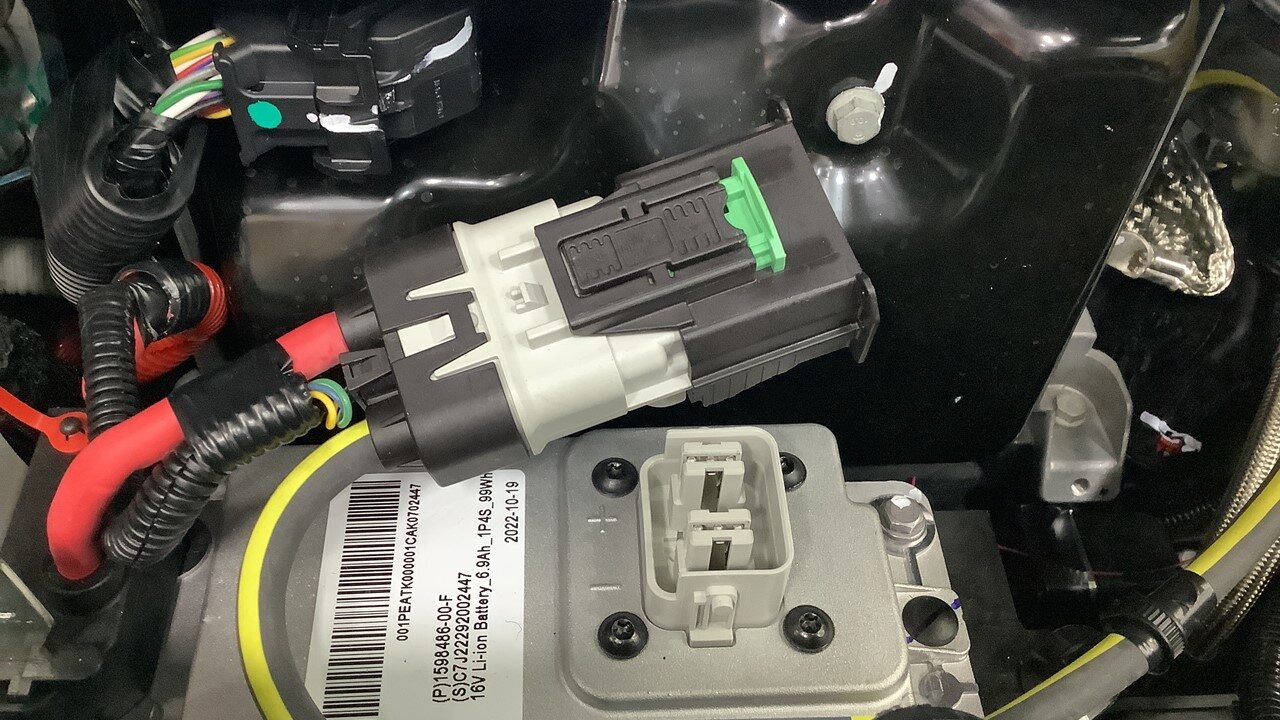

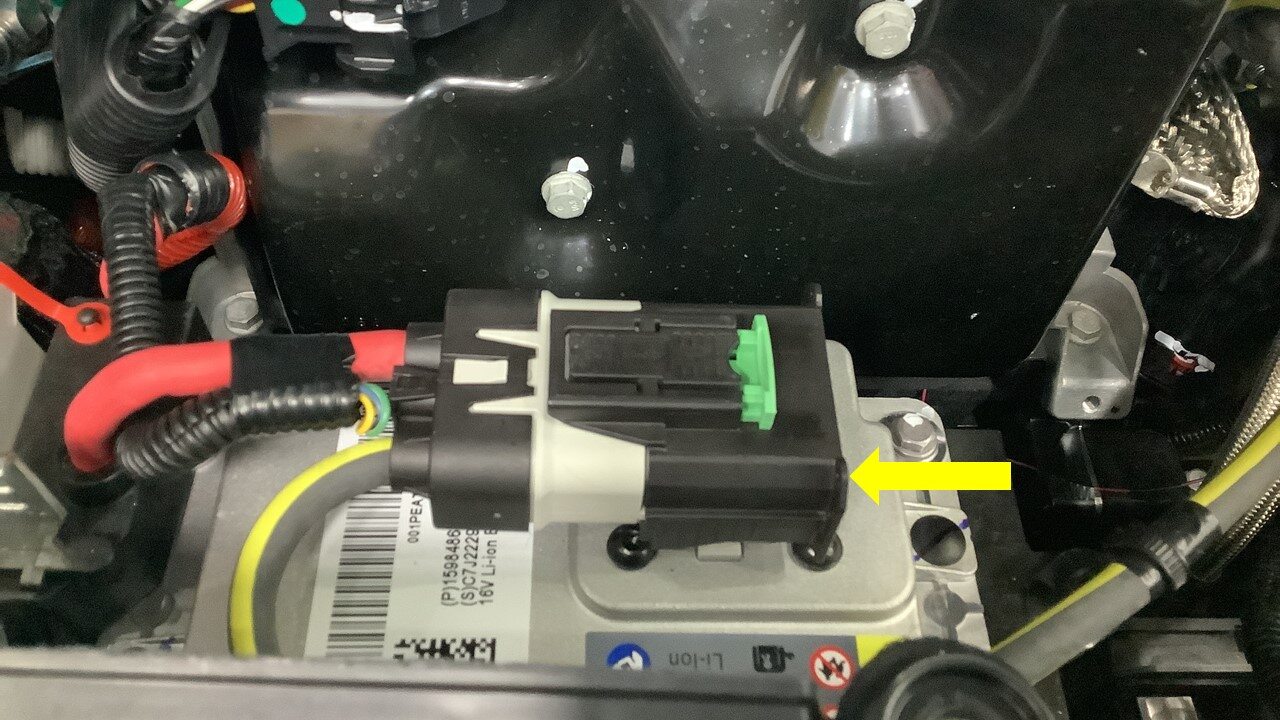

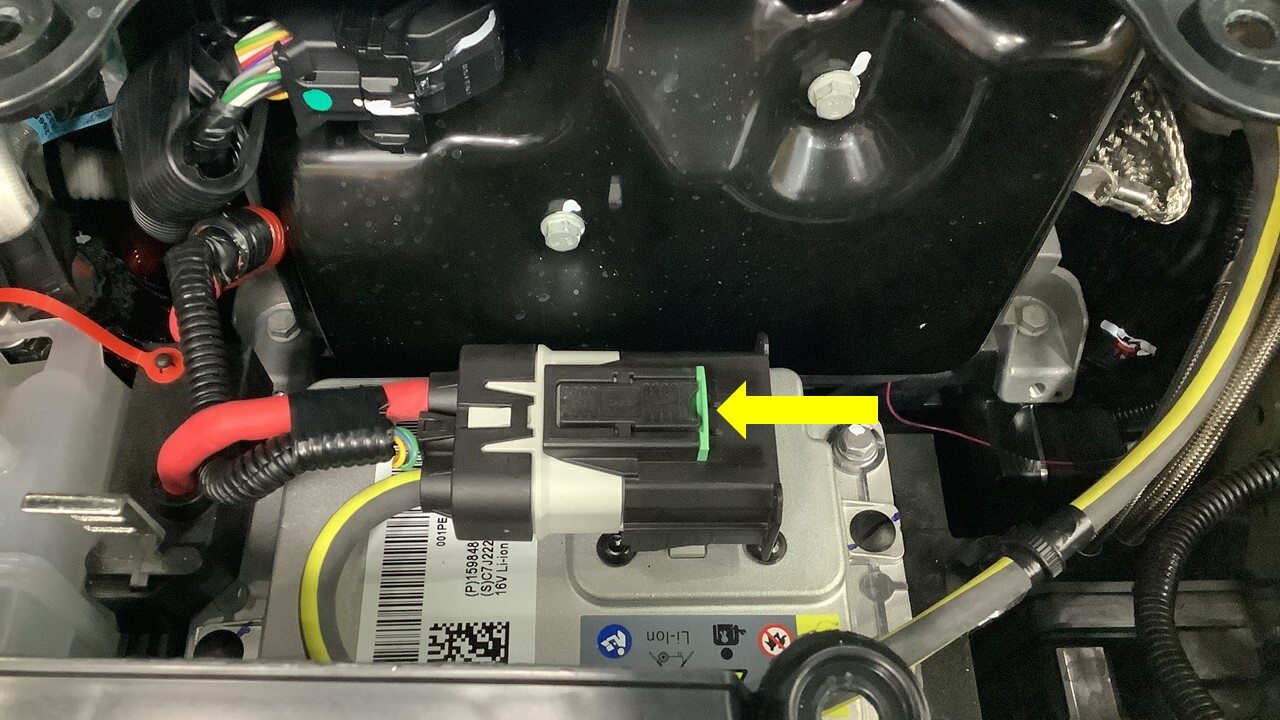

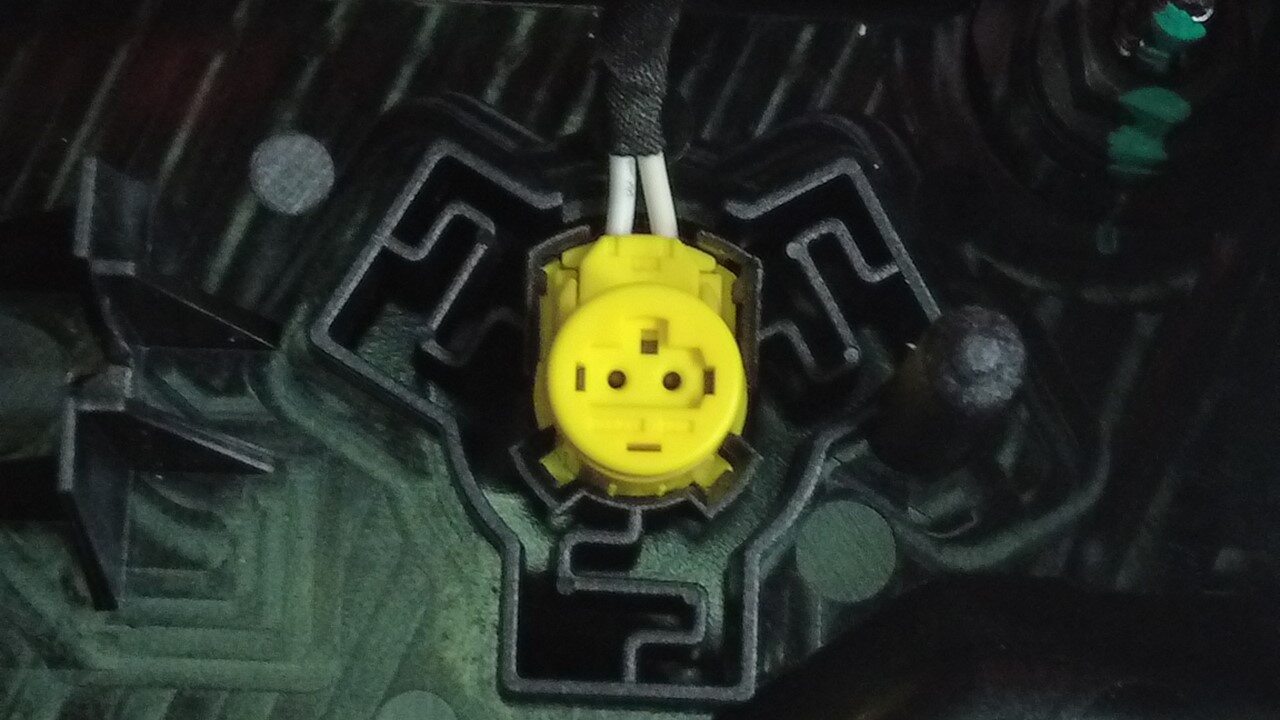

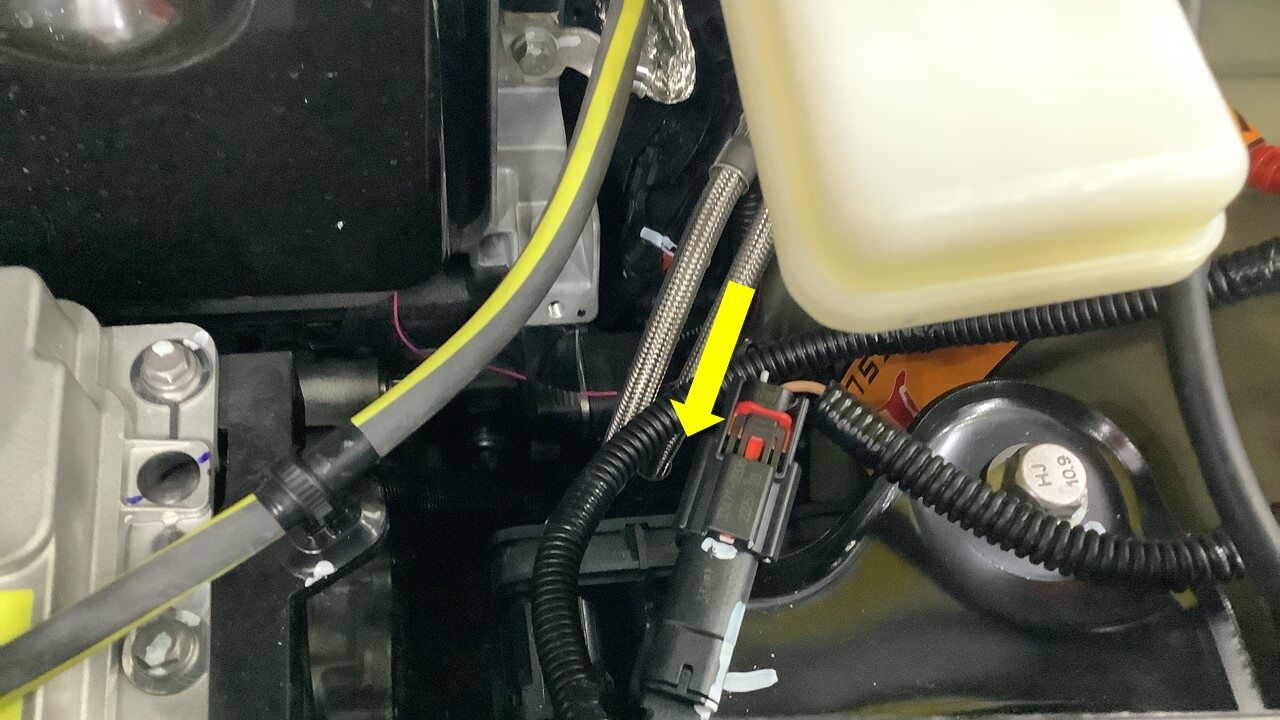

8. Disconnect LV battery and first responder loop
   注

   2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

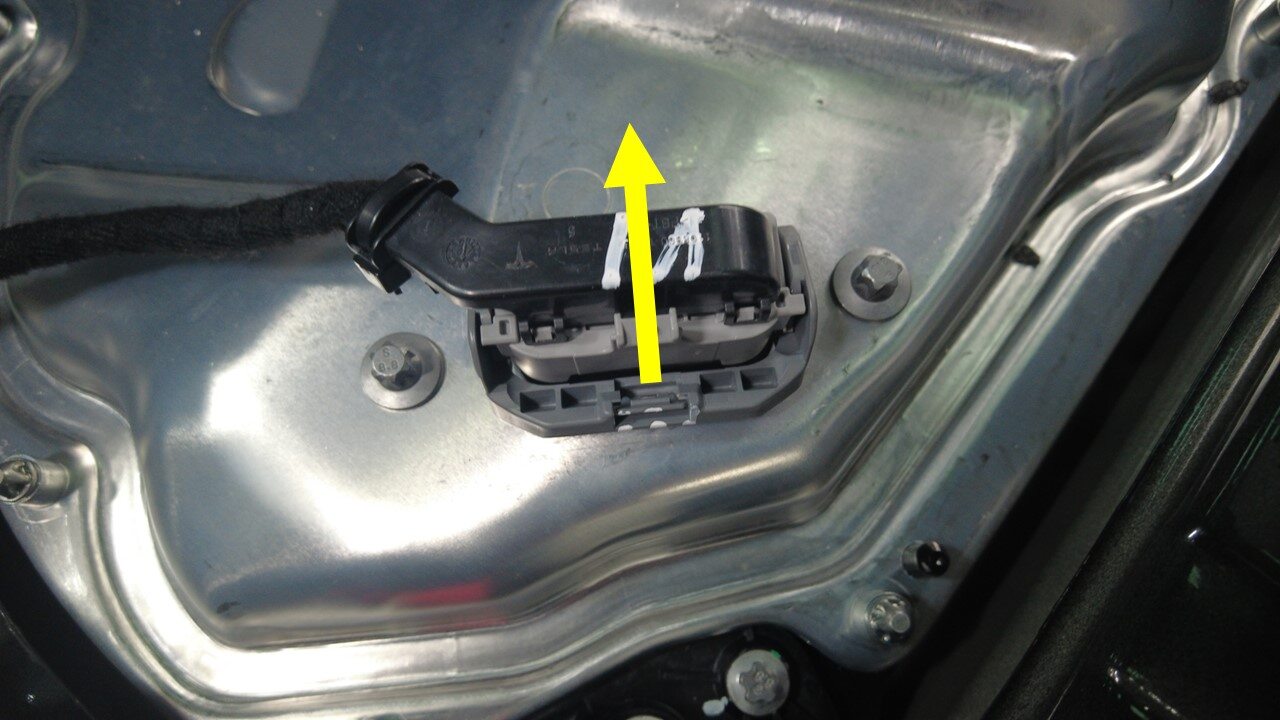

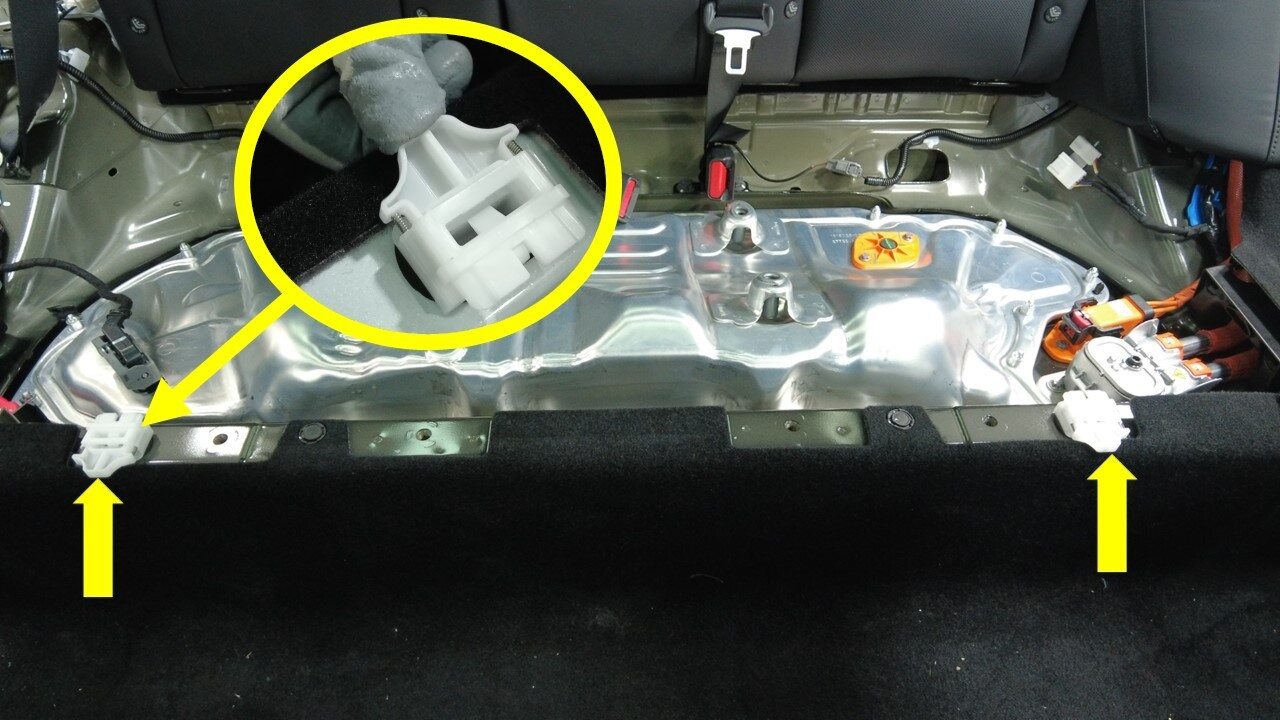

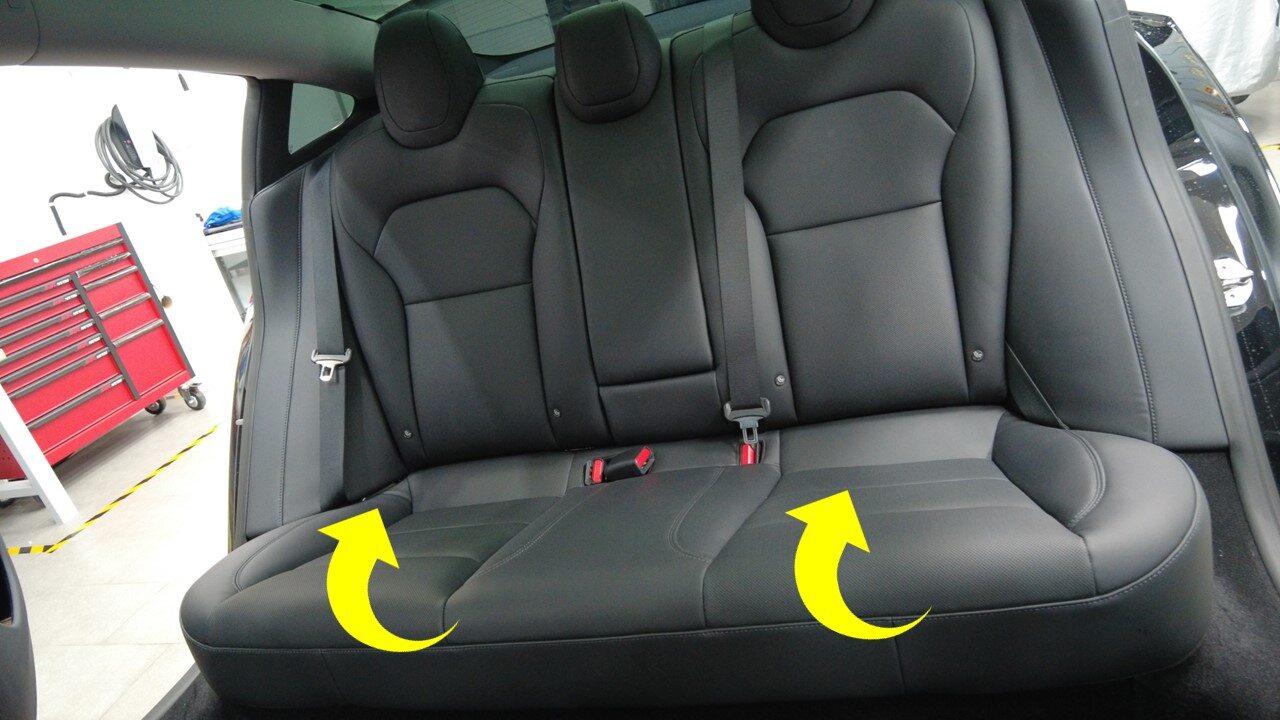

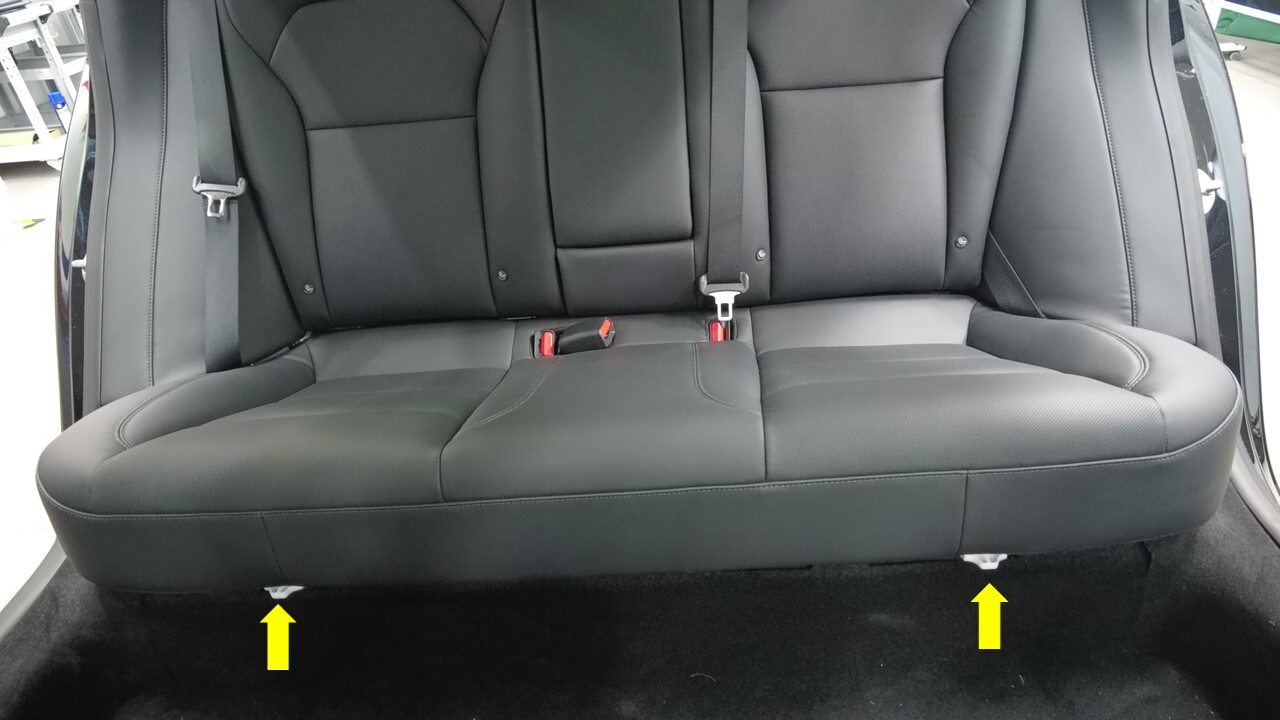

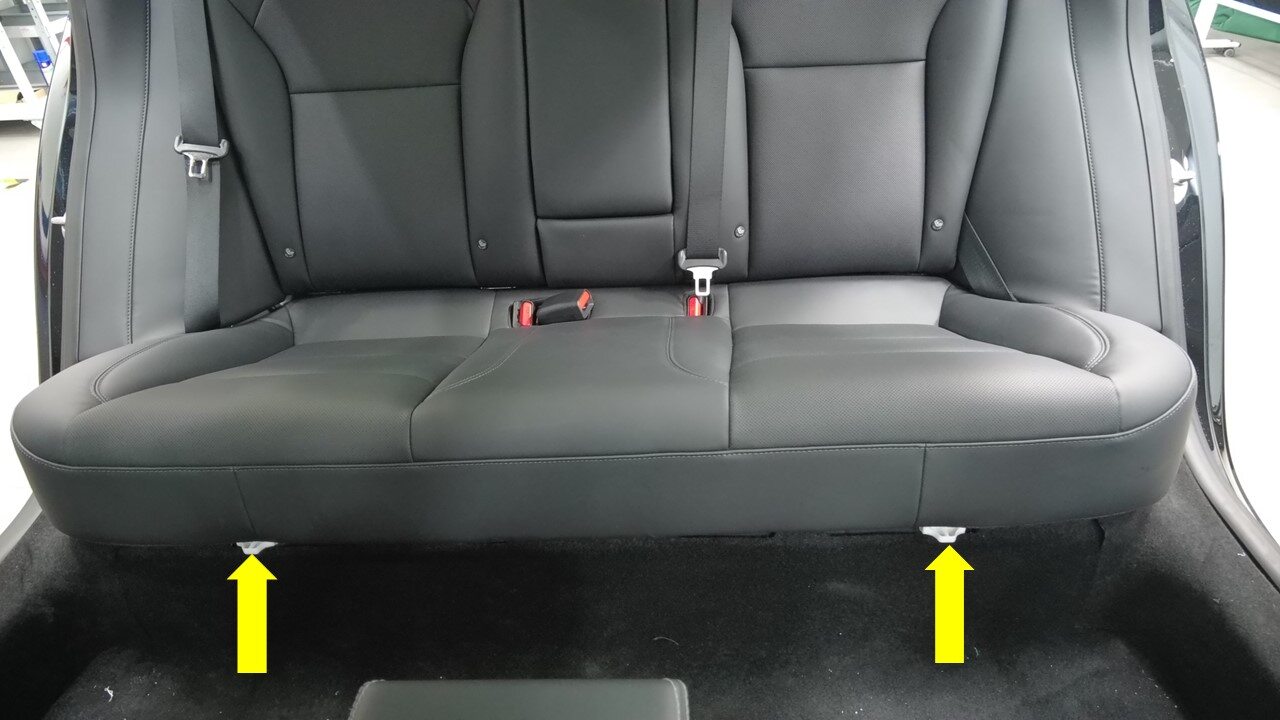

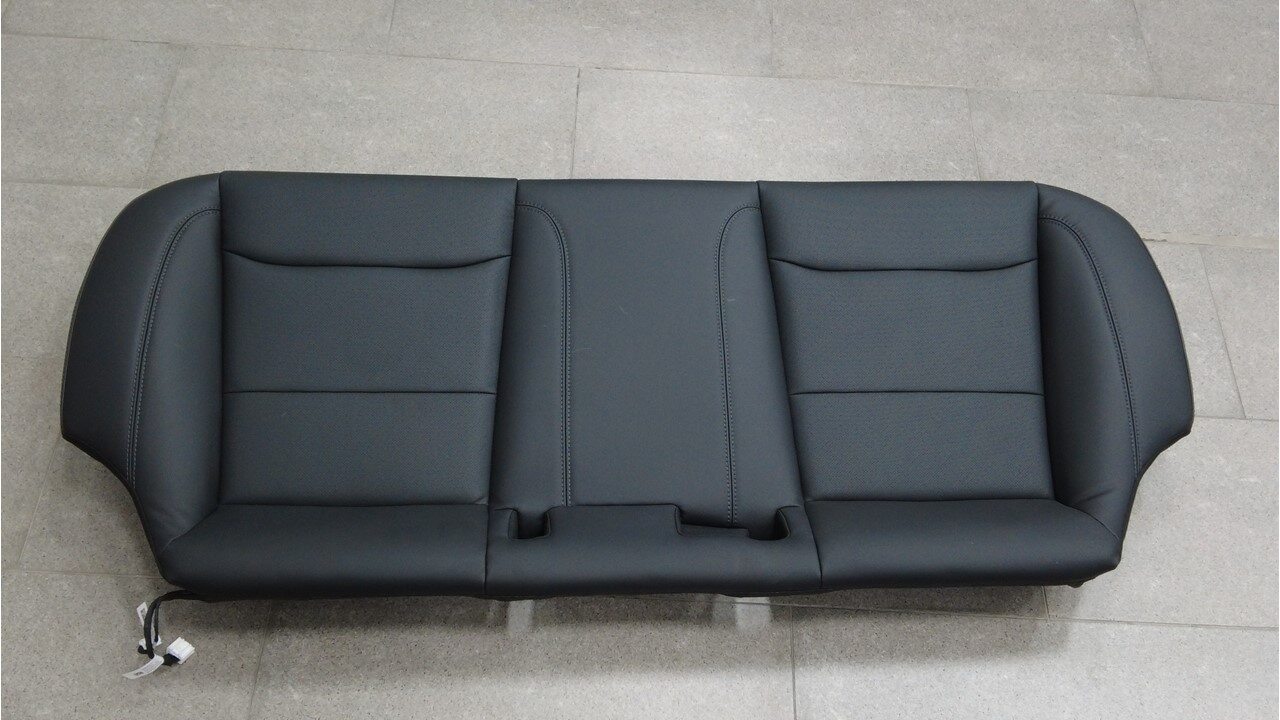

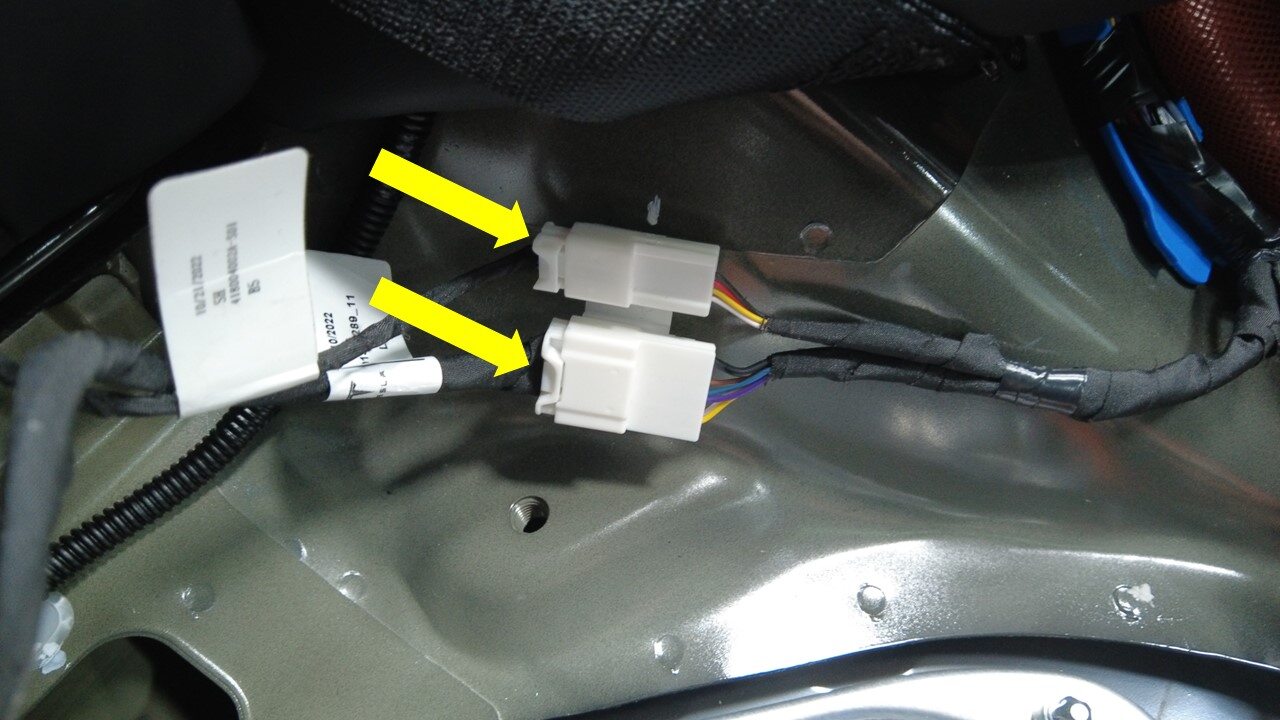

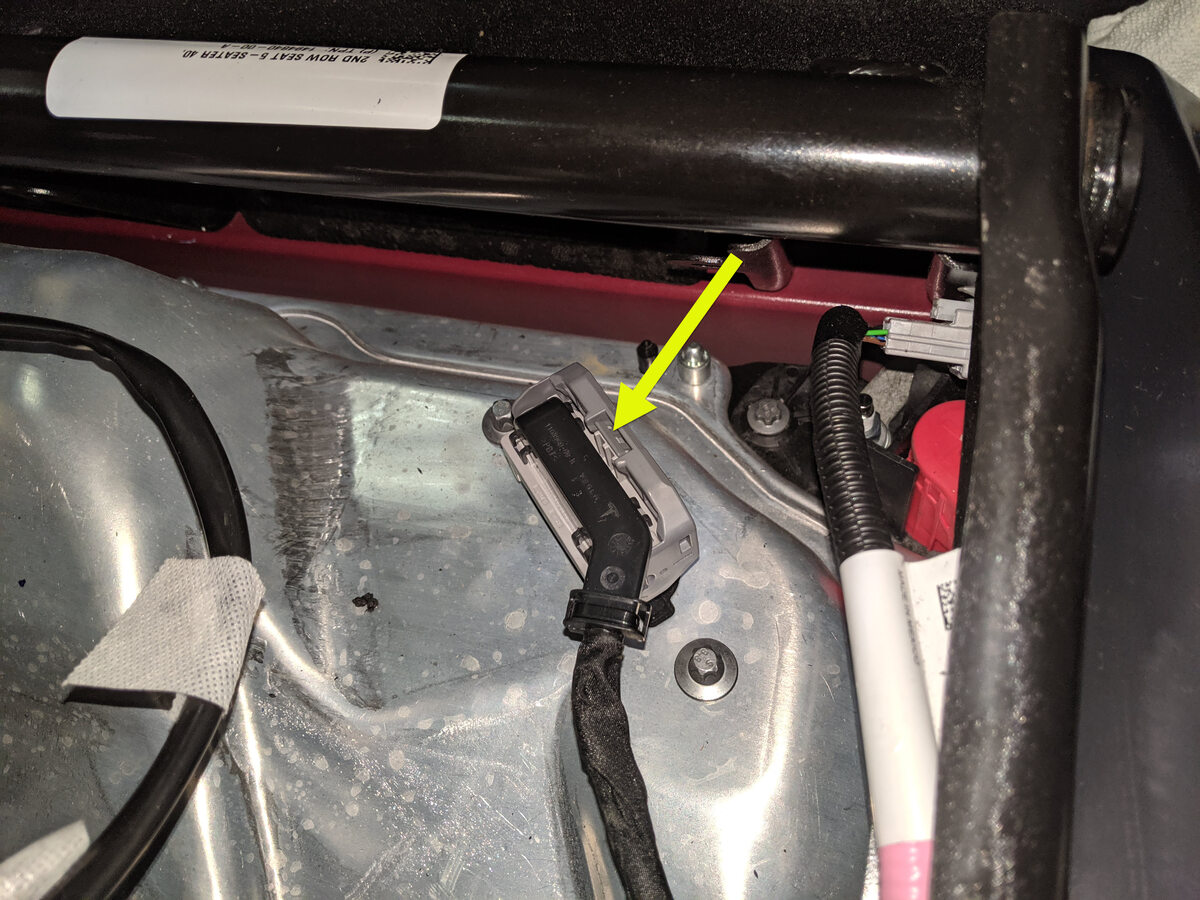

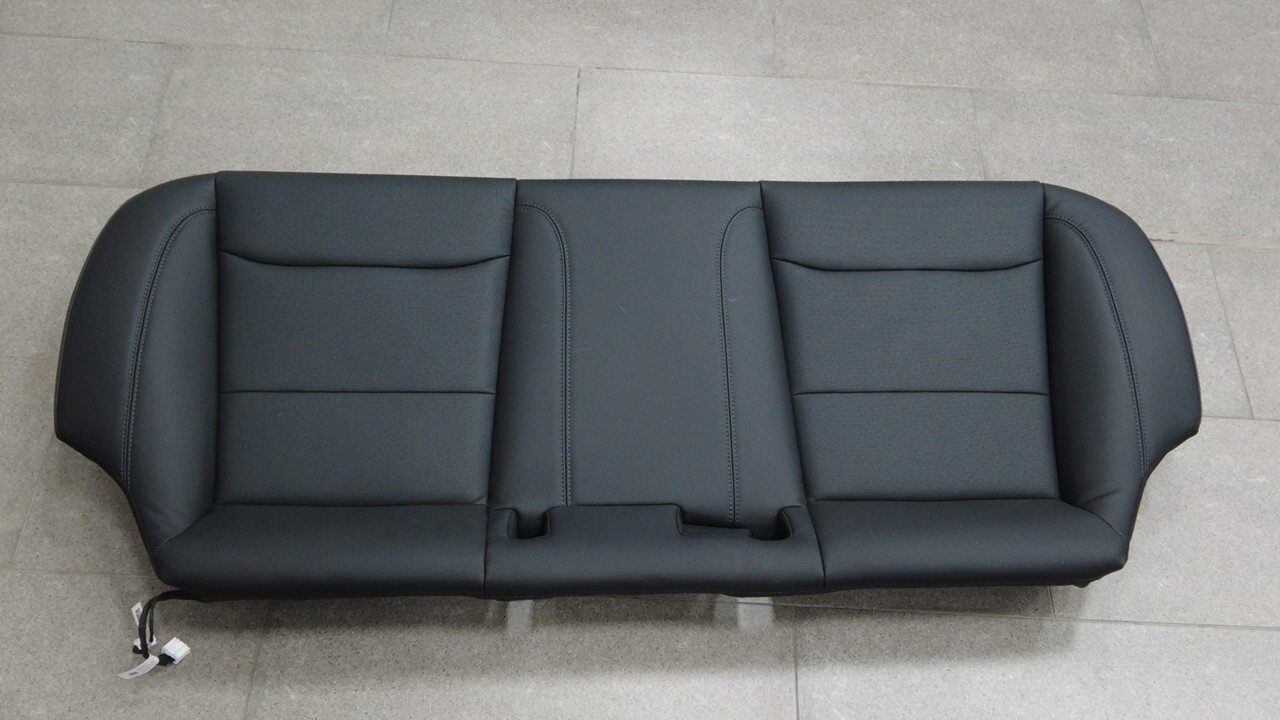

9. Release 2nd row seat cushion and disconnect harness connectors
   注

   2x clips, 2x connectors, Press tabs backward then pull front edge up

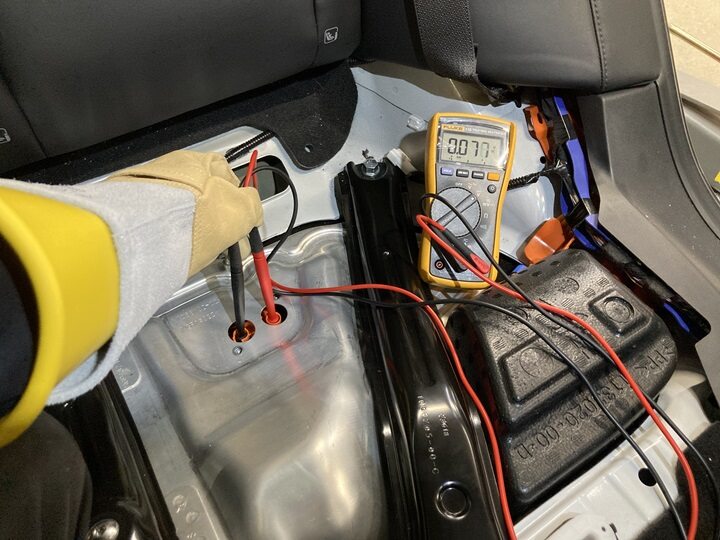

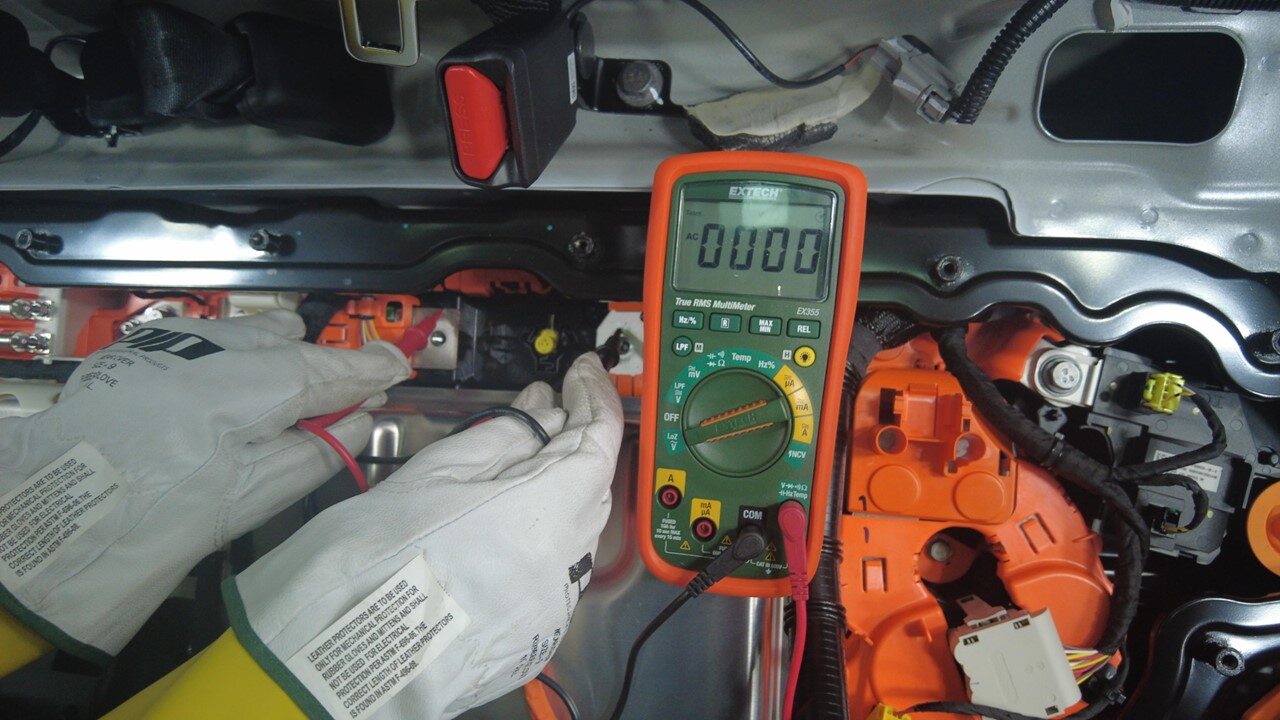

10. Verify operation of multimeter
    注

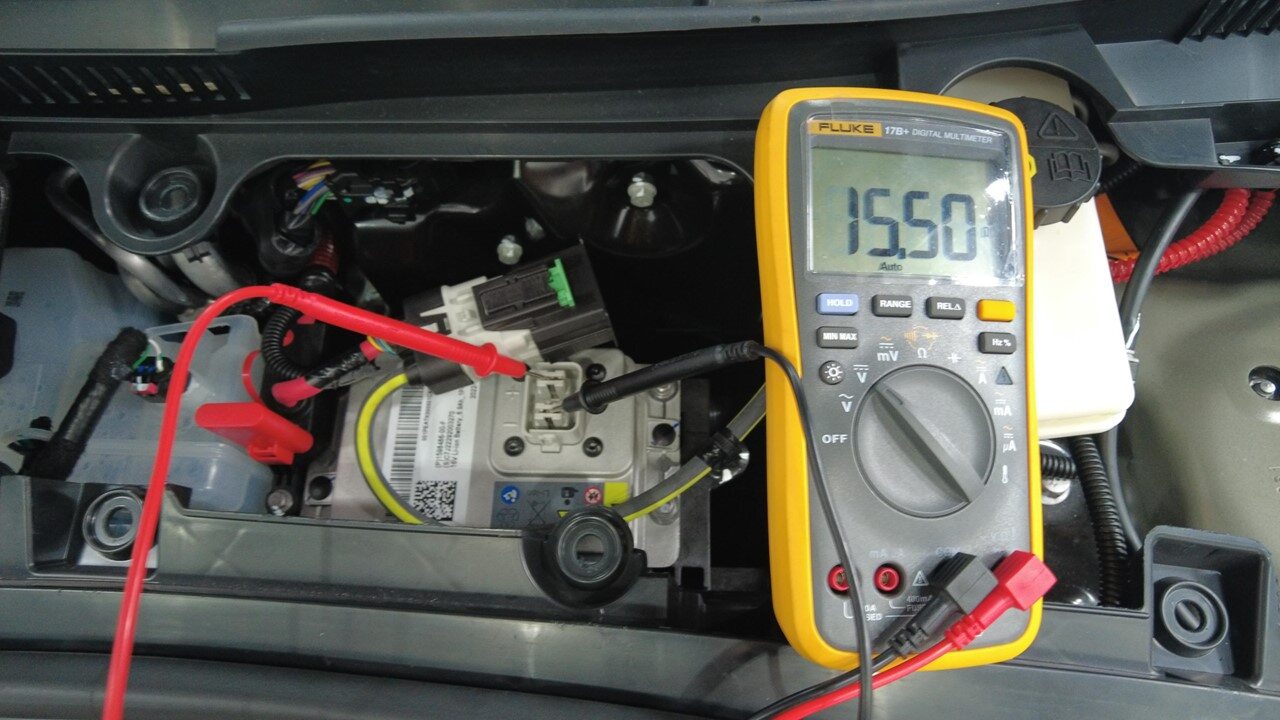

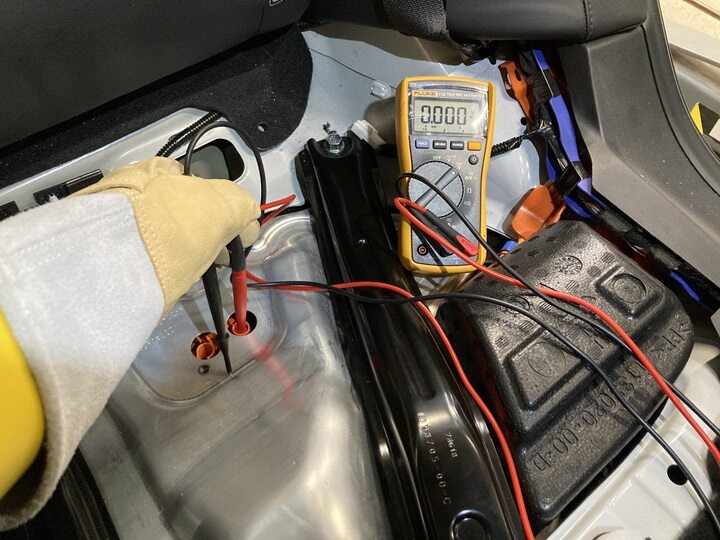

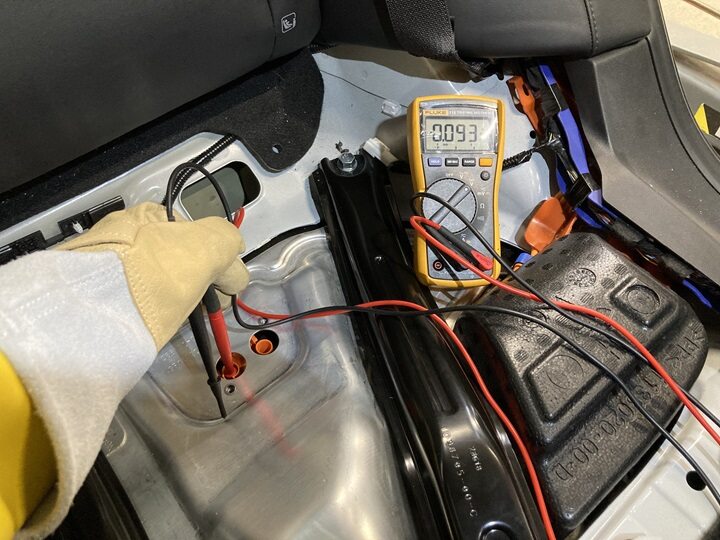

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery



11. Remove all items from pockets and ensure not wearing metal items



12. Inspect HV insulating gloves
    注

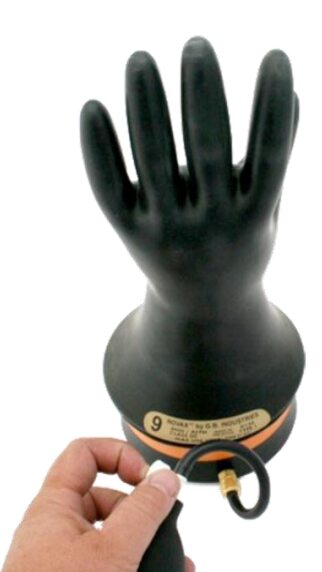

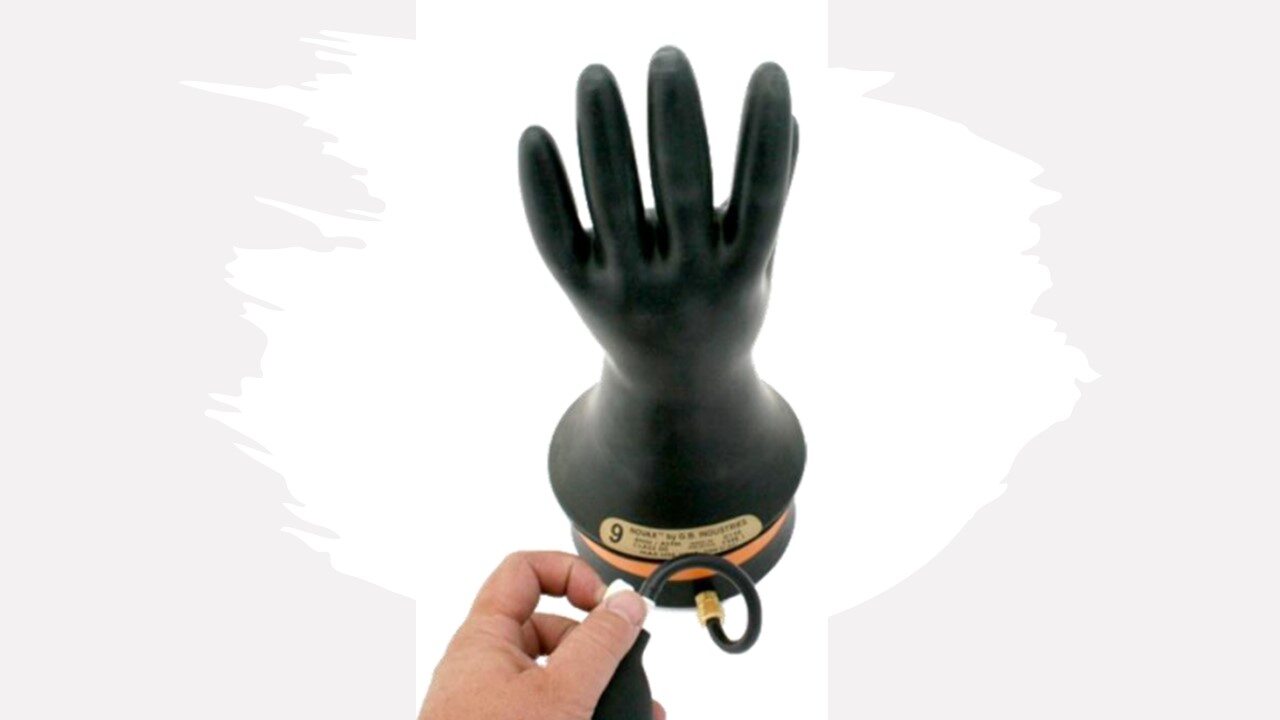

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

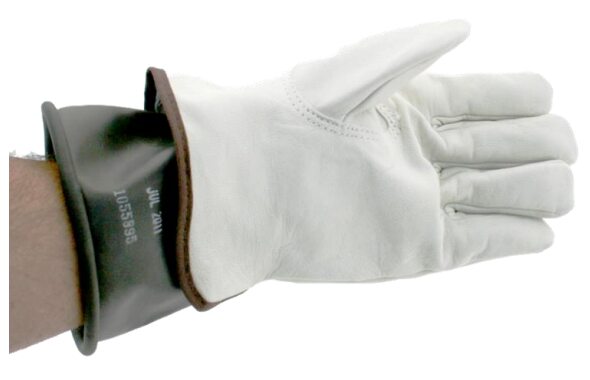

13. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear electrical protective gloves any time Hioki tester is used

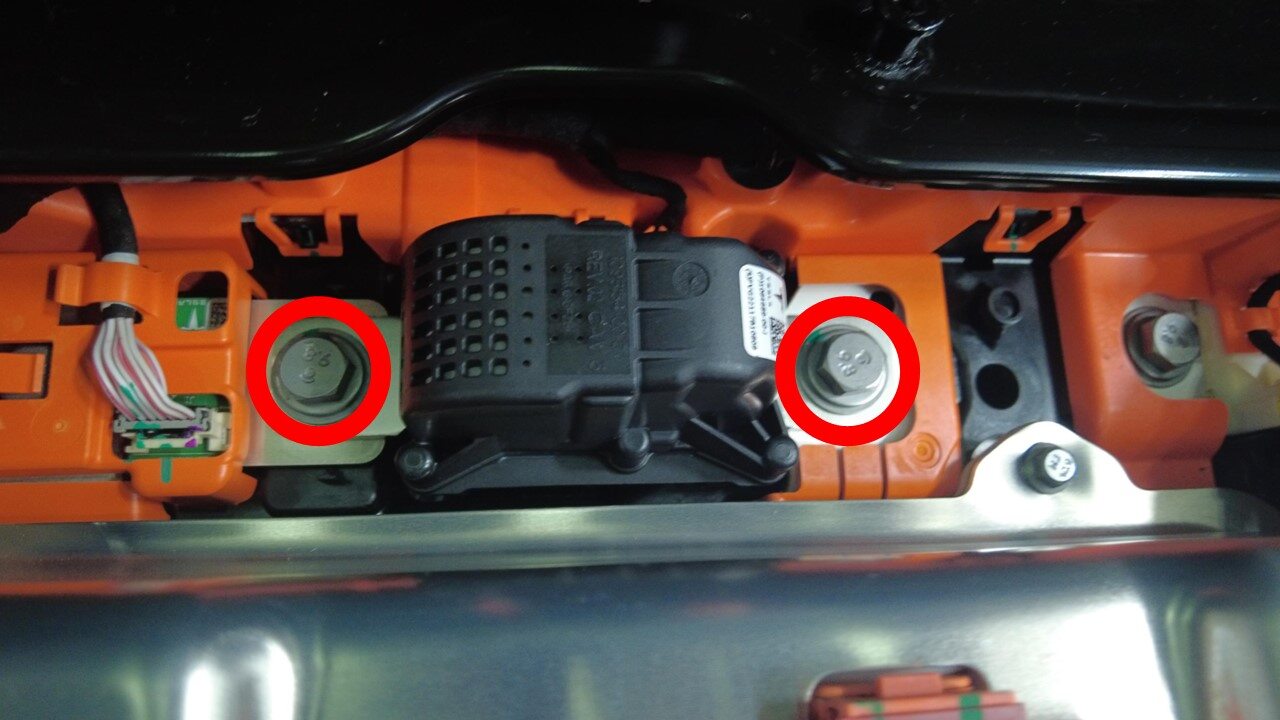

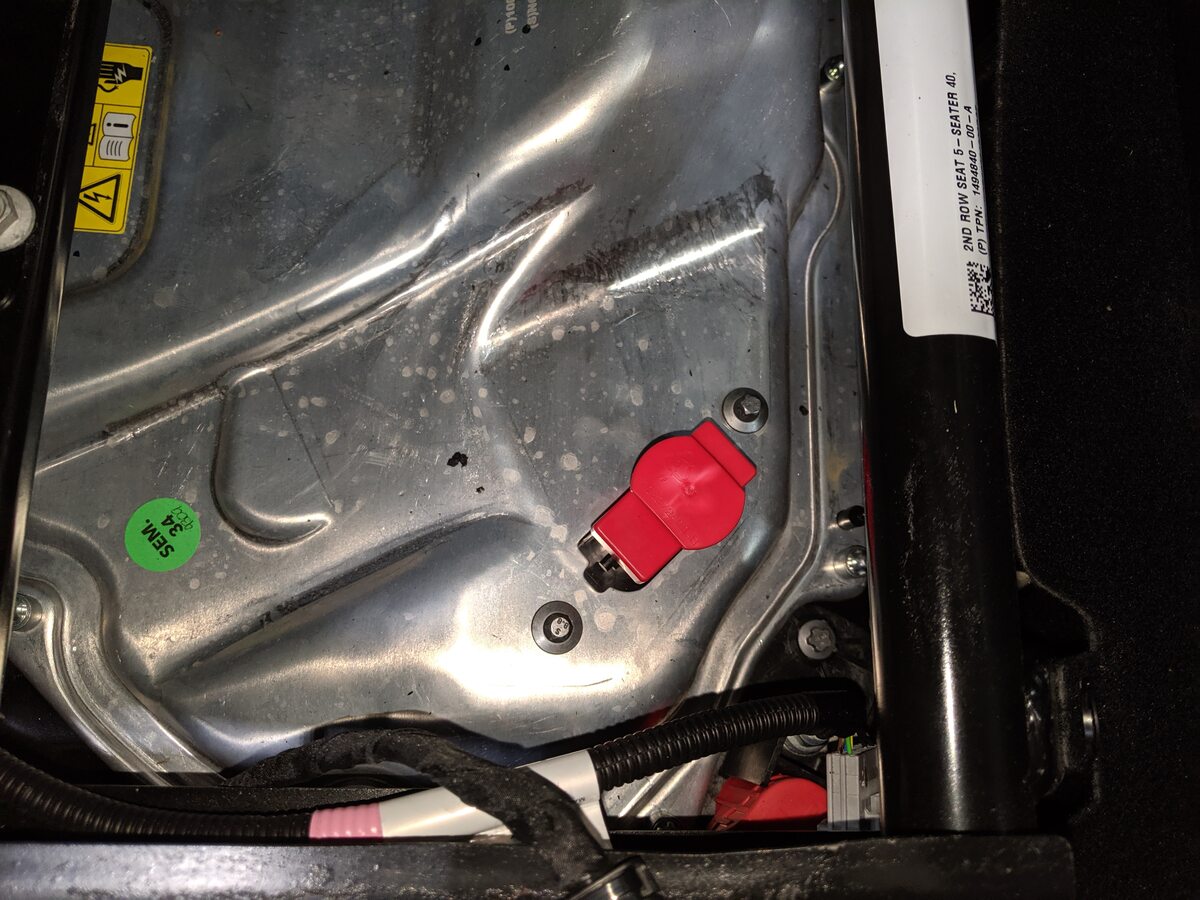

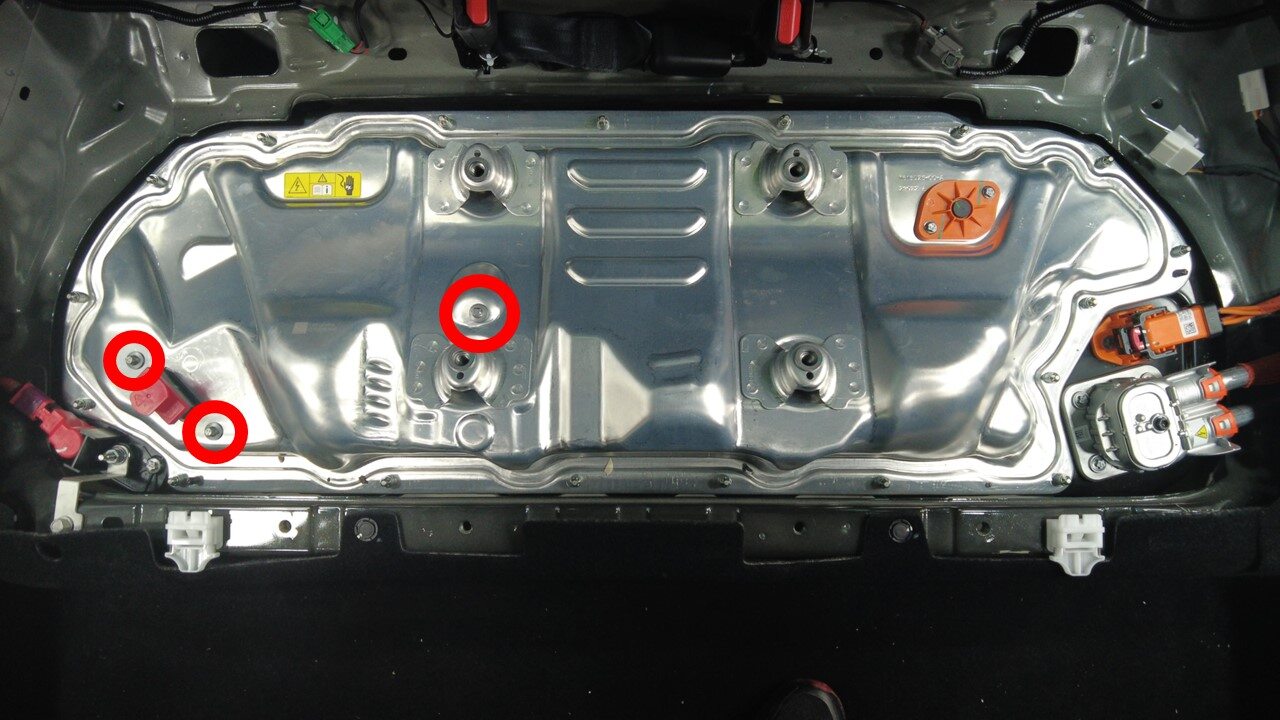

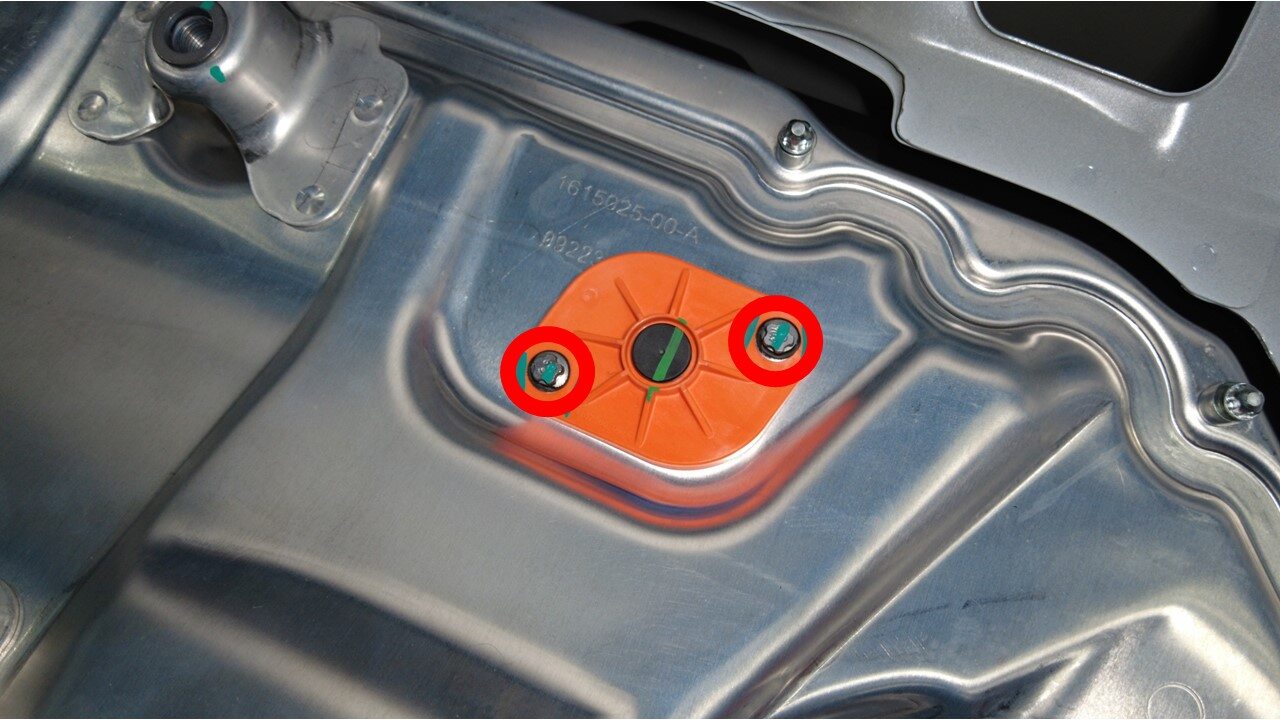

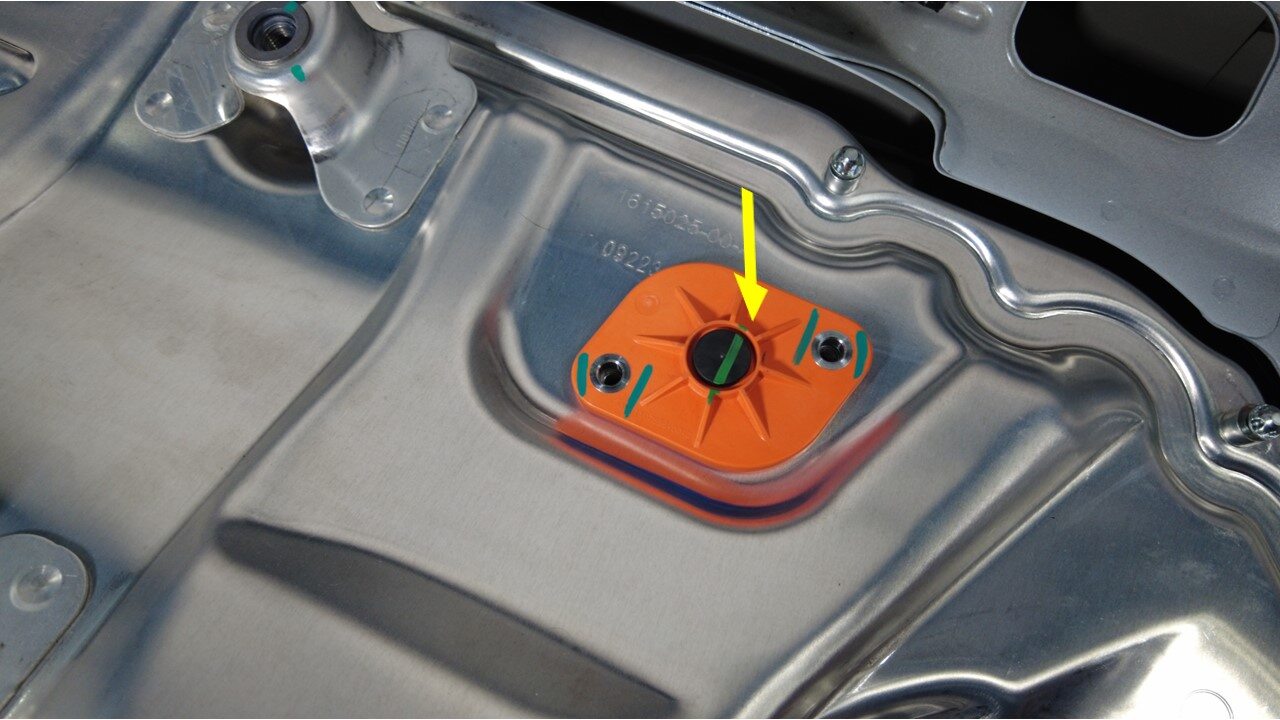

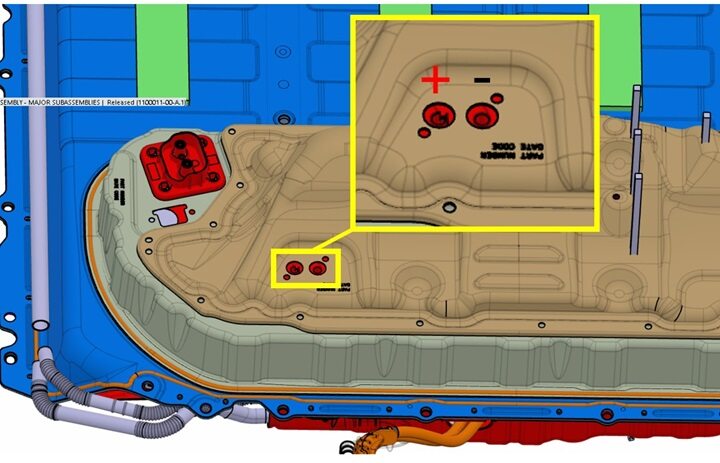

14. Remove bolts securing ancillary bay probe lid cover from ancillary bay cover

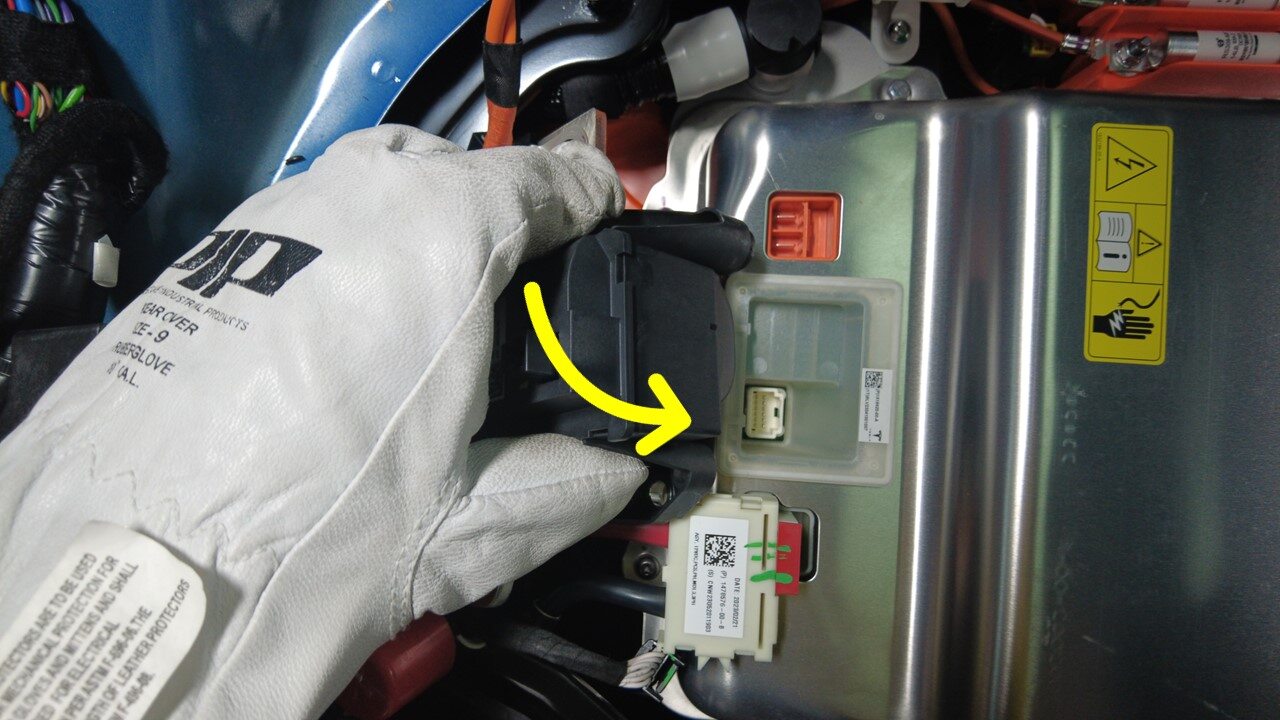

    注

    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal



15. Remove ancillary bay probe lid cover from ancillary bay cover

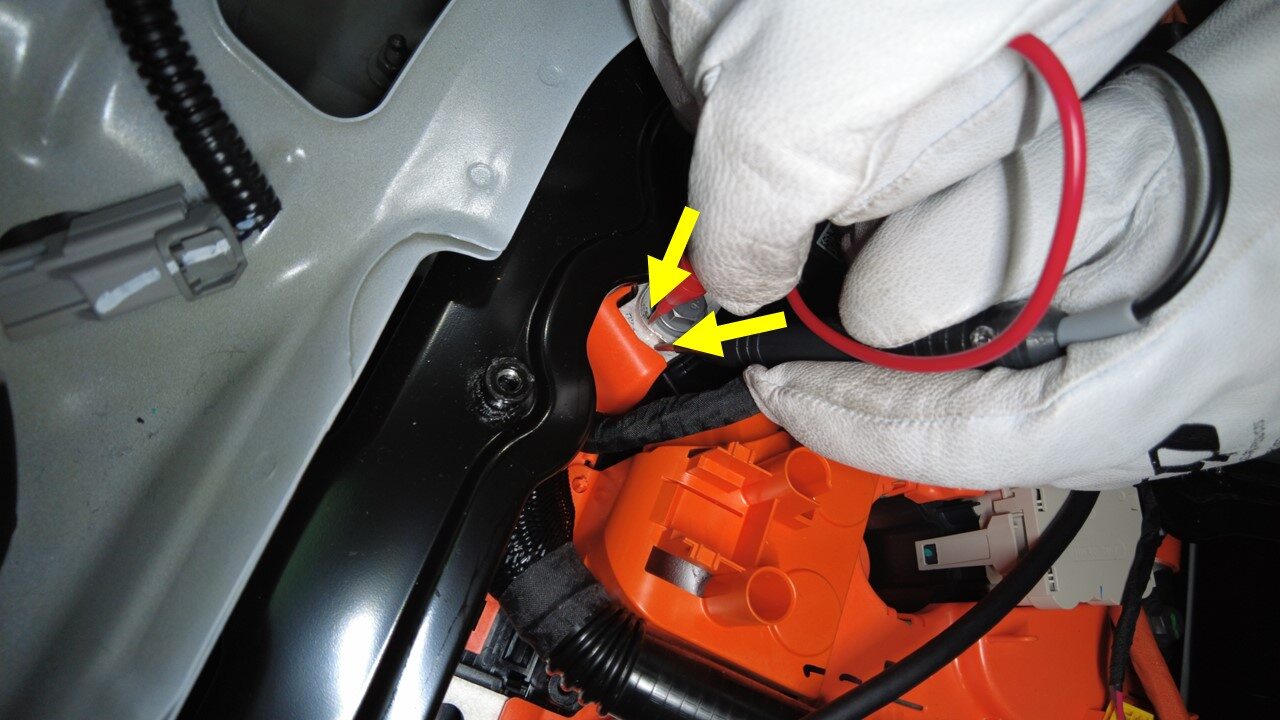

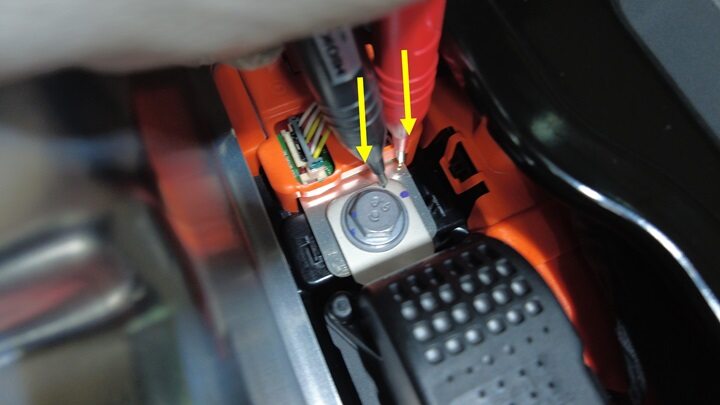

16. Verify no high voltage
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

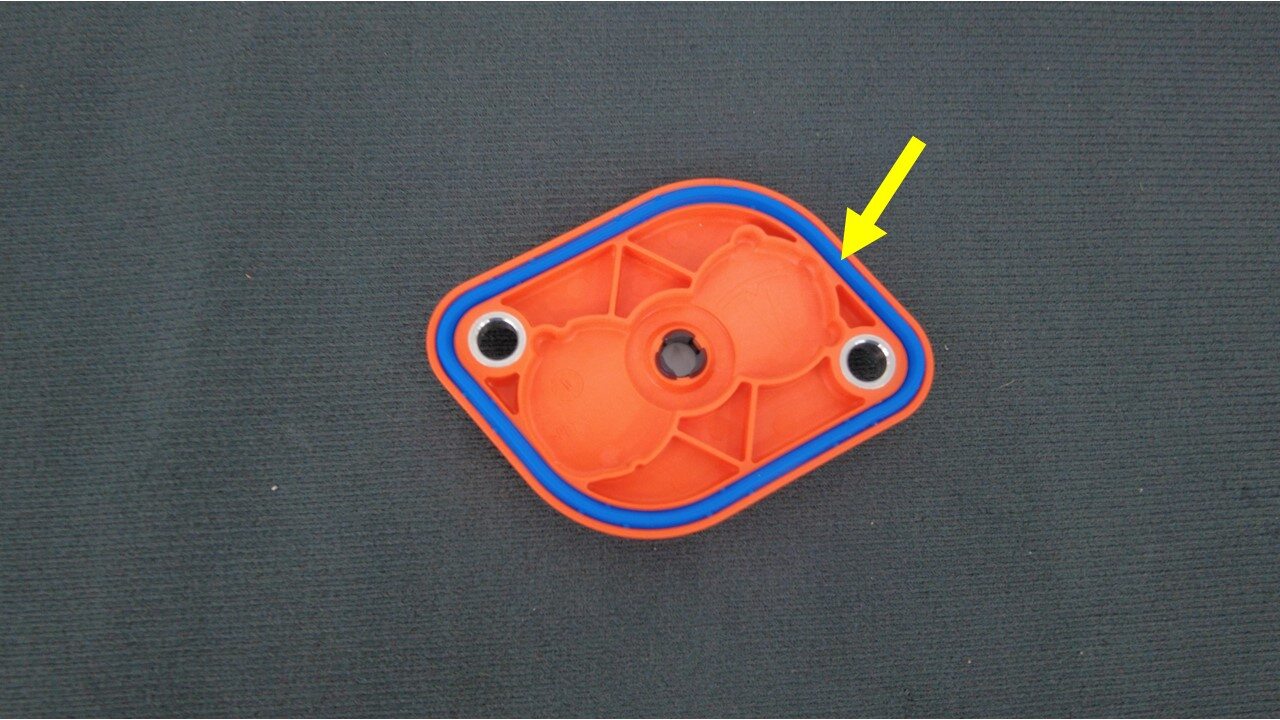

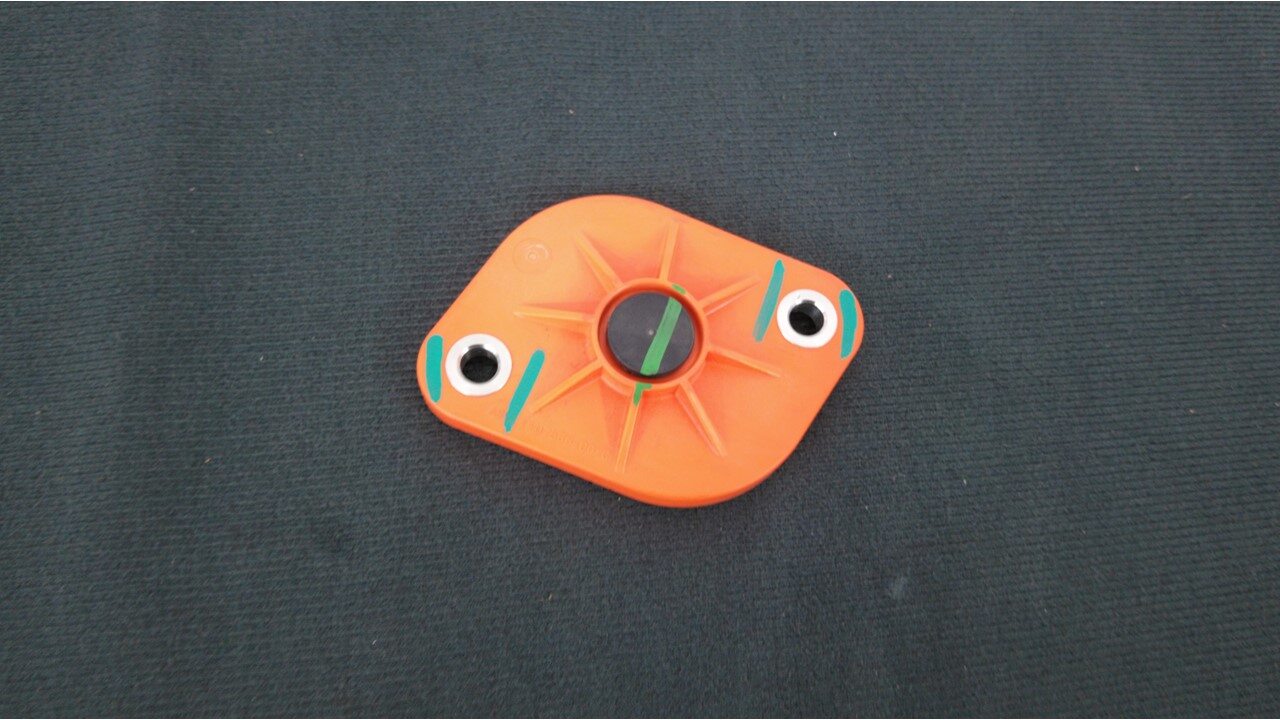

17. Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover
    注

    Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time





18. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Install new bolts



19. Remove HV insulating gloves

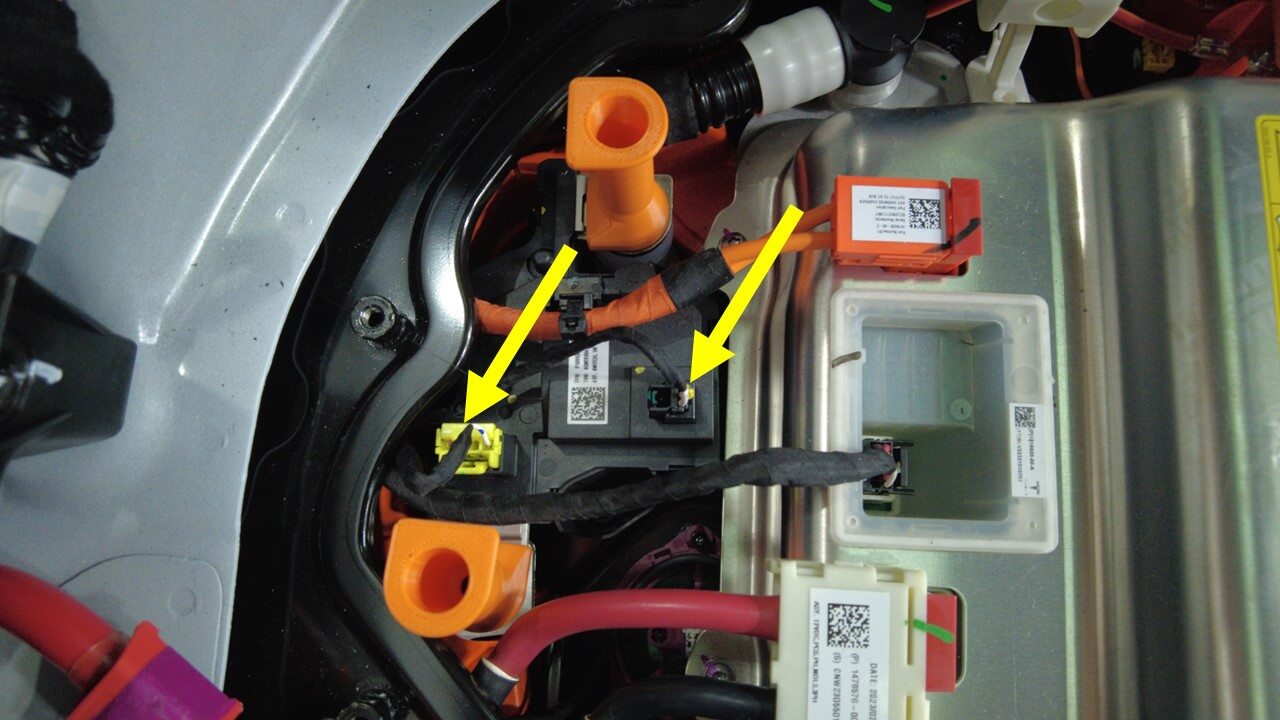

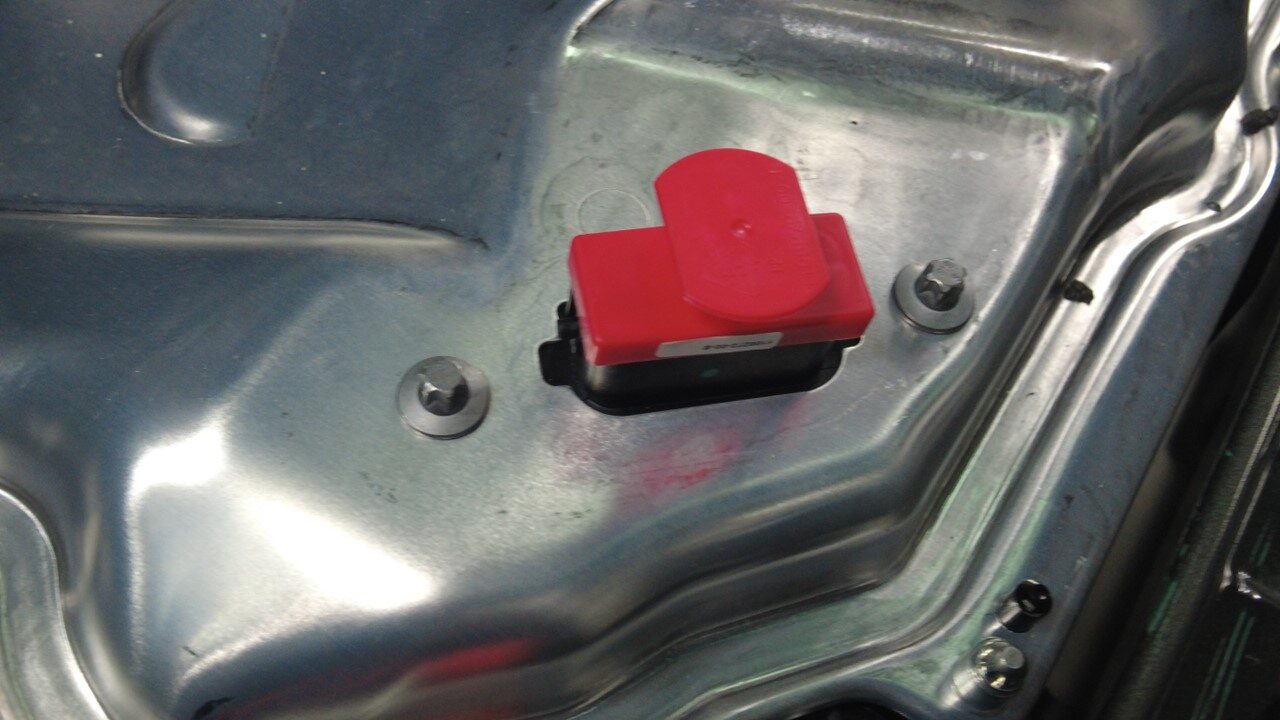

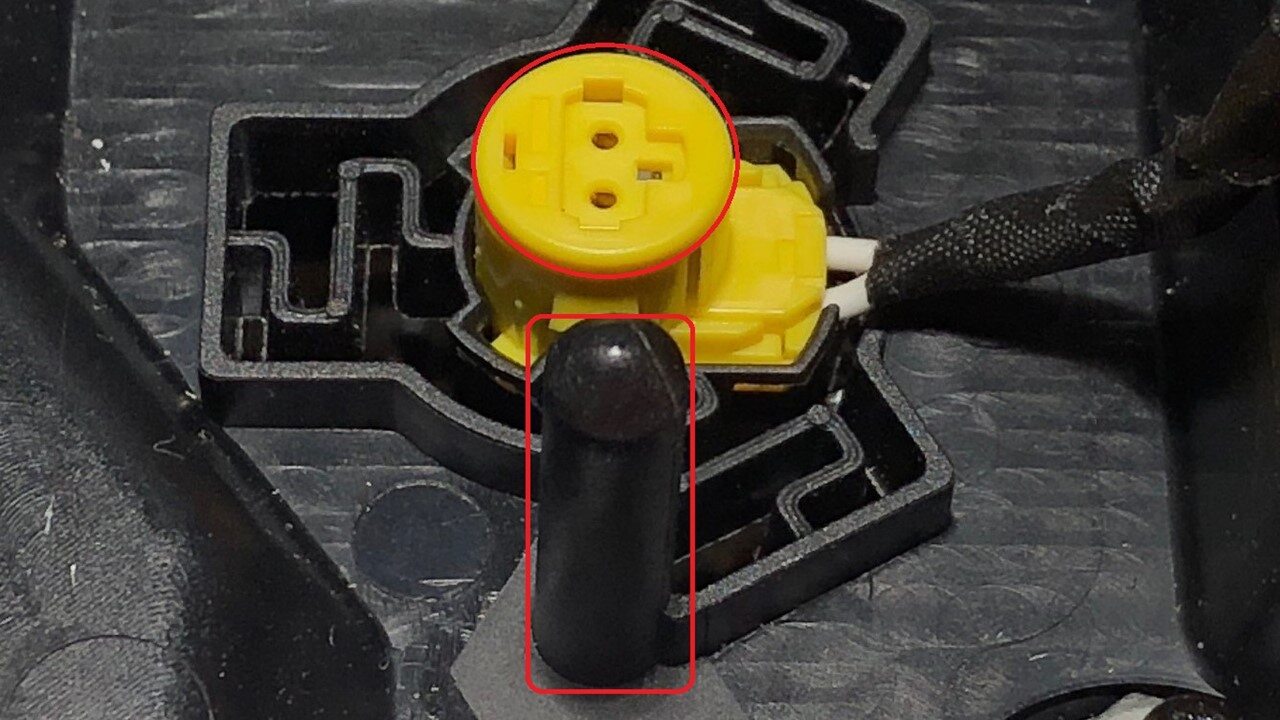

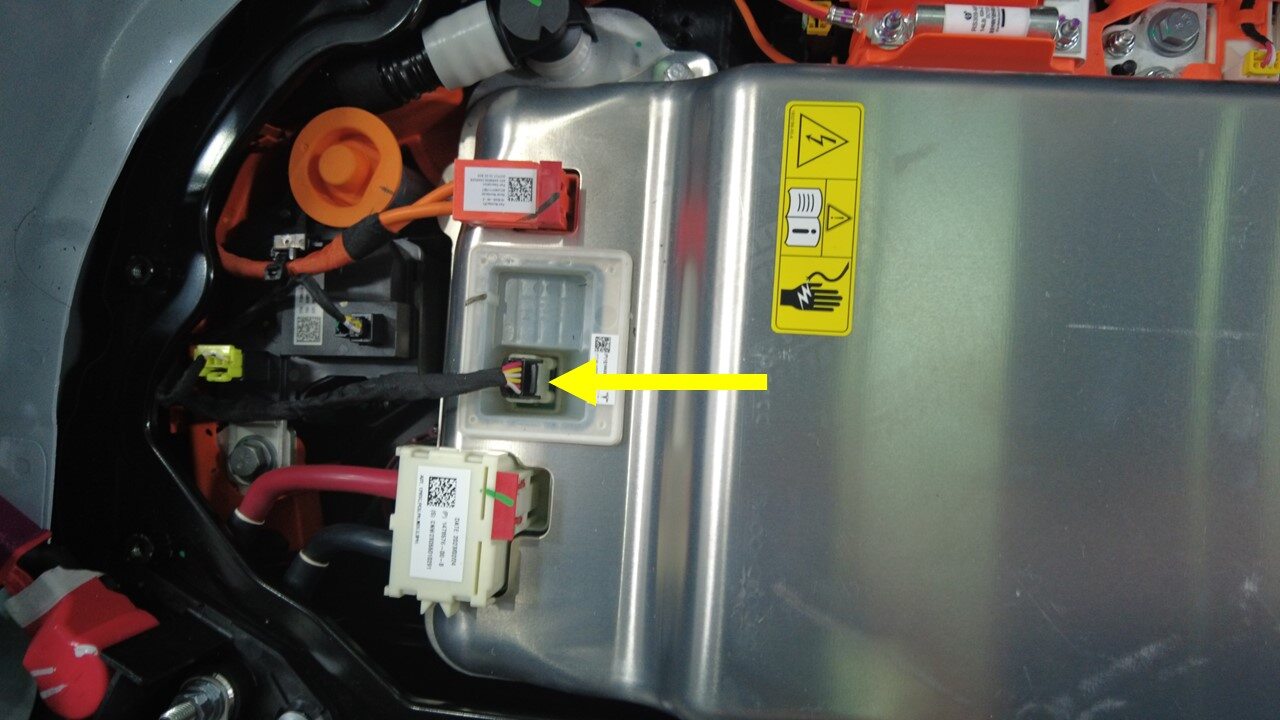

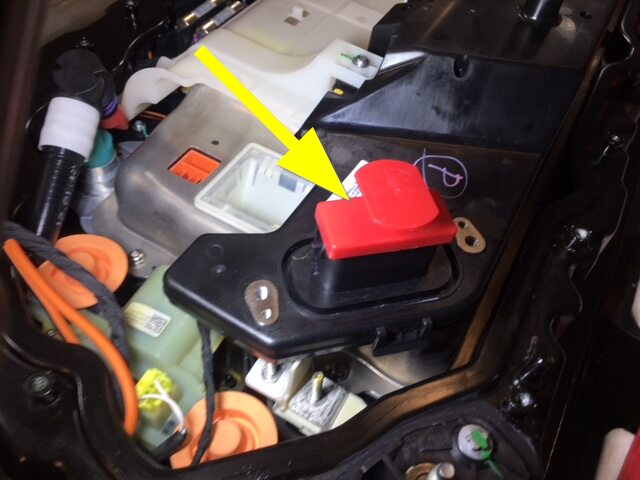

20. Disconnect HVC logic connector and install logic cap
    注

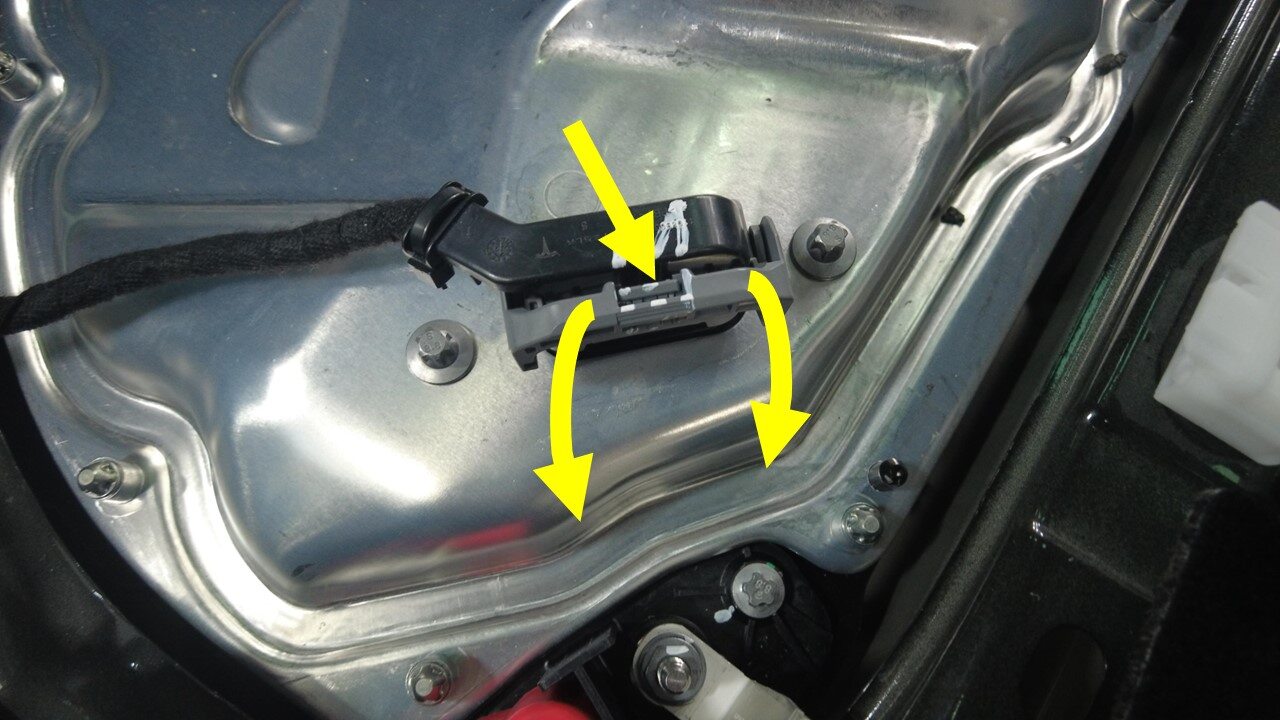

    1x connector, 1x cap, Release locking tab then push the handle downward to release connector







21. Remove bolts securing ancillary bay cover to HVC
    注

    3x bolts, E10, 5 Nm + 30 degrees

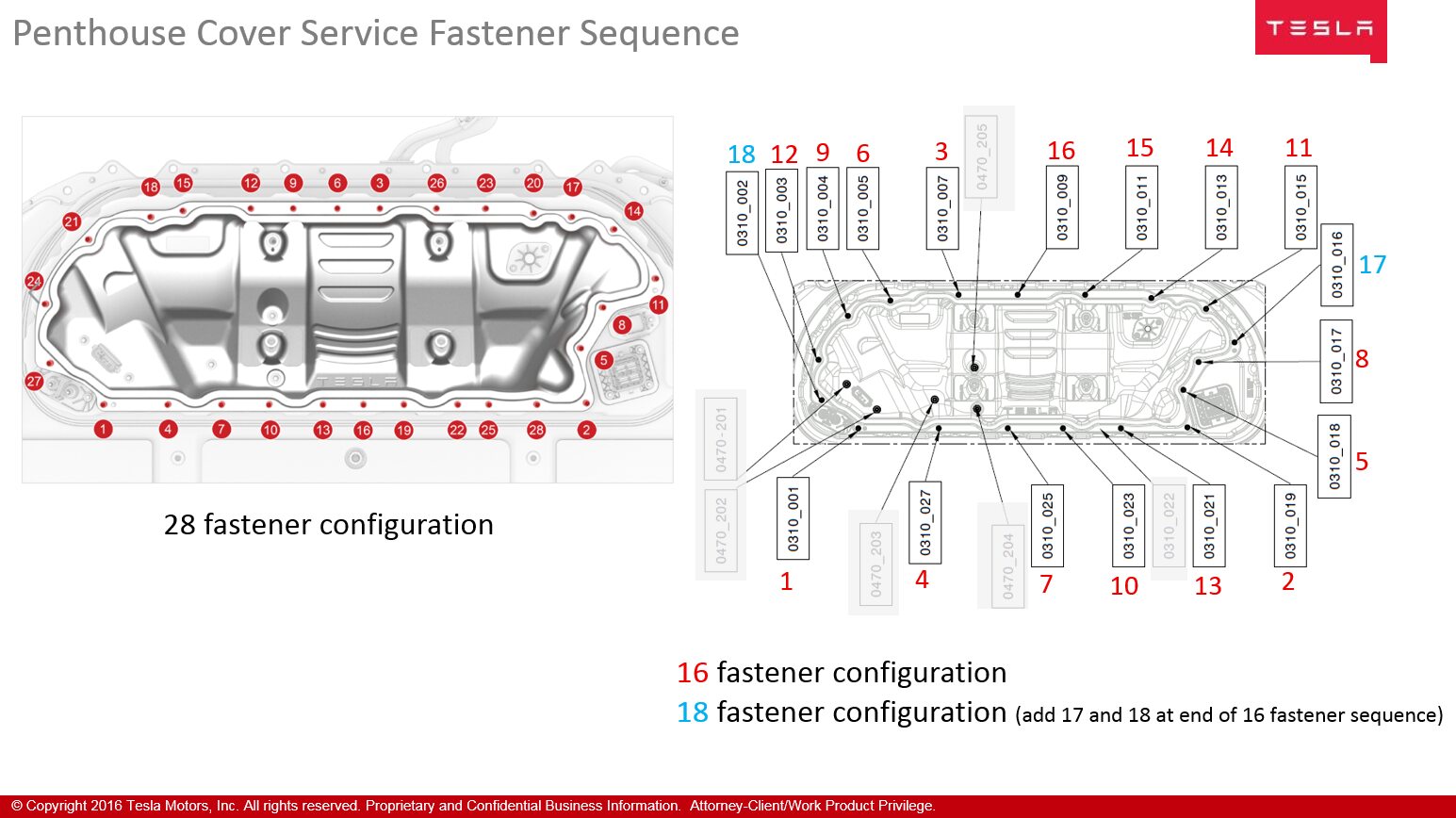

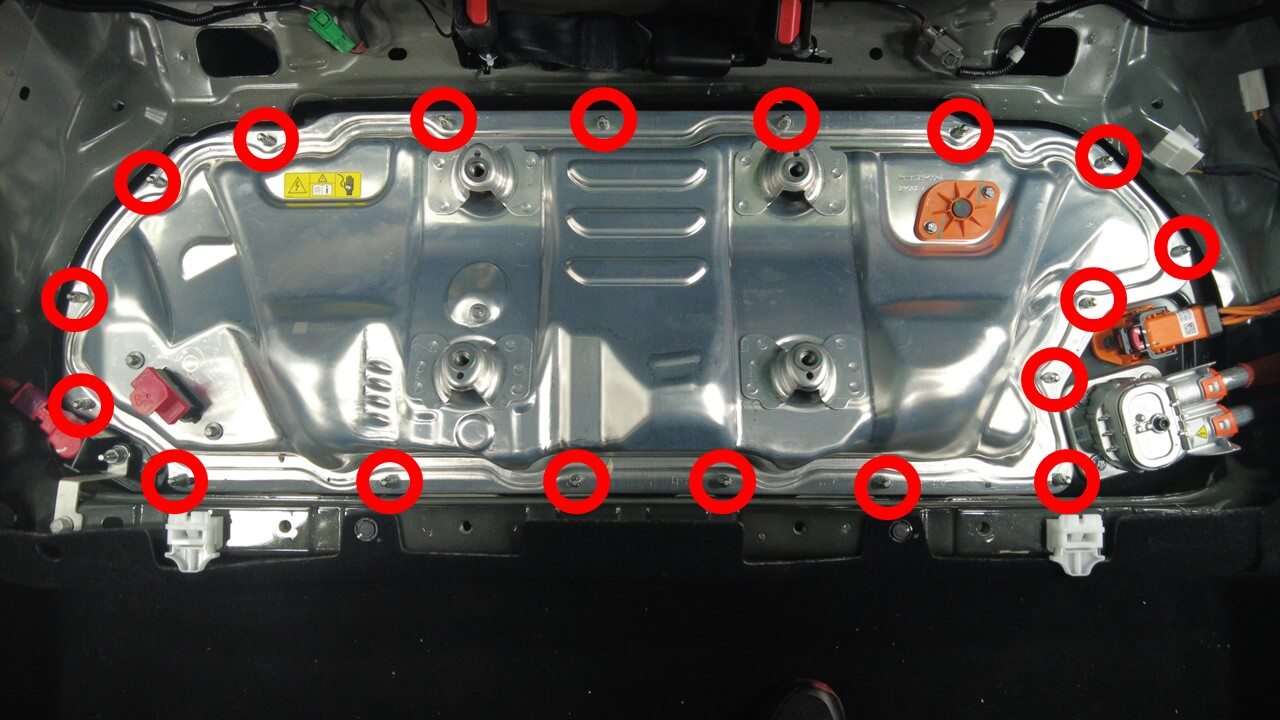

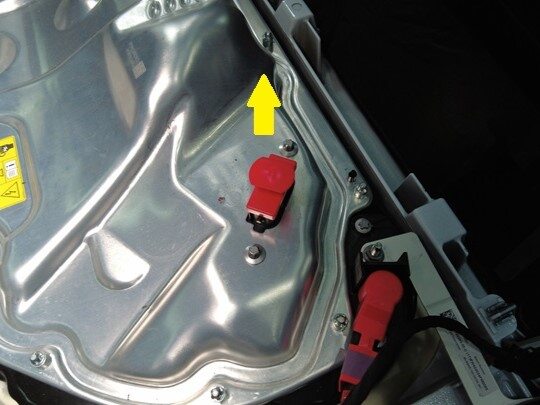

22. Remove bolts securing ancillary bay cover to HV battery
    注

    18x bolts, E10 5-Lobe, 8 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the ancillary bay cover





23. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf



24. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear electrical protective gloves any time Hioki tester is used

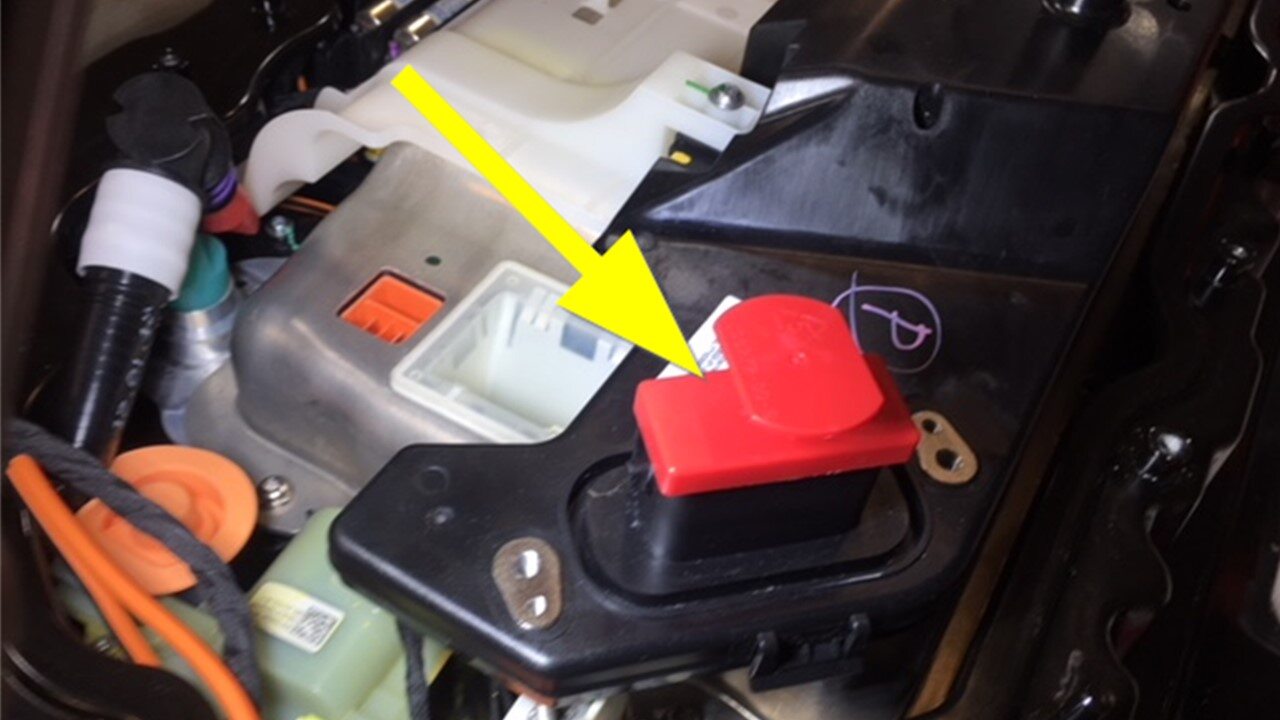

25. Remove HVC logic cap
    注

    1x cap

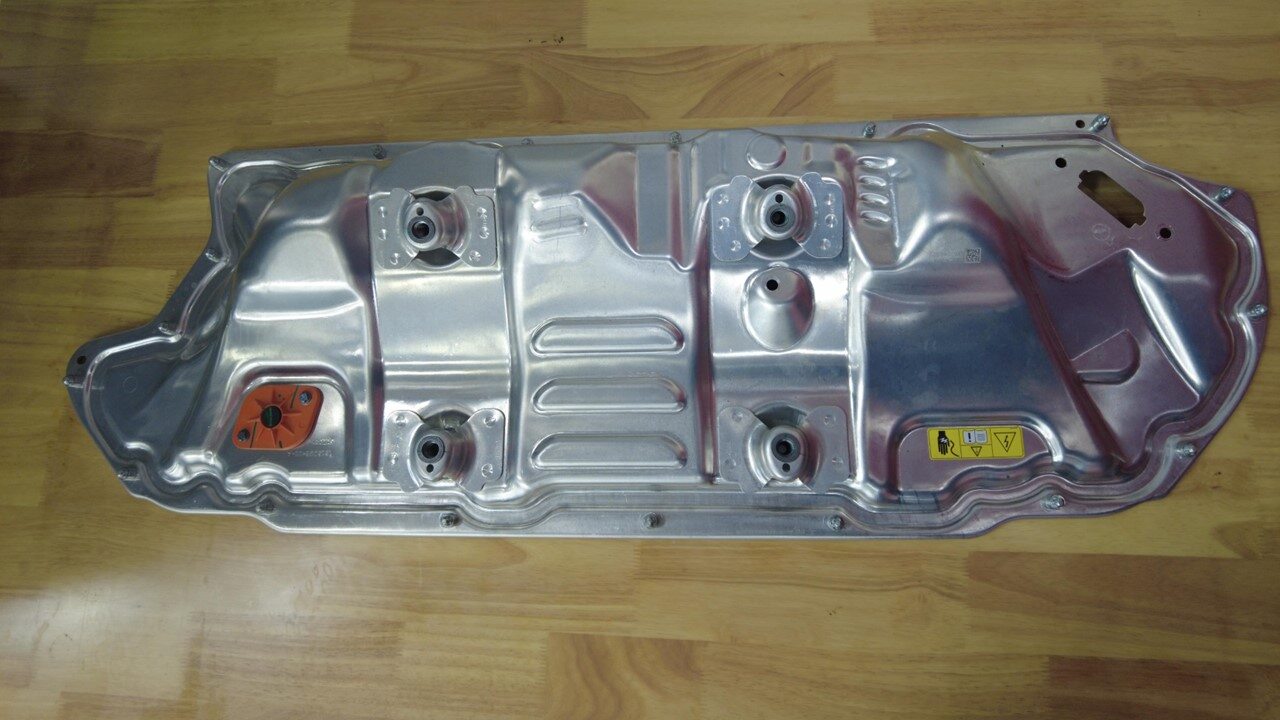

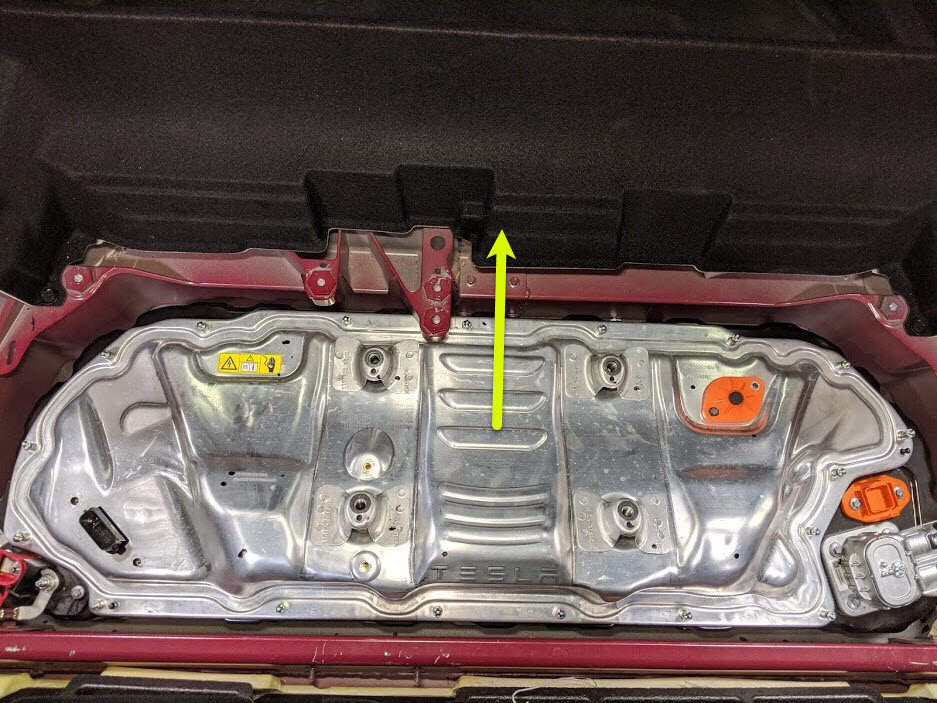

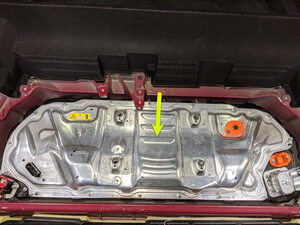

26. Remove ancillary bay cover from HV battery





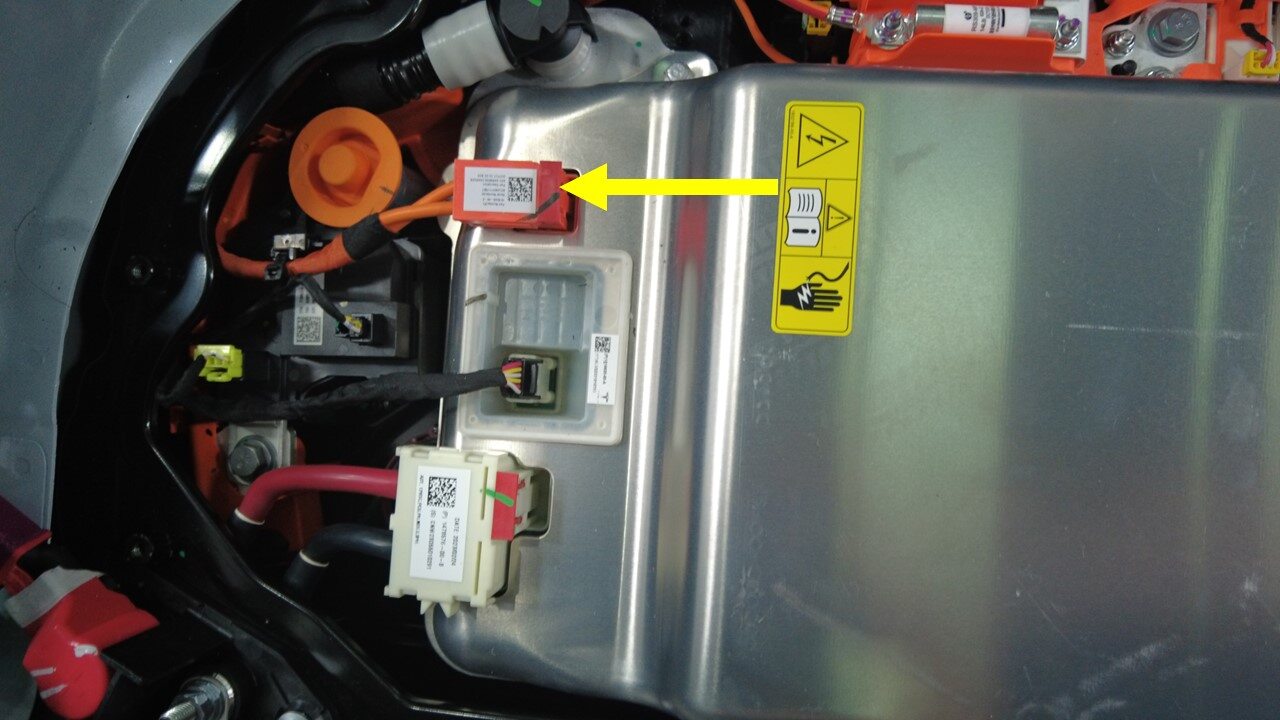

27. Install HVC logic cap
    注

    1x cap

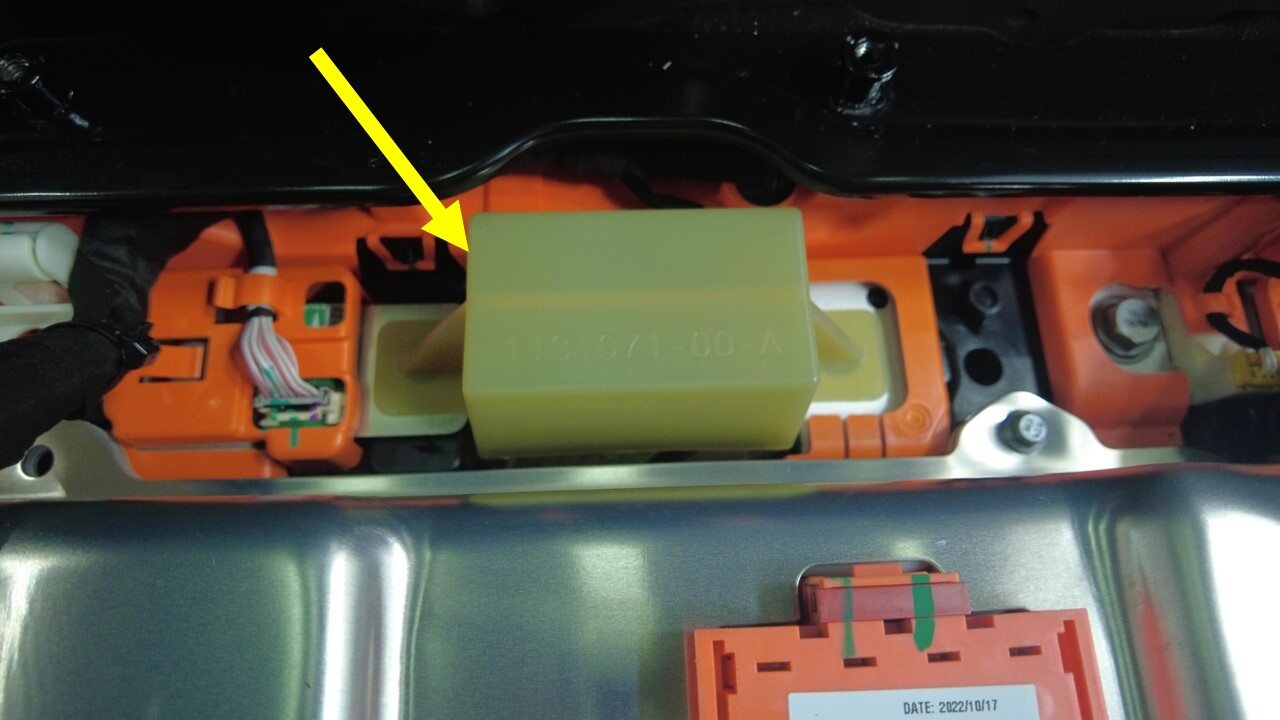

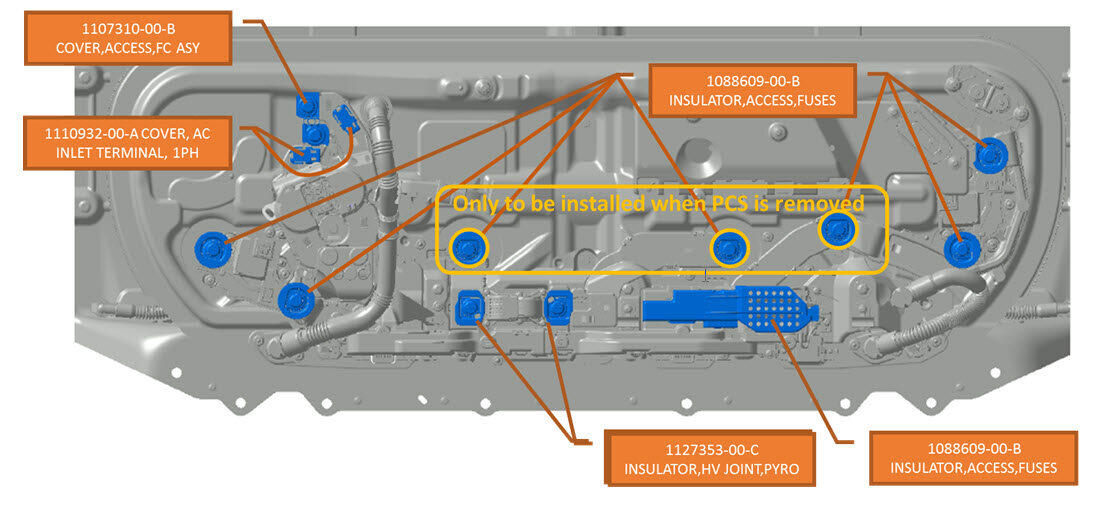

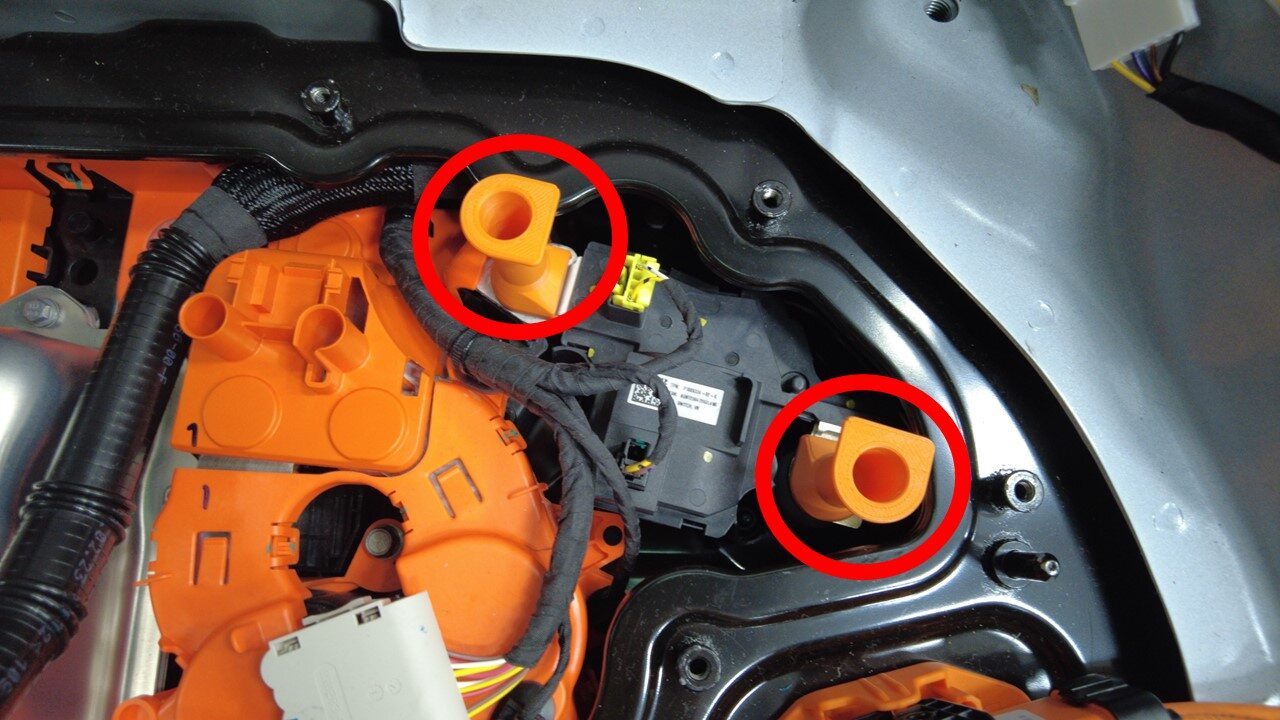

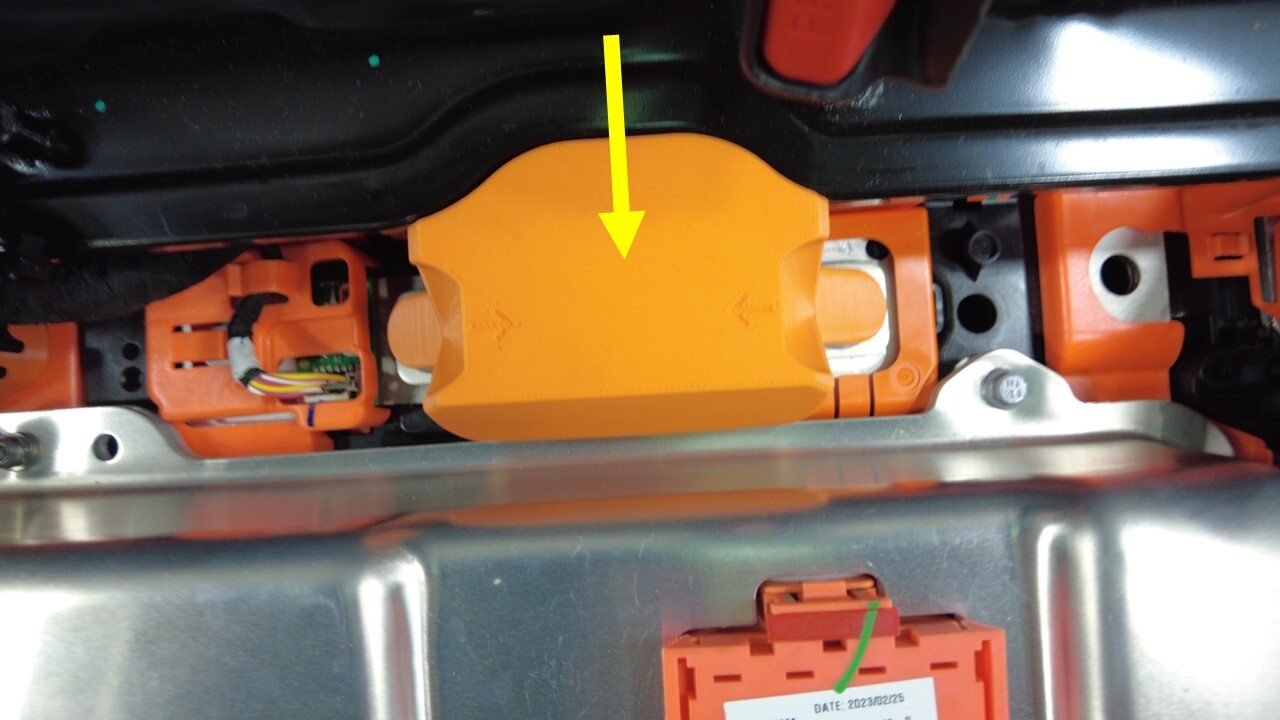

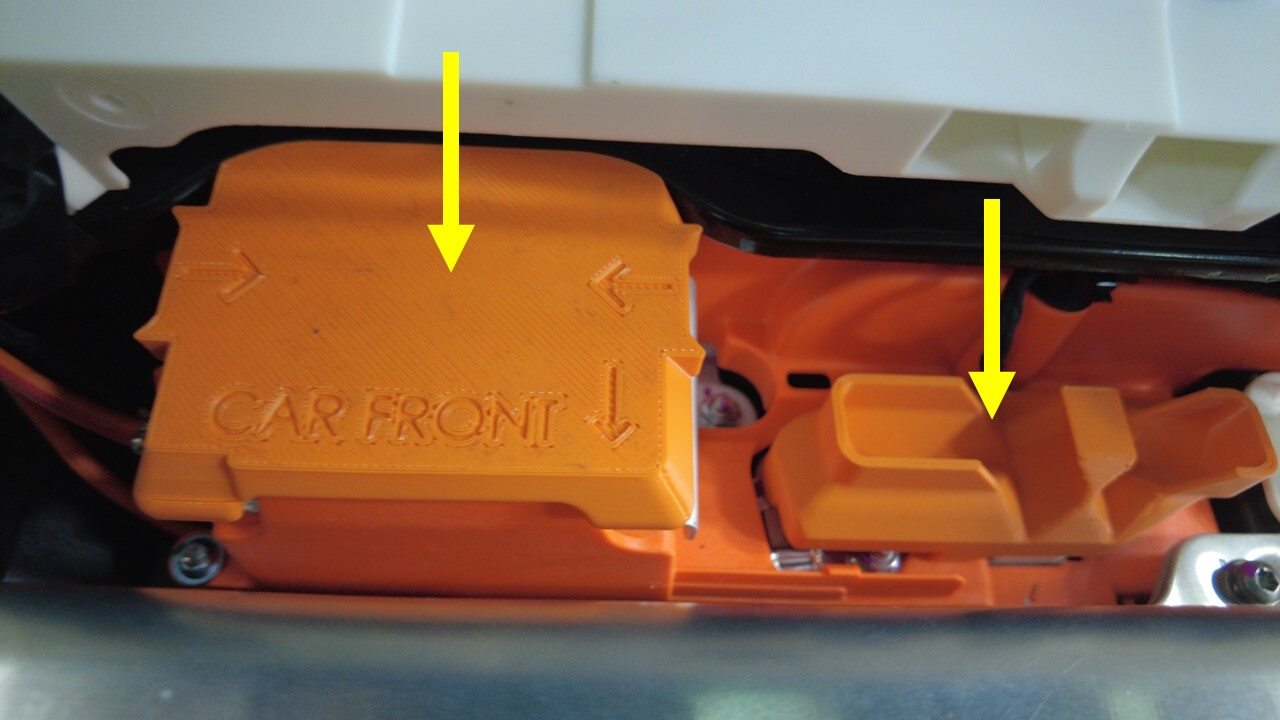

28. Inspect ancillary bay for any missing insulators
    注

    Install service insulator kit before continuing to next step, The number of bolts on newer vehicles may vary

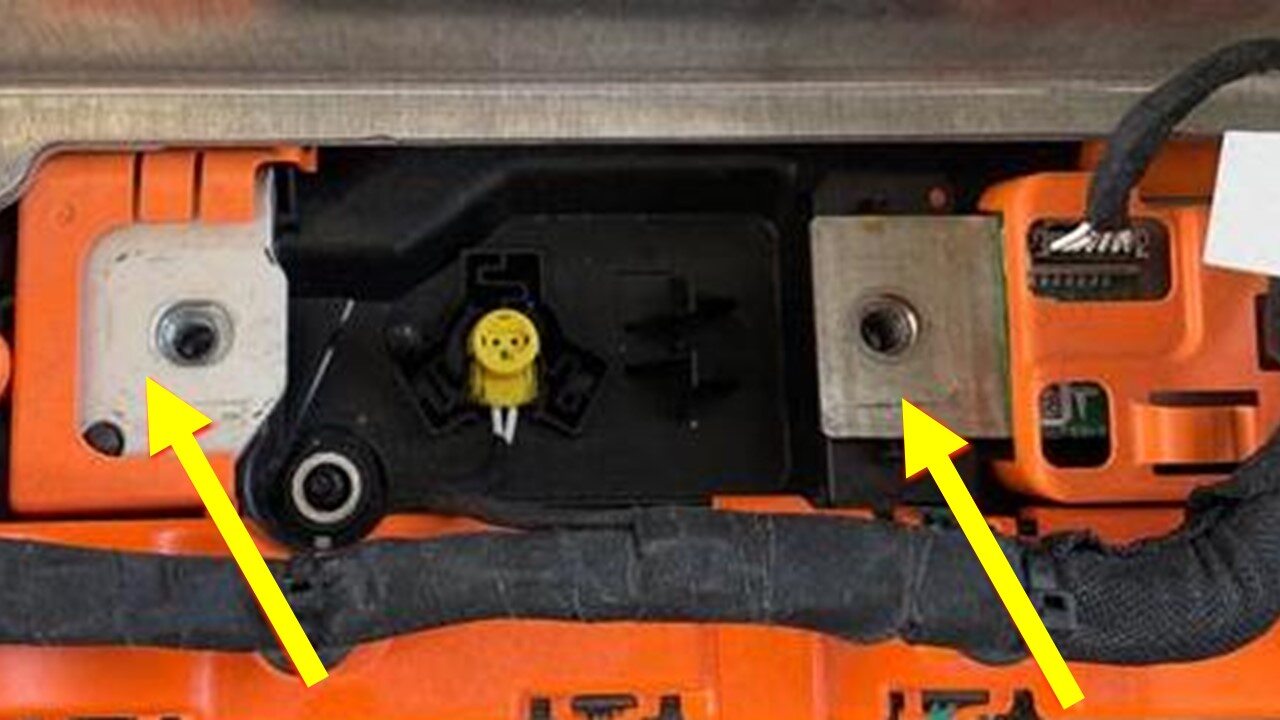

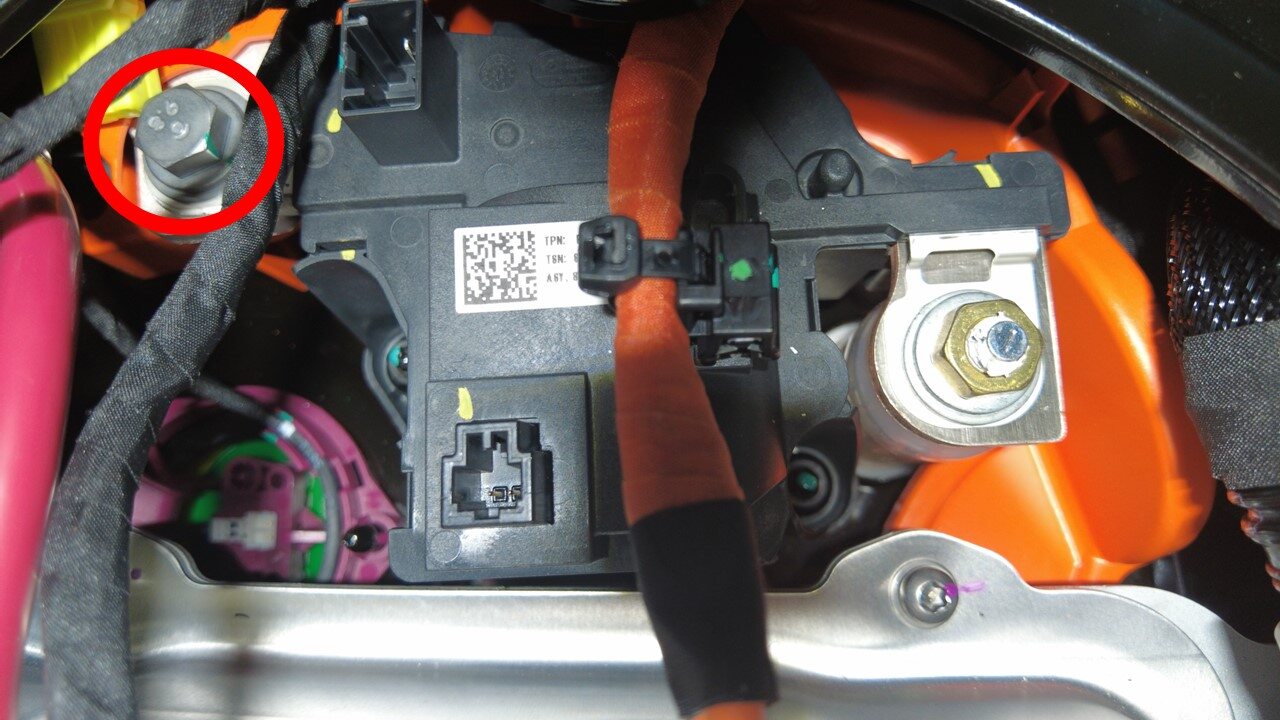

29. Remove bolts securing pyro disconnect to ancillary bay
    注

    1x insulator, patch bolts, 13mm, 9 Nm, Discard after removal

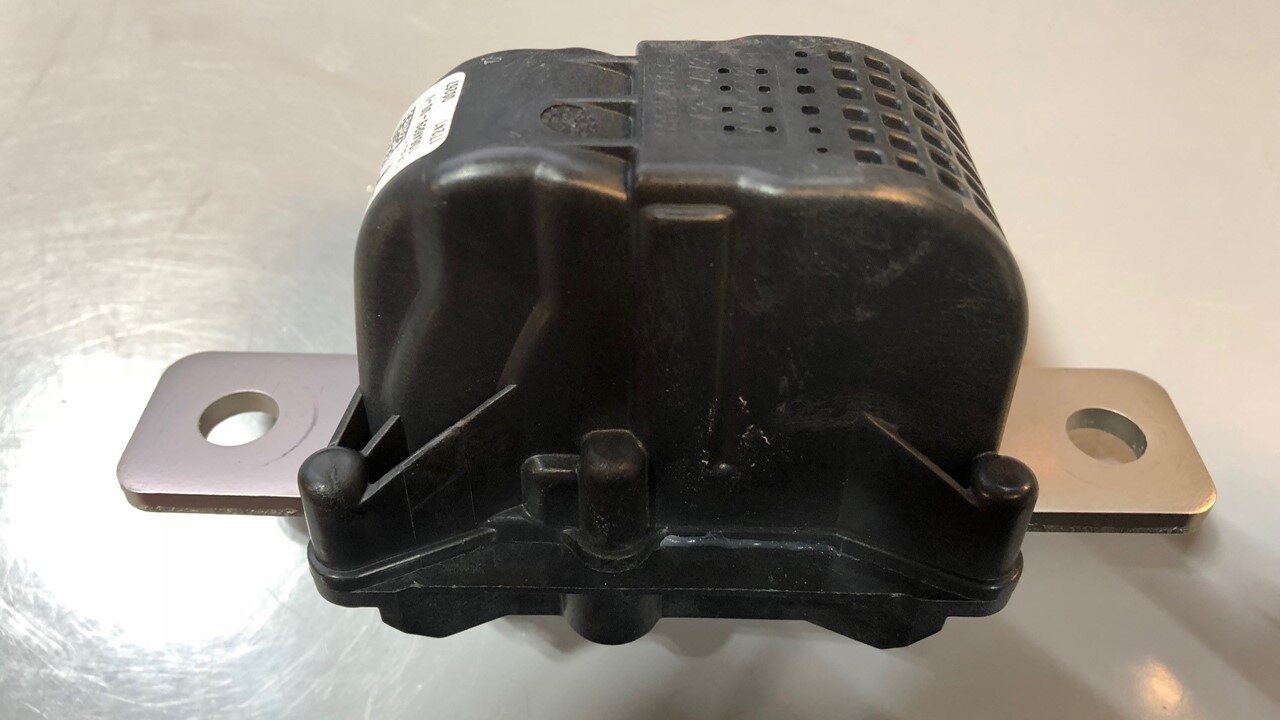

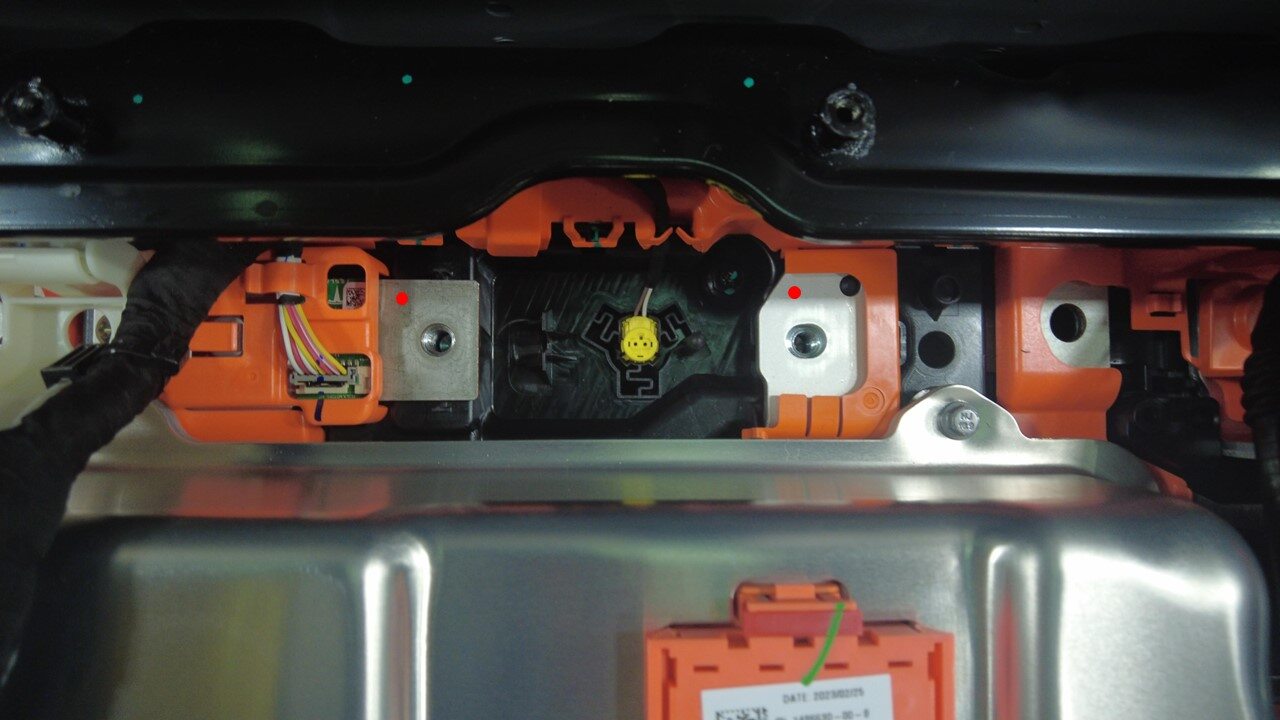

30. Remove pyro disconnect from ancillary bay
    注

    1x connector from the bottom, Lift pyro disconnect straight up and out of the ancillary bay





31. Install pyro disconnect dummy

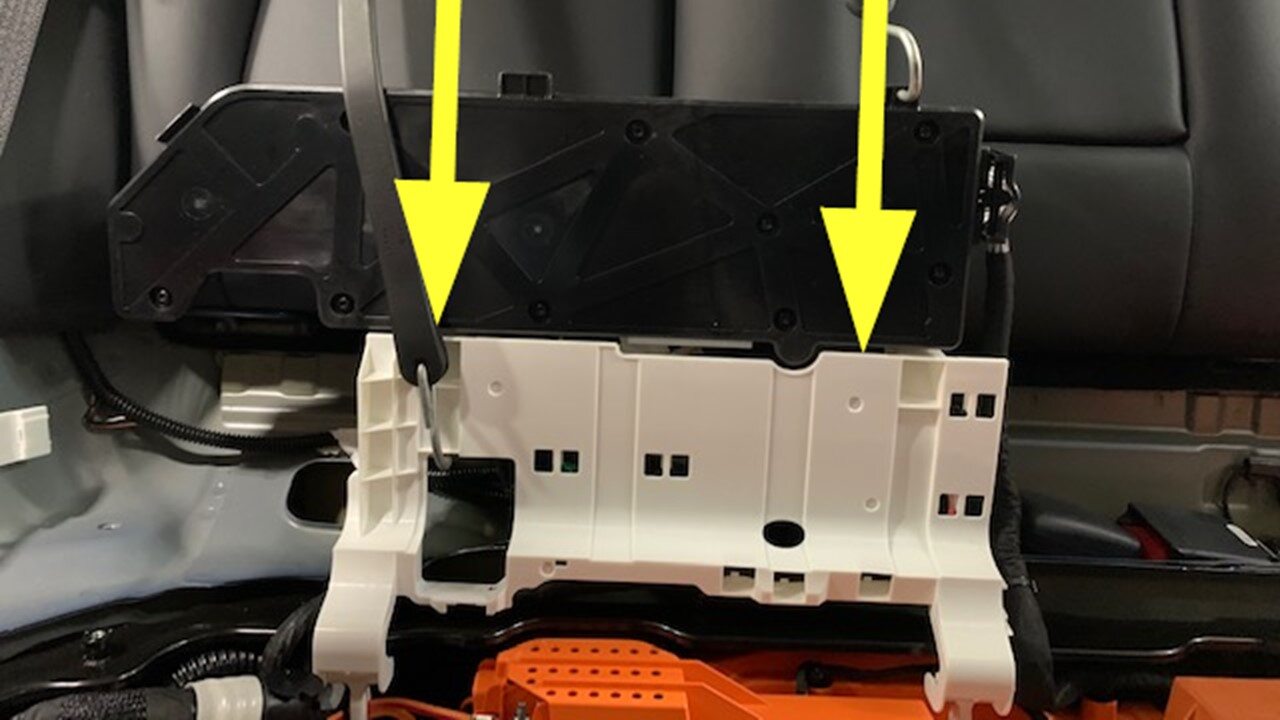

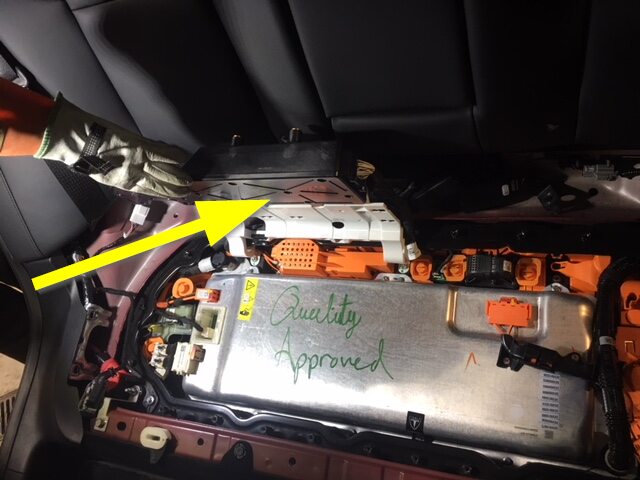

32. Lift HV Controller up to gain access to fuse insulator
    注

    Setup seatbelt to hold HVC assembly and tray in upward postition

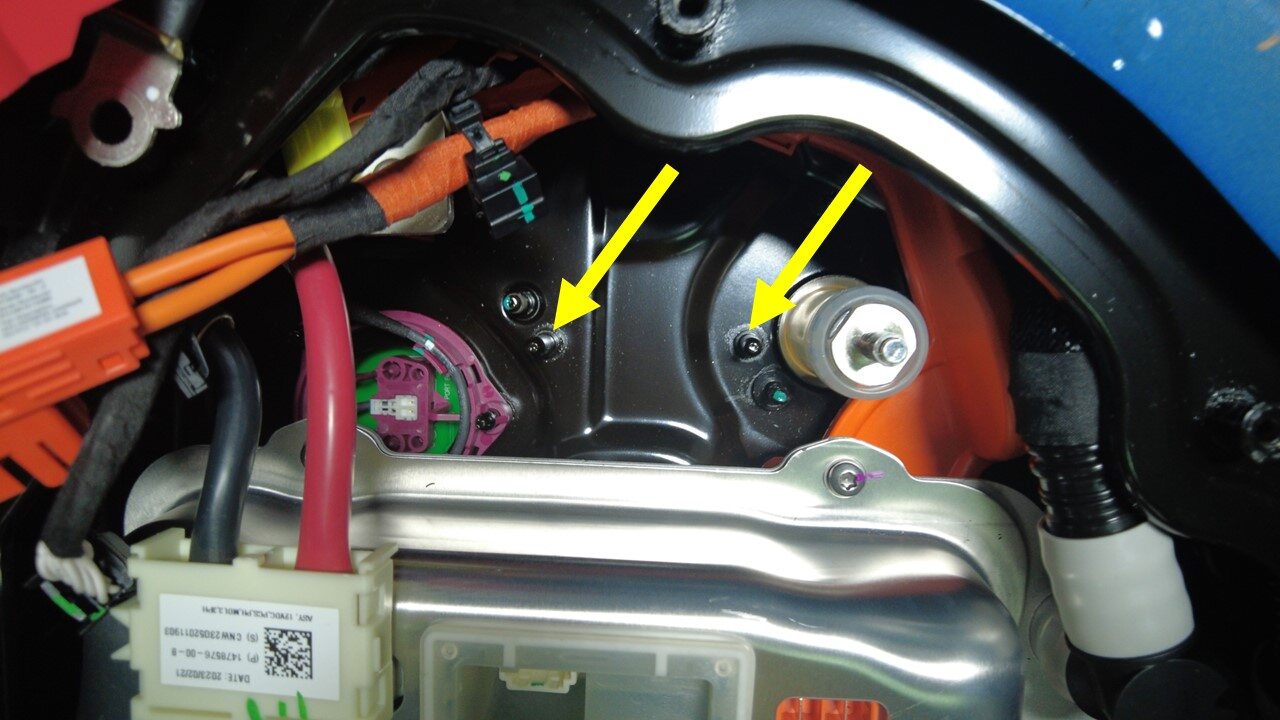

33. Disconnect PCS to DC bus HV connector
    注

    1x connector, Release locking tab then disconnect



34. Disconnect PCS logic connector from PCS
    注

    1x connector



35. Disconnect PCS LV connector from PCS
    注

    1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward



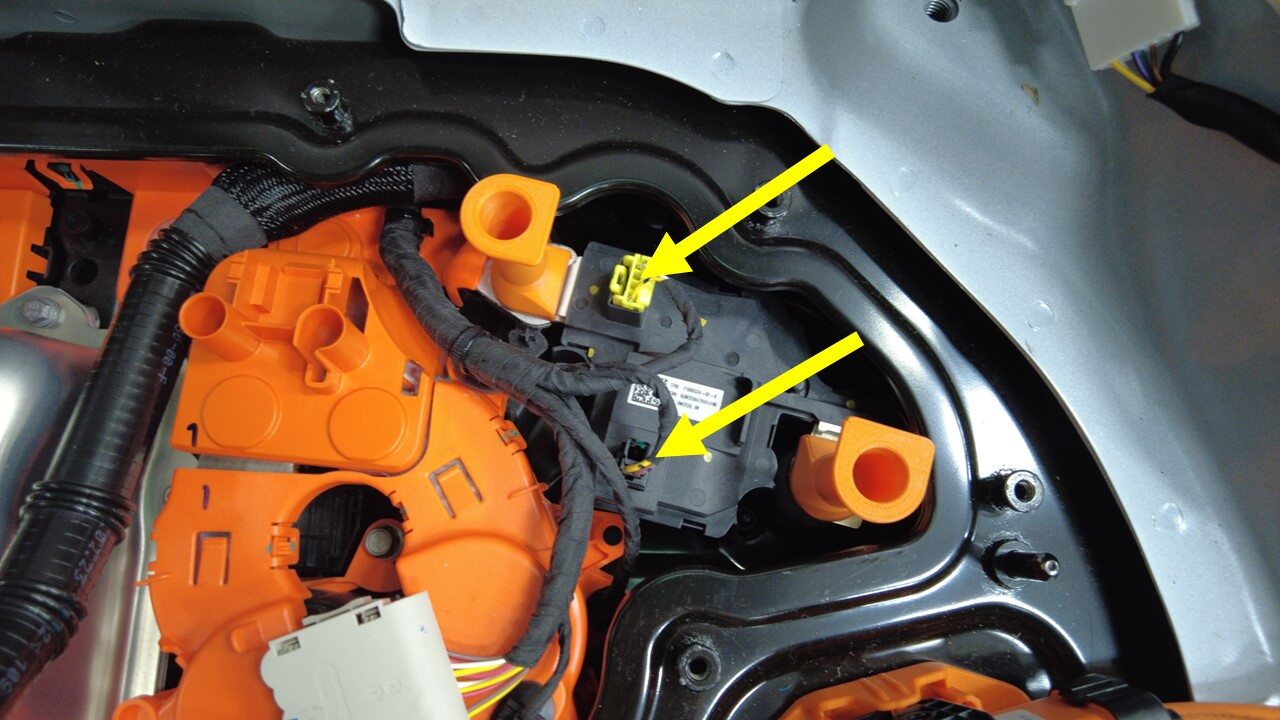

36. Disconnect ancillary bay harness connectors from positive pack contactor
    注

    2x connectors



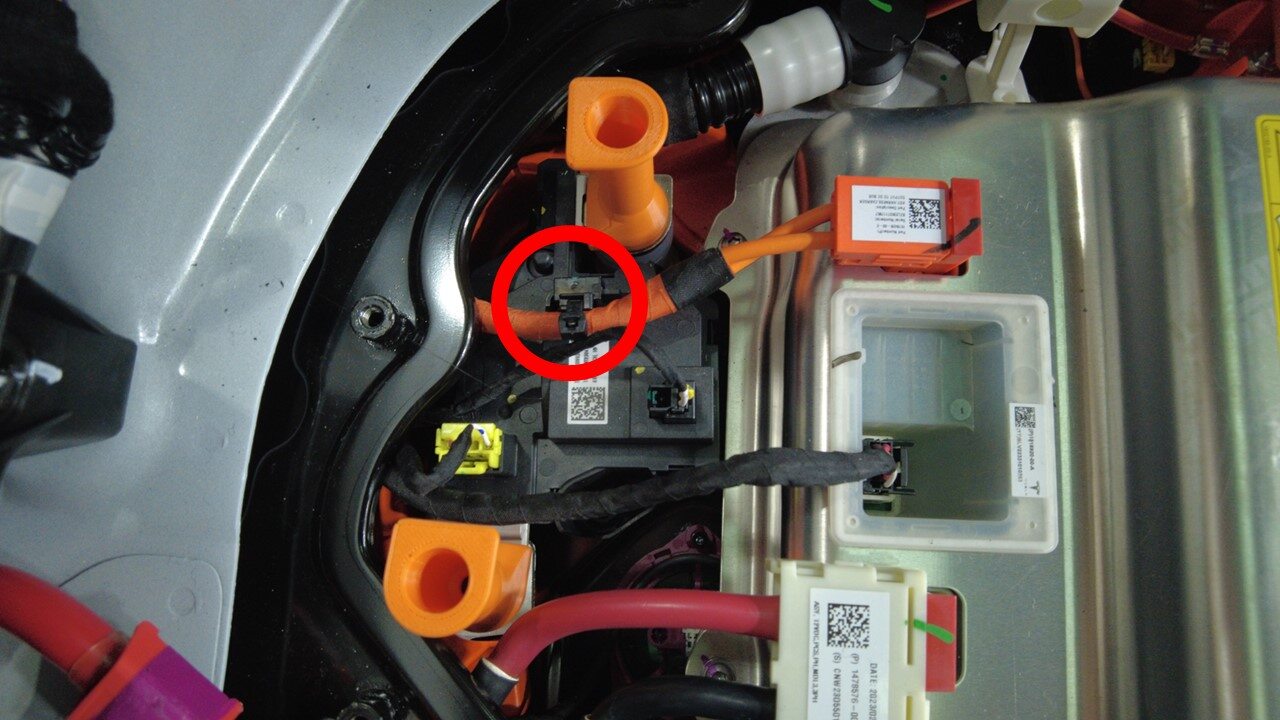

37. Remove HV PCS to DC Bus harness clip from positive pack contactor
    注

    1x clip

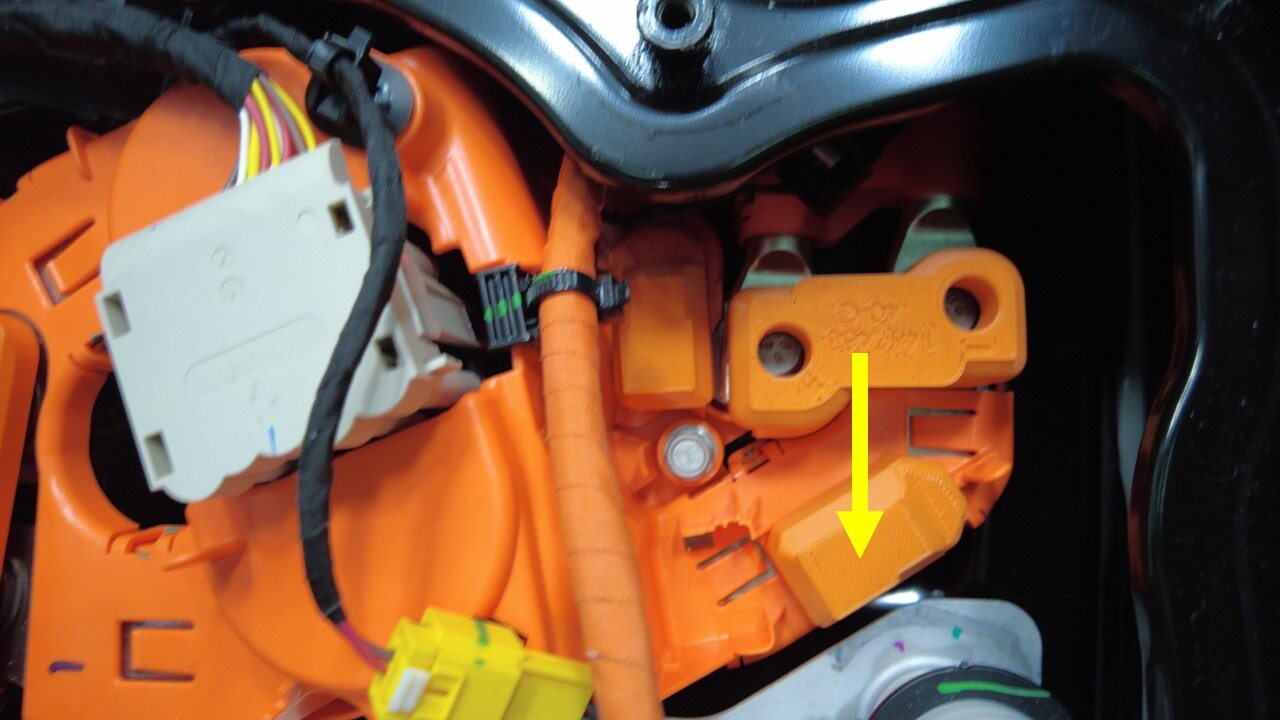

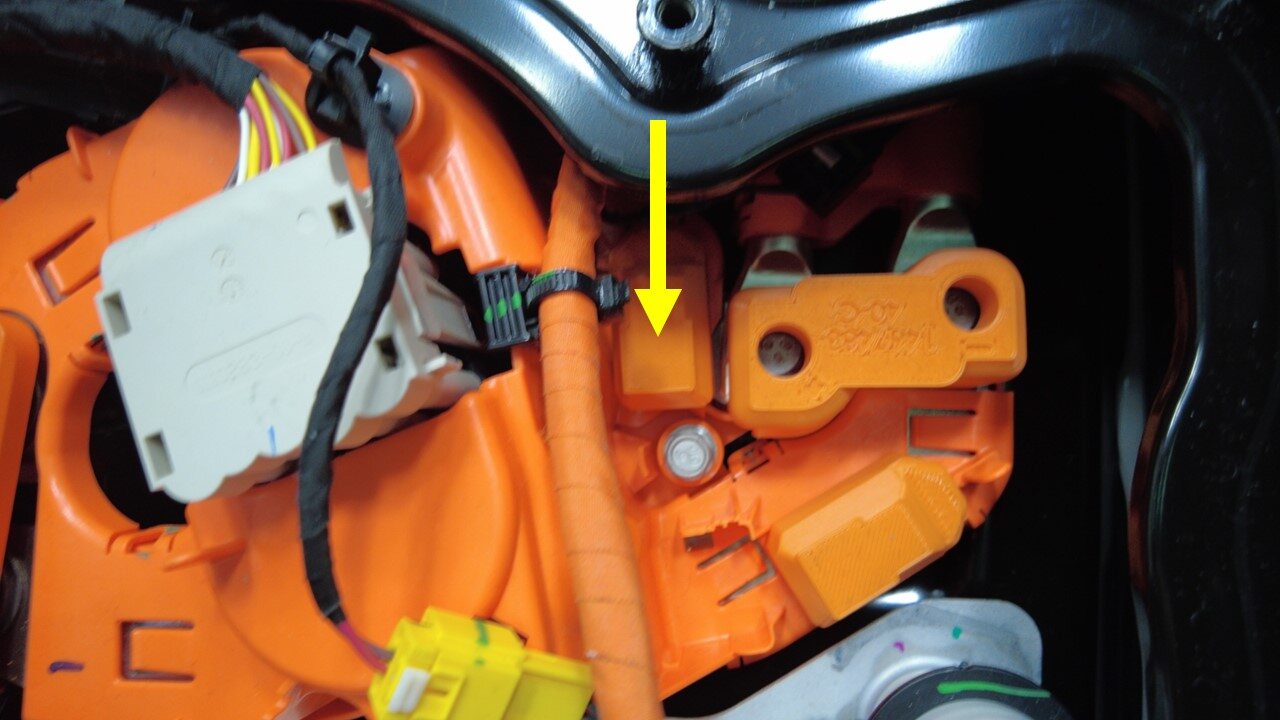

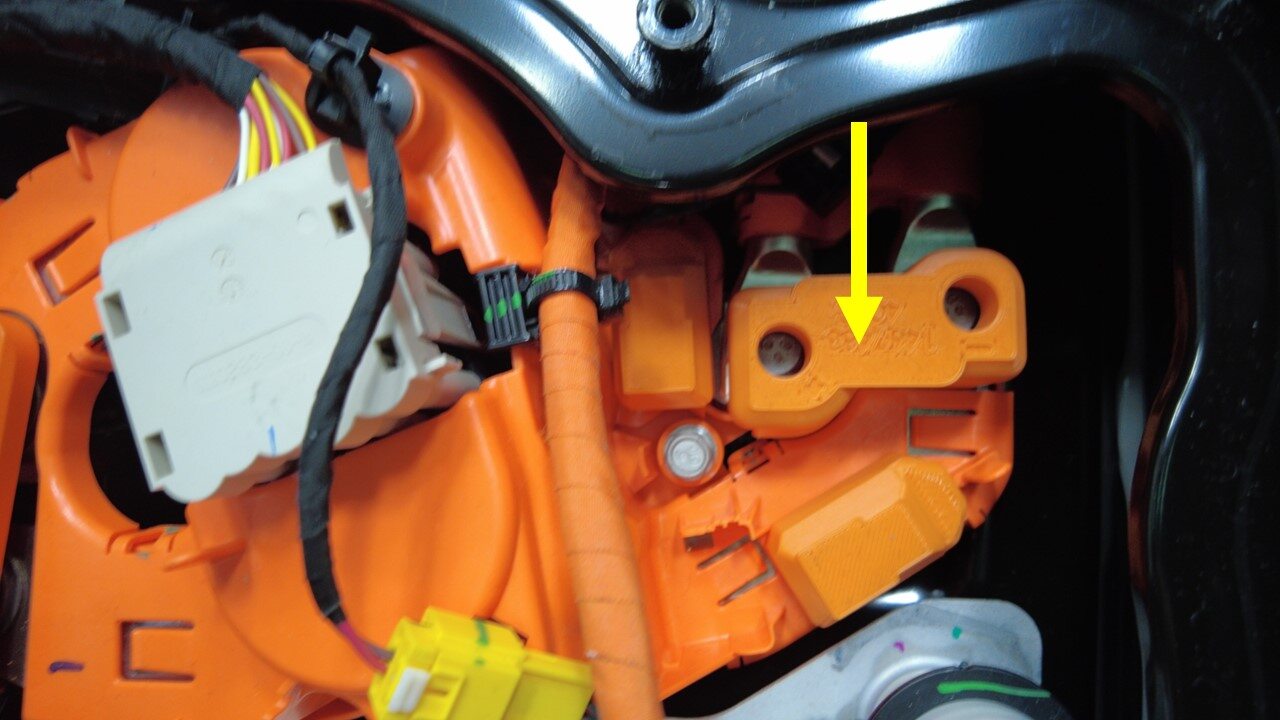

38. Remove HV joint insulators from positive HV switch
    注

    2x insulators

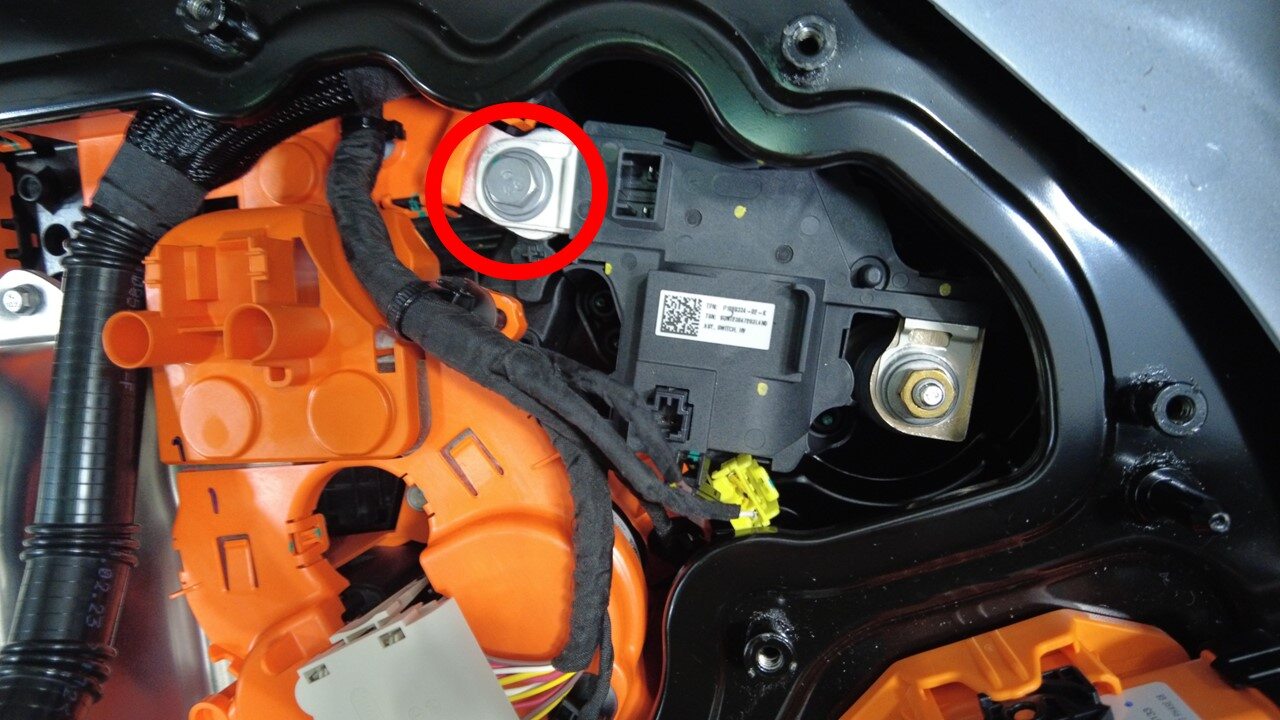

39. Remove bolt securing positive pack contactor to positive busbar
    注

    1x patch bolt, 13mm, 9 Nm, Discard after removal

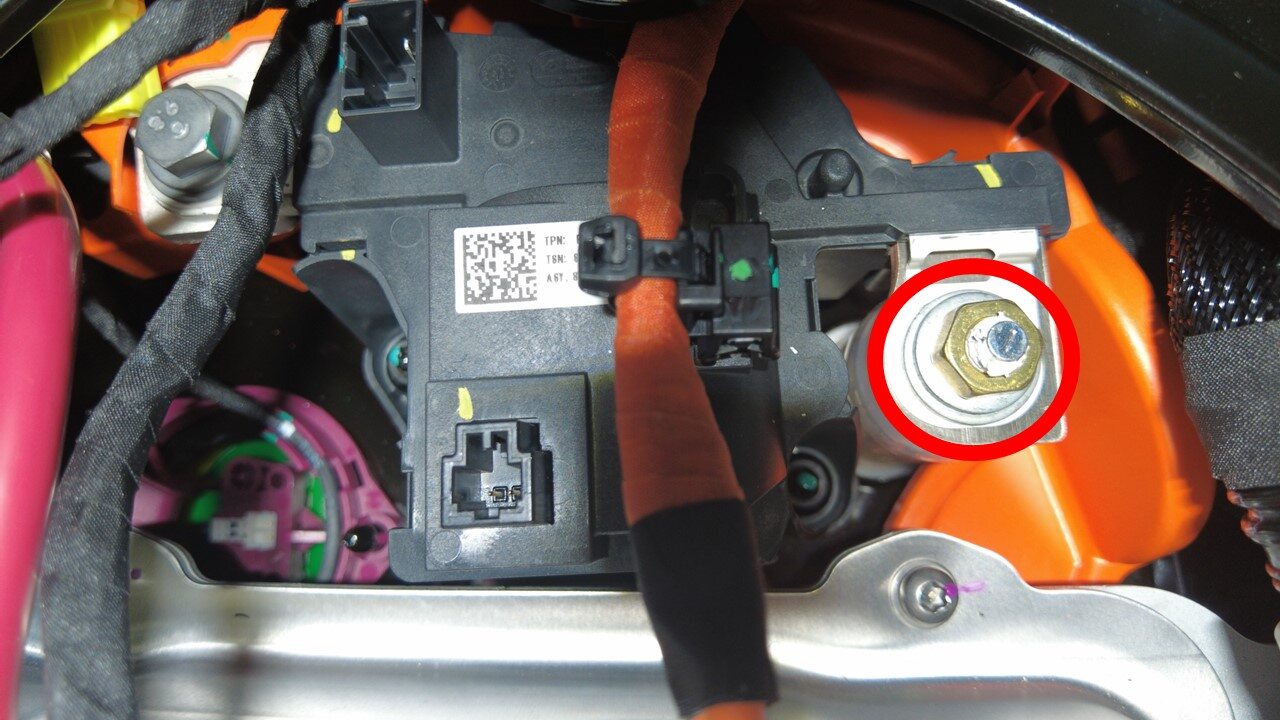

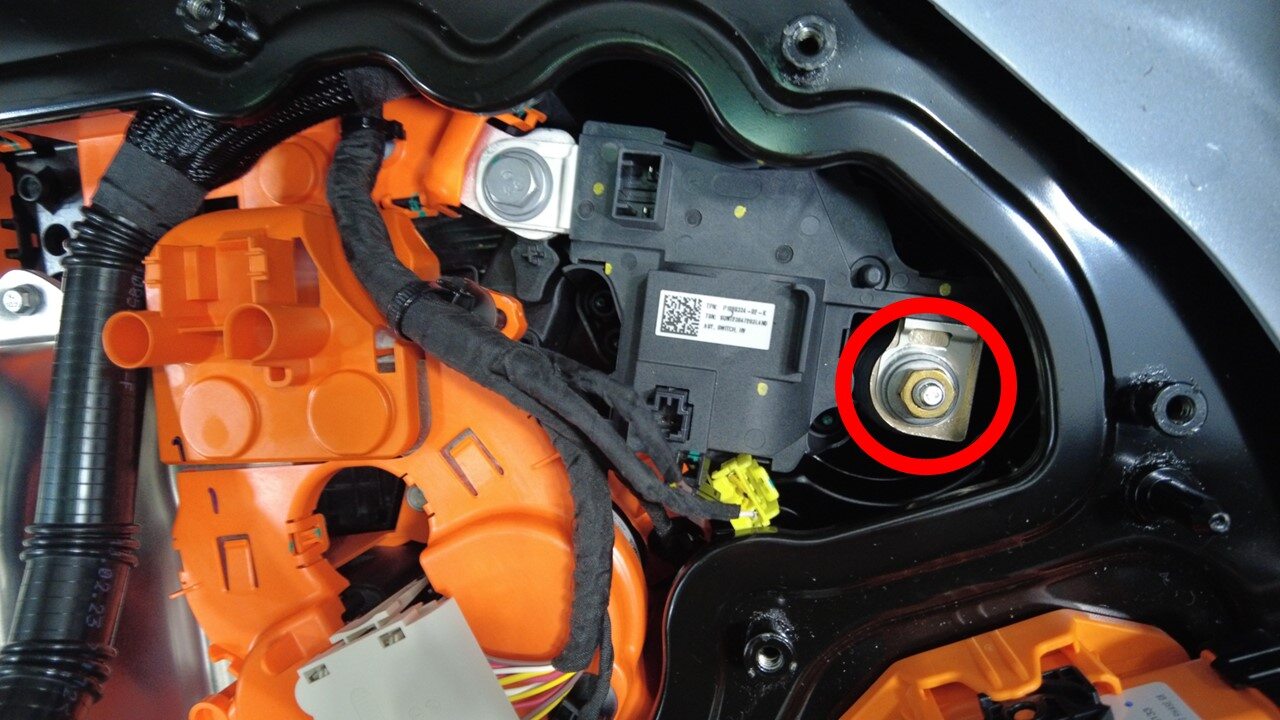

40. Remove nut securing positive pack contactor to module 4 rear terminal
    注

    1x patch nut, 13mm, 9 Nm, Discard after removal

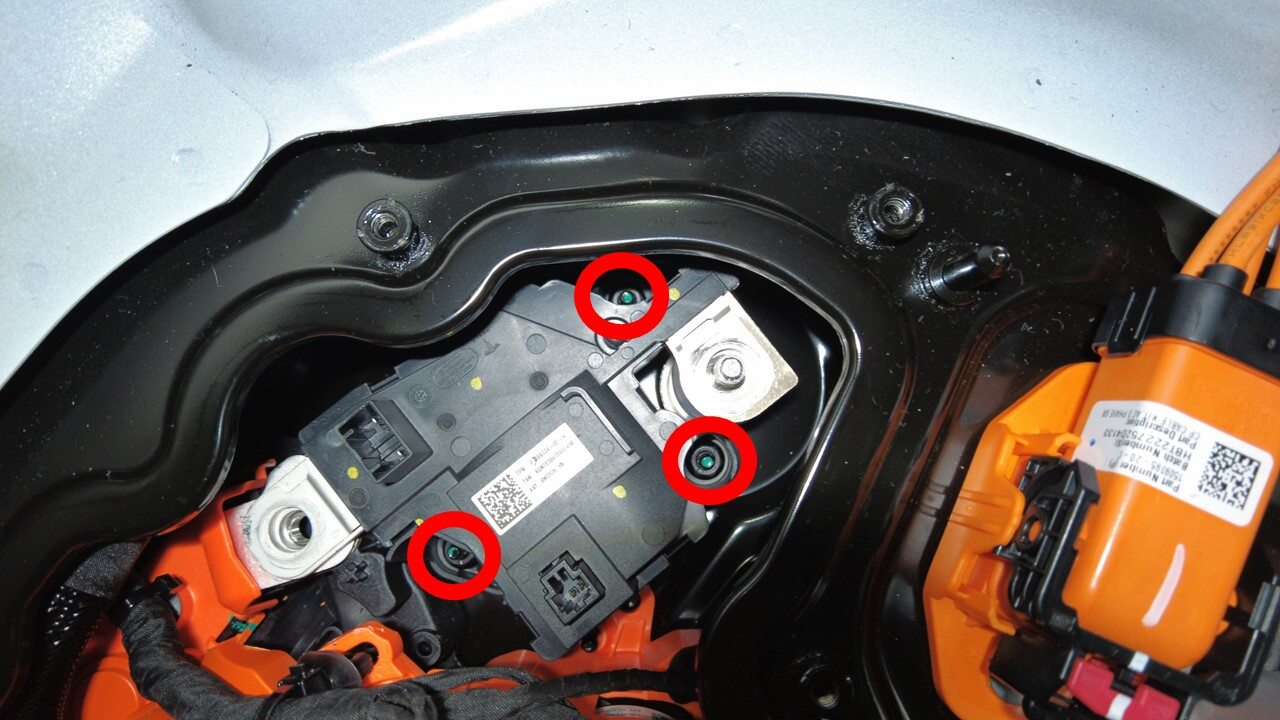

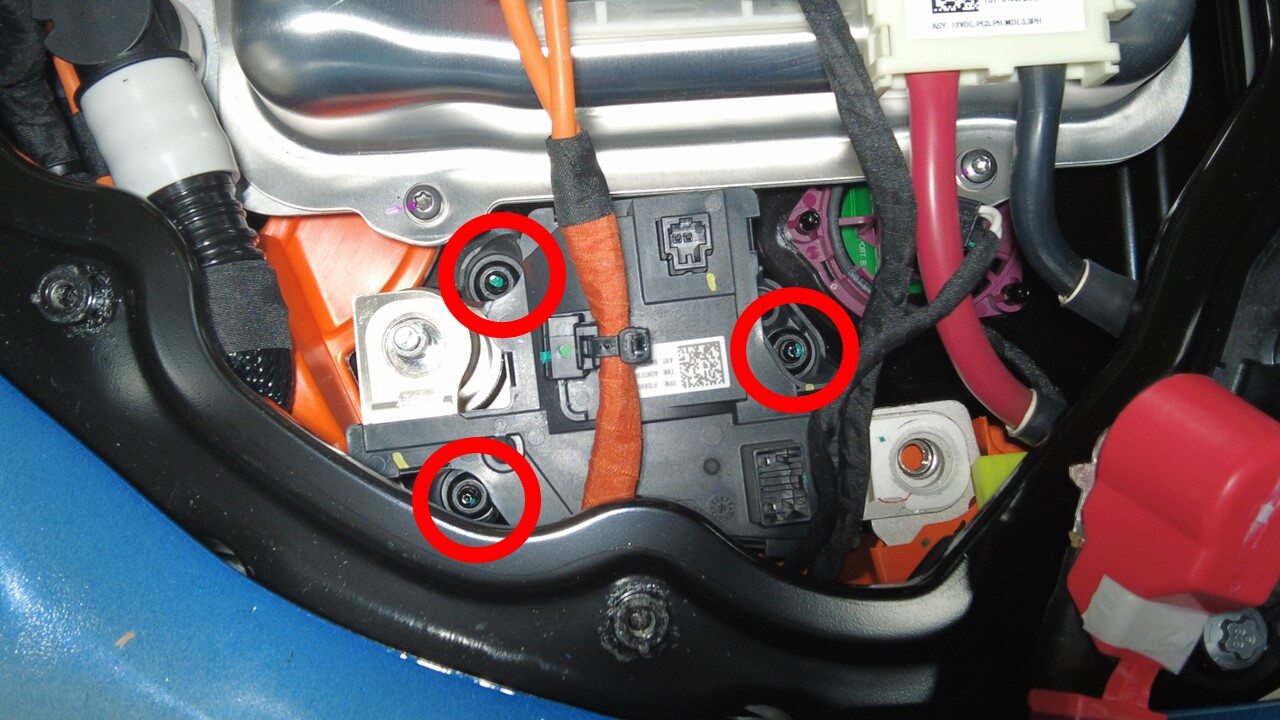

41. Remove nuts securing positive pack contactor to ancillary bay
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary

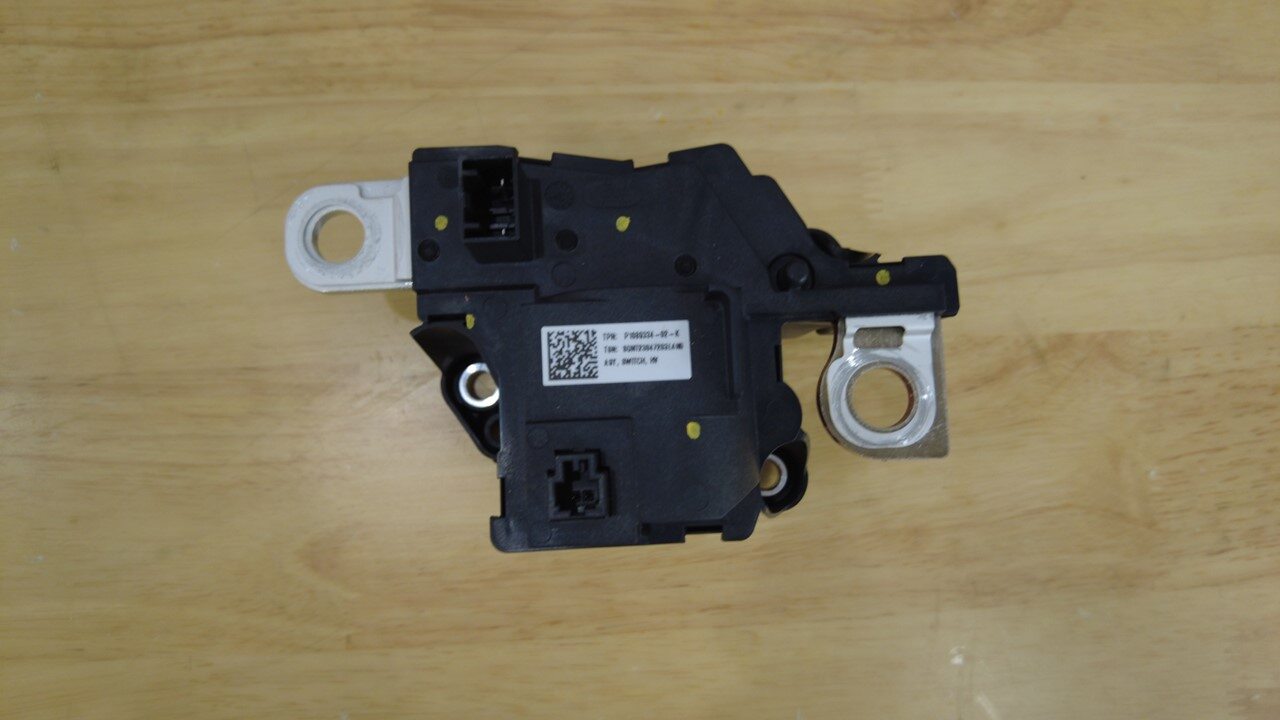

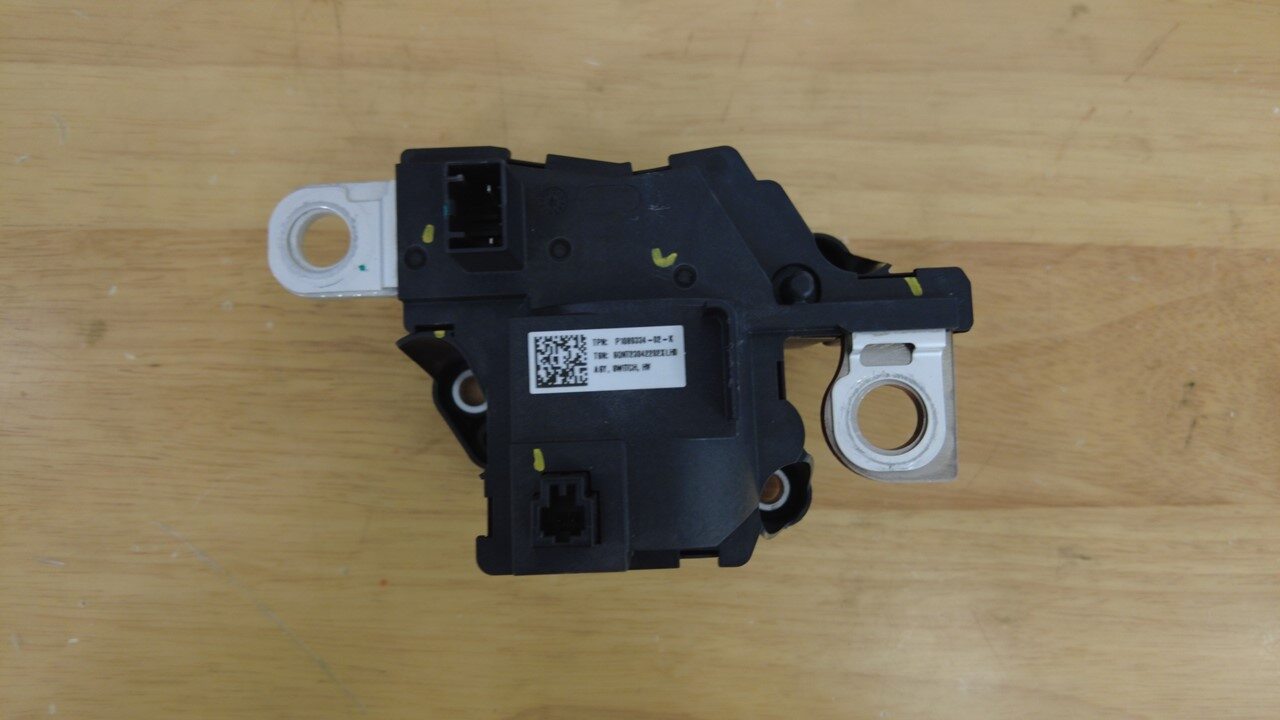

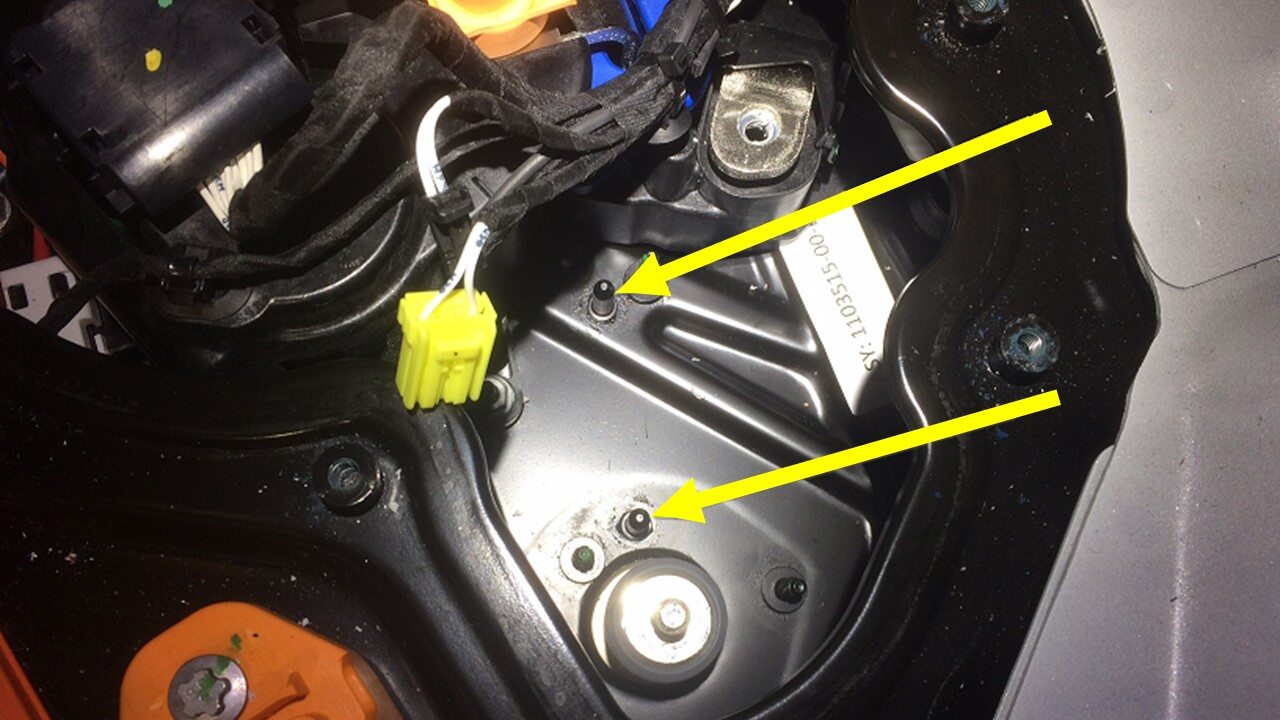

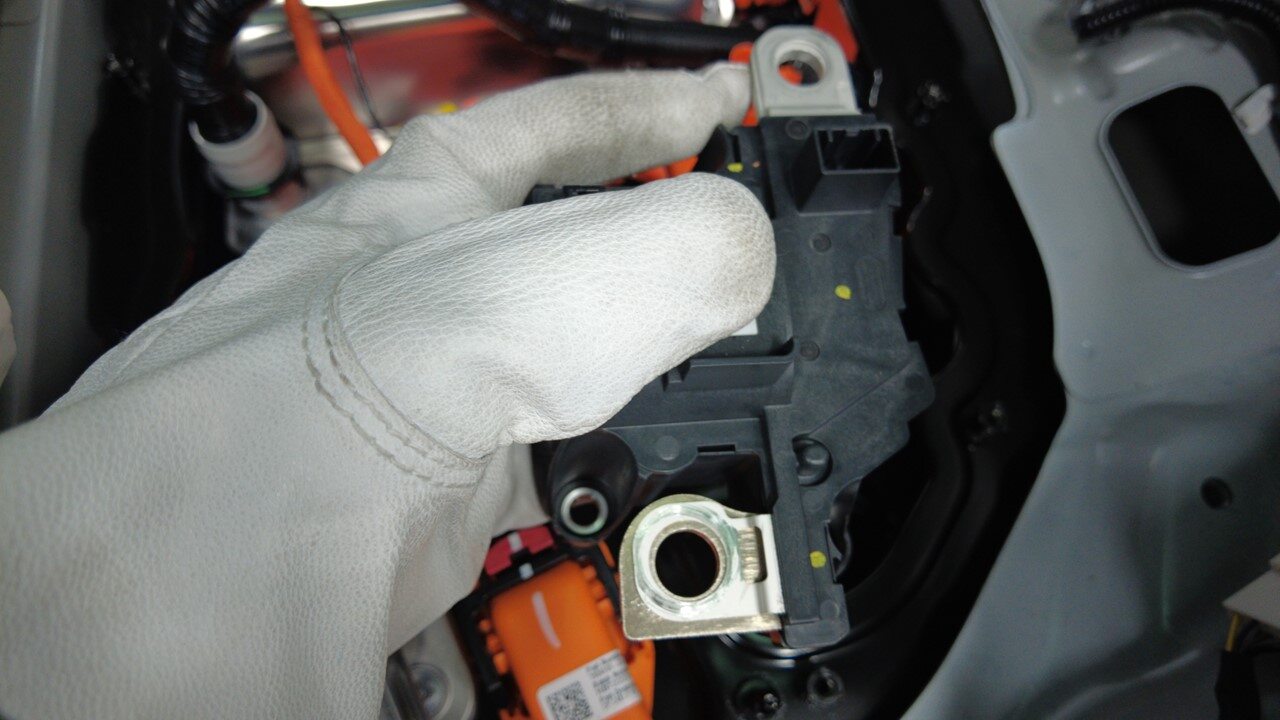

42. Remove positive pack contactor from ancillary bay
    注

    2x guide pins







43. Position positive pack contactor to ancillary bay for installation
    注

    2x guide pins







44. Install nuts securing positive pack contactor to ancillary bay
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs, The number of nuts on newer vehicles may vary



45. Install bolt securing positive pack contactor to positive busbar
    注

    1x patch bolt, 13mm. 9 Nm, Install new patch bolt, Mark after torque



46. Install nut securing positive pack contactor to HV battery tall terminal to module 4 rear terminal
    注

    1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque

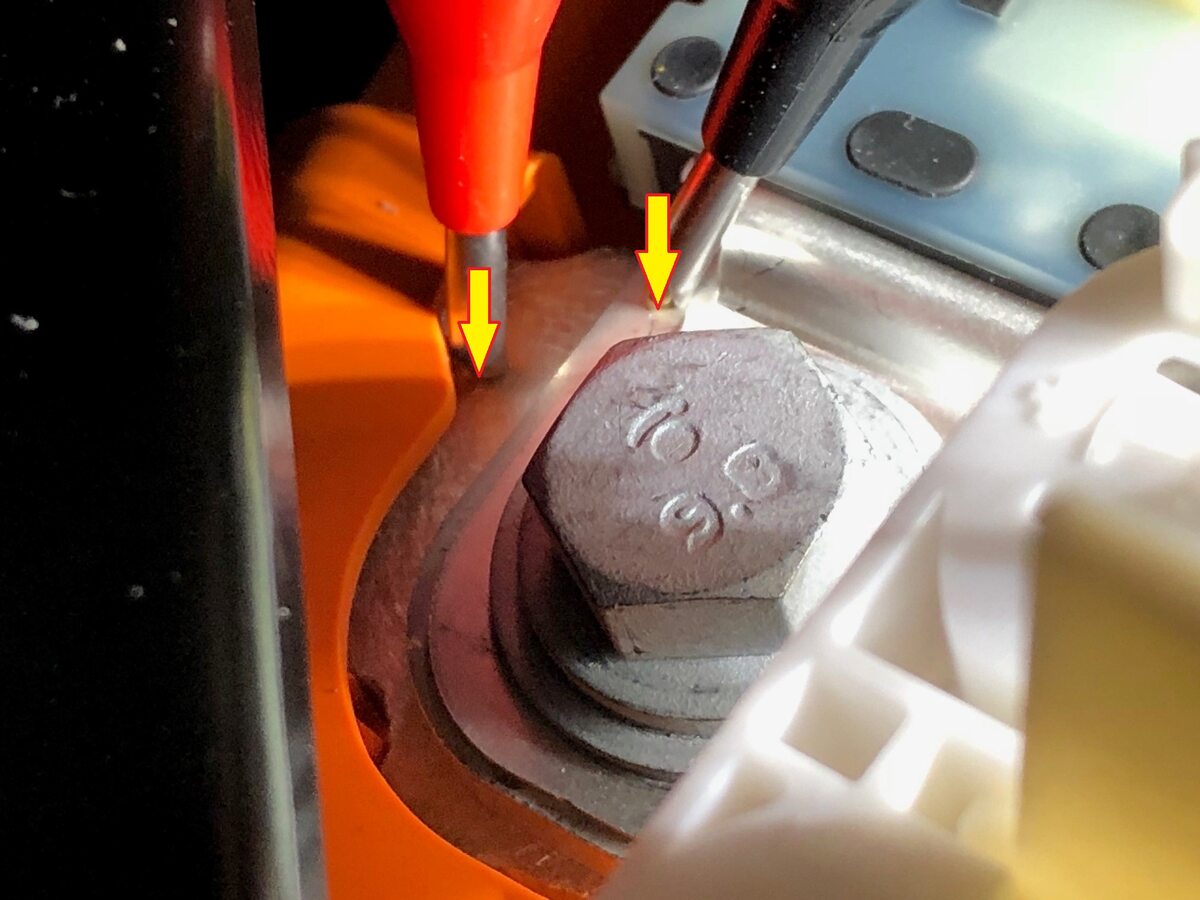

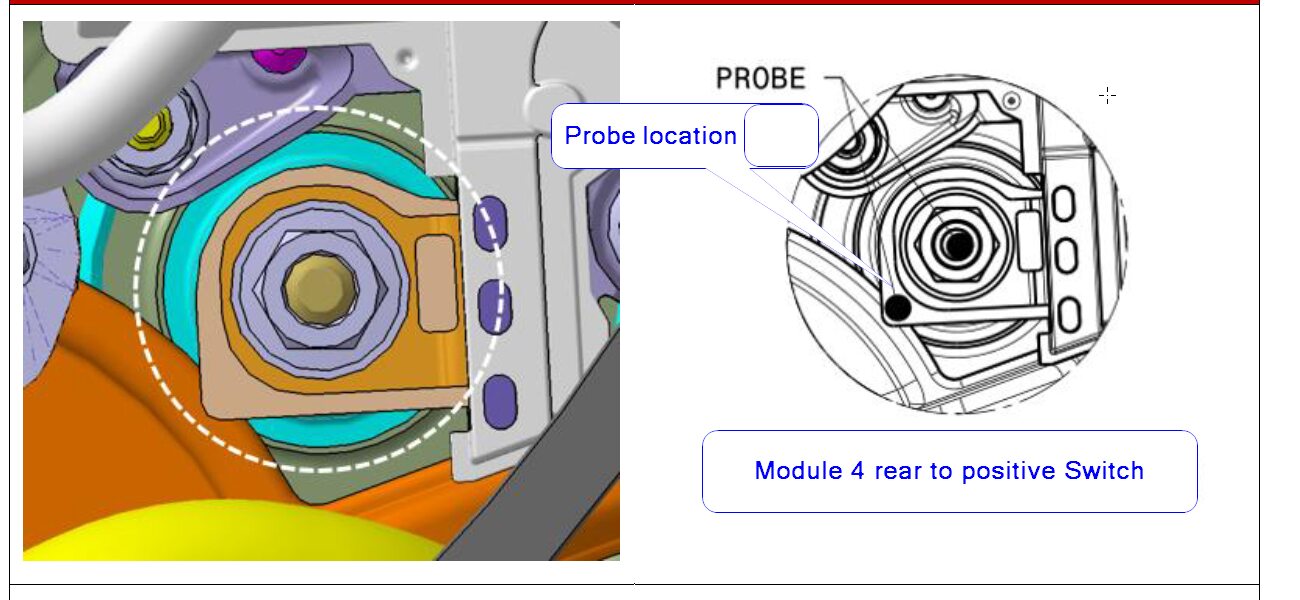

47. Measure resistance from HV joint between HV battery positive contactor and center of HV battery positive terminal
    注

    1x HV joint, 110μΩ or less





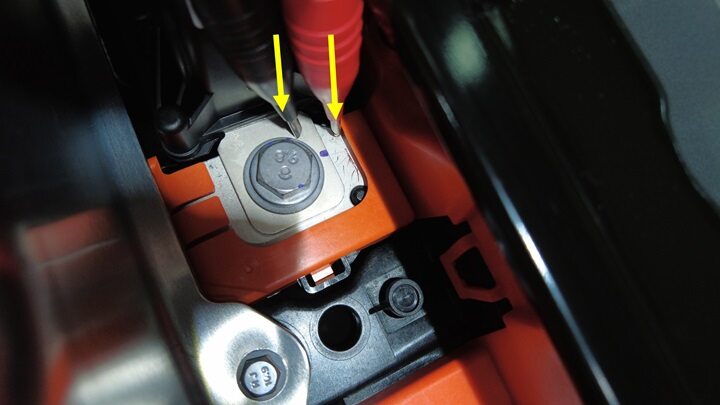

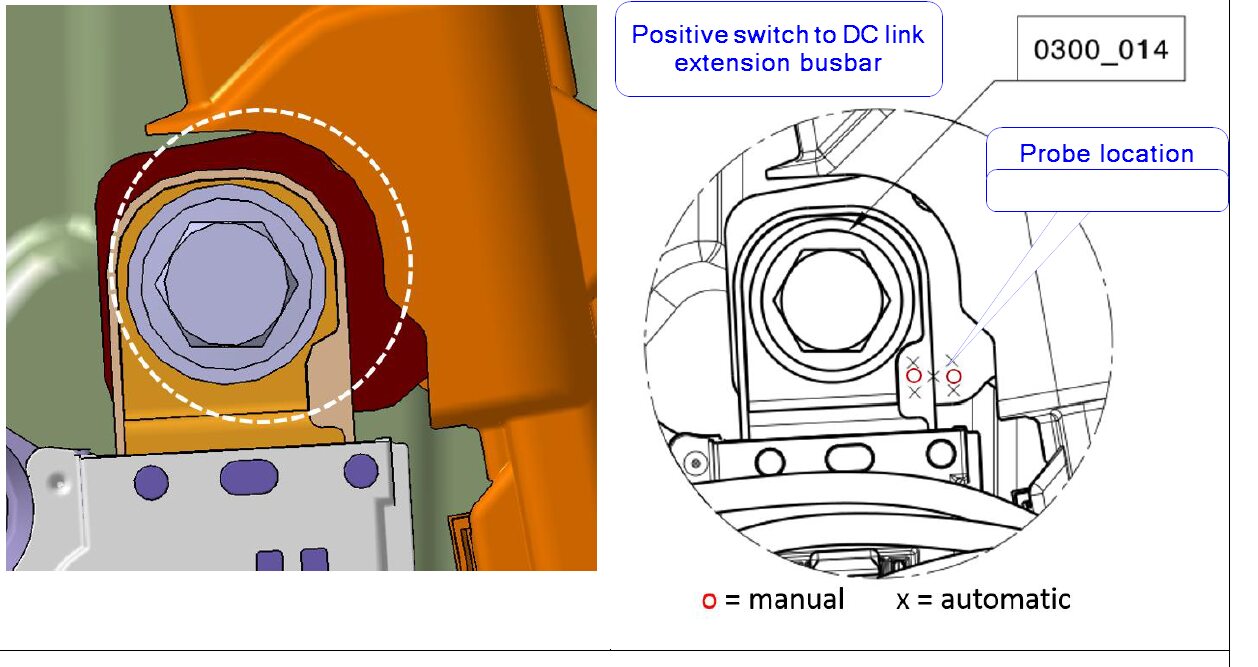

48. Perform Hioki impedance test at HV joint of positive pack contactor to DC link busbar
    注

    1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.





49. Install ancillary bay harness clip to positive pack contactor
    注

    1x clip



50. Connect ancillary bay harness connectors to positive pack contactor
    注

    2x connectors



51. Connect PCS LV connector to PCS
    注

    1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated



52. Connect PCS logic connector to PCS
    注

    1x connector



53. Connect PCS to DC bus HV connector
    注

    1x connector, Connect then secure locking tab



54. Lower HV Controller back into place

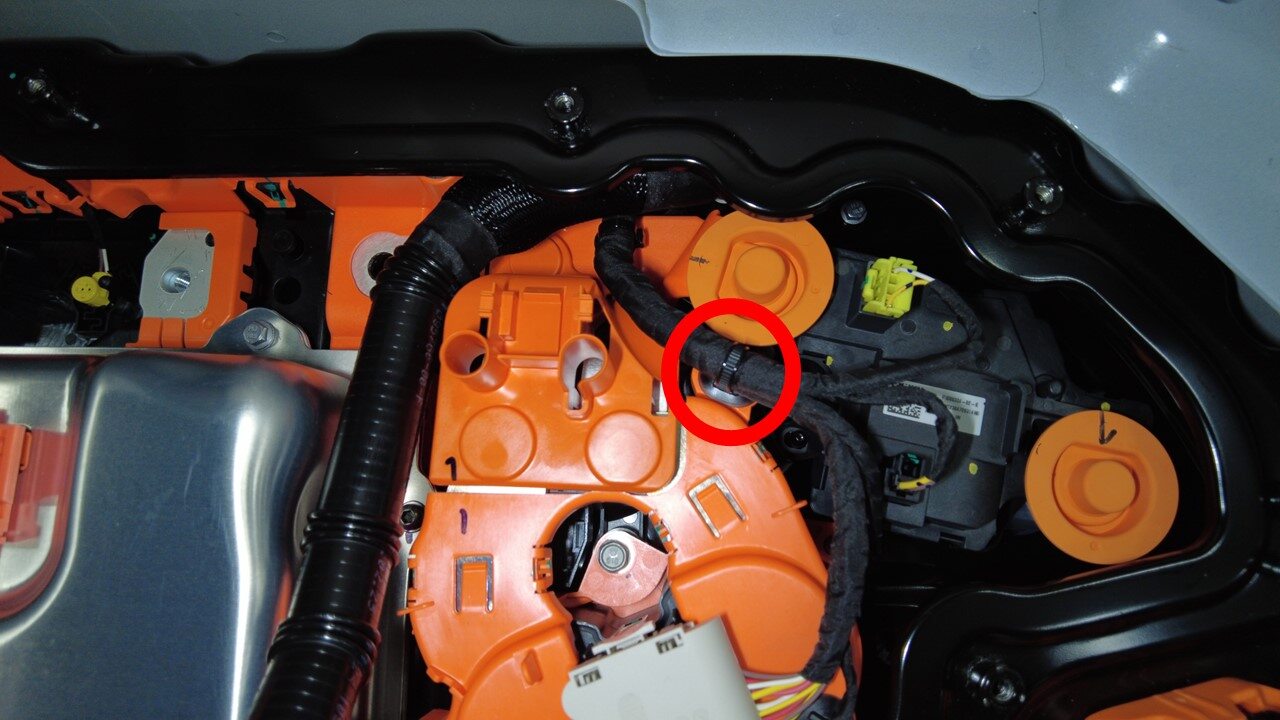

55. Remove harness clip from FC contactor cover
    注

    1x clip



56. Disconnect ancillary bay harness connectors from negative pack contactor
    注

    2x connectors



57. Remove HV joint insulators from negative pack contactor
    注

    2x insulators



58. Remove bolt securing negative pack contactor to DC link busbar joint
    注

    1x patch bolt, 13mm, 9 Nm, Discard after removal



59. Remove nut securing negative pack contactor to HV battery tall silicon terminal
    注

    1x patch nut, 13mm, 9 Nm, Discard after removal



60. Remove nuts securing negative pack contactor to penthouse
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary



61. Remove negative pack contactor from penthouse
    注

    2x guide pins





62. Position negative pack contactor to penthouse for installation
    注

    Align the 2x guide pins





63. Install nuts securing negative pack contactor to penthouse
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs, The number of nuts on newer vehicles may vary, Mark after torque



64. Install bolt securing negative pack contactor to DC link busbar joint
    注

    1x patch bolt, 13mm, 9 Nm, Install new patch bolt, Mark after torque



65. Install nut securing negative pack contactor to HV battery tall terminal
    注

    1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque

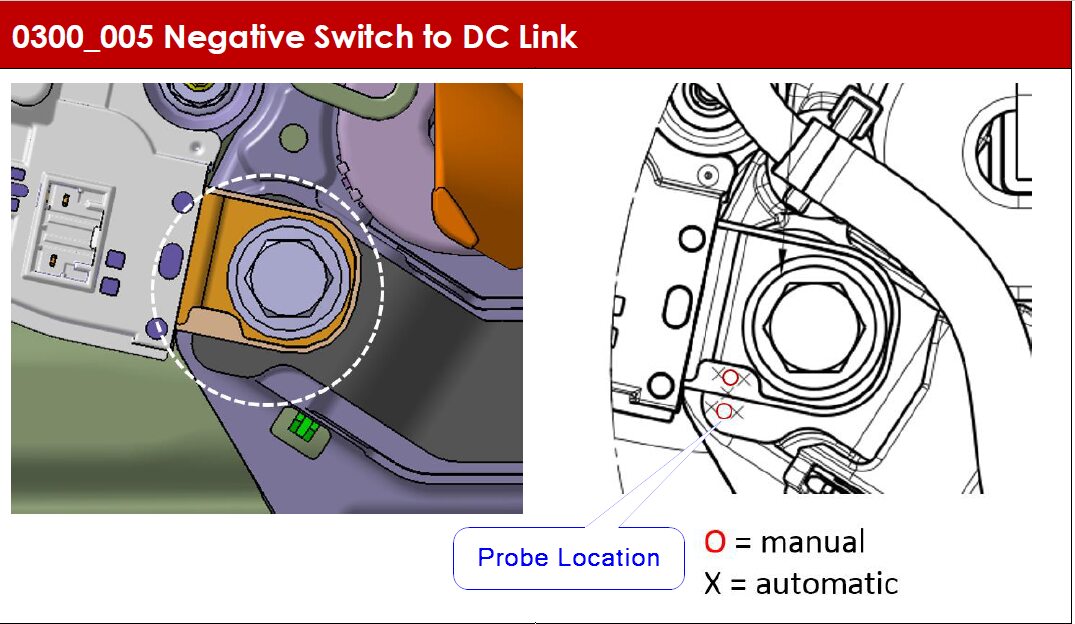

66. Perform Hioki impedance test at HV joint of negative pack contactor to negative DC link busbar
    注

    1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.

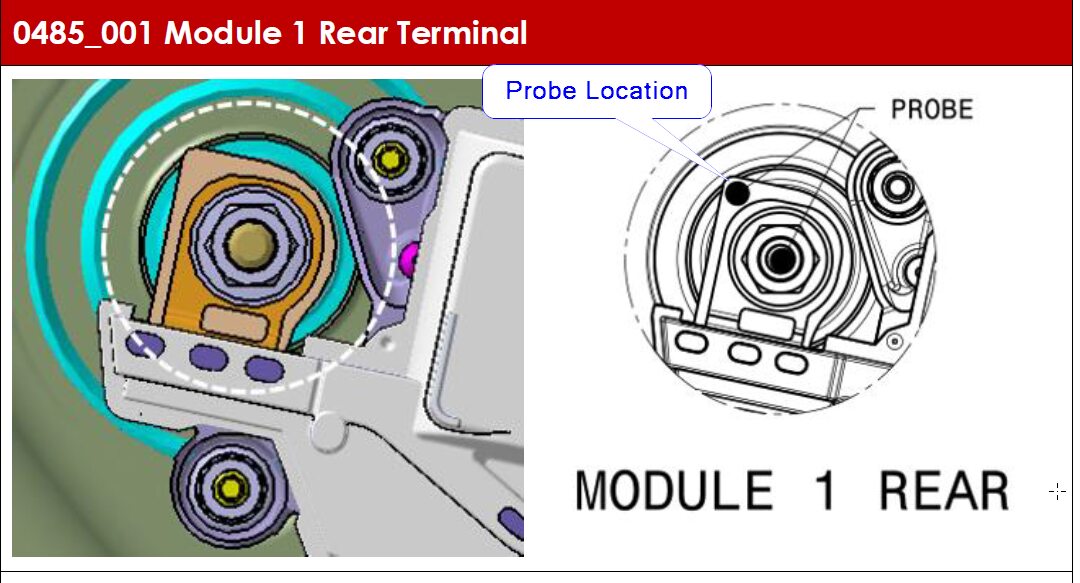

67. Perform Hioki impedance test at negative pack contactor to module 1 rear terminal
    注

    1x HV joint, 110μΩ or less





68. Install HV joint insulators to negative pack contactor
    注

    2x insulators



69. Connect ancillary bay harness connectors to negative pack contactor
    注

    2x connectors



70. Install ancillary bay harness clip around negative pack contactor area
    注

    1x clip



71. Remove pyro disconnect dummy



72. Clean mating surfaces
    注

    Allow to 1 minute dry time,Use an IPA wipe to clean the HV mating surfaces of the shunt, busbar, and the pyrotechnic battery disconnect

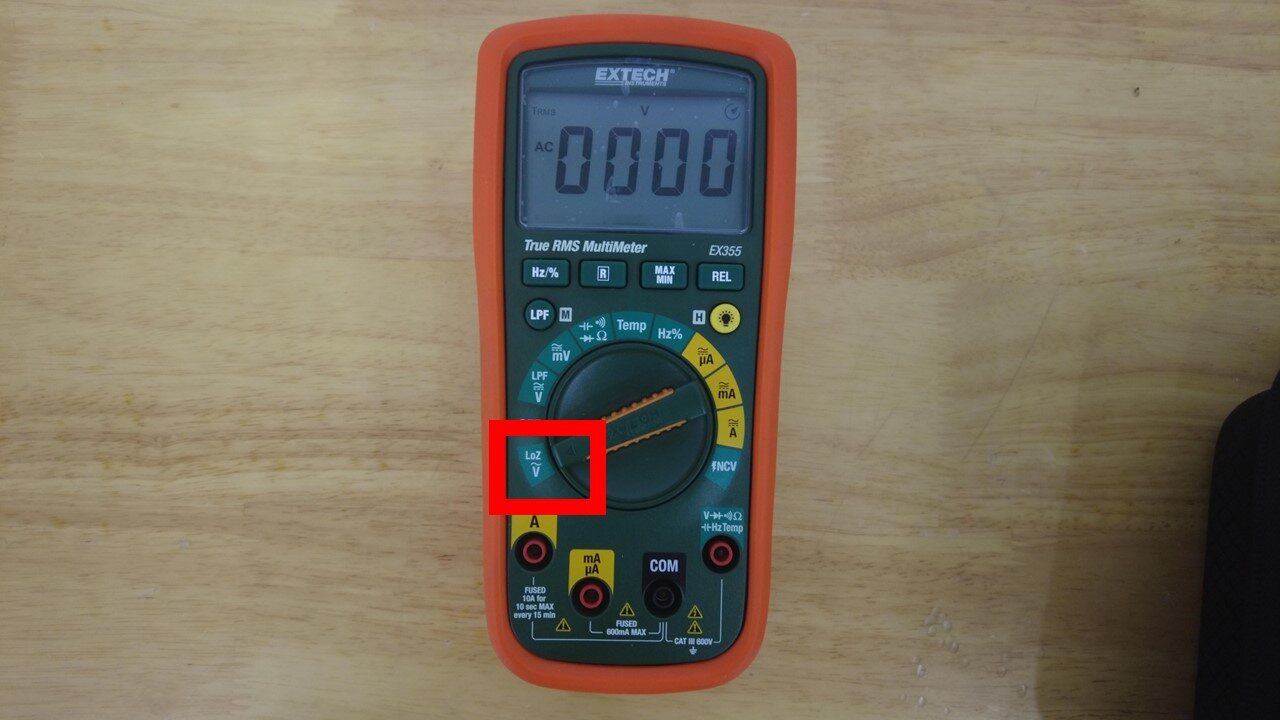

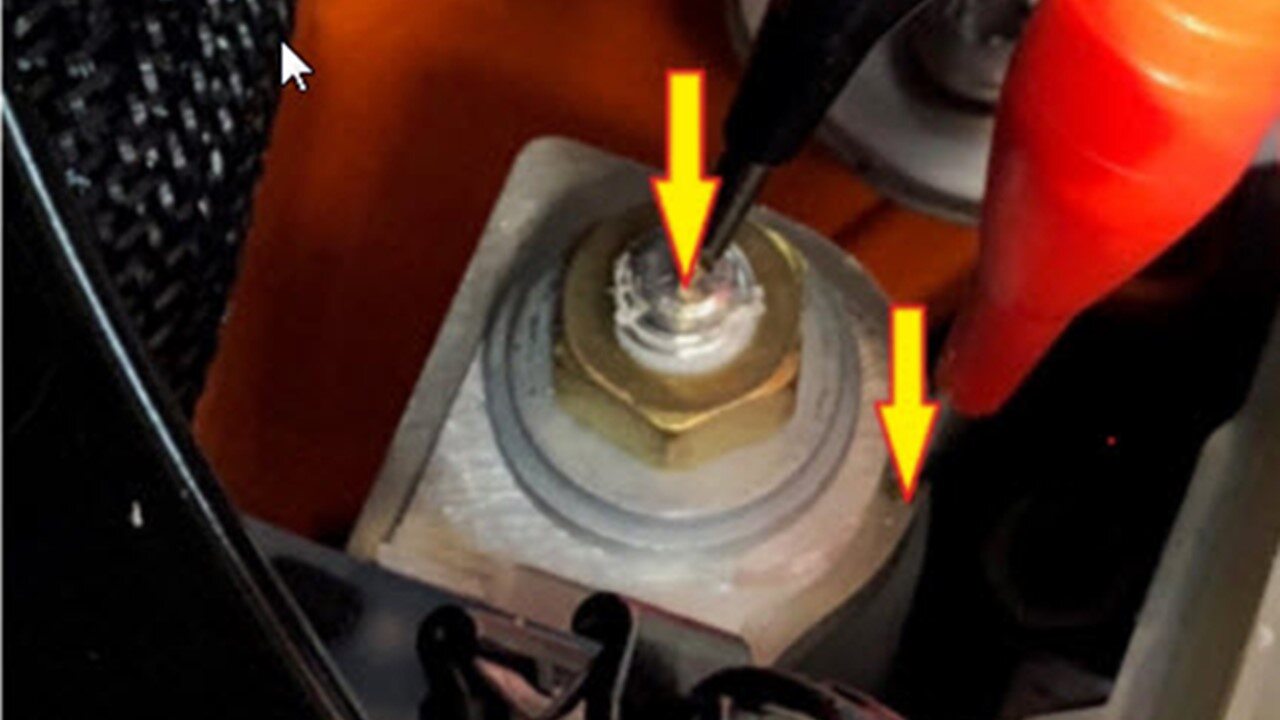

73. Set multimeter to "LoZ" (low impedance) mode

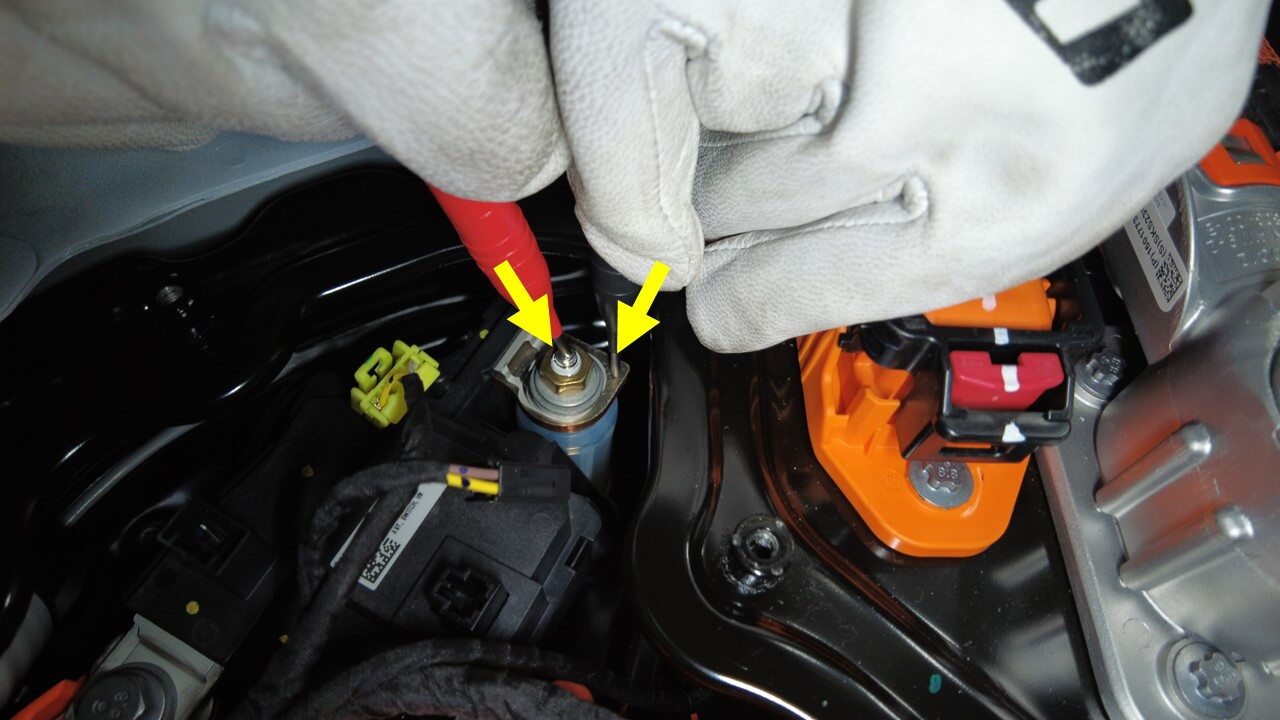

74. Measure voltage between busbar and shunt
    注

    While still measuring the voltage, have an assistant position the pyrotechnic battery disconnect into the HV battery for installation. Make sure to align the pins of the connector with the new pyrotechnic battery disconnect, and then press the pyrotechnic battery disconnect down onto the busbars





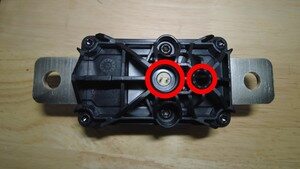

75. Position pyro disconnect to ancillary bay for installation
    注

    1x connector, Make sure to align the 2 pins with pyro disconnect, The pyro disconnect can only be installed one way







76. Install bolts securing pyro disconnect to ancillary bay
    注

    2x patch bolts, 13mm, 9 Nm

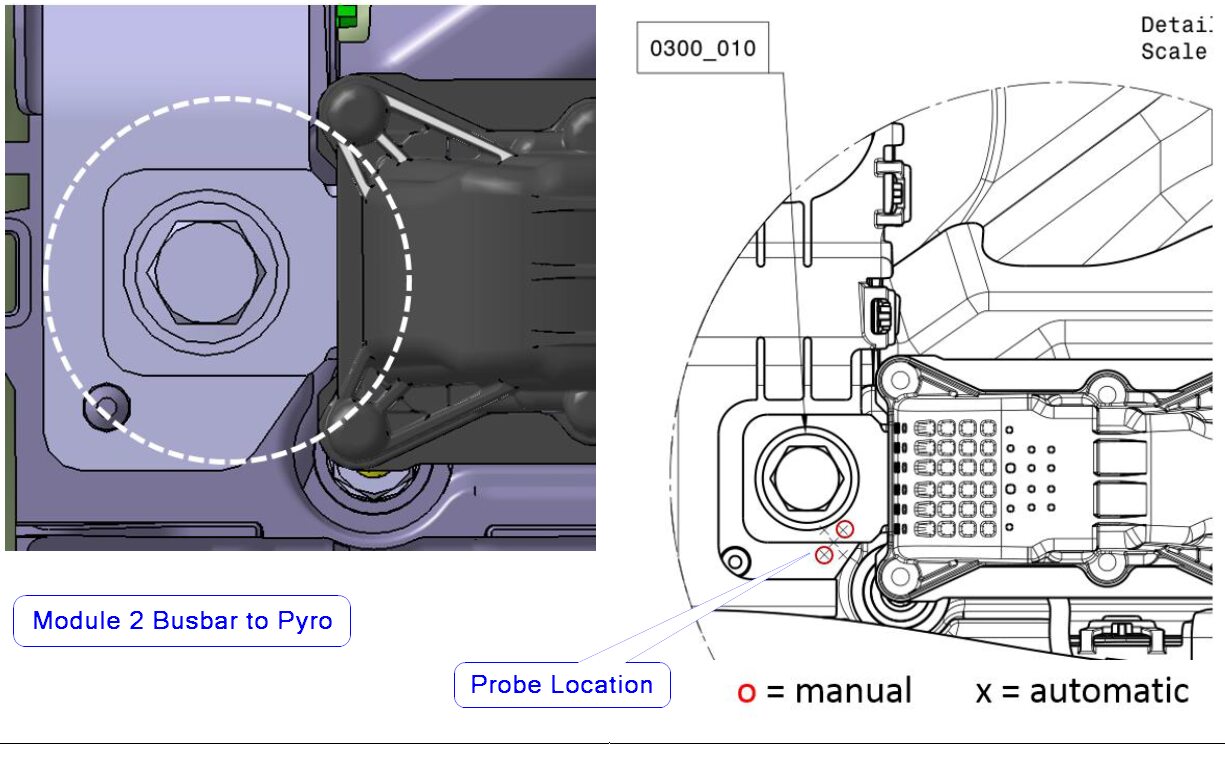

77. Measure resistance from module 2 busbar to pyro disconnect
    注

    1x HV joint, 60μΩ or less, Perform zero adjust to Hioki meter prior to testing





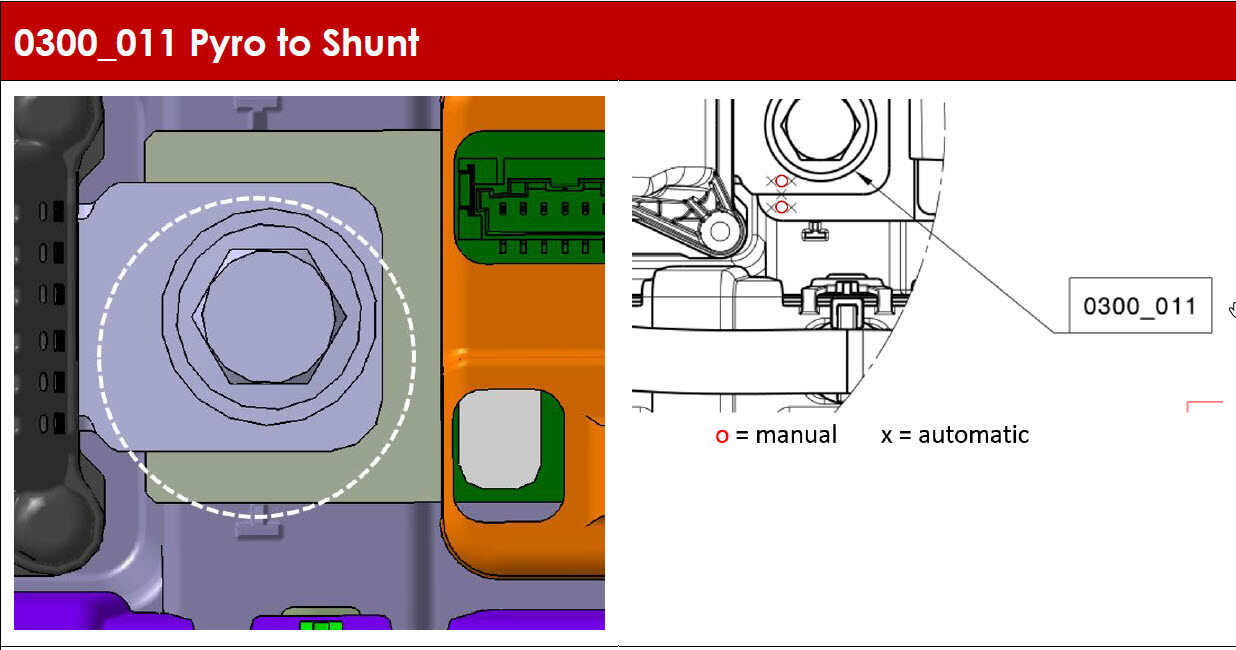

78. Measure resistance from pyro disconnect to shunt
    注

    1x HV joint, 45μΩ or less, Perform zero adjust to Hioki meter prior to testing





79. Remove service insulator kit

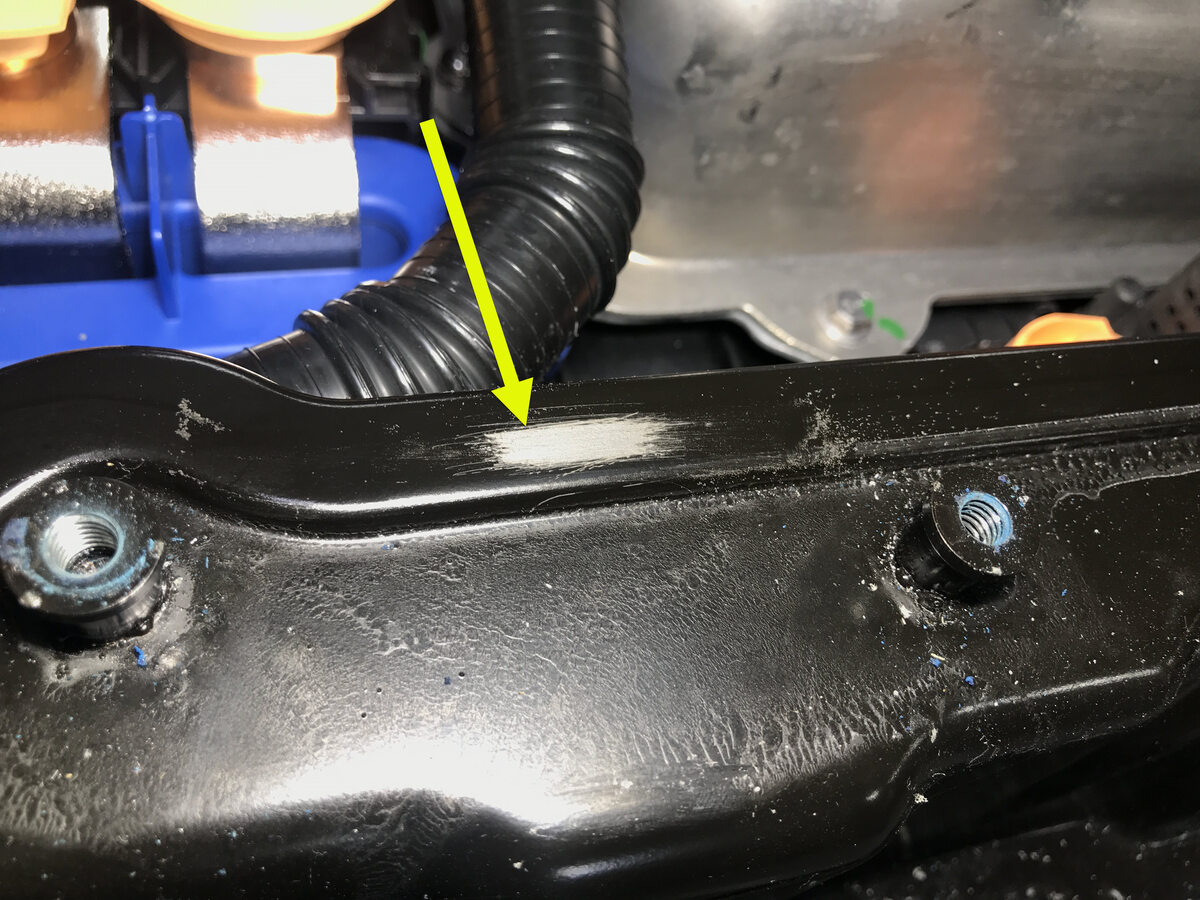

80. Inspect ancillary bay walls for damage
    注

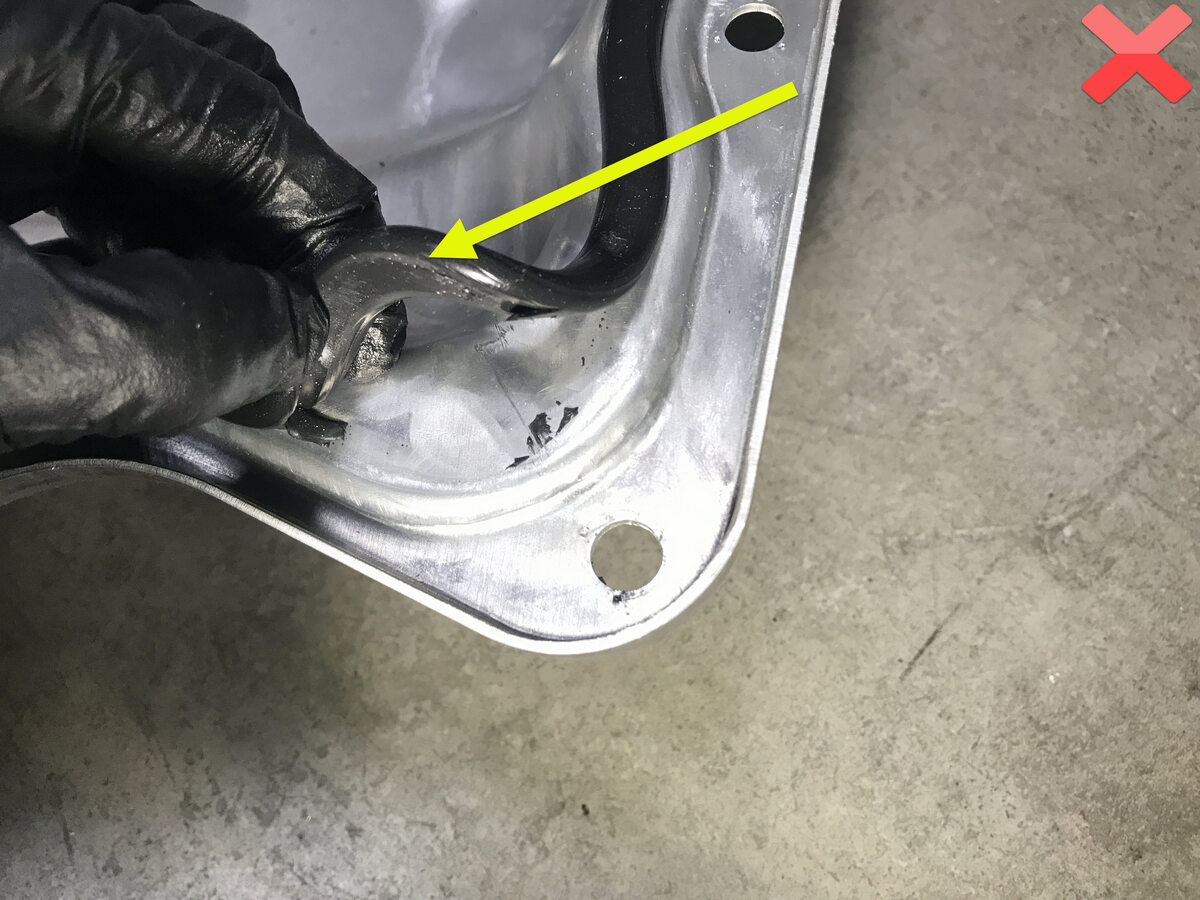

    Any dent or depression in the seal that causes it to not be flat will result in a leak, and cannot be reused, Any paint that comes off the ancillary bay wall, whether or not it sticks to the seal, will require enclosure leak test when reassembled, It can still be reused

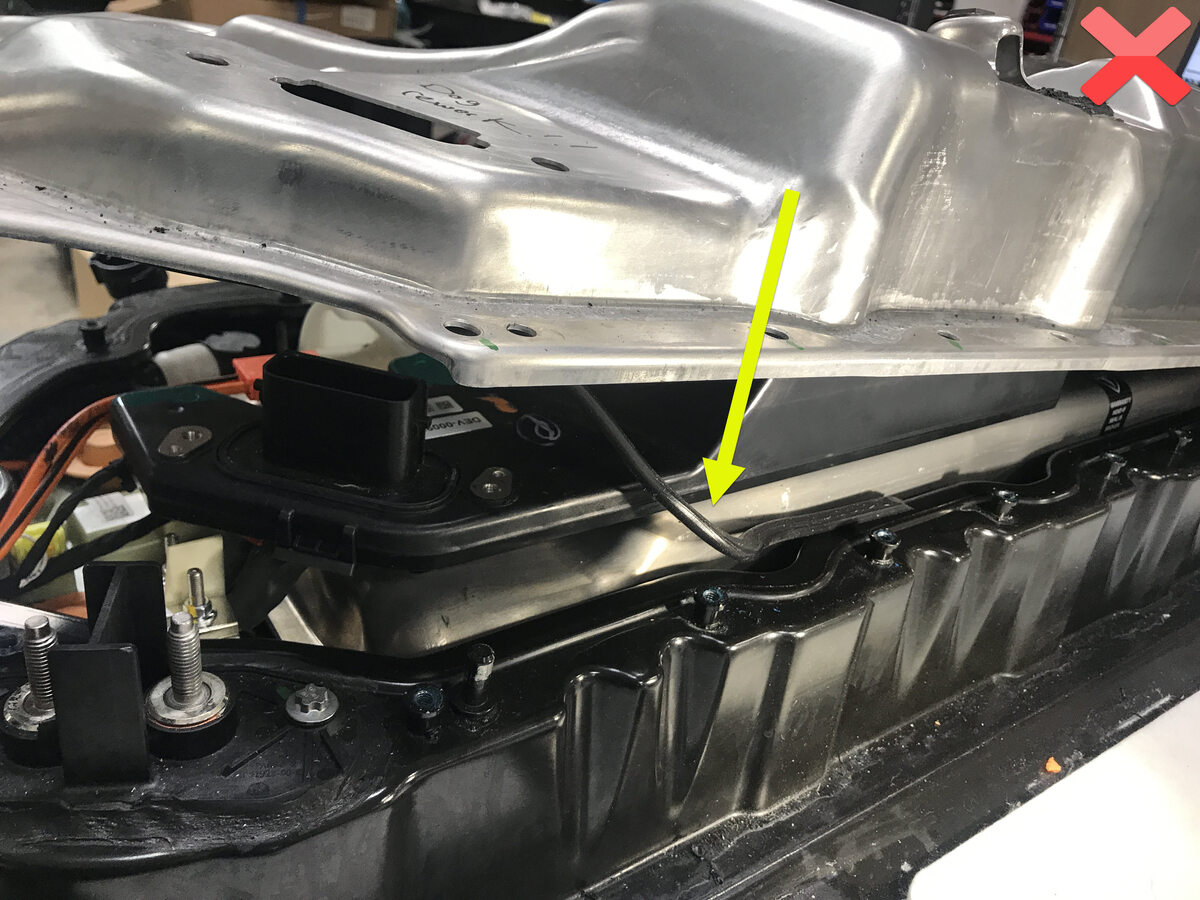

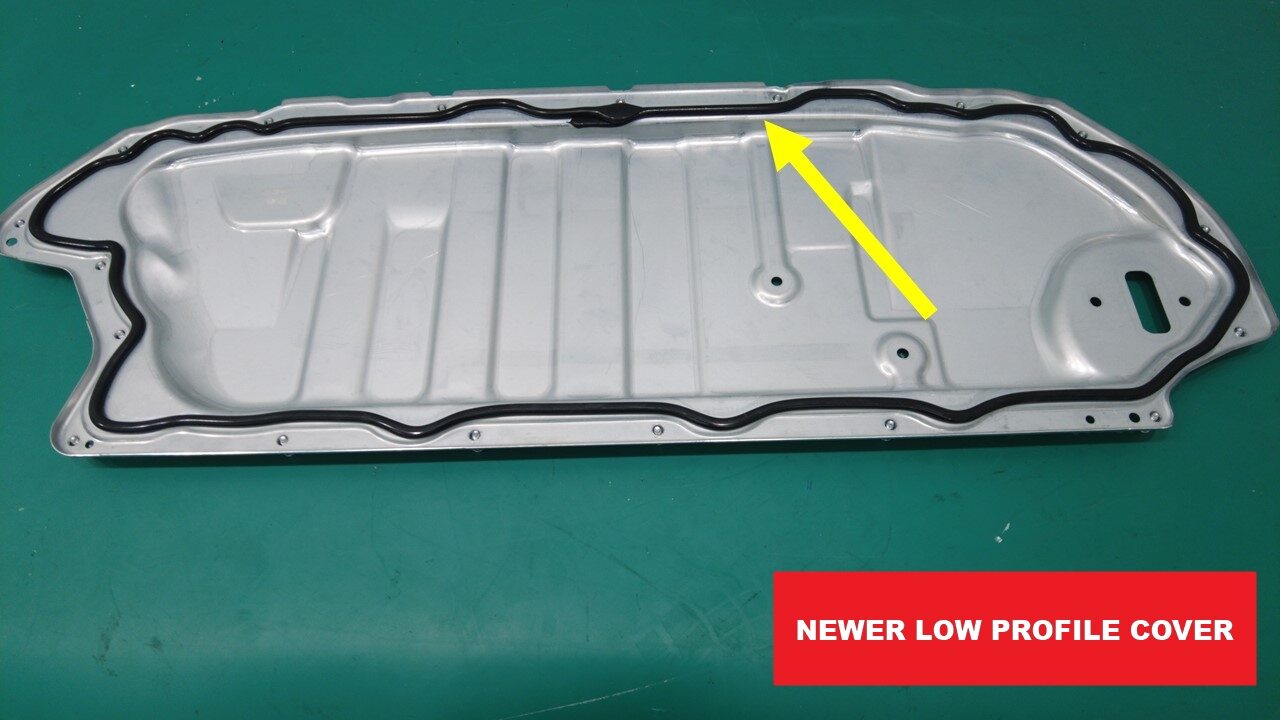

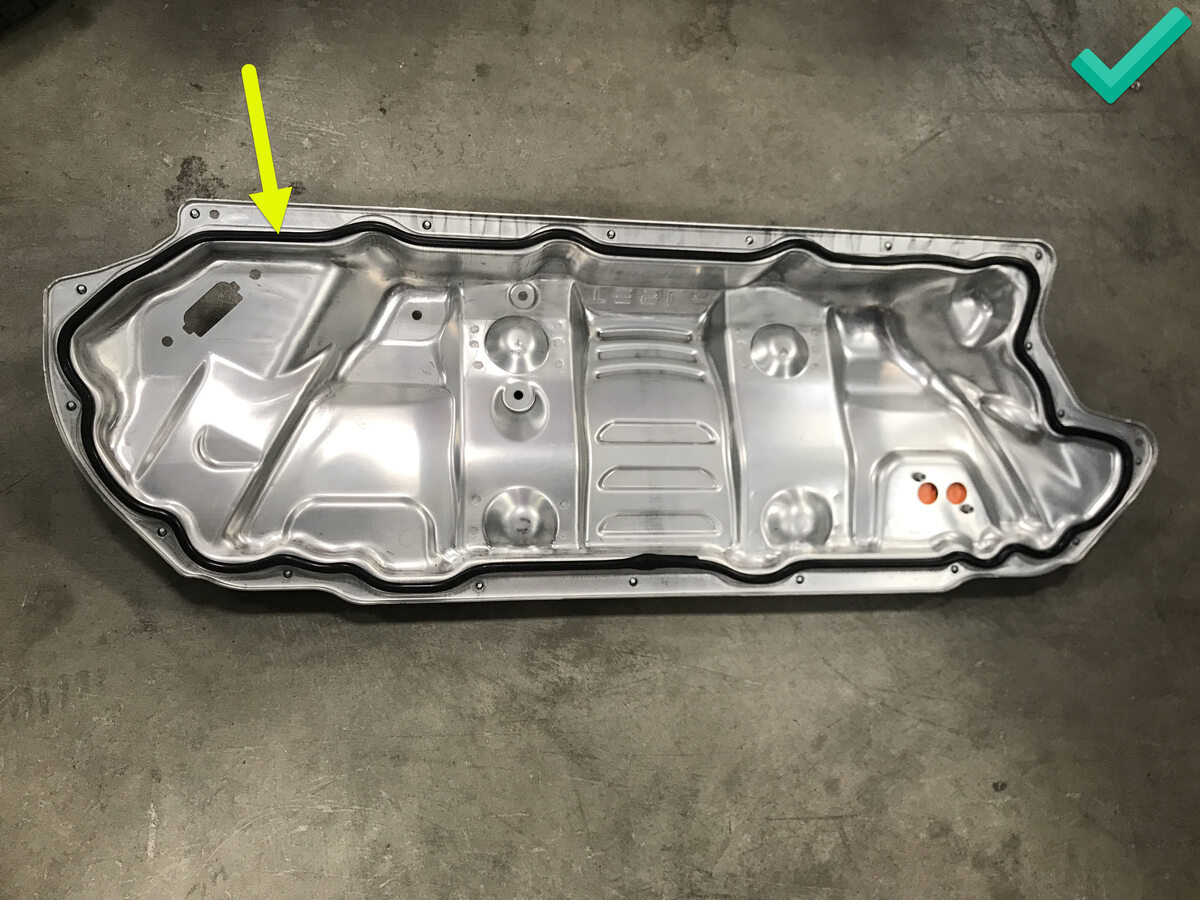

81. Inspect ancillary bay cover seal to confirm it has no visual damage
    注

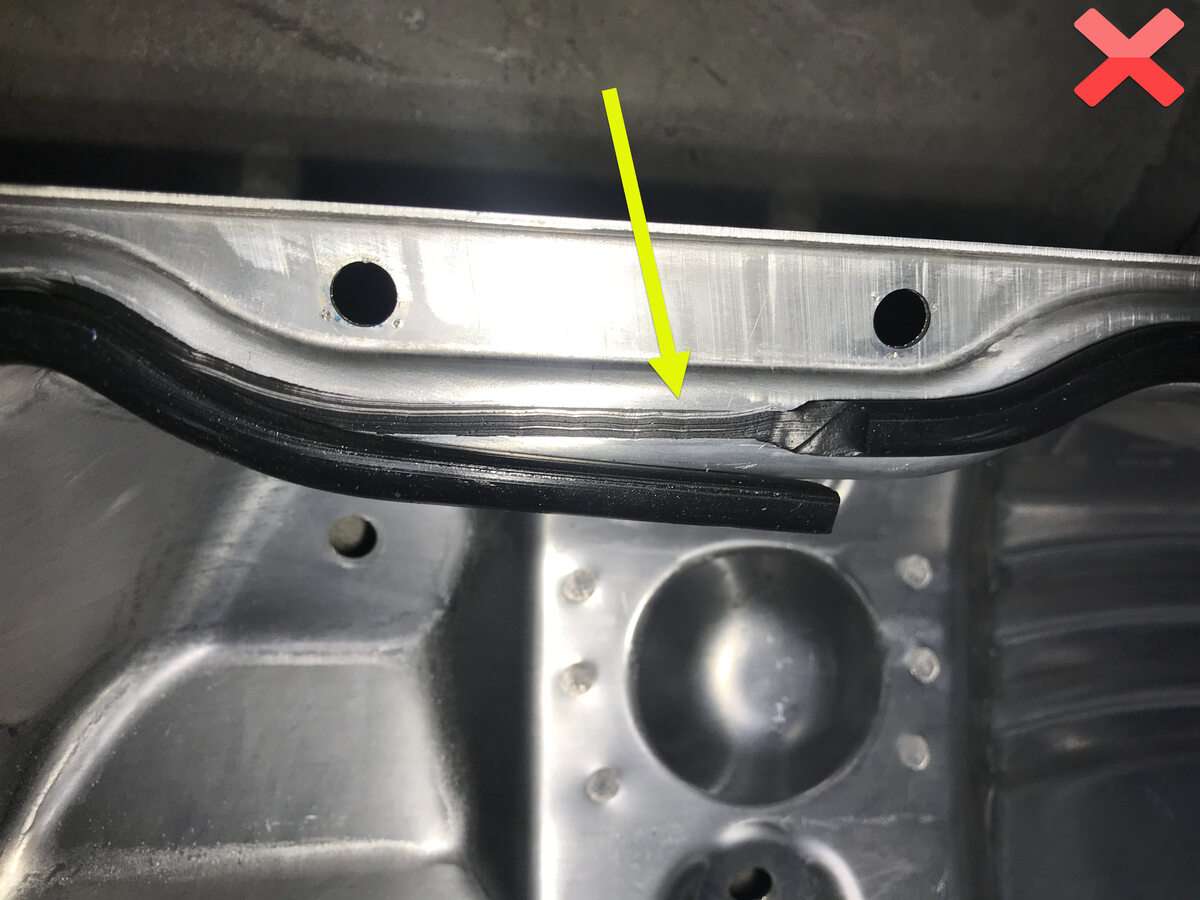

    Image up close for clarity, Delaminated and torn seals cannot be reused











82. Wipe ancillary bay cover with IPA to clean surface
    注

    Allow to 1 minute dry time



83. Position ancillary bay cover to HV battery for installation
    注

    Ensure all accessible insulators are present, wearing Electrical Protective Gloves is not necessary once all HV components are covered.





84. Remove HV insulating gloves



85. Install bolts securing ancillary bay cover to HV battery
    注

    18x bolts, E10 5-Lobe, 8 Nm, Use E10 5-Lobe socket without magnet, Fasteners are captive, Follow torque sequence per image





86. Install bolts securing ancillary bay cover to HVC
    注

    3x bolts, E10, 5 Nm + 30 degrees



87. Remove logic cap and connect HVC logic connector
    注

    1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated





88. Connect 2nd row seat harness and secure cushion
    注

    2x clips, 2x connectors, Insert buckles through holes, Slide rear inward then align front clips, Perform push-pull-push test







89. Connect first responder loop and LV battery
    注

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







90. Install rear underhood apron
    注

    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips





91. Close hood



92. Move RH front seat to original position



93. Move LH front seat to original position



94. Raise all four windows
