校正代码 00030410 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

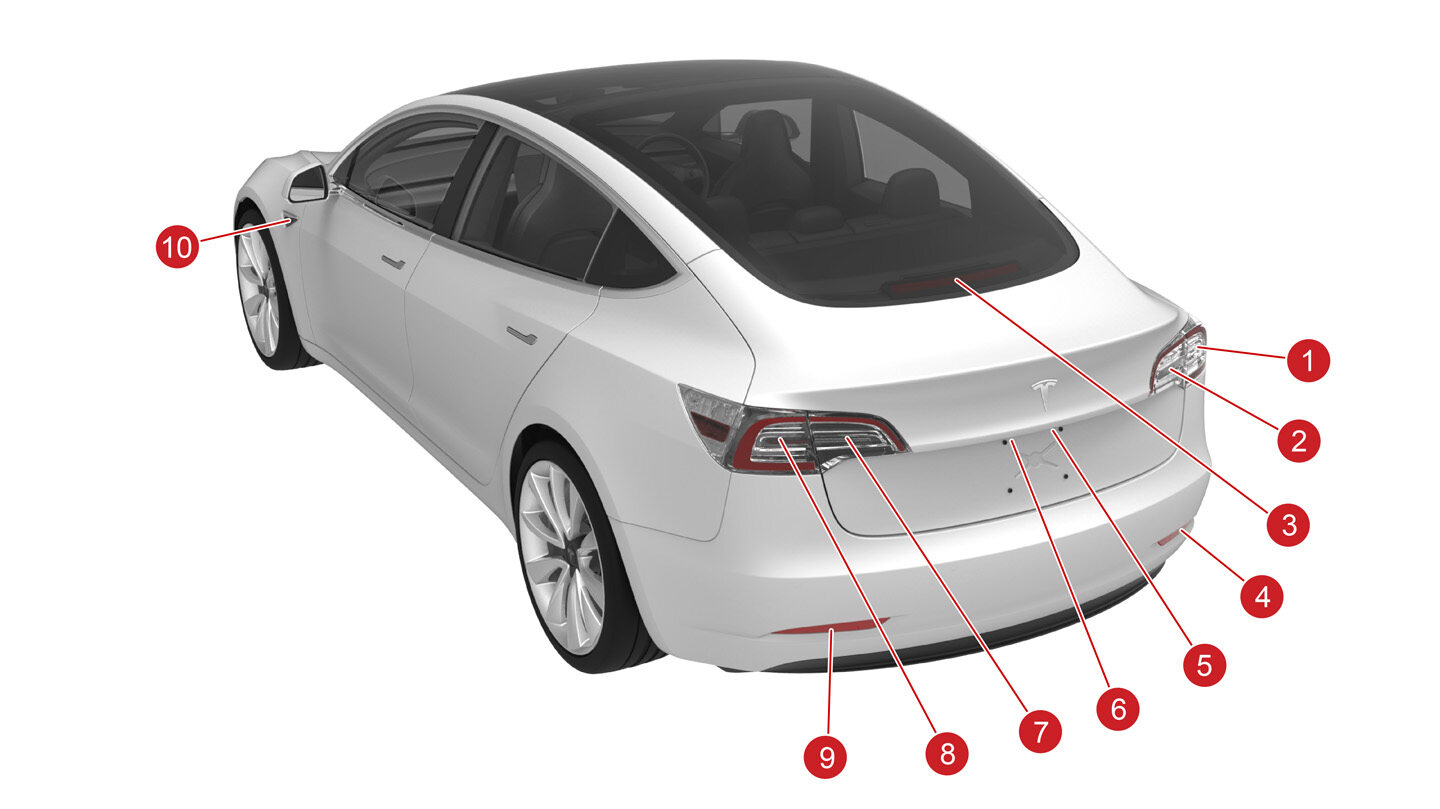

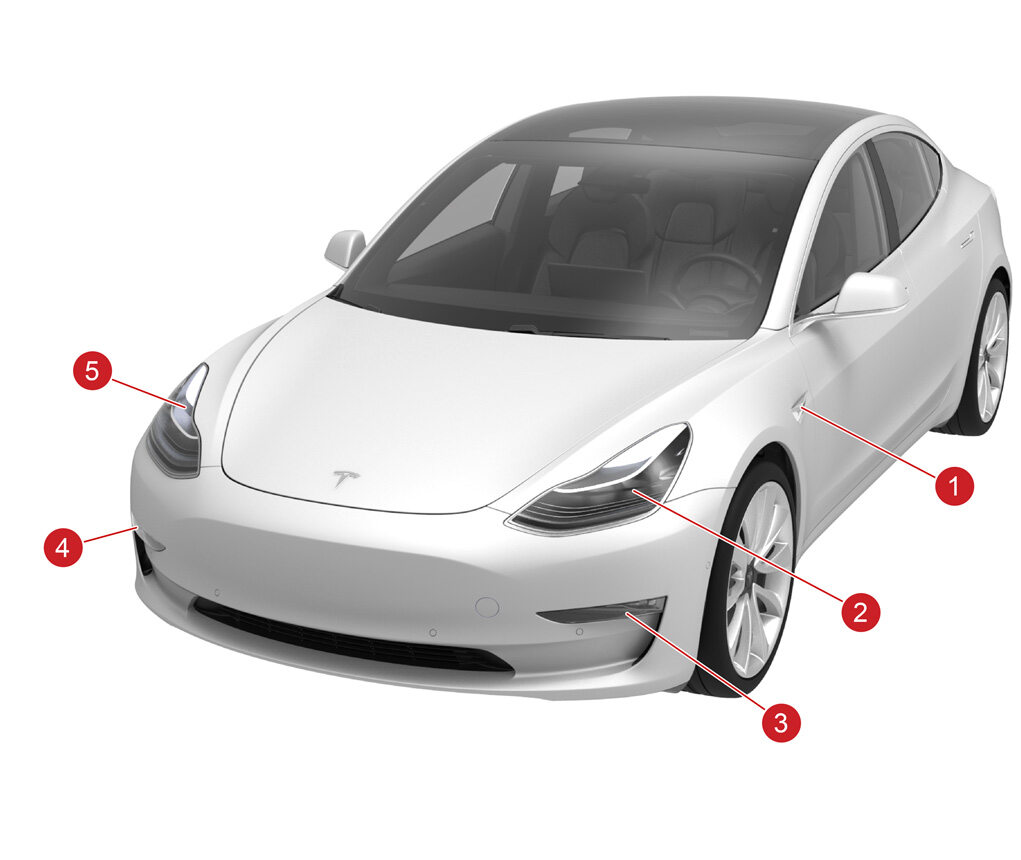

1. Inspect front external lights
   注

   Look for cosmetic damages and humidity ingress

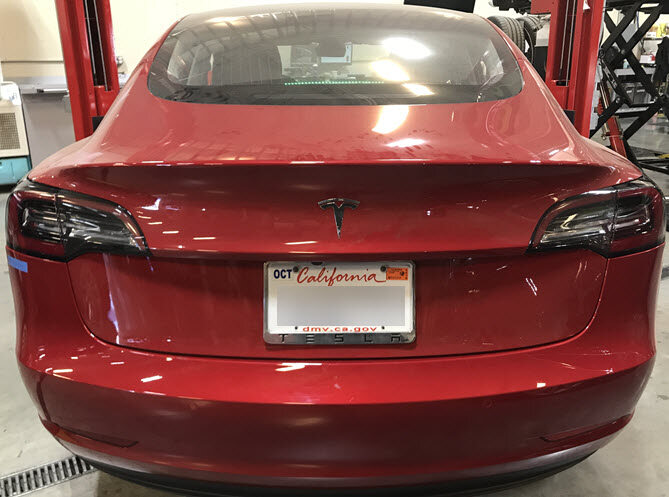

2. Inspect rear external lights
   注

   Look for cosmetic damages and humidity ingress, it is acceptable for taillights to have some condensation



3. Link to procedure: 686540f6e03b756b141c53ec
4. Inspect windshield for rock chips and cracks

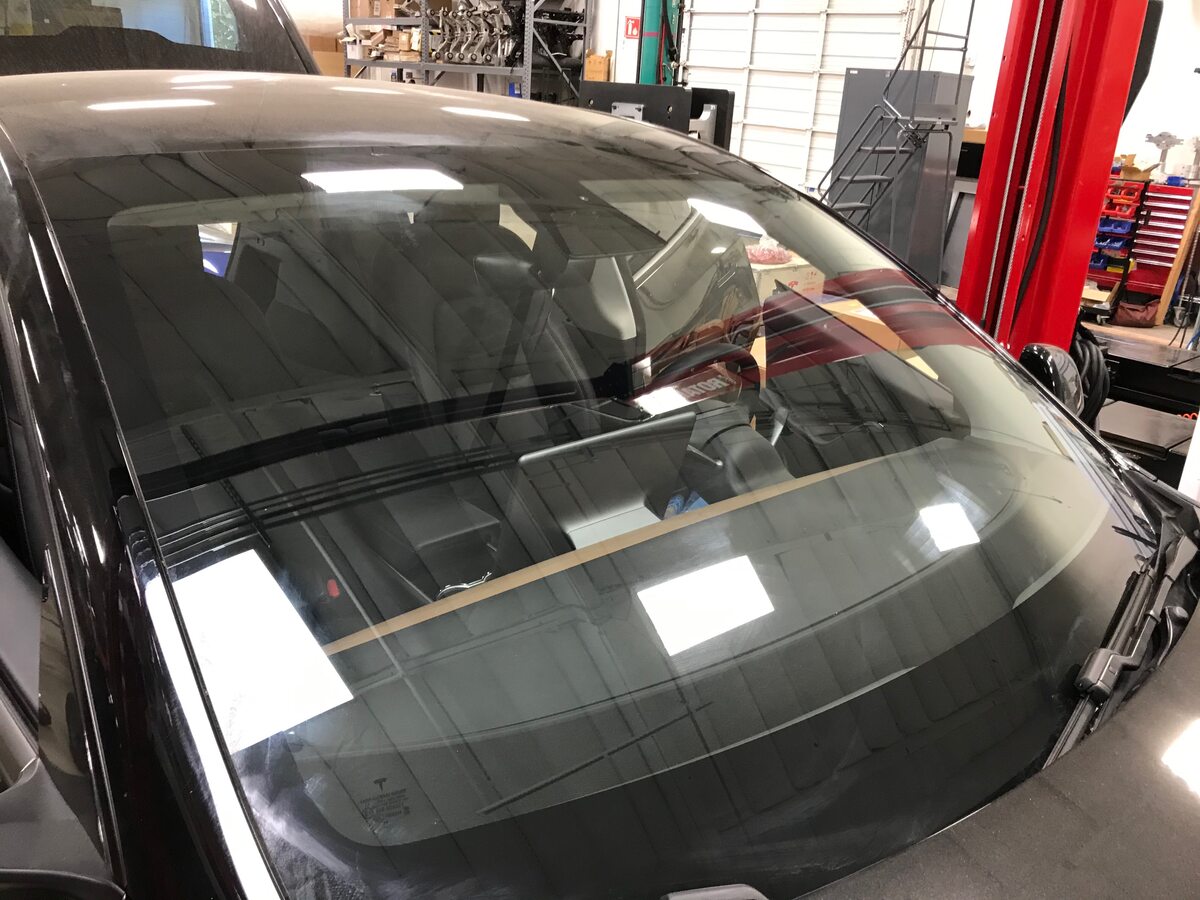

   注

   No damage in the driver’s viewing area, airbag impact area, forward camera viewing area, or within 50 mm of the edge allowed, No more than 3 cracks or chips to the glass allowed



5. Check all emergency release cables and switches

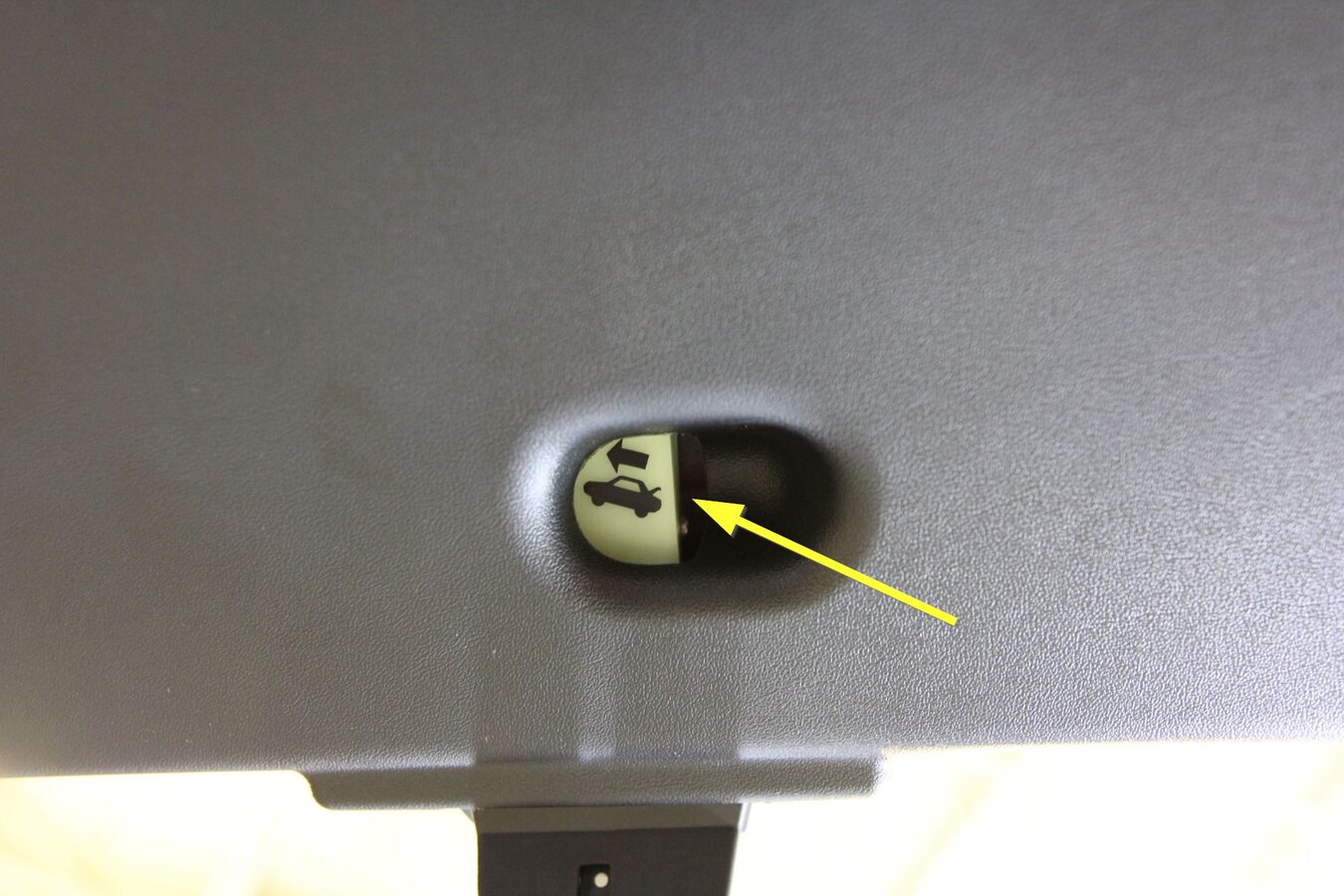

   注

   Front door releases, Trunk release, Use caution with front door releases as door glass will not drop and could damage seals or bright molding

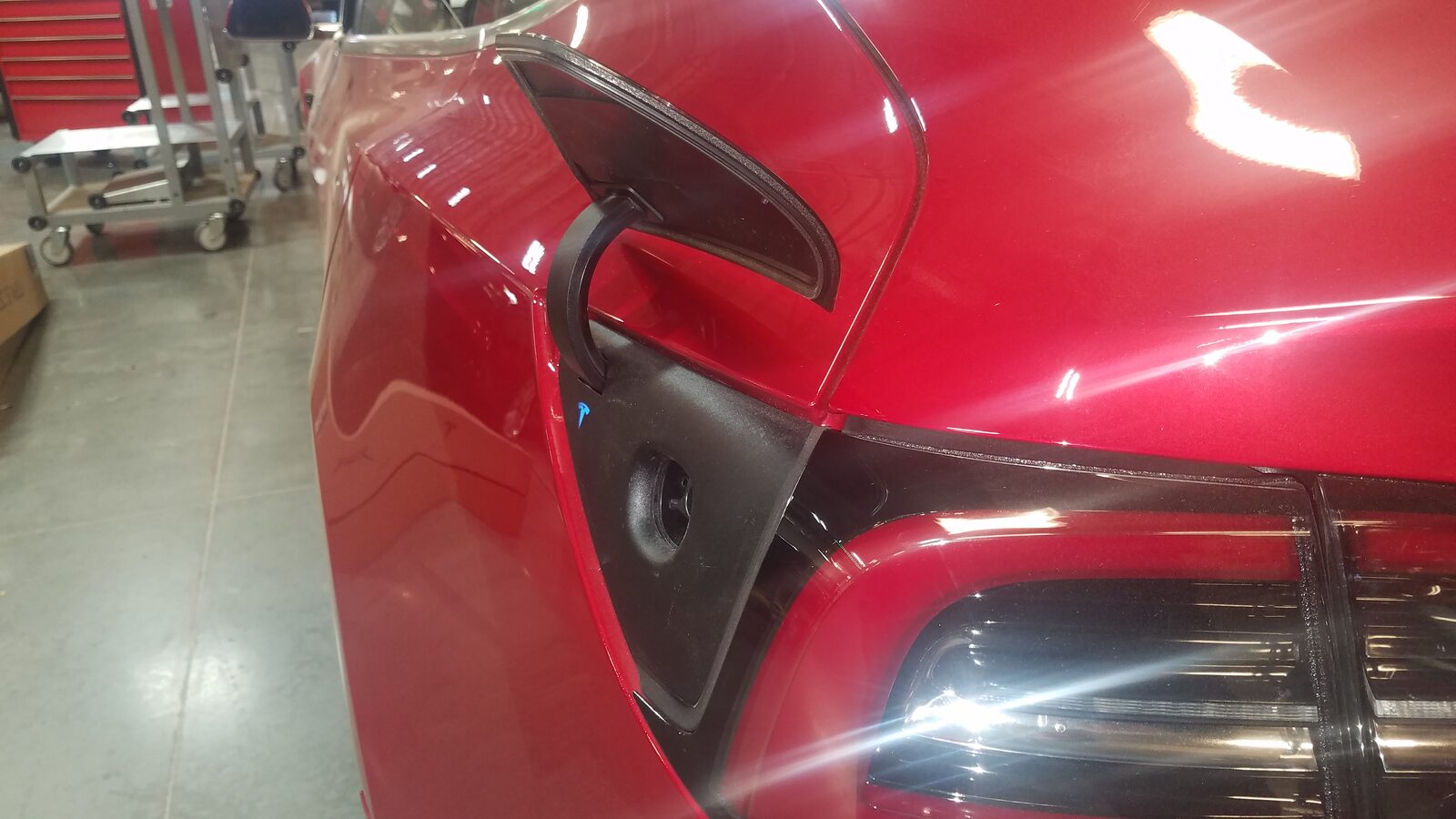

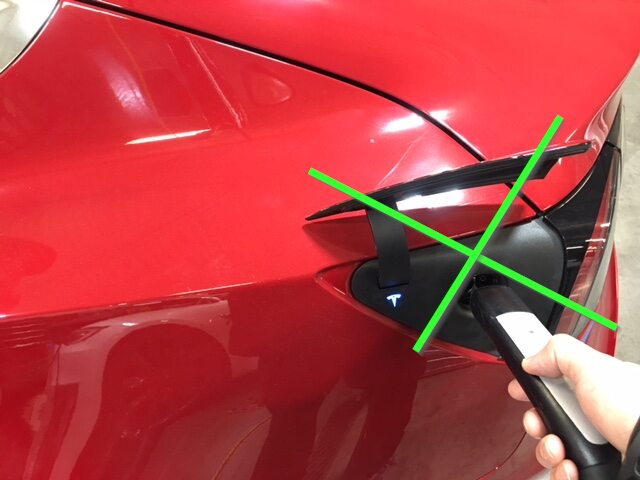

6. Function check chargeport door (5 cycles)
   注

   5x cycles, Inspect and note functionality full range of motion, touch to open, and indicator light. Look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

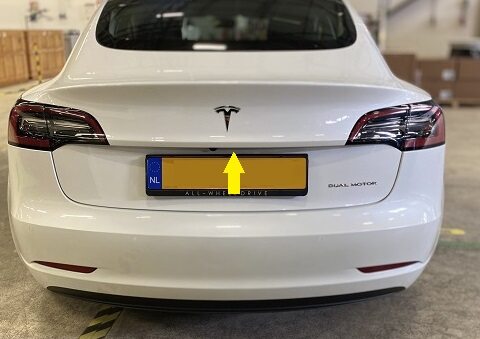

7. Open liftgate
   注

   Observe for proper latch operation



8. Close trunk

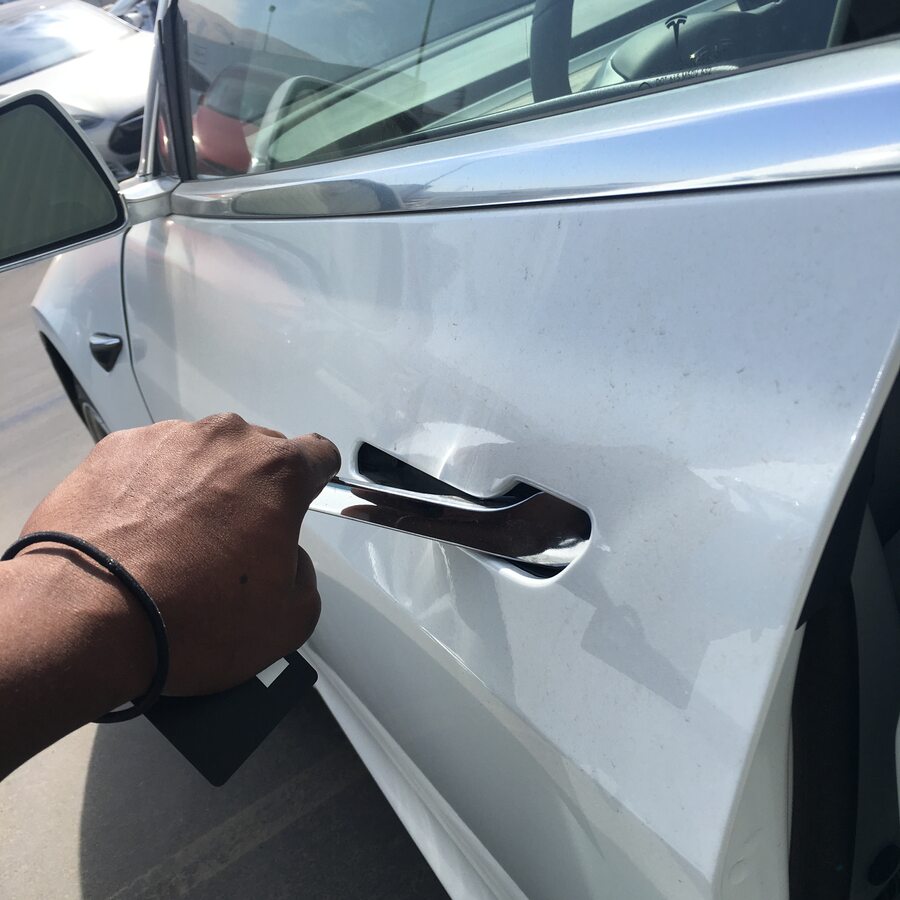

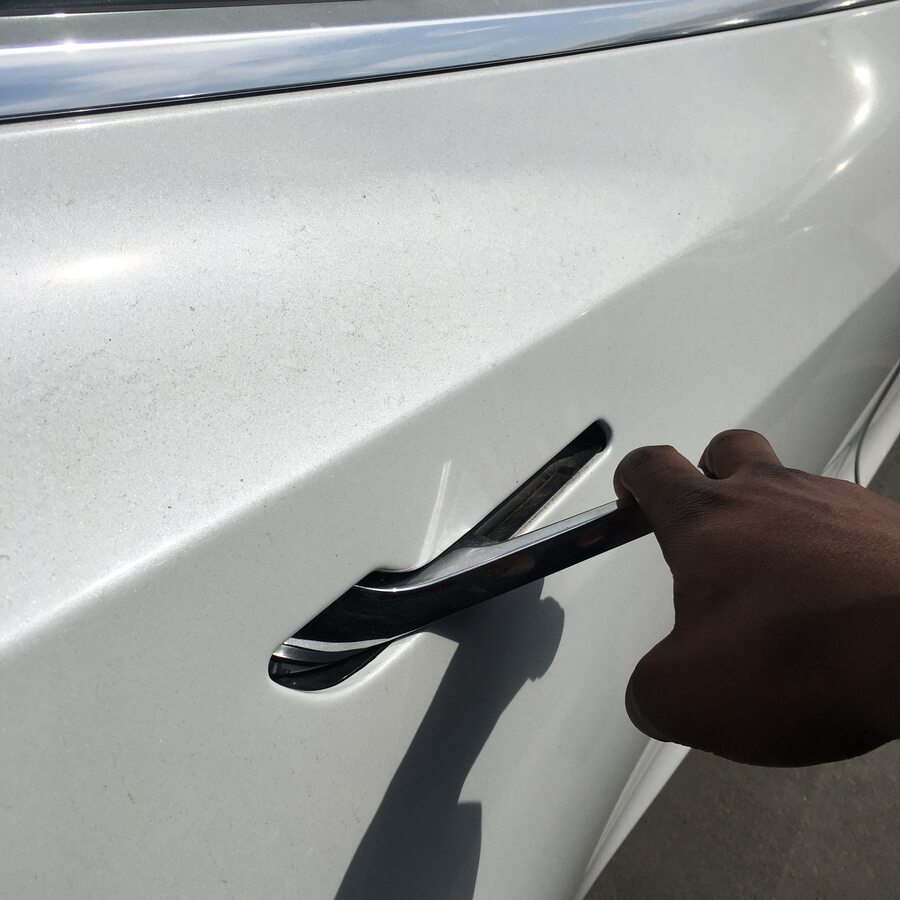

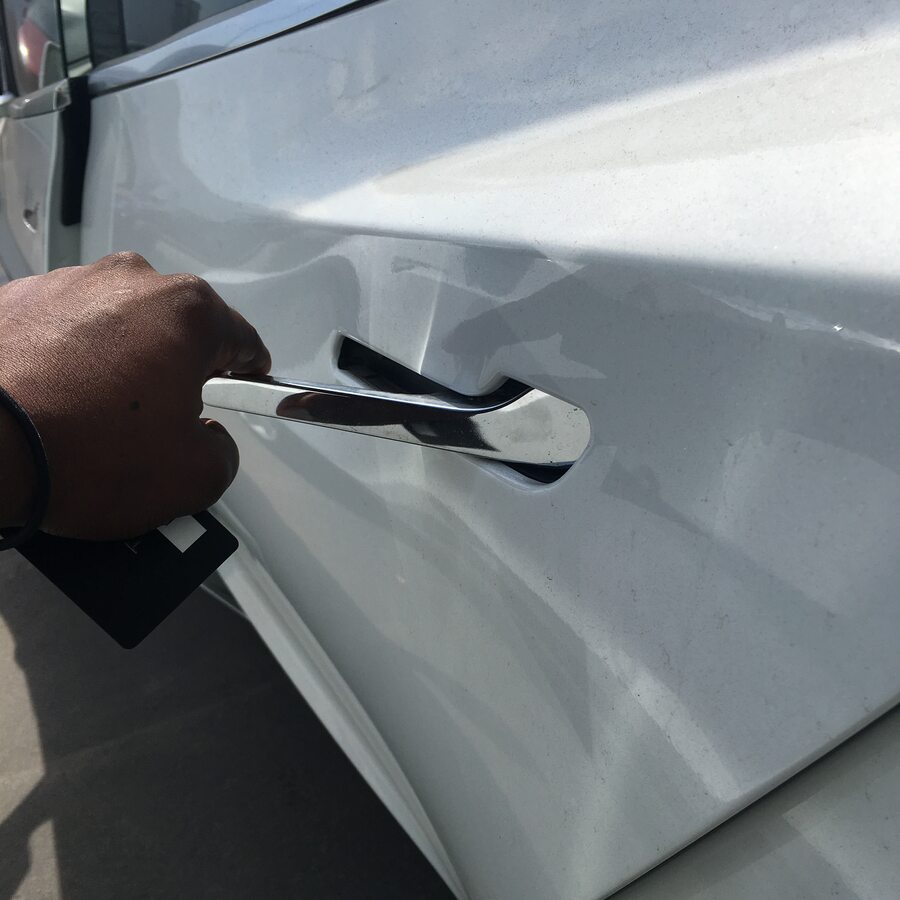

9. Function check LH front door (exterior)
   注

   Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions

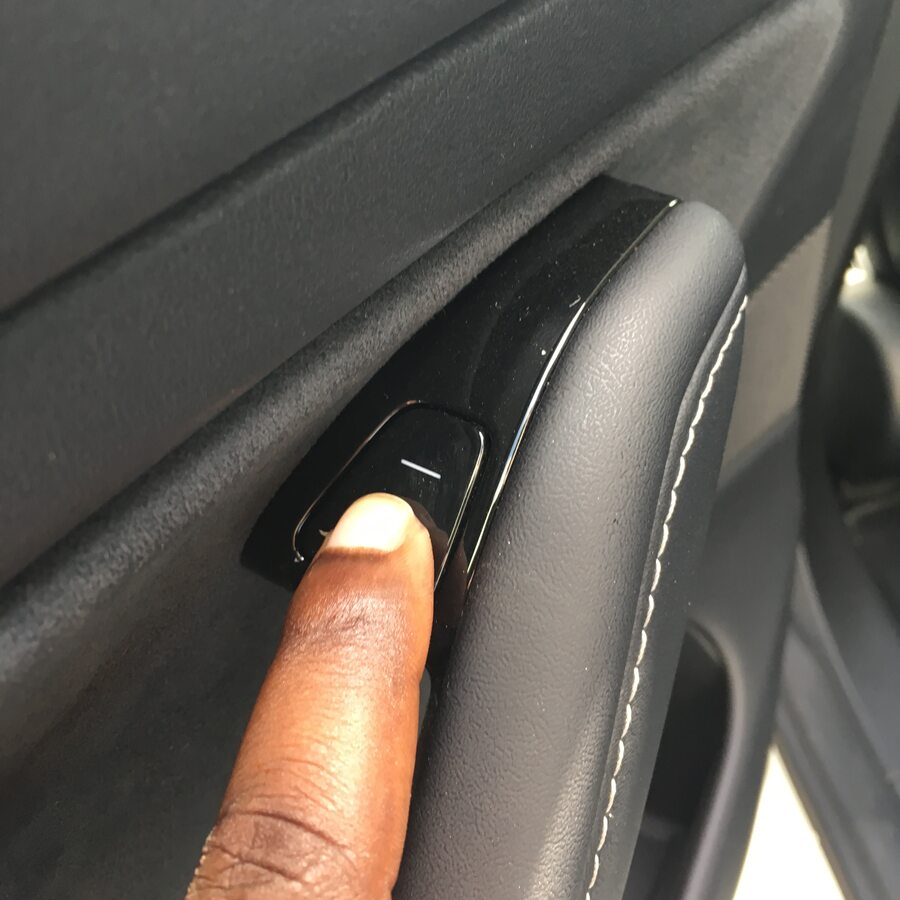

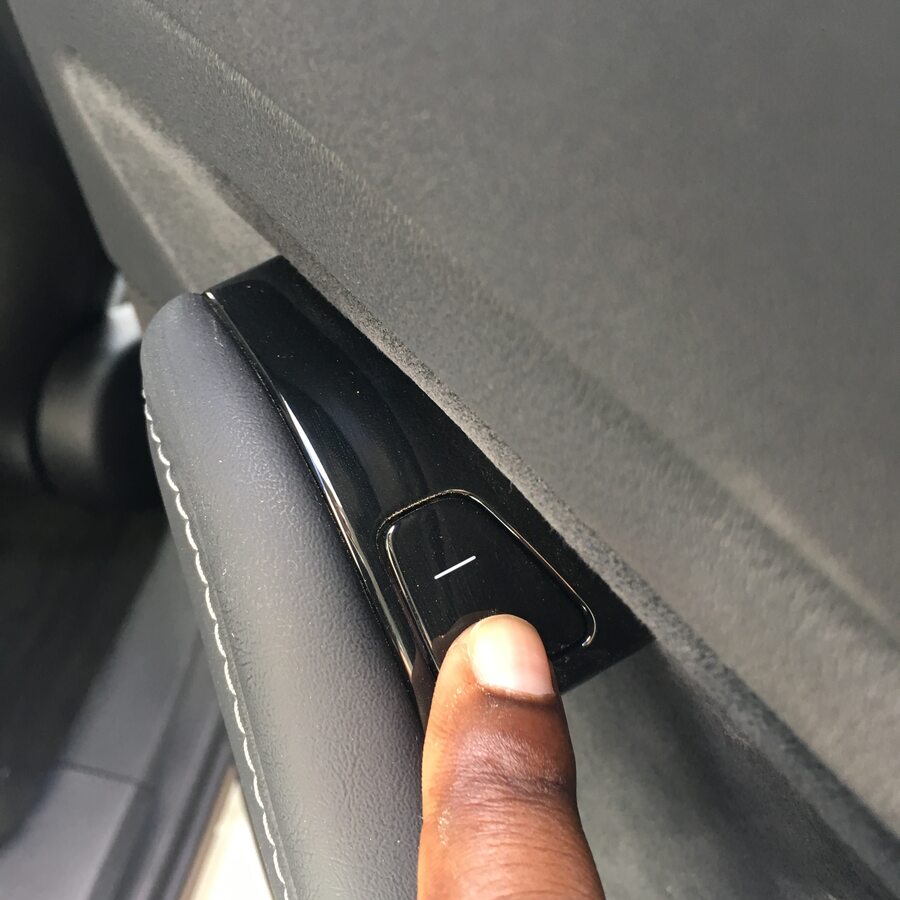

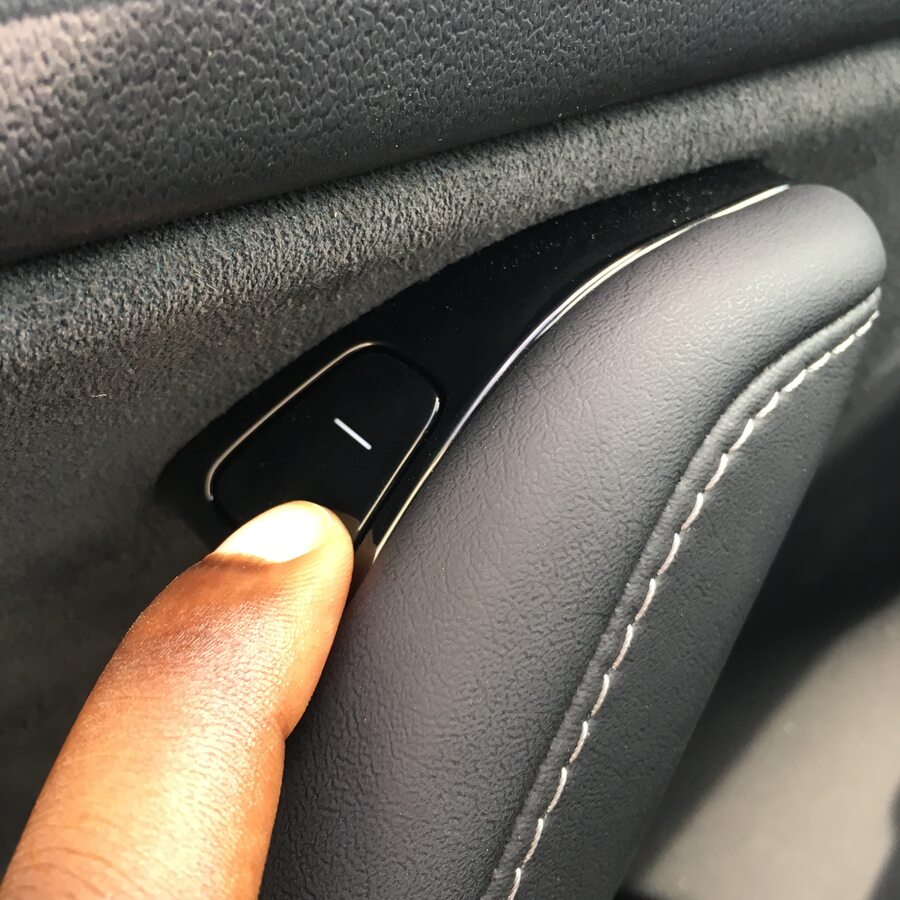

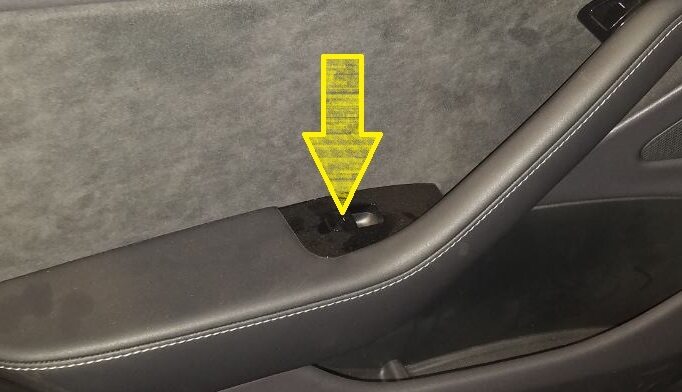

10. Function check LH front door (interior)
    注

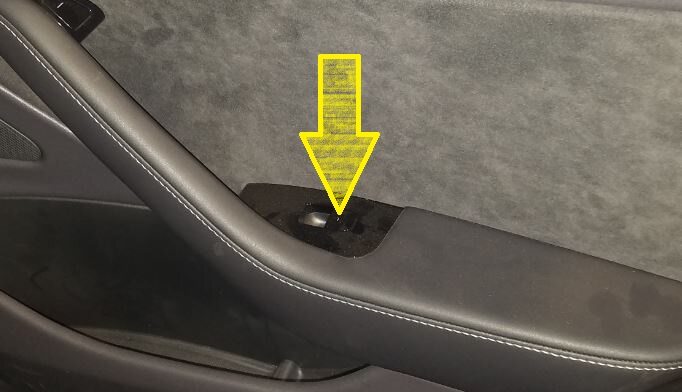

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

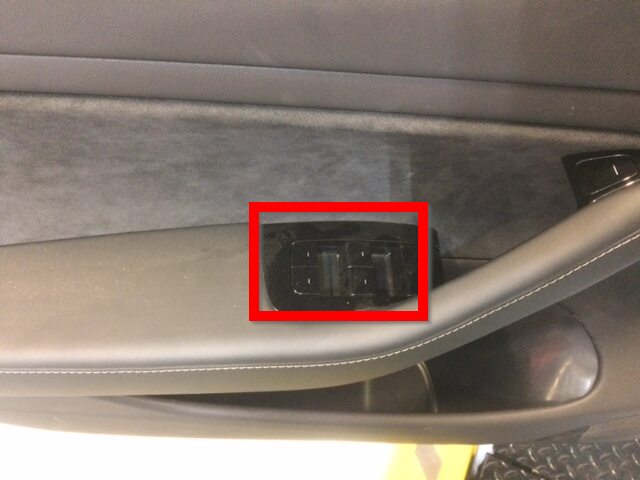

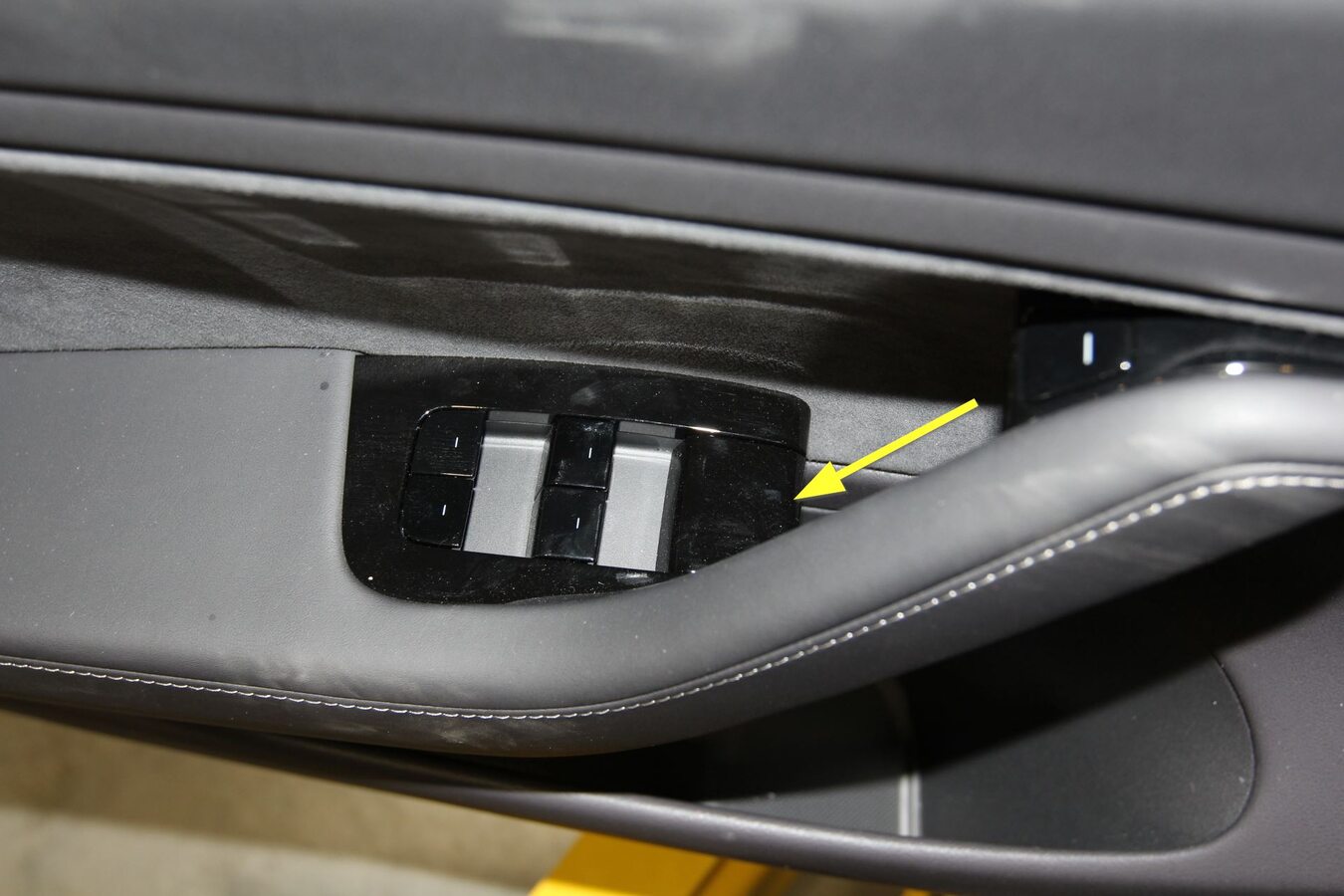

11. Function check all windows from the master switch
    注

    Document any abnormal operation/noises



12. Function check LH rear door (exterior)
    注

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions



13. Function check LH rear door (interior)
    注

    Inspect and note functionality for the interior door release, and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



14. Function check LH rear window
    注

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



15. Function check RH rear door (exterior)
    注

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions



16. Function check RH rear door (interior)
    注

    Inspect and note functionality for the interior door release and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



17. Function check RH rear window
    注

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



18. Function check RH front door (exterior)
    注

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions



19. Function check RH front door (interior)
    注

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



20. Function check RH front window
    注

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed

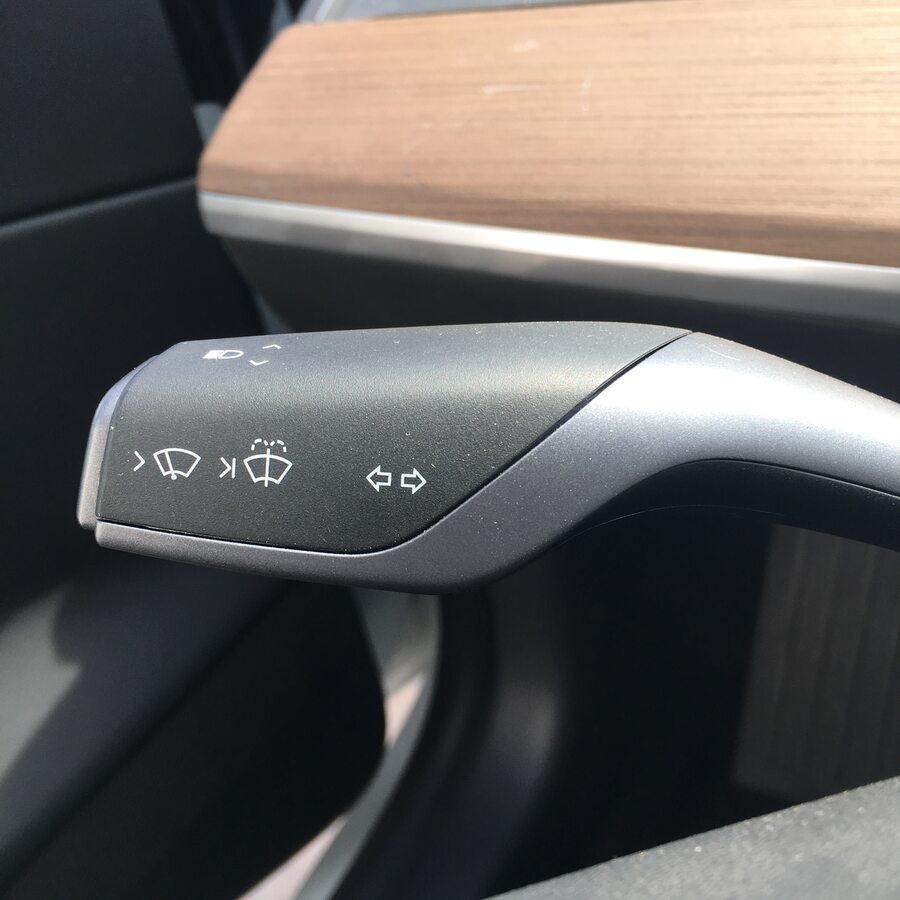

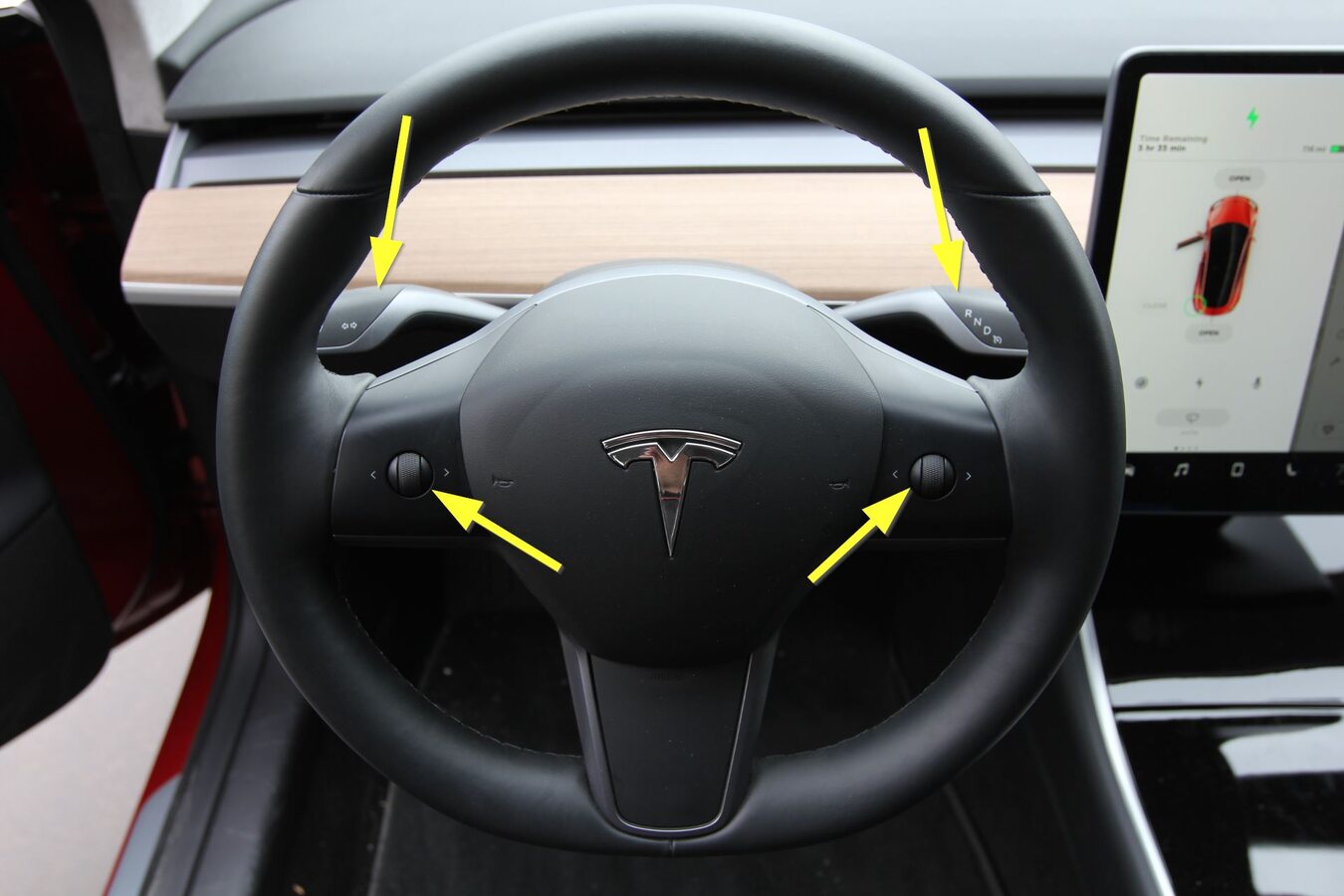

21. Function check all driver controls
    注

    Shift stalk, turn signals, steering wheel scroll wheels, horns

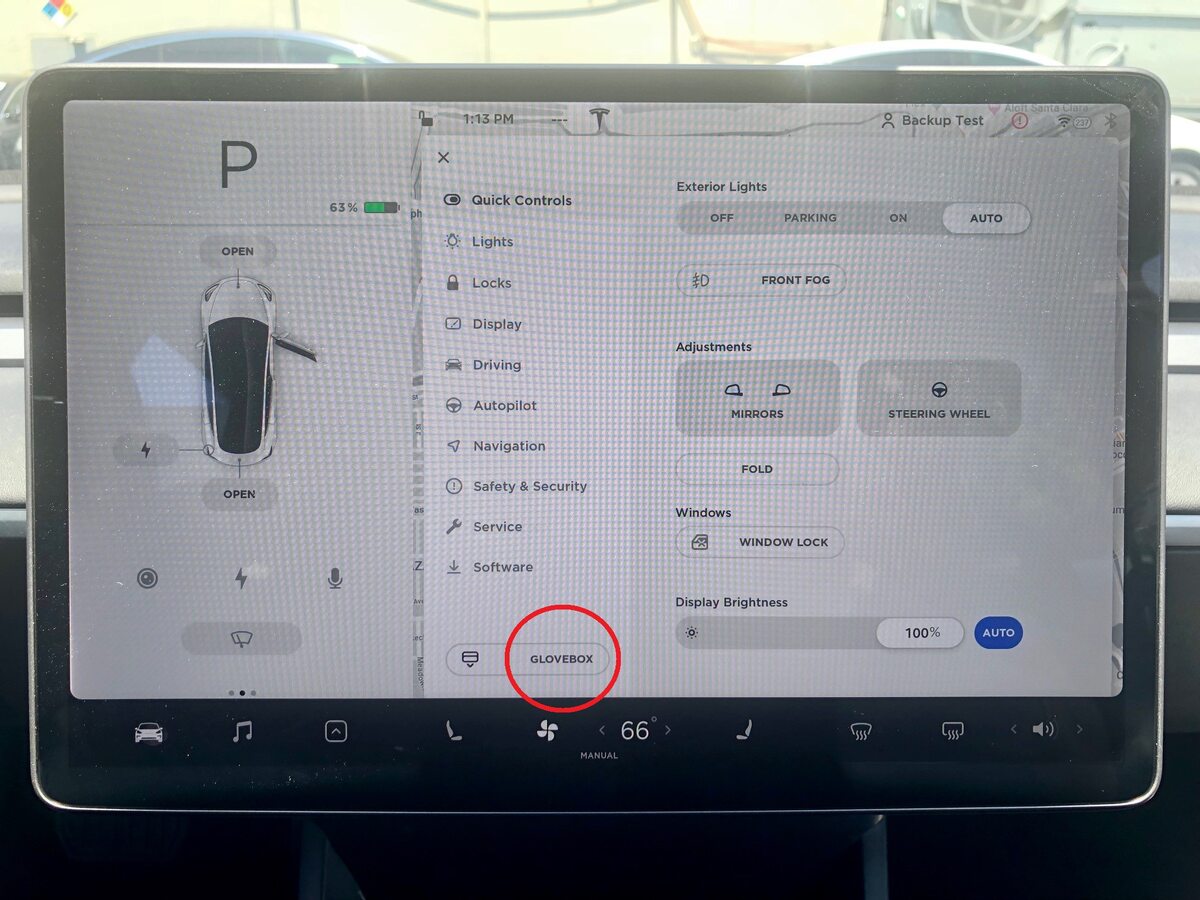

22. Open glove box through UI
    注

    via Controls > Glovebox



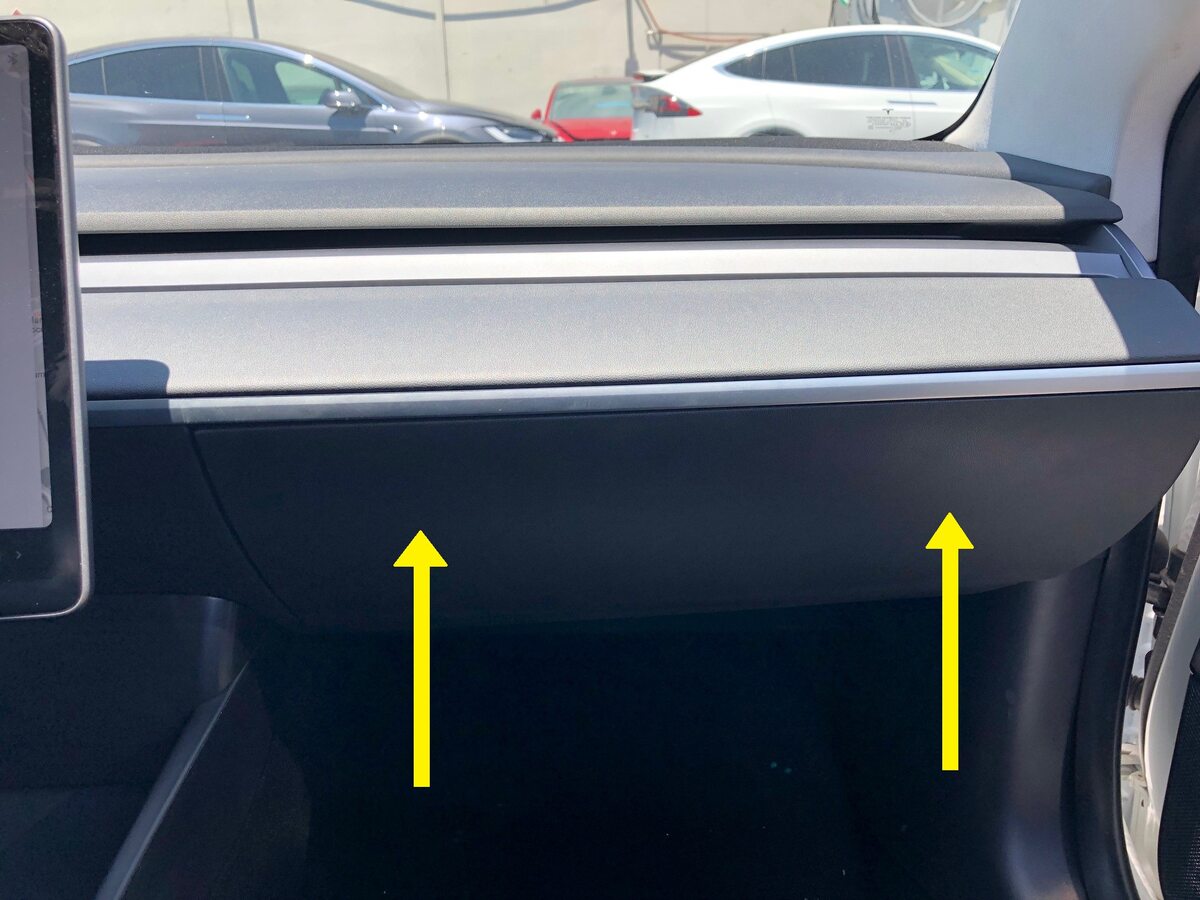

23. Close glove box

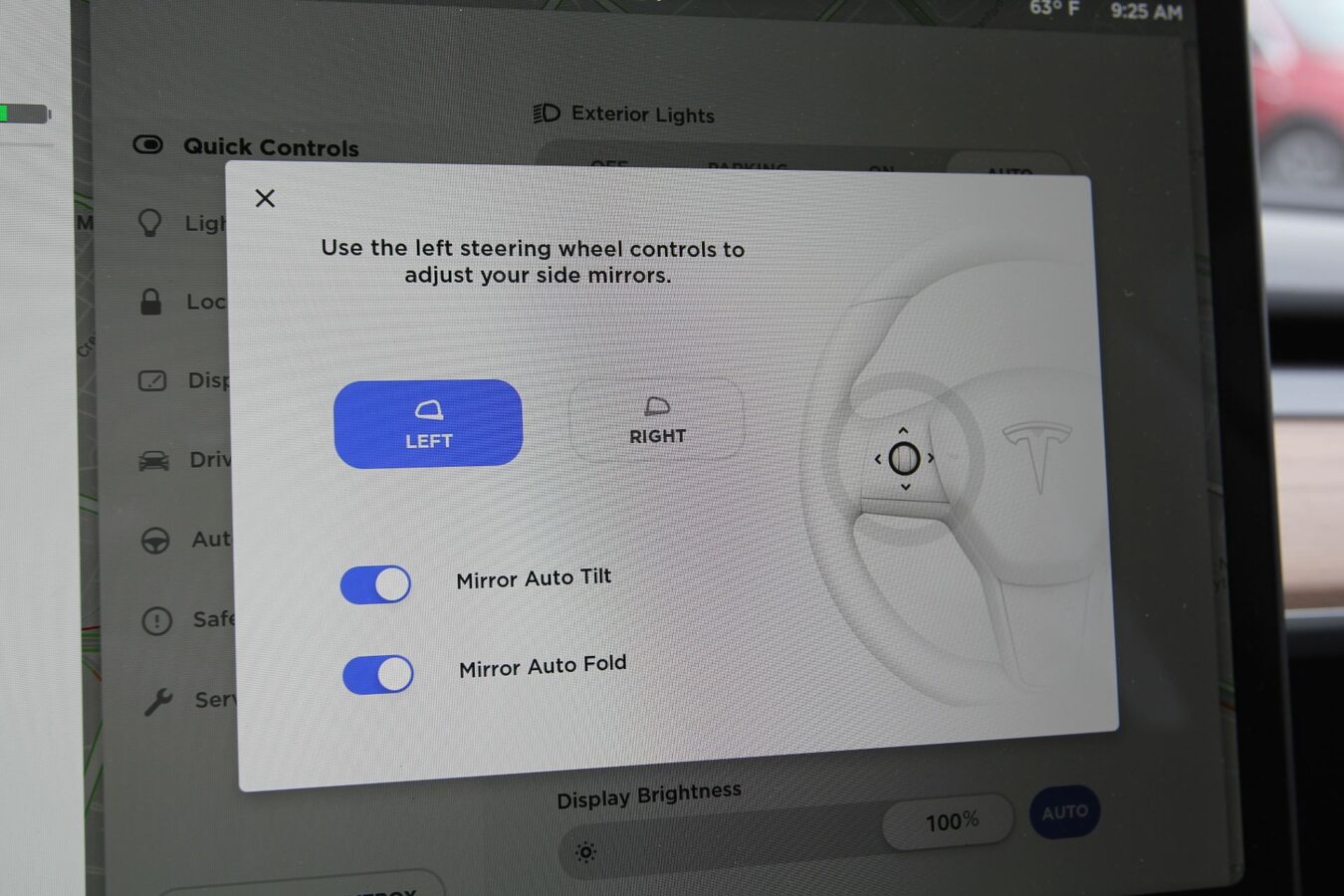

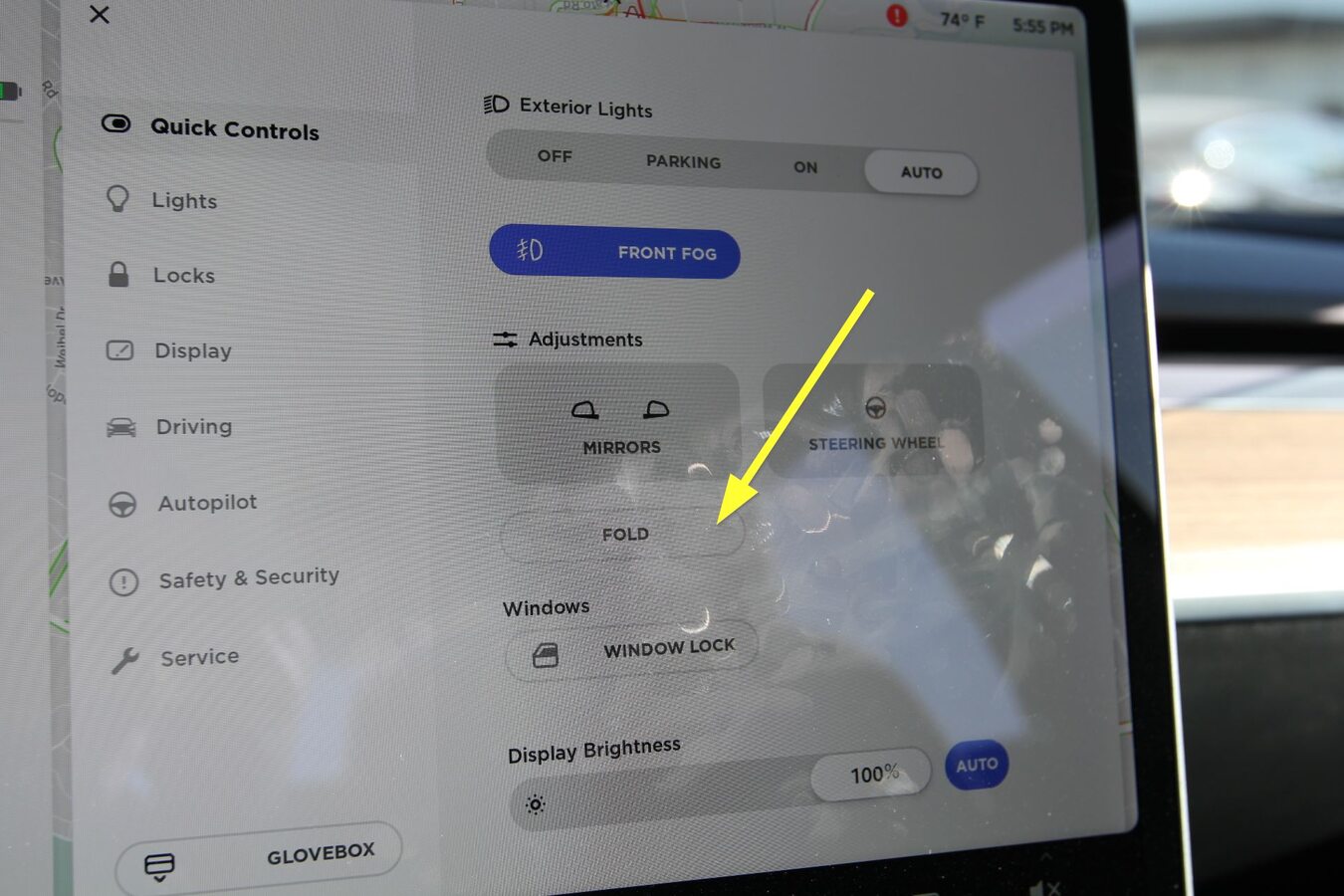

24. Function check power folding side mirrors
    注

    Fold mirrors in/out, Check adjustment of glass

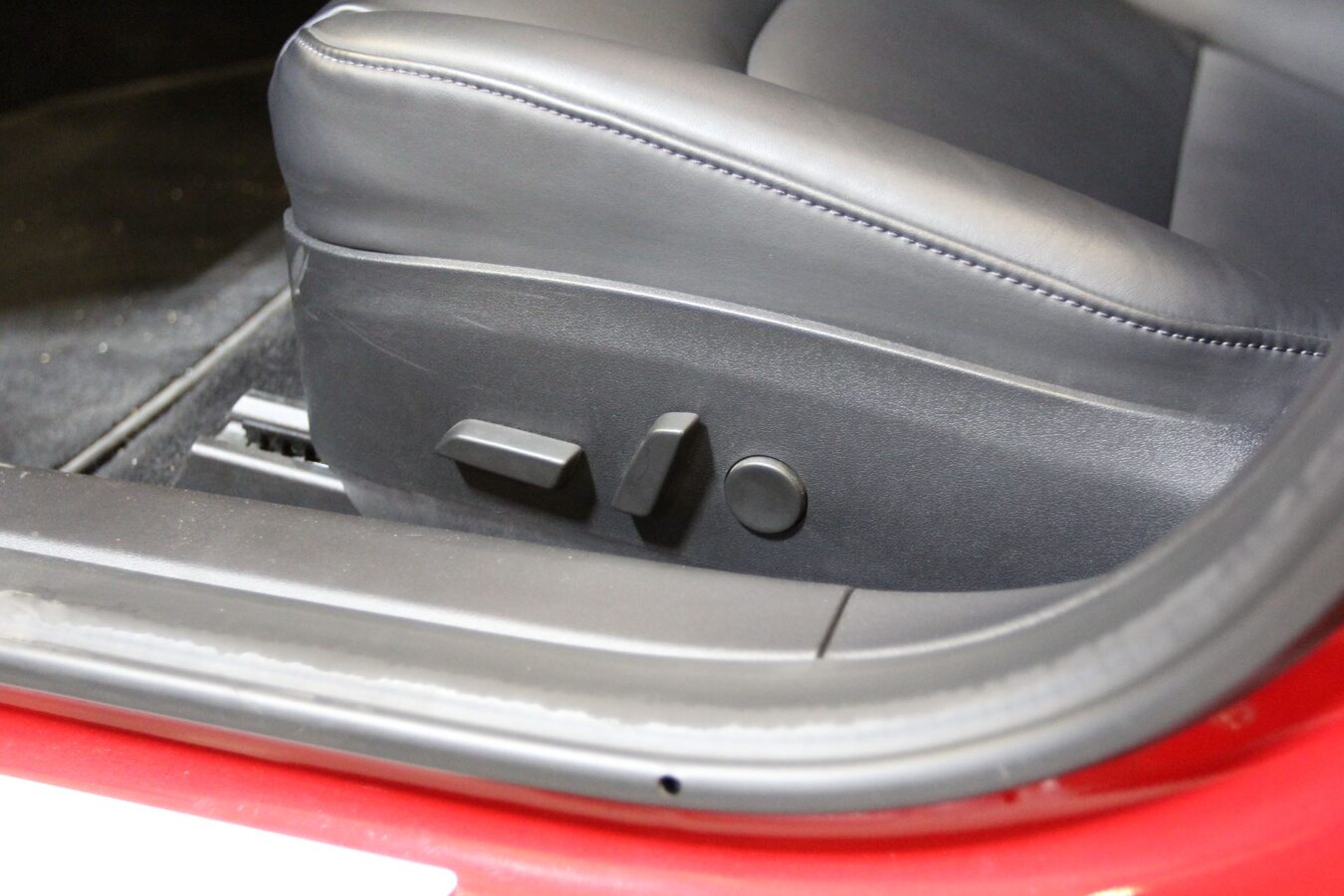

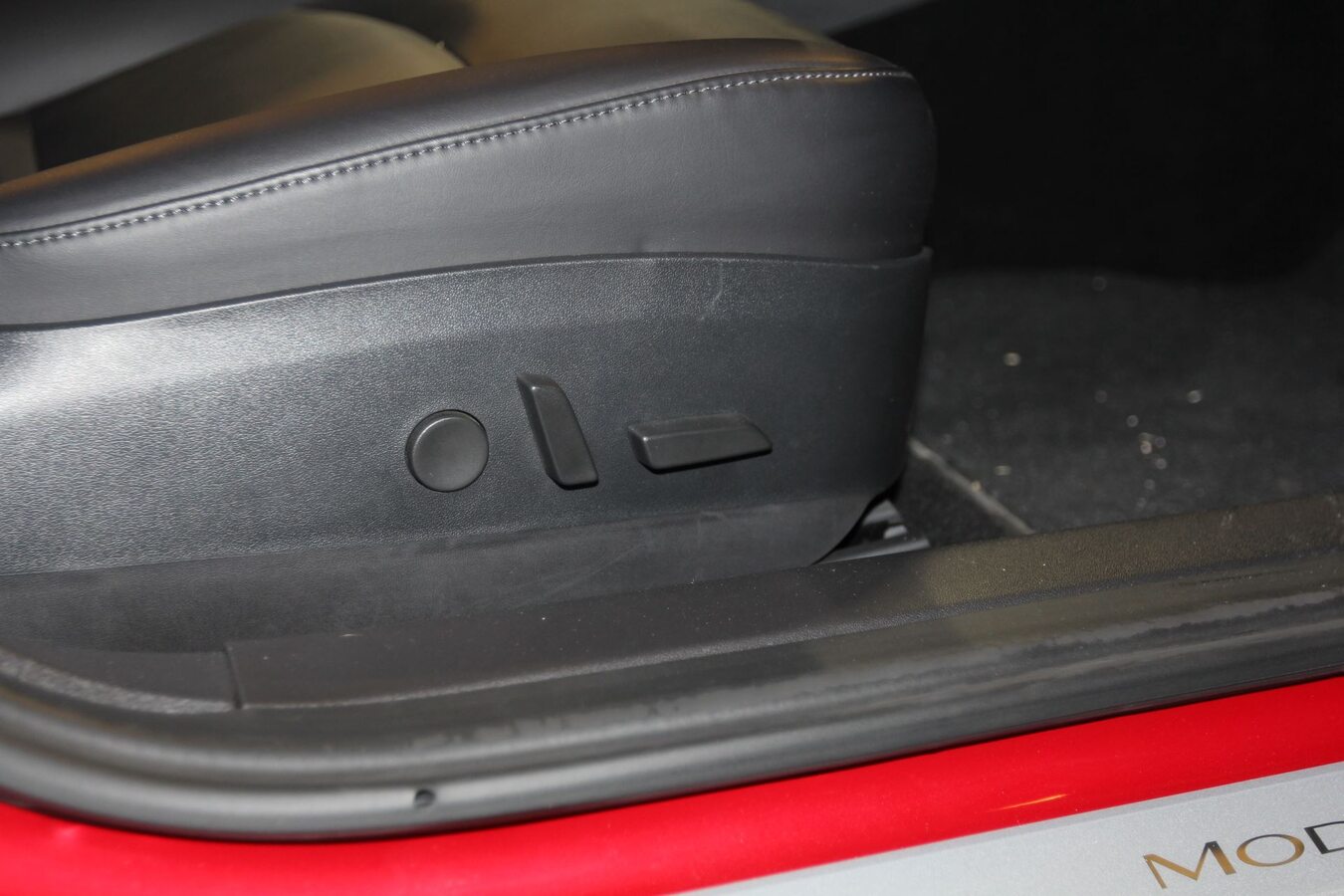

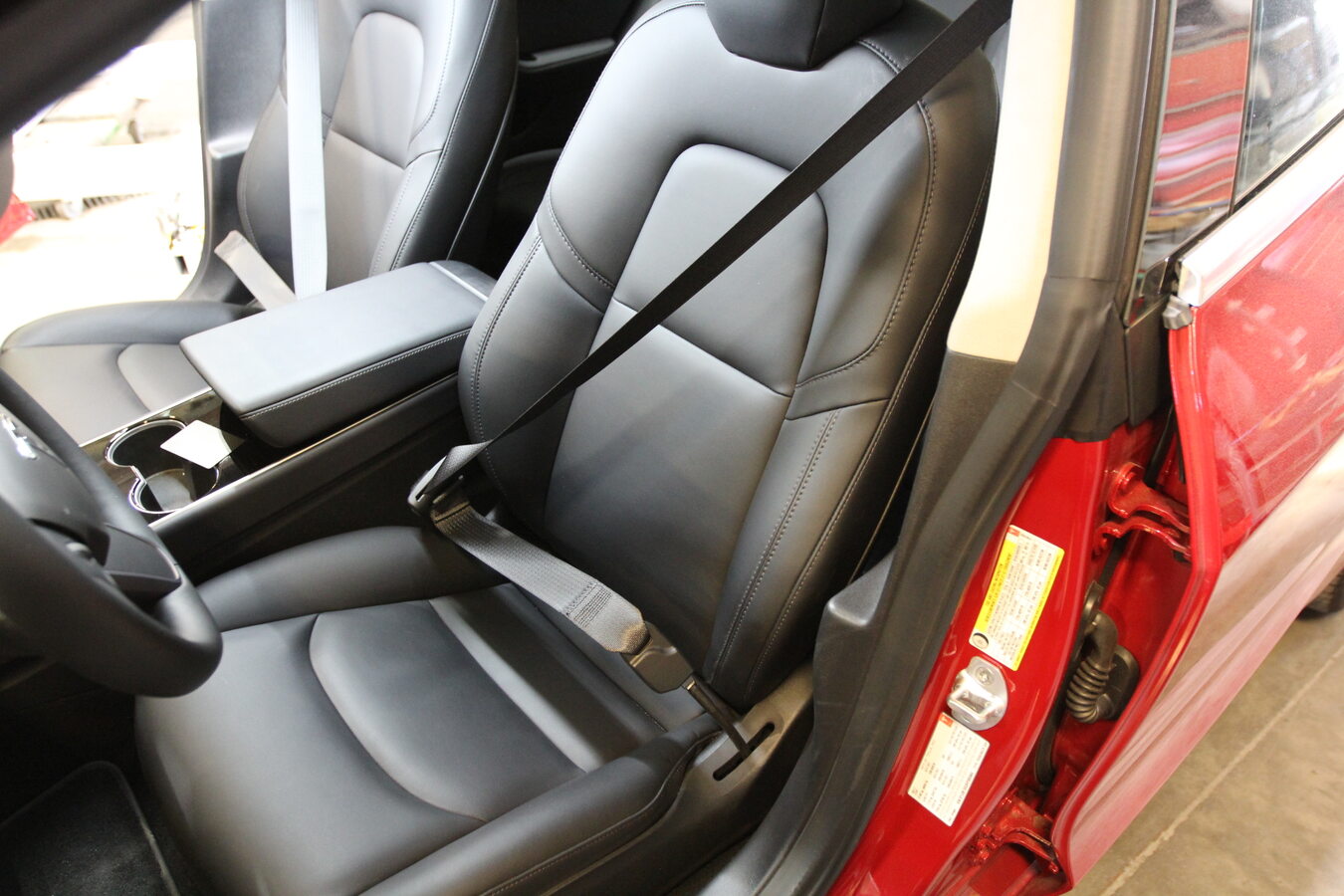

25. Function check LH front seat
    注

    Check full range of motion of seat, Test lumbar and seat heat/cooling

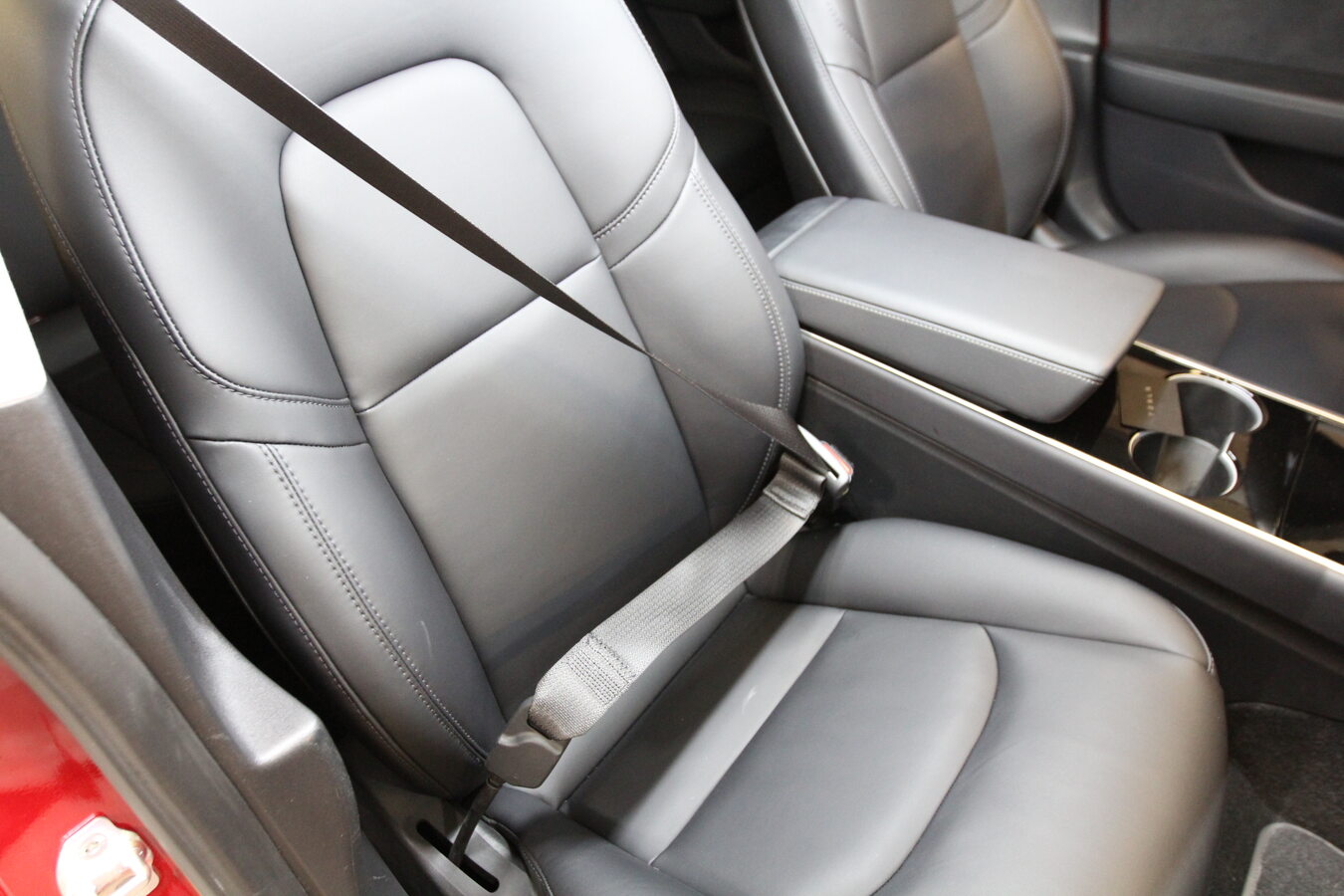

26. Function check LH front seat belt
    注

    Latch and unlatch buckle, Quickly pull retractor to check locking function

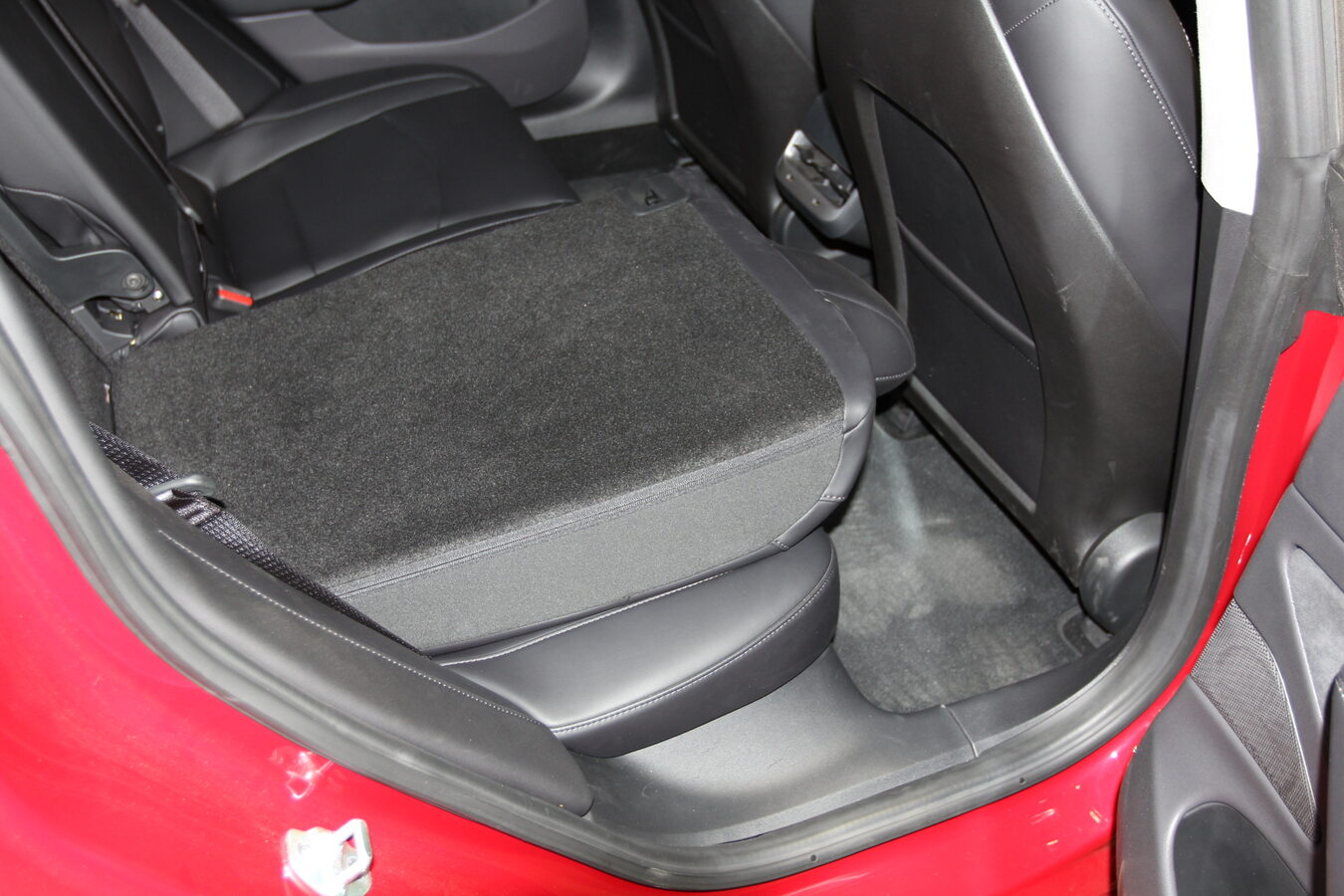

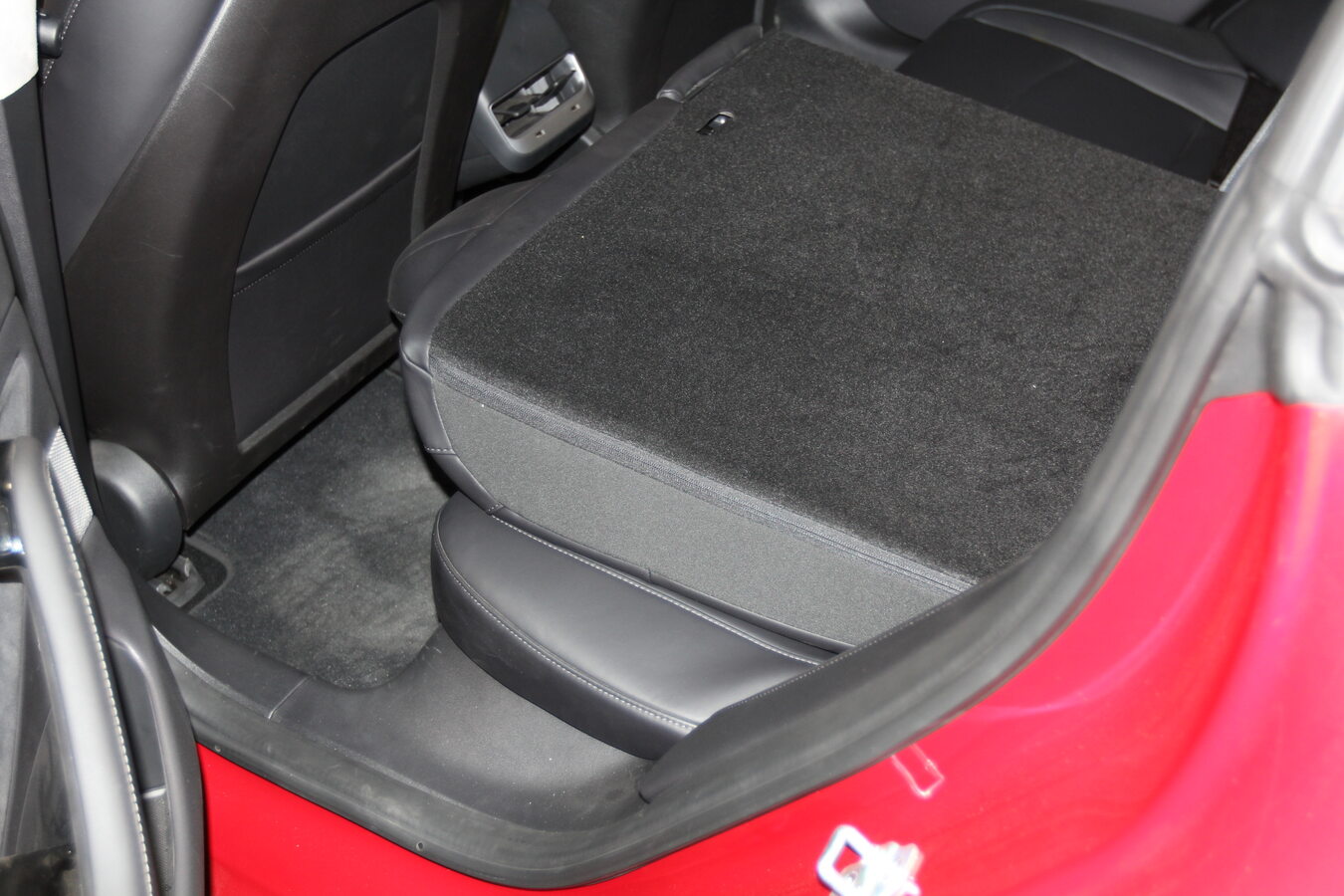

27. Fold the 60 seat in down position



28. Fold 60 seat into vertical position
    注

    Remove seat protection

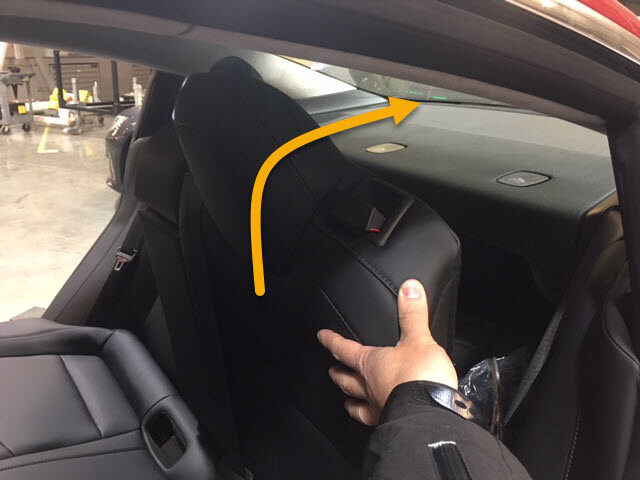

29. Fold the 40 seat in down position



30. Fold the 40 seat into vertical position

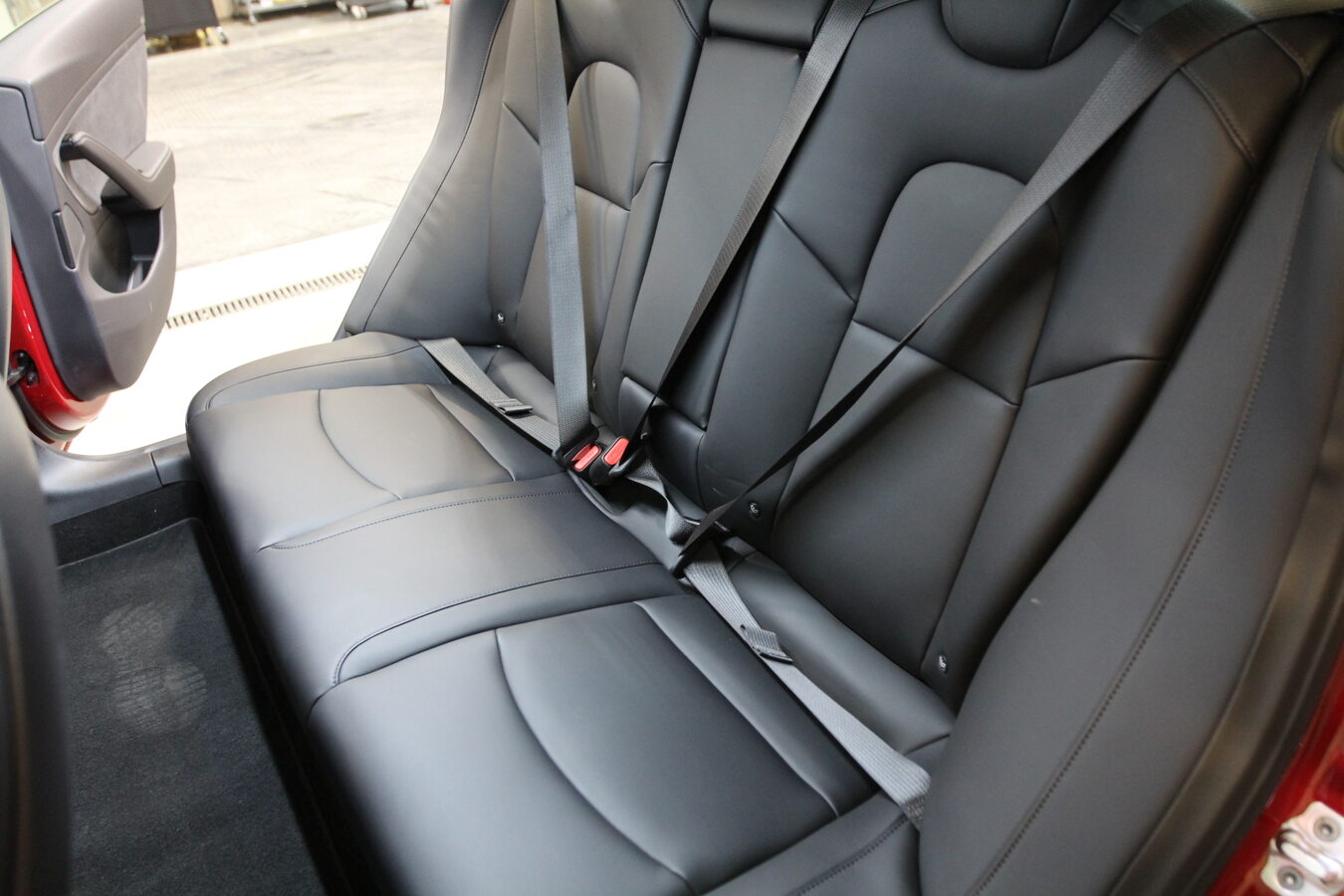

31. Function check the rear seat belts
    注

    Latch and unlatch buckles, Quickly pull retractors to check locking function



32. Function check the RH front seat belt
    注

    Latch and unlatch buckle, Quickly pull retractor to check locking function



33. Function check RH front seat
    注

    Check full range of motion of seat

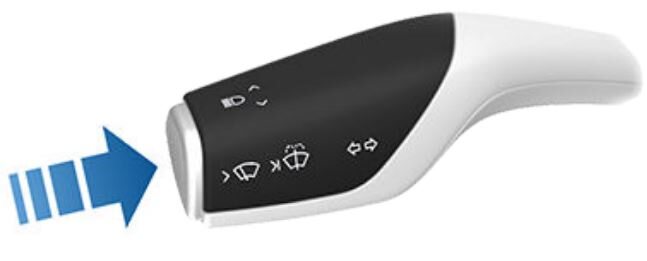

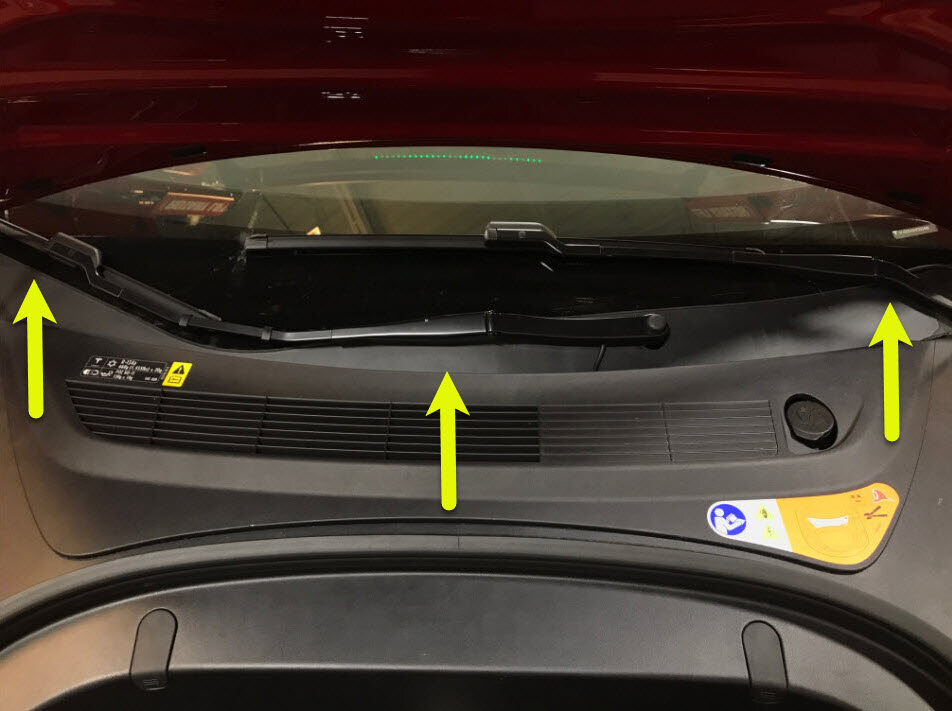

34. Verify operation of windshield wipers and nozzles
    注

    Ensure hood and doors are closed prior to activating wipers, Inspect and note functionality for wipers and wiper jets, Check for full range of motion, speed of motion, interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions





35. Link to procedure: 67b88c8a83ed950e257a16e3

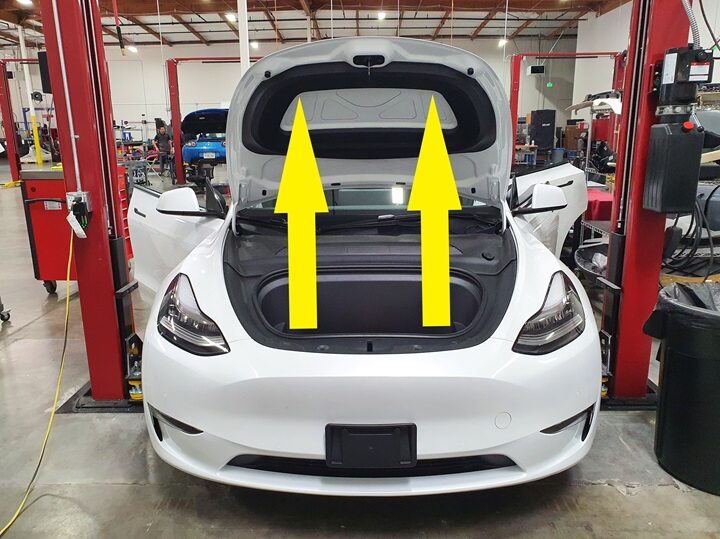

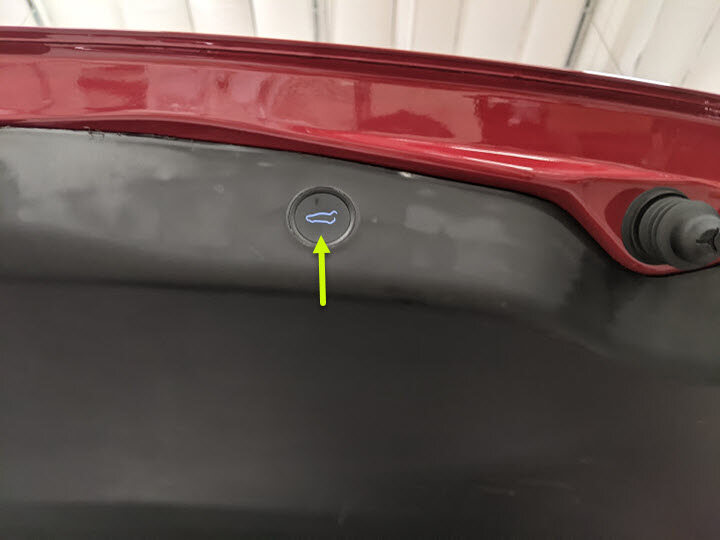

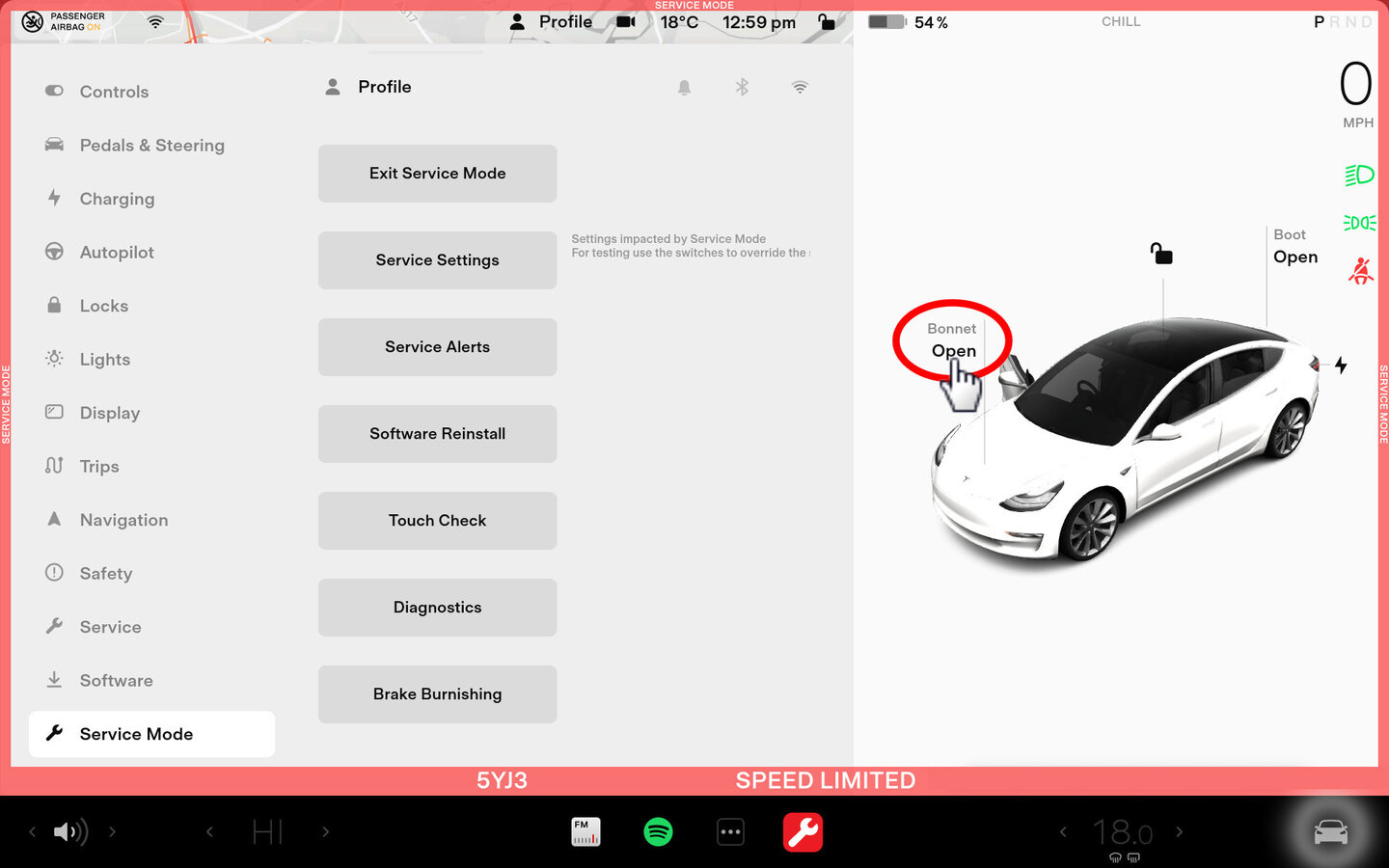

36. Open hood
    注

    Press "Open" button on touchscreen to release latch, Lift lid manually

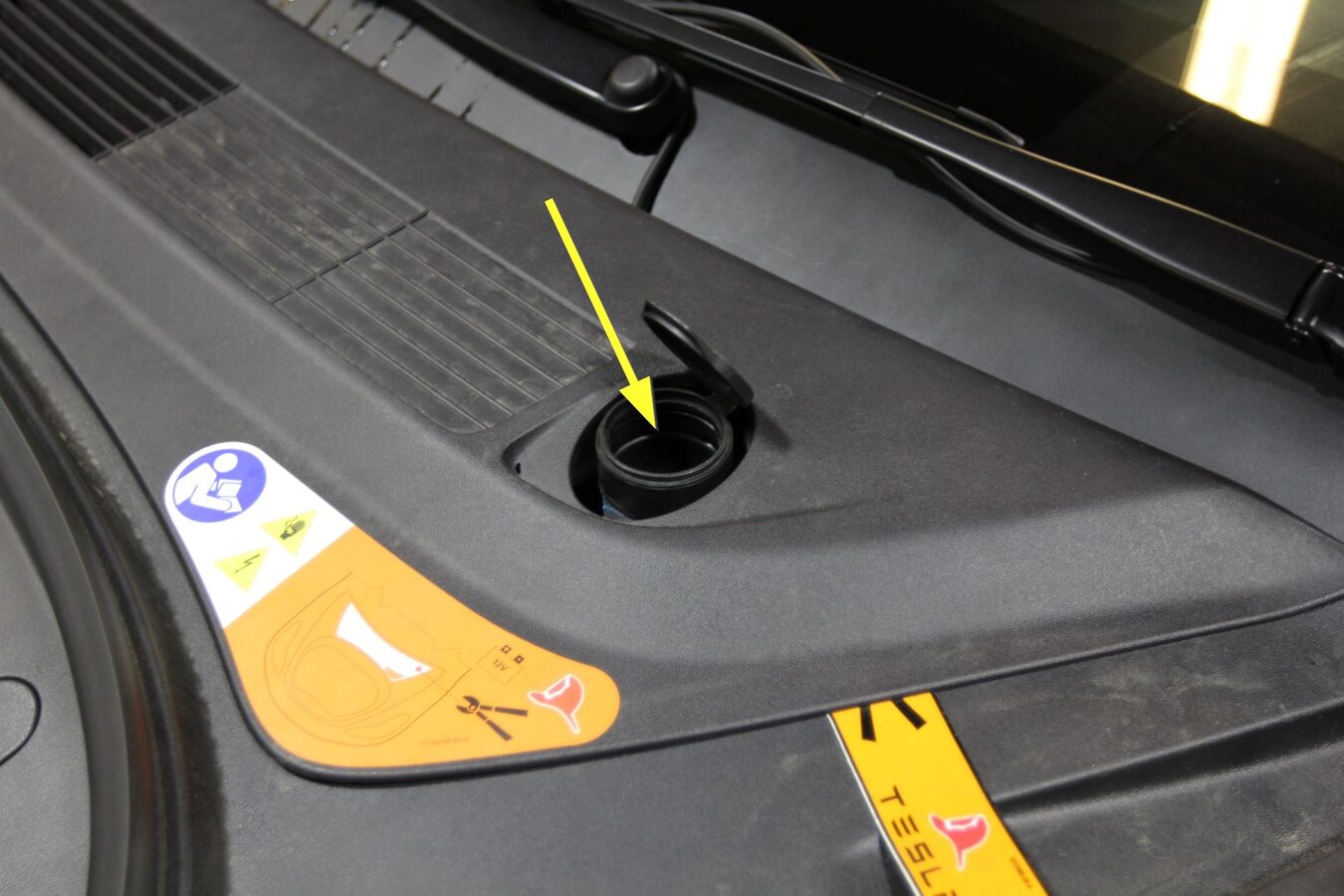

37. Fill washer reservoir with fluid

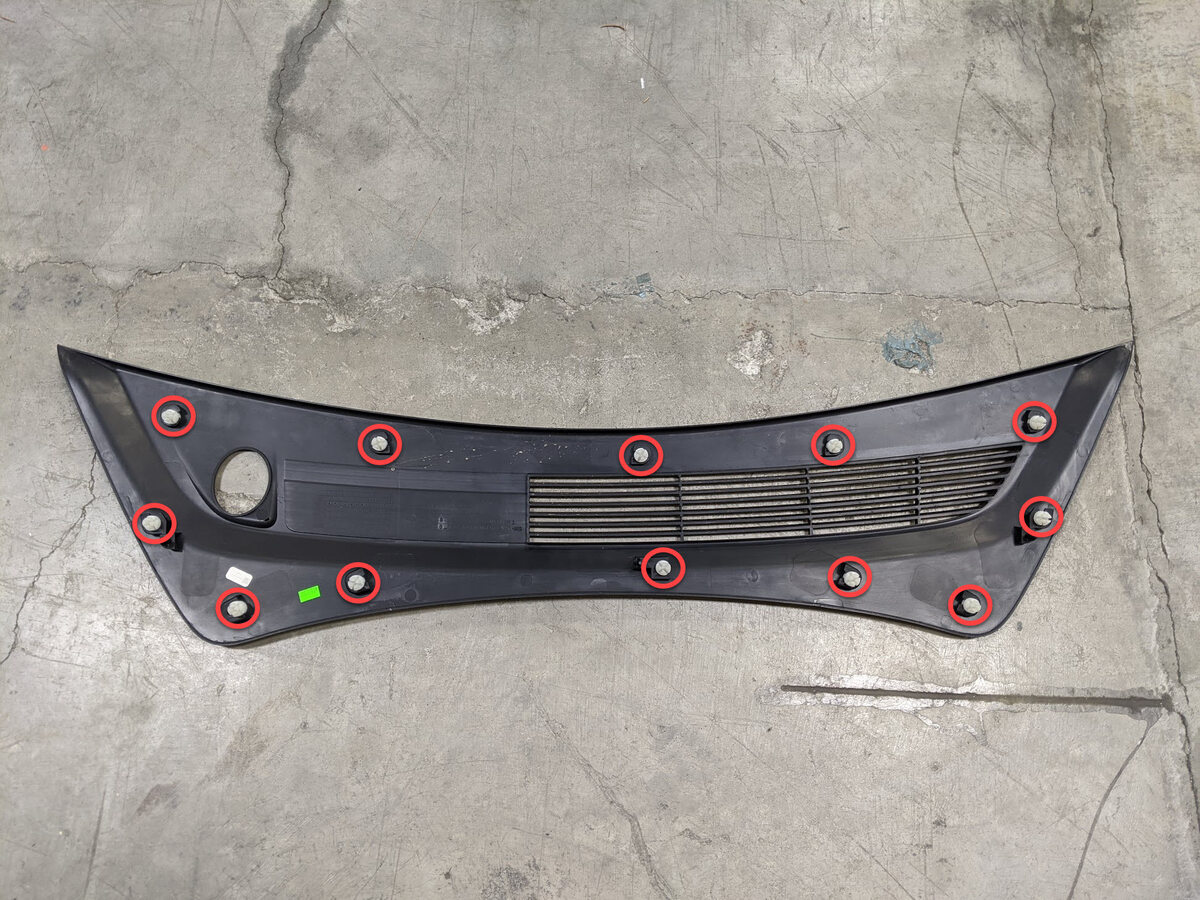

38. Remove rear apron
    注

    12x clips, Only store rear apron visible face upwards

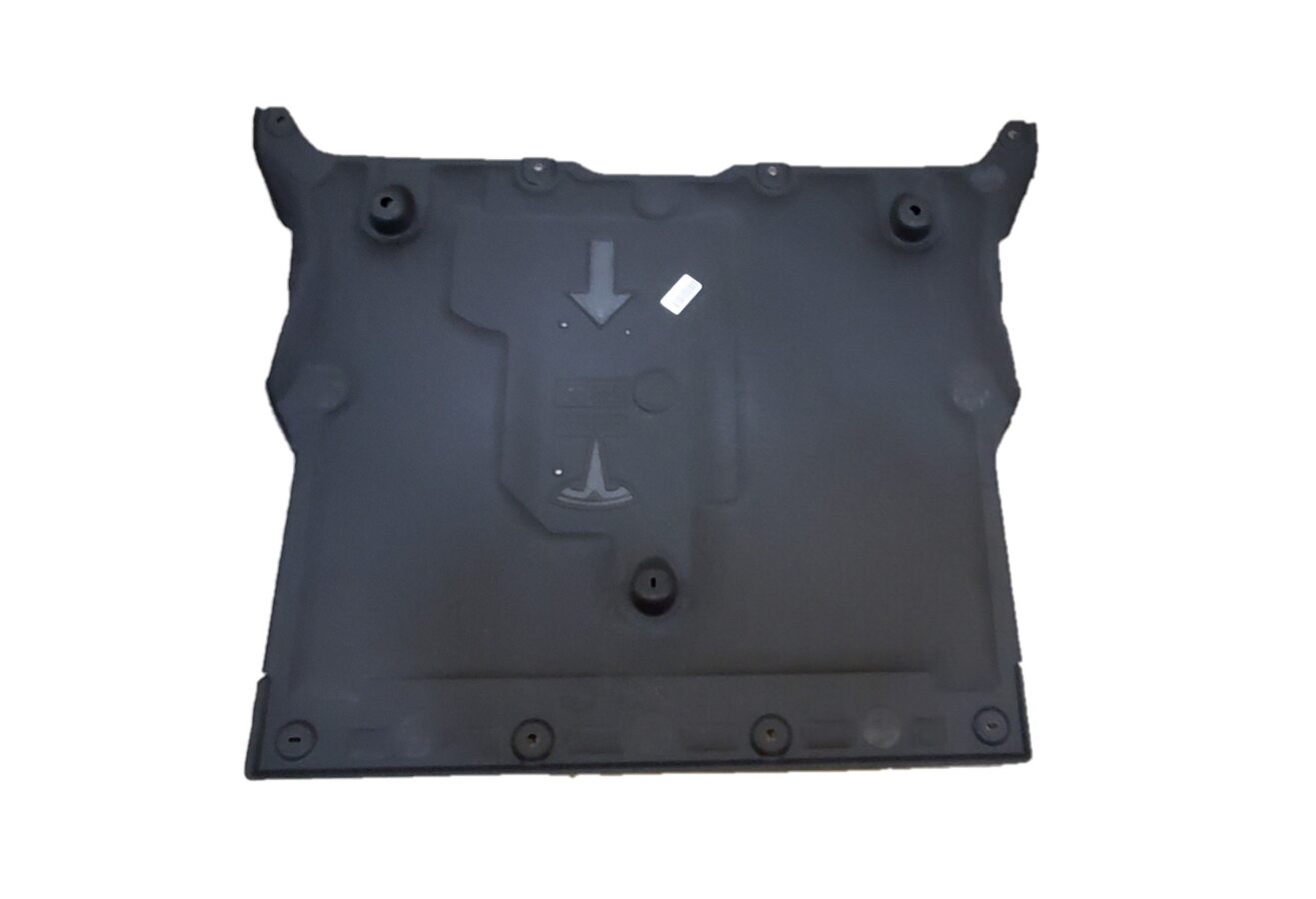

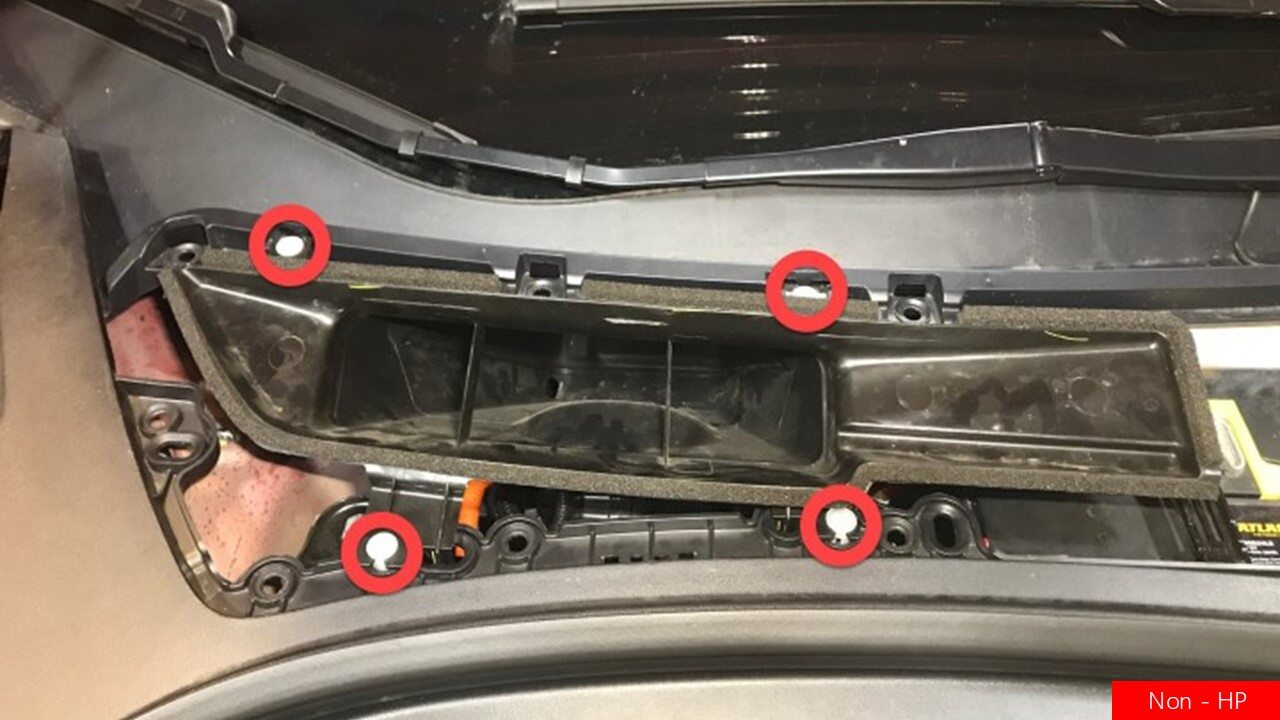

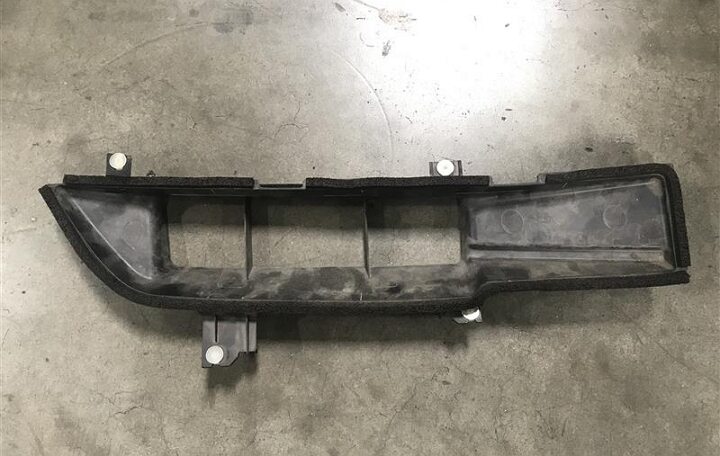

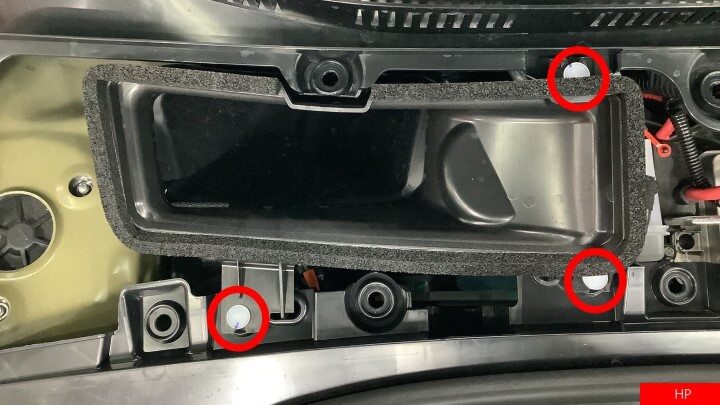

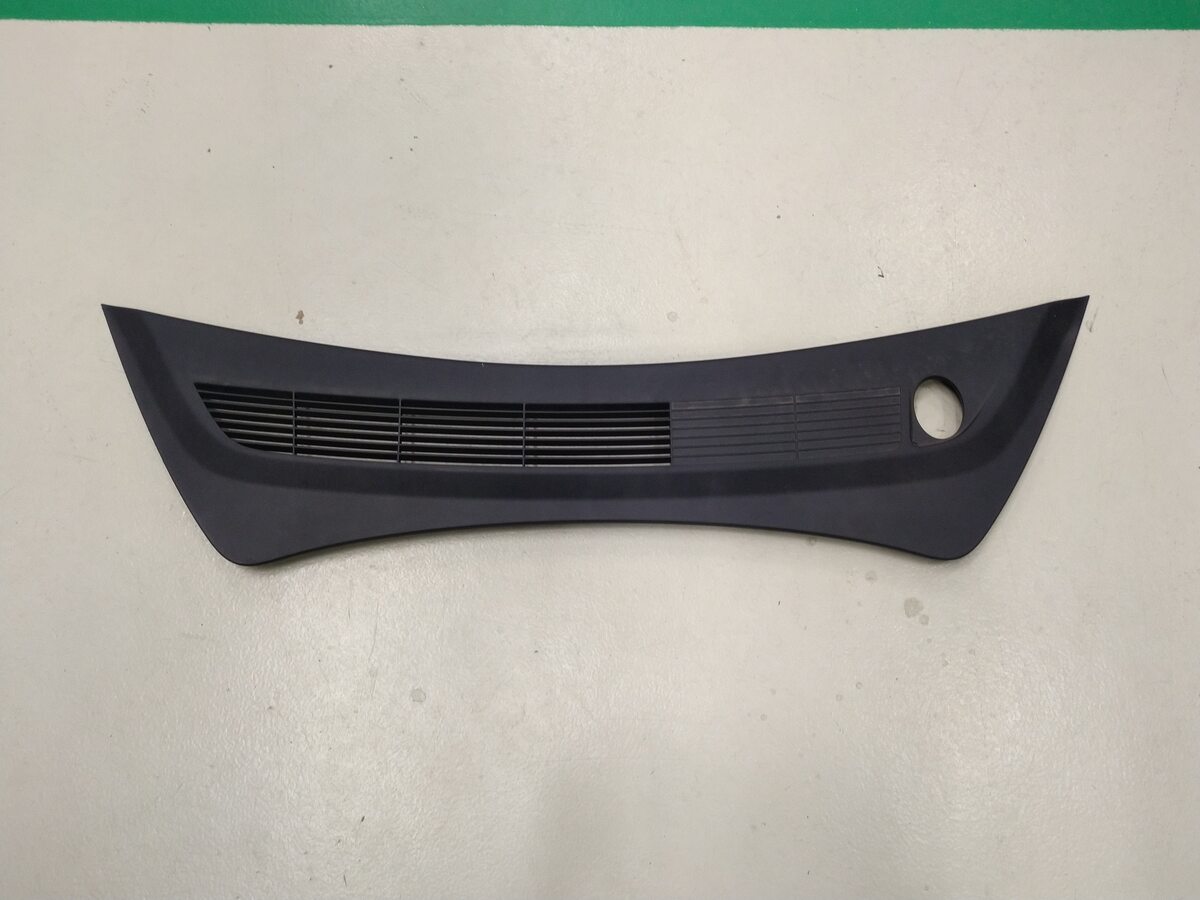

39. Remove cabin intake upper duct assembly
    注

    3x clips, Some configurations may come with 4x clips

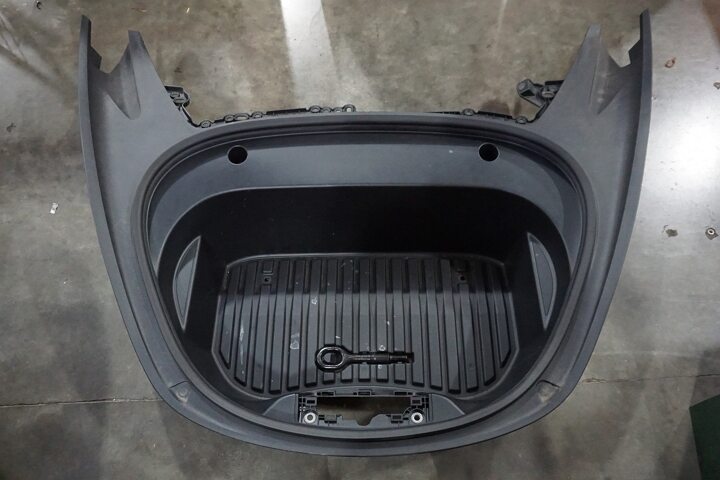

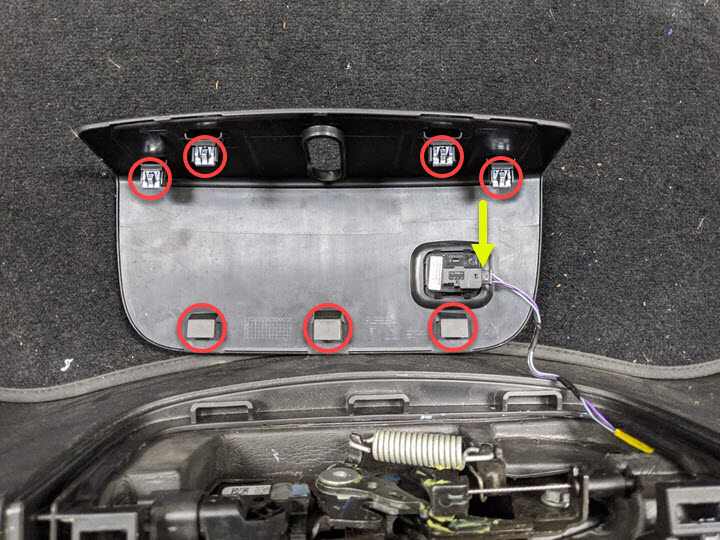

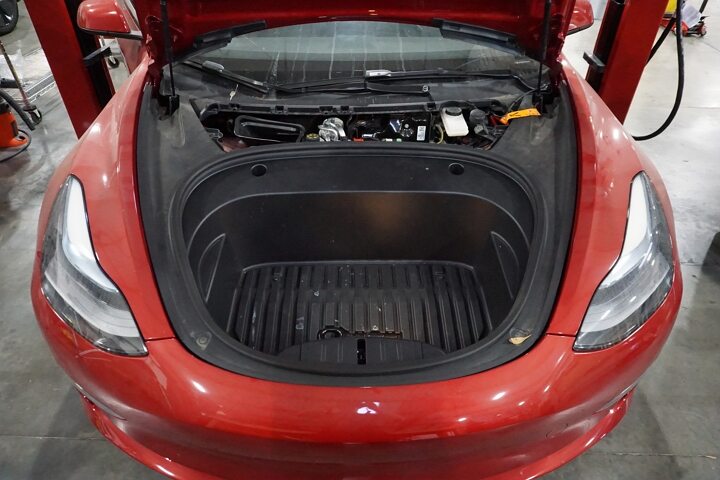

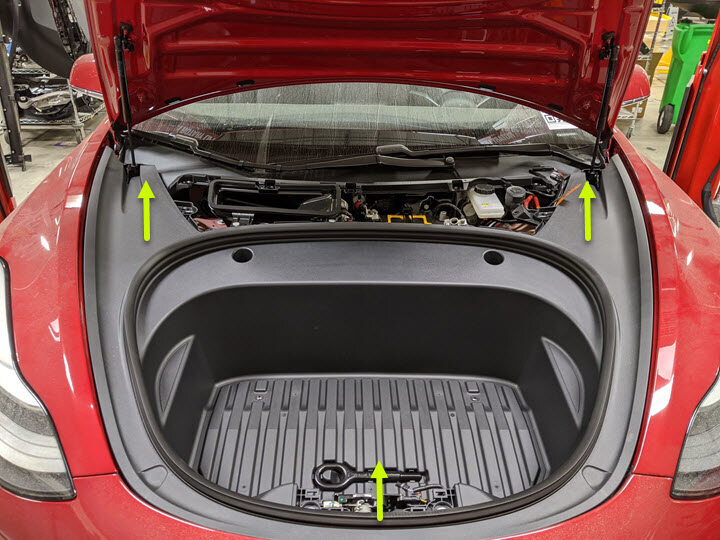

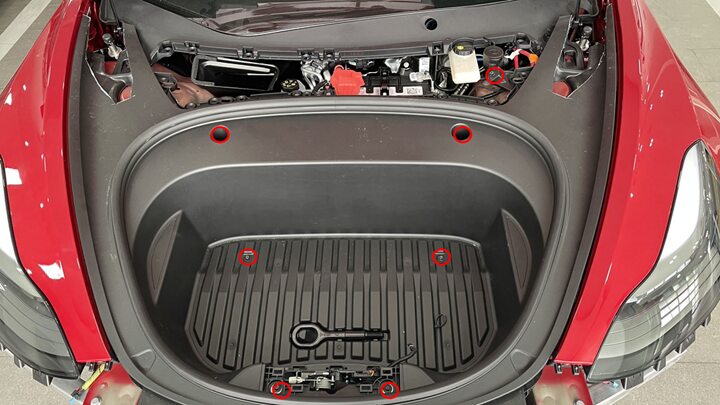

40. Remove closeout panel from frunk assembly
    注

    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect switch

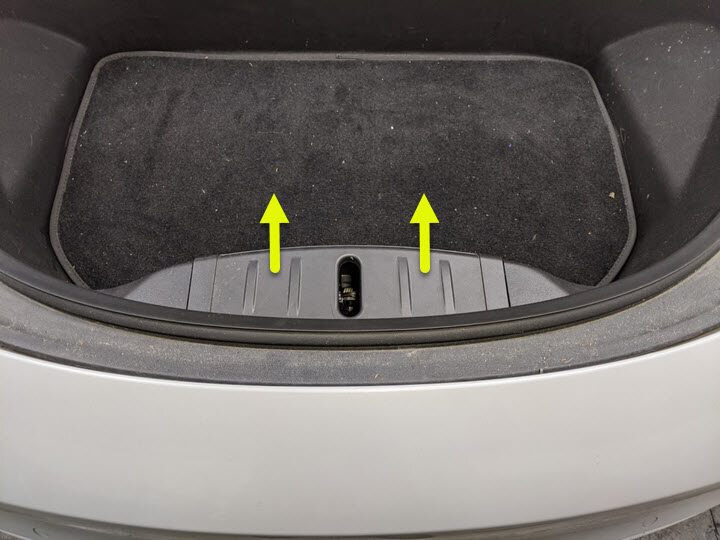

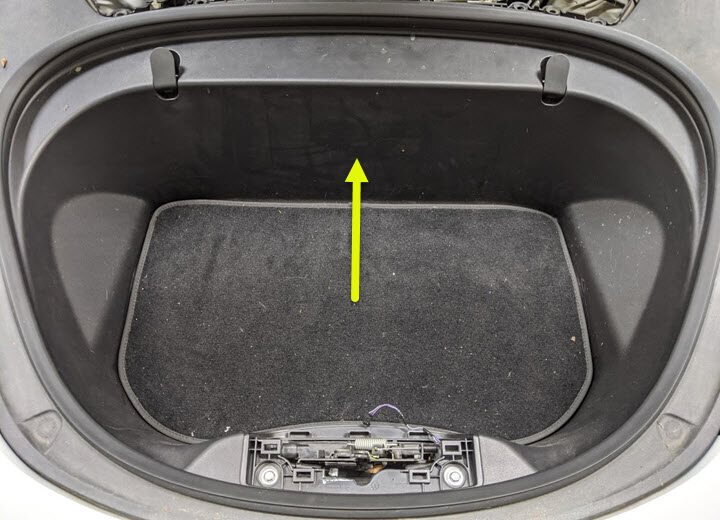

41. Remove frunk assembly carpet
    注

    Note: Not all Model 3 vehicles have a frunk carpet installed



42. Remove bolts securing frunk assembly
    注

    7x bolts, 10mm, 5 Nm



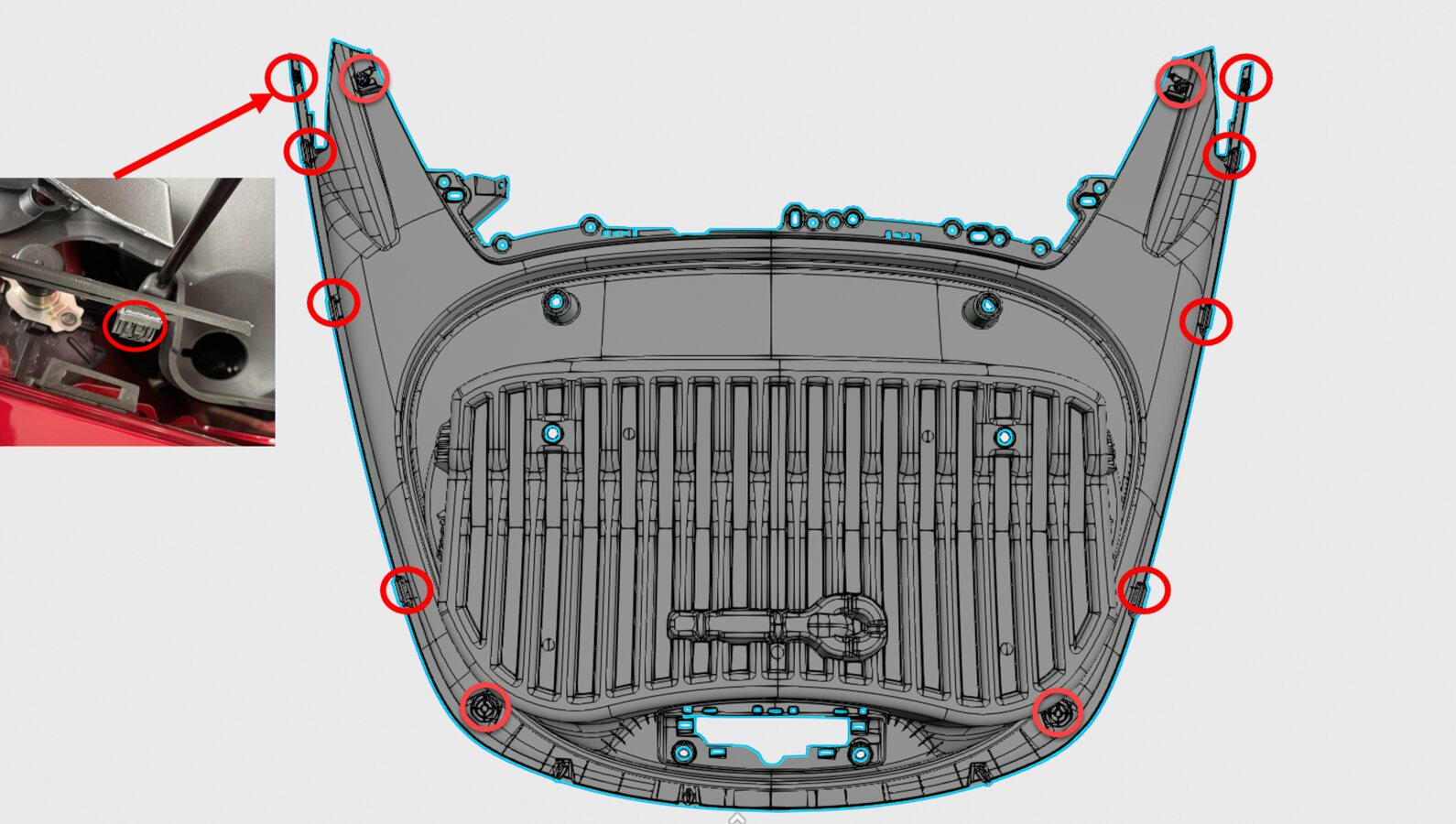

43. Remove frunk assembly from vehicle
    注

    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles

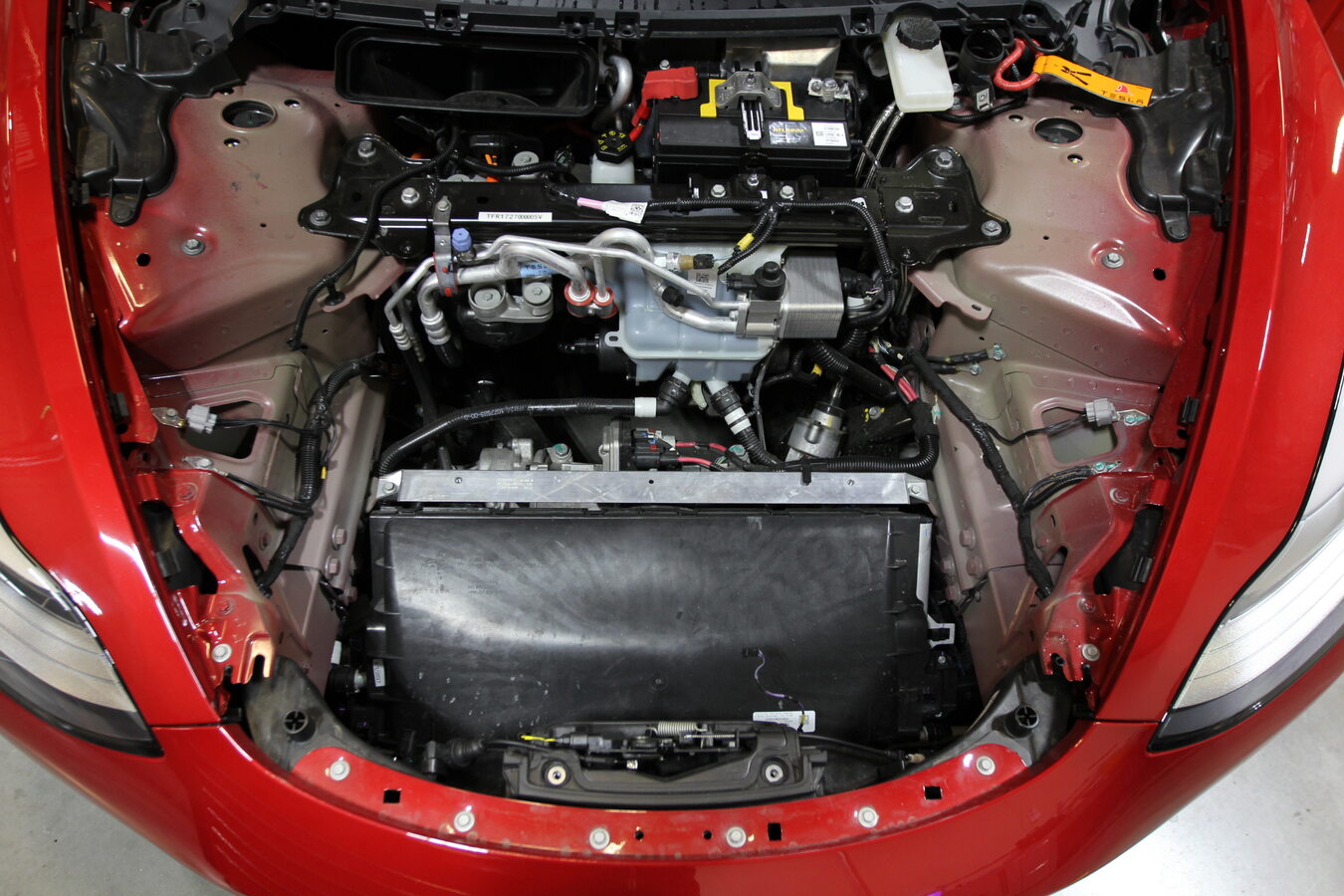

44. Perform inspection of under hood area
    注

    Perform inspection of vehicle under hood area, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

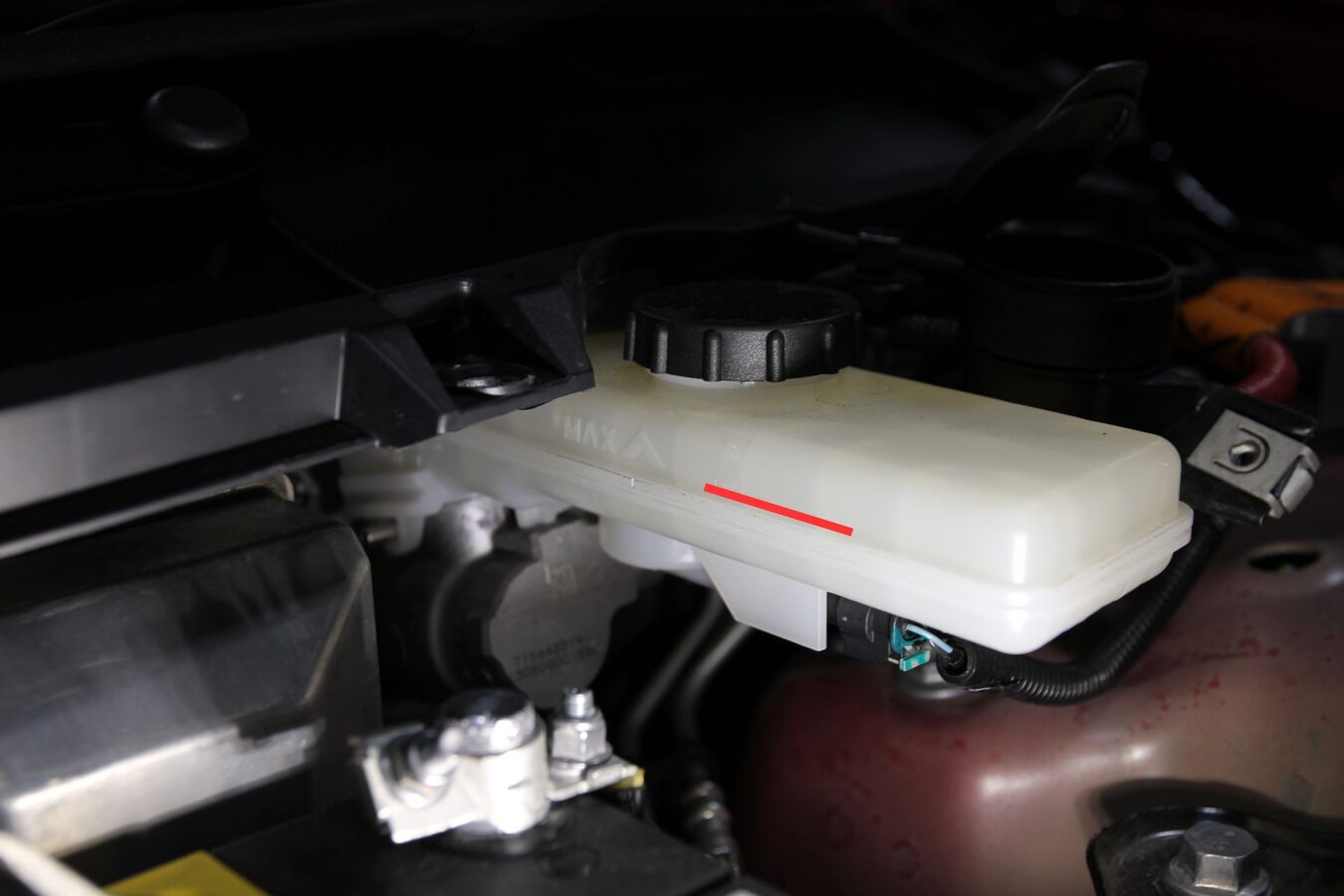

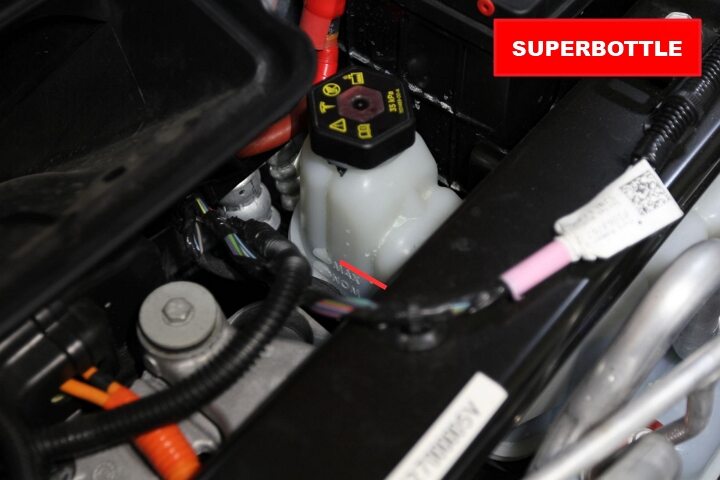

45. Visually inspect brake fluid level

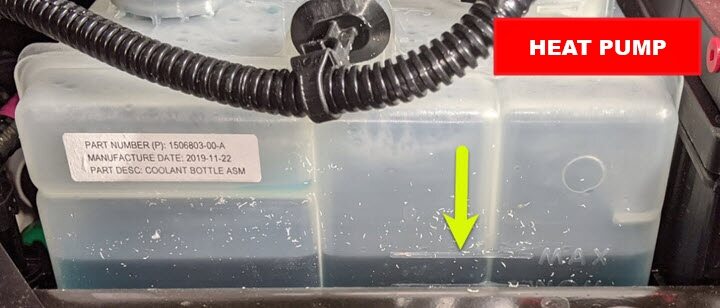

46. Inspect coolant level and top off as necessary
    注

    Ensure that fluid level is at Max line

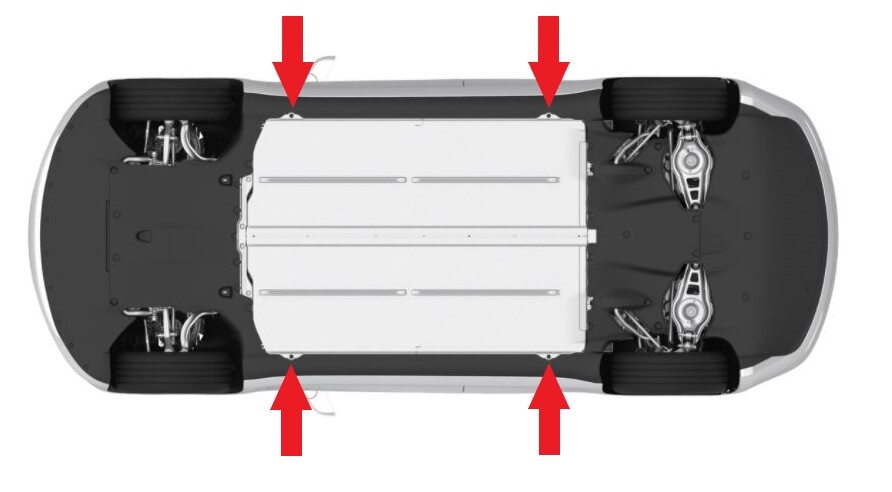

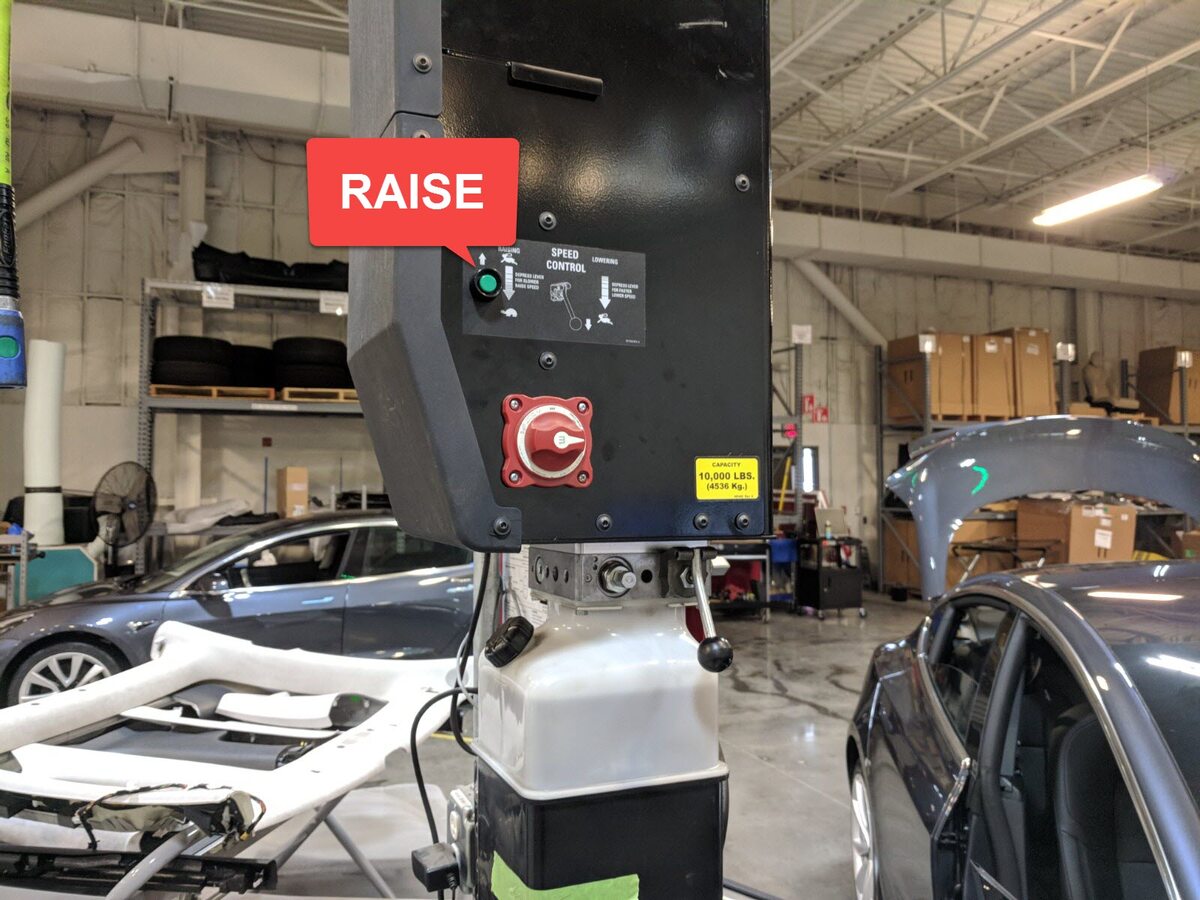

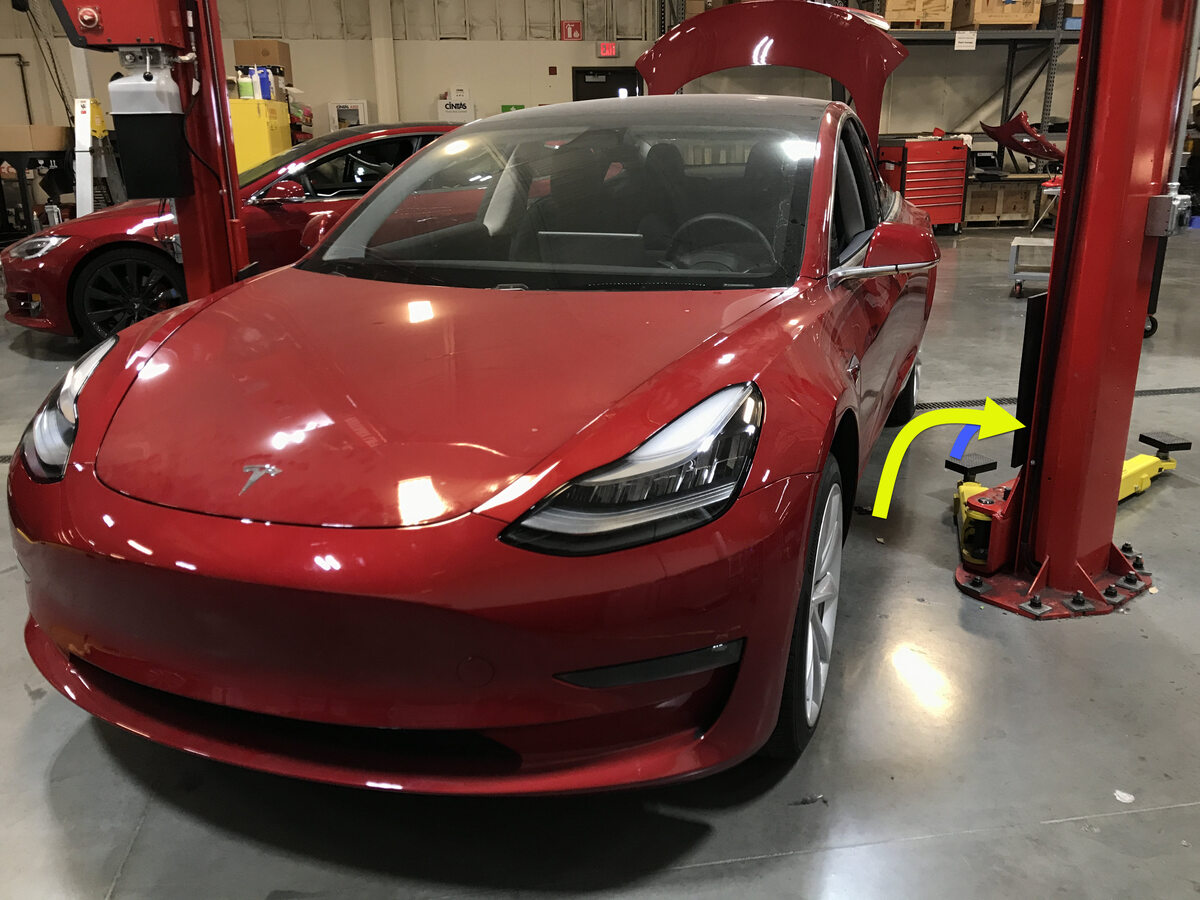

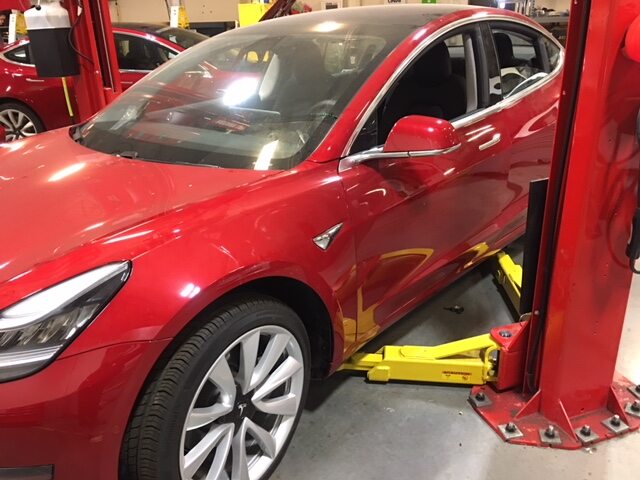

47. Raise and support vehicle

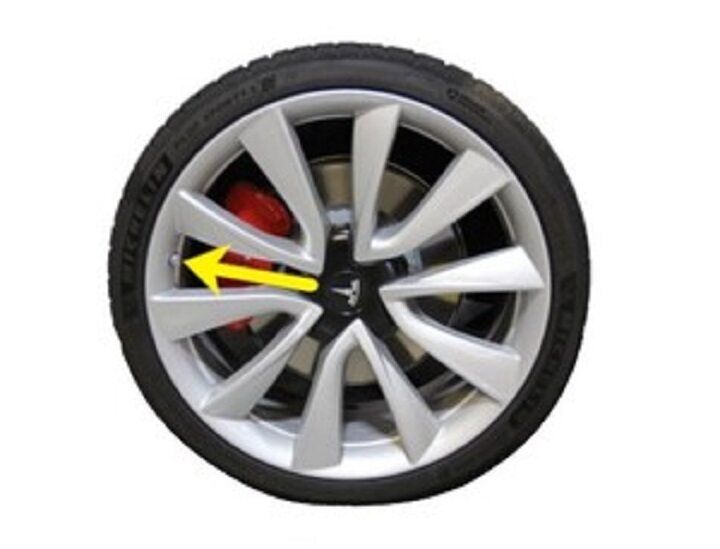

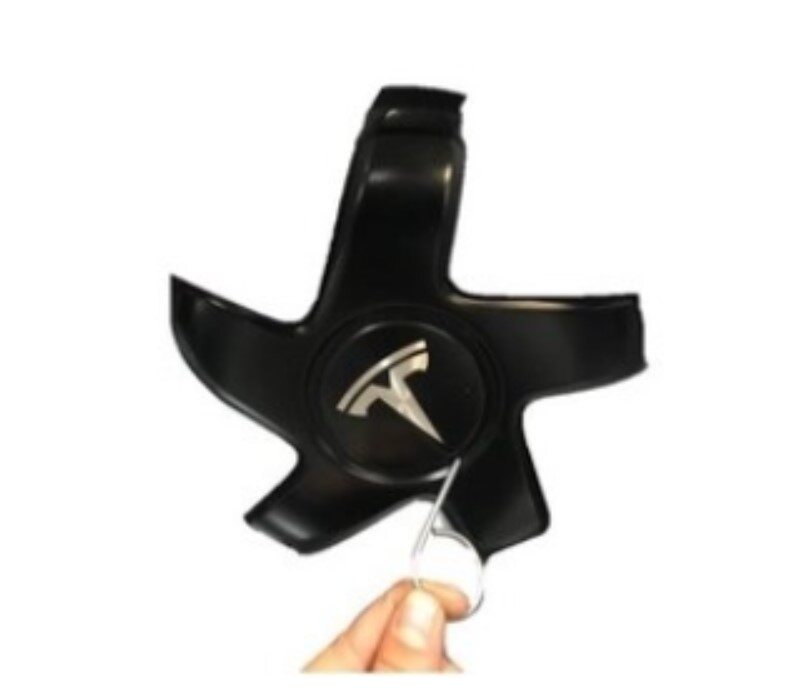

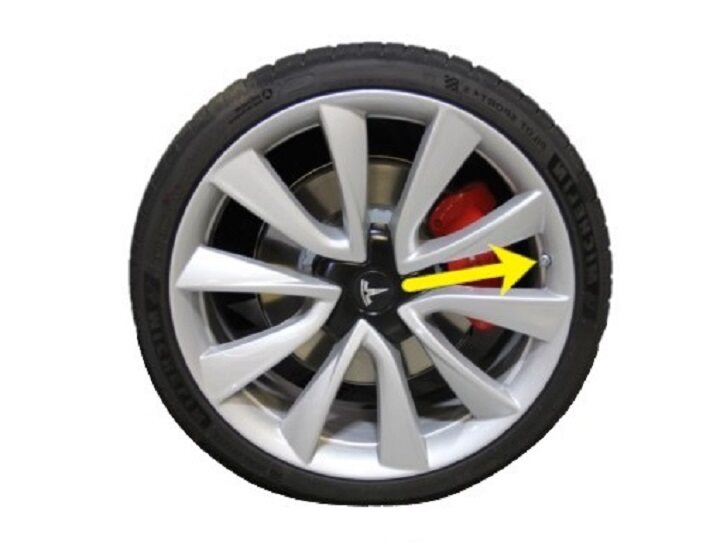

48. Remove LH front wheel center cap
    注

    1x cap



49. Remove RH front wheel center cap
    注

    1x cap



50. Remove RH rear wheel center cap
    注

    1x cap



51. Remove RH rear wheel center cap
    注

    1x cap



52. Remove LH rear wheel center cap
    注

    1x cap

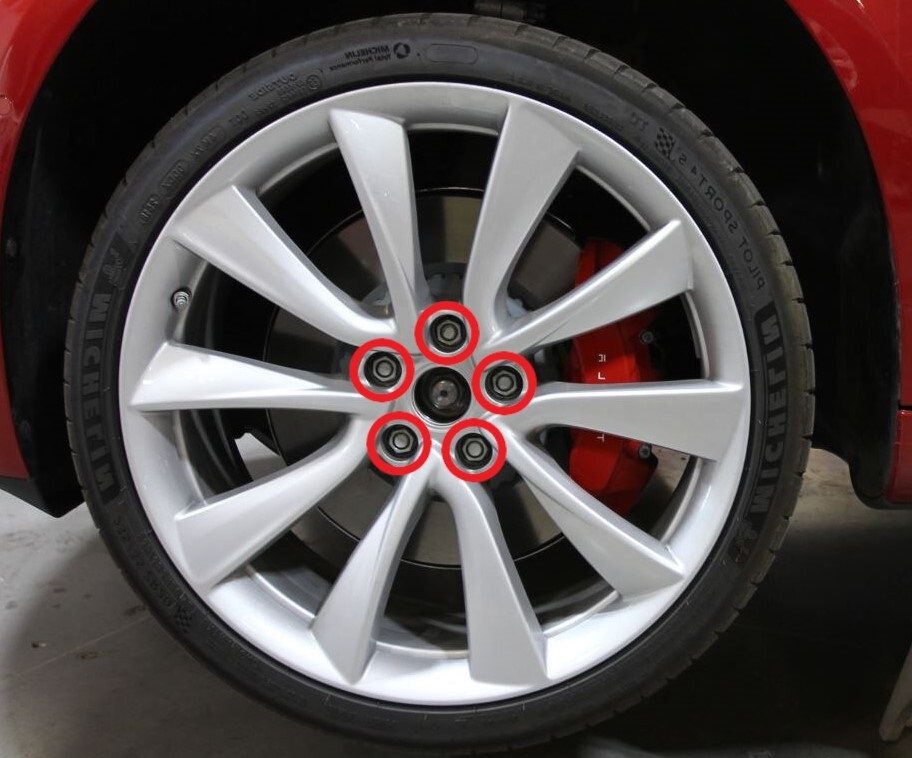

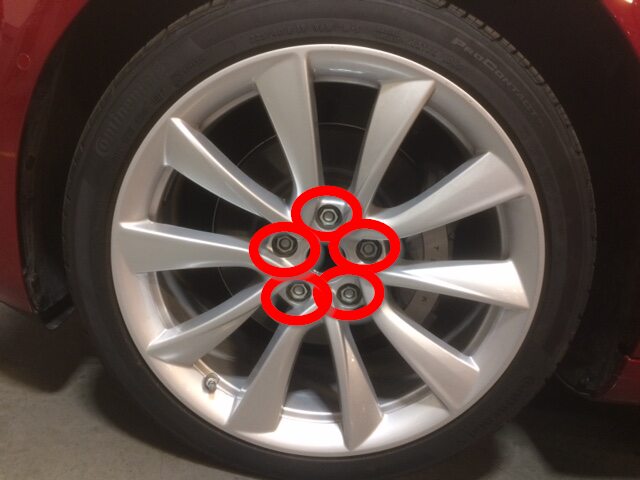

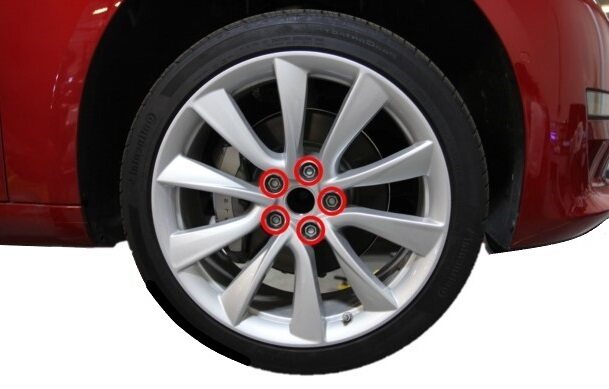

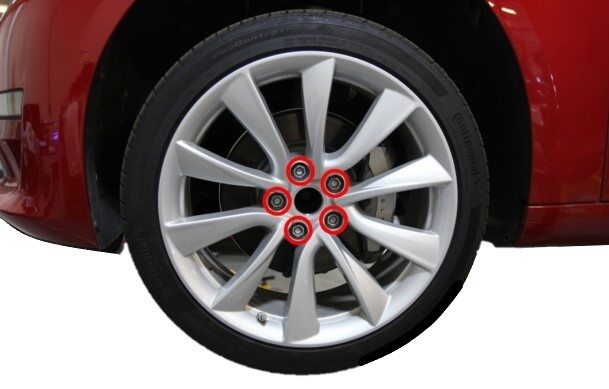

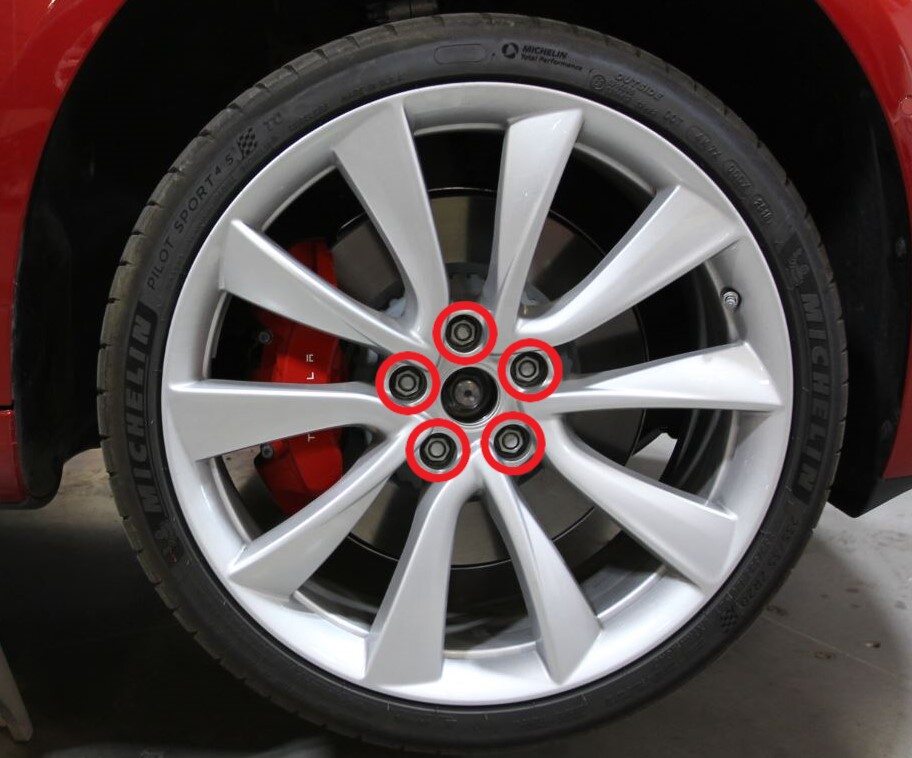

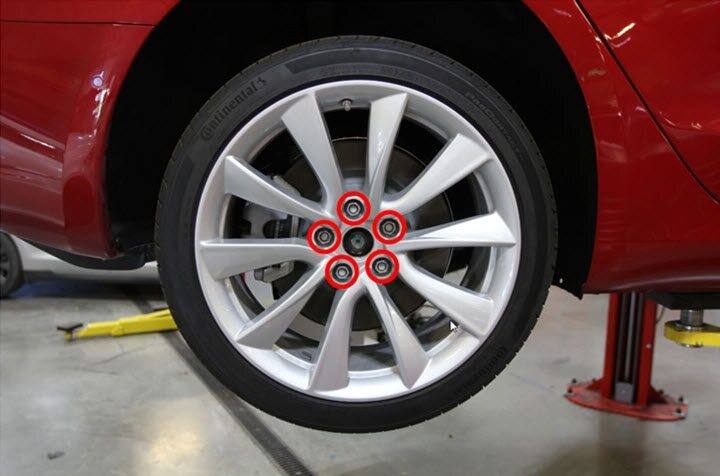

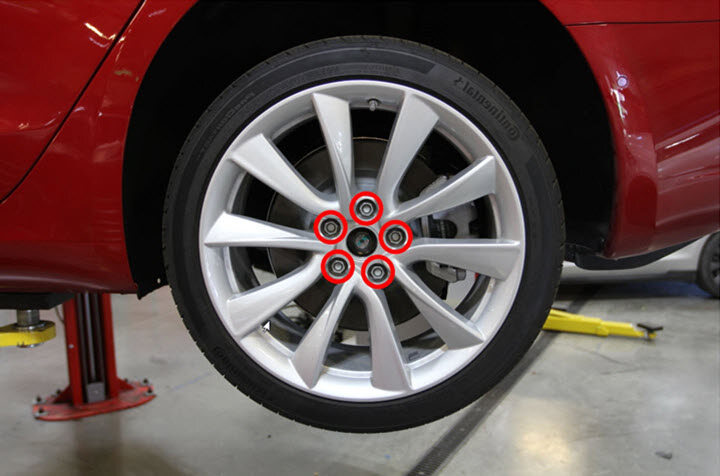

53. Loosen LH front wheel
    注

    5x nuts, 21mm, 175 Nm



54. Loosen RH front wheel
    注

    5x nuts, 21mm, 175 Nm



55. Loosen RH rear wheel
    注

    5x nuts, 21mm, 175 Nm



56. Loosen LH rear wheel
    注

    5x nuts, 21mm, 175 Nm

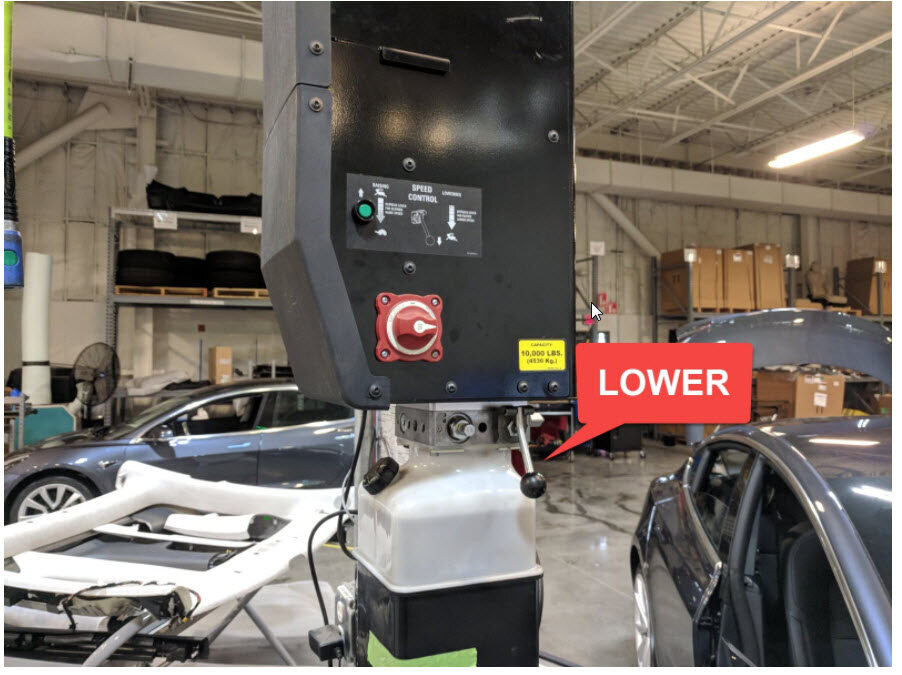

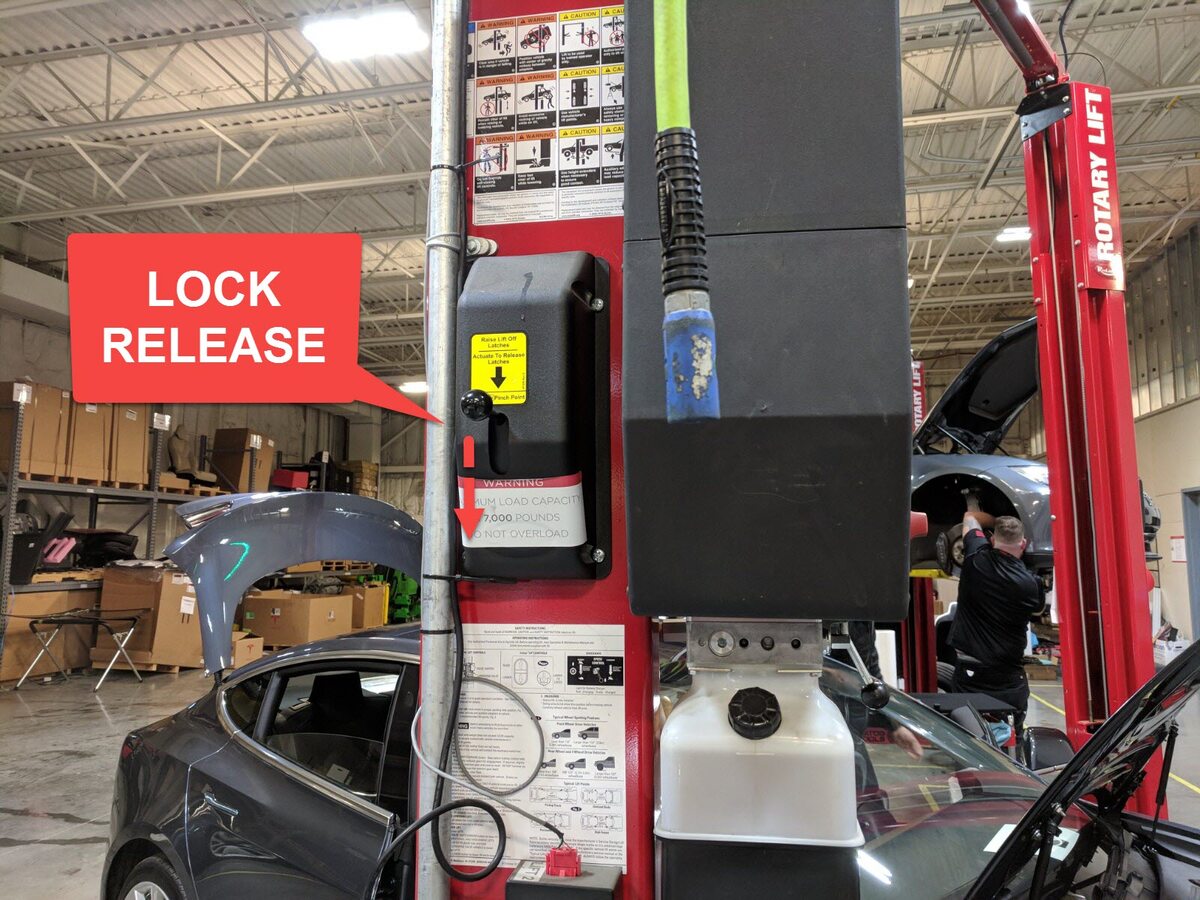

57. Raise vehicle partially and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side

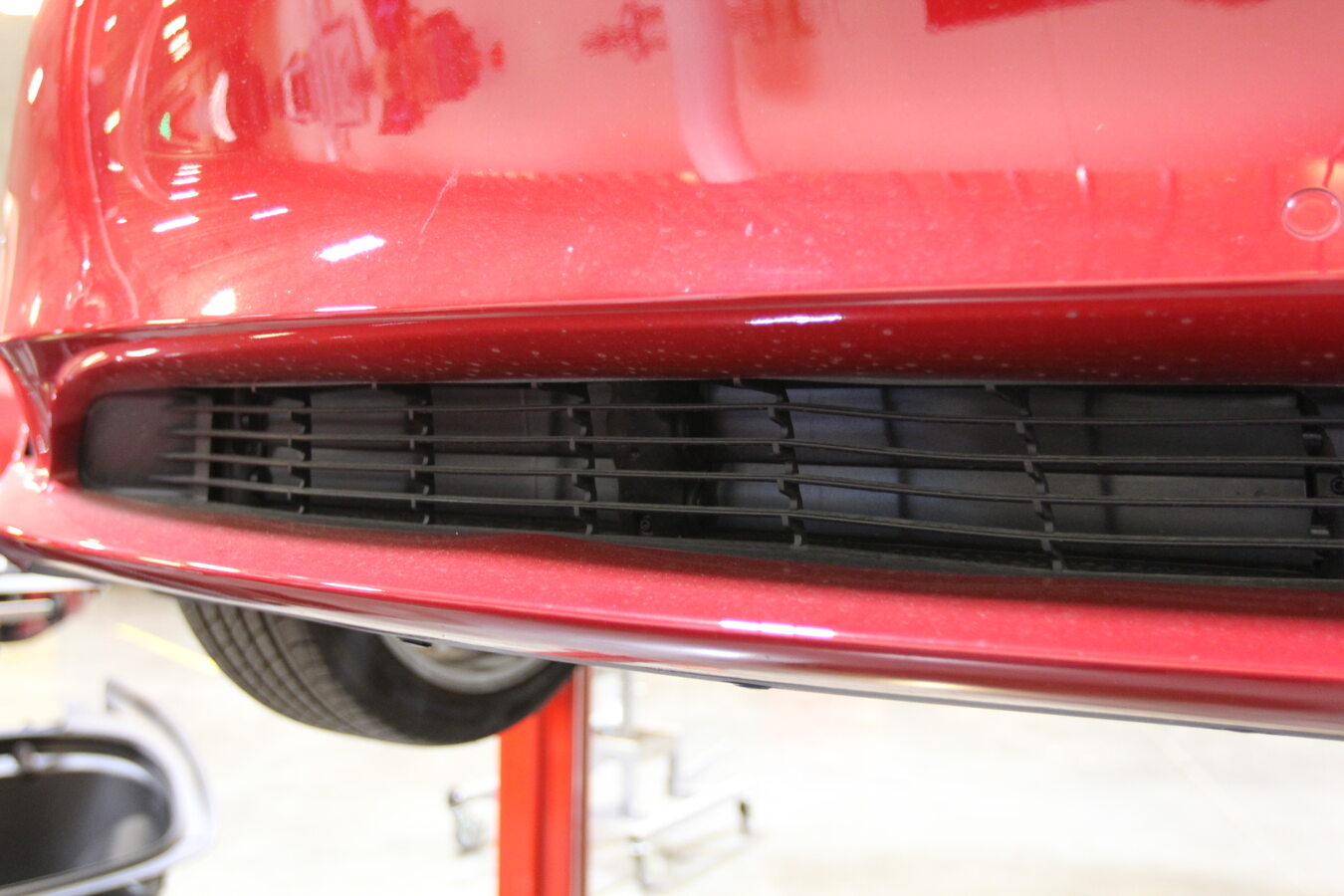

58. Inspect radiator inlet in front fascia for debris
    注

    Clear debris if necessary



59. Remove LH front wheel
    注

    5x nuts, 21mm, 175 Nm



60. Remove RH front wheel
    注

    5x nuts, 21mm, 175 Nm



61. Remove RH rear wheel
    注

    5x nuts, 21mm, 175 Nm



62. Remove LH rear wheel
    注

    5x nuts, 21mm, 175 Nm

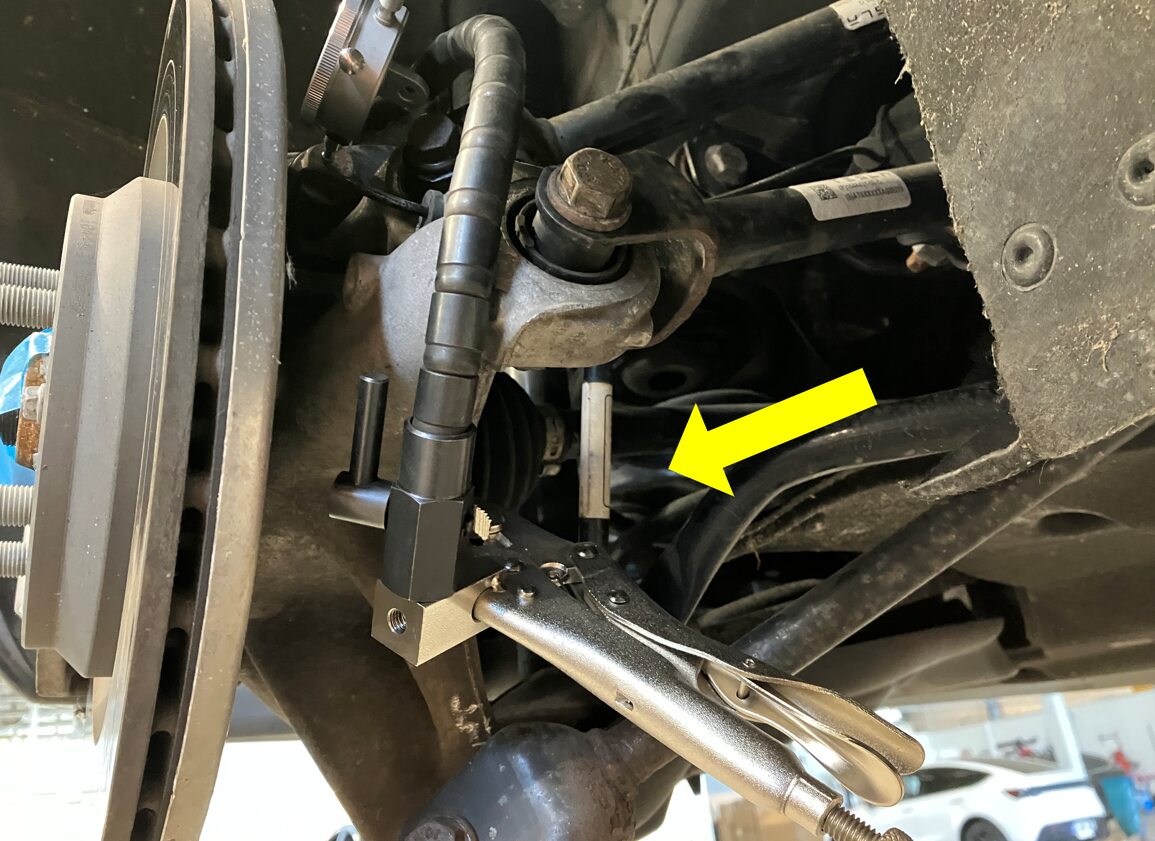

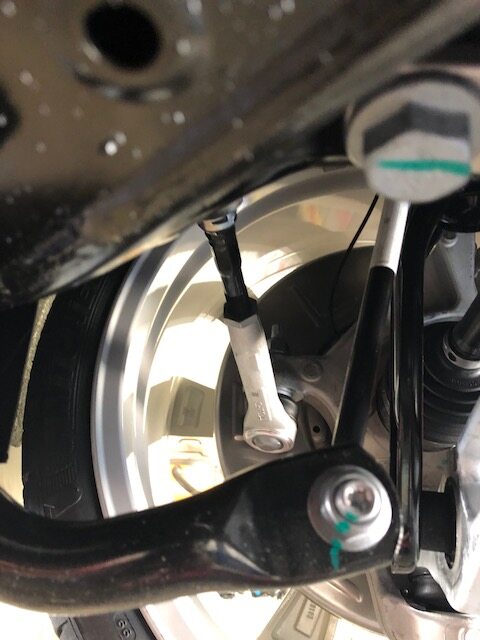

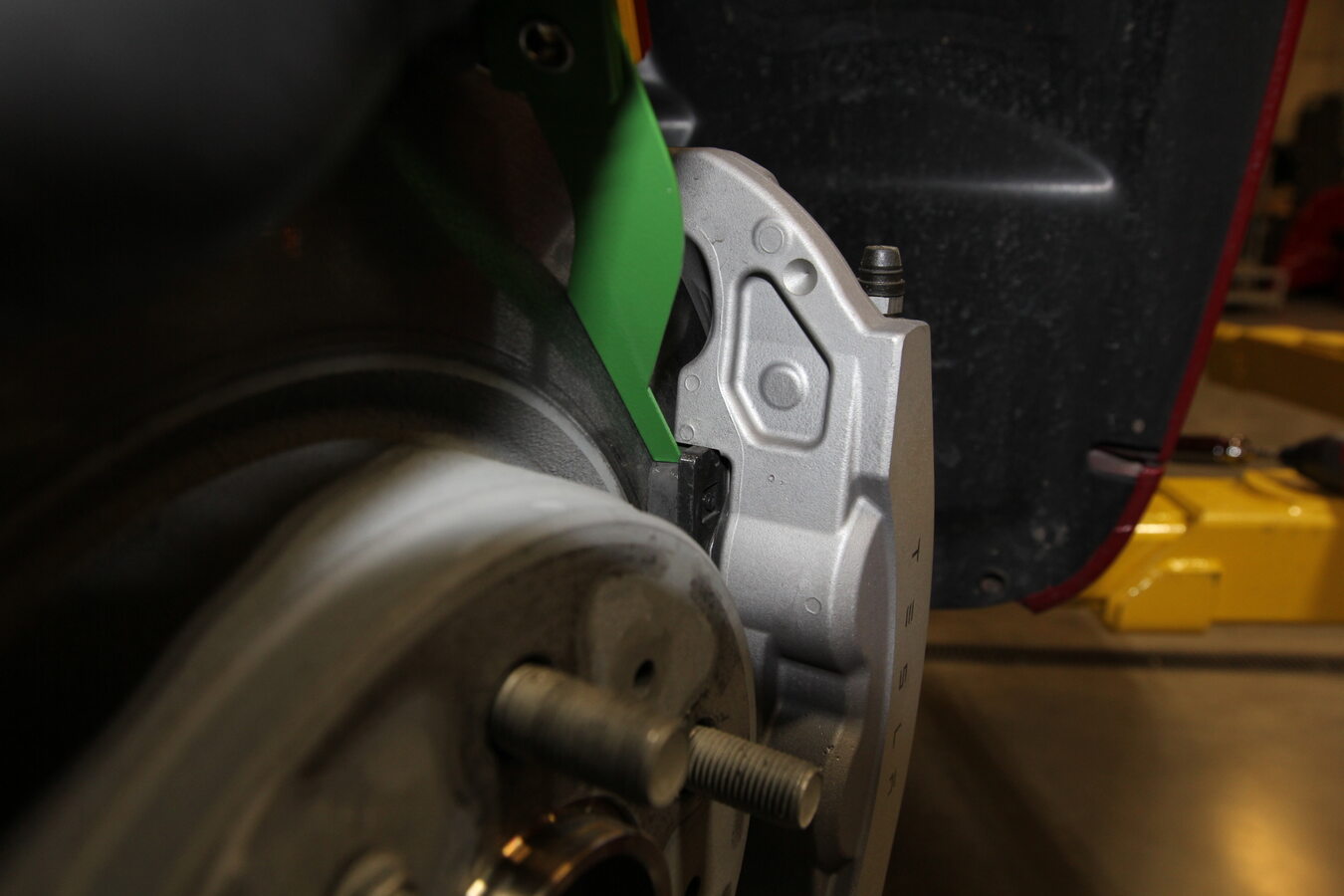

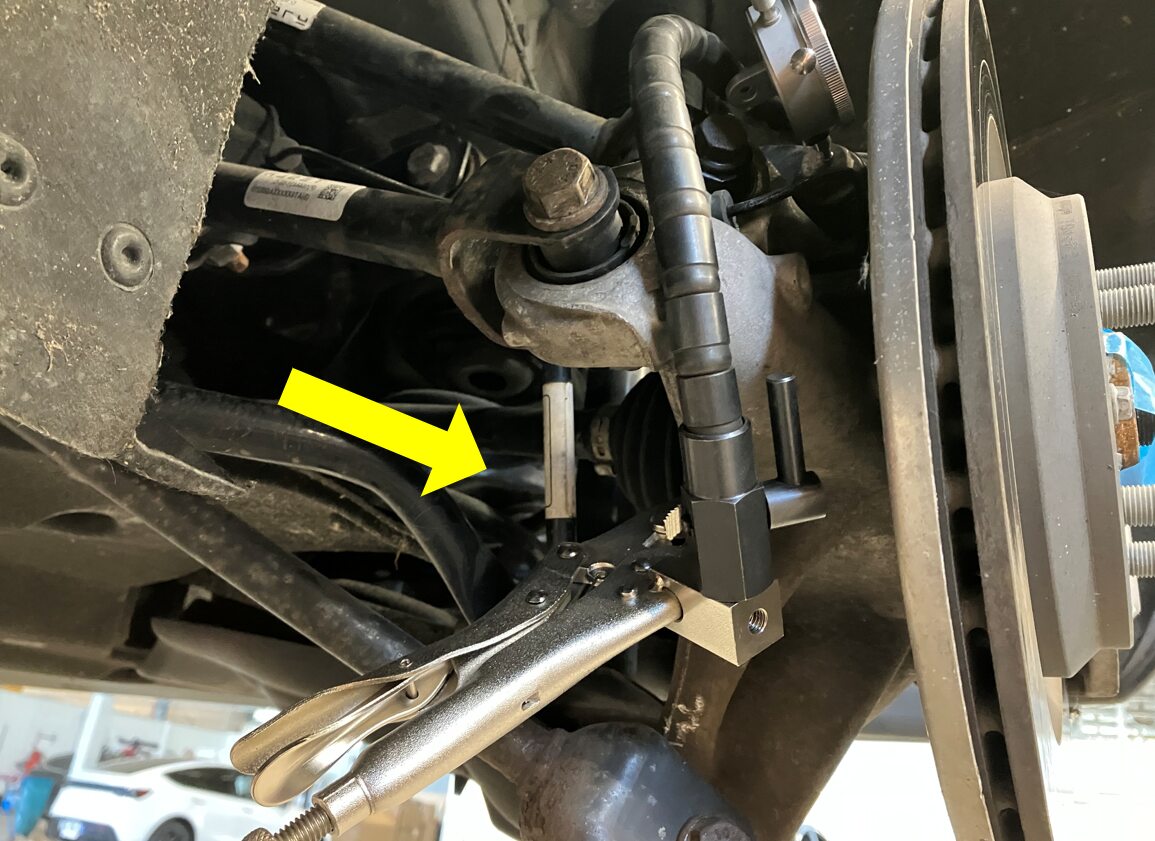

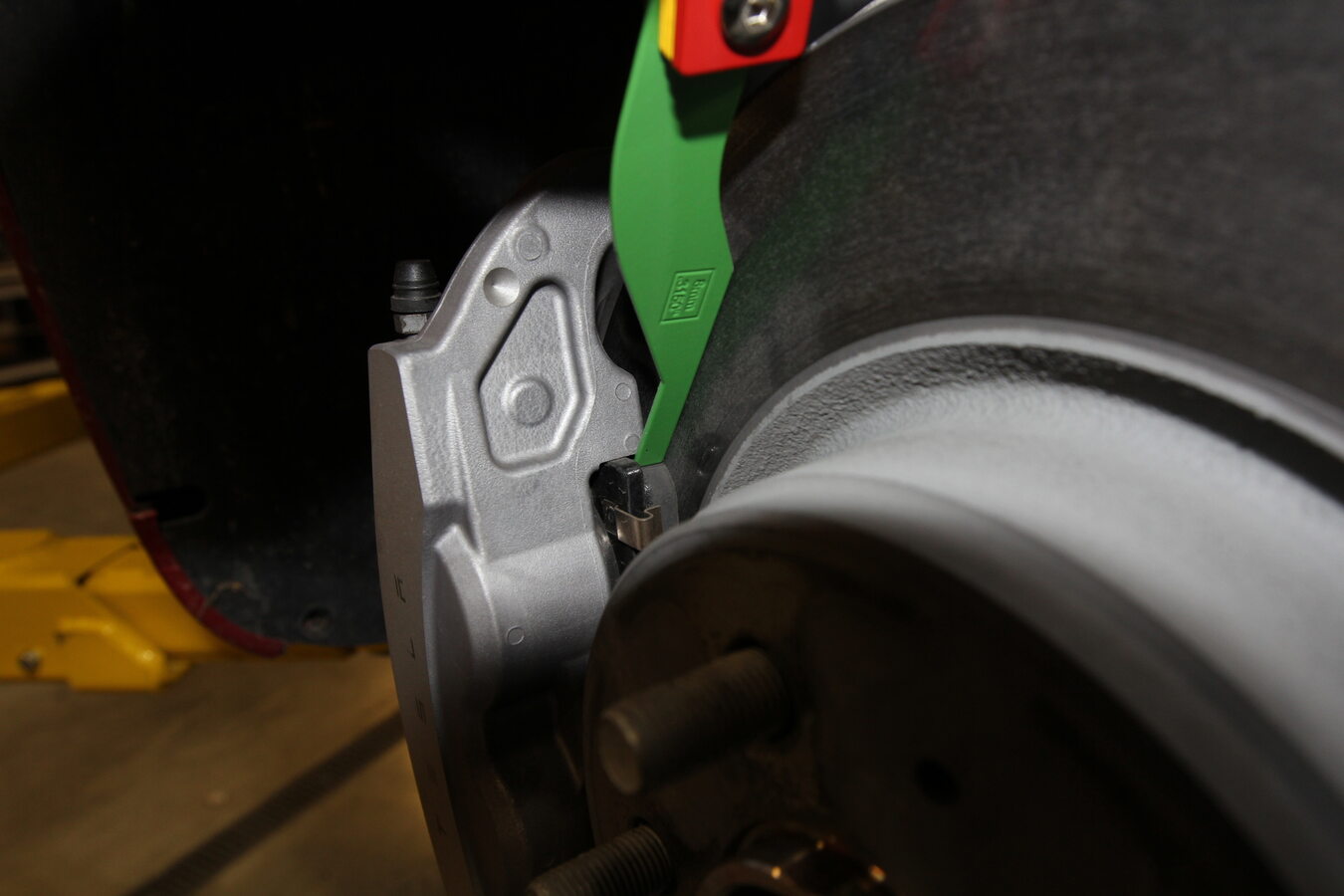

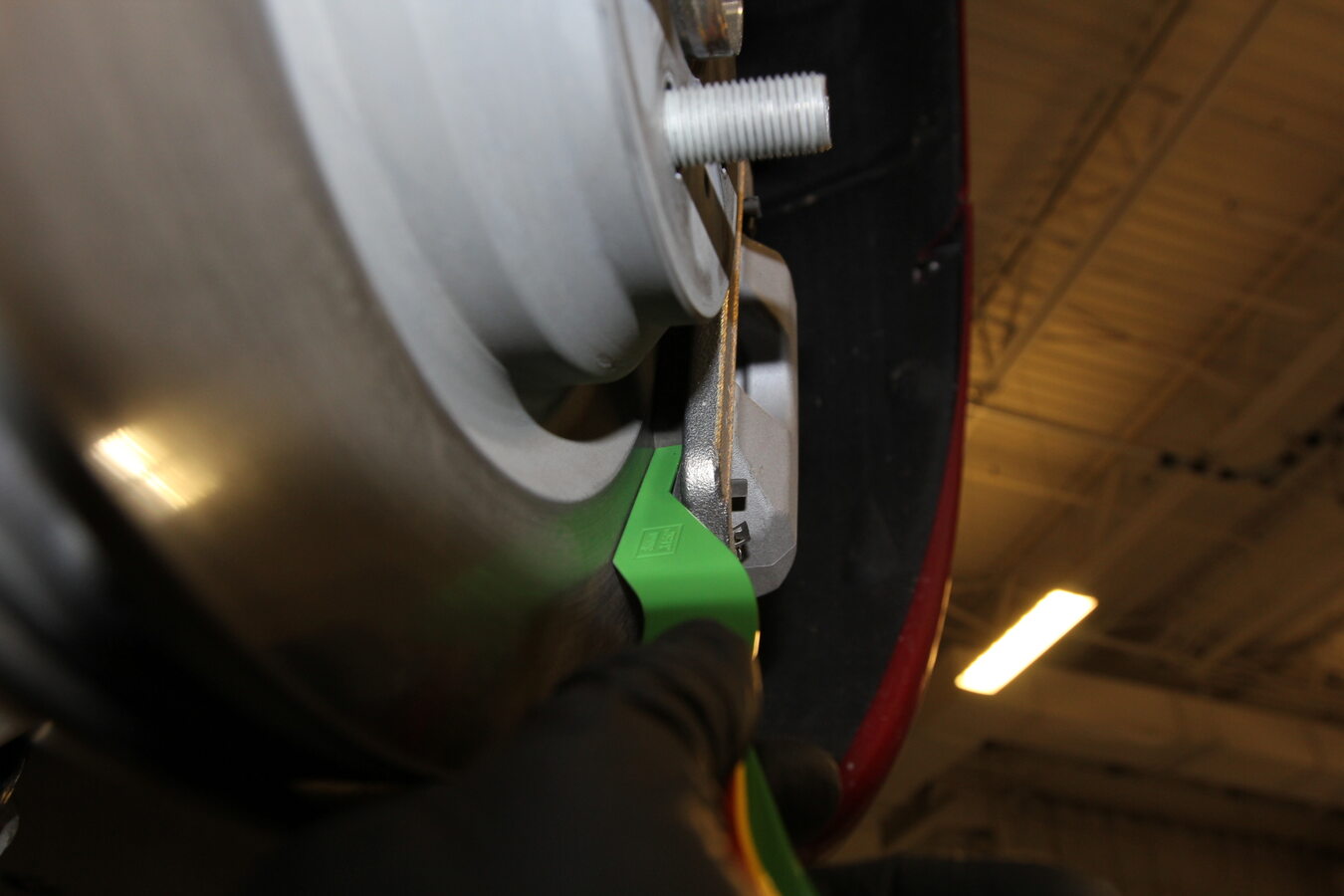

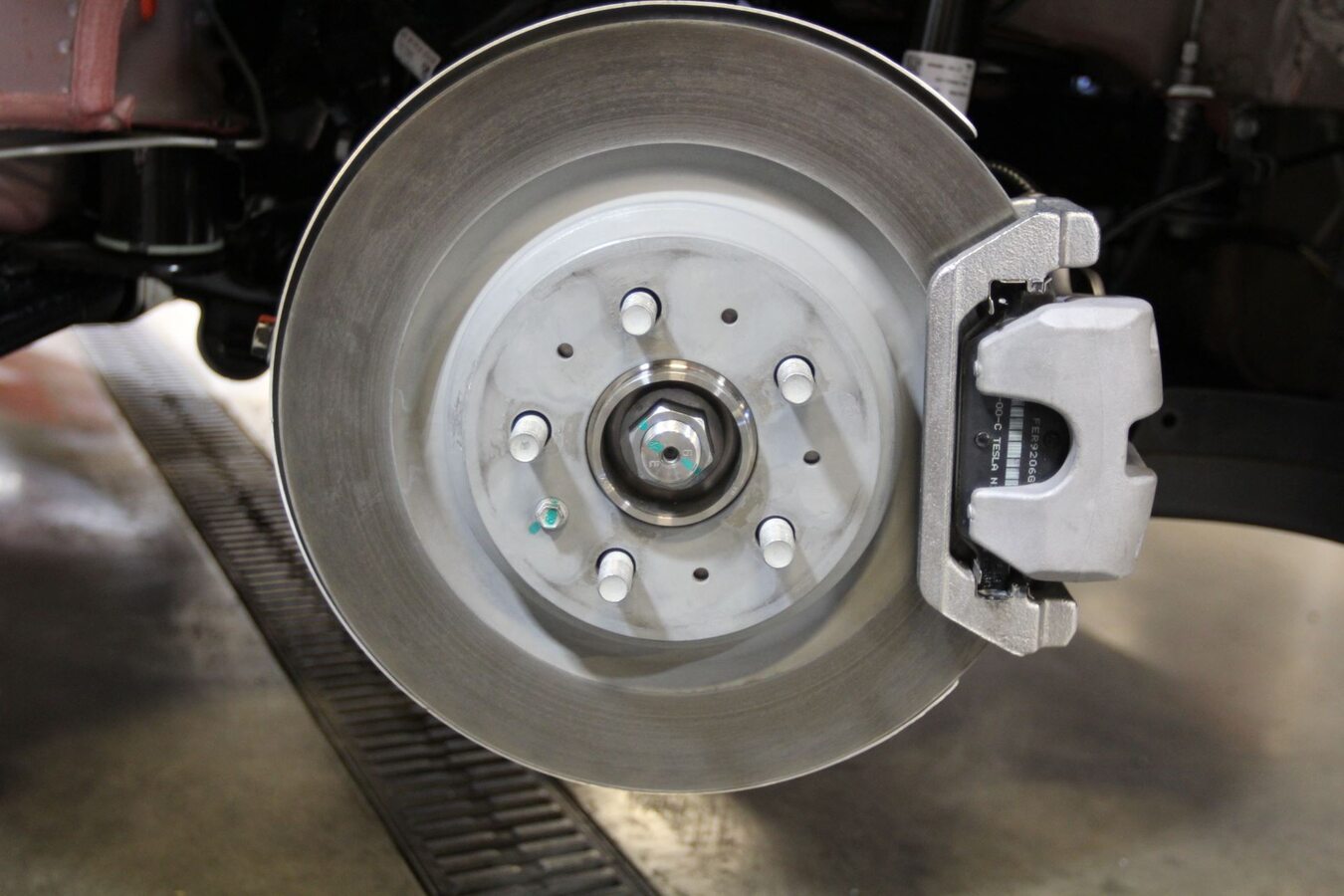

63. Install brake rotor run out flex bar onto LH rear knuckle and setup for reading
    注

    Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero





64. Install brake rotor run out flex bar onto LH rear knuckle and setup for reading
    注

    Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero





65. Remove brake rotor run out flex bar from LH knuckle assembly



66. Install brake rotor run out flex bar onto RH rear knuckle and setup for reading
    注

    Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero

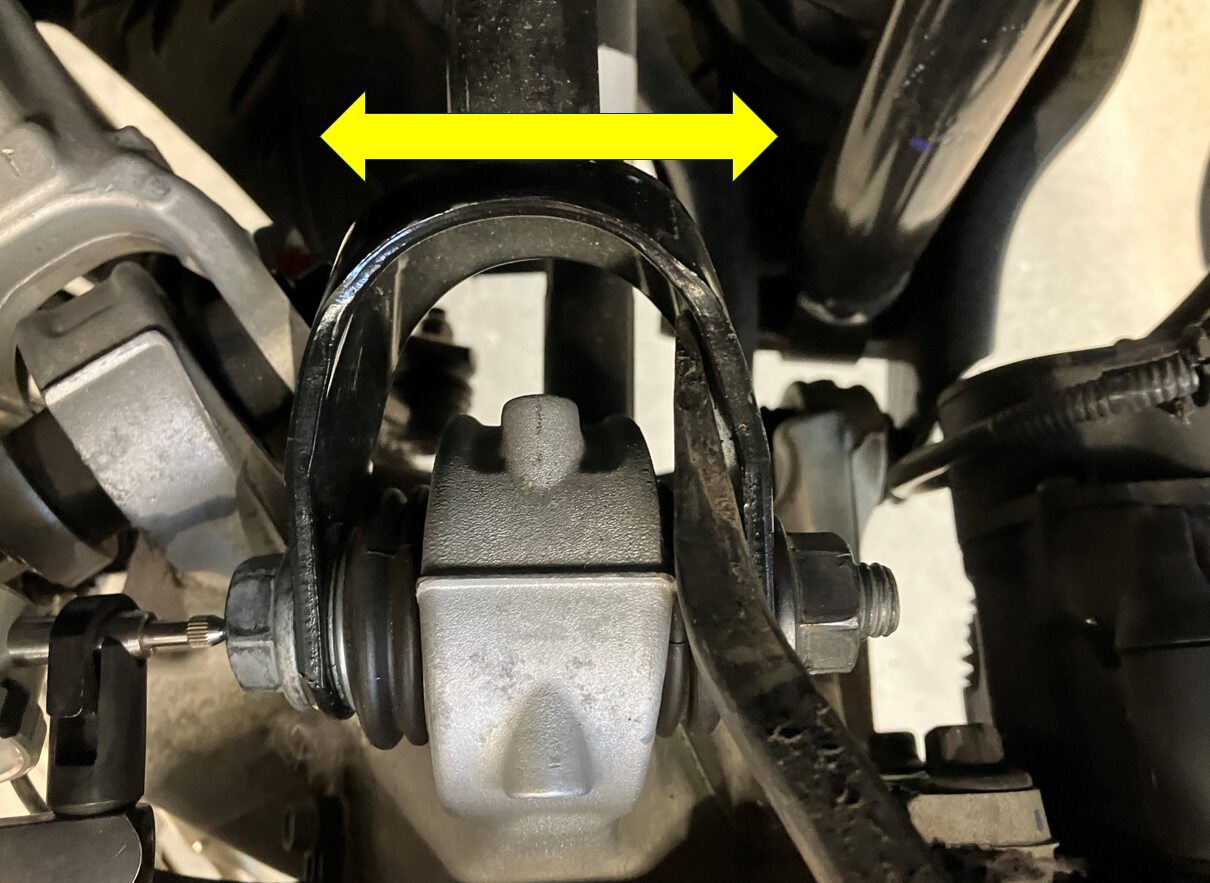

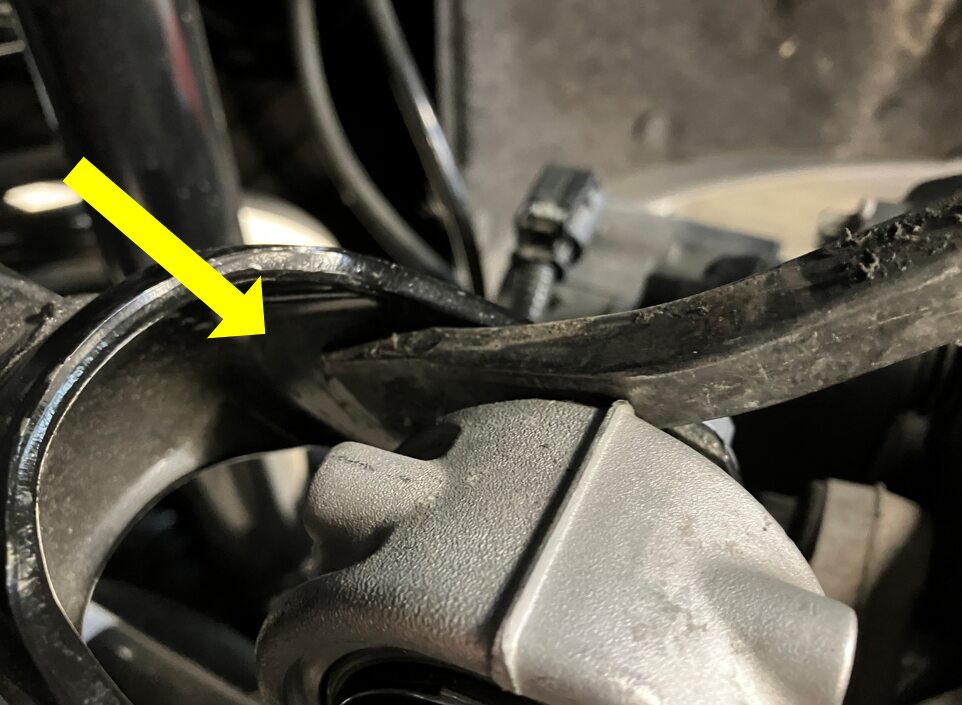

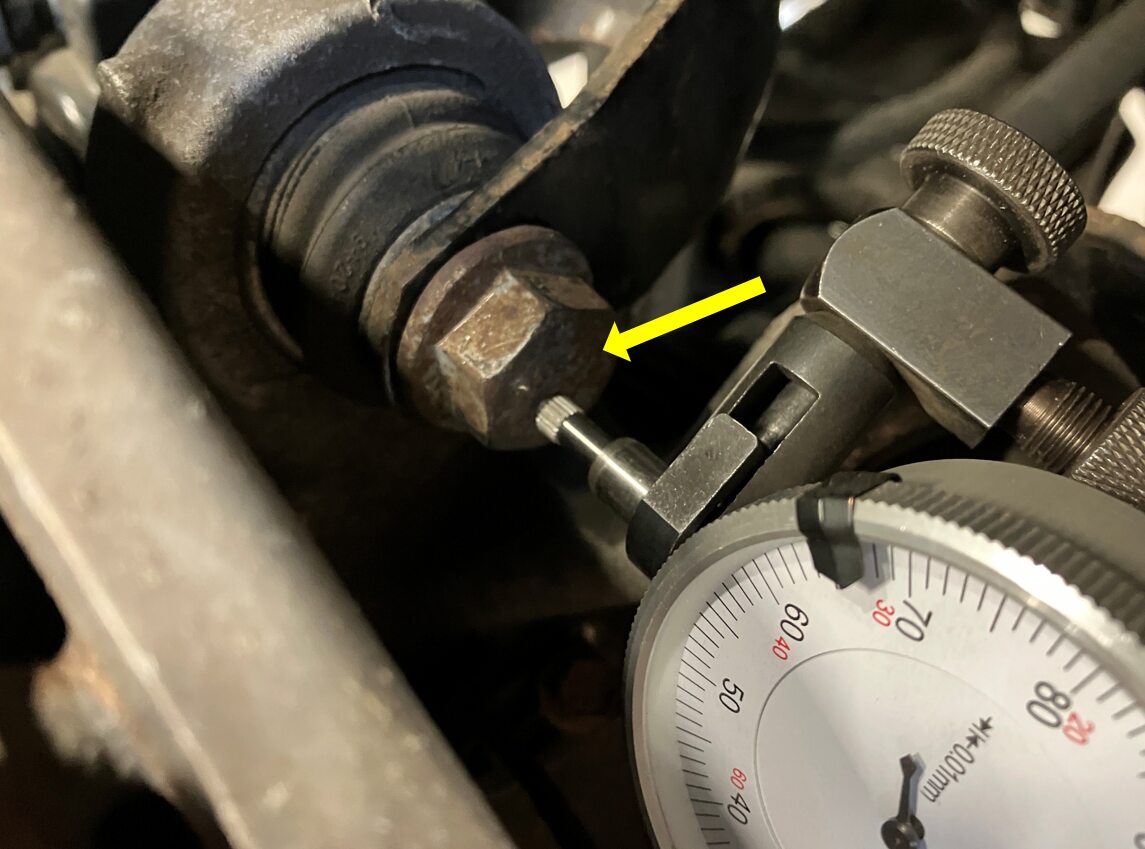

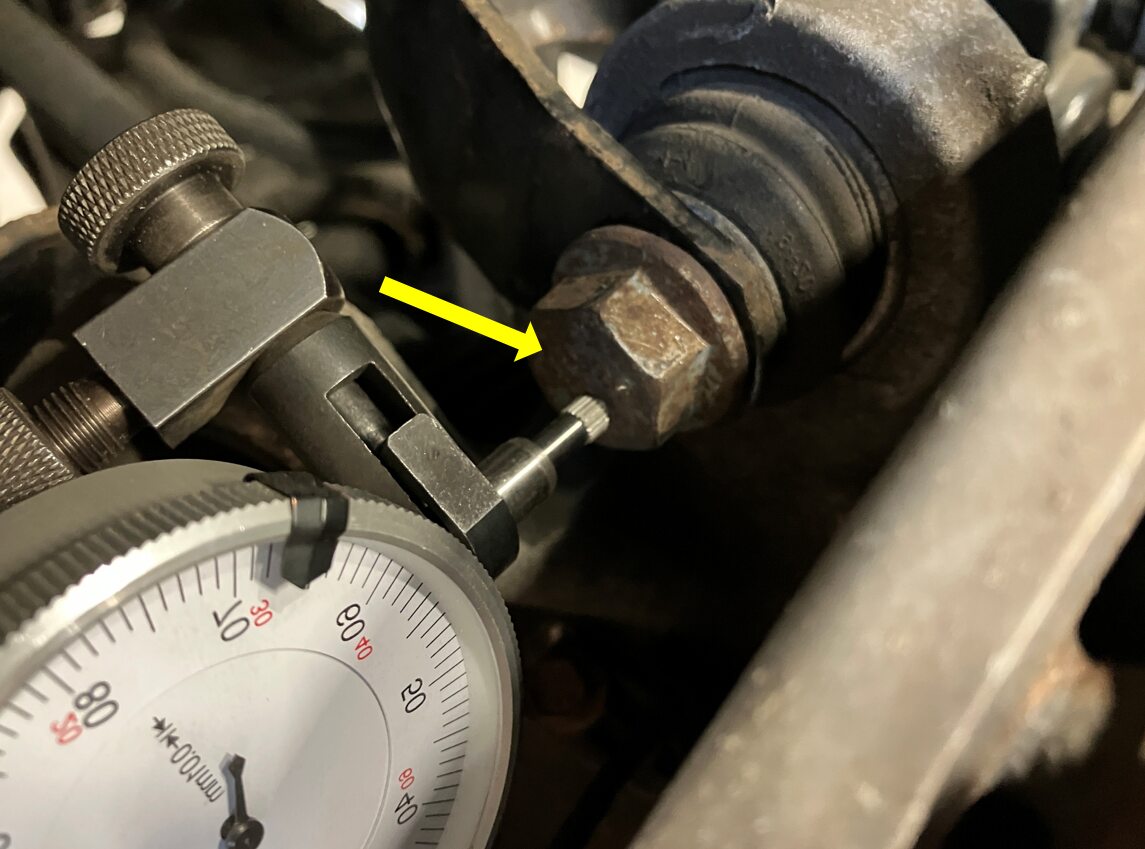

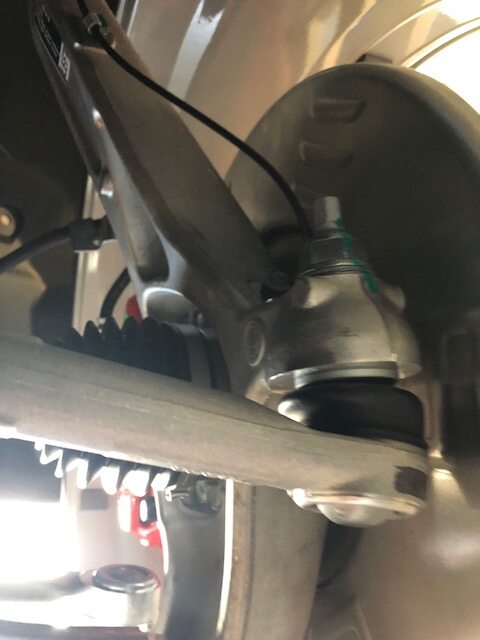

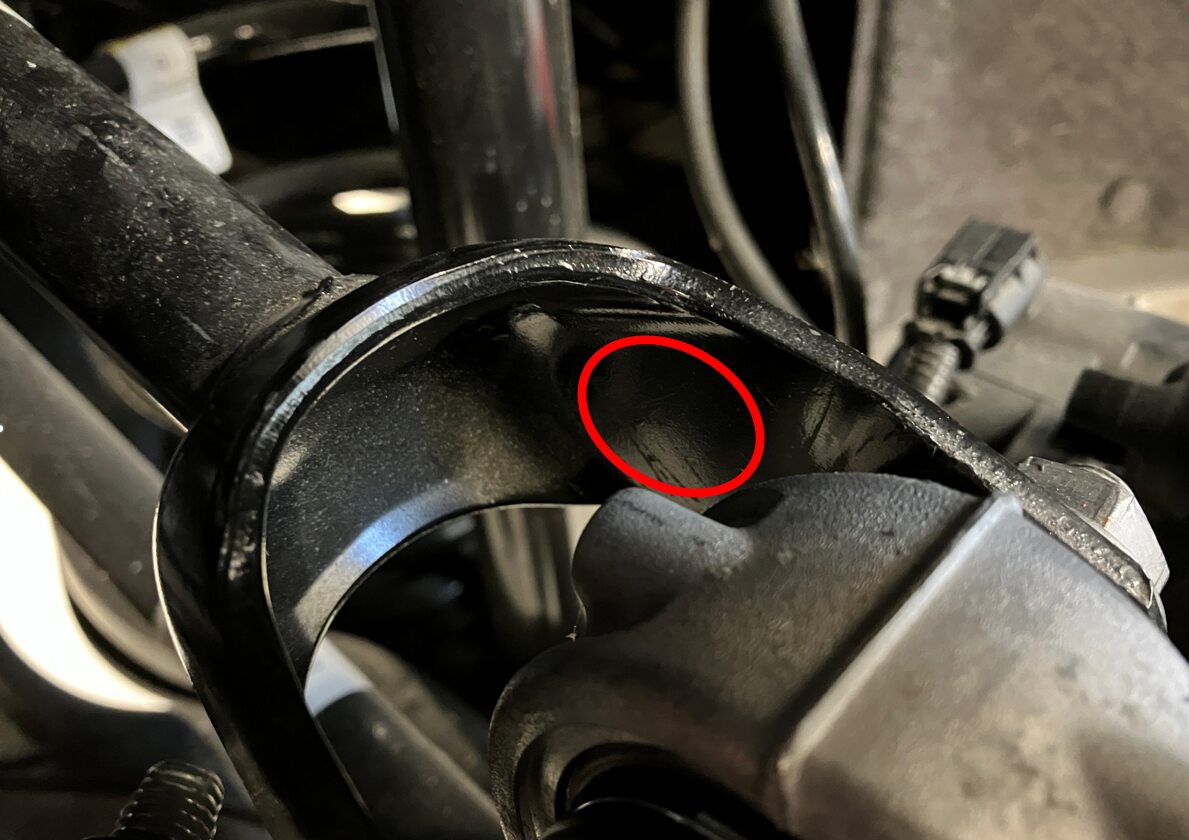

67. Inspect RH Rear Upper Knuckle Ball Joint play
    注

    Insert medium size prybar between the aft link and the knuckle and push to check, make sure the prybar is pushing the noted area in the middle of the link's side, this will give proper measurement and avoid link rotation. Note the values of the analog indicator, replace RH Rear Upper Knuckle Ball Joint if the play is greater than 1,00mm







68. Remove brake rotor run out flex bar from RH knuckle assembly

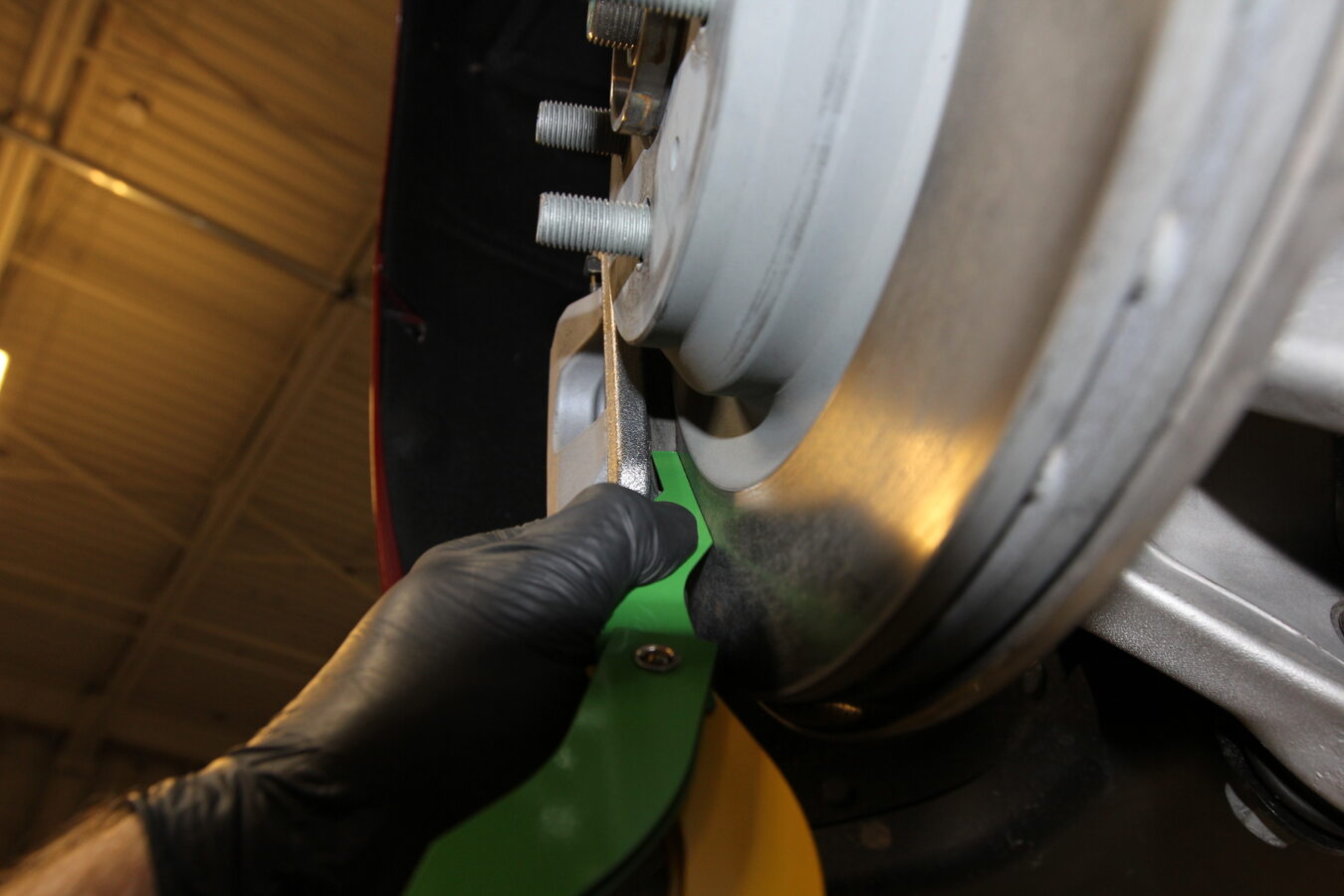

69. Measure and record LH rear brake pad thickness
    注

    Recommend replacement if 2mm or less, Check both inboard and outboard pads

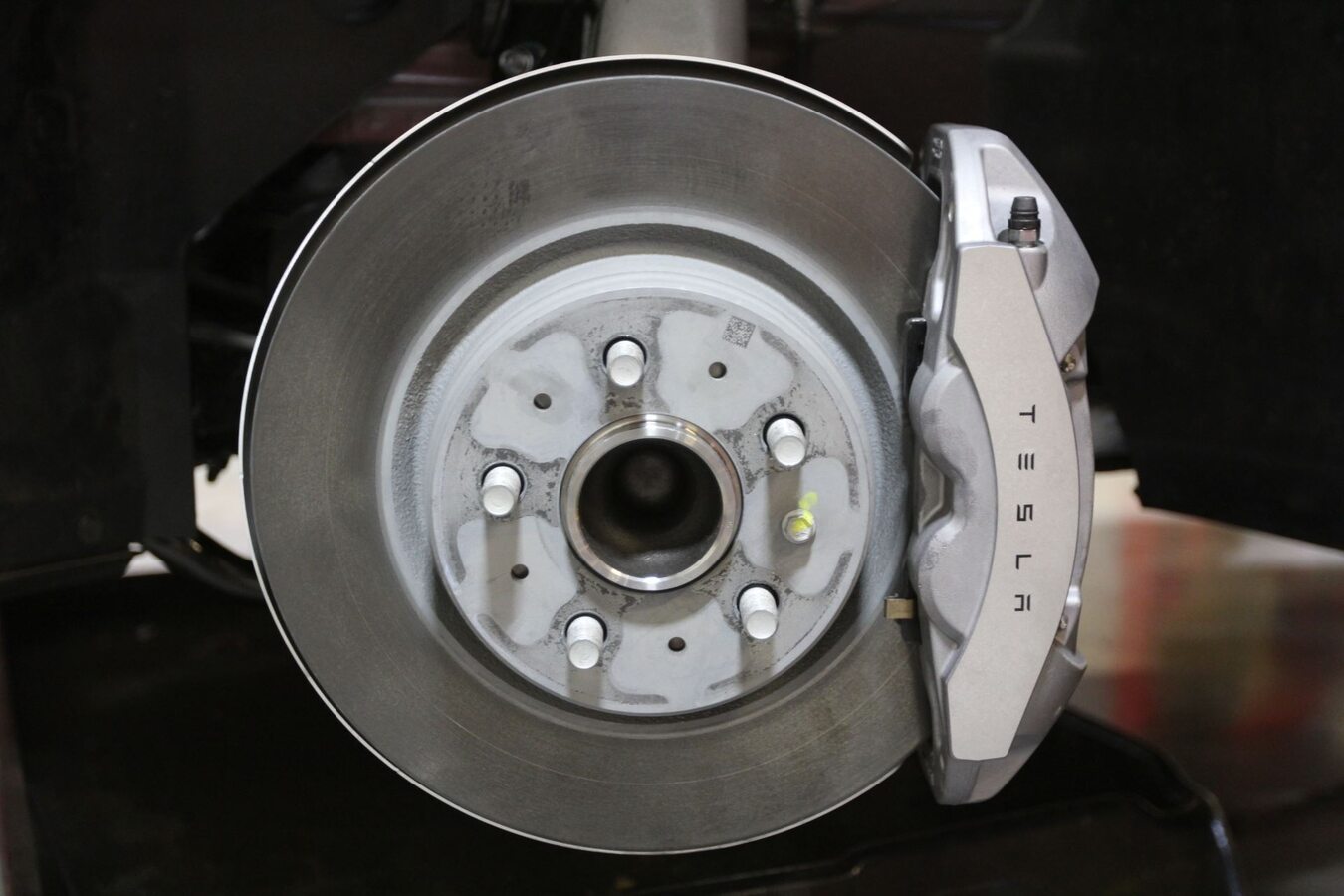

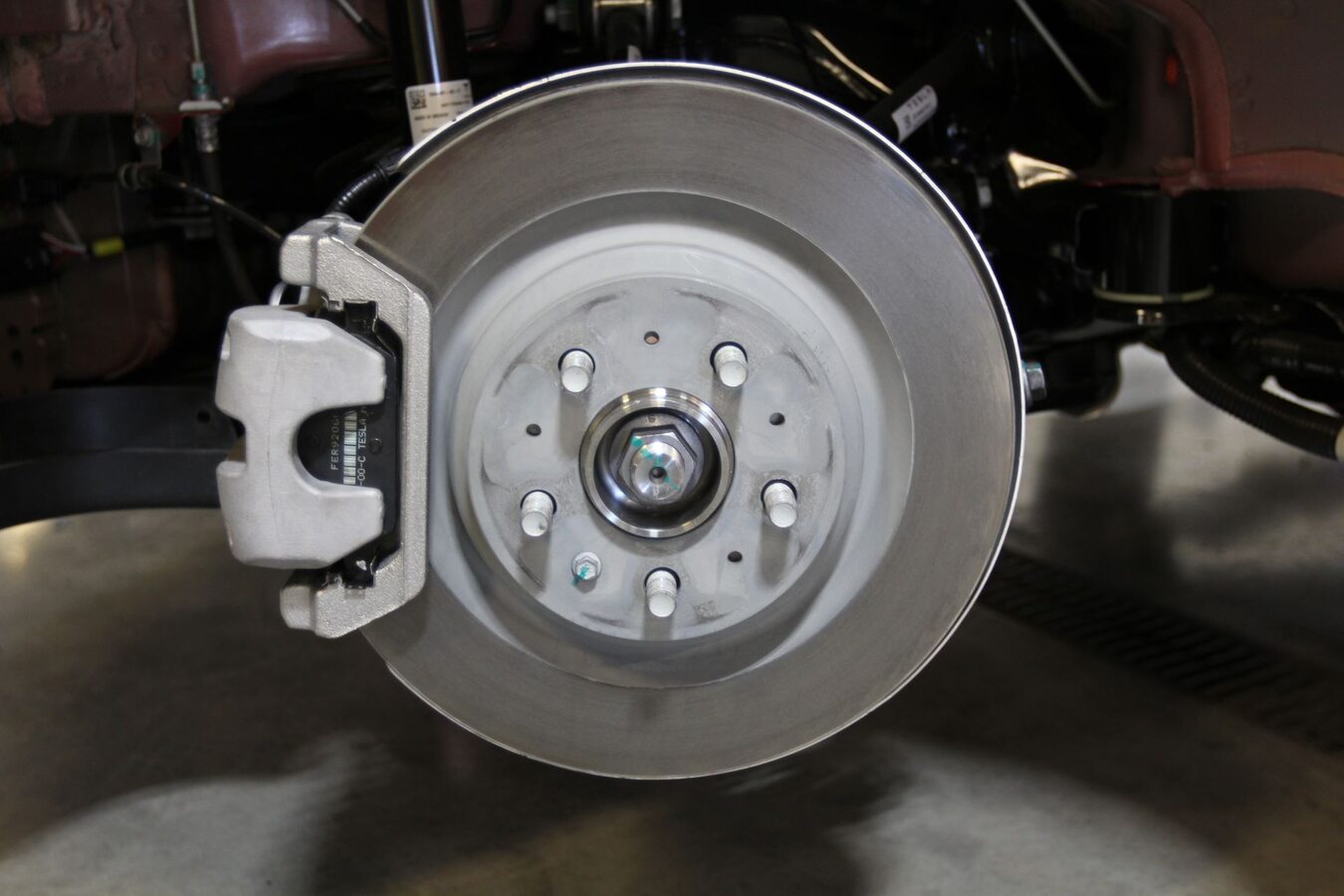

70. Inspect LH rear brake rotor condition
    注

    Check for excessive rust or wear, Minimum spec 26mm



71. Measure and record RH rear brake pad thickness
    注

    Recommend replacement if 2 mm or less, Check both inboard and outboard pads



72. Inspect RH rear brake rotor condition
    注

    Check for excessive rust or wear, Minimum spec 26mm



73. Measure and record RH front brake pad thickness
    注

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



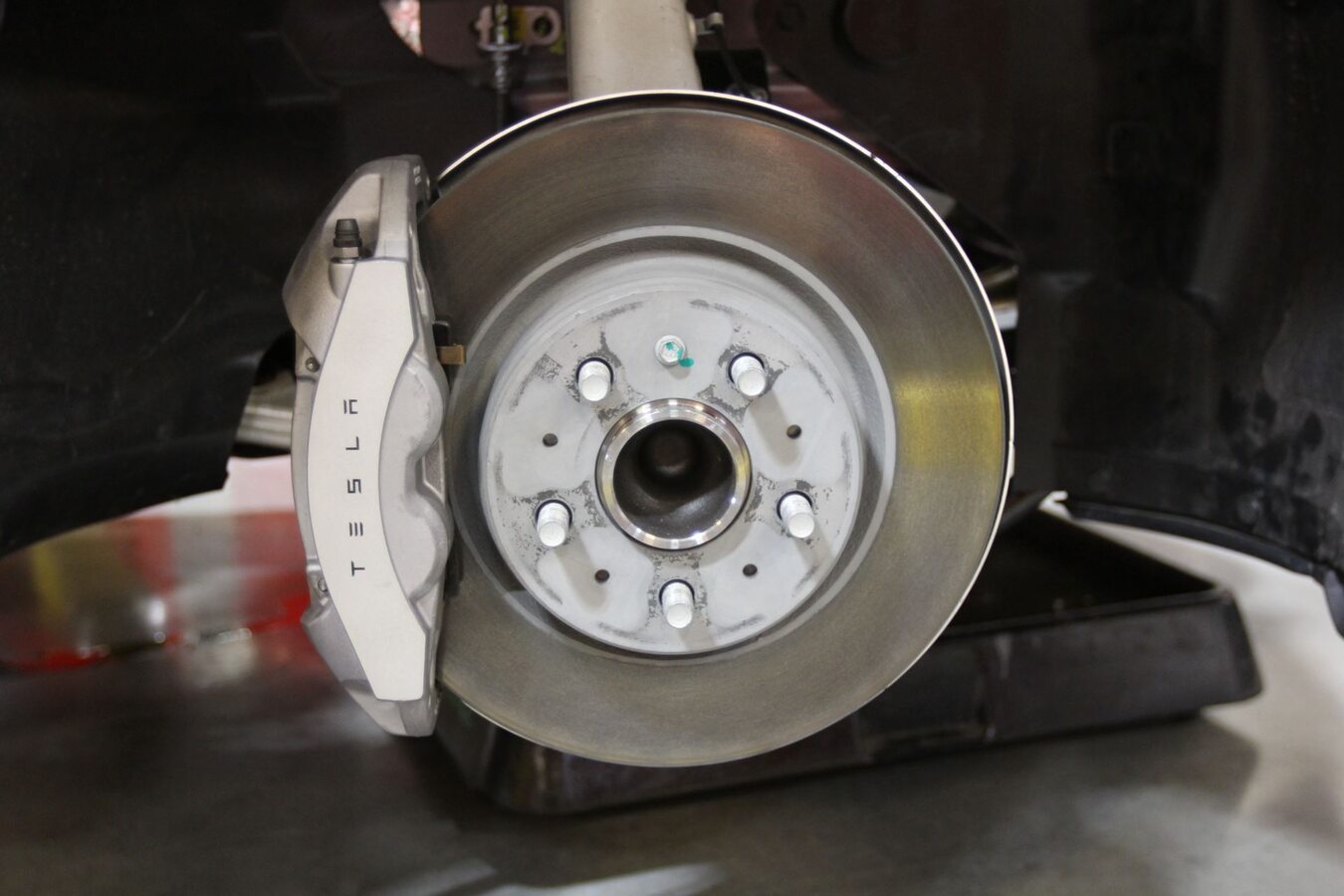

74. Inspect RH front brake rotor condition
    注

    Check for excessive rust or wear, Minimum spec 30mm



75. Measure and record LH front brake pad thickness
    注

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



76. Inspect LH front brake rotor condition
    注

    Check for excessive rust or wear, Minimum spec 30mm



77. Perform visual inspection of all brake pipes and hoses
    注

    Pay special attention to brake junction points

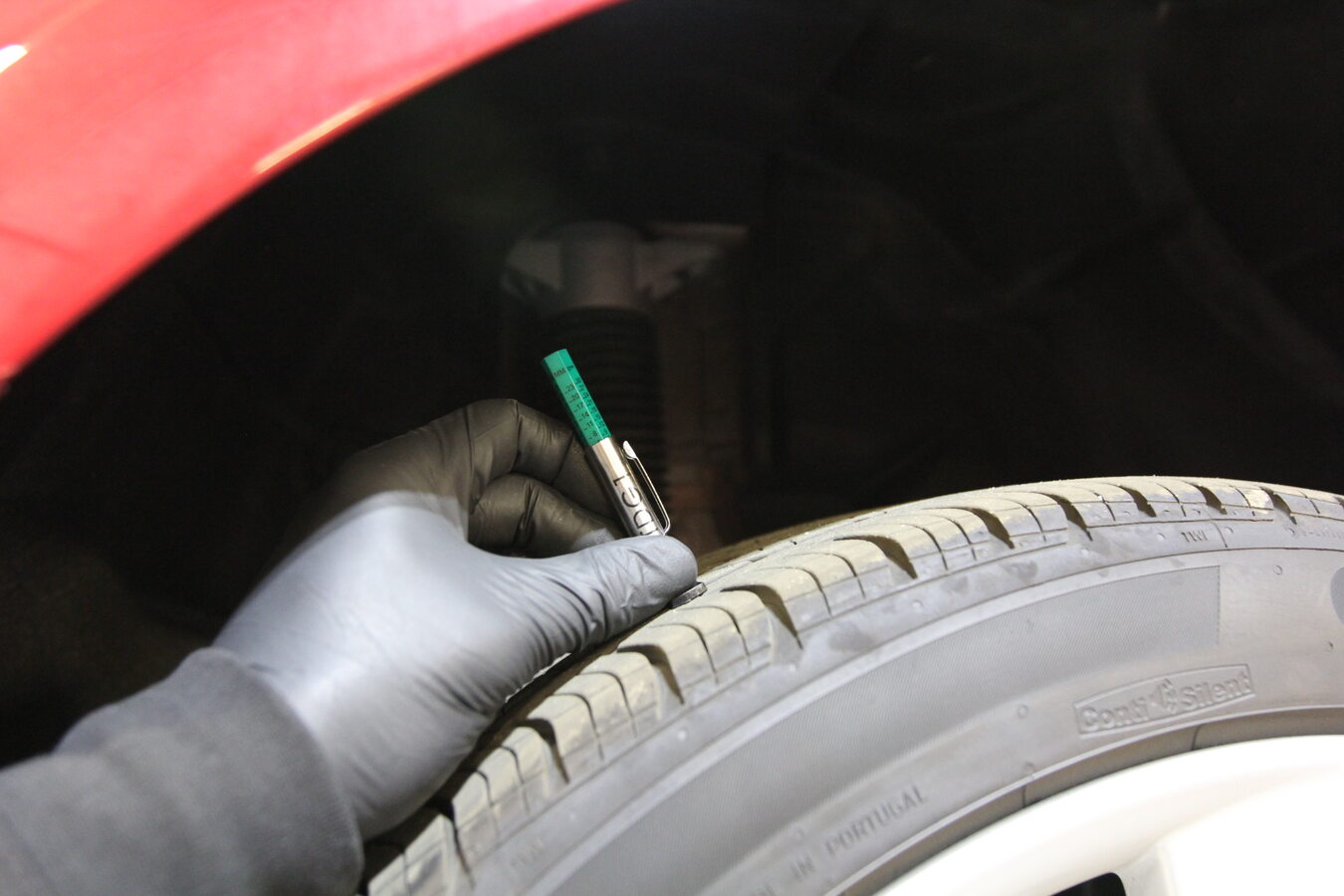

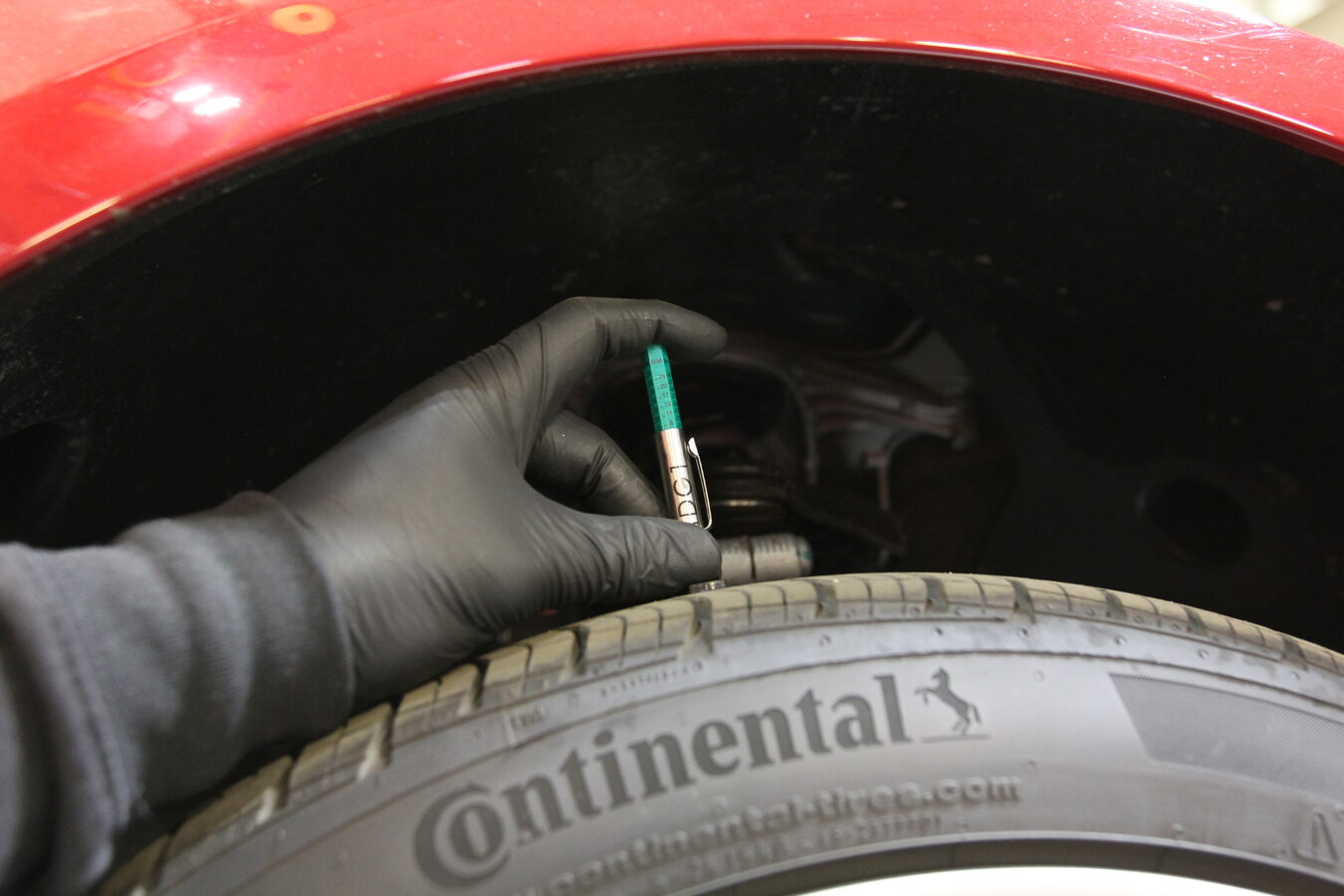

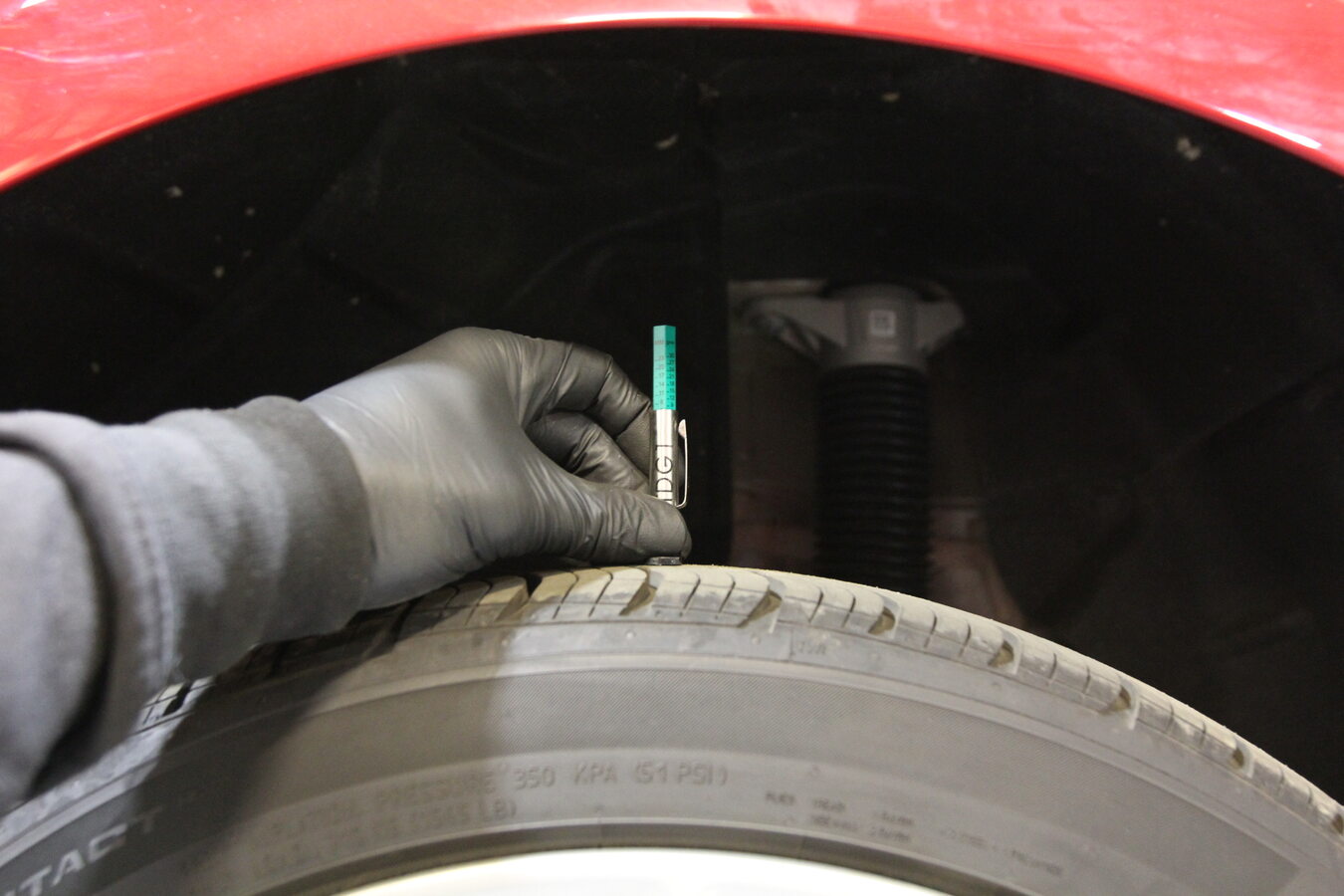

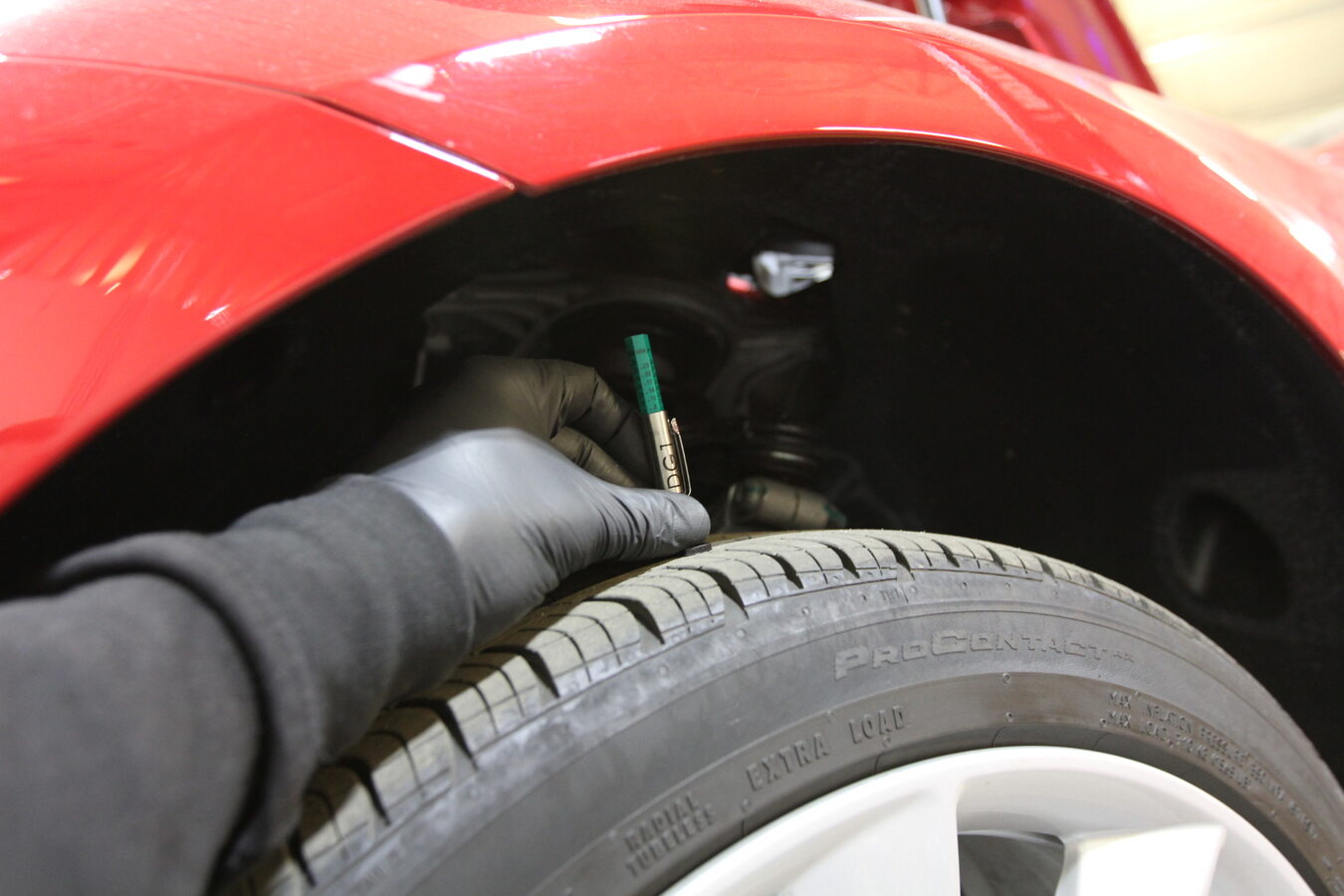

78. Record tread depth for LH front tire
    注

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



79. Record tread depth for RH front tire
    注

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



80. Record tread depth for LH rear tire
    注

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



81. Record tread depth for RH rear tire
    注

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less

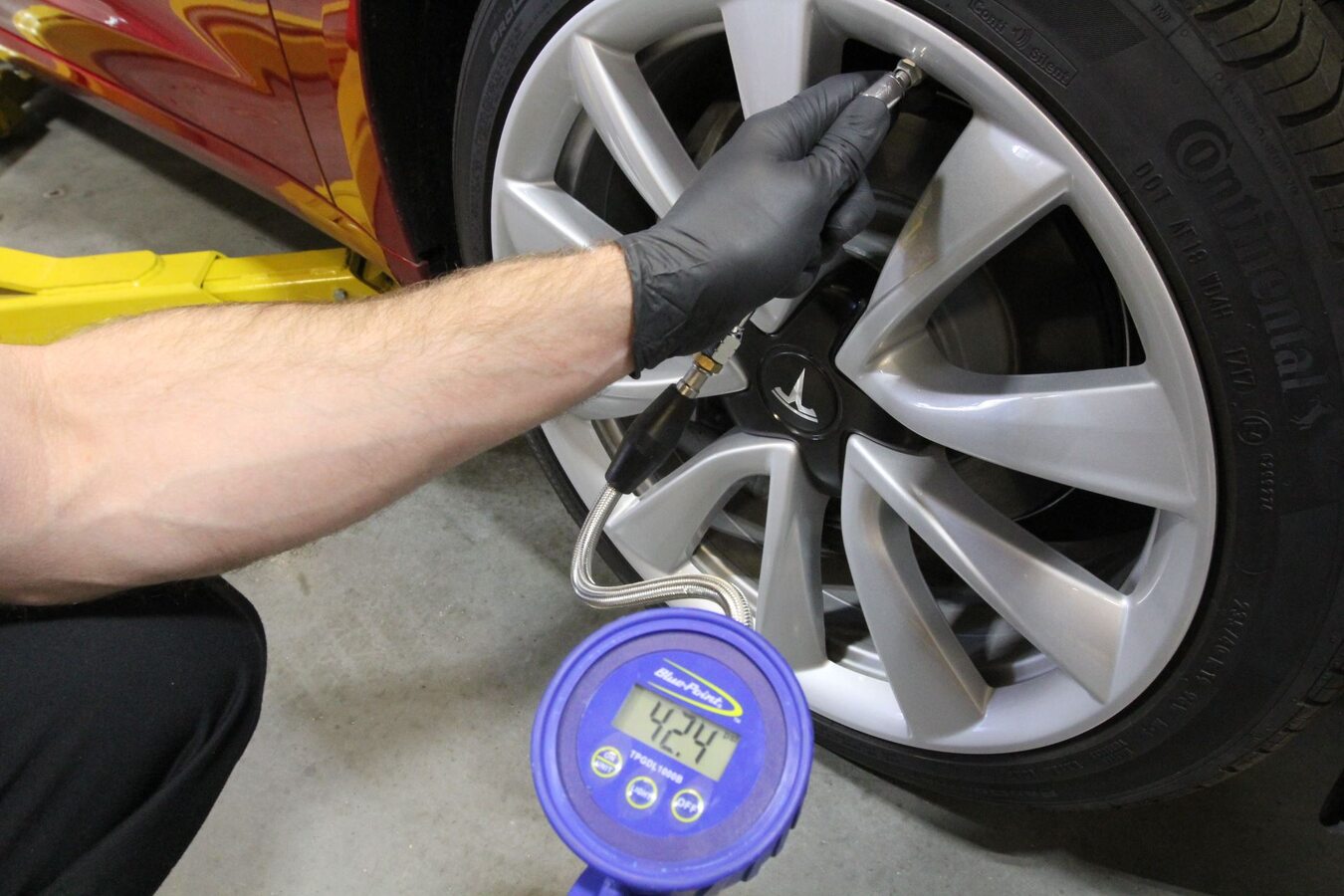

82. Check all four tire pressures manually
    注

    4x tires, 4x caps, Set to specification if necessary, Refer to the "Tire and Loading Information" label located on the driver side B-pillar, Inspect wheels and tires for any bulges or damage while checking/setting pressures



83. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

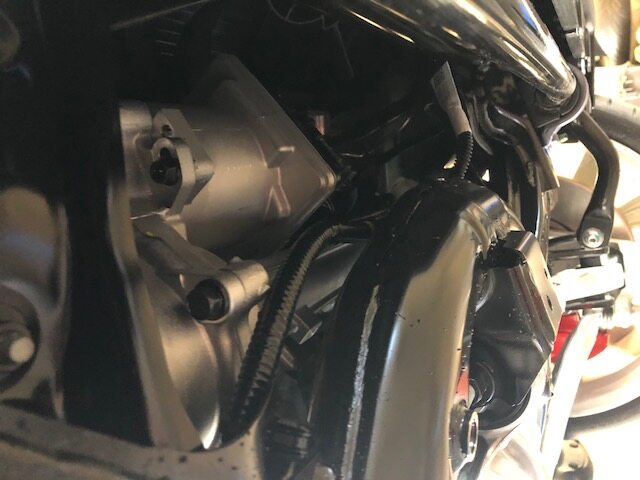

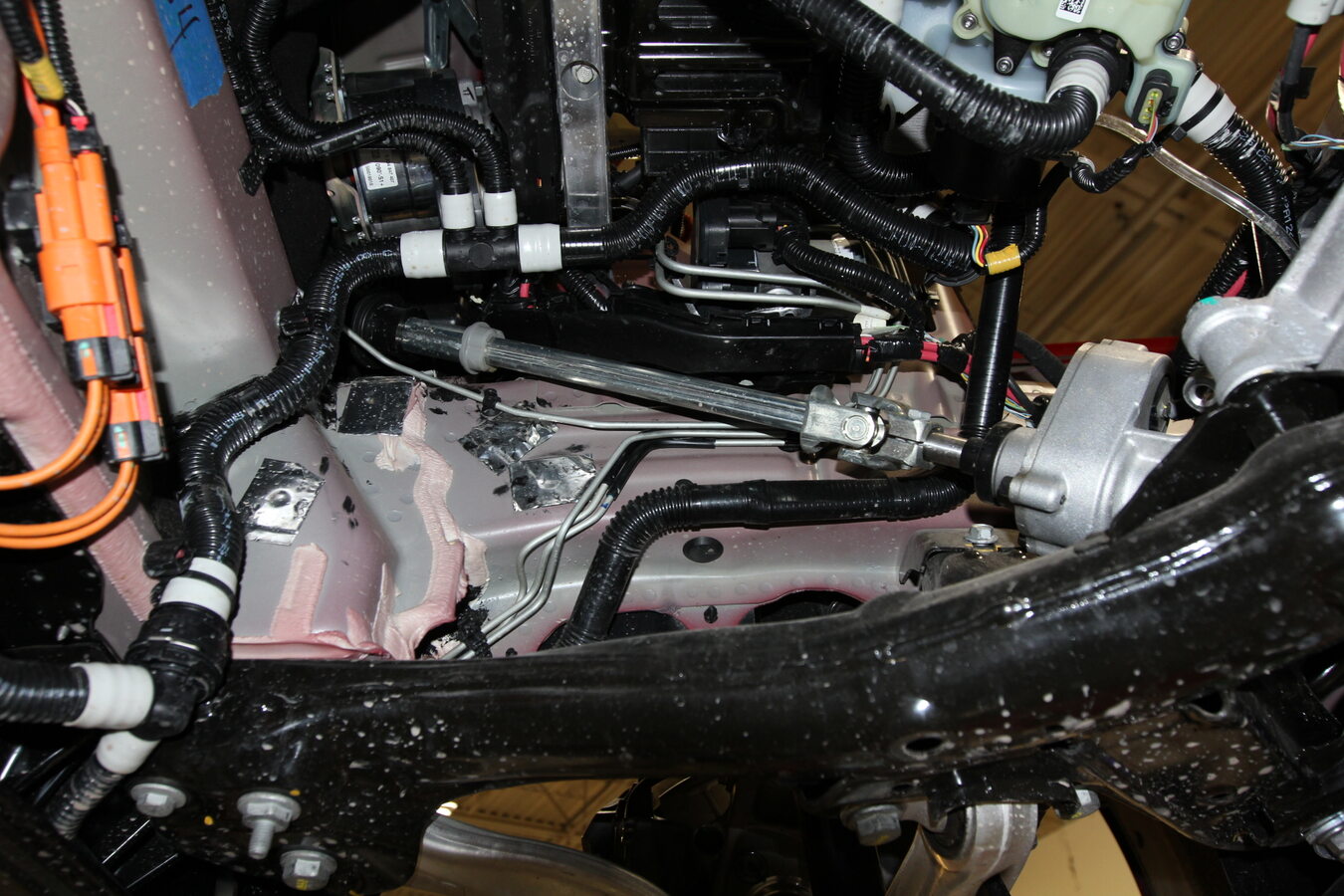

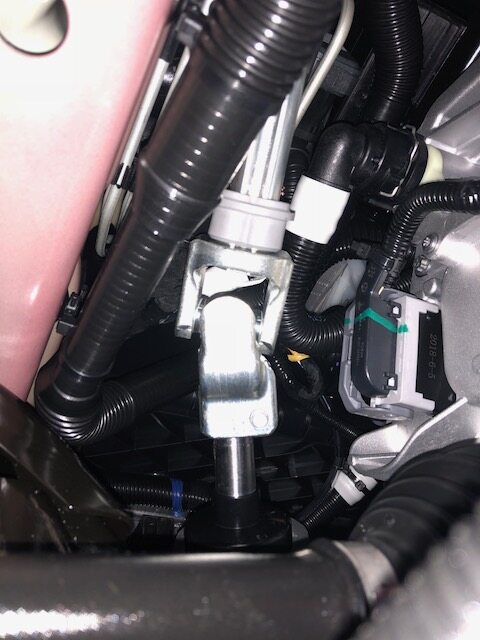

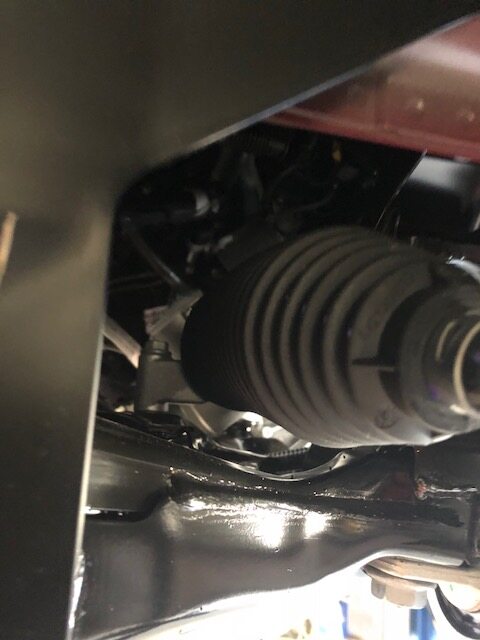

84. Perform inspection of steering components
    注

    Check steering gear joints and electrical connections, Verify components are not bent or damaged

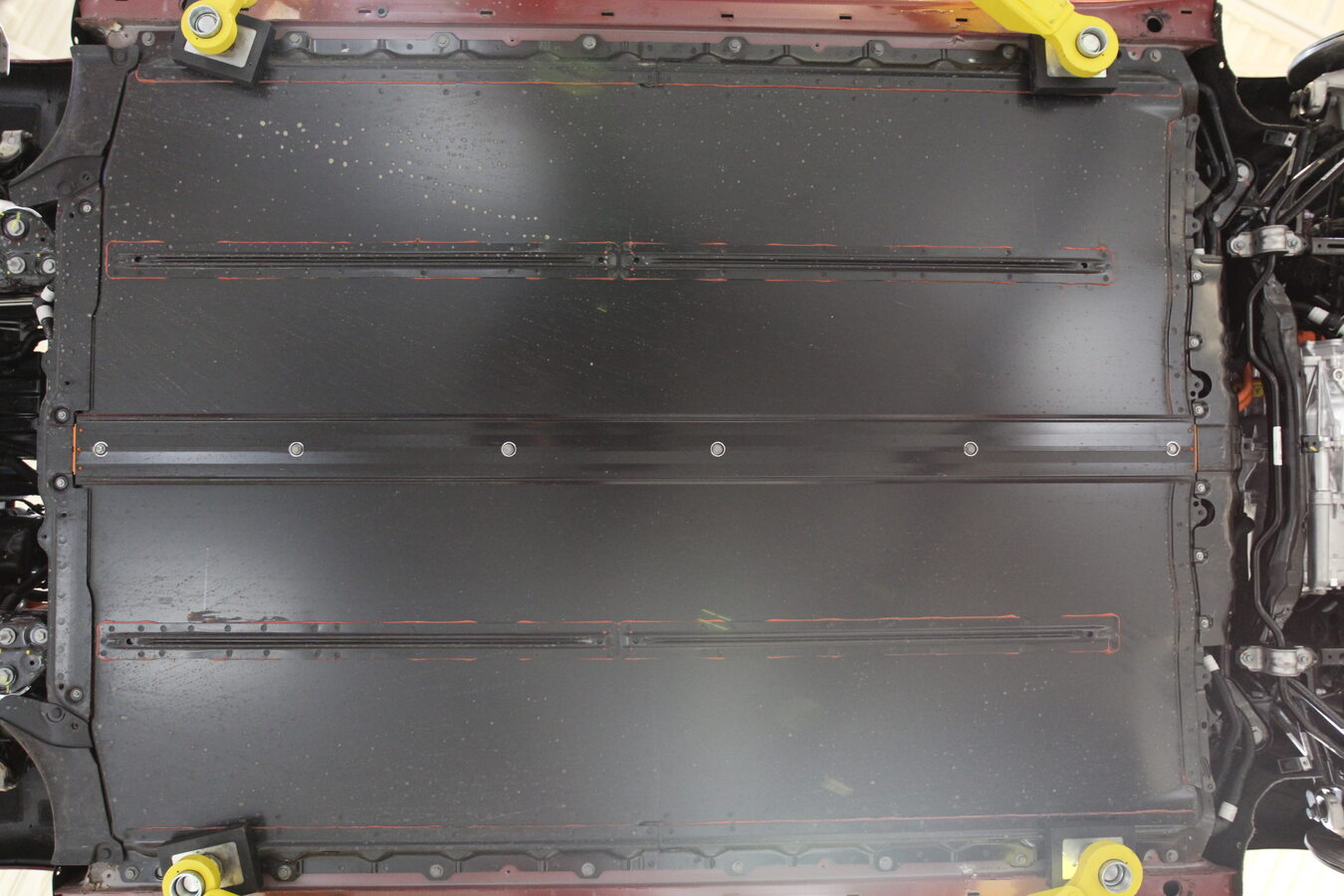

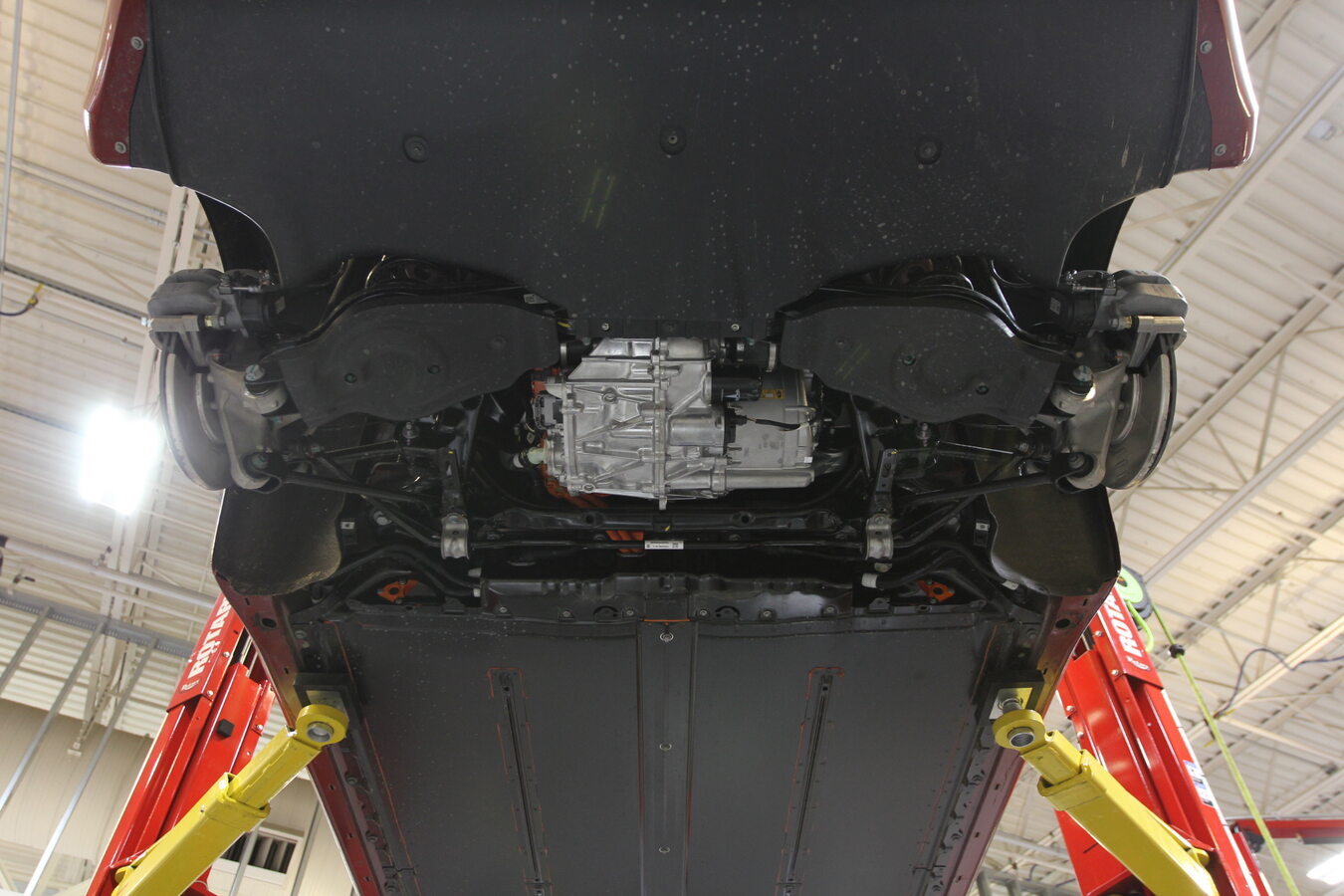

85. Perform visual inspection of HV battery enclosure
    注

    Check for any dents, scrapes, or other damage

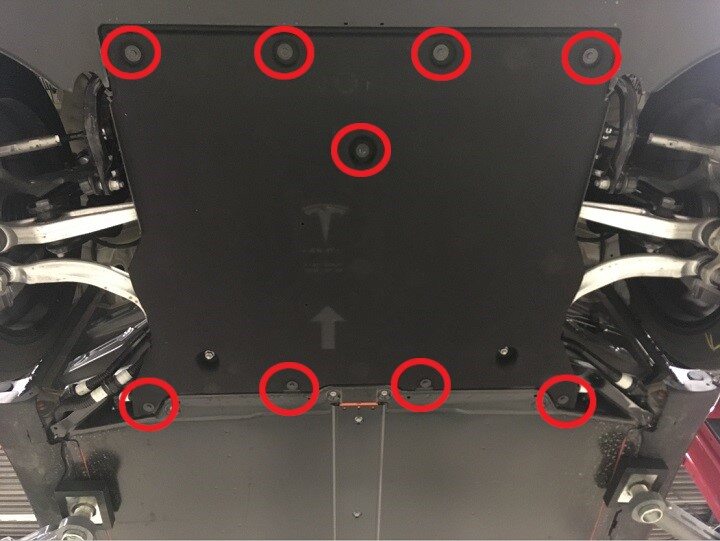

86. Remove outer fasteners securing front aero shield
    注

    9x bolts, 10mm, 5 Nm



87. Remove front aero shield
    注

    2x nuts, 15mm, 5 Nm

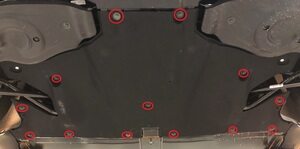

88. Remove rear aero shield
    注

    13x bolts, 10mm, 5 Nm



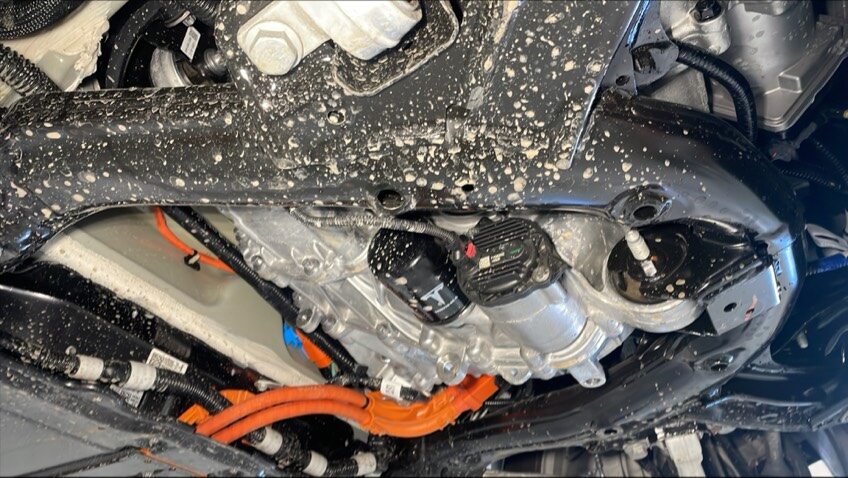

89. Perform visual inspection of underside of vehicle for any coolant leaks
    注

    Pay special attention to hose connection points





90. Perform inspection of vehicle underside components front and rear
    注

    Perform inspection of vehicle underside front and rear, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

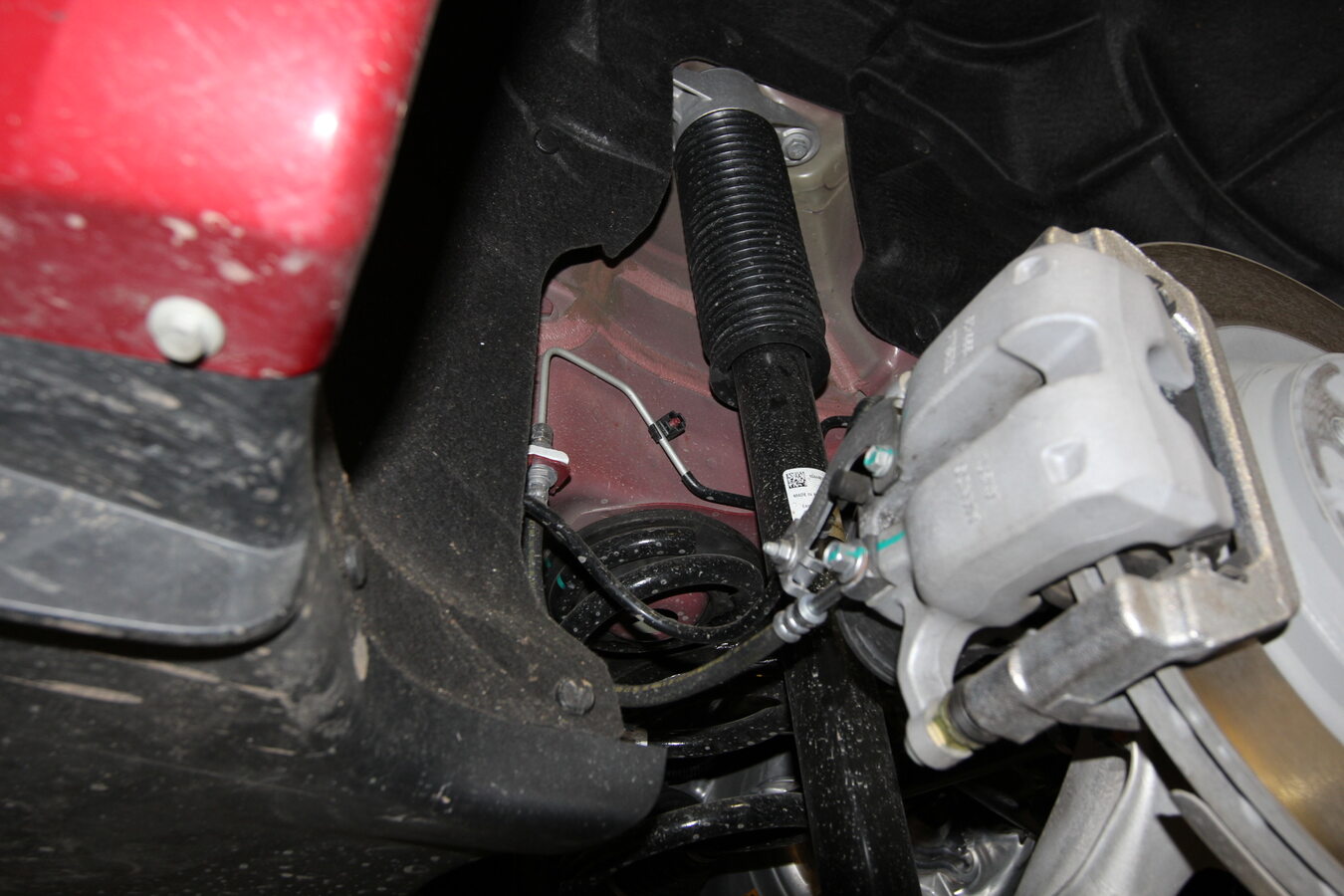

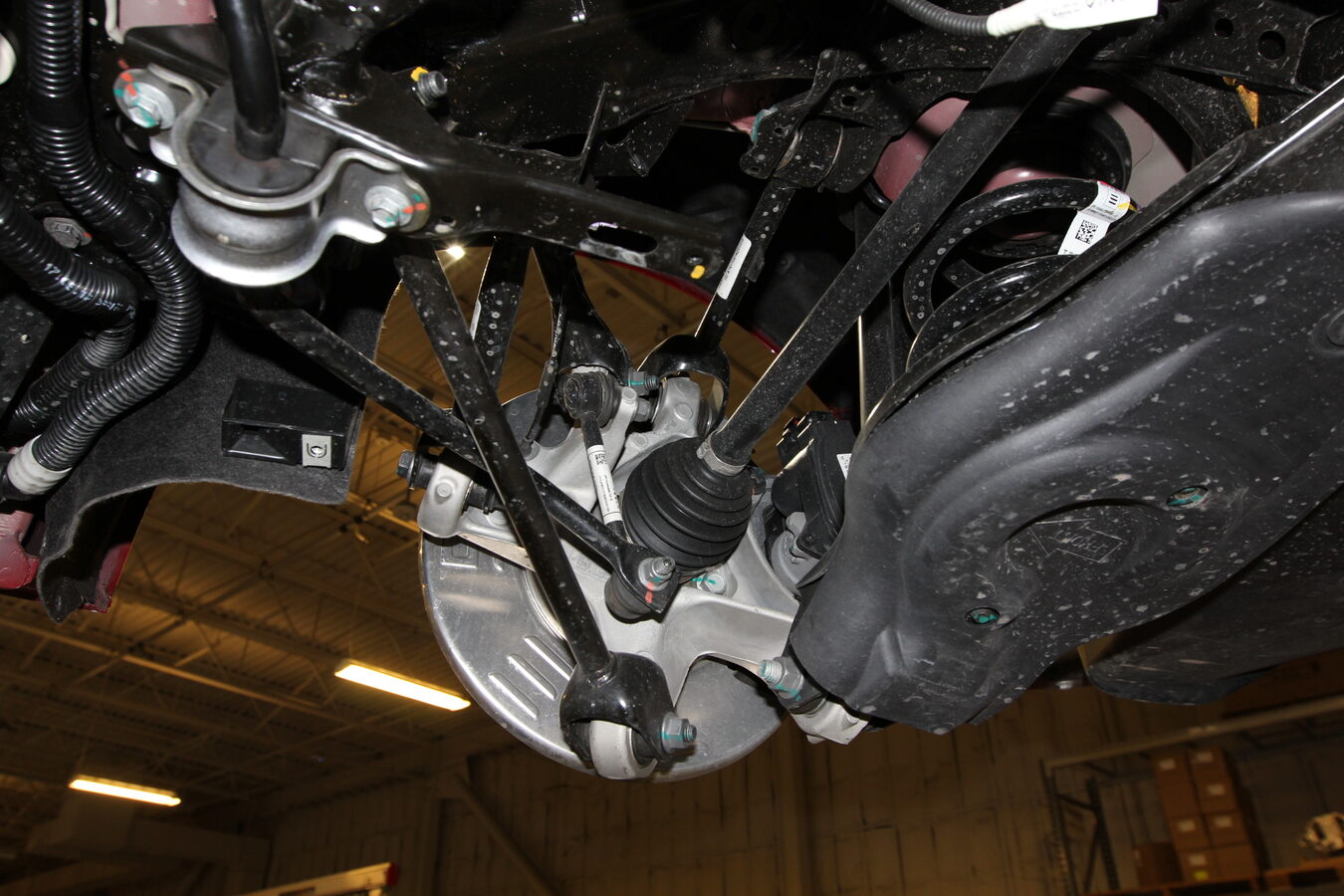

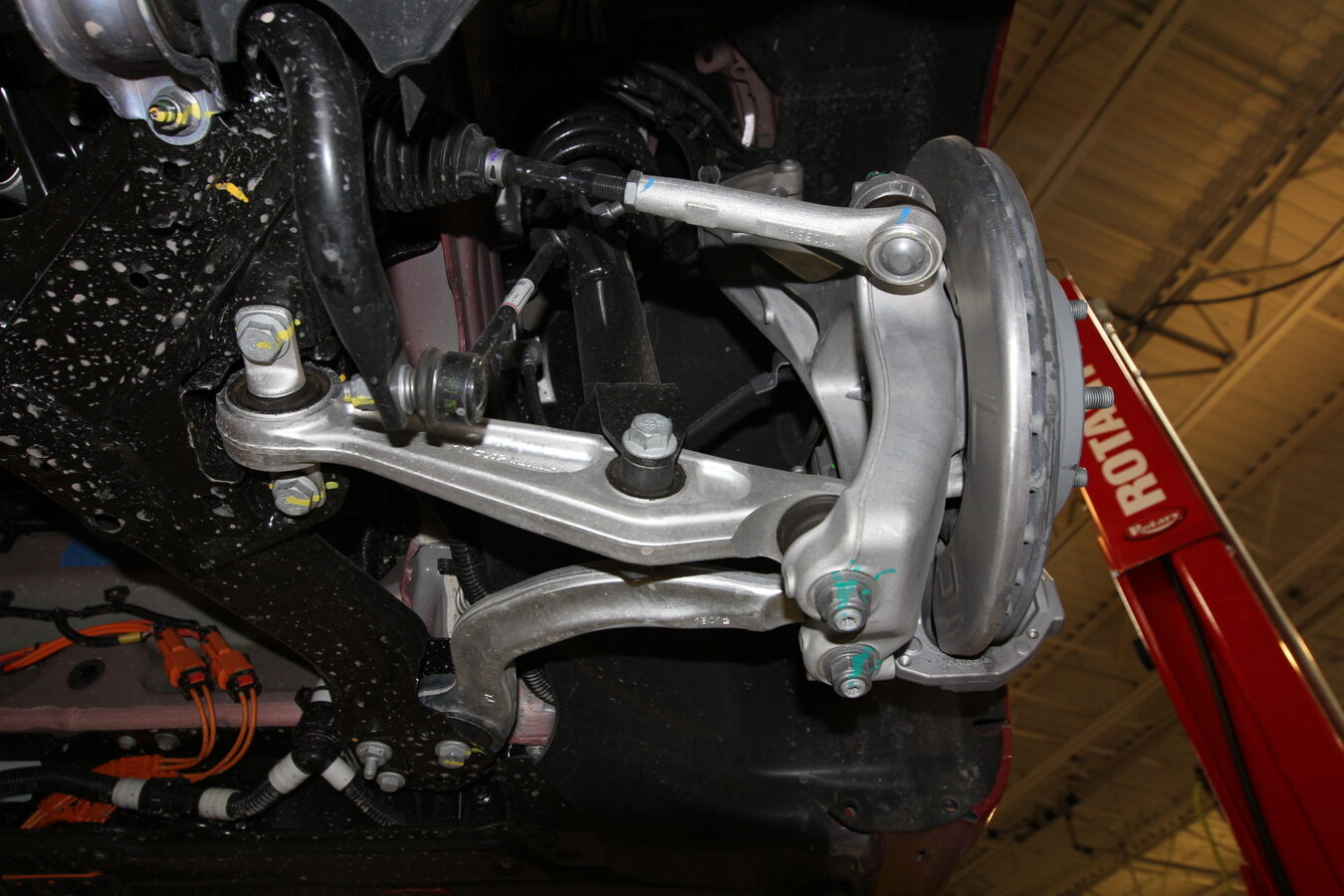

91. Perform inspection of suspension components
    注

    Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

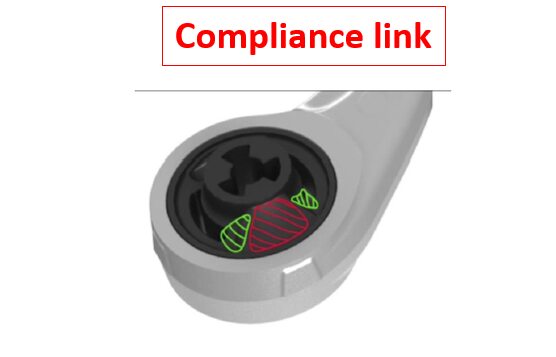

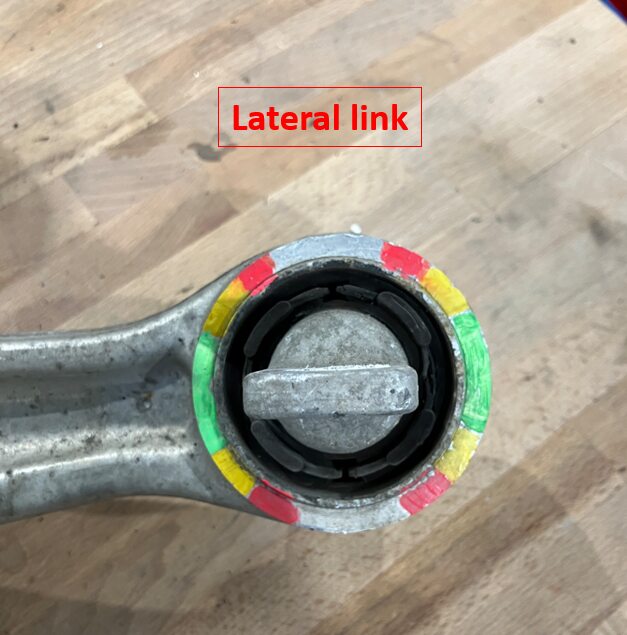

92. Inspect all rear lateral and compliance link's rubber bushing
    注

    Look for cracks on the rubber partcompare the location according to the images and follow the guide: Damage is contained to the green zone: Do not replace the part• Damage is in the yellow zone on one side of the bushing: Do not replace the part• Damage is in the yellow zone on both sides of the bushing: Part needs replacement• Damage is in the red zone: Part needs replacement





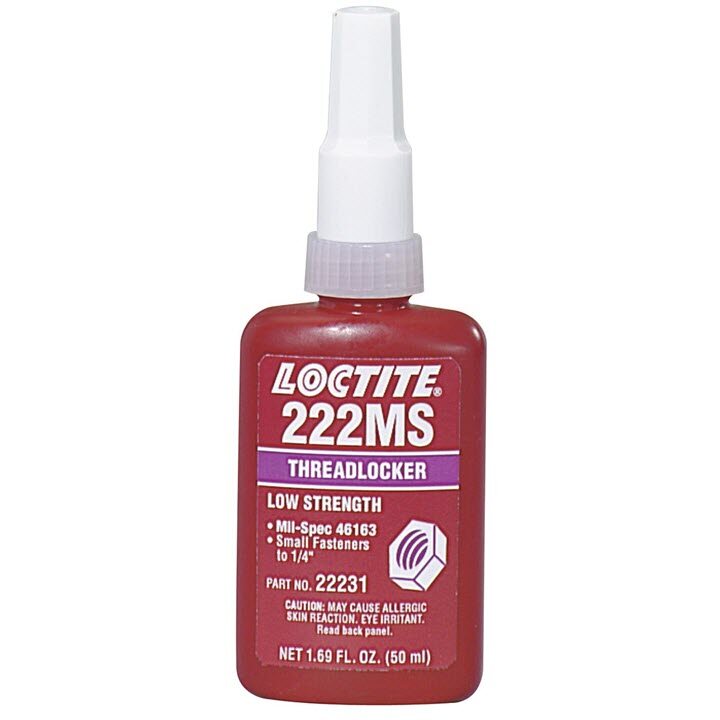

93. Install rear aero shield
    注

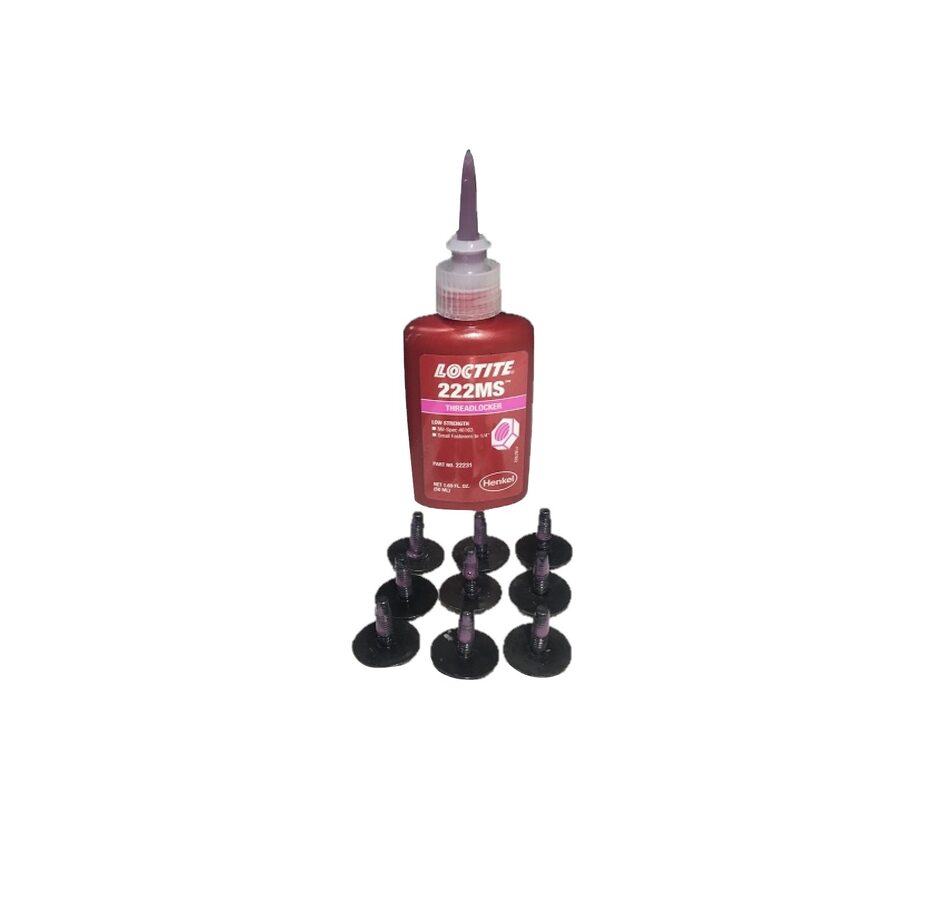

    13x bolts, 10mm, 5 Nm, Apply Loctite 222 to bolts before installing

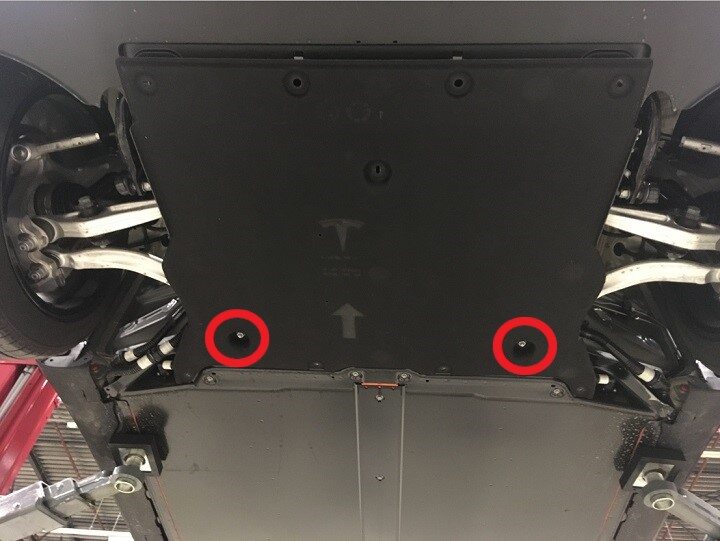

94. Position front aero shield to vehicle and install nuts
    注

    2x nuts, 15mm, 5 Nm





95. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
    注

    9x bolts, 10mm, 5 Nm

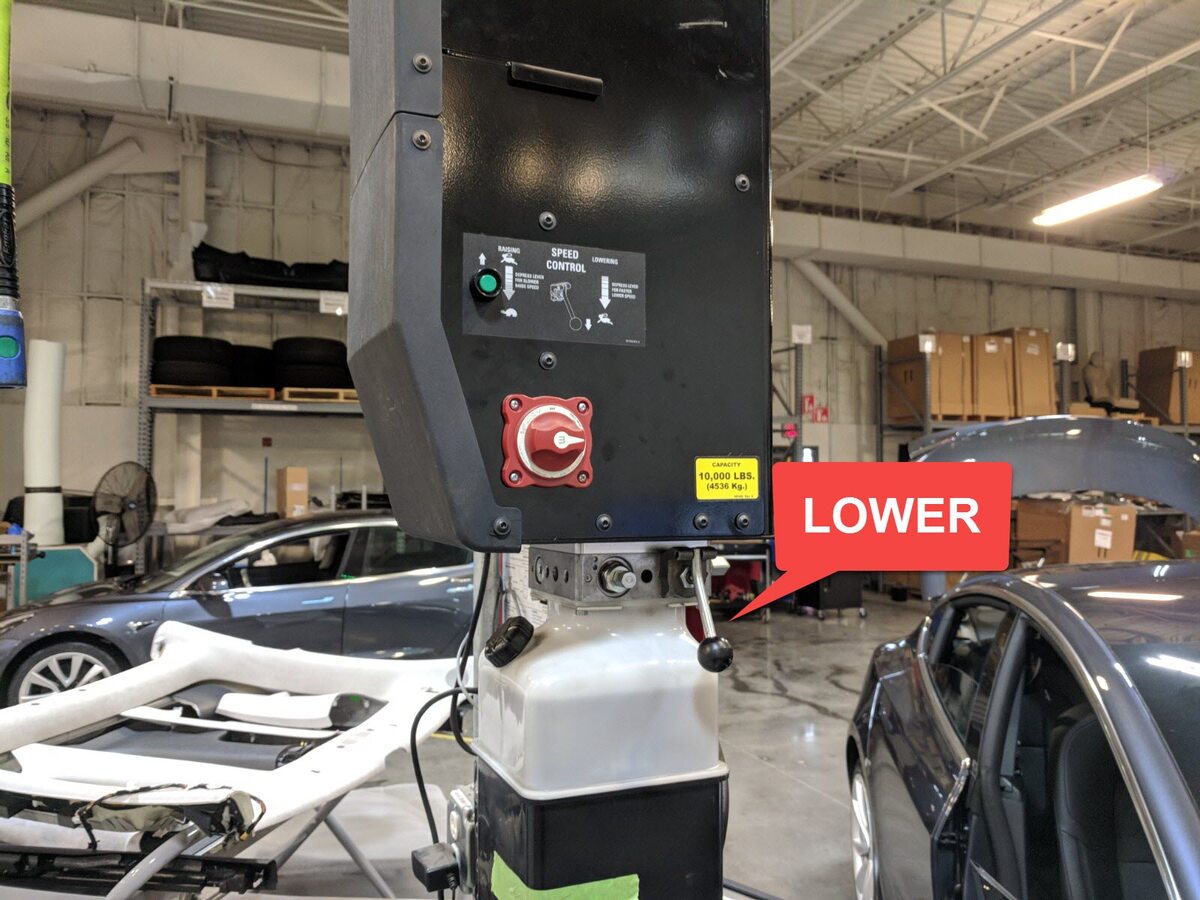

96. Lower vehicle partially
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





97. Install LH rear wheel
    注

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



98. Install LH front wheel
    注

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



99. Install RH rear wheel
    注

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



100. Install RH front wheel
     注

     5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool, Torque at later step



101. Lower vehicle until tires are touching ground
     注

     Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered







102. Torque LH front wheel
     注

     5x nuts, 21mm, 175 Nm



103. Torque RH front wheel
     注

     5x nuts, 21mm, 175 Nm



104. Torque RH rear wheel
     注

     5x nuts, 21mm, 175 Nm



105. Torque LH rear wheel
     注

     5x nuts, 21mm, 175 Nm



106. Install LH rear wheel center cap
     注

     1x cap, Verify emblem is aligned with valve stem



107. Install RH rear wheel center cap
     注

     1x cap, Verify emblem is aligned with valve stem



108. Install RH front wheel center cap
     注

     1x cap, Verify emblem is aligned with valve stem



109. Install LH front wheel center cap
     注

     1x cap, Verify emblem is aligned with valve stem



110. Remove vehicle from lift
     注

     Lower rack arms fully and remove from under vehicle



111. 运行 ODIN 例行程序 PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)

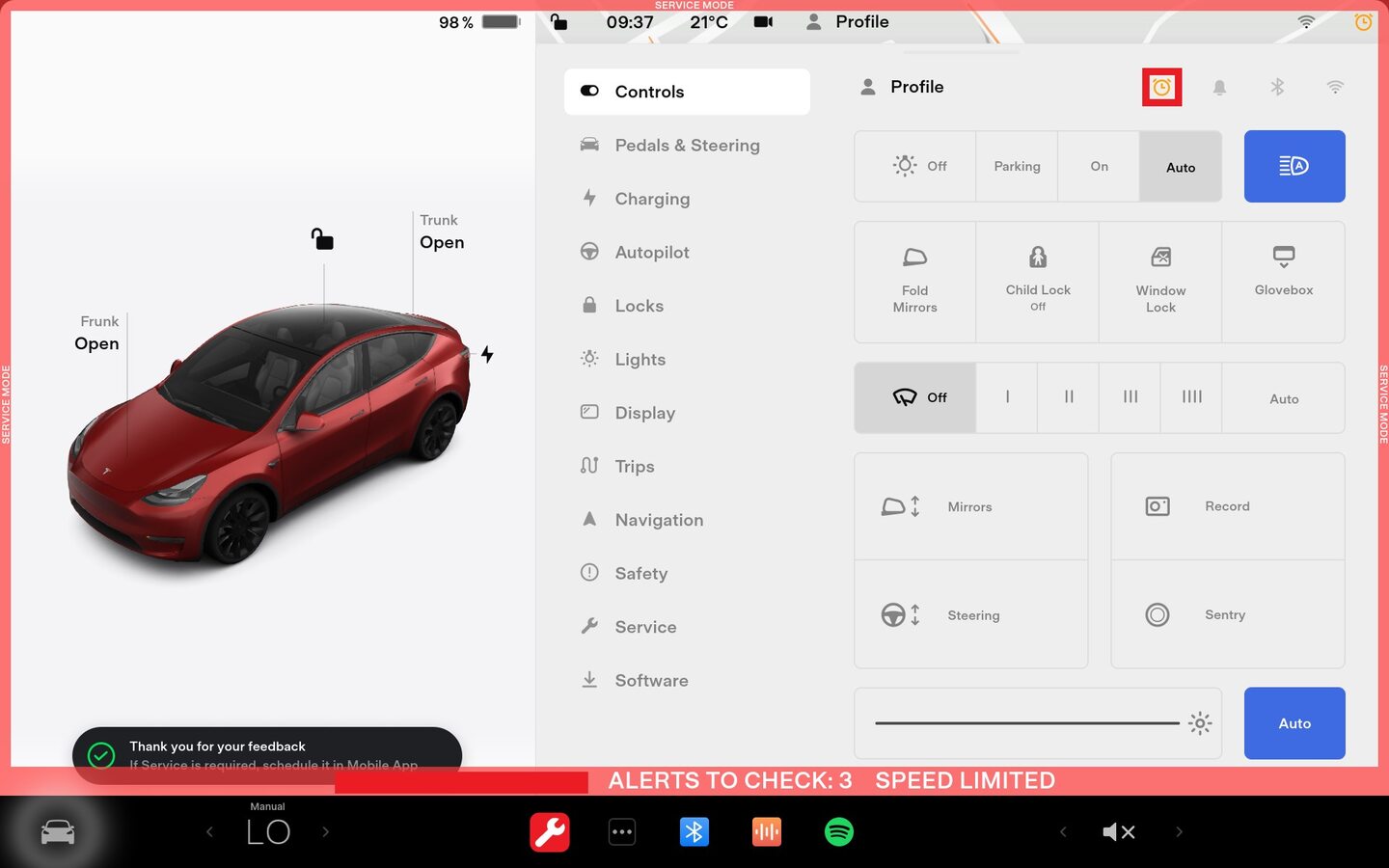

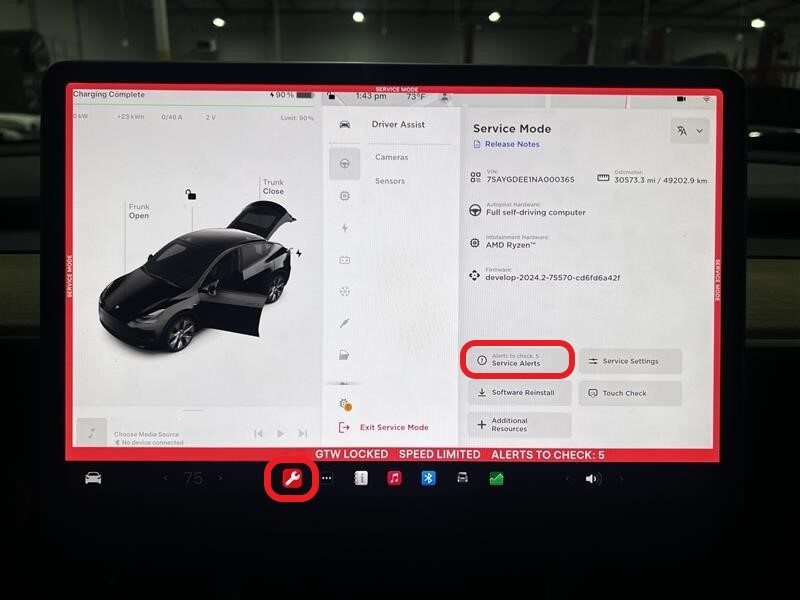

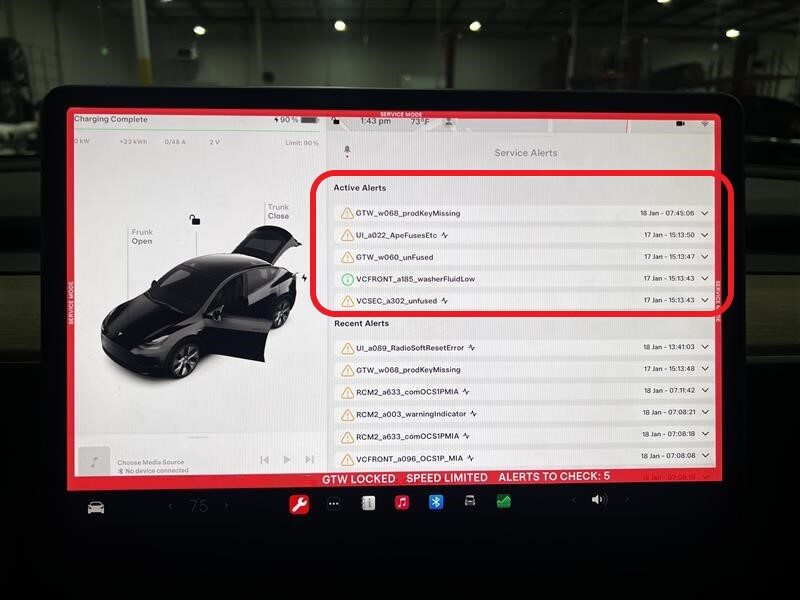

112. Check for active alerts
     注

     Check alert using UI via service mode > active alerts" to "Check alerts using UI via Service Mode > Service Alerts > Active Alerts

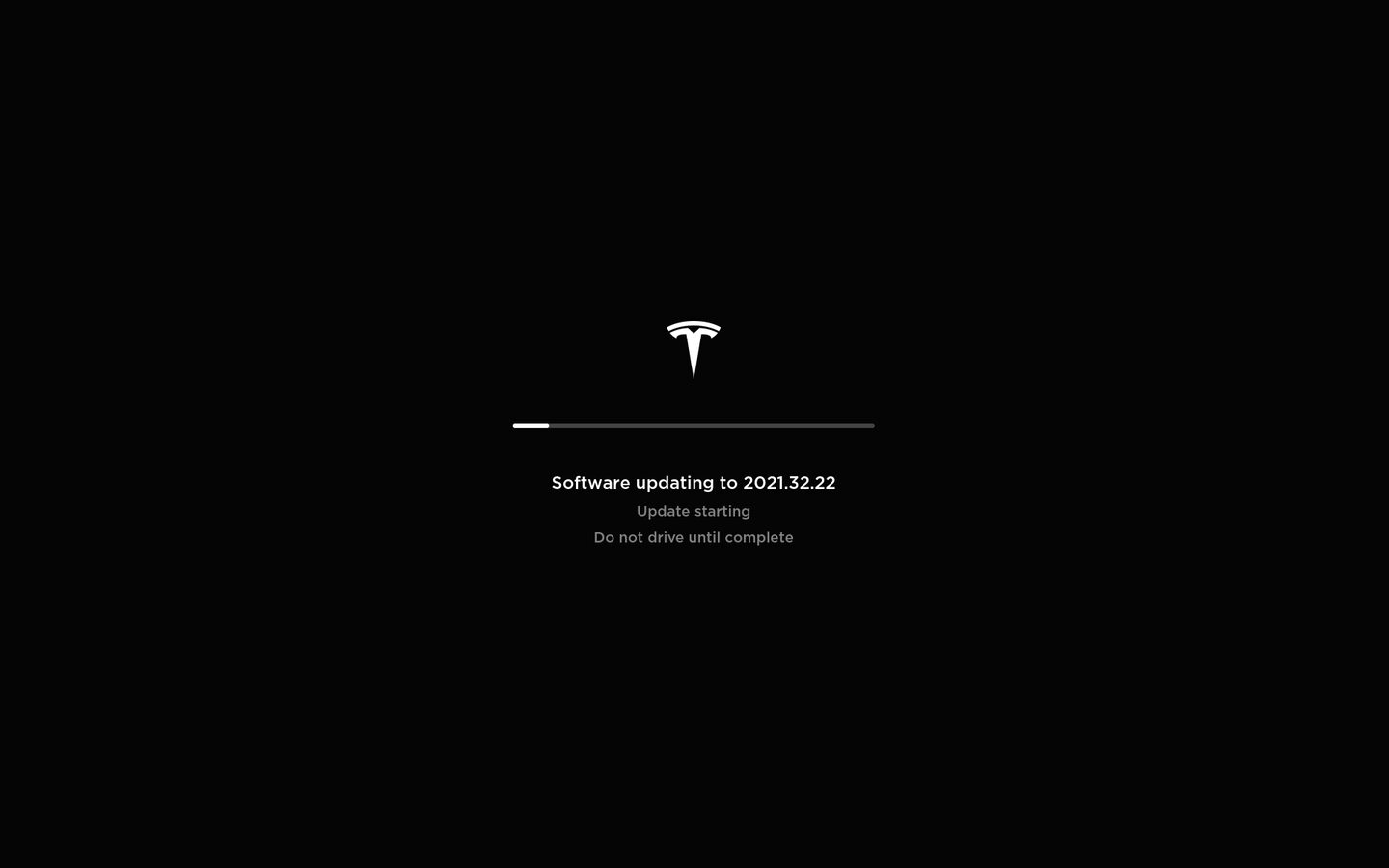

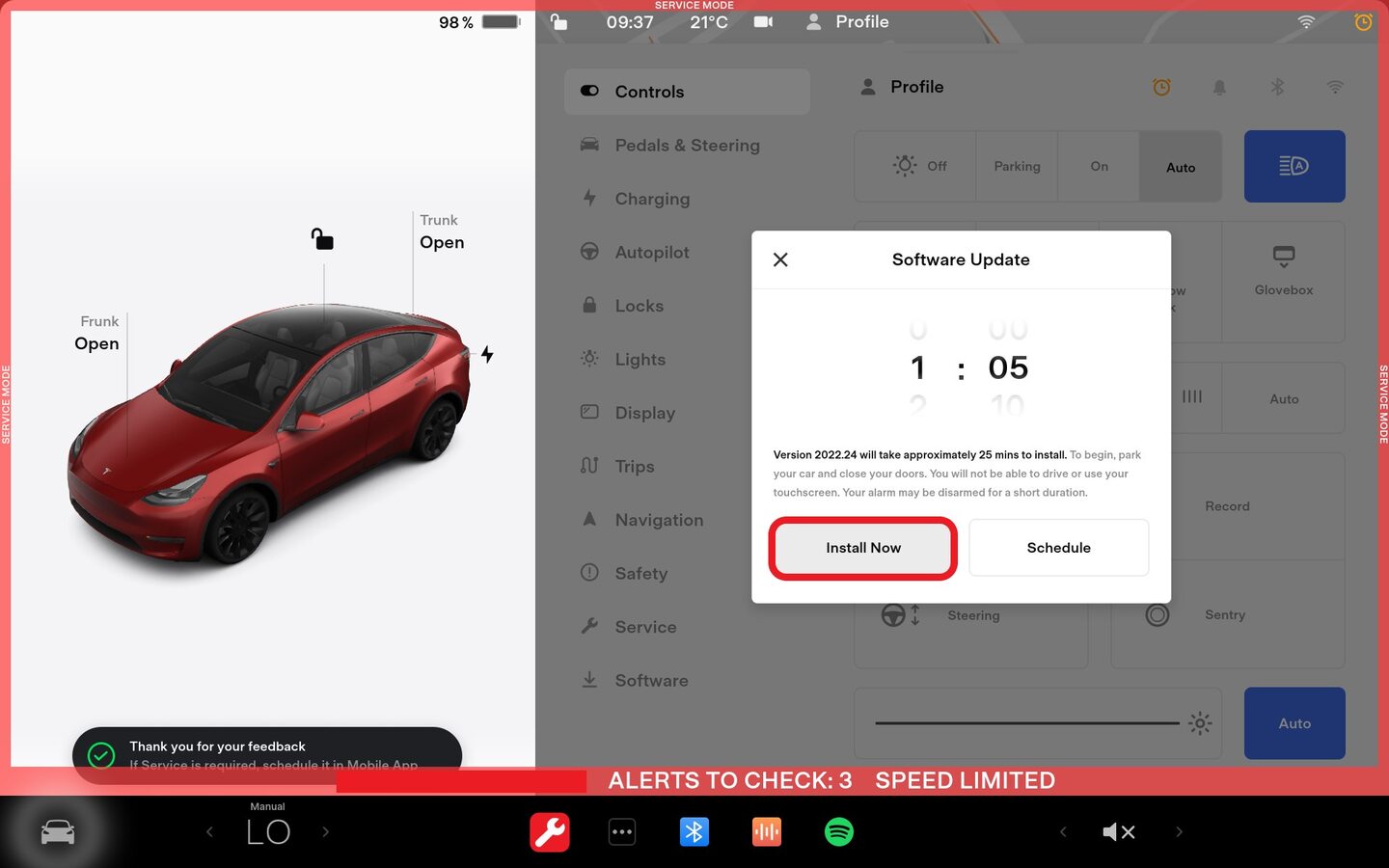

113. Update vehicle firmware if available
     注

     Select the clock on the center display, or go to the Software tab, then select install now to start firmware update. Select Install Now, Tap count down timer until clock runs down to 0, Check the center display and ensure the firmware package is installing
