Door Glass - Rear - LH (Adjust)

校正代码 11500300 0.70 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See 平均维修工时 to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure proper PPE is worn when performing the below procedure.

  • 2023 年 5 月 24 日:添加了清洁说明,以防损坏玻璃。
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. 降下左后车窗
  2. 稍稍打开左后车门
  3. 拆下左后车门外部饰条
    Informational PurposesAn informational icon, calling your attention
    慢慢向上抬起并向外拉动,从后部边缘开始,注意用力均匀,注意请勿弄弯或损坏部件
  4. 打开左侧鹰翼门
  5. 拆下左侧鹰翼门下部饰件
    Informational PurposesAn informational icon, calling your attention
    9 个 V 型卡子。更换破损的 V 型卡子;如有缺失,请补齐。拆卸时,注意请勿损坏车门饰板。
  6. 拆下左侧饰板
    Informational PurposesAn informational icon, calling your attention
    7 个卡子,2 个连接器
  7. 拆下左侧车门饰板螺栓
    Informational PurposesAn informational icon, calling your attention
    8 个螺栓,10 毫米,6 Nm
  8. 拆下左侧车门饰板
    Informational PurposesAn informational icon, calling your attention
    13 个卡子,2 个连接器
  9. 将左侧鹰翼门设置到适宜的作业高度

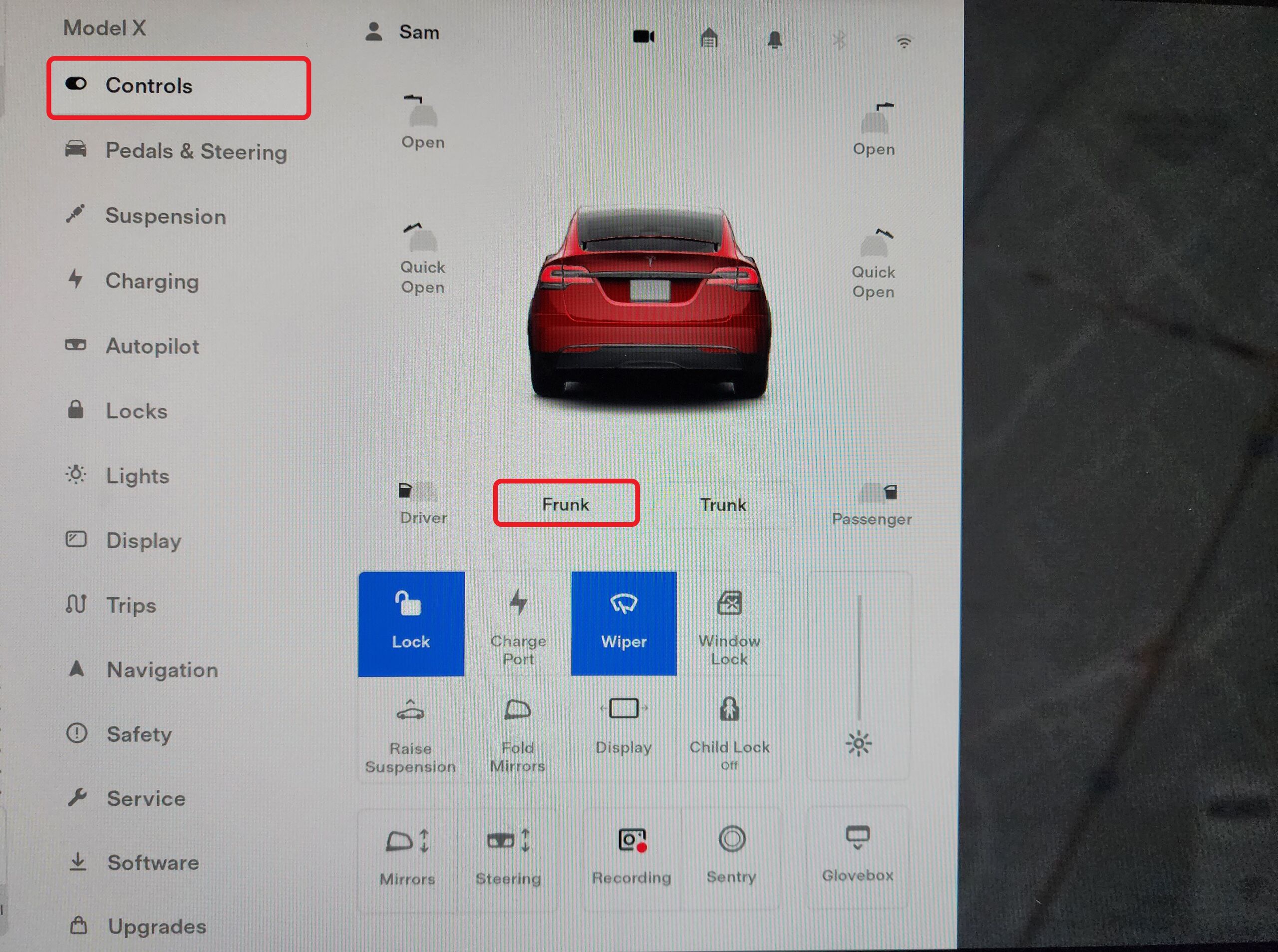

  10. 打开前备箱盖
    Informational PurposesAn informational icon, calling your attention
    操作如下:center display > Controls > Frunk Open
  11. 通过中央显示器关闭车辆电源
    Informational PurposesAn informational icon, calling your attention
    操作如下:Controls > Safety & Security > Power Off
  12. 拆下前备箱后部挡板
    Informational PurposesAn informational icon, calling your attention
    11 个卡子,2 个固定销
  13. 断开低压电池连接器和紧急响应回路
    Informational PurposesAn informational icon, calling your attention
    2 个连接器;提起并松开绿色锁片;向外拉动黑色连接器锁以断开连接;松开紧急响应回路上的红色锁片
  14. 拆下左后车门内侧密封条
  15. 断开左侧鹰翼门安全气囊连接器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器,松开橙色锁后断开
  16. 拆下用于固定左侧封闭板的螺钉
    Informational PurposesAn informational icon, calling your attention
    10 个螺栓,T25,1.8 Nm
  17. 拆下用于将车窗电机固定到左侧封闭板上的螺钉
    Informational PurposesAn informational icon, calling your attention
    3 个螺钉,T30,1.8 Nm
  18. 将左侧封闭板拉离车门,然后向上提起车窗电机,将其松开
    Informational PurposesAn informational icon, calling your attention
    2 个锁片
  19. 断开鹰翼门保护电子控制单元 (ECU)
    Informational PurposesAn informational icon, calling your attention
    1 个连接器,松开黑色锁片
  20. 断开鹰翼门模块上的各连接器
    Informational PurposesAn informational icon, calling your attention
    2 个连接器
  21. 松开用于将各线束和连接器固定到左侧封闭板上的卡子
    Informational PurposesAn informational icon, calling your attention
    7 个卡子
  22. 松开车门释放缆索,然后将其穿过左侧封闭板
  23. 松开用于将车窗前部固定到升降器的螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺母,10 毫米,9 Nm,无需将螺母完全拆下,视需要给车辆重新通电,然后通过车窗开关工具操作升降器,以接触螺母
  24. 检查升降器上是否存在玻璃碎片或其他碎屑,必要时进行清洁。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    碎屑和碎片可能会损坏新车门玻璃或导致其破碎。
  25. 部分关闭左后车门
    Informational PurposesAn informational icon, calling your attention
    请勿上锁
  26. 确认车窗装配到位,如有必要,进行调整。
    Informational PurposesAn informational icon, calling your attention
    请参阅 CIVS 了解最新规格,https://service.teslamotors.com/protected-doc/ModelS/TheoryOp/InspectionStandards/index_frames.html
  27. 确认车窗装配到位,然后紧固用于将车窗前部固定到升降器的螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺母,10 毫米,9 Nm
  28. 将释放缆索穿过左侧封闭板,安装入位
  29. 将车窗电机固定到封闭板背面
    Informational PurposesAn informational icon, calling your attention
    2 个锁片
  30. 安装用于将车窗电机固定到左侧封闭板上的螺钉
    Informational PurposesAn informational icon, calling your attention
    3 个螺钉,T30,1.8 Nm
  31. 安装左侧封闭板
    Informational PurposesAn informational icon, calling your attention
    10 个螺栓,T25,1.8 Nm
  32. 连接鹰翼门保护电子控制单元 (ECU)
    Informational PurposesAn informational icon, calling your attention
    1 个连接器,紧固锁片
  33. 连接左侧鹰翼门安全气囊连接器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器,接合锁片
  34. 连接左侧鹰翼门模块
    Informational PurposesAn informational icon, calling your attention
    2 个连接器
  35. 安装用于将各线束和连接器固定到封闭板上的卡子
    Informational PurposesAn informational icon, calling your attention
    7 个卡子
  36. 安装左后车门内侧密封条
  37. 手动部分关闭左后车门
    Informational PurposesAn informational icon, calling your attention
    请勿上锁
  38. 安装左后车门外部饰条
  39. 连接紧急响应回路和低压电池连接器
    Informational PurposesAn informational icon, calling your attention
    2 个连接器;先固定好紧急响应回路;确认低压电池连接就位,再向内推动黑色连接器锁以进行固定;低压电池完全就位后,接合上部锁片
  40. 安装前备箱后部挡板
    Informational PurposesAn informational icon, calling your attention
    11 个卡子,2 个固定销
  41. 关闭前备箱盖
  42. 升起左后车窗
  43. 测试车窗功能并确认车窗装配到位,必要时进行调整
    Informational PurposesAn informational icon, calling your attention
    请参阅 CIVS 了解最新规格,https://service.teslamotors.com/protected-doc/ModelS/TheoryOp/InspectionStandards/index_frames.html
  44. 安装左后车门饰板
    Informational PurposesAn informational icon, calling your attention
    2 个连接器,13 个卡子,更换所有卡子,从顶部开始安装车门饰板,注意确保车门饰板锁片与内侧密封条匹配正确
  45. 安装左后车门饰板上用于将车门饰板固定到车门的螺栓
    Informational PurposesAn informational icon, calling your attention
    8 个螺栓,10 毫米,6 Nm
  46. 安装左后车门饰板
    Informational PurposesAn informational icon, calling your attention
    7 个卡子,2 个连接器,注意请勿损坏车门饰板
  47. 安装左后车门下部饰件
    Informational PurposesAn informational icon, calling your attention
    9 个 V 型夹
  48. 校准后车门。
    Informational PurposesAn informational icon, calling your attention
    若车辆触摸屏上弹出“需要校准”消息,请长按Calibrate,以校准后车门。
