线束 - 座椅 - 驾驶位(拆卸和更换)

校正代码 17101802 0.78 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com
  1. Open all four doors
    Informational PurposesAn informational icon, calling your attention
    Latch rear doors to prevent accidental closing when vehicle is powered down
  2. Lower all windows
  3. Move LH front seat backward
  4. Remove LH front floormat
  5. Remove LH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
  6. Remove clip securing LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    1x push clip
  7. Remove LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel
  8. Release LH front door seal from body
  9. Remove clip securing LH front cabin carpet to body
    Informational PurposesAn informational icon, calling your attention
    1x clip
  10. Pull LH front cabin carpet away from A-pillar to access LH front seat connector
  11. Remove LH front seat front fasteners
    Informational PurposesAn informational icon, calling your attention
    2x patch bolts, T45P, 33.5 Nm, Discard after removal
  12. Move LH front seat forward
  13. Release seat belt retractor from LH front seat
    Informational PurposesAn informational icon, calling your attention
    Insert special removal tool into the bottom of the retractor to release
  14. Raise LH front seat cushion to maximum height
    Informational PurposesAn informational icon, calling your attention
    Adjust seat back if needed to avoid contacting headliner
  15. Remove LH front seat rear fasteners
    Informational PurposesAn informational icon, calling your attention
    2x patch bolts, T45P, 33.5 Nm, Discard after removal
  16. Adjust position of LH front seat for easy removal
    Informational PurposesAn informational icon, calling your attention
    Move seat to middle of track at most upright position
  17. Open hood
  18. Remove rear apron
    Informational PurposesAn informational icon, calling your attention
    14x clips
  19. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Via Controls > Safety & Security > Vehicle Power > Power Off
  20. Disconnect 12V negative terminal and first responders loop
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm, 1x connector, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V, Negative terminal should be disconnected before FRL, Allow 2 minutes for all electrical circuits to fully discharge
  21. Disconnect LH front seat harness from VC left
    Informational PurposesAn informational icon, calling your attention
    1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC left, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged
  22. Remove LH front seat harness from LH footwell support bracket
    Informational PurposesAn informational icon, calling your attention
    2x retaining clips
  23. Release LH front seat harness and guide from body
    Informational PurposesAn informational icon, calling your attention
    3x clips, 1 datum, Datum goes through access hole on LH lower B-pillar
  24. Pull LH front seat harness from under LH front cabin carpet
  25. Remove LH front seat from vehicle
    Informational PurposesAn informational icon, calling your attention
    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim
  26. Place LH front seat on a protected surface
    Informational PurposesAn informational icon, calling your attention
    Recommend assistance, Place seat so the underside of the seat can be accessed
  27. Install the outboard headrest release tool
    Informational PurposesAn informational icon, calling your attention
    Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity
  28. Install the inboard headrest release tool
    Informational PurposesAn informational icon, calling your attention
    Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity
  29. Remove the headrest from seat
    Informational PurposesAn informational icon, calling your attention
    2x locking clips, Remove by pulling straight up, out of the seat
  30. Remove the inboard headrest release tool
    Informational PurposesAn informational icon, calling your attention
    Rotate the release tool out of position, Do not pull straight up or out
  31. Remove the outboard headrest release tool
    Informational PurposesAn informational icon, calling your attention
    Rotate the release tool out of position, Do not pull straight up or out
  32. Unhook the straps for the lower section of the seat back and move the seat back flap away from the underside of the seat
    Informational PurposesAn informational icon, calling your attention
    2x clips
  33. Remove seat back from LH front seat
    Informational PurposesAn informational icon, calling your attention
    8x clips, Start at the top of the seat and pull the shell away from the frame, When the side clips are free, pull the bottom and carefully roll the bottom tabs out of the slots, If pulled straight out the clips on the seat back can break off, Release remaining clips from underneath seat assembly
  34. Remove the lower flap covering the outboard corner of the seat back frame
    Informational PurposesAn informational icon, calling your attention
    Pull the trim straight up, off of the retaining tabs to release
  35. Remove the upper flap covering the outboard corner of the seat back frame
    Informational PurposesAn informational icon, calling your attention
    Pull the lower section of trim away from the retaining tab to release, then pull the trim straight up off of the upper retaining tab
  36. Remove the outer clips securing the seat upholstery to the seat back frame
    Informational PurposesAn informational icon, calling your attention
    2x clips, To release, rotate the clips off of the frame from the inside out
  37. Pull the seat upholstery away from the air bag to gain access to the air bag electrical connector
  38. Disconnect LH front seat air bag
    Informational PurposesAn informational icon, calling your attention
    1x connector, Pull both of the orange tabs down to release the connector
  39. Disconnect the recliner motor
    Informational PurposesAn informational icon, calling your attention
    1x connector
  40. Disconnect the lumbar valve pack and ECU
    Informational PurposesAn informational icon, calling your attention
    1x connector
  41. Disconnect the lumbar pump
    Informational PurposesAn informational icon, calling your attention
    1x connector

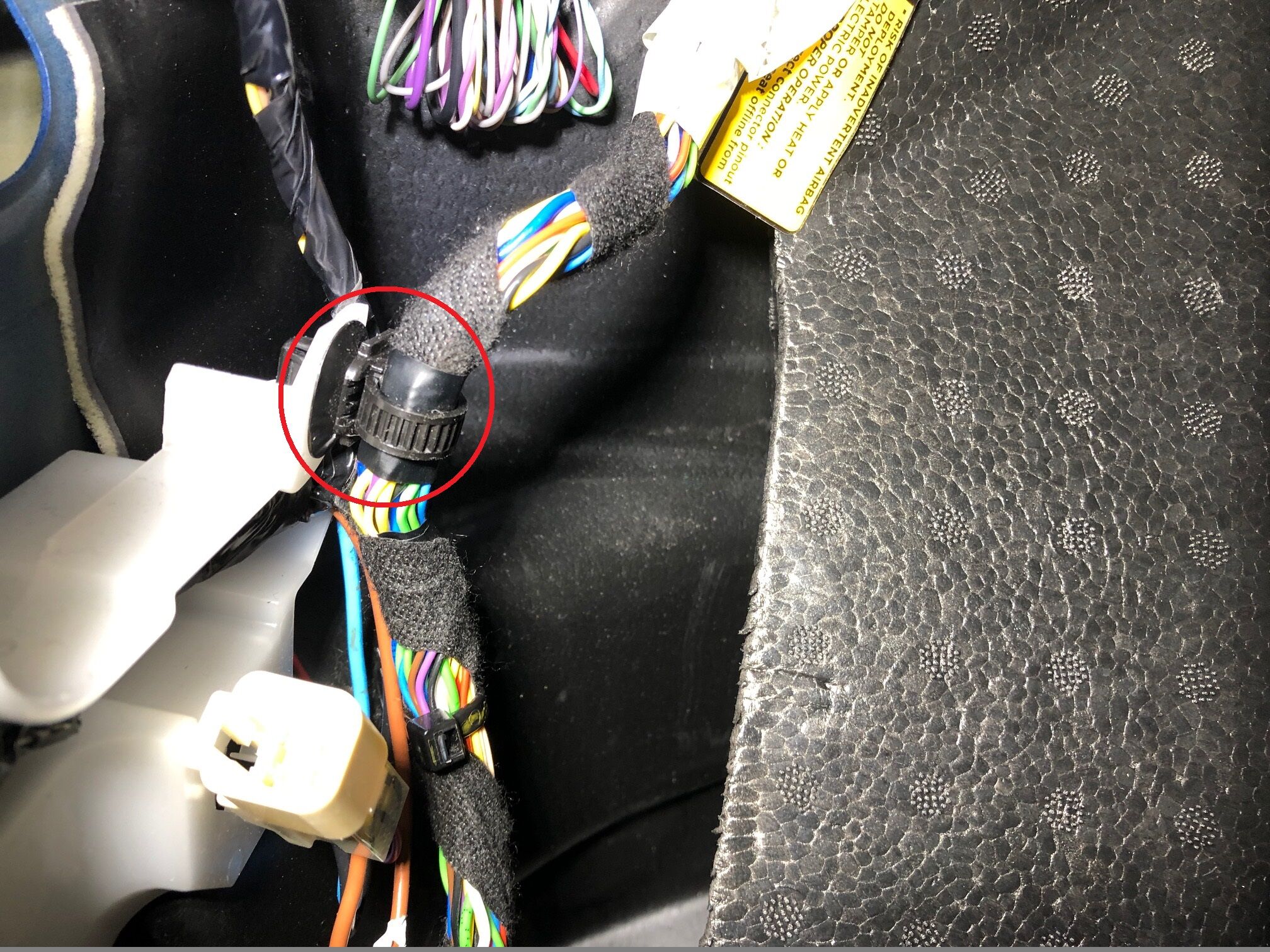

  42. Remove the seat harness from seat back frame
    Informational PurposesAn informational icon, calling your attention
    3x clips
  43. Remove screw securing outer side cover to seat
    Informational PurposesAn informational icon, calling your attention
    1x screw, T20, 4 Nm, Ensure the front of the seat is high enough to access the T20 screw
  44. Pull outward at front to release outer side cover clip from LH front seat but do not remove
    Informational PurposesAn informational icon, calling your attention
    1x clip, Do not fully remove for risk of damage to the trim/switch pack/harness
  45. Lift cover rearward to release outer side cover rear tab from LH front seat
    Informational PurposesAn informational icon, calling your attention
    Do not fully remove for risk of damage to the trim/switch pack/harness
  46. Disconnect LH front seat switch connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  47. Remove the outer trim from the LH front seat
    Informational PurposesAn informational icon, calling your attention
    The rear of the trim will be pulled outward and the trim will need to be lifted off, out of the seat, clearing the cushion and the pretensioner
  48. Remove the crazy rabbit clip
    Informational PurposesAn informational icon, calling your attention
    1x clip
  49. Remove the crazy rabbit
  50. Disconnect the driver pre-tensioner connector
    Informational PurposesAn informational icon, calling your attention
    1x electrical connector, 2 stage locking connector, Release the first lock by pulling away from the connector, Then remove the connector from the pre-tensioner
  51. Release seat belt pretensioner harness clips
    Informational PurposesAn informational icon, calling your attention
    3x clips, Use 90 pick to release harness clips from seat track rail
  52. Remove clips securing seat switch harness to seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    2x fir tree clips
  53. Rotate the seat to gain access to the underside of the seat
    Informational PurposesAn informational icon, calling your attention
    Protect seat cushion from damage
  54. Remove the clip securing the LH front seat harness to the outboard seat track
    Informational PurposesAn informational icon, calling your attention
    1x clip
  55. Remove the harness retaining clip under the tilt motor
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  56. Disconnect the tilt motor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  57. Route the seat belt pretensioner leg of the seat harness away from the seat
    Informational PurposesAn informational icon, calling your attention
    Route the harness leg from behind the tilt motor and away from the bottom of the seat
  58. Disconnect the seat back heater connector
    Informational PurposesAn informational icon, calling your attention
    1x connector, Green
  59. Disconnect the heat pad connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  60. Remove clip securing the harness to the under side of the seat, next to the seat heater connectors
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  61. Disconnect the seat occupied sensor and set the sensor harness pigtail aside
    Informational PurposesAn informational icon, calling your attention
    1x connector
  62. Remove the retaining clip that secures the seat occupied sensor connector to the seat bottom and discard
    Informational PurposesAn informational icon, calling your attention
    The new harness comes with the retaining clip installed on the harness connector
  63. Remove the retaining clip under the main seat harness junction
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  64. Disconnect the lift motor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  65. Remove the clip securing the harness to the seat cushion frame under the lift motor
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  66. Disconnect the seat track motor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  67. Remove the clip securing the track motor harness to the track motor housing
    Informational PurposesAn informational icon, calling your attention
    1x edge clip
  68. Disconnect the seat track position sensor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  69. Remove inner side shield from seat
    Informational PurposesAn informational icon, calling your attention
    3x clips, Release side clip from seat bottom frame, then pull up on rear of trim to remove
  70. Disconnect the seat belt buckle and set seat belt buckle aside
    Informational PurposesAn informational icon, calling your attention
    1x connector
  71. Release the clip that attaches the seat belt buckle connector to the seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    1x fir tree clip
  72. Remove the clips securing the seat belt buckle connector harness to the seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    2x fir tree clips
  73. Route the seat belt buckle leg of the harness away from the seat to allow the seat harness to be removed
    Informational PurposesAn informational icon, calling your attention
    Route the seat belt buckle leg around the lift motor and away from the seat, The harness will be completely free from the seat at this point
  74. Position the new seat harness for installation
    Informational PurposesAn informational icon, calling your attention
    Route the harness under the lift motor and tilt motor placing the harness legs in the correct locations, Harness clips will be installed later
  75. Install the clips securing the seat belt buckle connector harness to the seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    2x fir tree clips
  76. Install clip securing seat belt buckle harness connector to the seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    1x fir tree clip
  77. Connect the seat belt buckle
    Informational PurposesAn informational icon, calling your attention
    1x connector
  78. Install LH inner side shield to driver seat
    Informational PurposesAn informational icon, calling your attention
    3x clips, Slide the trim onto the seat from the opening for the buckle, then slide forward into position
  79. Connect the seat track position sensor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  80. Connect the seat track motor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  81. Install the clip securing the track motor harness to the track motor housing
    Informational PurposesAn informational icon, calling your attention
    1x edge clip
  82. Install the clip securing the harness to the seat cushion frame under the lift motor
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  83. Connect the lift motor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  84. Install the retaining clip under the main seat harness junction
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  85. Connect the seat occupied sensor and install the clip onto the seat bottom
    Informational PurposesAn informational icon, calling your attention
    1x connector, 1x retaining clip, Ensure harness is not routed between cushion and frame to avoid friction
  86. Install the clip securing the harness to the under side of the seat, next to the seat heater connectors
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  87. Connect the heat pad connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  88. Connect the seat back heater connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  89. Install the harness retaining clip under the tilt motor
    Informational PurposesAn informational icon, calling your attention
    1x retaining clip
  90. Connect the tilt motor connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  91. Install the clip securing the LH front seat harness to the outboard seat track
    Informational PurposesAn informational icon, calling your attention
    1x clip
  92. Install clips securing seat switch harness to seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    2x fir tree clips
  93. Install seat belt pretensioner harness clips
    Informational PurposesAn informational icon, calling your attention
    3x clips, Position seat belt pretensioner harness clips to seat track rail and press down on each clip to secure
  94. Connect the driver pre-tensioner connector
    Informational PurposesAn informational icon, calling your attention
    1x electrical connector, 2 stage locking connector, Connect the pre-tensioner, Then slide the lock towards the connector, Perform a pull push pull test to ensure proper connection
  95. Install the crazy rabbit
  96. Install the crazy rabbit clip
    Informational PurposesAn informational icon, calling your attention
    1x clip
  97. Position outer side cover to the LH front seat and slide forward to secure rear tab
    Informational PurposesAn informational icon, calling your attention
    Apply light pressure to the rear of the outer trim to fully seat onto the seat frame, A fully installed trim should not show any metal from the frame and should line up with the contour of the seat back
  98. Connect the LH front seat switch connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  99. Slide outer side cover to secure rear tab to LH front seat
    Informational PurposesAn informational icon, calling your attention
    Apply light pressure to the rear of the outer trim to fully seat onto the seat frame, A fully installed trim should not show any metal from the frame and should line up with the contour of the seat back
  100. Install screw securing outer side cover to seat
    Informational PurposesAn informational icon, calling your attention
    1x screw, T20, 4 Nm
  101. Rotate the seat back to the upright position
  102. Install the seat harness to seat back frame for installation
    Informational PurposesAn informational icon, calling your attention
    3x clips
  103. Connect the lumbar pump
    Informational PurposesAn informational icon, calling your attention
    1x connector
  104. Connect the lumbar valve pack and ECU
    Informational PurposesAn informational icon, calling your attention
    1x connector
  105. Connect the recliner motor
    Informational PurposesAn informational icon, calling your attention
    1x connector
  106. Connect front seat air bag
    Informational PurposesAn informational icon, calling your attention
    1x connector
  107. Install the clips holding the outboard seat back trim to the seat frame
    Informational PurposesAn informational icon, calling your attention
    2x clips
  108. Install the upper flap covering the outboard corner of the seat back frame
    Informational PurposesAn informational icon, calling your attention
    Pull the flap over the metal tangs to secure
  109. Install the lower flap covering the outboard corner of the seat back frame
    Informational PurposesAn informational icon, calling your attention
    Pull the flap over the metal tangs to secure
  110. Install the seat back shell base assembly to seat back frame
    Informational PurposesAn informational icon, calling your attention
    8x clips, Install the lower clips first and rotate the shell up into place, Light pressure may need to be applied to the shell to ensure it's fully seated, The headrest posts will engage the seat back when installed
  111. Hook the strap clips for the seat back shell onto the seat suspension
    Informational PurposesAn informational icon, calling your attention
    2x clips, Ensure the straps are tight for proper fit and installation
  112. Install the headrest into seat
    Informational PurposesAn informational icon, calling your attention
    2x locking clips, Ensure the headrest is fully seated, An audible click will be heard when installing the headrest, Ensure the headrest is seated by tugging up on the headrest
  113. Install LH front seat into vehicle
    Informational PurposesAn informational icon, calling your attention
    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim
  114. Secure LH front seat harness and guide to body
    Informational PurposesAn informational icon, calling your attention
    3x clips, 1x datum, Datum goes through access hole on LH lower B-pillar
  115. Install LH front seat harness onto LH footwell support bracket
    Informational PurposesAn informational icon, calling your attention
    2x retaining clips
  116. Connect LH front seat harness to VC left
    Informational PurposesAn informational icon, calling your attention
    1x electrical connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated
  117. Fully seat LH front cabin carpet
  118. Install clip securing LH front cabin carpet to body
  119. Install LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    6x clips, 2 locating pins, Align front locating pin first
  120. Install clip securing LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    1x push clip
  121. Install LH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim
  122. Reseat LH front door seal along lower A-pillar trim
  123. Connect first responder loop and 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm, 1x connector, Engage locking tab, Connect FRL first before connecting 12V to avoid damage to car computer
  124. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips
  125. Close hood
  126. Move LH front seat forward
  127. Install LH front seat belt retractor to seat
    Informational PurposesAn informational icon, calling your attention
    Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test
  128. Install LH front seat rear fasteners
    Informational PurposesAn informational icon, calling your attention
    2x patch bolts, T45P, 33.5 Nm, Install new patch bolts
  129. Move LH front seat backward
  130. Install LH front seat front fasteners
    Informational PurposesAn informational icon, calling your attention
    2x patch bolts, T45P, 33.5 Nm, Install new patch bolts
  131. Move LH front seat to original position
  132. Raise all windows
  133. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    If 12V is powered up, Unlatch rear doors before closing
