Harness - Body - RH (LHD) (Remove and Replace)

교정 코드 1710040042 FRT 2.46 참고: 절차에서 명시적으로 언급하지 않는 한 위 교정 코드 및 FRT는 연결된 절차를 포함하여 이 절차를 수행하는 데 필요한 모든 작업을 반영합니다. 명시적으로 지시하지 않는 한 교정 코드를 누적하지 마십시오. 참고: FRT와 그 생성 방법에 대한 자세한 내용은 표준 정비 작업시간을 참조하십시오. FRT 값에 대한 피드백을 제공하려면 LaborTimeFeedback@tesla.com으로 이메일을 보내십시오. 참고: 아래 절차를 수행할 때 개인 보호을(를) 참조하여 적절한 PPE를 착용했는지 확인하십시오.

  1. Open all four doors
    Informational PurposesAn informational icon, calling your attention
    참고
    If vehicle is being powered down, Latch rear doors to prevent accidental closure
  2. Open trunk from exterior switch
  3. Lower all four windows.
  4. Place vehicle into tow mode
    Informational PurposesAn informational icon, calling your attention
    참고
    Via Controls > Service > ''Towing''
  5. Place wheel chocks to keep vehicle from moving
  6. Disconnect the LV battery power. See LV Battery - Li-lon (Disconnect and Connect).
  7. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 2x guide tabs
  8. Release RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x magnets, 1x guide tab, 1x connector
  9. Remove connectors from RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    참고
    1x puddle light connector, 1x Speaker connector
  10. Remove clips securing passenger footwell duct
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  11. Disconnect glove box USB cable from car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release locking tab then release connector
  12. Remove screws securing glove box to IP
    Informational PurposesAn informational icon, calling your attention
    참고
    4x screws, T20, 2.3 Nm
  13. Release glove box from IP carrier
    Informational PurposesAn informational icon, calling your attention
    참고
    10x clips, 3x locator pins, 1x datum, Avoid damage to electromagnetic switch
  14. Disconnect the glove box connectors (x2).
  15. Remove RH passenger footwell duct from HVAC module
  16. Remove RH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 1x tether, 2x guide tabs,1x alignment pin, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove
  17. Remove RH sun visor bracket cover
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Extending the sun visor may allow for extra working room
  18. Remove RH sun visor fastener
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room
  19. Remove RH sun visor from headliner area
    Informational PurposesAn informational icon, calling your attention
    참고
    Fold sun visor to the closed and folded down position but do not latch in place
  20. Disconnect RH sun visor connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  21. Remove clip for RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x push clip
  22. Remove RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
  23. Remove RH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locations, 4x tethers, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward RH to release clips, Release tethers from bolted bungee tether
  24. Remove tether hooks from RH body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tether hooks, Discard after removal
  25. Push open RH coat hook
  26. Pry open RH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  27. Remove RH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 2.5 Nm
  28. Release 2nd row seat cushion and disconnect harness
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, 2x connectors, Press tabs backward then pull front edge up
  29. Fold 2nd row 40 seatback down
  30. Remove RH side bolster
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locator clip, 3x guide tabs, Pull outward then slightly upward to remove
  31. Remove bolster plastic bracket from RH side body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal
  32. Remove RH C pillar assembly and move it aside
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips, 3x tabs, Pull rear C-pillar inward then forward to remove
  33. Remove RH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, 5x locator clips, Pull the trim panel outward in the direction of the arrow to release clip from lower B-pillar
  34. Remove RH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 3x locator clips, Pull the bottom of the B-pillar middle trim panel into the vehicle, and then pull the upper part to release the remaining clips
  35. Release clips securing RH upper B-pillar assembly and move aside
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips,3x locator pins,Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips
  36. Remove LH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locations, 4x tethers, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward RH to release clips, Release tethers from bolted bungee tether
  37. Remove tether hooks from LH body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tether hooks, Discard after removal
  38. Push open LH coat hook
  39. Pry open LH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  40. Remove LH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 2.5 Nm
  41. Fold 2nd row 60 seatback down
    Informational PurposesAn informational icon, calling your attention
    참고
    Pull release, Fold down, Protect the seat cushion if necessary
  42. Remove LH side bolster
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locator clip, 3x guide tabs, Pull outward then slightly upward to remove
  43. Remove bolster plastic bracket from LH side body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal
  44. Remove LH C pillar assembly and move it aside
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips, 3x tabs, Pull rear C-pillar inward then forward to remove
  45. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 2x guide tabs
  46. Remove clip securing LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    1x push clip
  47. Remove LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
  48. Remove LH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, 4x locator clips, Pull the trim panel outward in the direction of the arrow to release clip from lower B-pillar
  49. Remove LH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 3x locator clips, Pull the bottom of the B-pillar middle trim panel into the vehicle, and then pull the upper part to release the remaining clips
  50. Release clips securing the LH upper B-pillar assembly and move aside
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips,3x locator pins,Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips
  51. Release rear headliner from body
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locator pins,loosen the rear of the headliner to facilitate the next step
  52. Remove package tray harness clips around C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  53. Disconnect package tray harness connector from RH body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  54. Remove package tray
    Informational PurposesAn informational icon, calling your attention
    참고
    5x tabs, 3 at the rear of panel and 2 on the sides, Slide towards front of vehicle to remove
  55. Remove load floor
    Informational PurposesAn informational icon, calling your attention
    참고
    Use pull tab located at rear edge of panel
  56. Remove trunk sill trim assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Pull corner upward to release clip on end then pull away from body for remaining clips
  57. Remove RH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locations, Release bracket front clips, then release clips at the bracket rear, and remove the floor bracket
  58. Remove trunk garnish assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 4x locating tabs
  59. Remove clips for RH trunk side trim
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  60. Disconnect RH trunk task light connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  61. Remove RH trunk side trim
  62. Release harness connectors on left side of car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors, Release locking tab, then remove connector body
  63. Release harness clips from left of car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clips
  64. Release harness clips from lower of car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  65. Disconnect connectors from car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    4x connector
  66. Release RH body harness from RH body controller and A-pillar and move aside
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  67. Remove the nut securing the RH body controller to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nyloc nut, 10mm, 6 Nm,Discard nyloc nut
  68. Remove RH body controller from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Move RH controller up and away from the vehicle body for easier access to the connector in the next step
  69. Disconnect J2 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x locking tab, J2
  70. Disconnect J5 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, J5
  71. Disconnect J4 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x locking tab, J4
  72. Disconnect J12 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, J12
  73. Disconnect seat connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x locking tab, J9
  74. Disconnect connector from the right body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  75. Fold RH front main cabin carpet aside for access
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  76. Release harness clip from RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip

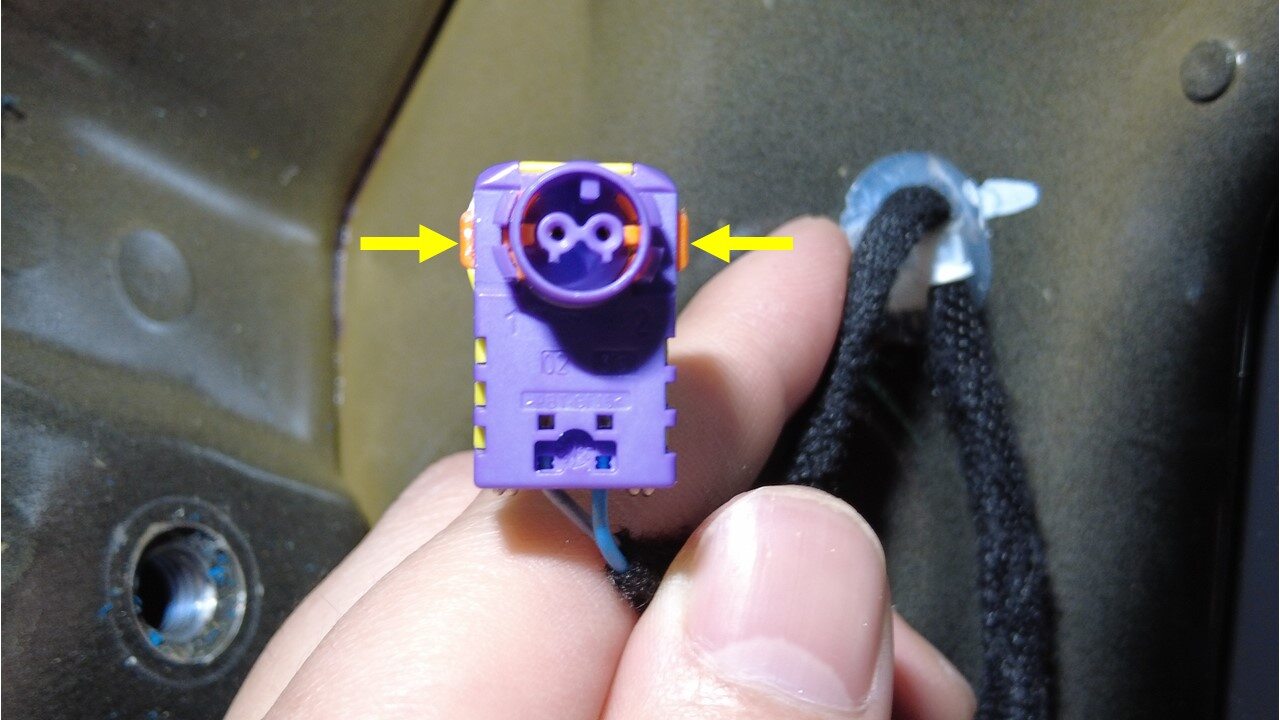

  77. Disconnect connectors from harness clip at RH lower A-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors
  78. Disconnect DCDC positive cable from right body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x clip. Pull up the red locking tab and then press
  79. Release the LH front seat harness from sill trim clips (x5).
  80. Disconnect LH harness connectors around RH lower B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors
  81. Remove fixed harness connector bracket from RH b pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector bracket
  82. Remove bolt securing RH retractor to base of B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x patch bolt, 15mm, 40 Nm, Discard patch bolt
  83. Disconnect harness connectors from RH retractor
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 2 stage locking connectors, Lift the red tab to release the connector Disconnect connector after removing retractor from B-pillar
  84. Remove RH B-pillar impact accelerometer sensor
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  85. Disconnect RH body wiring harness and RH rear door wiring harness connectors from RH B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  86. Remove RH body harness clips from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  87. Remove clip securing RH rear carpet of vehicle to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  88. Remove RH body harness ground strap around lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 10 Nm
  89. Release RH body harness clips along RH front sill area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  90. Remove RH B-pillar applique fasteners cover
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 1x tab, Release upper clips first, then slide tab out of body
  91. Remove bolts securing RH B-pillar applique to body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts, 8mm, 5 Nm
  92. Release RH B-pillar applique from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 2x tabs, Release the bottom of the applique and slide the applique downward to remove, Use caution not to damage the connectors
  93. Disconnect B-pillar camera and RH antenna connector
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Release red locking tab first before removing connector
  94. Release RH upper B-pillar bracket form body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts 10mm2.5 Nm
  95. Remove the RH body harness clips from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips
  96. Disconnect RH body harness to the TCU connector
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connector
  97. Disconnect HVC logic connector and install logic cap
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x cap, Release locking tab then push the handle downward to release connector
  98. Release positive LV output cover from PCS cable
    Informational PurposesAn informational icon, calling your attention
    참고
    1x cover
  99. Remove nut securing positive LV output from PCS cable and move cable aside
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nut, 13mm, 15 Nm, Discard after removal
  100. Disconnect 40 seat back heater harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  101. Disconnect RH rear seat belt buckle connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  102. Remove clip securing RH rear seatbelt buckle harness to vehicle body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  103. Remove RH body harness clips around lower C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips
  104. Disconnect RH 2nd row seat belt retractor connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 2 stage locking connectors, Lift the red tab to release the connector
  105. Disconnect harness connector for RH side curtain airbag
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 2 stage locking connectors, Lift the white tab to release the connector
  106. Disconnect RH antenna filter harness connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector. Gently disconnect the harness. Do not damage the heater grid
  107. Release the trunk harness connectors under package tray area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  108. Release trunk harness connectors bracket under package tray area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connector bracket
  109. Disconnect LH and RH parcel shelf speaker connectors
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connector
  110. Remove the RH body harness clips around the upper C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    10x clips
  111. Disconnect RH power strut connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  112. Remove ground strap of body harness in RH area of the trunk
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 10 Nm
  113. Remove RH body harness clips around RH side of trunk area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector bracket3x harness clips
  114. Disconnect connector from RH rear audio amplifier
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors
  115. Remove wheel chocks
  116. Push vehicle onto lift
    Informational PurposesAn informational icon, calling your attention
    참고
    Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed
  117. Raise and support the vehicle. See GUID-0ECF2493-88F6-48E9-ADBB-9AE1D52E217C.html.
  118. Loosen RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    참고
    5x nuts, 21mm, 175 Nm
  119. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    참고
    Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  120. Remove RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    참고
    5x nuts, 21mm, 175 Nm
  121. Remove clips securing the RH rear wheel liner to body
    Informational PurposesAn informational icon, calling your attention
    참고
    8x push clips, 7x fan clips
  122. Remove RH rear wheel liner
  123. Disconnect RH side subframe harness connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release locking tab
  124. Disconnect RH rear EBP harness from rear main body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release locking tab
  125. Remove RH body harness clips around RH subwoofer area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x harness clips2x connector bracket
  126. Lower vehicle partially and set lift onto locks
    Informational PurposesAn informational icon, calling your attention
    참고
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
  127. Push grommet through RH side trunk bulkhead and feed harness through
    Informational PurposesAn informational icon, calling your attention
    참고
    1x grommet, Bulkhead around rear portion RH wheel liner area
  128. Remove RH body wiring harness from vehicle
  129. Position RH body harness to vehicle for installation
    Informational PurposesAn informational icon, calling your attention
    참고
    Layout the position and direction of the new wiring harness on the vehicle for installation
  130. Push rear subframe portion of RH body harness through RH side trunk bulkhead
    Informational PurposesAn informational icon, calling your attention
    참고
    Check if the seal is in place after installation
  131. Install RH body harness clips around RH subwoofer area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x harness clips2x connector bracket
  132. Connect RH rear EPB harness to rear main body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Engage locking tab
  133. Connect RH side subframe harness connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  134. Raise the vehicle to a comfortable working height, and lower the lift onto locks.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고

    Make sure there is an audible click of the locks on both sides before lowering, otherwise the vehicle may tilt to one side.

    Make sure that the doors are clear of surrounding objects.

  135. Position the RH rear wheel liner for installation
  136. Install the clips securing RH rear wheel liner
    Informational PurposesAn informational icon, calling your attention
    참고
    8x push clips, 7x fan clips
  137. Install RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    참고
    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
  138. Lower vehicle fully
    Informational PurposesAn informational icon, calling your attention
    참고
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  139. Remove lift arms from below vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Lower rack arms fully and remove them from under vehicle
  140. Torque RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    참고
    5x nuts, 21mm, 175 Nm
  141. Push vehicle away from lift
    Informational PurposesAn informational icon, calling your attention
    참고
    Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed, Chock wheels.
  142. Place wheel chocks to keep vehicle from moving
  143. Connect connector on rear RH audio amplifier
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors
  144. Install RH body harness clips around RH side of trunk area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector bracket3x harness clips
  145. Install ground strap of body harness in RH area of the trunk
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 10 Nm
  146. Connect RH power strut connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  147. Install RH body harness clips around the upper C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    10x clips
  148. Connect LH and RH parcel shelf speaker
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  149. Install trunk harness connectors bracket under package tray area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connector bracket
  150. Connect the trunk harness connectors under package tray area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  151. Connect RH antenna filter harness connector to RH connector to antenna grid
  152. Connect harness connector for RH side curtain airbag
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector,Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
  153. Connect RH 2nd row seat belt retractor connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 2 stage locking connectors, Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
  154. Install RH body harness clips around lower C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips
  155. Secure RH rear right seatbelt buckle harness to vehicle body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  156. Connect RH rear seat belt buckle connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  157. Connect 40 seat back heater harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  158. Install positive LV output
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nut, 13mm, 9 Nm, Make sure rubber boot is not pinched between cable terminal and pass through
  159. Install positive LV output cover to PCS cable
    Informational PurposesAn informational icon, calling your attention
    참고
    1x cover
  160. Remove logic cap and connect HVC logic connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated
  161. Install the RH body harness clips to B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips
  162. Connect RH body harness to TCU connector
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connector
  163. Secure RH upper B-pillar bracket to body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts 10mm2.5 Nm
  164. Install the RH body harness ground strap around lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 10 Nm
  165. Connect B-pillar camera and RH antenna connector
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Secure red locking tab after installing connector
  166. Secure RH B-pillar applique to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 2x tabs, Align B-Pillar applique into position and secure clips into body, Use caution not to damage the connectors
  167. Install bolts securing RH B-pillar applique to body
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts, 8mm, 5 Nm
  168. Install RH B-pillar applique fasteners cover
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 1x tab, Slide tab into body first, then engage clips
  169. Install clip securing the RH rear main carpet to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  170. Install RH body harness clips from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  171. Connect RH body harness connector to RH rear door harness connector B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  172. Connect RH B-pillar impact accelerometer sensor connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  173. Make connections to RH retractor
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors,Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning Installing connector, place retriever in B-pillar
  174. Install bolt securing RH retractor to base of B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x patch bolt, 15mm, 40 Nm, Install new patch bolt
  175. Install harness retaining bracket to RH B pillar body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector bracket
  176. Connect the LH harness connectors around RH lower B-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors, Connect the connector and push in the red locking tab
  177. Install RH body harness clips along RH front sill area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  178. Install clips securing LH seat harness to sill trim
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, Tuck excess harness between harness bracket and body
  179. Connect connectors from harness clip at RH lower A-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors
  180. Secure harness clip to RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  181. Connect connector to the right body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  182. Unfold RH front main cabin carpet back to original position
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  183. Connect DCDC positive cable to right body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector,1x clip Connect the connector and push in the red locking tab
  184. Connect J4 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, J4, Fully seat connector then engage lock
  185. Connect J2 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, J2, Fully seat connector then engage lock
  186. Connect J5 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, J5
  187. Connect J12 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, J12
  188. Connect seat connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x locking tab, J9
  189. Install RH body controller
    Informational PurposesAn informational icon, calling your attention
    참고
    1x W clip, Maneuver right body controller into position under IP carrier and align the W clip with body cut out, Then slide down controller to secure
  190. Install the nut securing the right controller to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nyloc nut, 10mm, 6 Nm, Install new nyloc nut
  191. Secure RH body harness to RH body controller and A-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  192. Connect connectors to car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    4x connector
  193. Instal harness connectors on left side of car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors. Install the plug in place and lock the locking tab
  194. Install harness clips from left of car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clips
  195. Install harness clips from lower of car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  196. Install RH trunk side trim
  197. Connect RH trunk task light connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  198. Install clips for RH trunk side trim
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  199. Install trunk garnish assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 4x locating tabs, Align locating tabs to slot, Verify trunk seal is fully seated along garnish
  200. Install RH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locations
  201. Install trunk sill trim assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Align striker with center slot then 2 locators to slots then press to secure clips, Manipulate seal to overlap trim
  202. Install load floor
  203. Install package tray
    Informational PurposesAn informational icon, calling your attention
    참고
    5x tabs, 3 at the rear of panel and 2 on the sides, Slide towards rear of vehicle to install
  204. Connect package tray harness connector to RH body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  205. Install package tray harness clips around upper C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  206. Install rear headliner to body
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locator pins,Align the locating pin of the roof liner with the slot, and then push in the direction of the arrow to install the clip, ensuring that the seal overlaps with the trim
  207. Install LH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 2.5 Nm
  208. Close LH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x securing tabs
  209. Install tether hook onto LH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tether hooks, Install new tether hook
  210. Install LH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locations, 2x tether hooks, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
  211. Install LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips,3x locator pins, Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  212. Install LH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 3x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  213. Install LH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, 4x locator clips, Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  214. Install LH C pillar assembly to body
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips, 3x tabs, Slide the back tabs into package tray then align clips
  215. Install bolster plastic bracket to LH side bolster
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tabs, Install new bolster bracket
  216. Install LH side bolster
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locator clip, 3x guide tabs, Align the bottom and side tabs then push inward to install
  217. Return 2nd row 60 seatback to vertical position
  218. Install LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, Fully seat seal along trim
  219. Install clip securing LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    1x push clip
  220. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 2x guide tabs
  221. Install LH front primary seal
    Informational PurposesAn informational icon, calling your attention
    참고
    Verify seal is seated properly on all trim panels
  222. Install RH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 1x tether, 2x guide tabs,1x alignment pin, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
  223. Connect RH sun visor connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  224. Install RH sun visor into headliner area
    Informational PurposesAn informational icon, calling your attention
    참고
    First push the connector and wire harness backward, then fold sun visor to the closed and folded down position but do not latch in place
  225. Install RH sun visor fastener
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 3.5 Nm
  226. Install RH sun visor bracket cover
    Informational PurposesAn informational icon, calling your attention
    참고
    4x tabs
  227. Install RH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 2.5 Nm
  228. Close RH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  229. Push RH coat hook closed
  230. Install the RH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips,3x locator pins,Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  231. Install RH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 3x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  232. Install RH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, 5x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  233. Install RH C pillar assembly to body
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips, 3x tabs, Slide the back tabs into package tray then align clips
  234. Install tether hook onto RH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tether hooks, Install new tether hook
  235. Install RH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x locations, 2x tether hooks, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
  236. Install bolster plastic bracket to RH side bolster
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tabs, Install new bolster bracket
  237. Install RH side bolster
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locator clip, 3x guide tabs, Align the bottom and side tabs then push inward to install
  238. Return 2nd row 40 seatback to vertical position
  239. Connect 2nd row seat harness and secure cushion
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, 2x connectors, Insert buckles through holes, Slide rear inward then align front clips, Perform push-pull-push test
  240. Install RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 2x guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, Fully seat seal along trim
  241. Install clip for RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x push clip
  242. Install RH passenger footwell duct to HVAC module
  243. Connect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  244. Install glove box into IP carrier
    Informational PurposesAn informational icon, calling your attention
    참고
    10x clips, 3x locator pin, 1x datum
  245. Install screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    참고
    4x screws, T20, 2.3 Nm
  246. Connect glove box USB cable to car computer
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Engage locking tab
  247. Install clips securing passenger footwell duct
    Informational PurposesAn informational icon, calling your attention
    참고
    2x push clips
  248. Connect RH footwell cover connectors
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors
  249. Install RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 1x guide tab
  250. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, 2x guide tabs
  251. Connect the LV battery power. See LV Battery - Li-lon (Disconnect and Connect).
  252. Close trunk via interior switch
  253. Hold brake pedal and select park on UI to disable EPB service mode
  254. Remove wheel chocks
  255. Raise all windows
  256. Close all four doors
