Dash Reinforcement Assembly (With Cowl)

Correction code: 10101014902 NOTE: Unless explicitly stated in the procedure, the above correction code includes all Collision Repair work required to perform this procedure, including the linked Collision Repair procedures. Do not stack Collision Repair correction codes unless explicitly told to do so. Add any associated mechanical procedures needed to perform this procedure.

Parts List

Quantity Description Image / Notes
1 ASY - DASH (Dash Reinforcement Assembly)
79 High Strength Structural Rivet, 6.5 mm
8 Structural Bulb Rivet, 6.5 mm
12 Countersunk Rivet, 4.8 mm Short
4 Structural Countersunk Rivet, 6.5 mm
11 Countersunk Rivet, 4.8 mm Long
26 Rivet, 4.8 mm
2 Flow Form Rivet S18

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. Remove the Noise Absorber - Motor Bay - Front (Remove and Replace).
  2. Remove the Hinge - Hood - LH (Remove and Replace).
  3. Remove the Steering Column (LHD) (Remove and Replace).
  4. Remove the Hinge - Hood - LH (Remove and Replace).
  5. Remove the Accelerator (Remove and Replace).
  6. Remove the Carpet - Front - LH (Remove and Replace).
  7. Remove the Carpet - Front - RH (Remove and Replace).
  8. Remove the Subframe Assembly - Front (Dual Motor) (Remove and Install).
  9. Remove the Fender Assembly - Front - LH (Remove and Install).
  10. Remove the Hood (Remove and Install).
  11. Remove the Windshield (Reuse Humidity and Temperature Sensor) (Remove and Replace).
  12. Remove the A/C Compressor and Supermanifold (Remove and Replace).
  13. Remove the HVAC Assembly (Heat Pump) (Remove and Replace).
  14. Remove the Booster - Brake - Electromechanical (Heat Pump) (LHD) (Remove and Replace).
  15. Remove the Brake Pedal (Remove and Replace).
  16. Remove the Module - Body Controller - Front (Dual Motor) (Non-Heat Pump) (Remove and Replace).
  17. Remove the Module - Body Controller - LH (LHD) (Heat Pump) (Remove and Replace).
  18. Remove the Panel - Lower Rear - Center Console (Remove and Replace).
  19. Remove the HV Battery (AWD) (Remove and Install).
  20. Remove the original component.
    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    Note
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

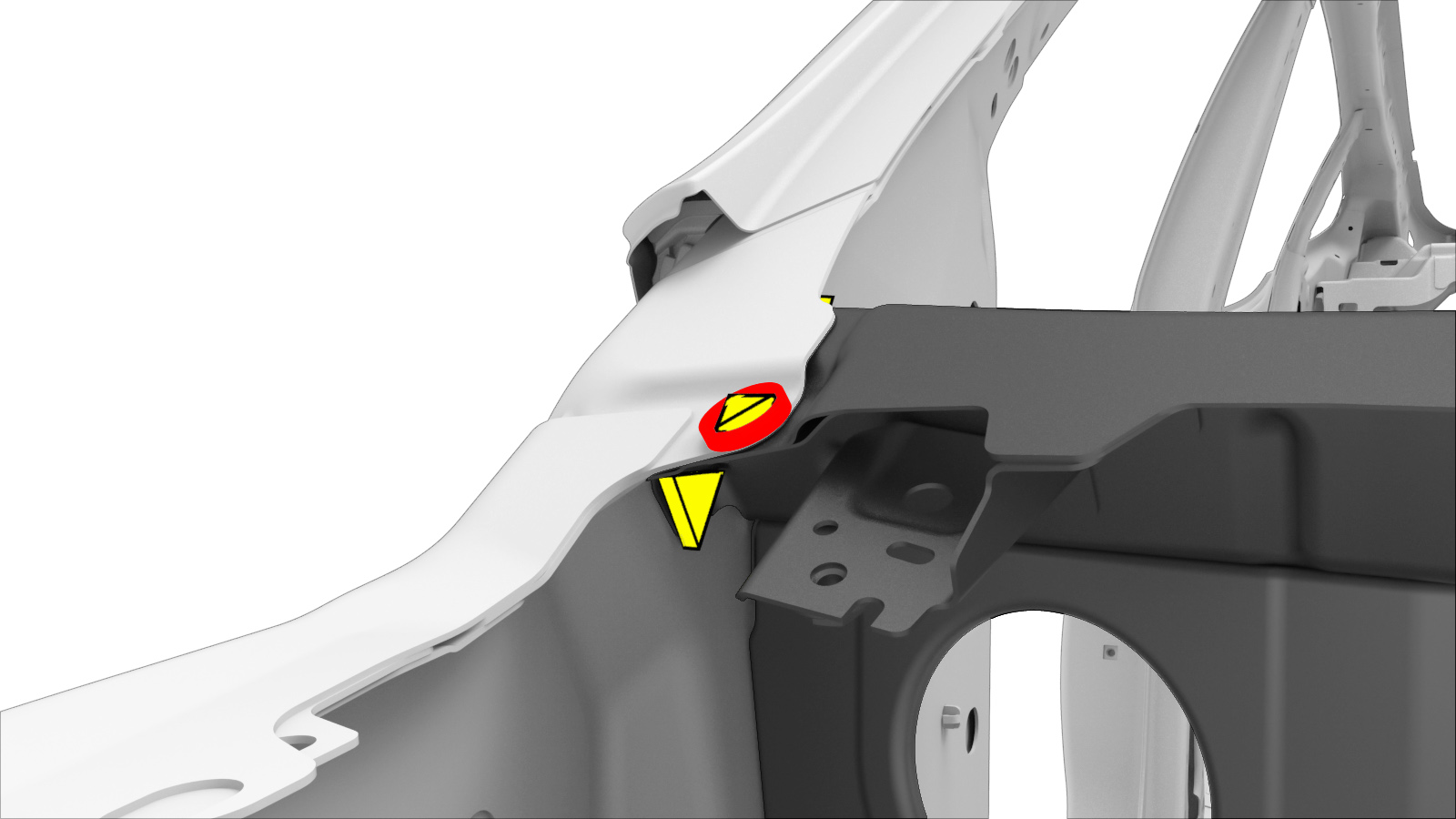

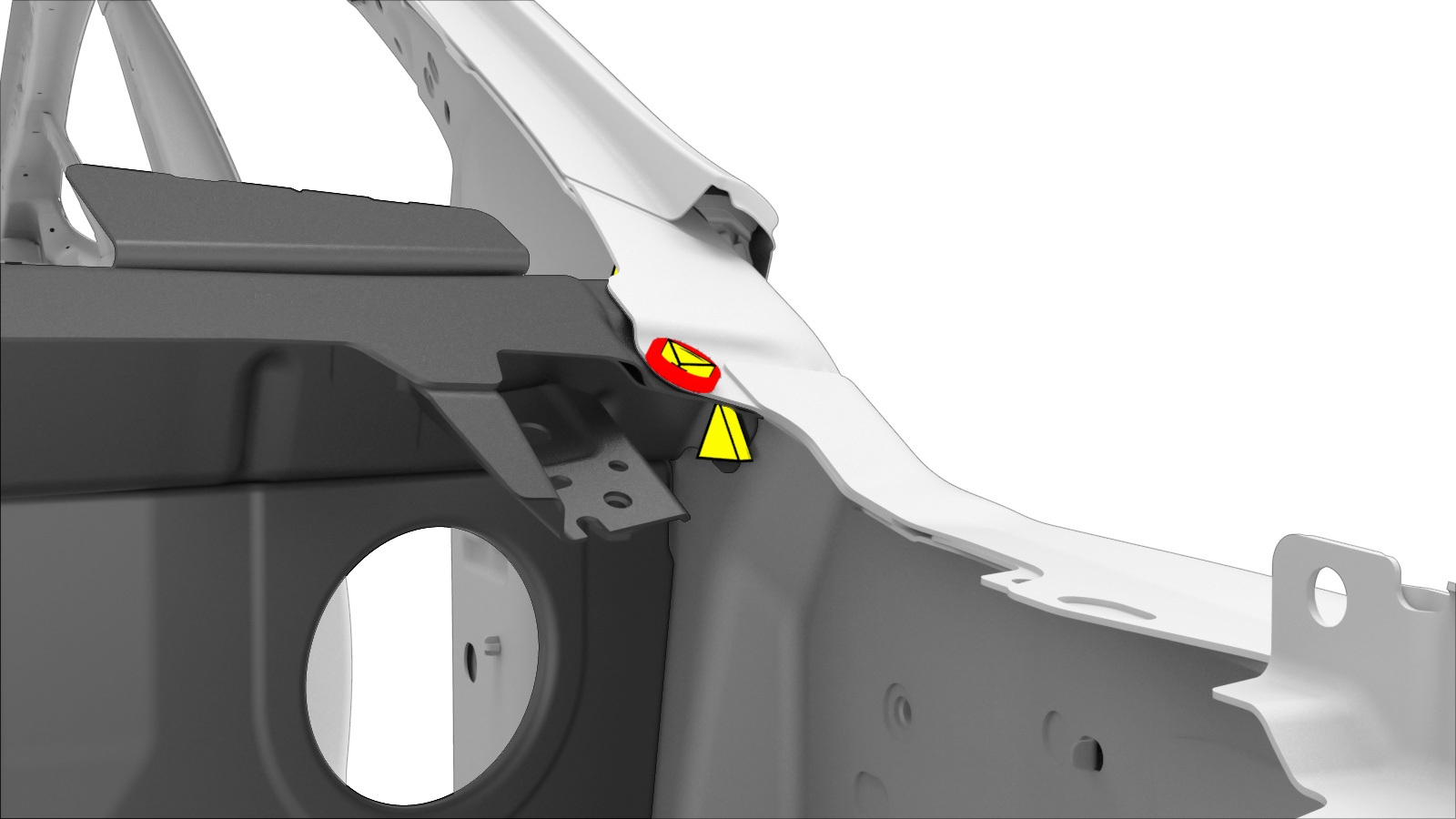

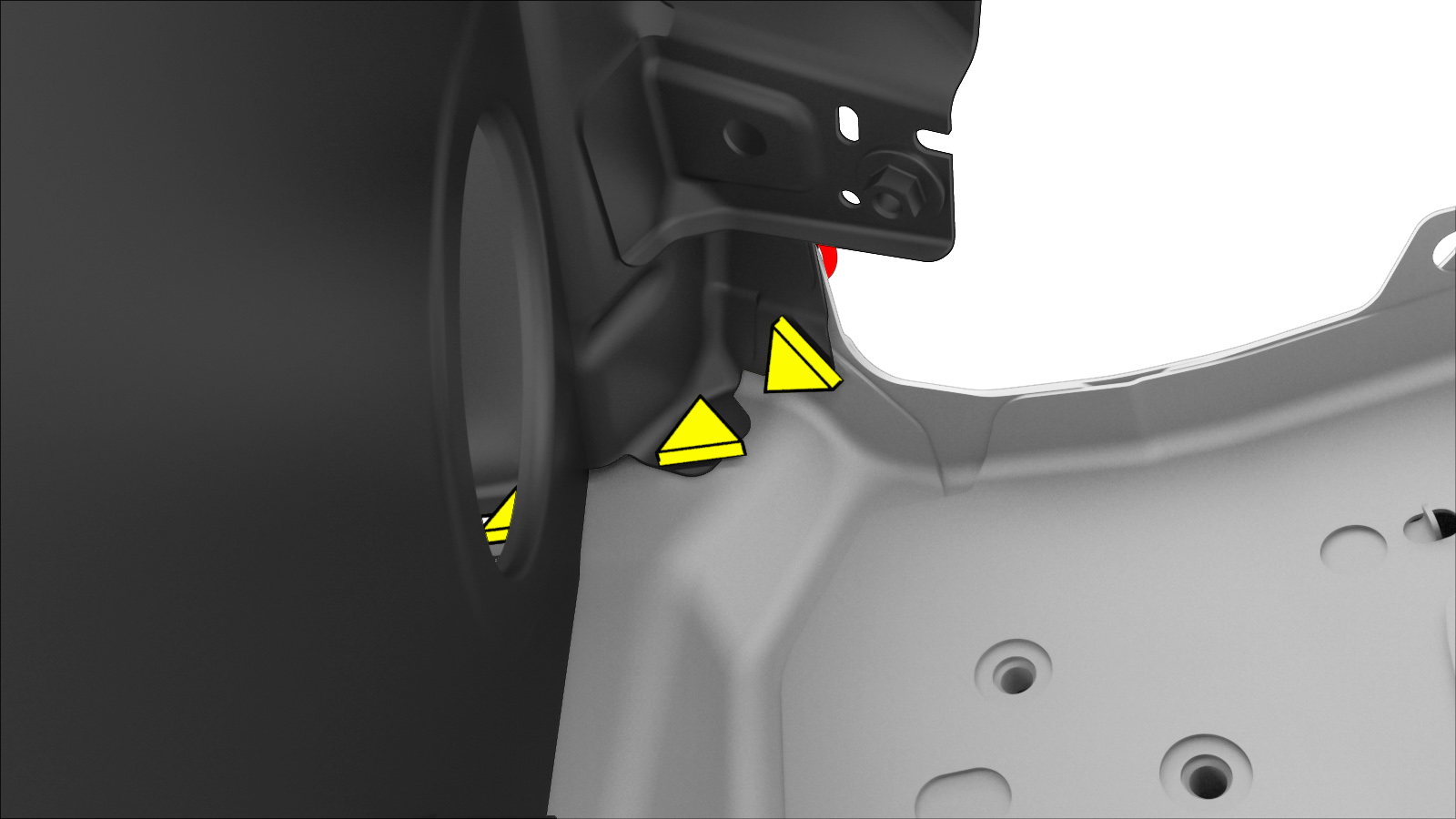

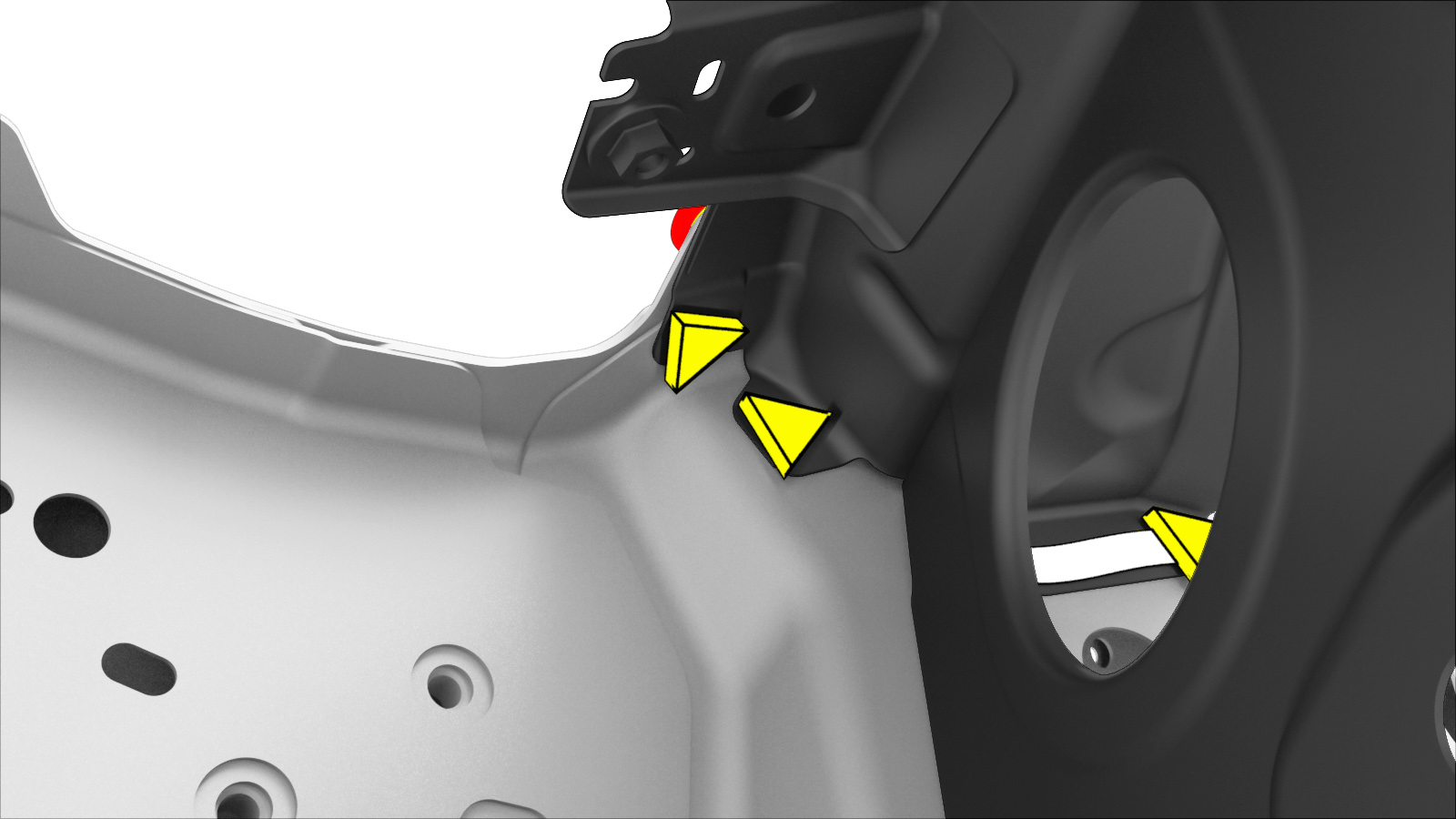

    or Factory Spot Welds

  21. Prepare for installation.

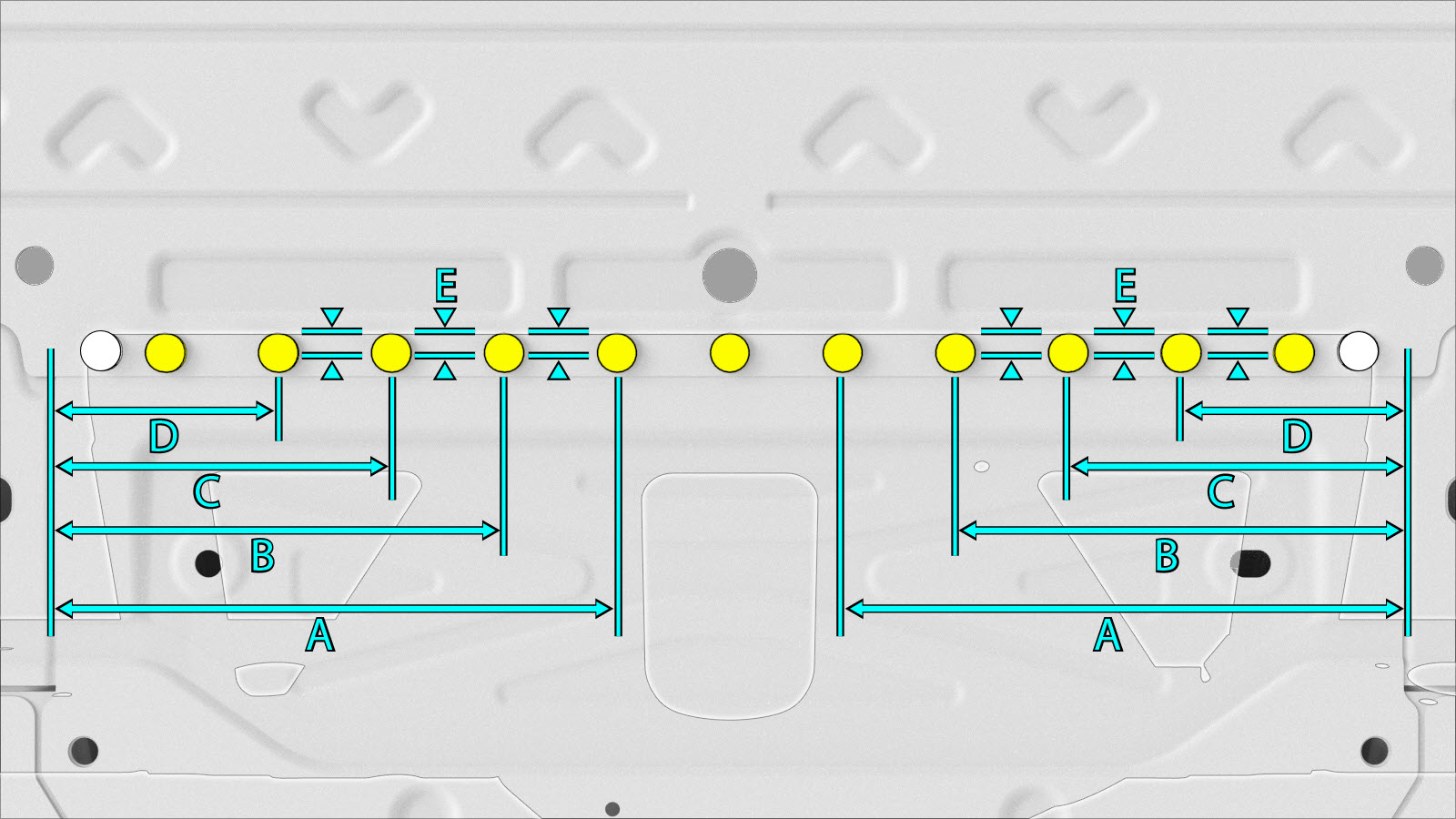

    or Countersunk Rivets, 4.8 mm Long
    • A = 263 mm
    • B = 210 mm
    • C = 158 mm
    • D = 105 mm
    • E = 11 mm
    or High Strength Structural Rivets, 6.5 mm
    • F = 48 mm
    • G = 7 mm
    • H = 79 mm
    • I = 12 mm
    • J = 24 mm
    • K = 7 mm
    • L = 27 mm
    • M = 11 mm
    • N = 27 mm
    • O = 75 mm
    • P = 8 mm

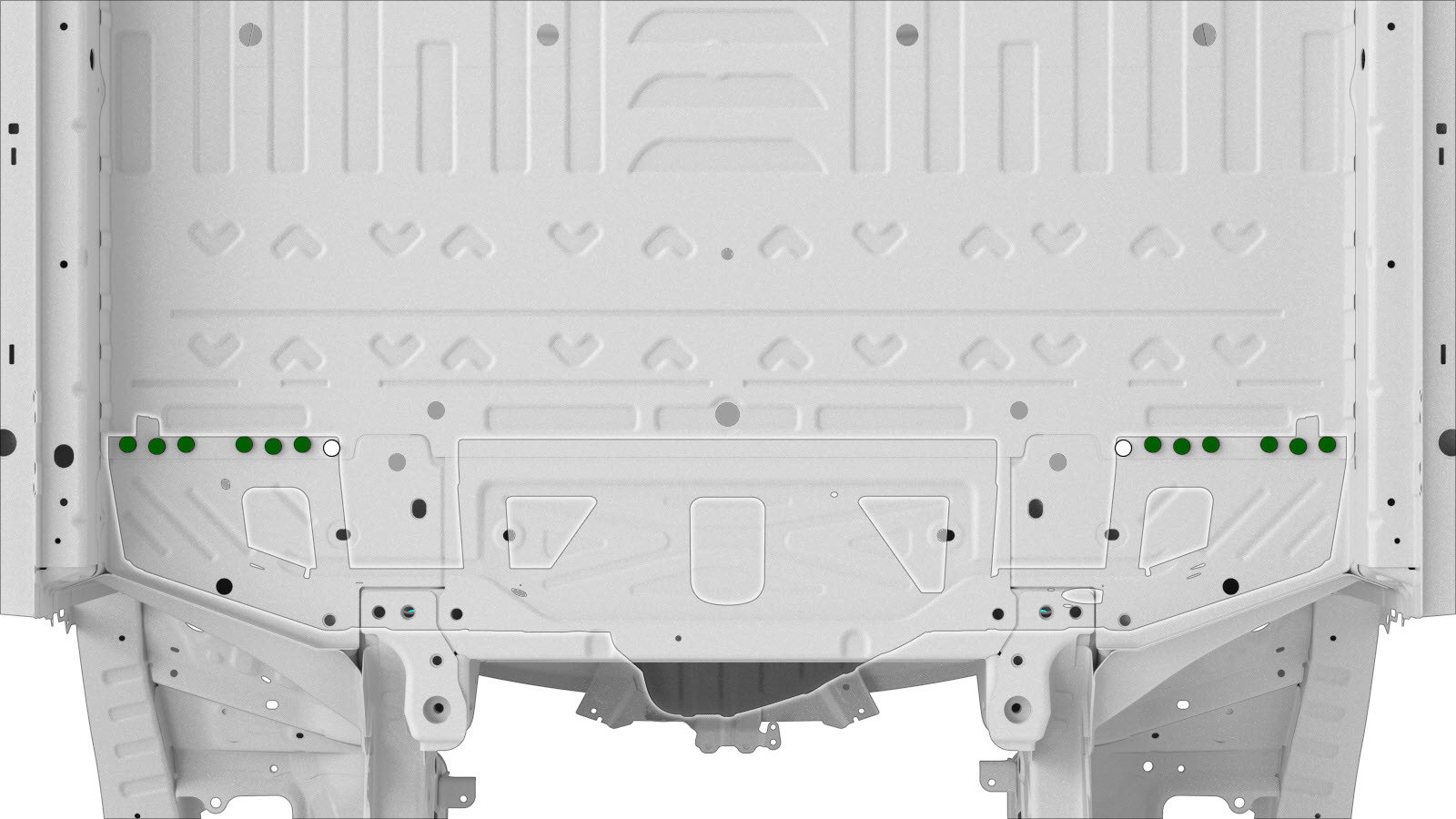

    or Structural Bulb Rivets, 6.5 mm

    or Countersunk Rivets, 4.8 mm Short

    or Structural Countersunk Rivets, 6.5 mm

    or Rivets, 4.8 mm

    or Flow Form Rivets, S18

  22. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  23. Install the new component or components.
  24. Perform any necessary post-repair operations.
  25. Install the HV Battery (AWD) (Remove and Install).
  26. Install the Panel - Lower Rear - Center Console (Remove and Replace).
  27. Install the Module - Body Controller - LH (LHD) (Heat Pump) (Remove and Replace).
  28. Install the Module - Body Controller - Front (Dual Motor) (Non-Heat Pump) (Remove and Replace).
  29. Install the Brake Pedal (Remove and Replace).
  30. Install the Booster - Brake - Electromechanical (Heat Pump) (LHD) (Remove and Replace).
  31. Install the HVAC Assembly (Heat Pump) (Remove and Replace).
  32. Install the A/C Compressor and Supermanifold (Remove and Replace).
  33. Install the Windshield (Reuse Humidity and Temperature Sensor) (Remove and Replace).
  34. Install the Hood (Remove and Install).
  35. Install the Fender Assembly - Front - LH (Remove and Install).
  36. Install the Subframe Assembly - Front (Dual Motor) (Remove and Install).
  37. Install the Carpet - Front - RH (Remove and Replace).
  38. Install the Carpet - Front - LH (Remove and Replace).
  39. Install the Accelerator (Remove and Replace).
  40. Install the Hinge - Hood - LH (Remove and Replace).
  41. Install the Steering Column (LHD) (Remove and Replace).
  42. Install the Hinge - Hood - LH (Remove and Replace).
  43. Install the Noise Absorber - Motor Bay - Front (Remove and Replace).
