Torque Box Rear Upper
Correction code:
10101003202,
10101003302
NOTE:
Unless explicitly stated in the procedure, the above
correction code includes all Collision Repair work required
to perform this procedure, including the linked Collision
Repair procedures. Do not stack Collision Repair
correction codes unless explicitly told to do
so. Add any associated mechanical procedures
needed to perform this procedure.
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|
| 1 | M3 ASY - TORQUE BOX REAR UPPER (Torque Box Rear Upper) | |
| 34 | ||
| 1 | BUTYL FOIL PATCH 300X150x2MM (butyl foil patch) | Tesla part number 1004969-00-A. |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
- Wheel Assembly (Remove and Install).
- Raise Vehicle - 2 Post Lift.
- Wheel Arch Liner - Front - LH (Remove and Replace).
- Carpet - Interior Complete (Remove and Replace).
- Module - Body Controller - Front (Heat Pump) (Remove and Replace).
- HVAC Assembly (Heat Pump) (Remove and Replace).
- Brake Pedal (Remove and Replace).
- Steering Column (LHD) (Remove and Replace).
- Noise Absorber - Motor Bay - Front (Remove and Replace).
-
Remove the original component.
- or Factory Spot Welds
- Prepare for installation.
-
Prepare for installation.
- Reference Line/Point

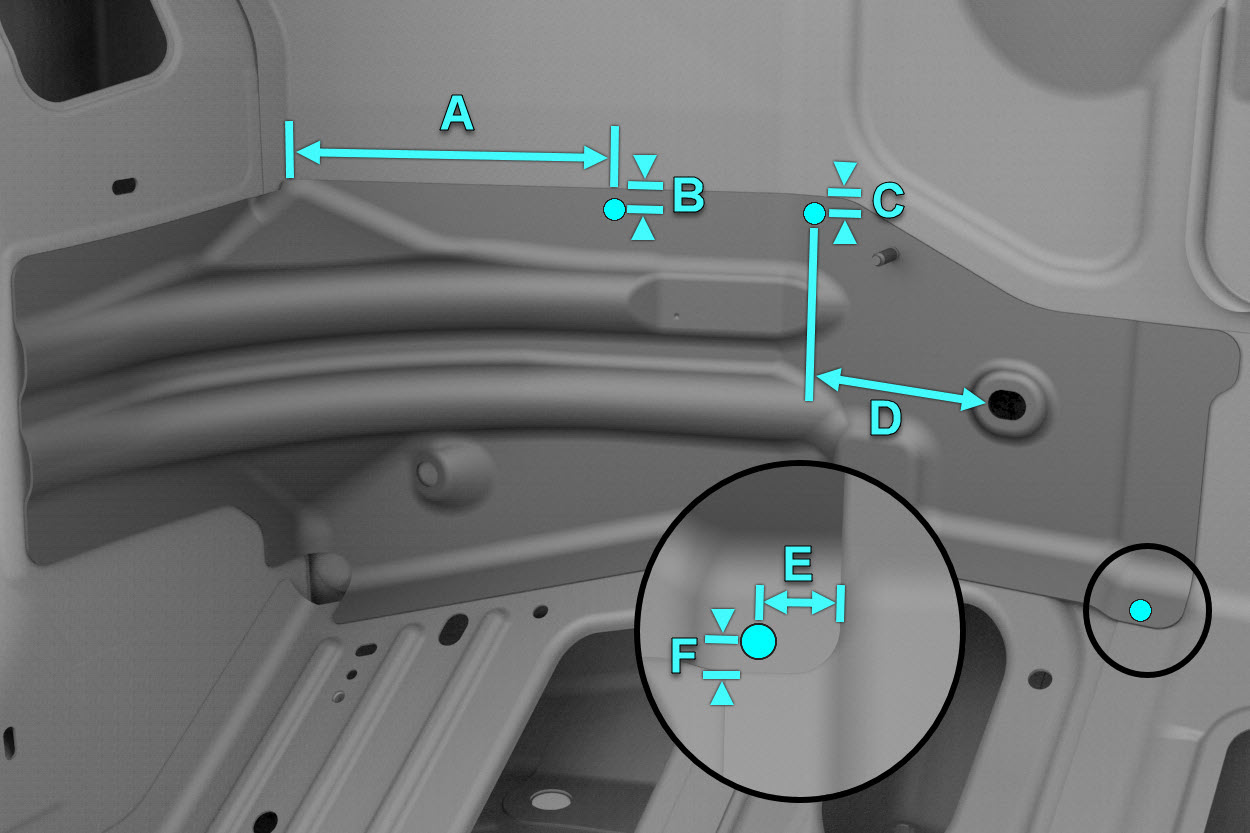

- or High Strength Structural Rivets, 6.5 mm A = 152 mm B = 7 mm C = 8 mm D = 89 mm E = 17 mm F = 7 mm
- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
- Perform any necessary post-repair operations.
-

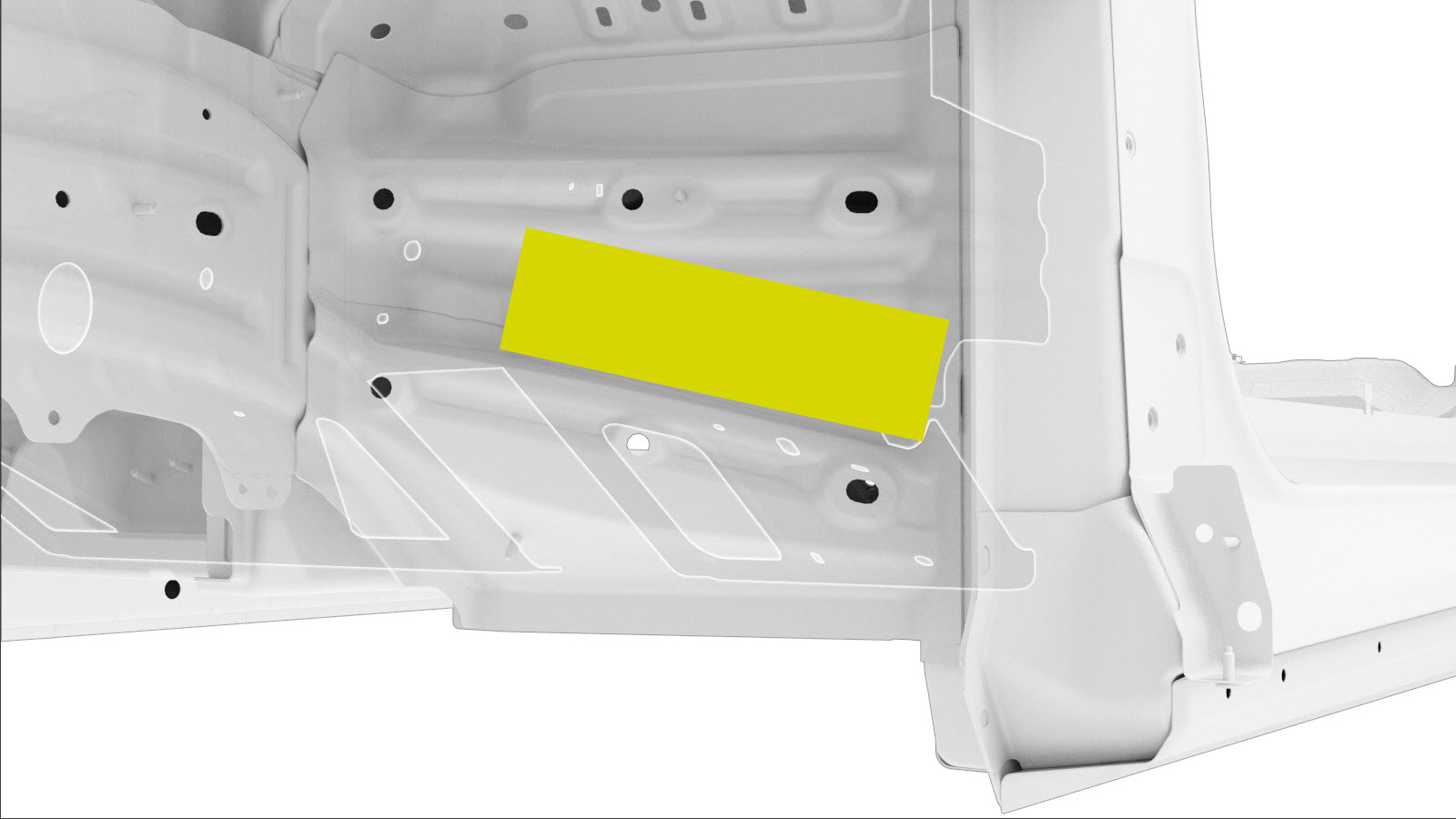

After painting is complete, install
the butyl patch as shown to cover the rivets installed to secure the Dash Reinforcement
Assembly and the Torque Box.
- Noise Absorber - Motor Bay - Front (Remove and Replace).
- Steering Column (LHD) (Remove and Replace).
- Brake Pedal (Remove and Replace).
- HVAC Assembly (Heat Pump) (Remove and Replace).
- Module - Body Controller - Front (Heat Pump) (Remove and Replace).
- Carpet - Interior Complete (Remove and Replace).
- Wheel Arch Liner - Front - LH (Remove and Replace).
- Raise Vehicle - 2 Post Lift.
- Wheel Assembly (Remove and Install).
