Shotgun Tower

Parts List

Quantity Description Image / Notes
1 M3 ASY, SHOTGUN TOWER (Shotgun Tower)
17 High Strength Structural Rivet, 6.5 mm
1 Flow Form Rivet S18
2 Flow Form Rivet S38
1 Flow Form Rivet S48
1 Bolt , M8x23.5 Tesla part number 1063260-00.

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

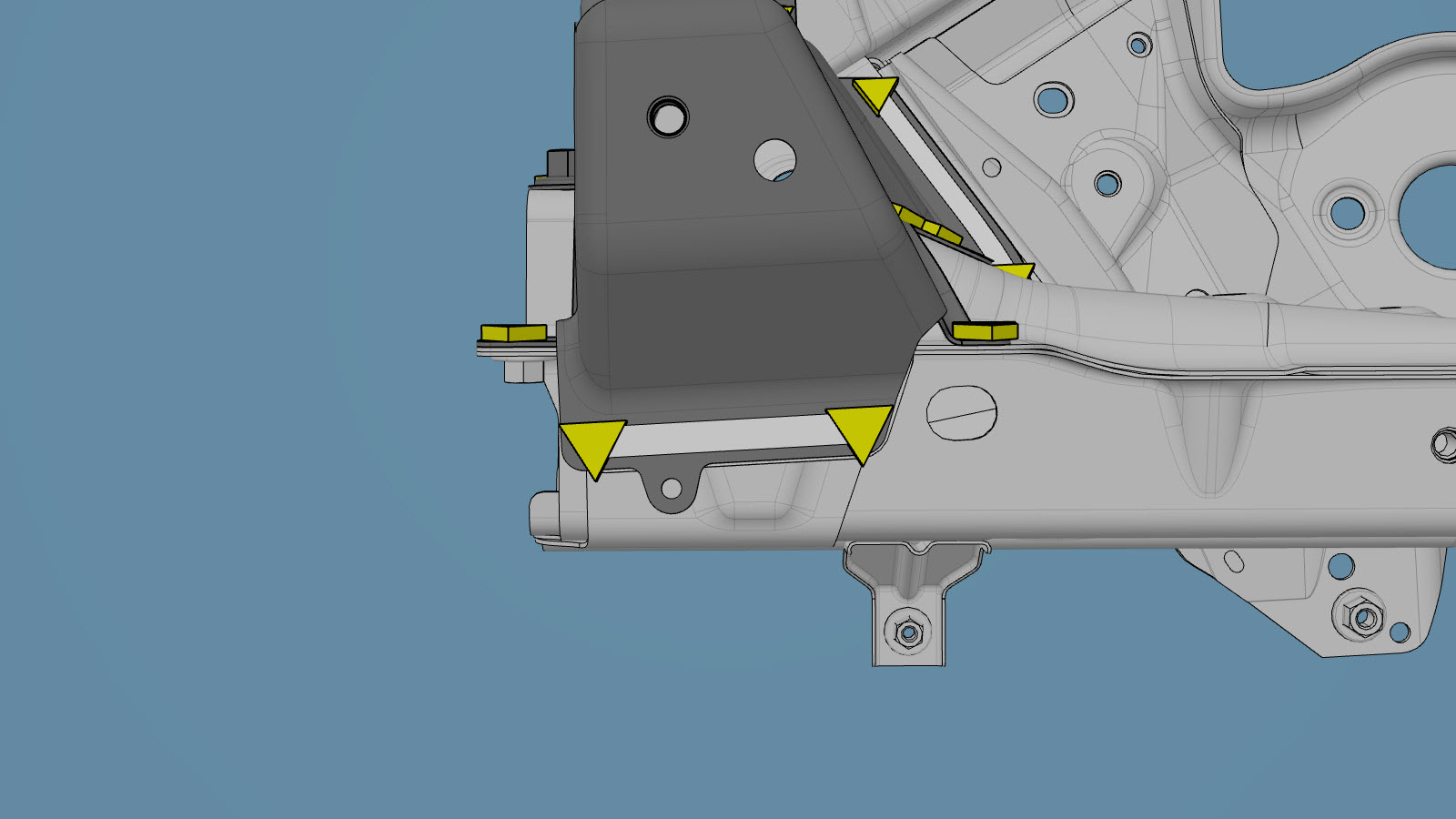

  1. Remove the original component.

    Factory Spot Weld

    Bolt

  2. Prepare for installation.

    High Strength Structural Rivet, 6.5 mm

    or Flow Form Rivets, S18

    or Flow Form Rivets, S38

    or Flow Form Rivets, S48

    Steel Plug Weld
    Informational PurposesAn informational icon, calling your attention
    Note
    Drill a 10 mm. hole in each plug weld installation location.

    Installation Spot Weld

    Bolt

  3. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  4. Install the new component or components.
    Informational PurposesAn informational icon, calling your attention
    Note
    Torque the bolt to 35 Nm.
  5. Perform resistance spot welding.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  6. Plug weld the steel areas.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to Approved Gas Metal Arc (GMA) Welders and Welding Wire for information on approved GMA welders and welding wire.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  7. Install the new Fender and Lamp Support Bracket.
  8. Perform any necessary post-repair operations.
