Korrigeringskode 18301200 1.32 MERK: Hvis ikke noe annet er uttrykkelig oppgitt i prosedyren, gjenspeiler korrigeringskoden og FRT oppgitt ovenfor, alt arbeidet som kreves for å gjennomføre denne prosedyren, inkludert de tilknyttede prosedyrene. Ikke stable korrigeringskoder med mindre du bli uttrykkelig bedt om det. MERK: Se Flat rate-tider for å lære mer om FRT-er og hvordan de lages. MERK: Se Personlig beskyttelse for å forsikre deg om at du bruker riktig PVU når du gjennomfører prosedyren nedenfor. MERK: Se Forholdsregler for ergonomi for trygge og sunne arbeidspraksiser.

1. Open LH front door



2. Lower LH front window



3. Raise and support vehicle







4. Open hood
   Merk

   Press "Open" button on touchscreen to release latch, Lift lid manually





5. Remove rear apron
   Merk

   12x clips, Only store rear apron visible face upwards









6. Remove cabin intake upper duct assembly
   Merk

   3x clips, Some configurations may come with 4x clips







7. Remove closeout panel from frunk assembly
   Merk

   4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect switch





8. Remove bolts securing frunk assembly
   Merk

   7x bolts, 10mm, 5 Nm



9. Remove frunk assembly from vehicle
   Merk

   12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles









10. Connect to vehicle using Toolbox
    Merk

    Vehicle connection is integrated into drivers footwell cover, Navigate to https://toolbox.teslamotors.com and establish connection to vehicle, Select connection status icon at top right corner then select connect locally, Icon will turn green when connected, Successful connection will automatically unlock vehicle gateway and place UI in Service Mode Plus, If RJ45 ethernet diagnostic connector present connect directly from laptop using an RJ45 Ethernet cable, For local connection issues with Toolbox refer to https://toolbox.teslamotors.com/articles/43695







11. Select ‘Actions/Autodiag’ and search for ‘Thermal’



12. Perform "Start Thermal Fluid Fill/Drain (Coolant only)" in Toolbox
    Merk

    Click "Run" and allow routine to complete. Select ‘X’ at top right of window to close once complete, Verify vehicle is in Series via Garage > Vitals > Thermal tab > Coolant loops, Thermal Fluid Fill/Drain routine has a 5 hour limit, After 5 hours routine must be performed again





13. Disconnect active grille shutter actuator connector
    Merk

    1x connector, Disengage locking tab



14. Remove ambient temperature sensor cover from active grille shutter



15. Disconnect ambient temperature sensor connector
    Merk

    1x connector



16. Release clip securing front harness to frunk reinforcement bracket
    Merk

    1x clip



17. Remove bolts securing frunk reinforcement bracket
    Merk

    2x bolts, 10mm, 16 Nm



18. Remove frunk support beam from cooling fan module assembly
    Merk

    Slide the frunk support beam towards rear of vehicle



19. Raise vehicle fully and lower lift onto locks
    Merk

    Set vehicle to comfortable working height, Ensure an audible click of locks on both sides is heard before lowering, Vehicle may tilt to the side if both locks are not engaged





20. Remove outer fasteners securing front aero shield
    Merk

    9x bolts, 10mm, 5 Nm



21. Remove front aero shield
    Merk

    2x nuts, 15mm, 5 Nm





22. Remove clips securing LH front wheel liner to lower valance
    Merk

    3x push clips



23. Remove nut securing lower valance to LH side of inner fascia
    Merk

    1x nut, 10mm, 3 Nm



24. Remove clips securing RH front wheel liner to lower valance
    Merk

    3x push clips



25. Remove nut securing lower valance to RH side of inner fascia
    Merk

    1x nut, 10mm, 3 Nm



26. Release pedestrian warning harness
    Merk

    1x connector, 1x clip, Pull tab to disengage lock, Pull again release from connector, Speaker is located behind RH wheel liner, Connector access may vary depending on revision of super horn audio speaker, May require to use a pocket screw driver or miniature pick to release red locking tab covered by anti-tampering feature





27. Remove clips securing front valance to front fascia and remove front valance
    Merk

    10x push clips, 6x tabs





28. Place coolant drain container below LH front of vehicle



29. Disconnect the radiator inlet and allow coolant to drain
    Merk

    1x spring clip, Plug hose and radiator



30. Place coolant drain container below RH front of vehicle



31. Disconnect radiator outlet hose from radiator and allow coolant to drain
    Merk

    1x spring clip, Plug hose and radiator



32. Remove coolant drain container from underneath vehicle



33. Disconnect connector to cooling fan module
    Merk

    1x connector, Disconnect this after coolant hose is capped to avoid coolant damaging connector



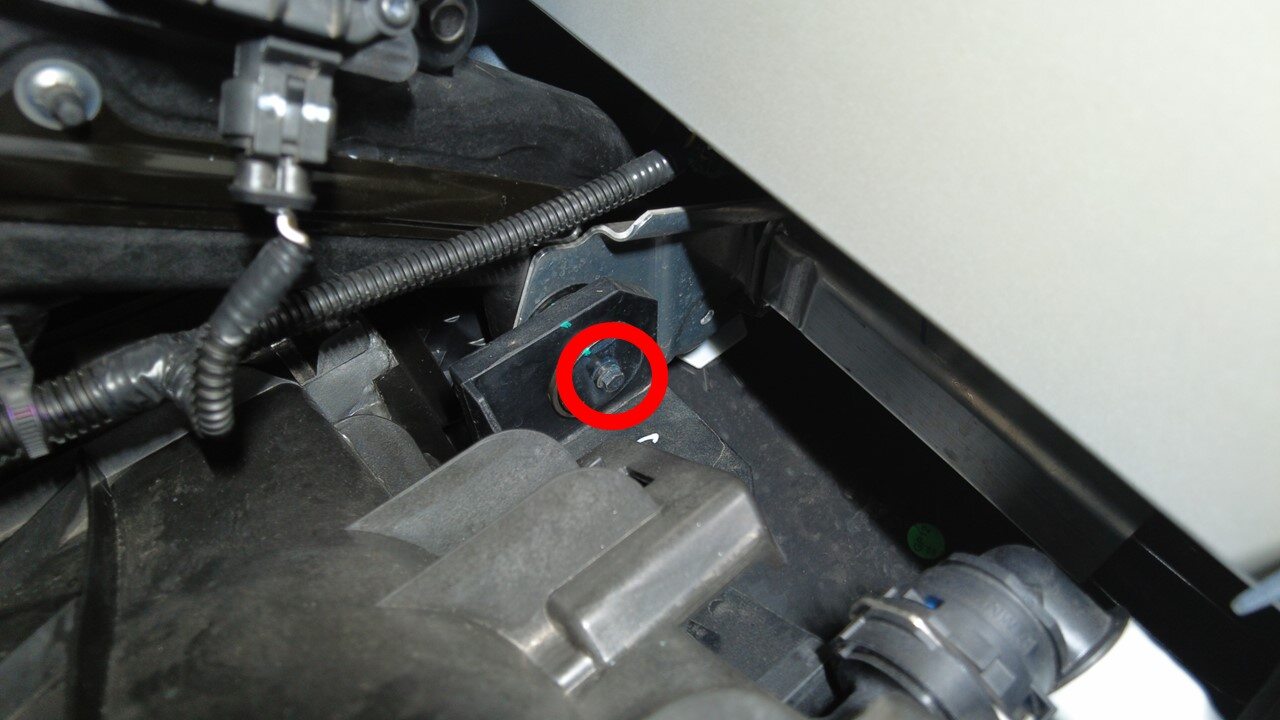

34. Remove RH bolt securing cooling fan module assembly to front end carrier
    Merk

    1x bolt, 8mm, 10 Nm, Recommend assistance to support the cooling fan module assembly



35. Remove LH bolt securing cooling fan module assembly to front end carrier
    Merk

    1x bolt, 8mm, 10 Nm, Recommend assistance to support the cooling fan module assembly



36. Remove cooling fan module assembly from vehicle
    Merk

    Recommend assistance



37. Release locking tabs securing active grill shutter to cooling fan and shroud assembly and remove active grill shutter
    Merk

    14x locking tabs









38. Release Radiator from fan shroud
    Merk

    2x tabs, 2x mounts, If stone guard is not present on new radiator then proceed to 18302500402









39. Clean debris from radiator
    Merk

    Vacuum both sides of radiator, Do not damage fins of radiator





40. Clean radiator with compressed air
    Merk

    Clean both sides of radiator with compressed air, Do not damage fins of radiator







41. Install radiator into cooling fan and shroud assembly
    Merk

    2x holding mounts, 2x locking tabs







42. Install active grill shutter to cooling fan and shroud assembly
    Merk

    14x locking tabs







43. Install cooling fan module assembly into vehicle and loosely install LH and RH bolts
    Merk

    2x bolts, 8mm, 10 Nm, Recommend assistance to support the cooling fan module assembly







44. Torque LH bolt securing cooling fan module assembly to front end carrier
    Merk

    1x bolt, 8mm, 10 Nm



45. Torque RH bolt securing cooling fan module assembly to front end carrier
    Merk

    1x bolt, 8mm, 10 Nm, Recommend assistance to support the cooling fan module assembly



46. Position coolant drain container below RH front of vehicle



47. Install radiator outlet hose to radiator
    Merk

    1x spring clip, Remove plugs from both ends of the coolant connection, Perform push-pull-push test to make sure hose is fully seated



48. Position coolant drain container below LH front of vehicle



49. Install radiator inlet hose to radiator
    Merk

    1x spring clip, Remove plugs from both ends of the coolant connection, Perform push-pull-push test to make sure hose is fully seated



50. Remove coolant drain container from underneath vehicle



51. Install connector to cooling fan module
    Merk

    1x connector



52. Position front valance to front fascia and install clips securing front valance to front fascia
    Merk

    10x push clips, 7x tabs, Recommend assistance



53. Connect pedestrian warning harness
    Merk

    1x connector, 1x clip, Engage locking tab





54. Install nut securing lower valance to RH side of inner fascia
    Merk

    1x nut, 10mm, 3 Nm



55. Install clips securing RH front wheel liner to lower valance
    Merk

    3x push clips



56. Install nut securing lower valance to LH side of inner fascia
    Merk

    1x nut, 10mm, 3 Nm



57. Install clips securing LH front wheel liner to lower valance
    Merk

    3x push clips



58. Position front aero shield to vehicle and install nuts
    Merk

    2x nuts, 15mm, 5 Nm





59. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
    Merk

    9x bolts, 10mm, 5 Nm





60. Lower vehicle fully
    Merk

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered







61. Install frunk support beam into cooling fan module assembly
    Merk

    Position CFM mounts onto tabs on CFM



62. Install bolts securing frunk reinforcement bracket
    Merk

    2x bolts, 10mm, 16 Nm



63. Install clip securing front harness to frunk reinforcement beam
    Merk

    1x clip



64. Connect ambient temperature sensor connector
    Merk

    1x connector



65. Install ambient temperature sensor cover into active grille shutter



66. Install connector to active grille shutter actuator
    Merk

    1x connector , Engage locking tab



67. Remove coolant bottle cap
    Merk

    (*Use this step for Model 3 Heat pump vehicles)





68. Place empty coolant container into front storage area
    Merk

    (*Use step for Model 3 Heat Pump vehicles)



69. Fill container with at least 15L of coolant



70. Place filled coolant container into front storage area
    Merk

    (*Use step for Model 3 Heat Pump vehicles)



71. Place refill hose inside filled coolant container
    Merk

    Make sure hose end is fully submerged into coolant





72. Install coolant reservoir adapter cap onto coolant bottle assembly
    Merk

    (*Use step for Model 3 with Heat Pump & NV35) 1x adapter cap, Adapter found in Vacuum Refill kit, turn clockwise to tighten cap onto coolant bottle







73. Setup coolant Vacuum Refill Tool
    Merk

    Verify all valves on refill tool are in the closed position, See image for clarity







74. Connect vacuum refill hose to refill cap on coolant bottle
    Merk

    Perform push-pull-push test to verify hose is fully engaged (*Use this step for Model 3 Heat Pump vehicles)





75. Place overflow hose into empty container





76. Place refill hose inside filled coolant container
    Merk

    Make sure hose end is fully submerged into coolant





77. Connect shop air supply to coolant refill tool
    Merk

    If not already done, Verify refill valve is set to off



78. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
    Merk

    Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed





79. Slowly open coolant refill valve to allow coolant to be drawn into coolant refill hose, Close valve when hose is full of coolant
    Merk

    This purges trapped air from the hose





80. Monitor gauge for 30 seconds to verify a vacuum is maintained in cooling system



81. Reopen air inlet valve for 3 minutes to continue evacuating cooling system, then close valve





82. Slowly open refill valve to draw coolant into system
    Merk

    Valve lever is inline with hose when fully open, Make sure end of refill hose is fully submerged in container during entire process, Coolant will be transferred through hose from container to vehicle coolant reservoir, Vacuum gauge needle will move towards zero as it fills



83. When gauge reaches zero, close coolant refill valve





84. Disconnect shop air supply from coolant refill tool



85. Remove coolant refill hose from coolant container



86. Remove coolant overflow hose from waste coolant container





87. Disconnect vacuum refill hose from refill cap on coolant bottle
    Merk

    (*Use this step for Model 3 Heat Pump procedures)



88. Remove coolant refill tool from vehicle





89. Remove both coolant containers from inside underhood area
    Merk

    (*Use this step for Model 3 vehicle procedures)



90. Select ‘Actions/Autodiag’ tab and search for ‘Purge'



91. Kjør ODIN-rutine TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Service Mode:
    • Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
    • Thermal ➜ Coolant System ➜ Coolant Purge Start
    via Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
    via Toolbox:(link)
92. Inspect coolant level and top off as necessary
    Merk

    Ensure that fluid level is at Max line





93. Install coolant bottle cap
    Merk

    (*Use this step for Model 3 Heat Pump vehicles)





94. Select ‘Actions/Autodiag’ and search for ‘Thermal’



95. Select ‘Stop Thermal Fluid Fill/Drain’, click ‘Run’, and allow routine to complete
    Merk

    Select ‘X’ at top right of window to close once complete





96. Perform Thermal System Performance Test through toolbox 3
    Merk

    Select ‘Actions’ tab and search for 'Thermal System Performance Test', Select TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCE, select 'Complete inflate' click 'RUN', Select ‘X’ at top right of window to close once complete, if thermal test fails follow https://toolbox.teslamotors.com/articles/206000







97. Disconnect Toolbox from vehicle and remove laptop and diagnostics adapter ethernet harness
    Merk

    If RJ45 ethernet diagnostic connector present media converter box not required disconnect directly from laptop using an RJ45 Ethernet cable or from OBDII connection











98. Install frunk assembly to vehicle
    Merk

    12x clips, Make sure frunk assembly is fully seated onto clips, Number of clips may vary on older vehicles, Ensure A/C compressor HVIL harness is not pinched between frunk assembly and thermal beam, replace any damaged clips







99. Install bolts securing frunk assembly
    Merk

    7x bolts, 10mm, 5 Nm



100. Install frunk close out panel
     Merk

     4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align 3x tabs then push downward to secure clips





101. Install cabin intake upper duct assembly
     Merk

     3x clips, Some configurations may come with 4x clips







102. Install rear apron
     Merk

     12x clips





103. Close hood



104. Raise LH front window



105. Close LH front door
