Underhood Storage Unit (Remove and Replace)

Correction code 15240702 0.12 NOTA: Salvo diversa ed esplicita indicazione nella procedura, il codice modifica e il tempo forfettario, o FRT, riflettono tutto il lavoro richiesto per l'esecuzione di questa procedura, incluse le procedure collegate. Non cumulare i codici modifica a meno che non venga detto esplicitamente di farlo. NOTA: Consultare la Tempistica tariffe fisse per saperne di più sui tempi forfettari e su come essi vengono creati. NOTA: Consultare Protezione personale per assicurarsi di indossare i DPI adatti quando si esegue la procedura descritta di seguito. NOTA: Vedere per le pratiche di lavoro in sicurezza.

  • 2023-04-04: Added check for proper routing of and possible damage to HVIL harness branch.

Torque Specifications

Table 1. Torque Specifications: Underhood Storage Unit (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Underhood storage unit to body fasteners
5 Nm (3.7 lbs-ft)
  • 10 mm socket
Reuse

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Remove the underhood storage unit access panel. See #GUID-47E22130-D127-42A9-85BE-6909652DEC6D.
  3. Remove the underhood storage unit carpet.
  4. Remove the bolts that attach the underhood storage unit to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  5. Release the clip that attaches the underhood storage unit to the washer fluid reservoir neck.
  6. Release the clips (x4) that attach the underhood storage unit to the vehicle, and then remove the underhood storage unit from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any broken or missing clips, if reinstalling the same underhood storage unit.
  7. Inspect the HVIL harness branch of the A/C compressor HV harness.
    1. Make sure that the harness does not rest on the shock tower brace where it crosses over to the connector on the LH shock tower.
      Figure 1. Harness improperly routed over the shock tower brace
    2. Inspect the condition of the HVIL harness that it has not been crushed and insulation worn to expose the bare wire.
      Figure 2. Harness crushed
      Figure 3. Insulation worn
    3. If a wire has been damaged, perform an electrical harness repair as a separate activity. Refer to the Service Documents page for more information.
      Warning IconA warning icon, calling your attention to a possibly risky situation
      CAUTION
      Make sure there is sufficient slack in the repaired harness so that there is no stress in the connector on the LH shock tower.
  8. If the same underhood storage unit is to be reinstalled, this procedure is finished. If a new underhood storage unit is be installed, continue to the next step.

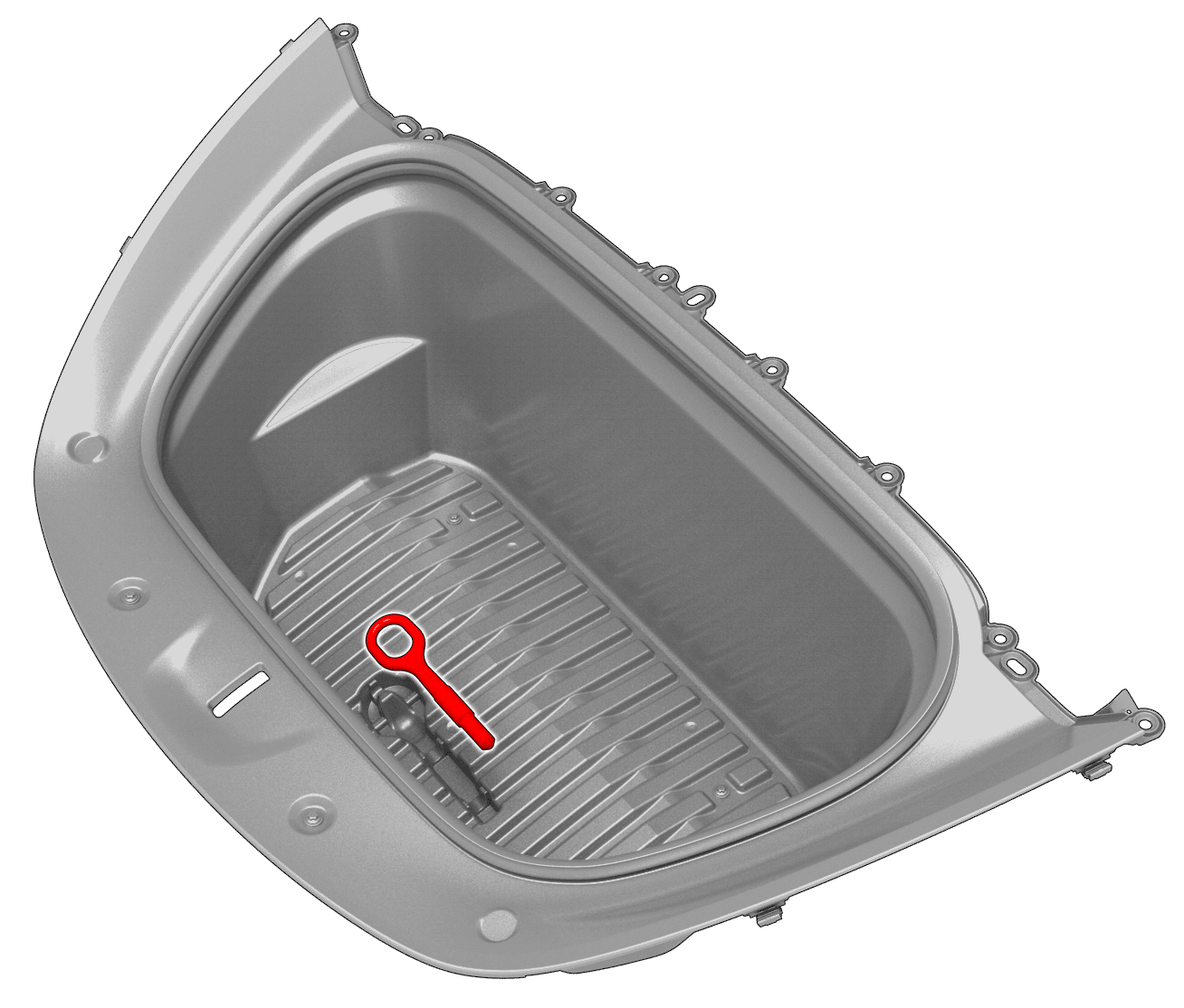

  9. Remove the tow hook from the underhood storage unit.

Install

  1. If the same underhood storage unit removed is being installed, skip to step 3. If a new underhood storage unit is being installed, continue to the next step.
  2. Install the tow hook into the underhood storage unit.
  3. Make sure that the HVIL harness branch of the A/C compressor HV harness is properly routed away from and does not rest upon the shock tower brace.
    Figure 4. Harness properly routed away from the shock tower brace
  4. Install the underhood storage unit into the vehicle, and then fasten the clips (x4) that attach the underhood storage unit to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that all clips for the underhood storage unit are engaged.
  5. Fasten the clip that attaches the underhood storage unit to the washer fluid reservoir neck.
  6. Install the bolts (x4) that attach the underhood storage unit to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  7. Install the underhood storage unit carpet.
  8. Install the underhood storage unit access panel. See #GUID-47E22130-D127-42A9-85BE-6909652DEC6D.
  9. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
