车门安装环外件

Parts List

Quantity Description Image / Notes

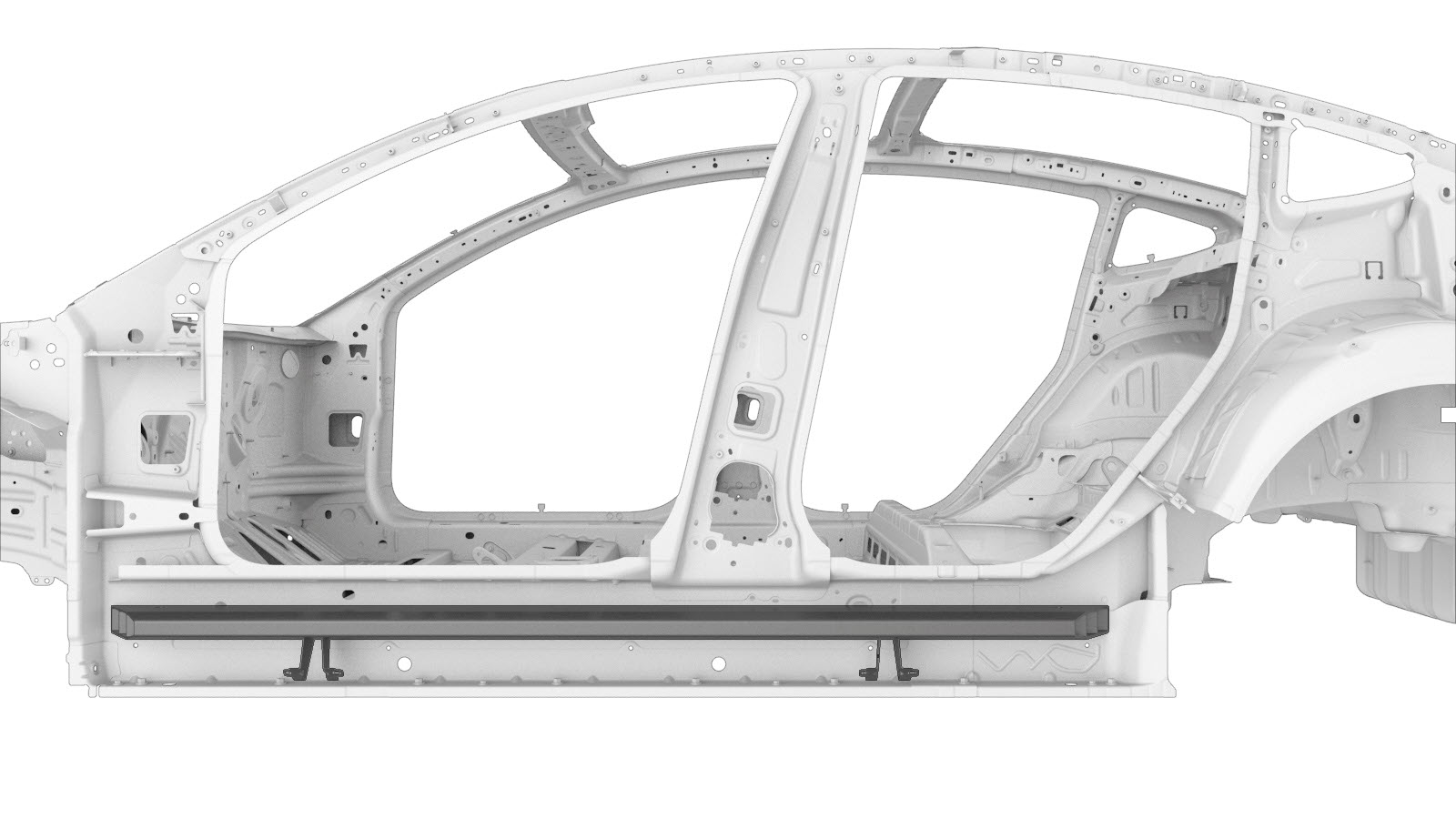

1 ASY - DOOR RING OUTER（车门安装环外件）

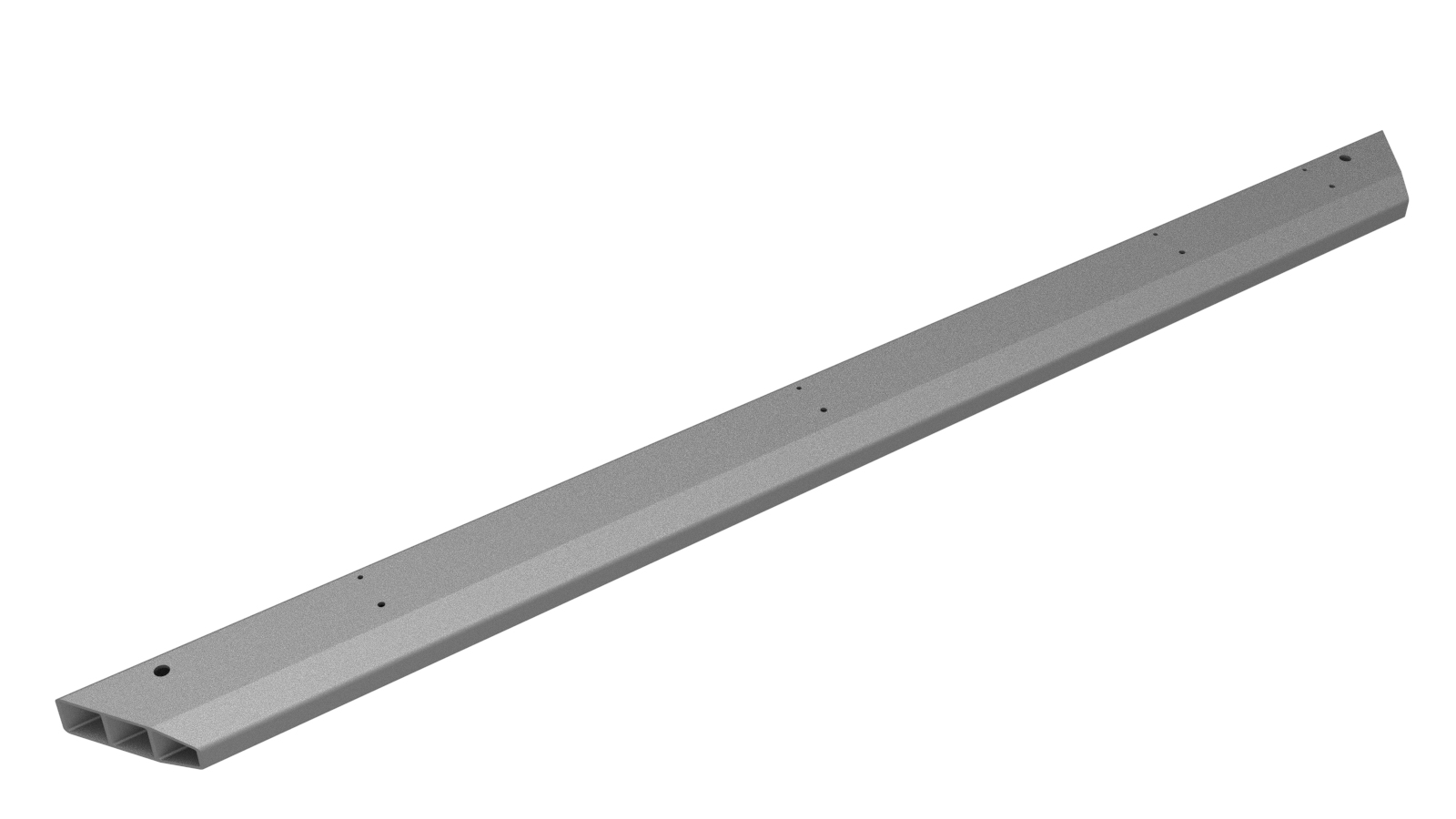

1 侧门槛插件

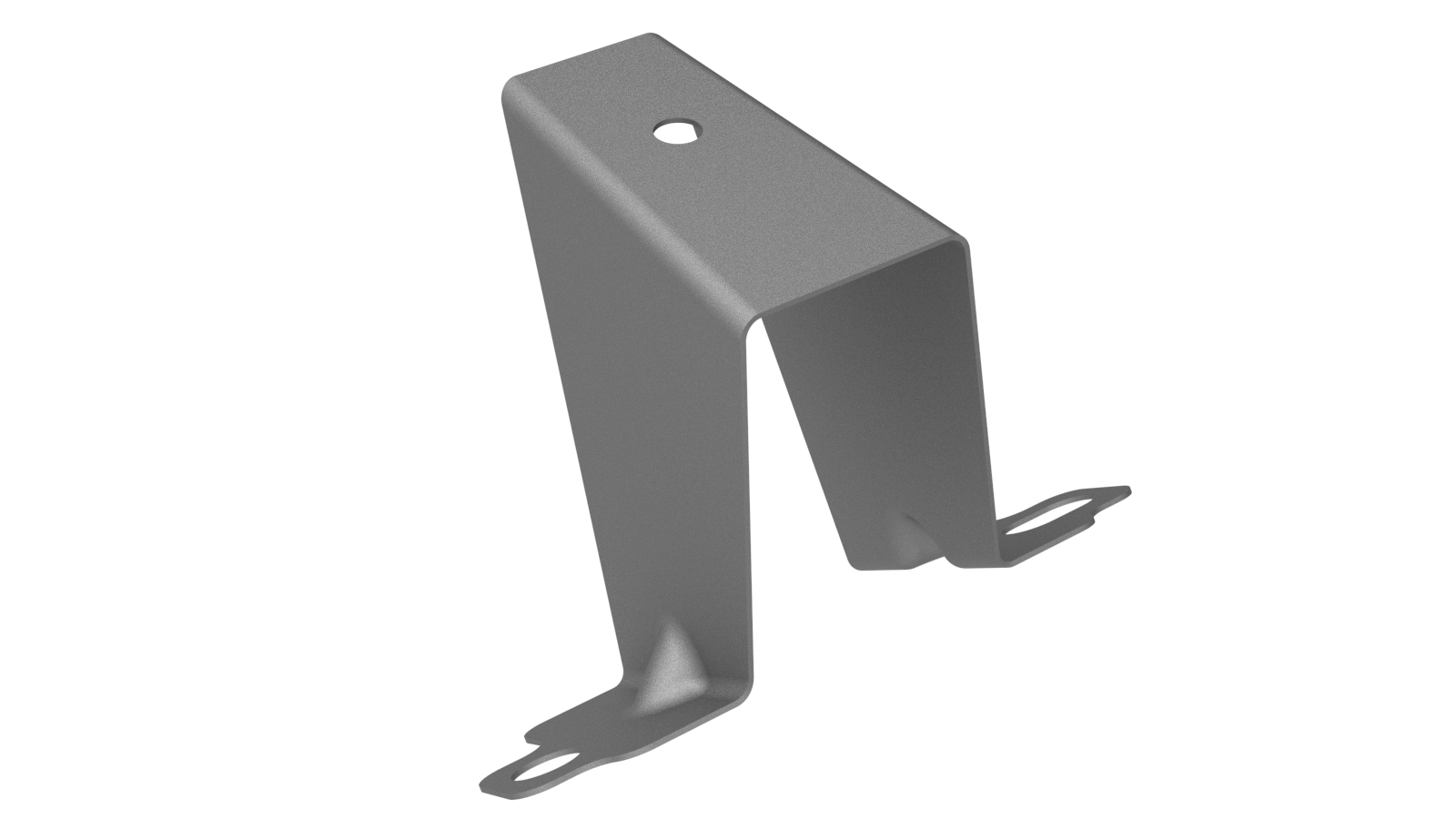

2 支架 - 门槛插件安装支架
4 High Strength Structural Rivet, 6.5 mm
3 Countersunk Rivet, 4.8 mm Short
14 Rivet, 4.8 mm
4 Flow Form Rivet S28
4 Bolt , BOLT HH M8X29 109 G1009 B M Tesla 零件号 1623708-00-A。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

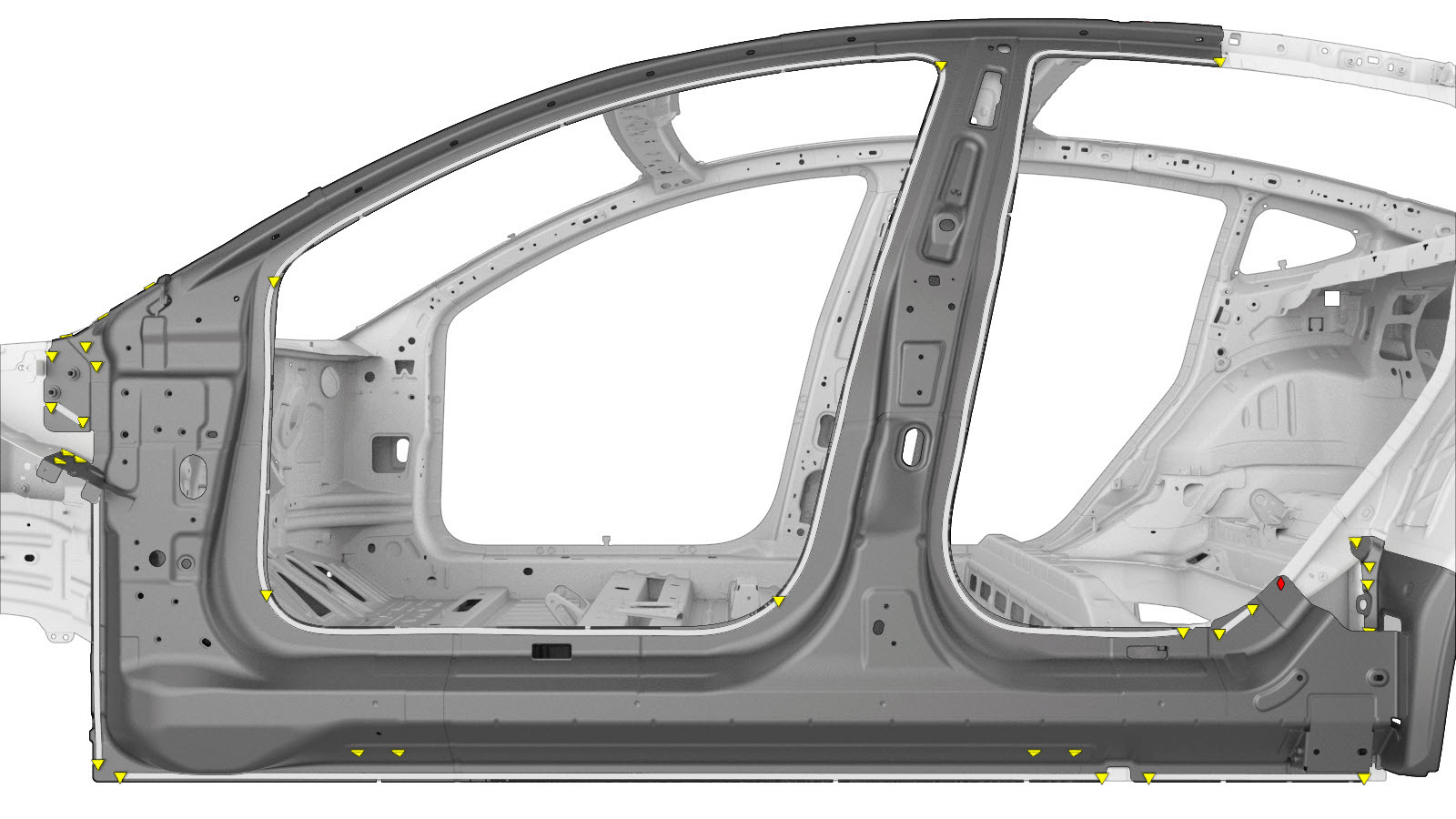

  1. 拆下车身侧外件的必要部分，露出要更换的底层组件。
  2. 拆卸 前排座位外侧
  3. 拆下C 柱加固件。
  4. 拆下车顶纵梁加长板。
  5. Remove the original component.

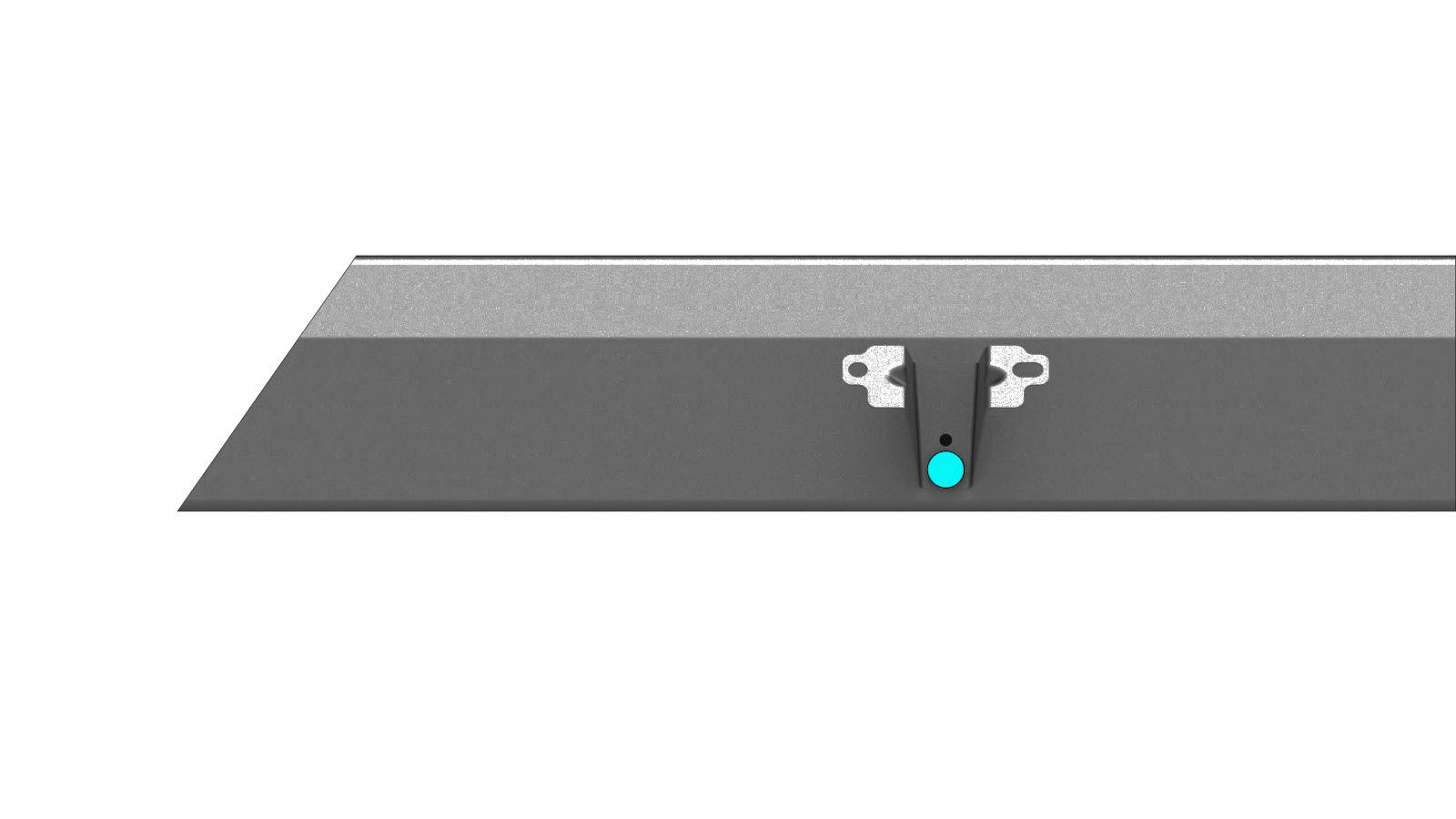

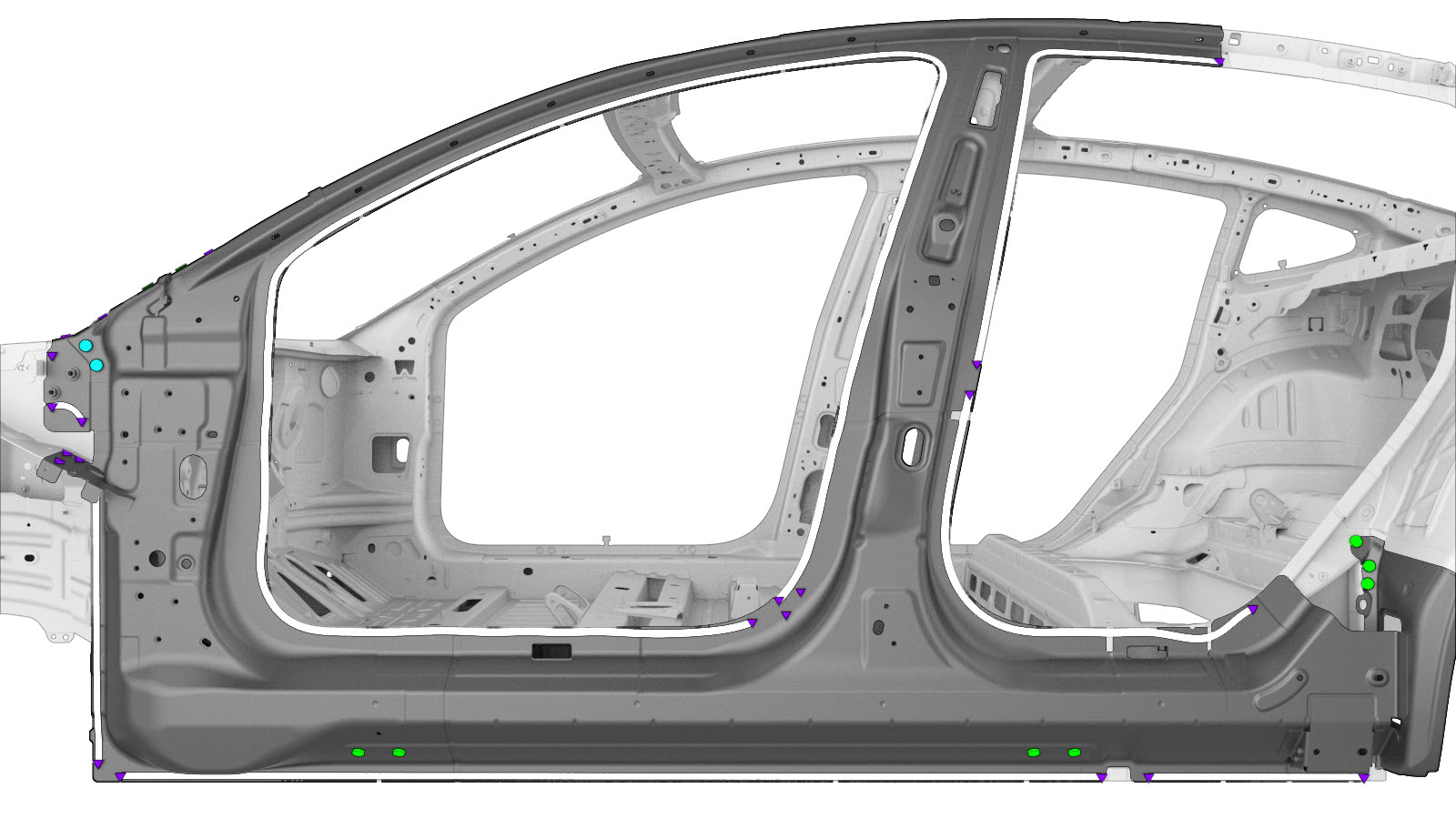

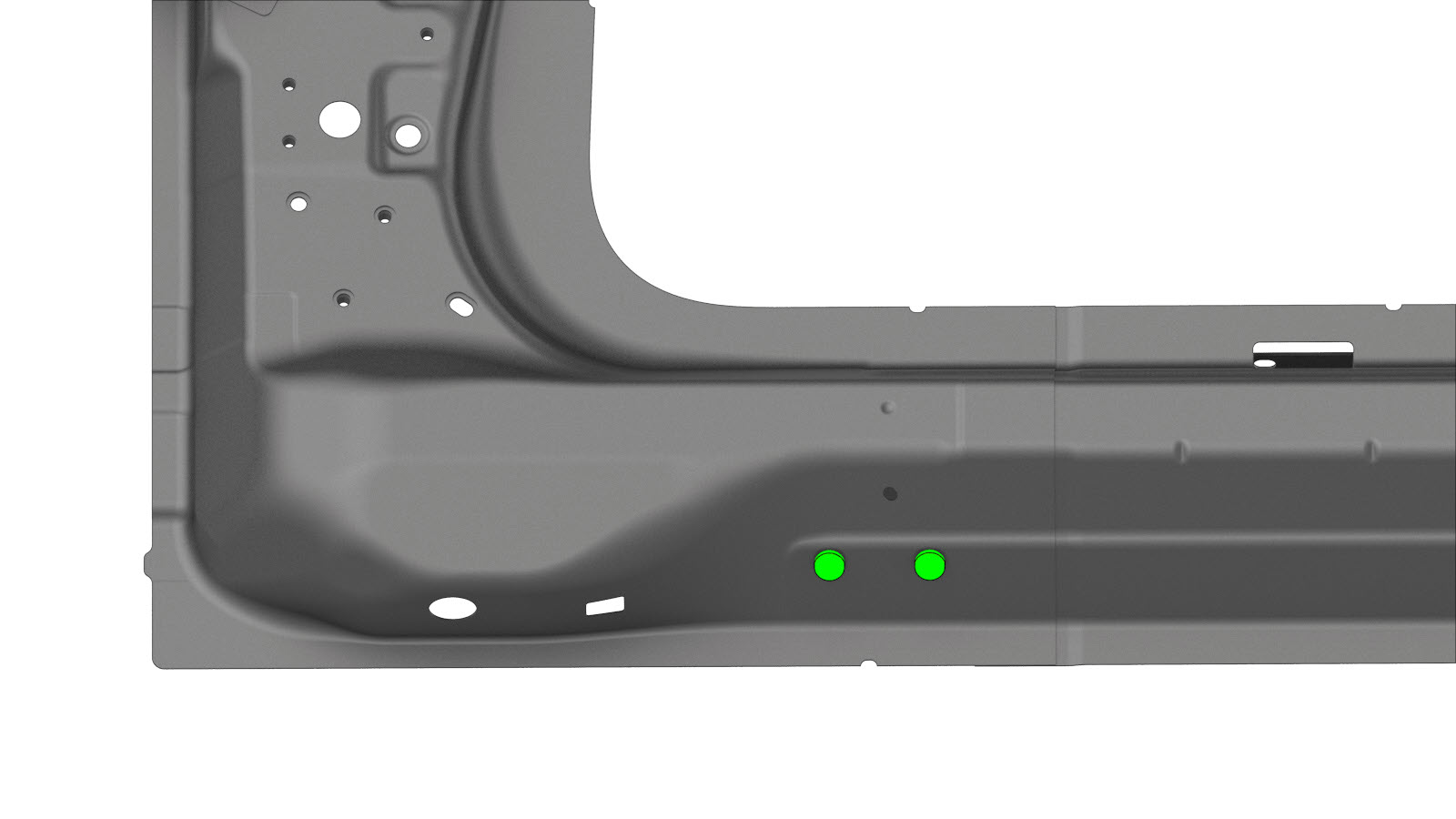

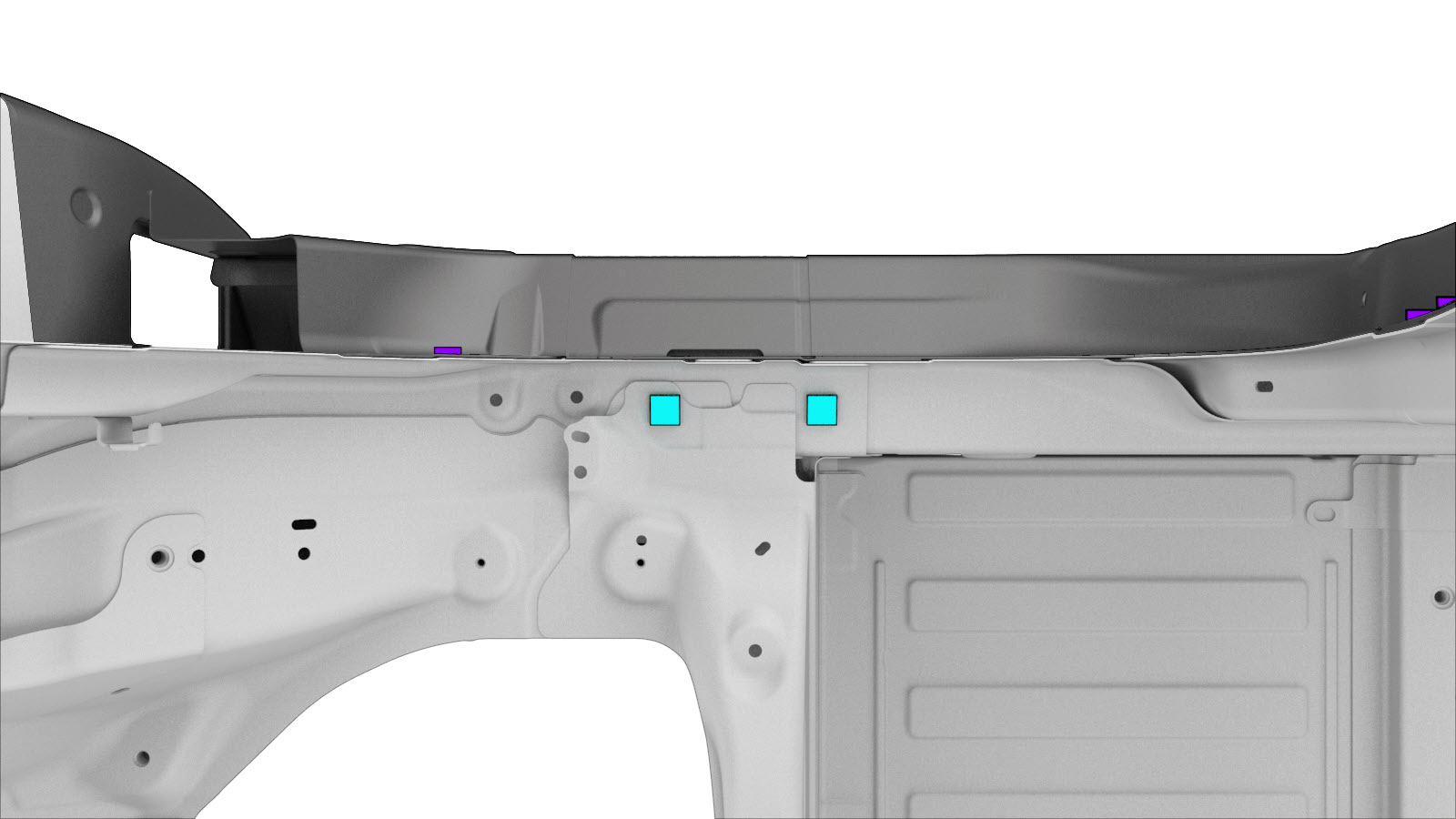

    or Factory Spot Welds

    or Factory SPRs

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

    or Bolts

  6. 拆卸门槛插件。
  7. 如下所示，在新门槛插件上，为门槛插件安装支架标记中线。
    Informational PurposesAn informational icon, calling your attention
    注

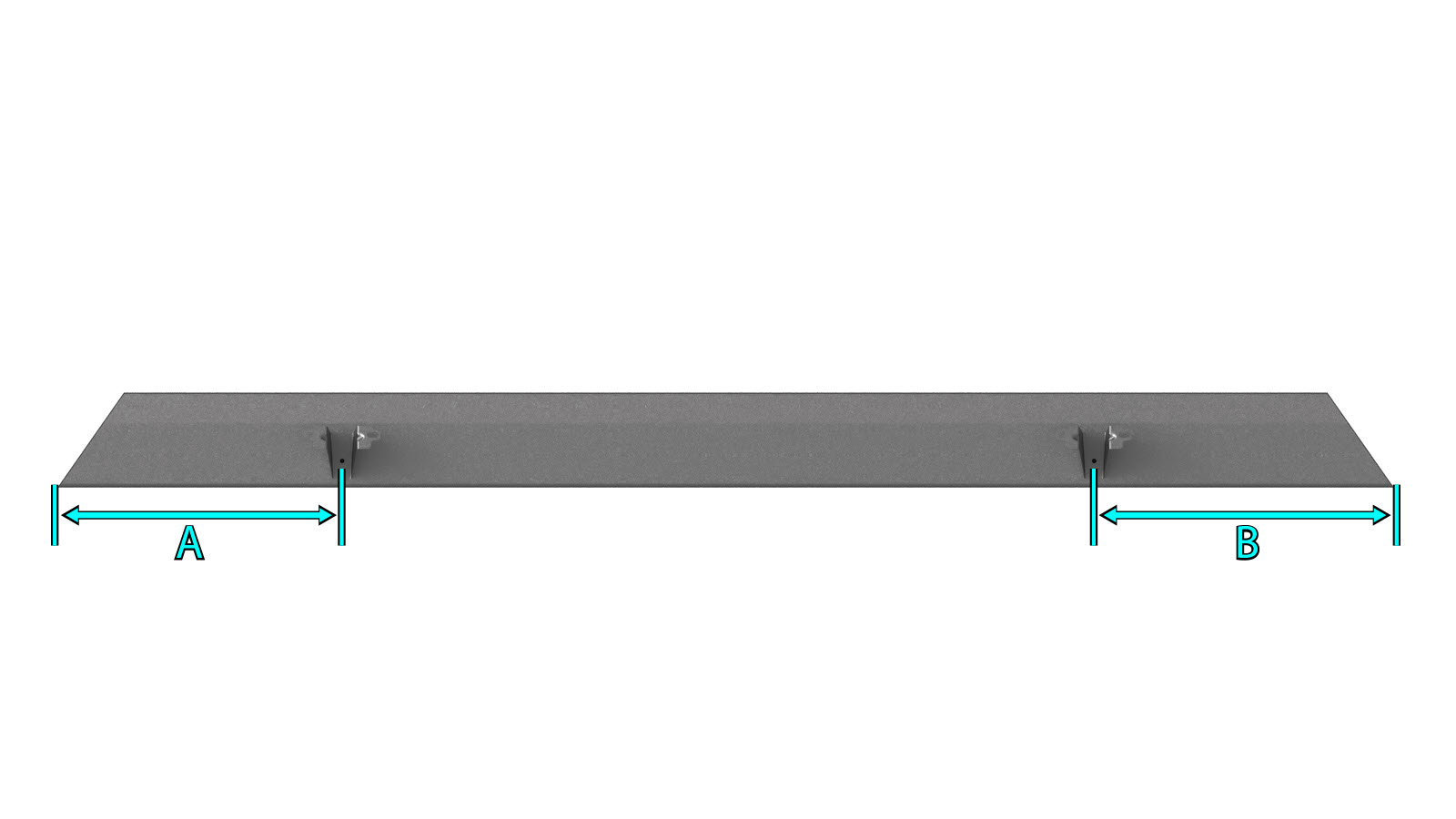

    测量值以门槛插件的末端为起点，至门槛插件安装支架的中心为止。
    • A = 399 毫米。
    • B = 420 毫米。
  8. 标记新门槛外件以表明新门槛插件的位置。

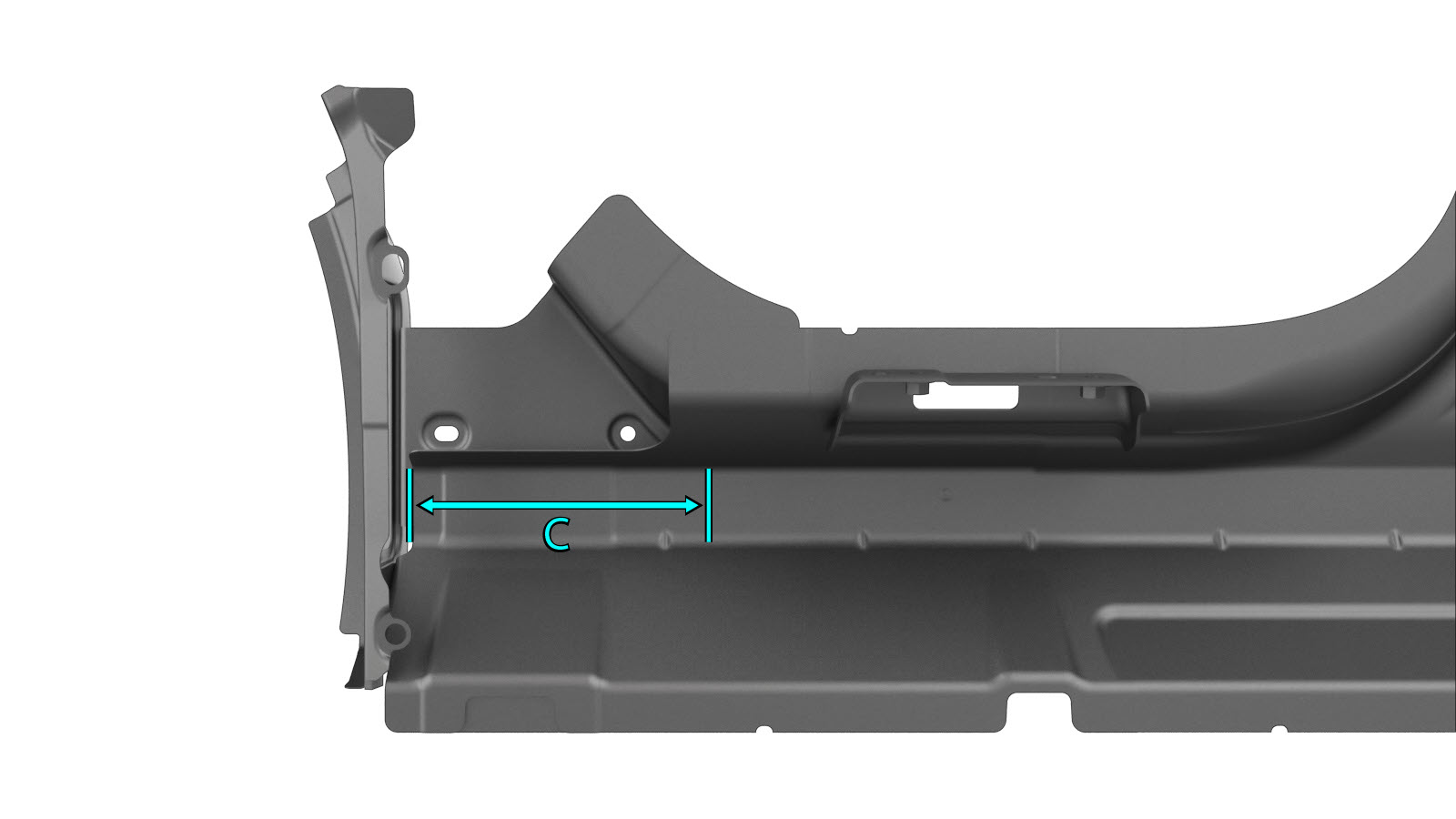

    • C = 177 毫米。
  9. 借助之前绘制的支架中线，将门槛插件安装支架置于门槛插件和车门安装环外件之间，然后调整各个支架，使其同车门安装环外件相接触。
  10. 做好准备工作，以便在新门槛插件上安装安装支架。

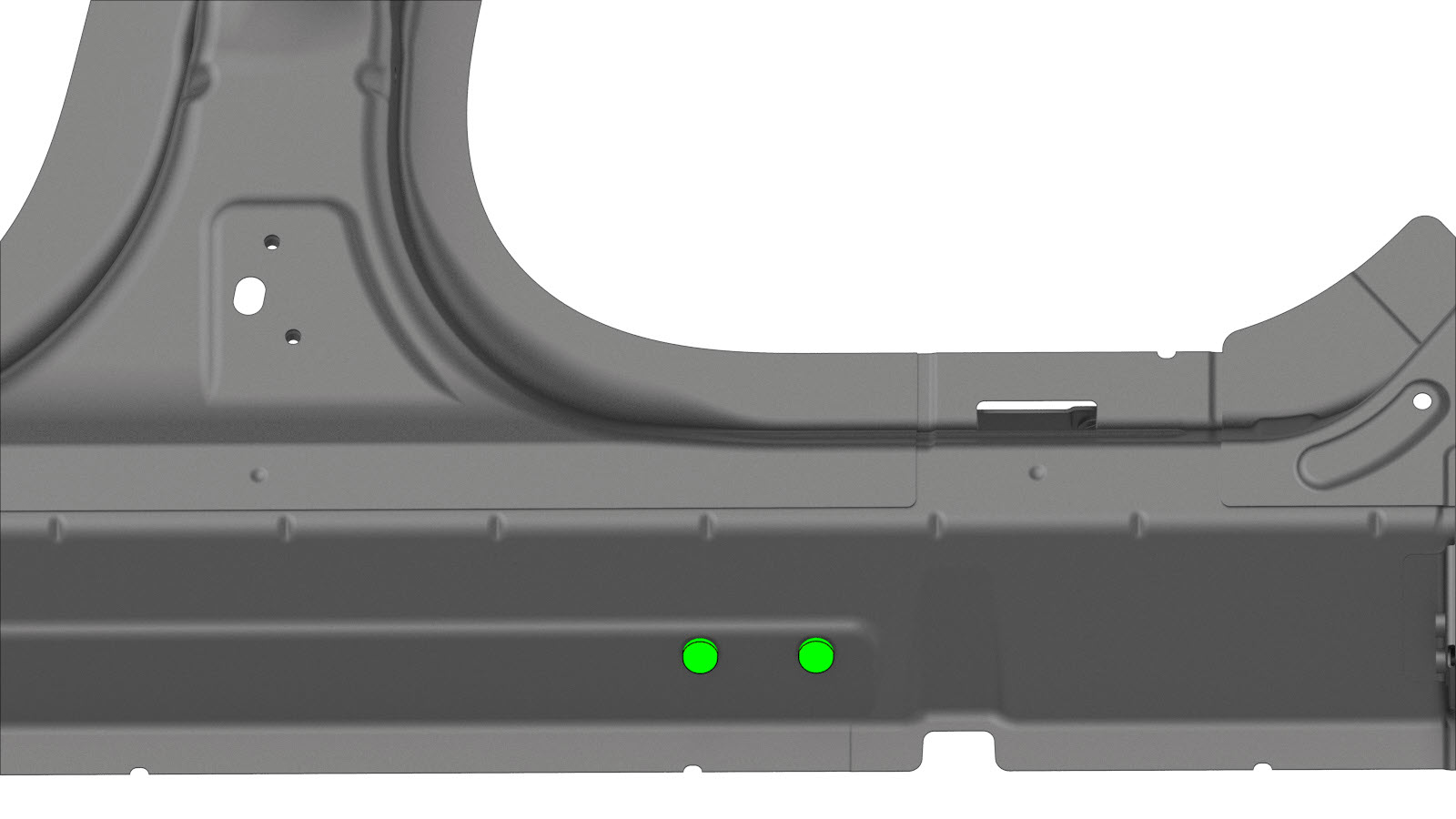

    or High Strength Structural Rivets, 6.5 mm
  11. 在新门槛插件和新门槛插件安装支架的接合面涂抹结构型粘合剂。
  12. 将新门槛插件安装支架安装到新门槛插件上。
  13. 做好准备工作，以便在新门槛外件上安装新门槛插件。

    or Rivets, 4.8 mm

  14. 在新门槛插件、新门槛插件安装支架和车门安装环外件的接合面涂抹结构型粘合剂。
  15. 在车门安装环外件总成的新门槛外件部分安装新的门槛插件。
  16. 做好准备工作，以便安装新的车门安装环外件。
    Informational PurposesAn informational icon, calling your attention
    注

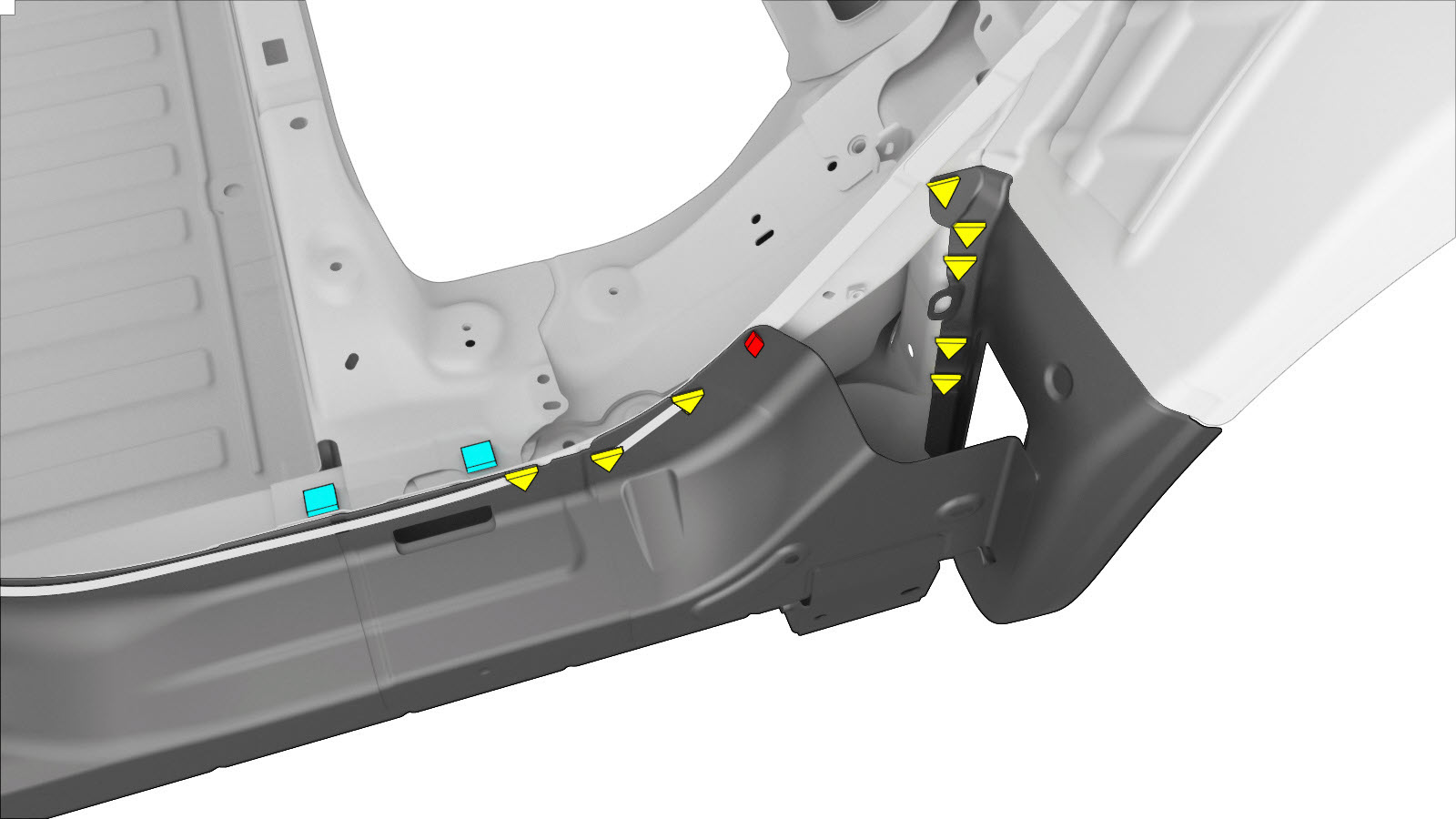

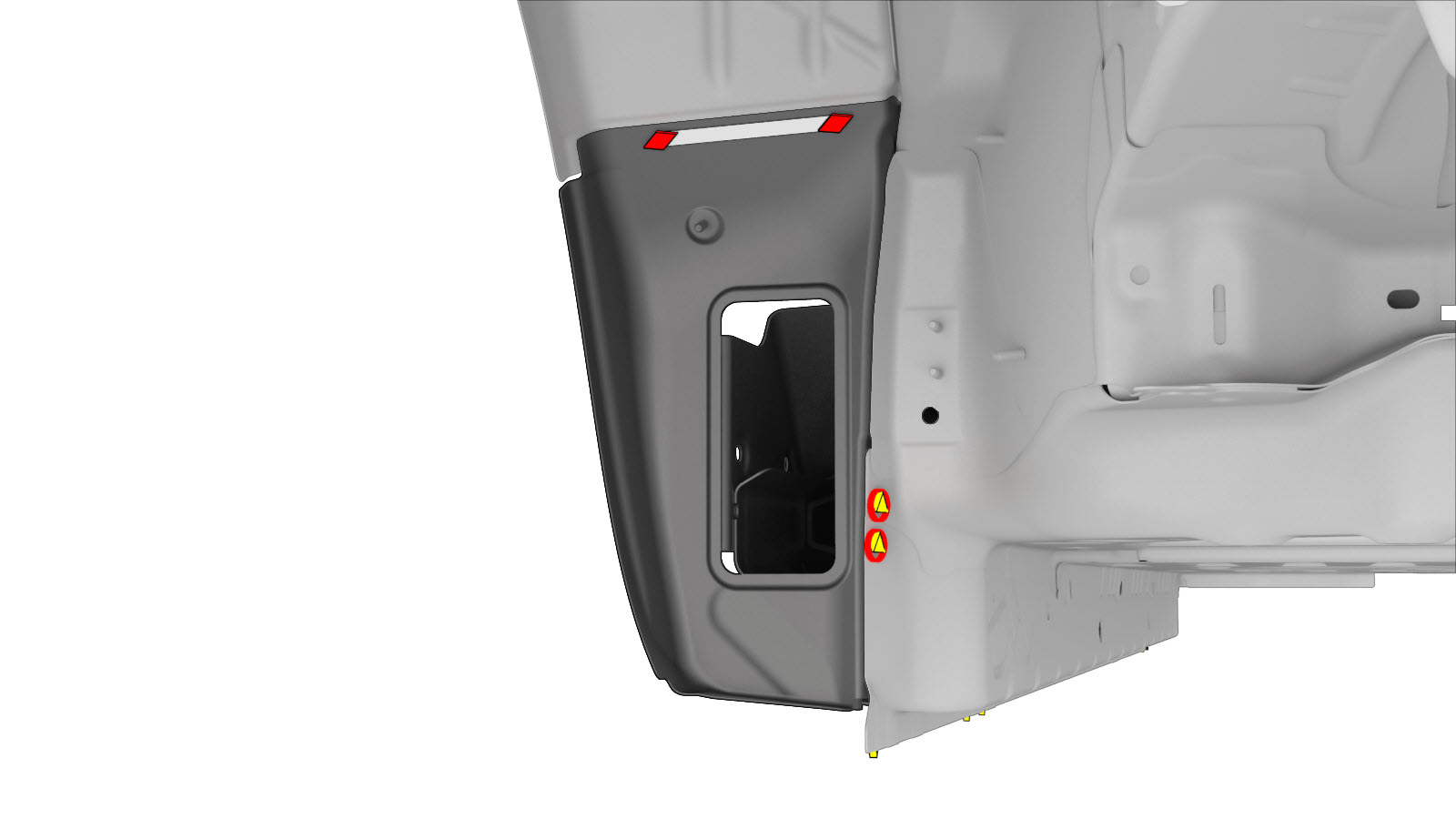

    A red X indicates a location where a factory-installed fastener is not being replaced.

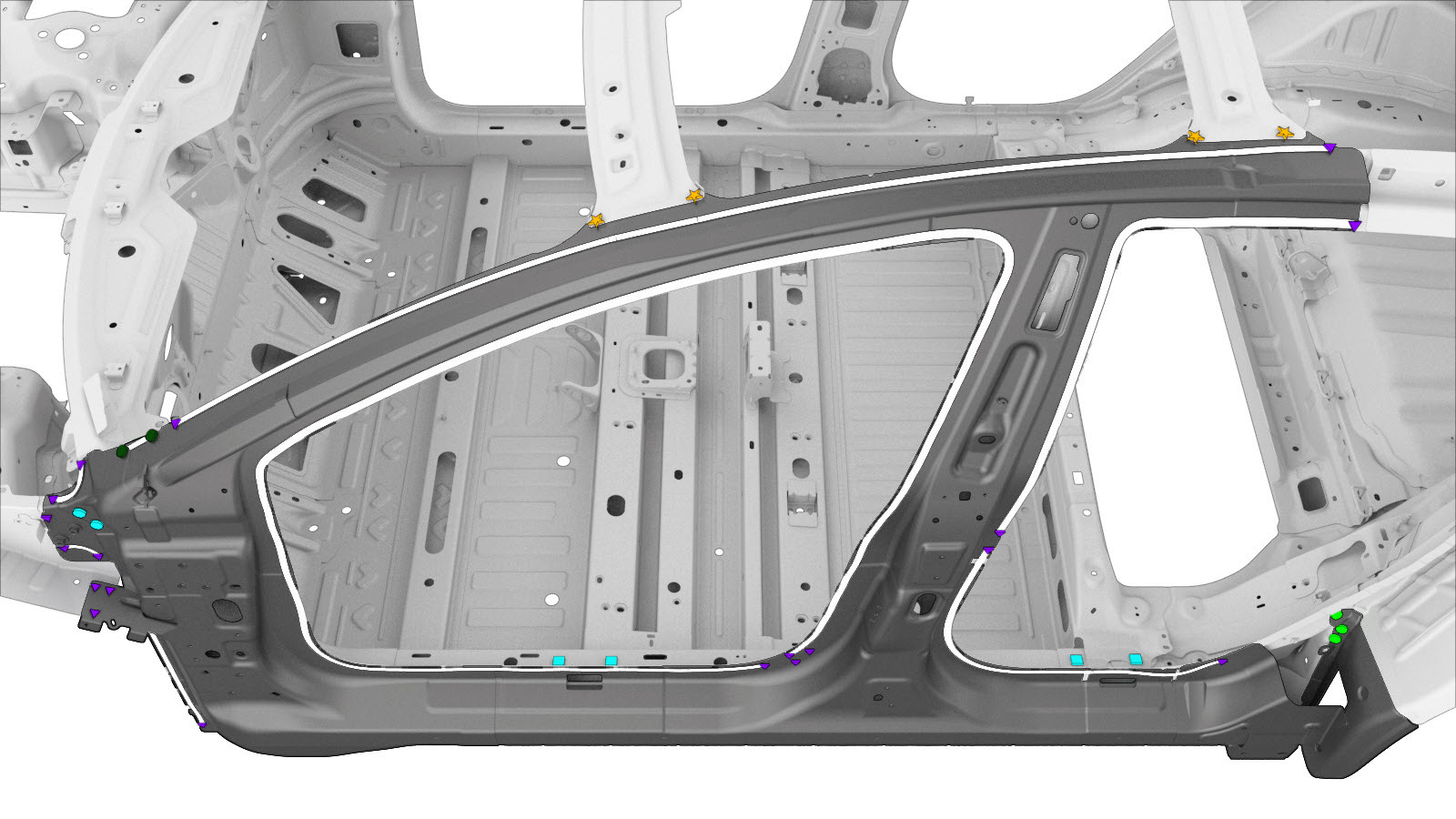

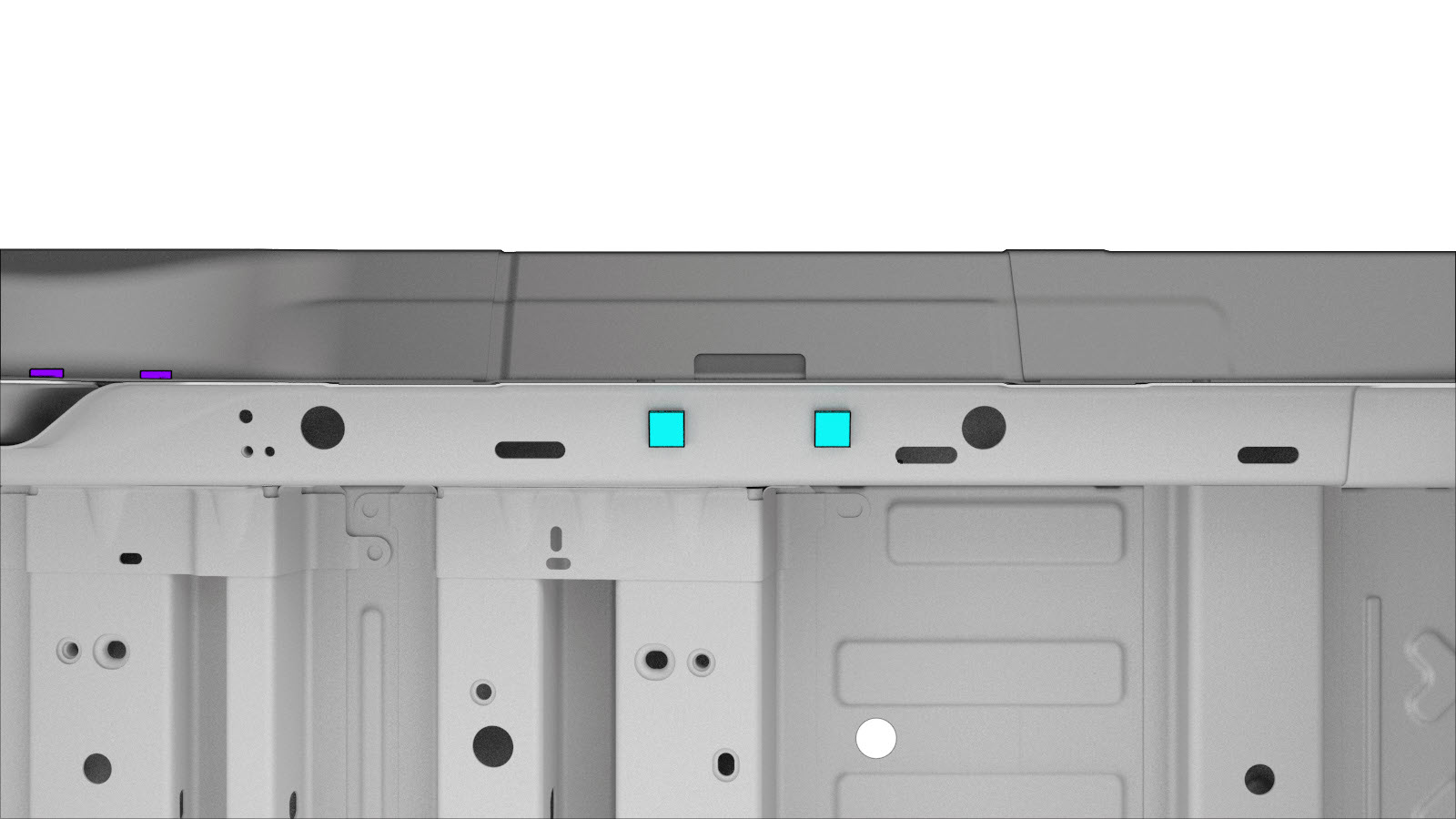

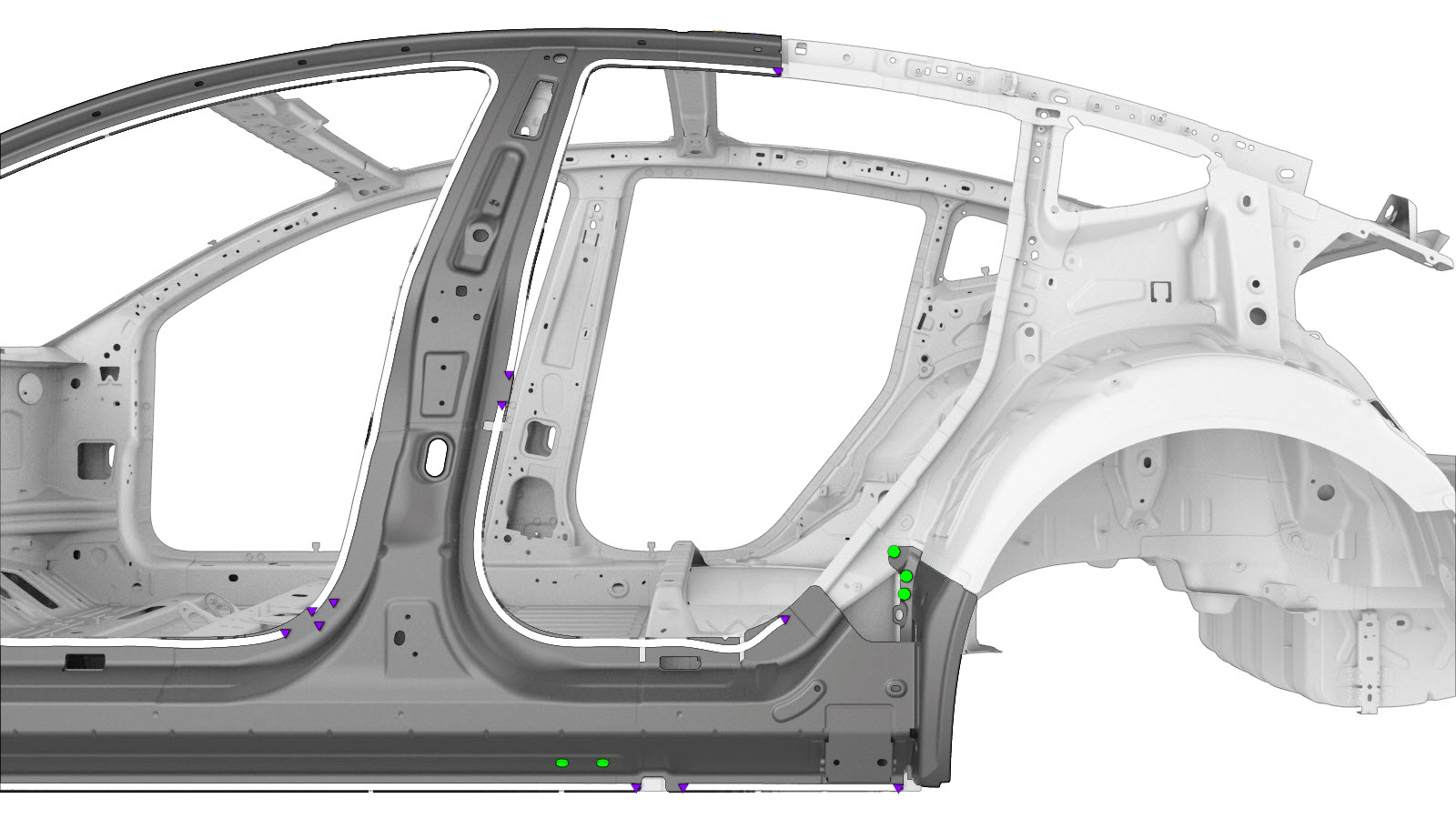

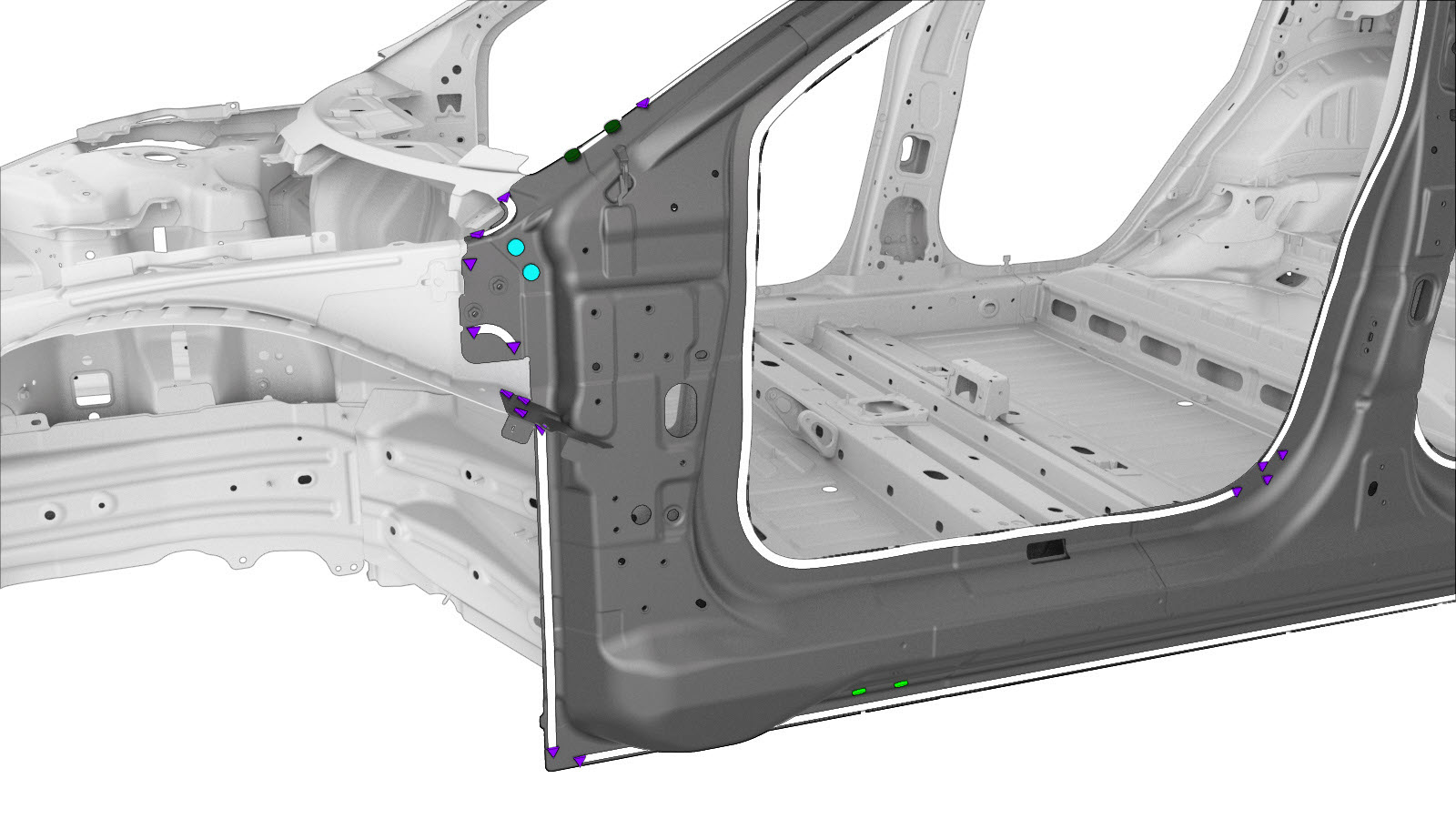

    or Installation Spot Welds

    or High Strength Structural Rivets, 6.5 mm

    or Countersunk Rivets, 4.8 mm Short

    or Rivets, 4.8 mm

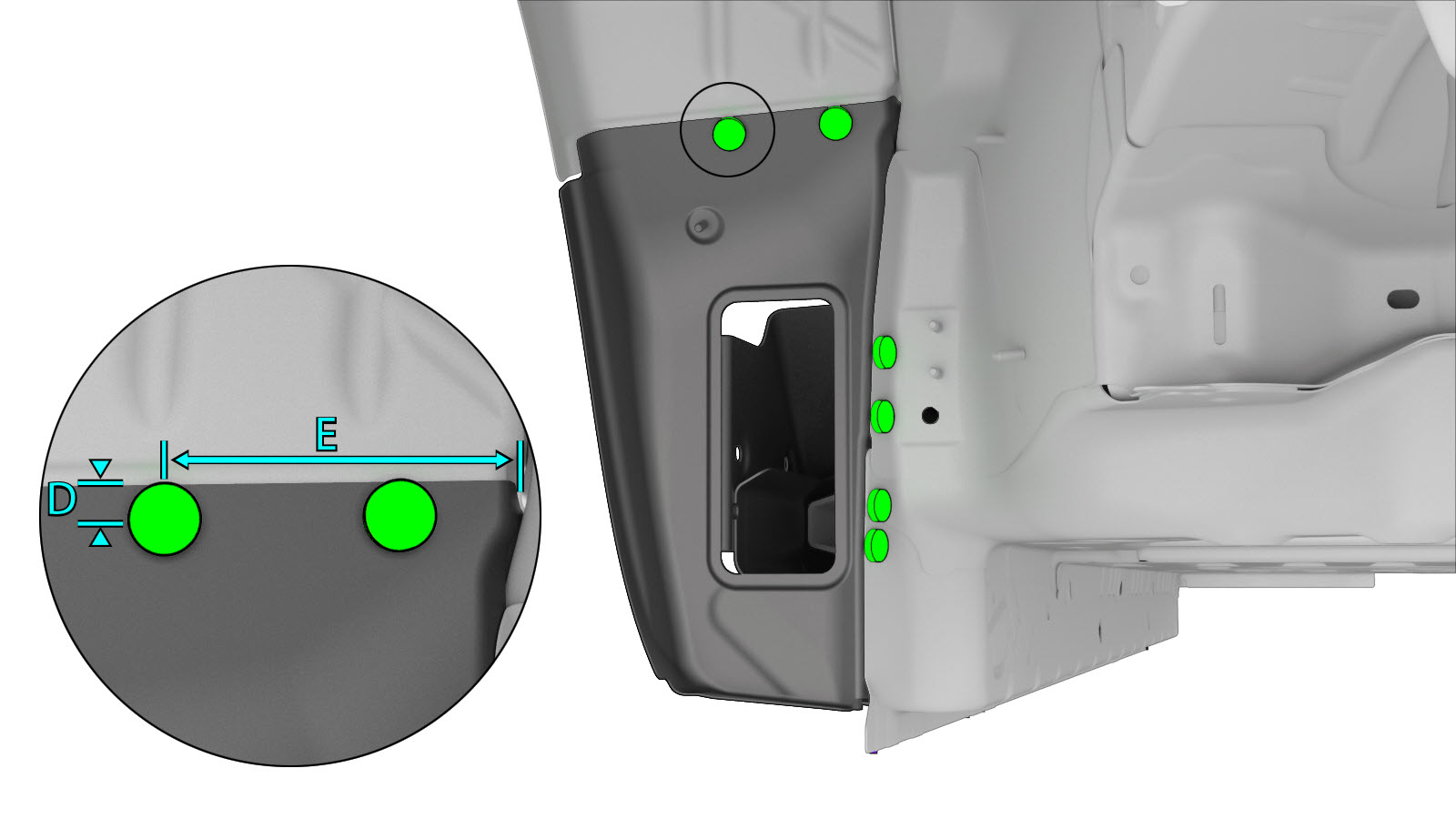

    • D = 9 毫米。
    • E = 96 毫米。

    or Flow Form Rivets, S28

    or Bolts

  17. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  18. Install the new component or components.
    将这些螺栓拧紧至 19 Nm。
  19. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  20. 安装车顶纵梁加长板。
  21. 安装C 柱加固件。
  22. 安装先前为露出更换组件而拆下的车身侧外件的必要部分。
  23. 安装 前排座位外侧
  24. Perform any necessary post-repair operations.
