后弹簧和副框架支座
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

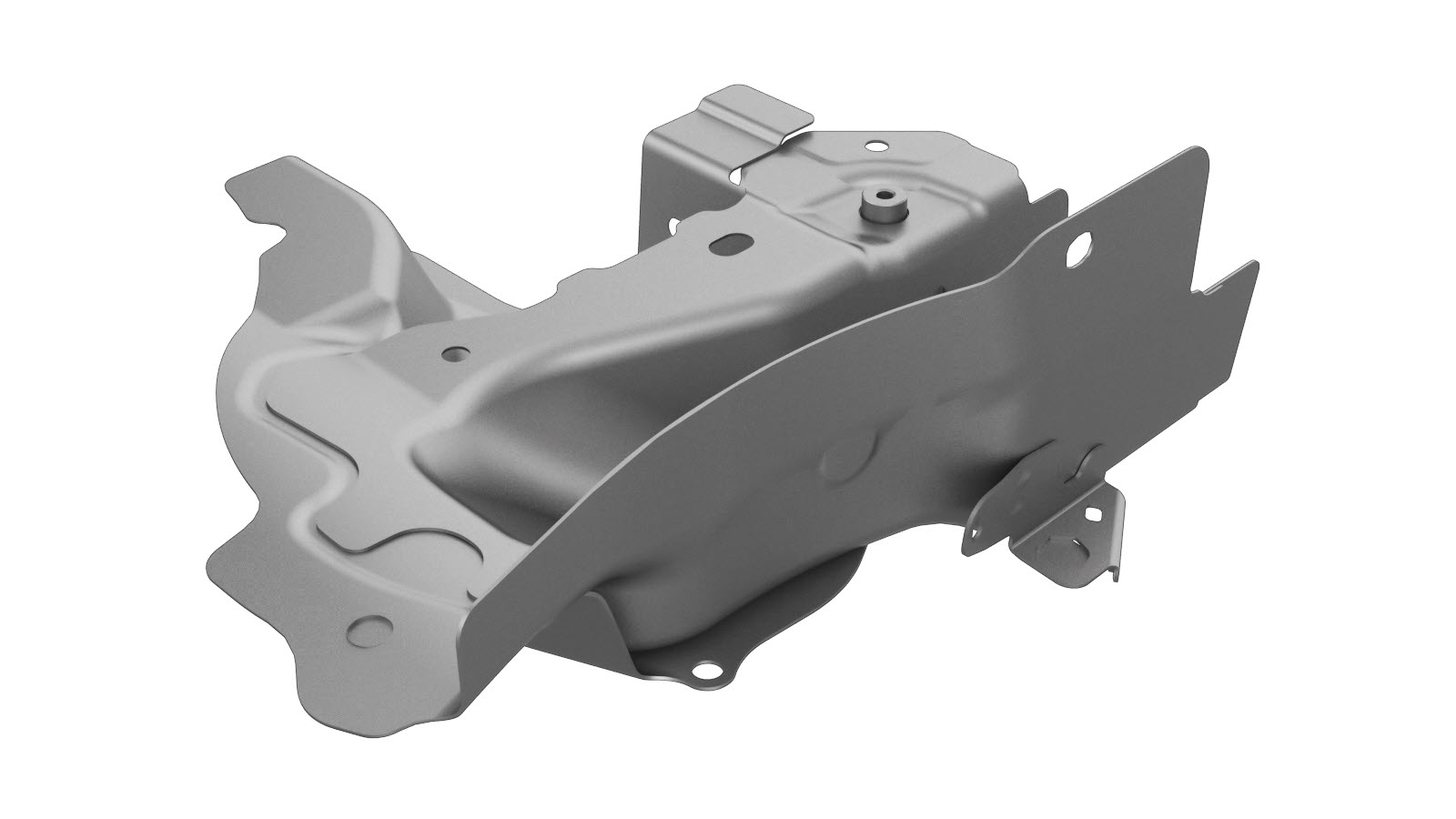

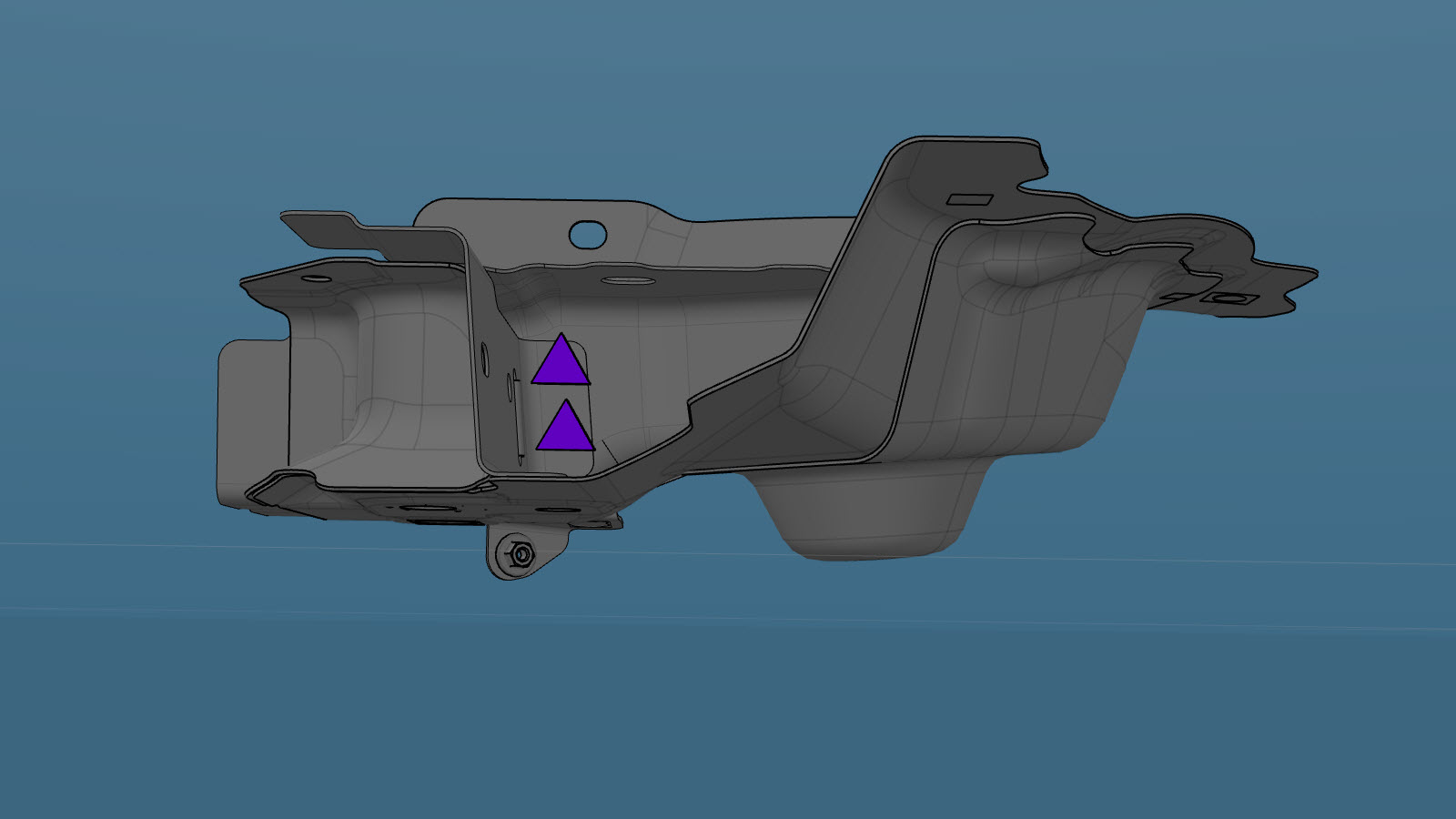

| 1 | ASY, RR SPRING & SUBFR MT（后弹簧和副框架支座） |
|
| 36 |
High Strength Structural Rivet, 6.5 mm
|
|
| 1 |
Flow Form Rivet S38
|
|
| 3 |
Structural Countersunk Rivet, 6.5 mm
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
拆卸行李箱底板总成（完整）。
-
拆下带加固件的后减震器支座上部总成。
-

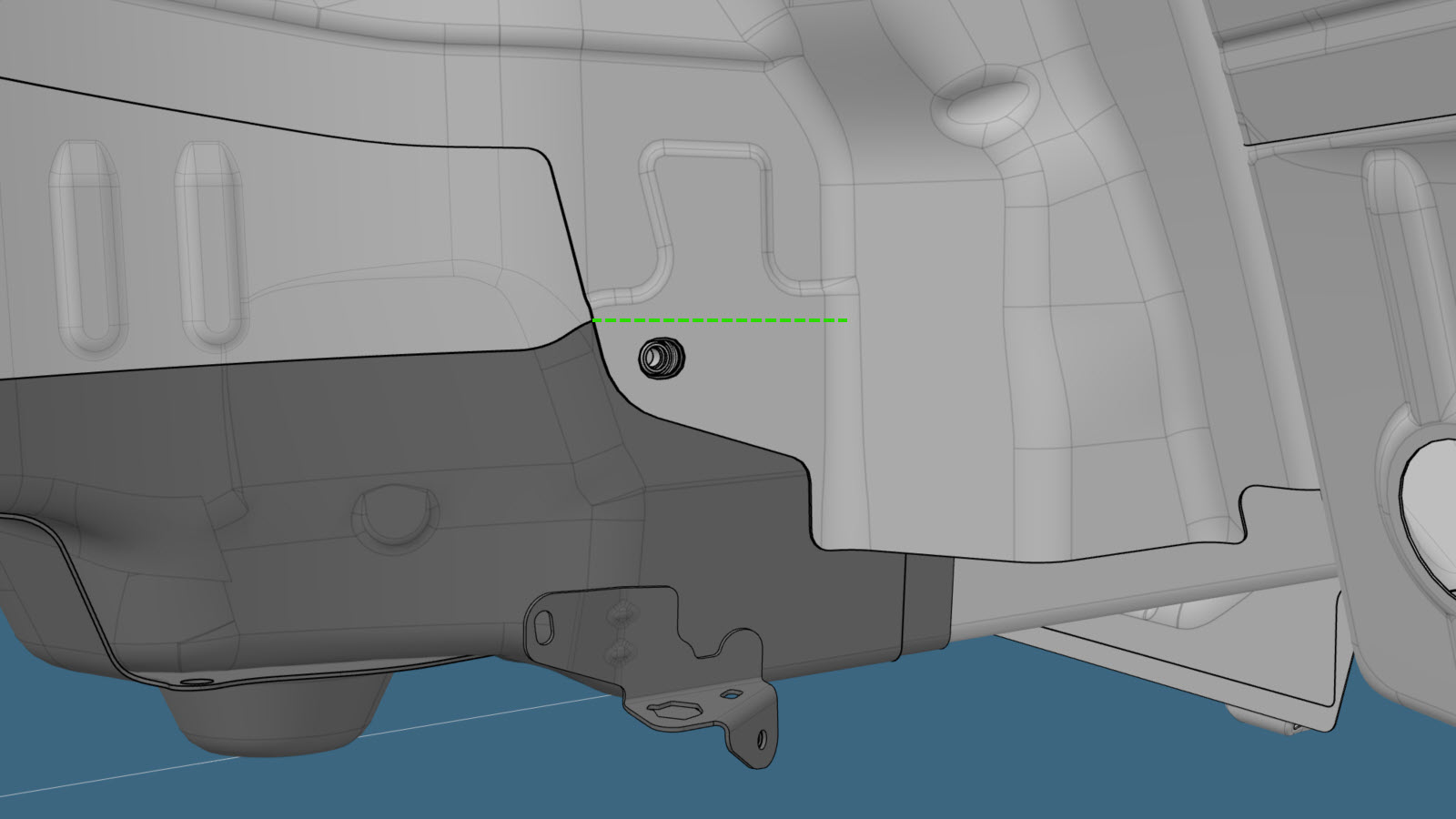

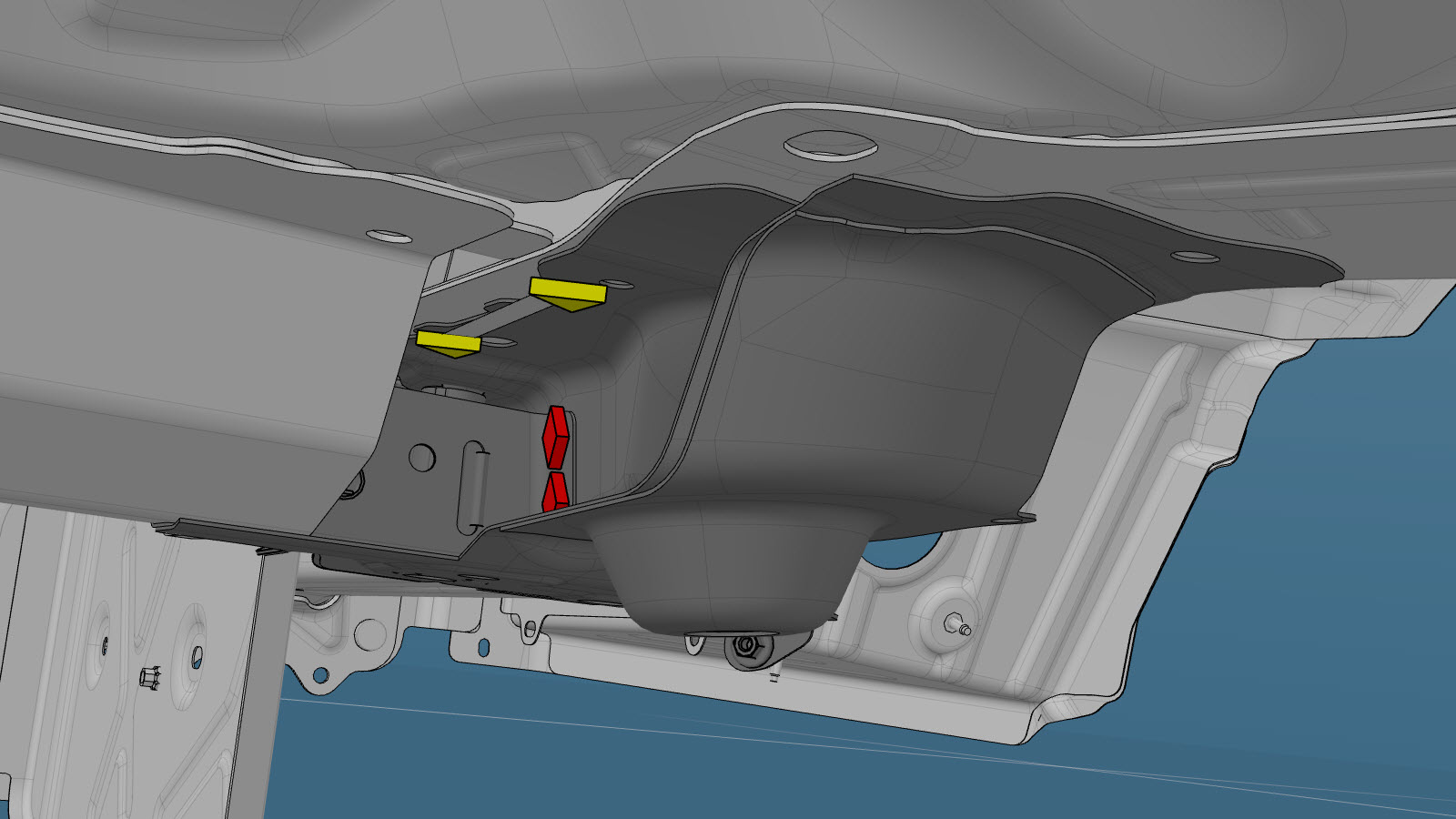

按所示切割轮罩内件，然后向后弯折切割区块，以便露出下方的点焊焊缝。
Cut Line

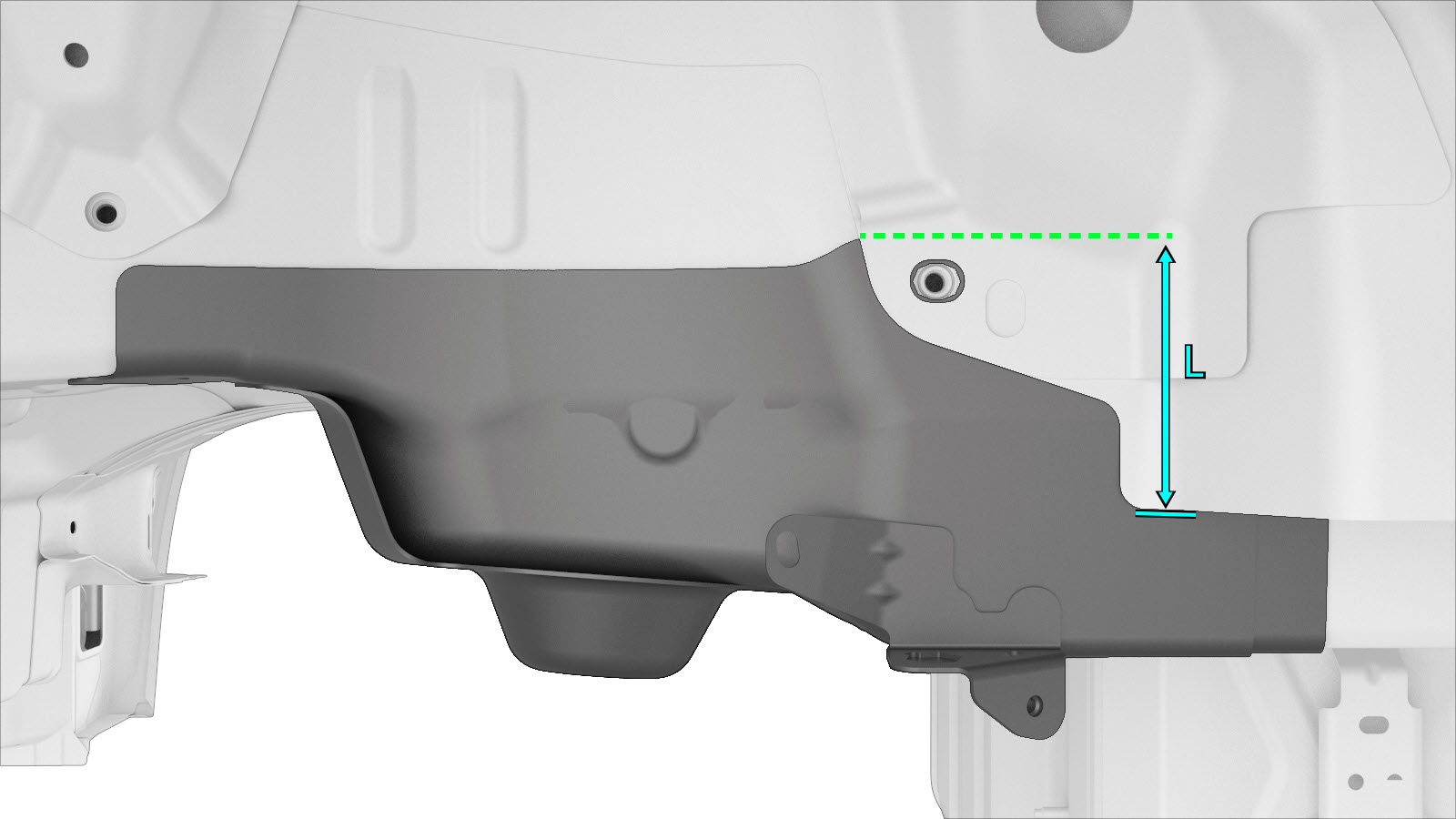

- A = 92 mm
-
Remove the original component.
-

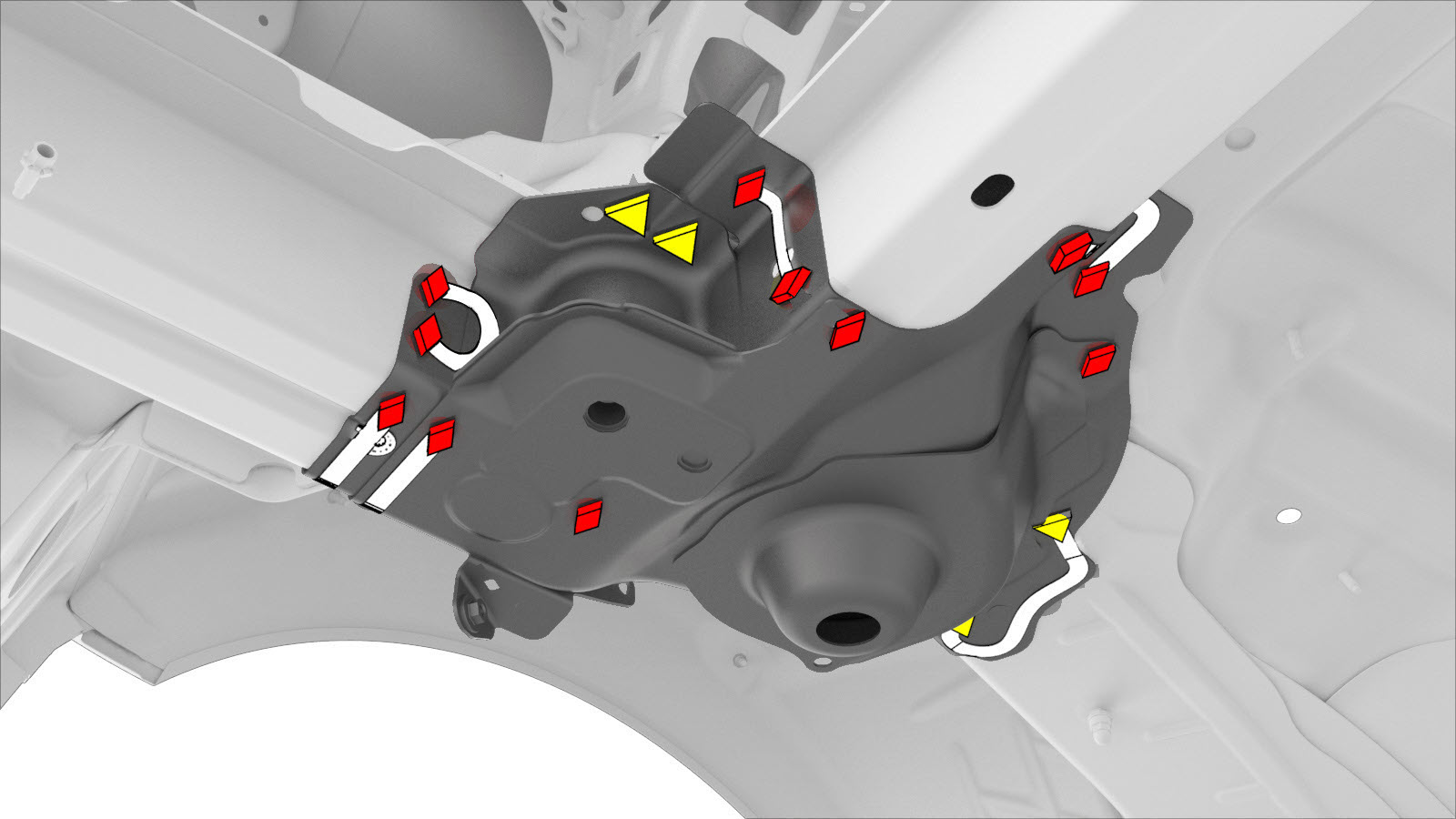

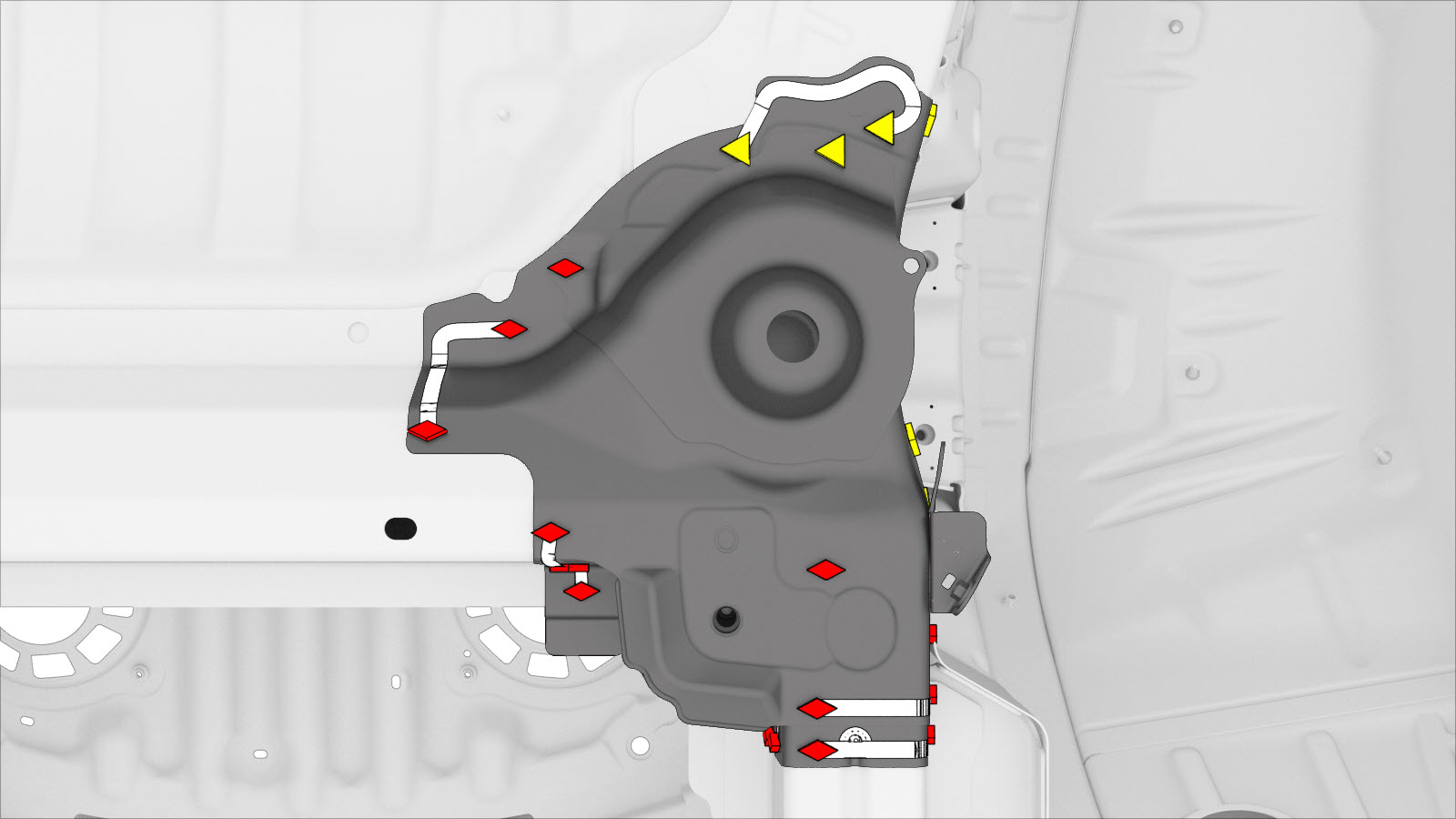

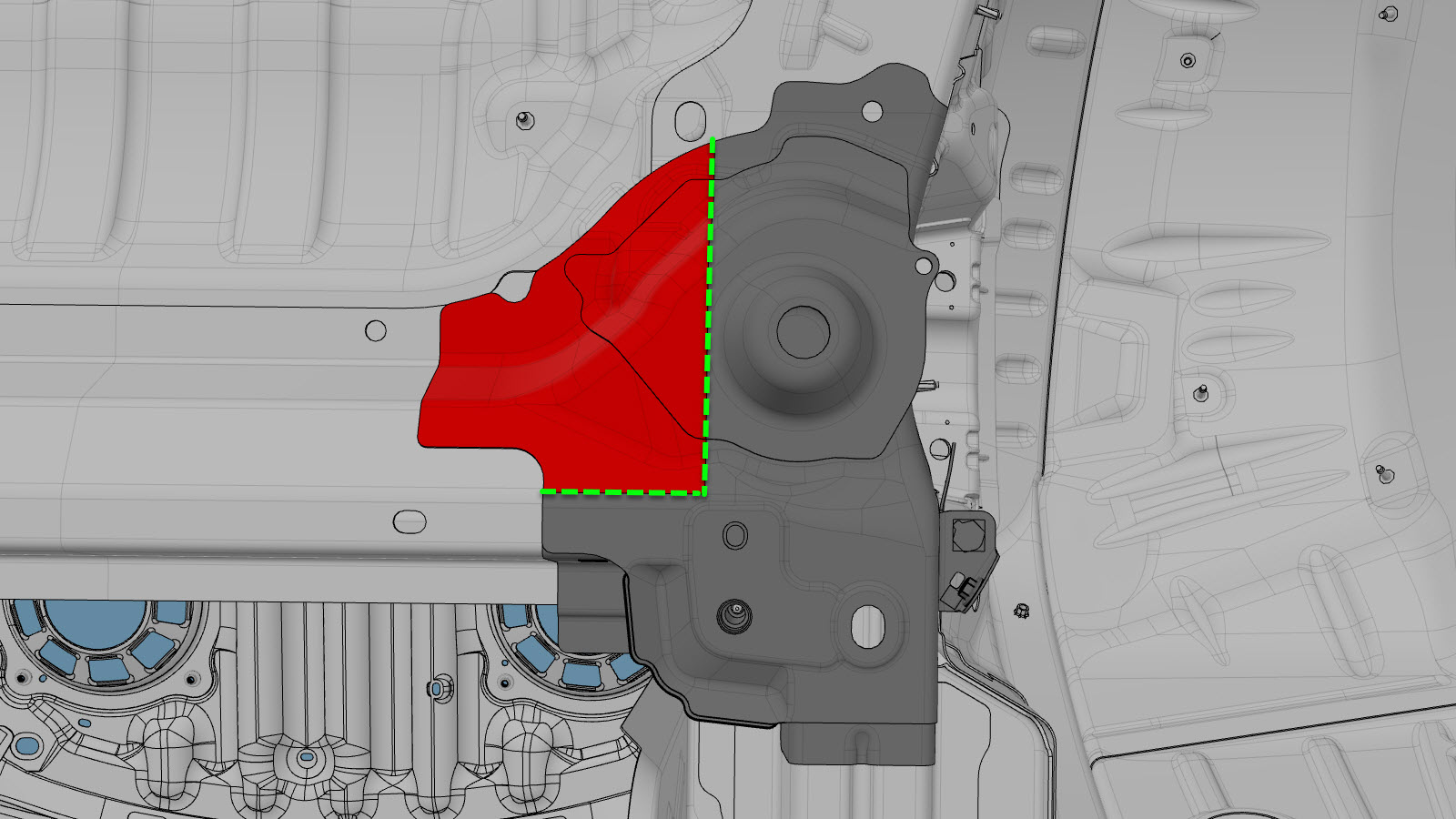

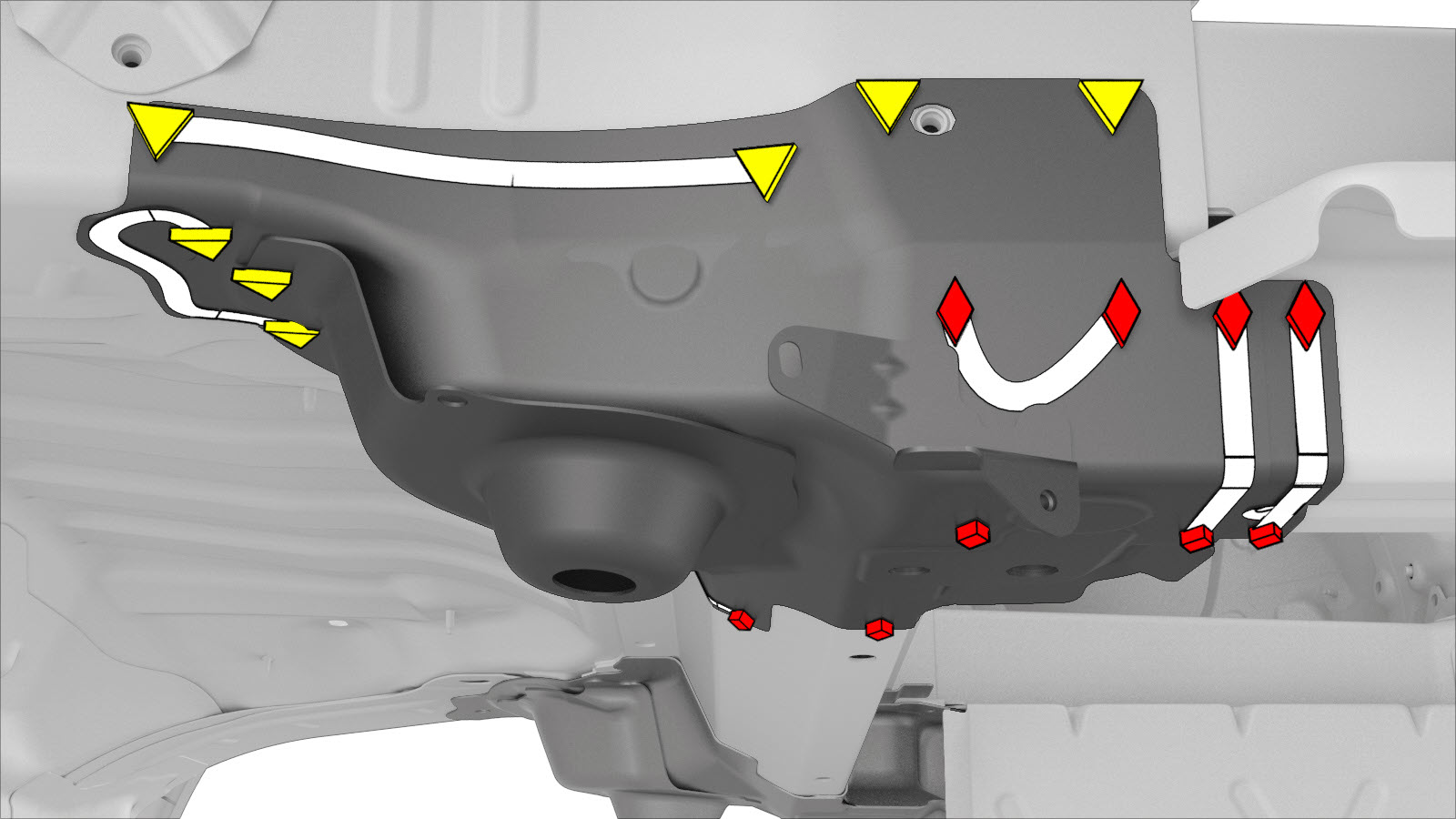

按所示切割原始组件，然后取下红色所示的区块，以便露出下方的紧固件。
Cut Line
-
Remove the original component.
or
Factory SPRs
or
Factory Spot Welds
-
使用安装点焊焊缝固定维修零件的法兰。
or
Installation Spot Welds
-

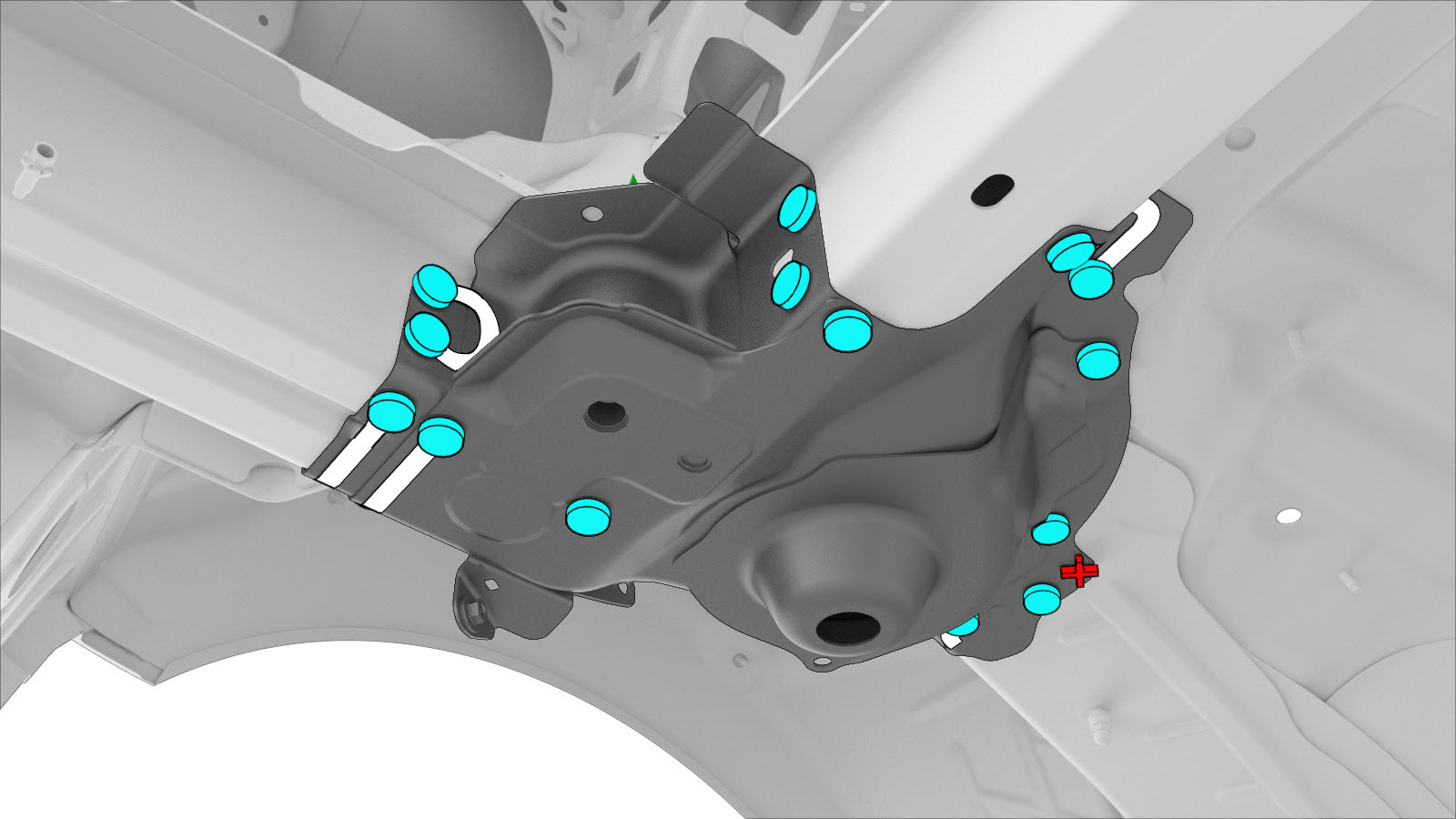

Perform resistance spot
welding.
or Installation Spot Welds
警告Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.警告Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
-
Prepare for installation.

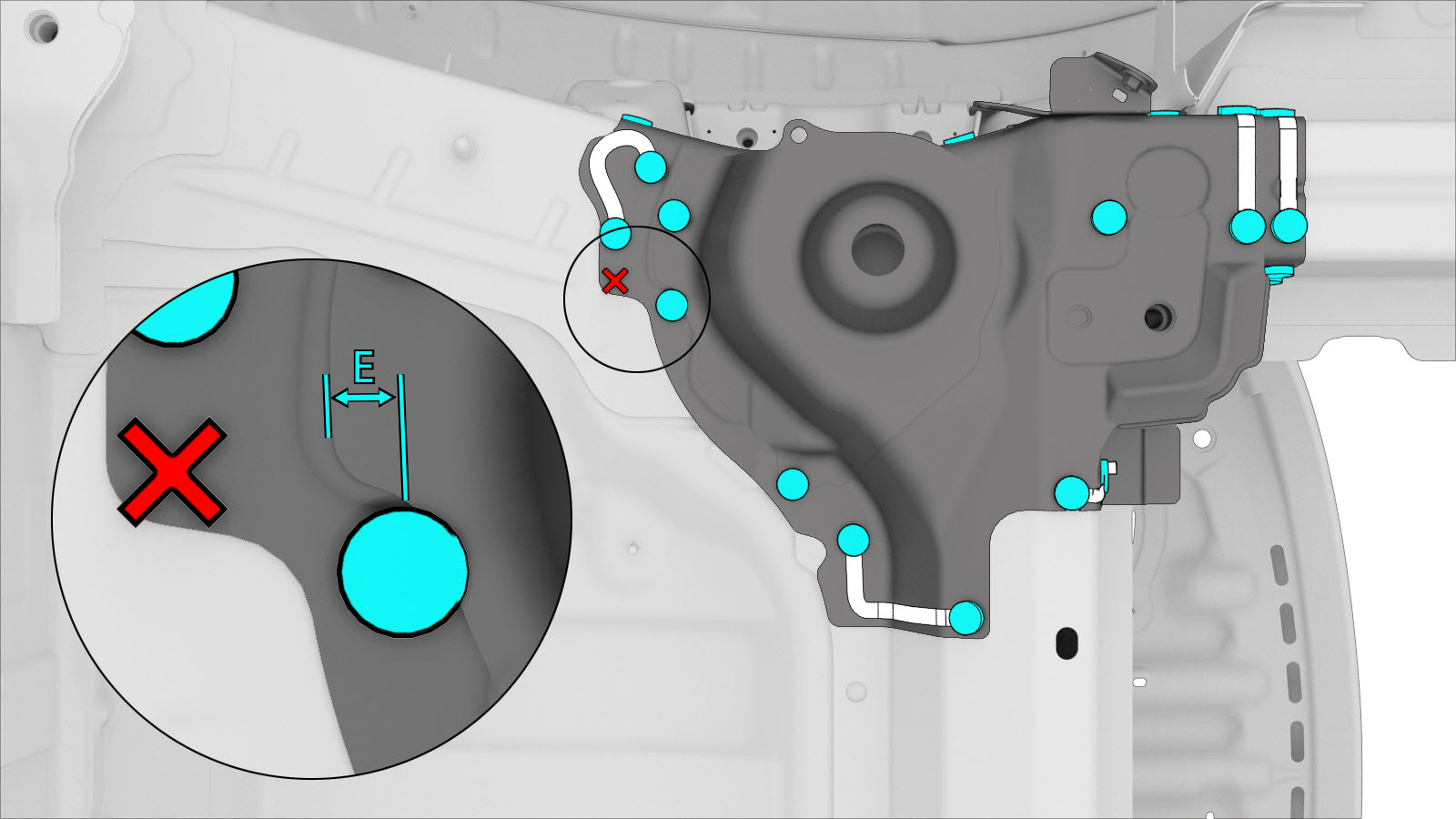

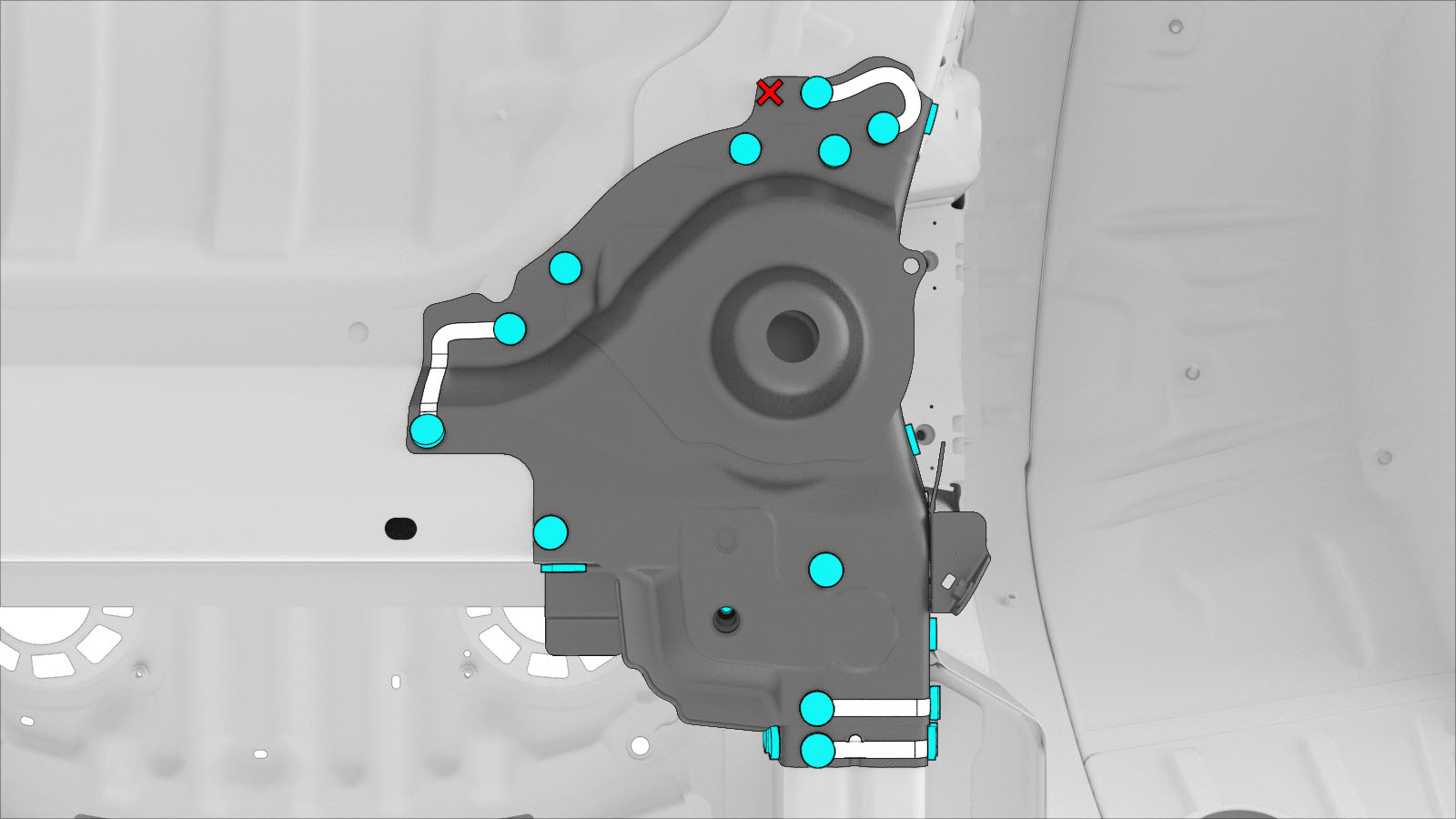

注A red X indicates a location where a factory-installed fastener is not being replaced.

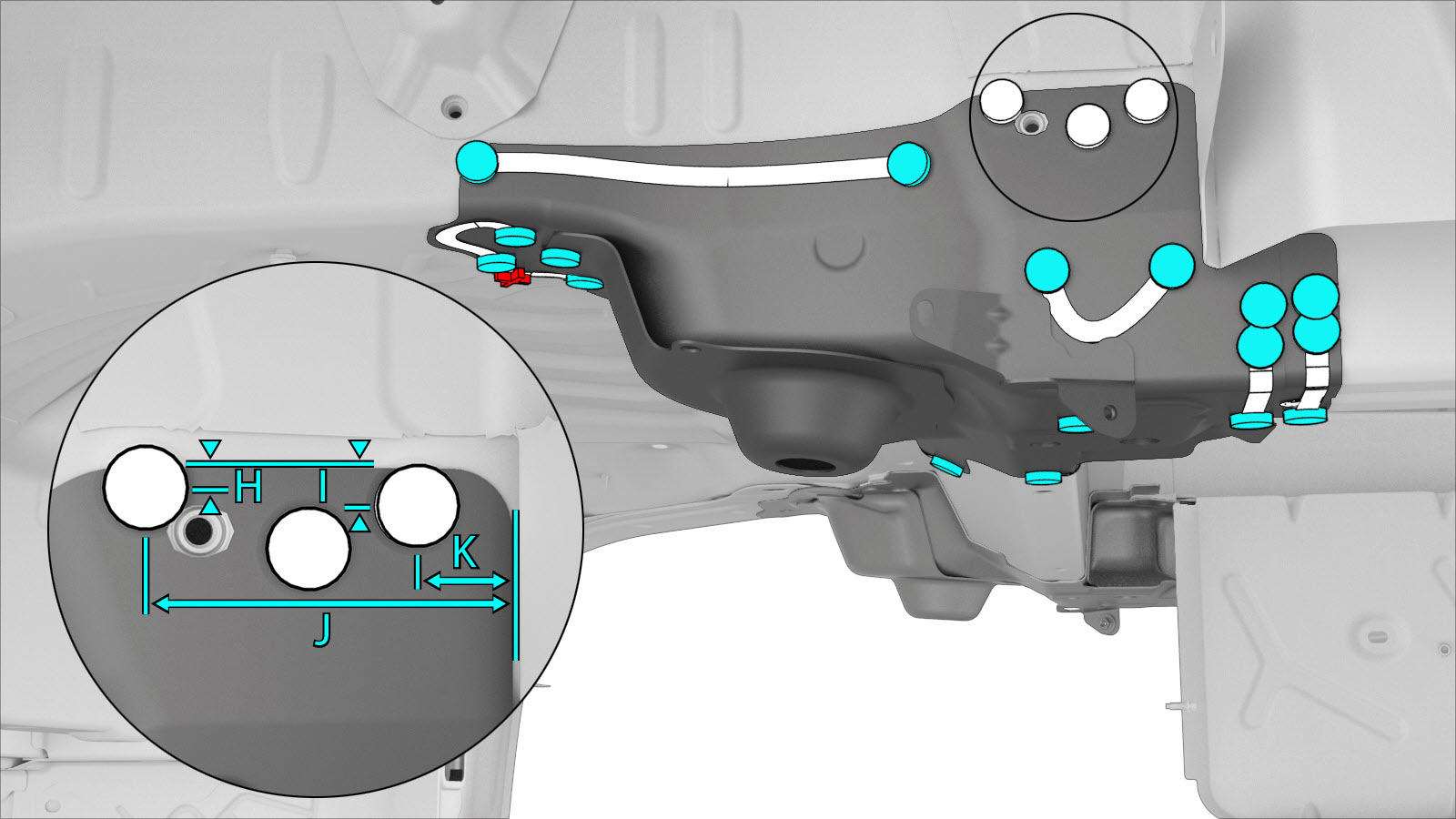

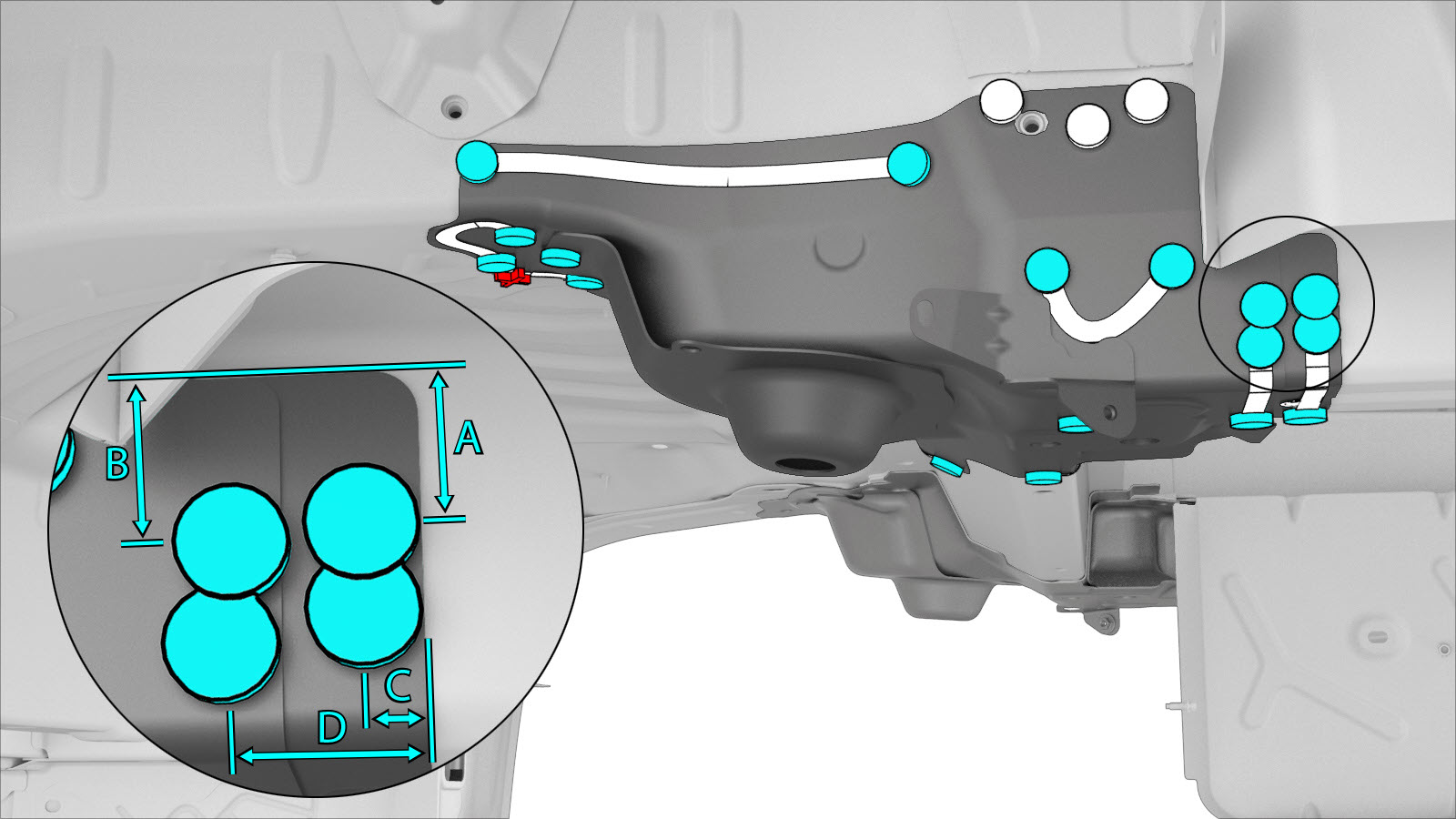

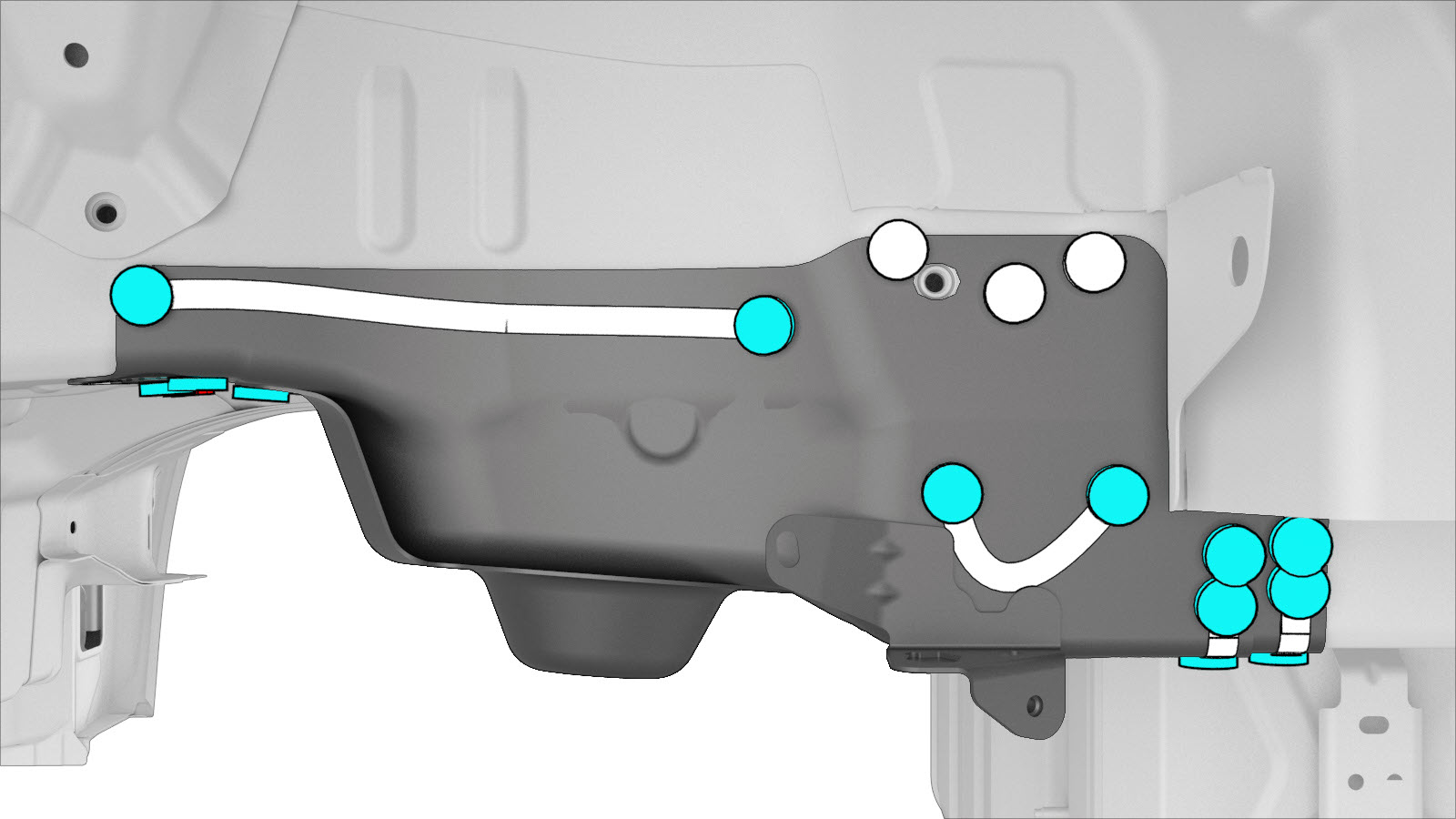

or High Strength Structural Rivets, 6.5 mm

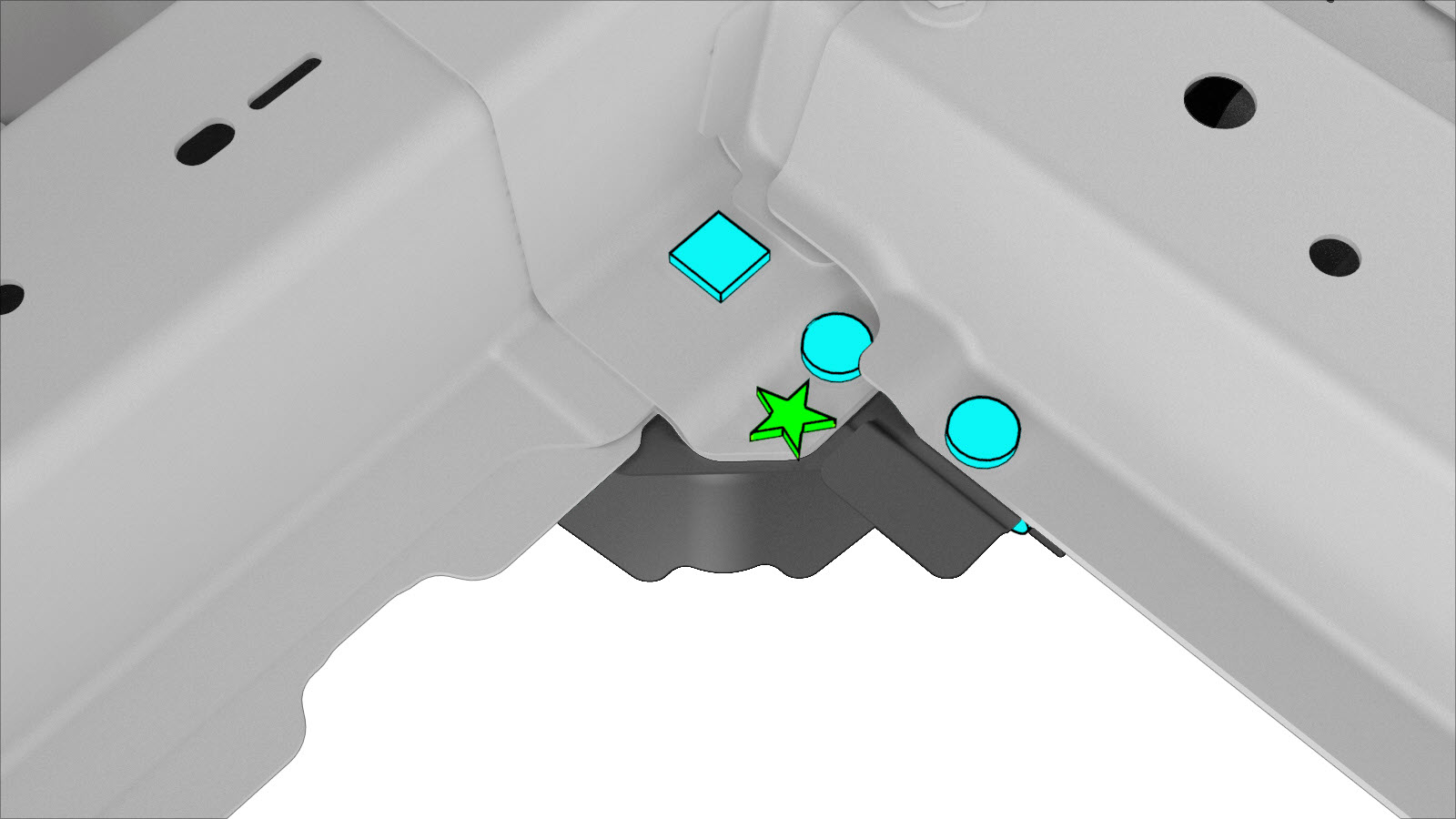

- B = 31 mm
- C = 10 毫米
- D = 32 毫米
- E = 29 毫米
- J = 11 毫米
- K = 15 毫米
- L = 49 毫米
or Structural Countersunk Rivets, 6.5 mm

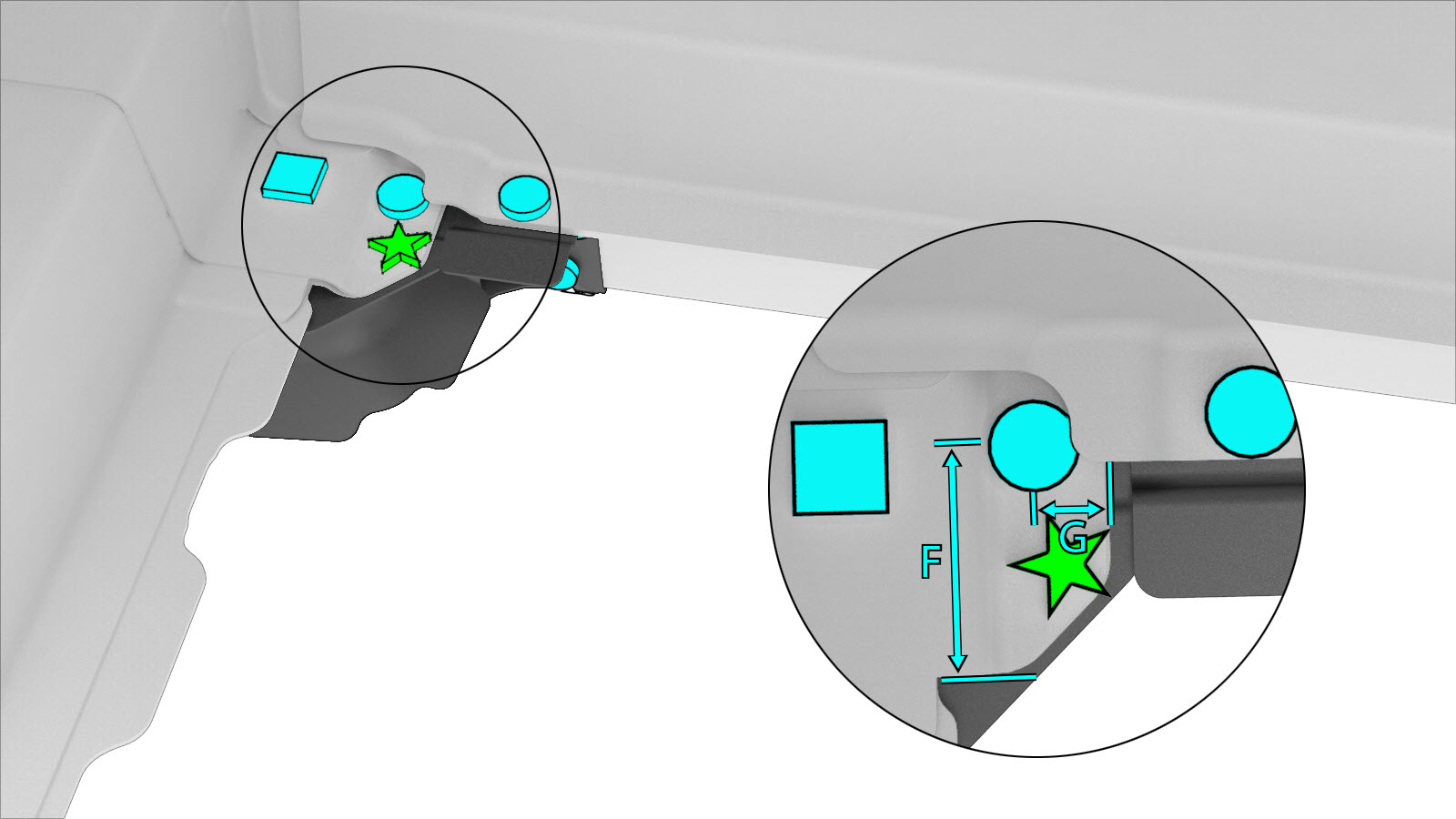

- F = 88 mm
- G = 24 毫米
- H = 5 毫米
- I = 9 毫米

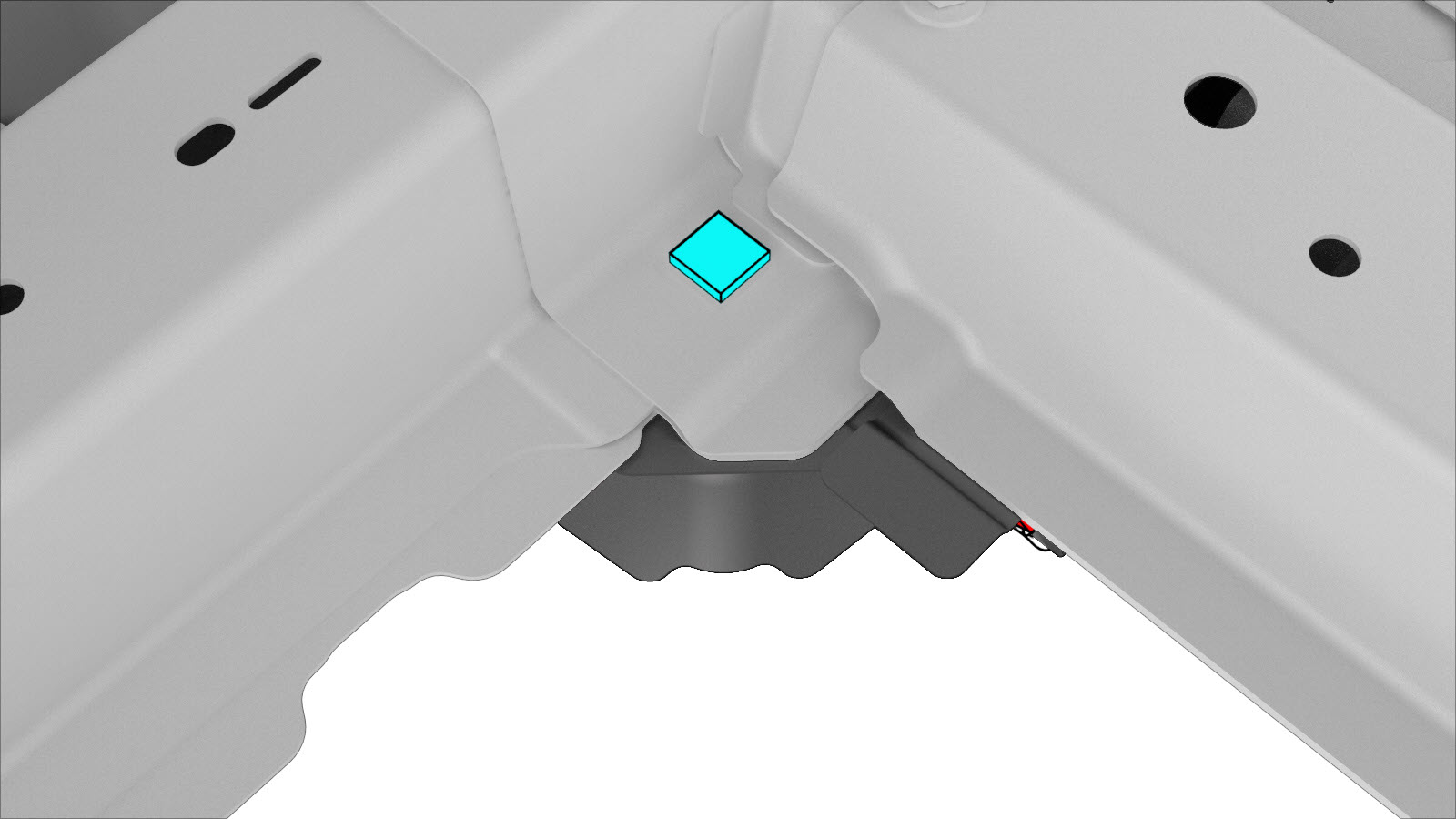

- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
将这些螺栓拧紧至 24 Nm。
- 在车辆和轮罩内件切割区块的接合面上涂抹结构型粘合剂。
-
按照图示弯曲轮罩内件切割区块并覆盖下面的紧固件。
-
安装带加固件的后减震器支座上部总成。
-
安装行李箱底板总成（完整）。
- Perform any necessary post-repair operations.
