A 柱外件加固板
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

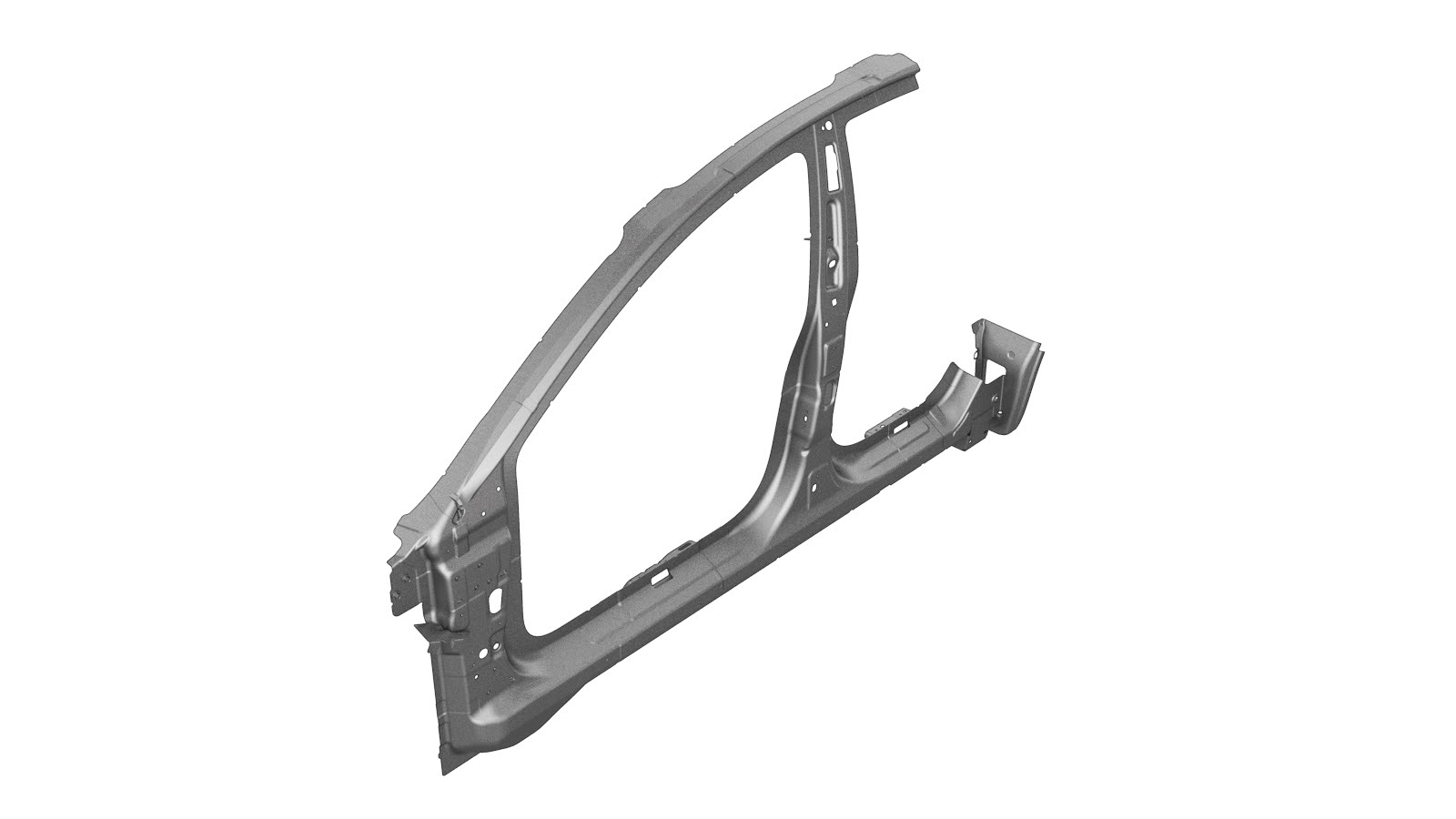

| 1 | ASY - DOOR RING OUTER（车门安装环外件总成） |
|
| 10 |
Structural Countersunk Rivet, 6.5 mm
|
|
| 5 |
High Strength Structural Rivet, 6.5 mm
|
|
| 4 |
Flow Form Rivet S28
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
拆下 车身侧外件 的必要部分，露出要更换的底层组件。
-
拆卸前排座位外侧。
-
拆卸B 柱外件（上部）。
-
拆卸车顶纵梁加长板。
-

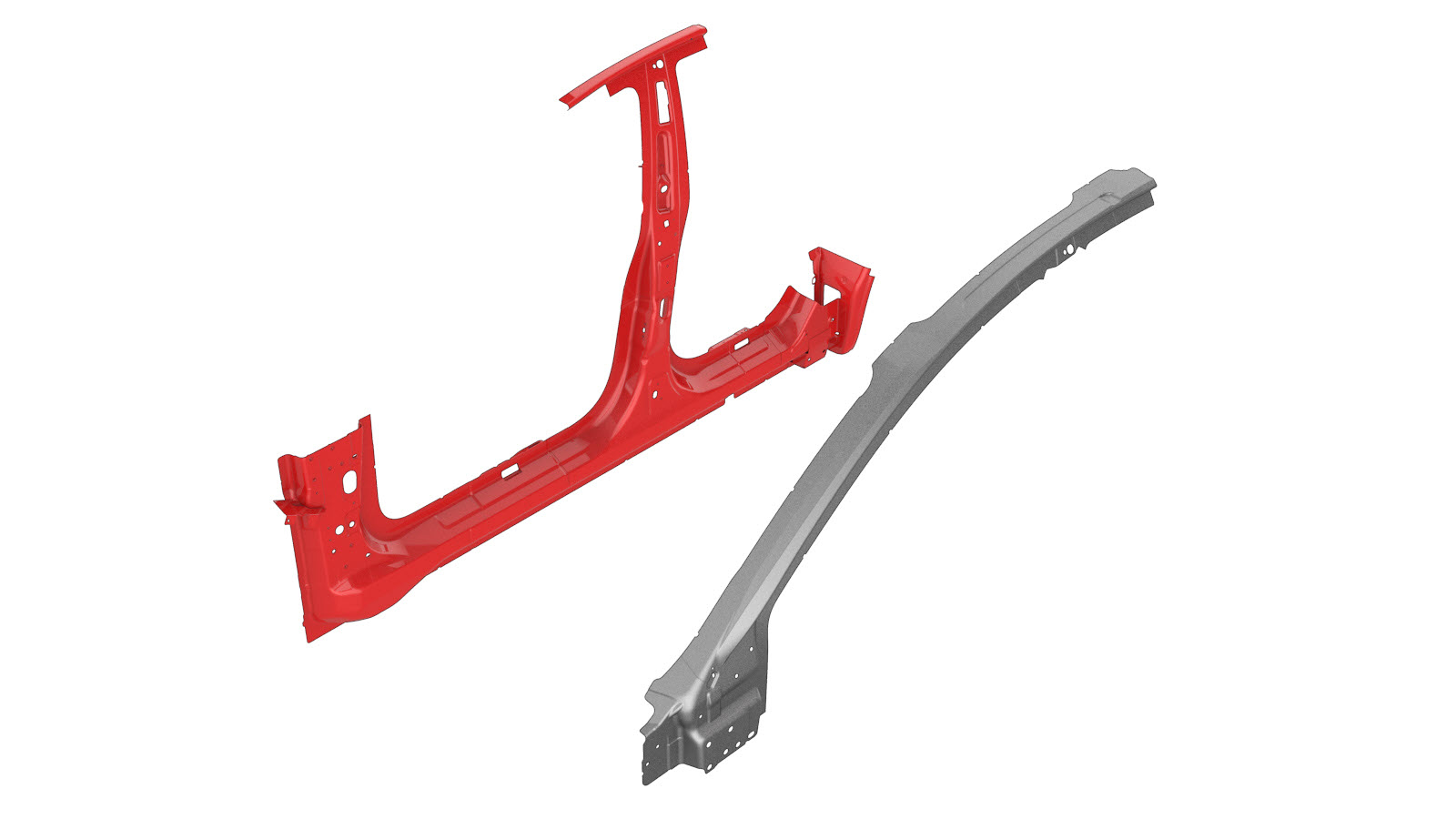

按下方所示从车门安装环外件维修零件上拆下 A 柱外件，以制作新组件。
-

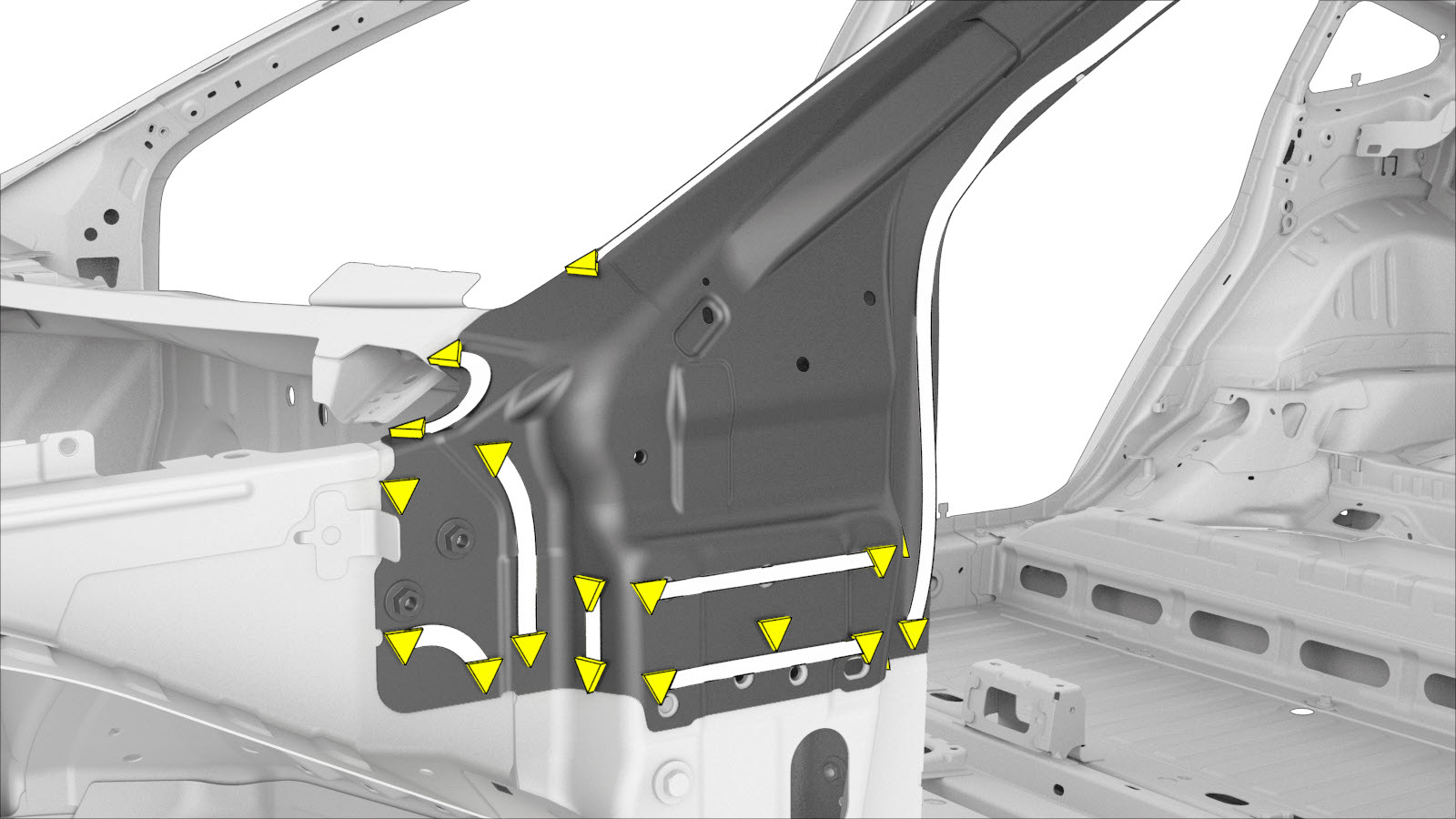

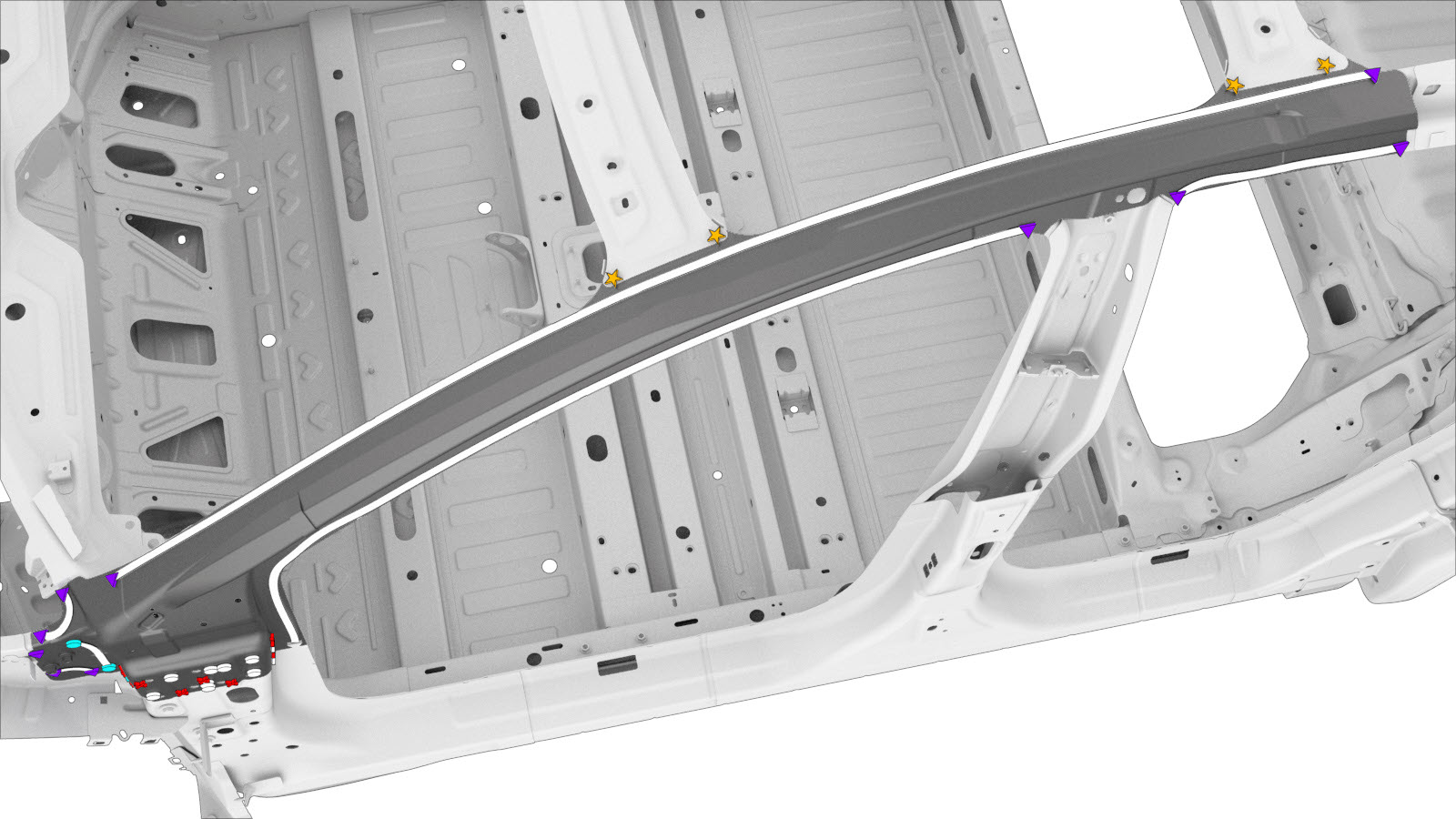

Remove the original component.
or
Factory Spot Welds
or
Drill through factory spot welds
注When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
-

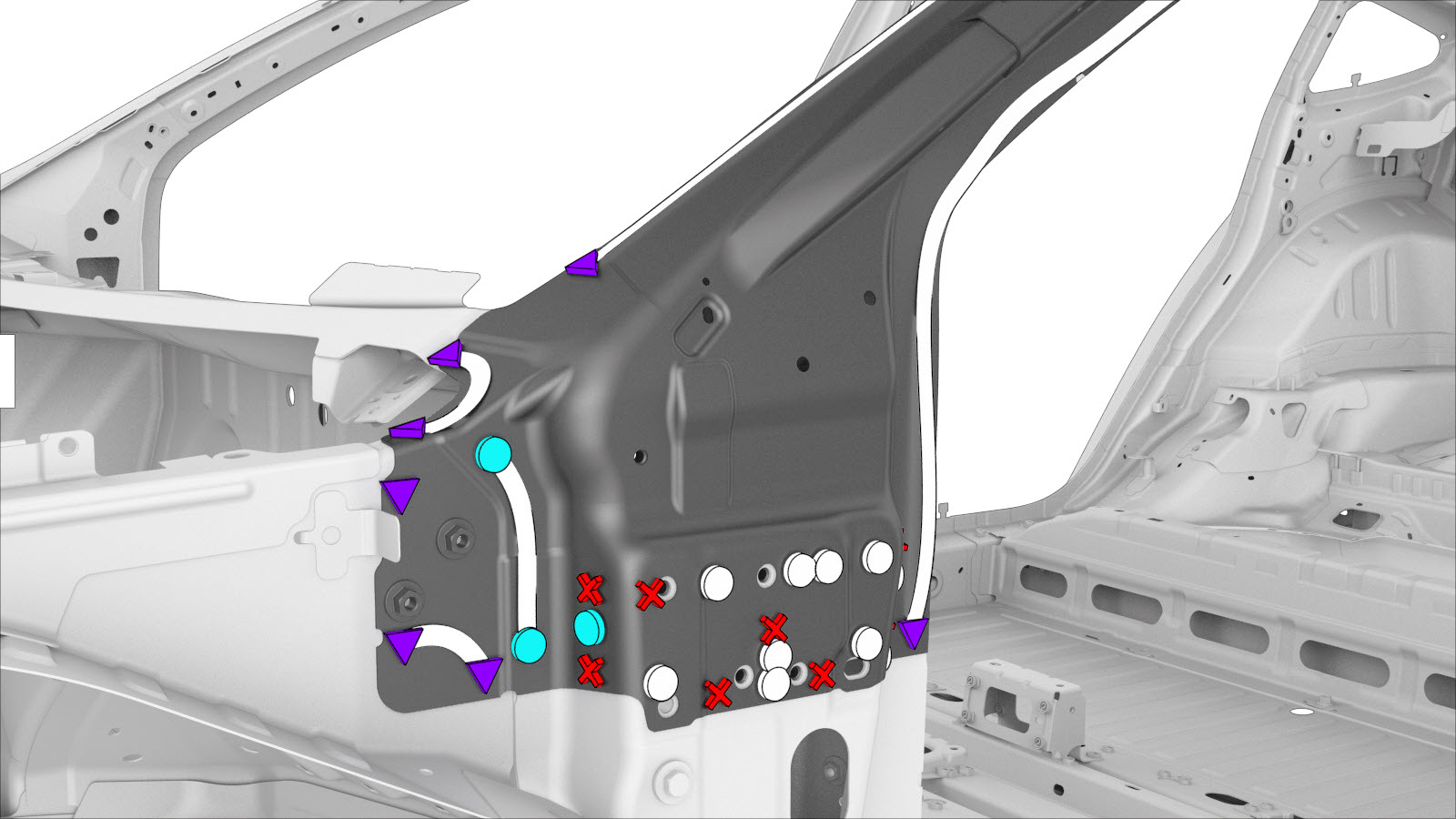

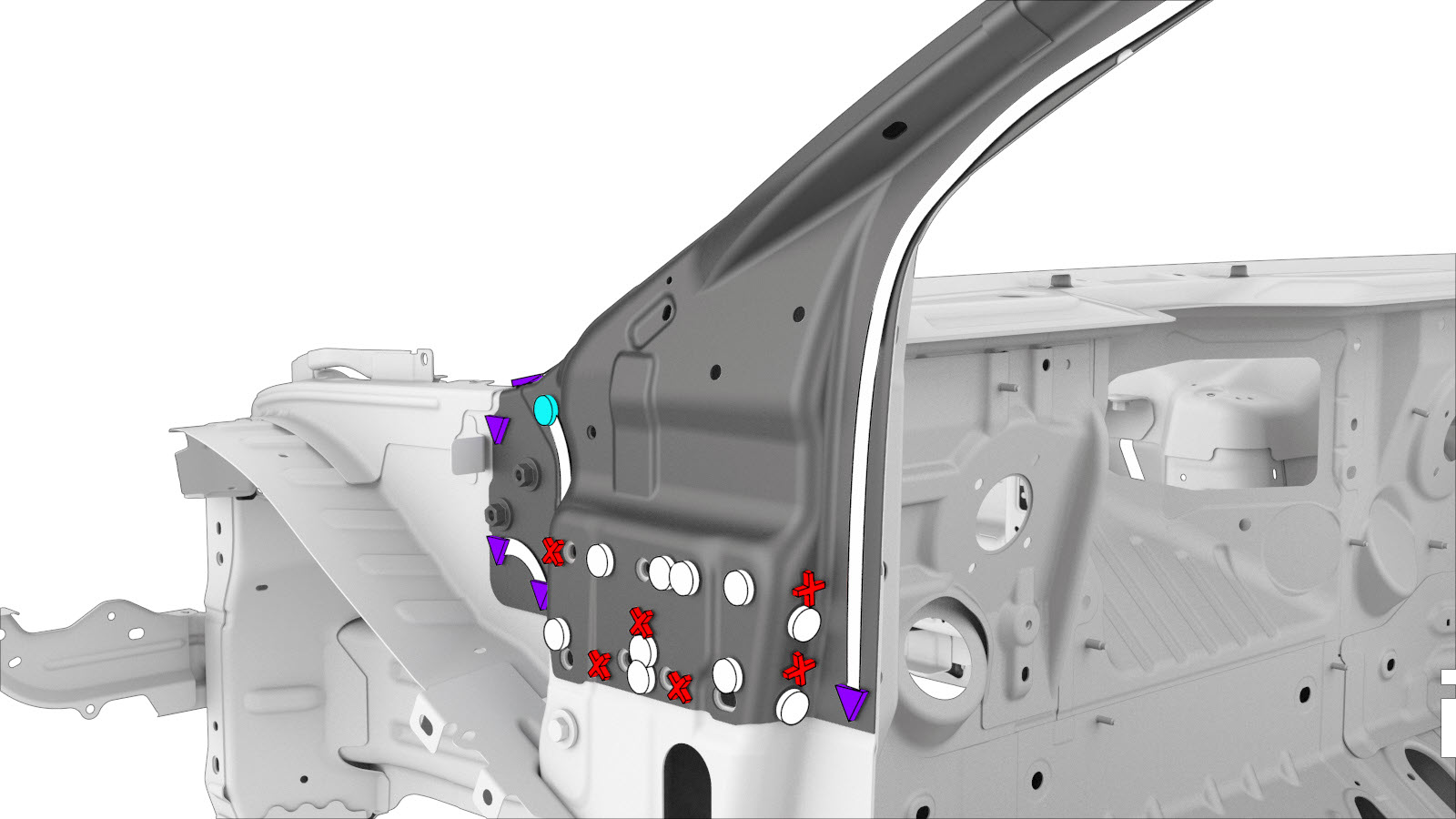

Prepare for installation.
注A red X indicates a location where a factory-installed fastener is not being replaced.
or
Installation Spot Welds
or High Strength Structural Rivets, 6.5 mm
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
Perform resistance spot
welding.
or Installation Spot Welds
警告Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.警告Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
-
拆下车顶纵梁加长板。
-
更换B 柱外件（上部）。
-
更换前排座位外侧。
-
安装为露出所要更换的组件而拆下的车身侧外件总成部分。
- Perform any necessary post-repair operations.
