后轮罩加固件

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

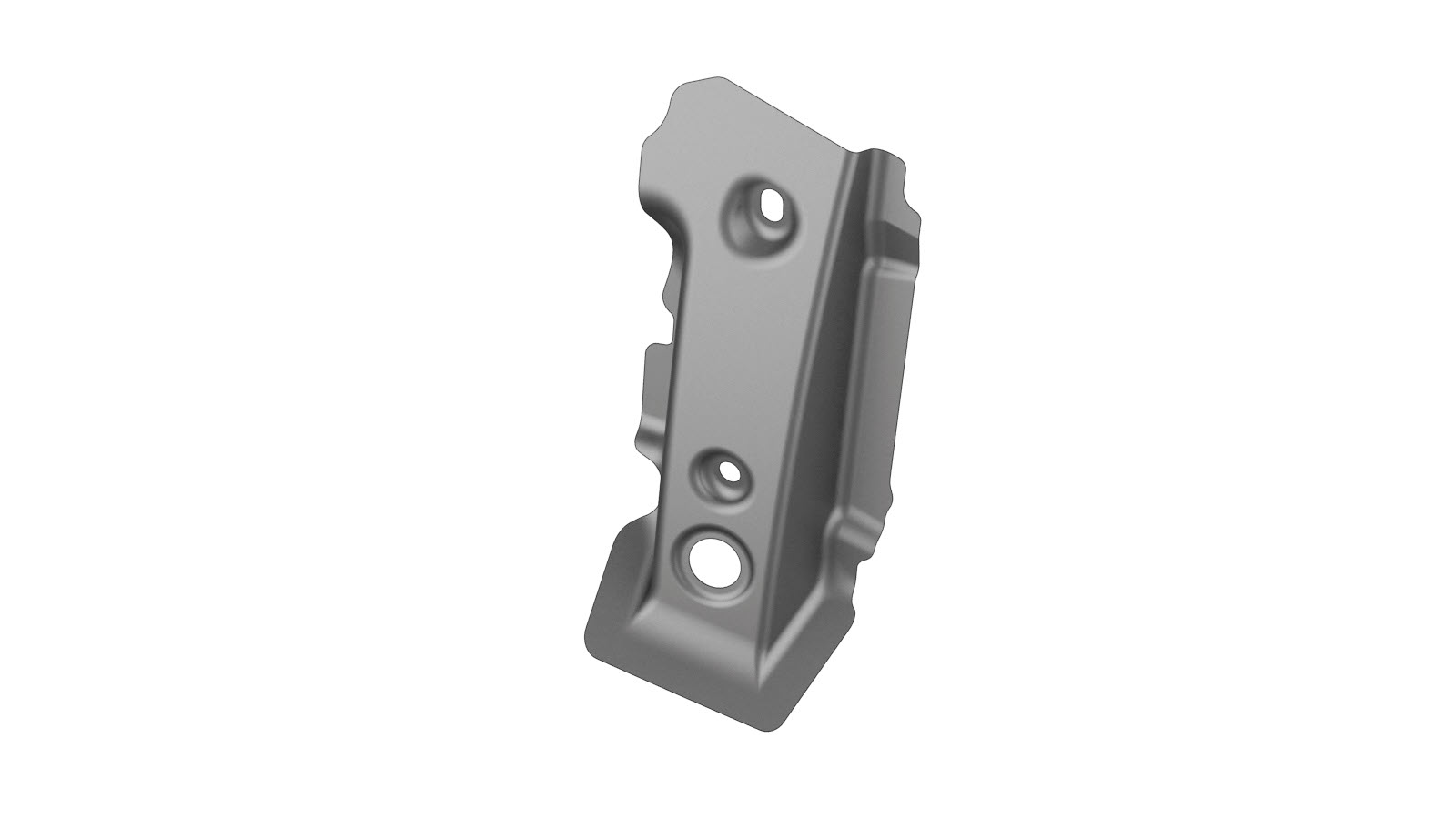

1	PNL REAR WHEELHOUSE REINF CLOSEOUT（后轮罩加固件）
7	Rivet, 4.8 mm
2	Structural Bulb Rivet, 6.5 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

拆下车身侧外件的必要部分，露出要更换的底层组件。

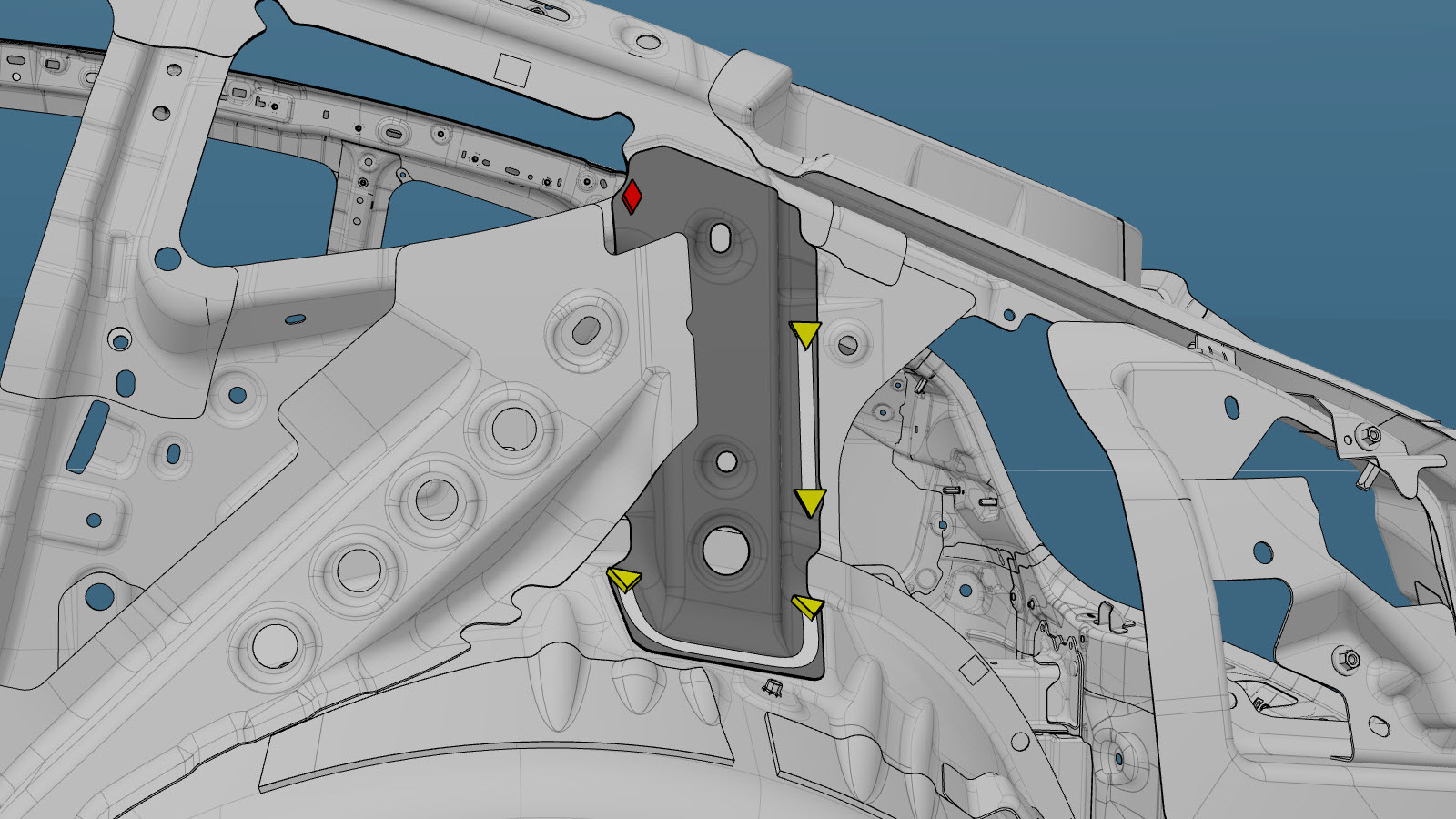

Remove the original component.
or Factory Spot Welds
或钻透原厂点焊焊缝
注
When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

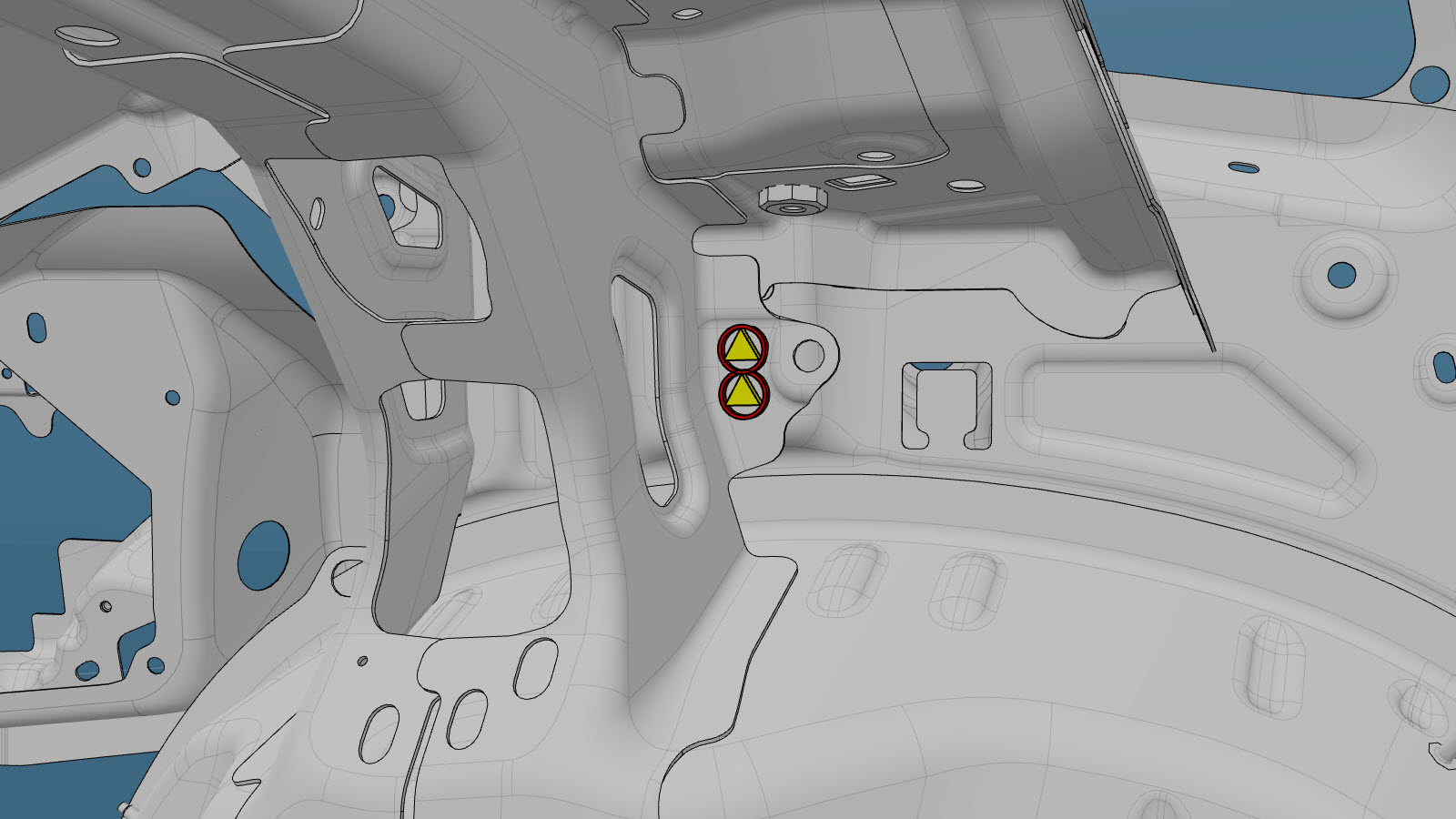

or Factory SPRs
Prepare for installation.

or Rivets, 4.8 mm

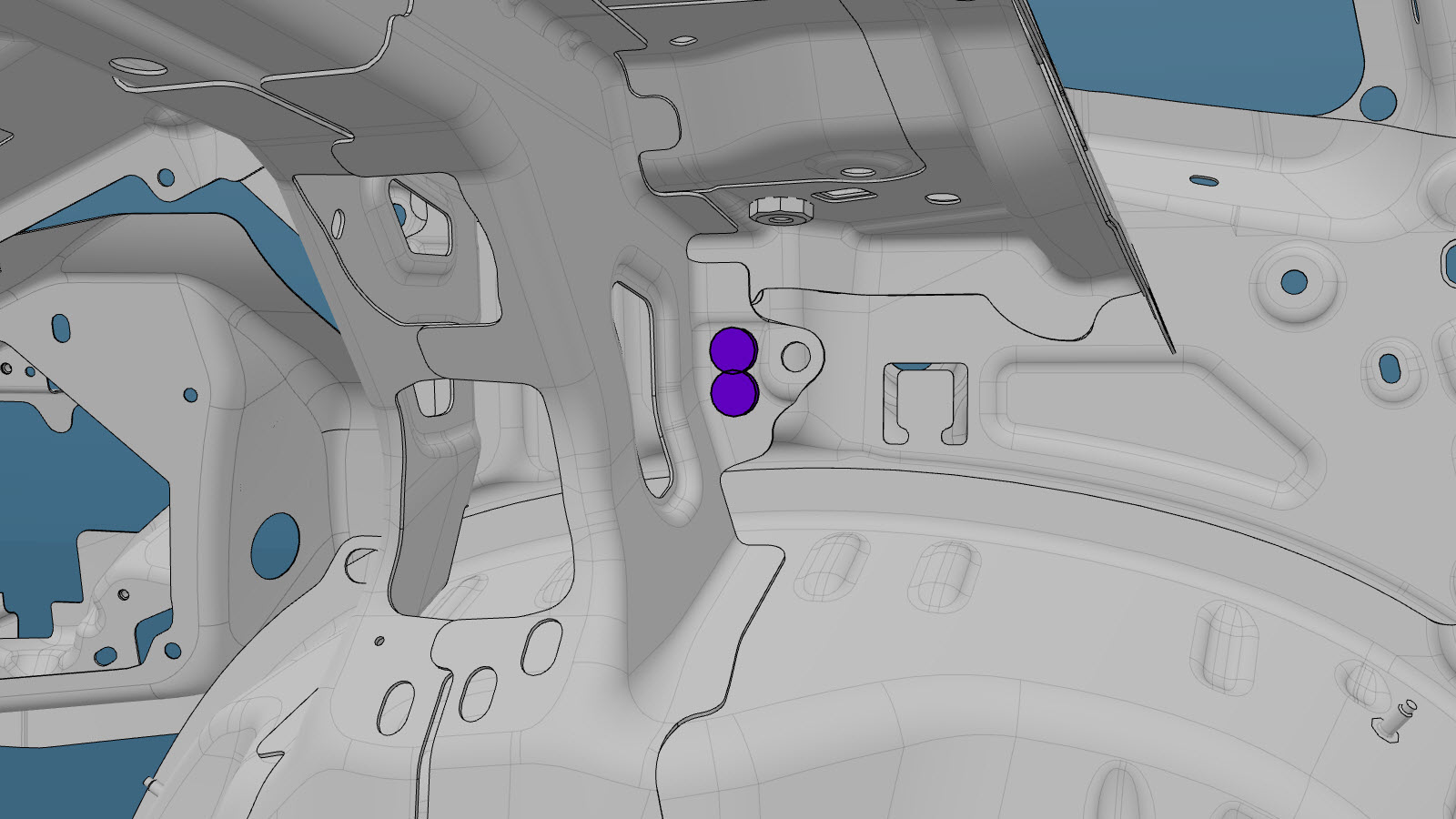

or Structural Bulb Rivets, 6.5 mm

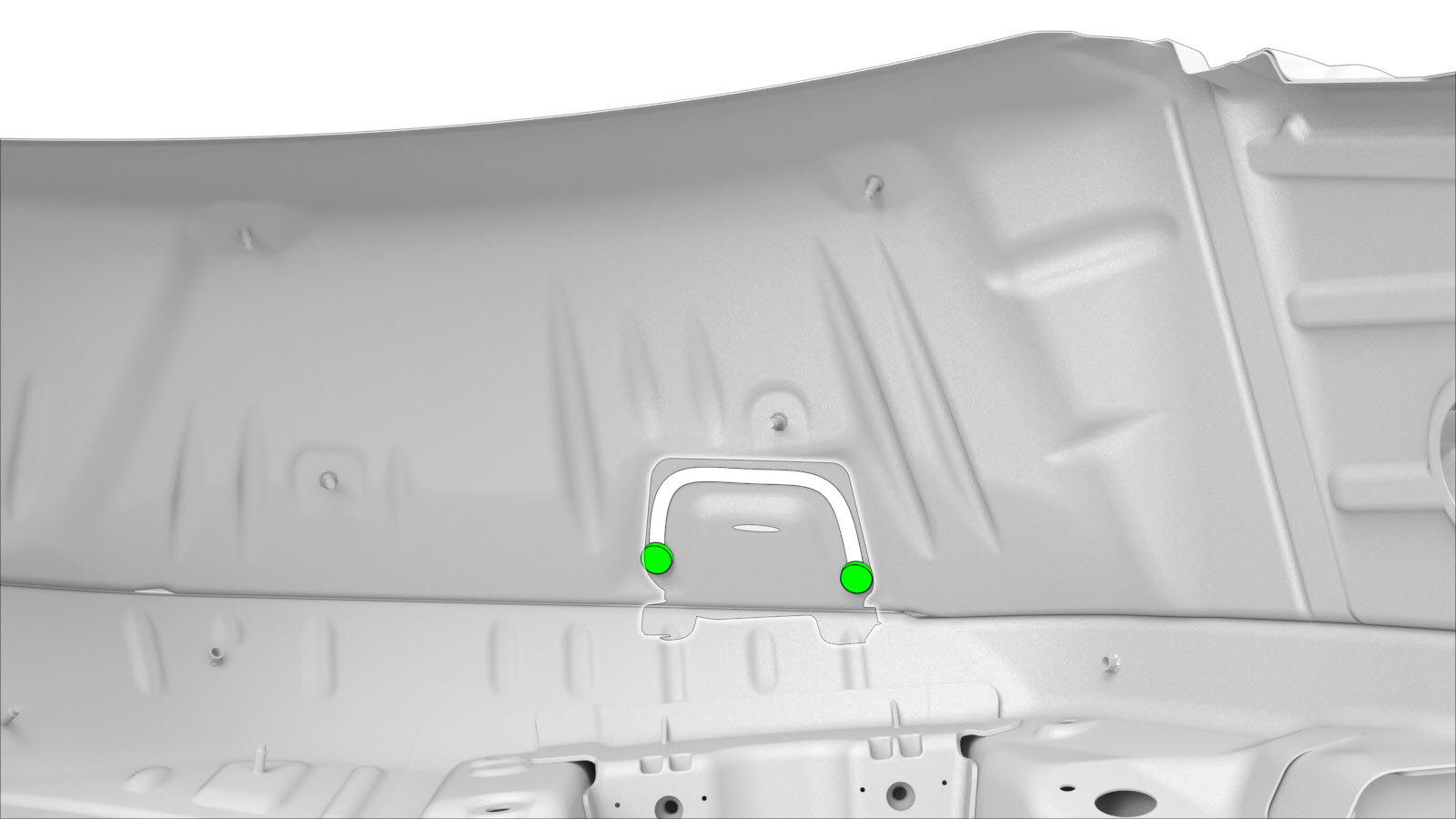

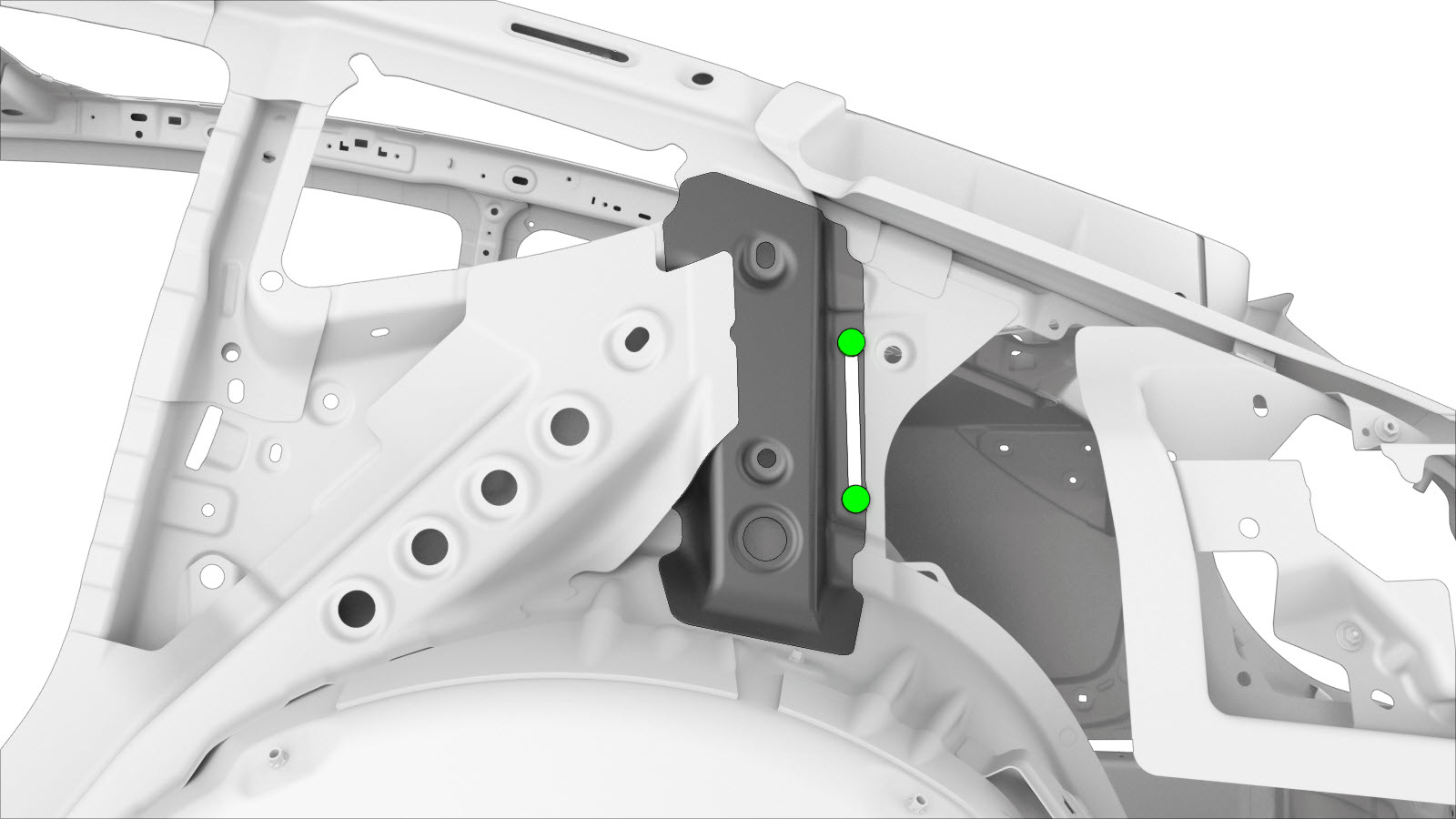

Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
安装先前为露出更换组件而拆下的车身侧外件的必要部分。
