横梁密封磁盘（前）

Parts List

Quantity Description Image / Notes

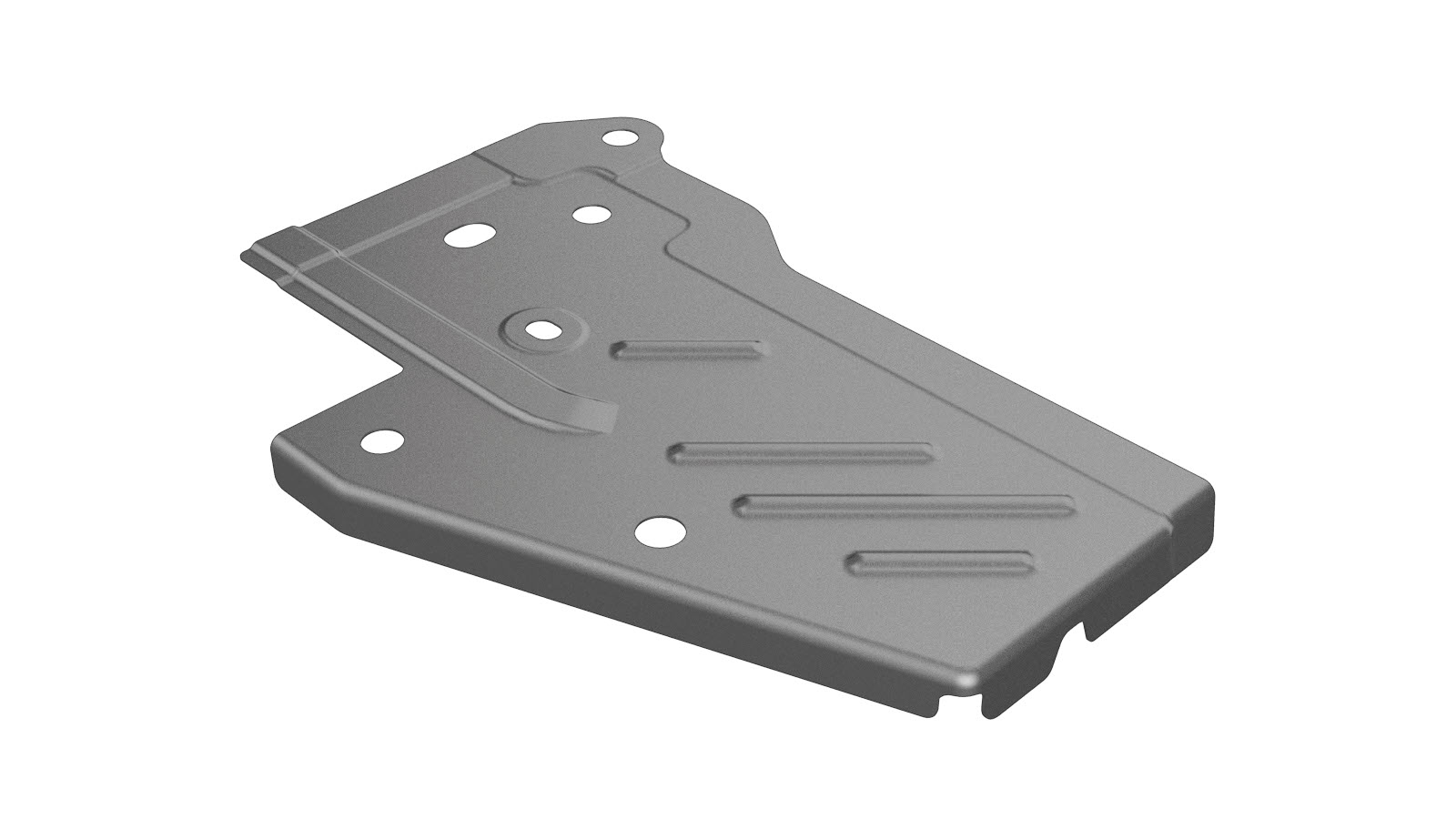

1 PLATTER SEALING CROSSMEMBER FRONT（横梁密封磁盘 – 前）

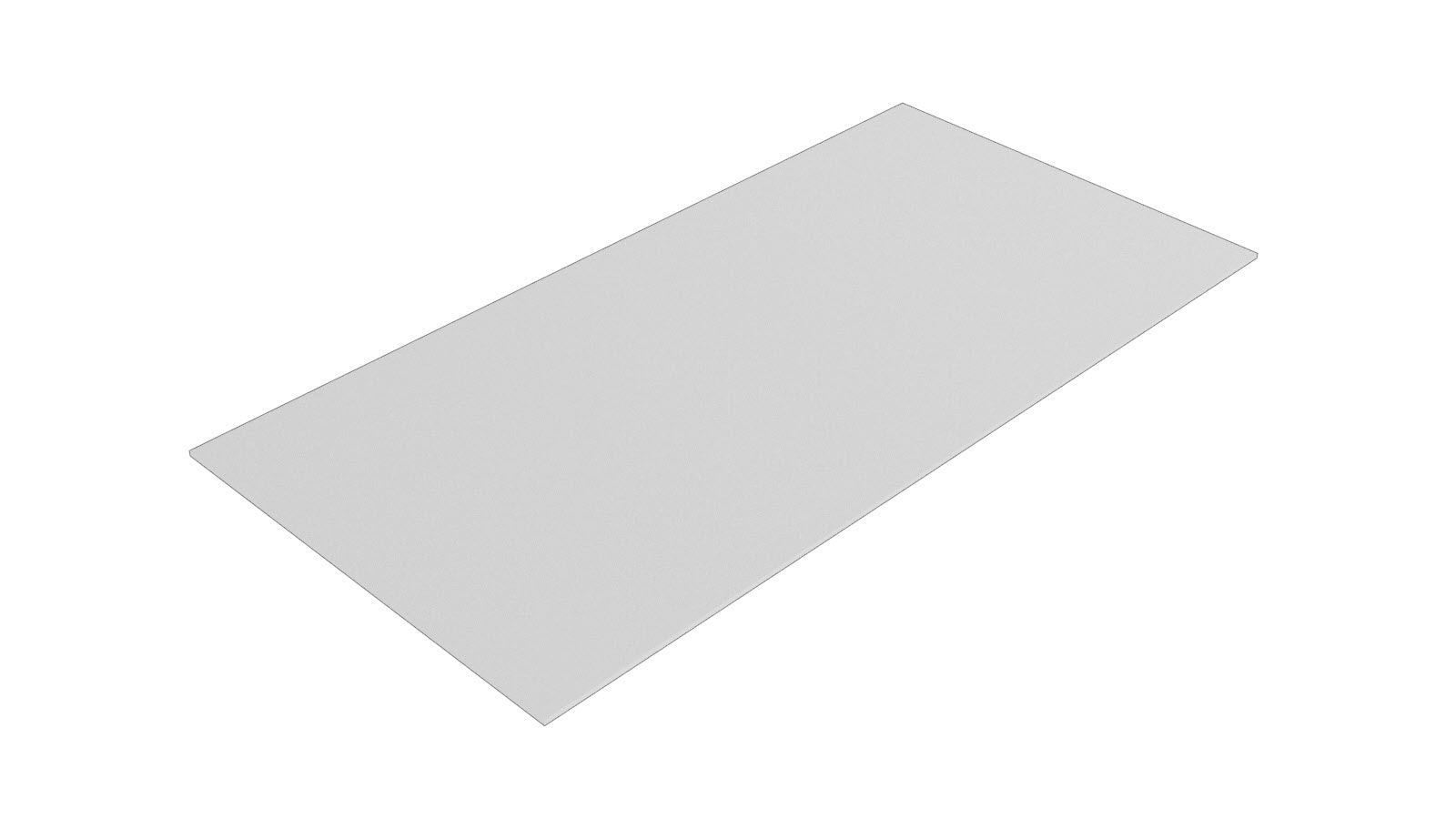

1 BUTYL FOIL PATCH 300X150x2MM（丁基胶箔补片）

Tesla 零件号 1004969-00-A。
3 Structural Countersunk Rivet, 6.5 mm
3 Structural Bulb Rivet, 6.5 mm
5 Countersunk Rivet, 4.8 mm Long
11 Countersunk Rivet, 4.8 mm Short

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

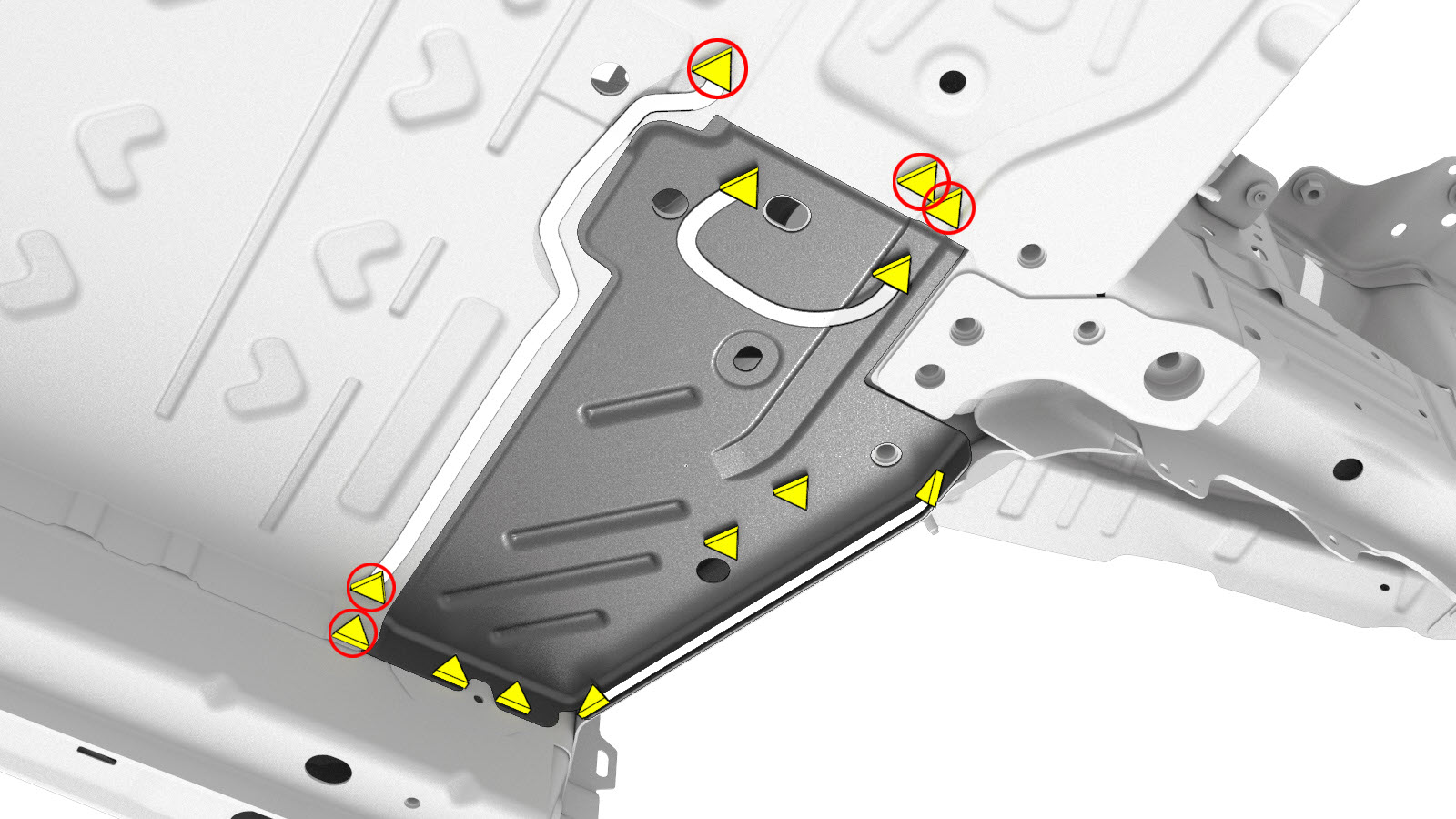

  1. Remove the original component.
    or Factory Spot Welds
    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
  2. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    注

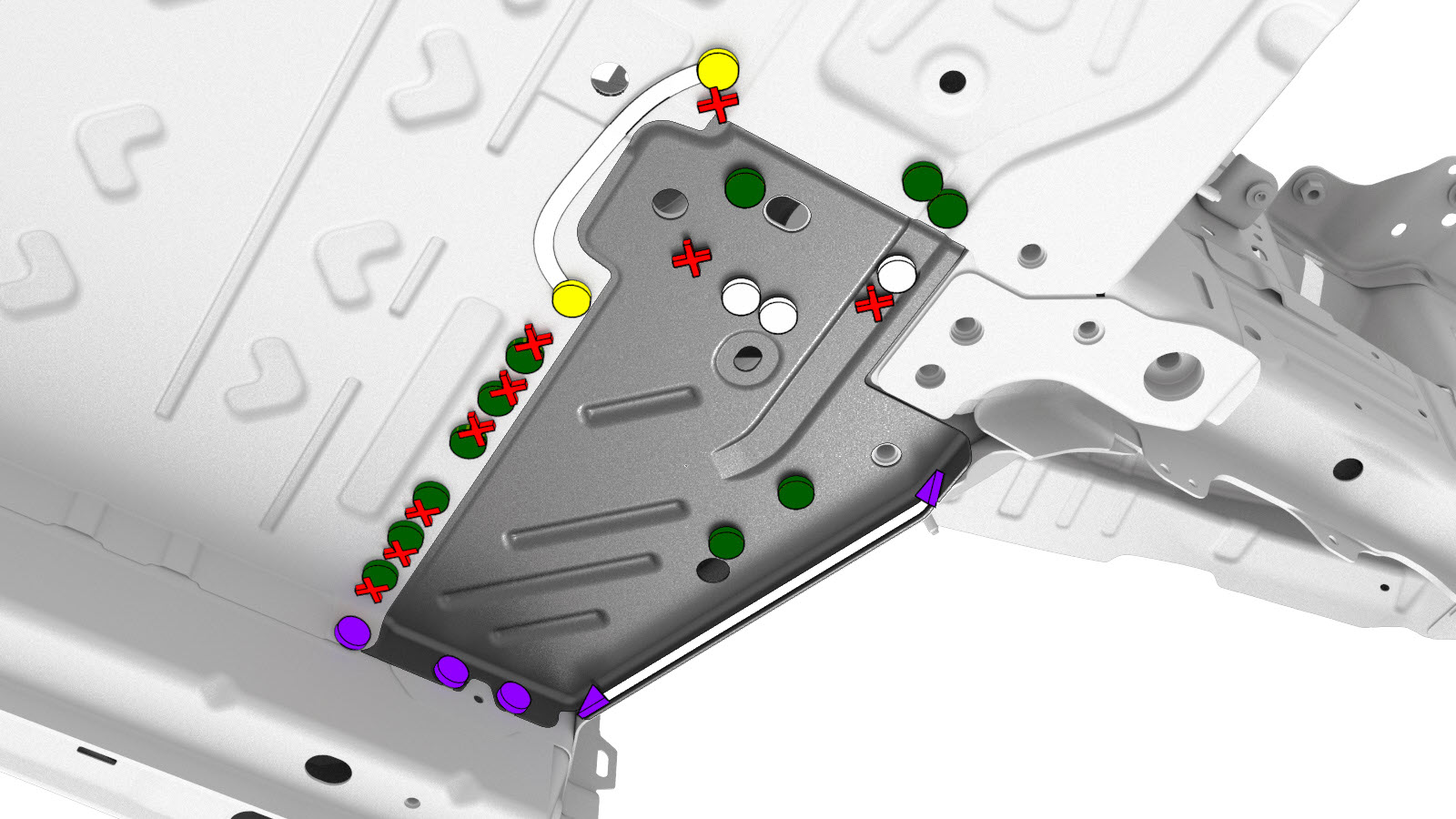

    A red X indicates a location where a factory-installed fastener is not being replaced.

    or Structural Bulb Rivets, 6.5 mm

    or Countersunk Rivets, 4.8 mm Short

    or Structural Countersunk Rivets, 6.5 mm

    or Countersunk Rivets, 4.8 mm Long

    or Installation Spot Welds

    Informational PurposesAn informational icon, calling your attention
    注
    一些铆钉的安装位置已偏移，以避开紧固件已拆下但尚未更换的位置。
  3. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  4. Install the new component or components.
  5. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.

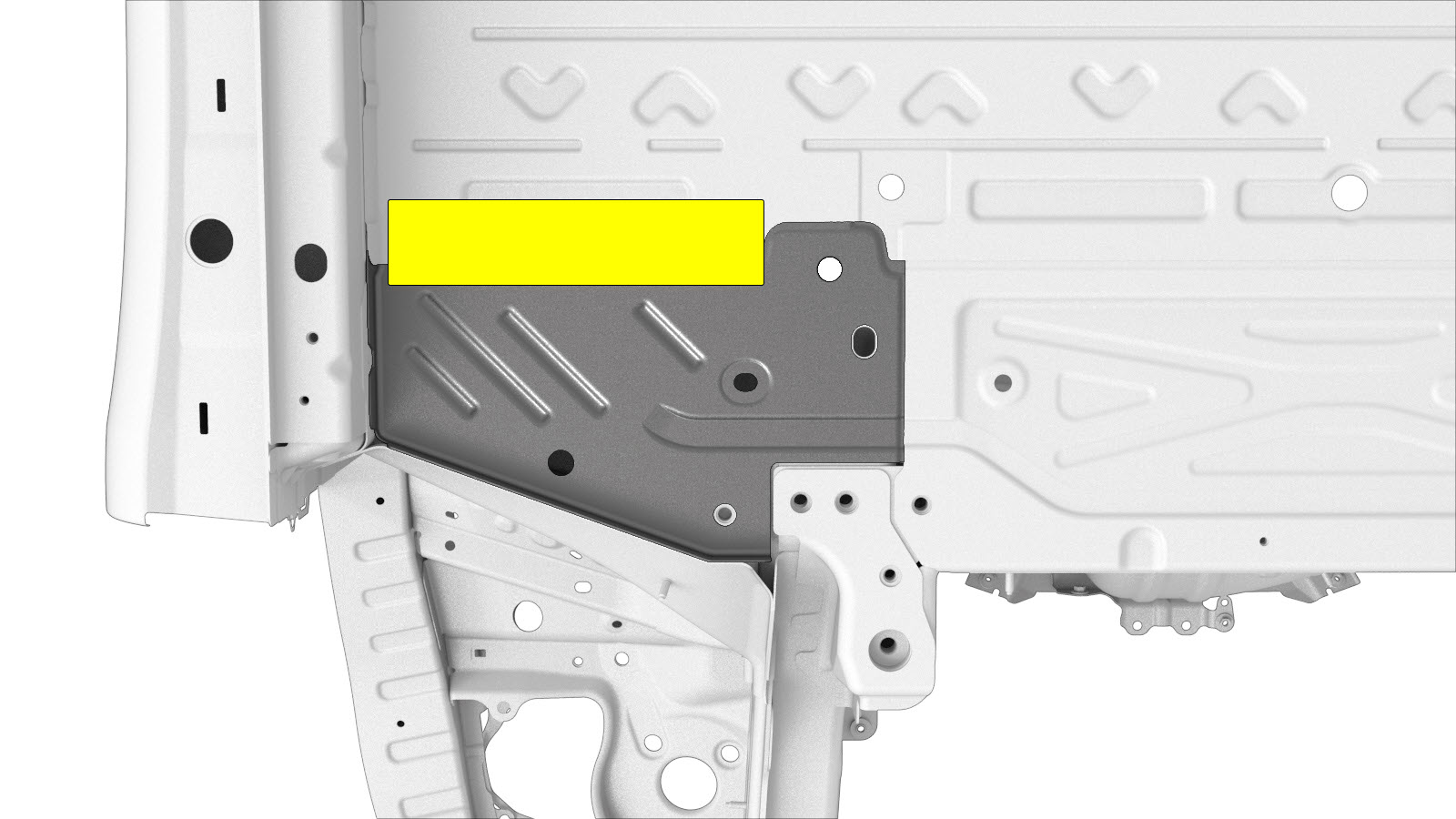

  6. 如图所示，切割丁基胶箔补片并用其盖住安装的铆钉。
  7. Perform any necessary post-repair operations.
