前排座位剪力壁
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
Quantity | Description | Image / Notes |
---|---|---|

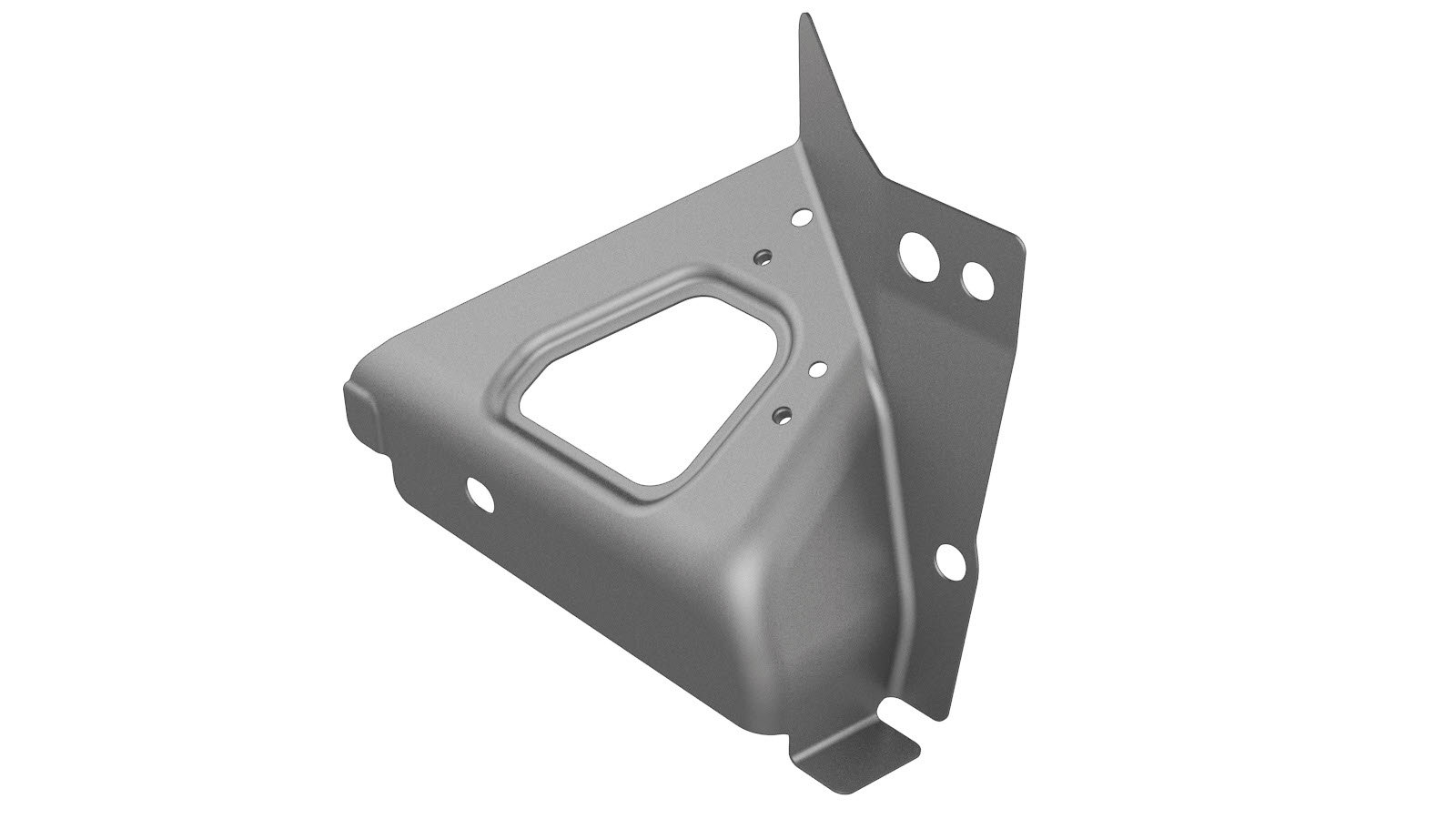

1 | ASY SHOTGUN SHEAR WALL(前排座位剪力壁) |
![]() |
10 | ||
3 |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
- 拆卸前排座位塔。

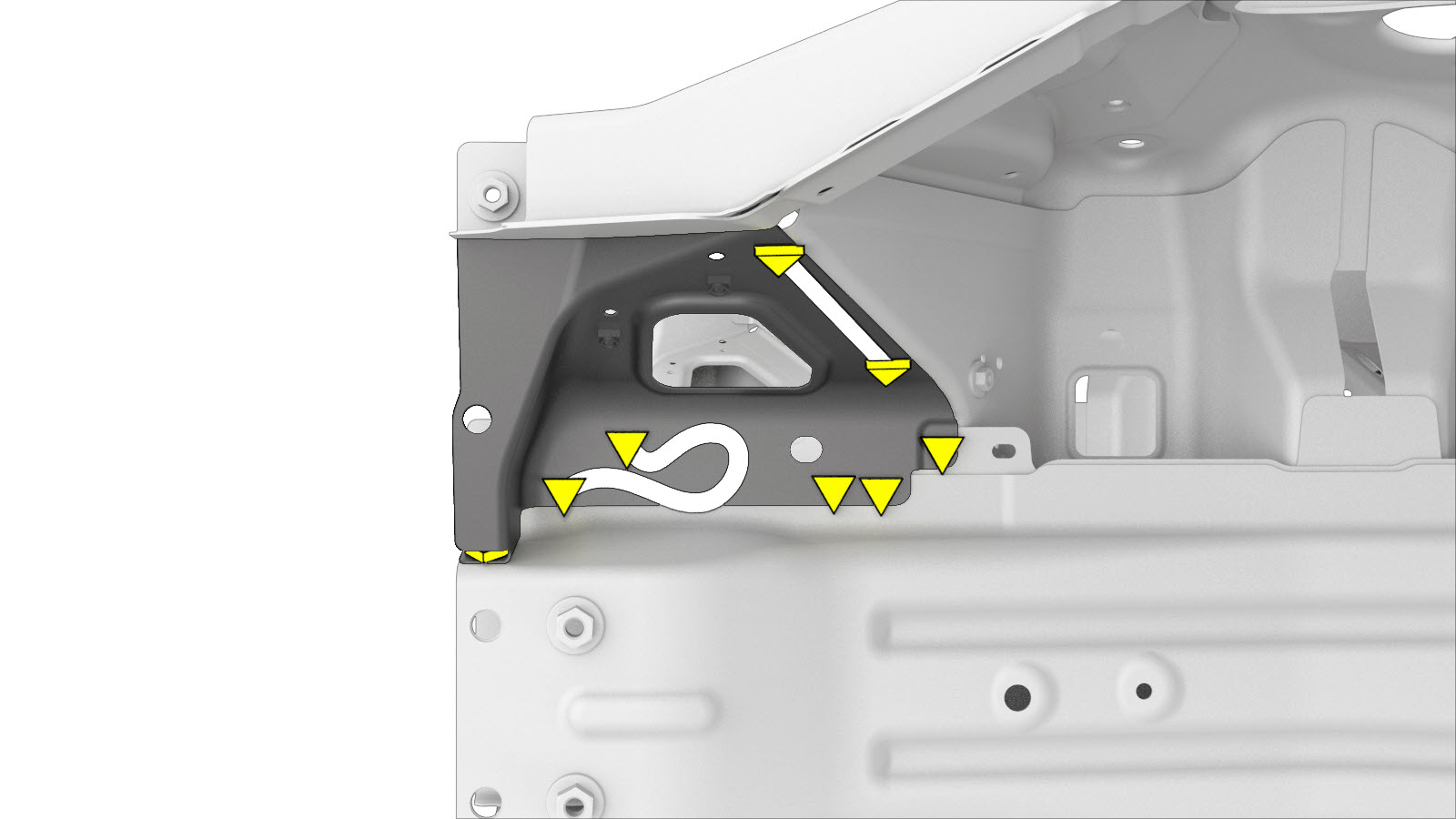

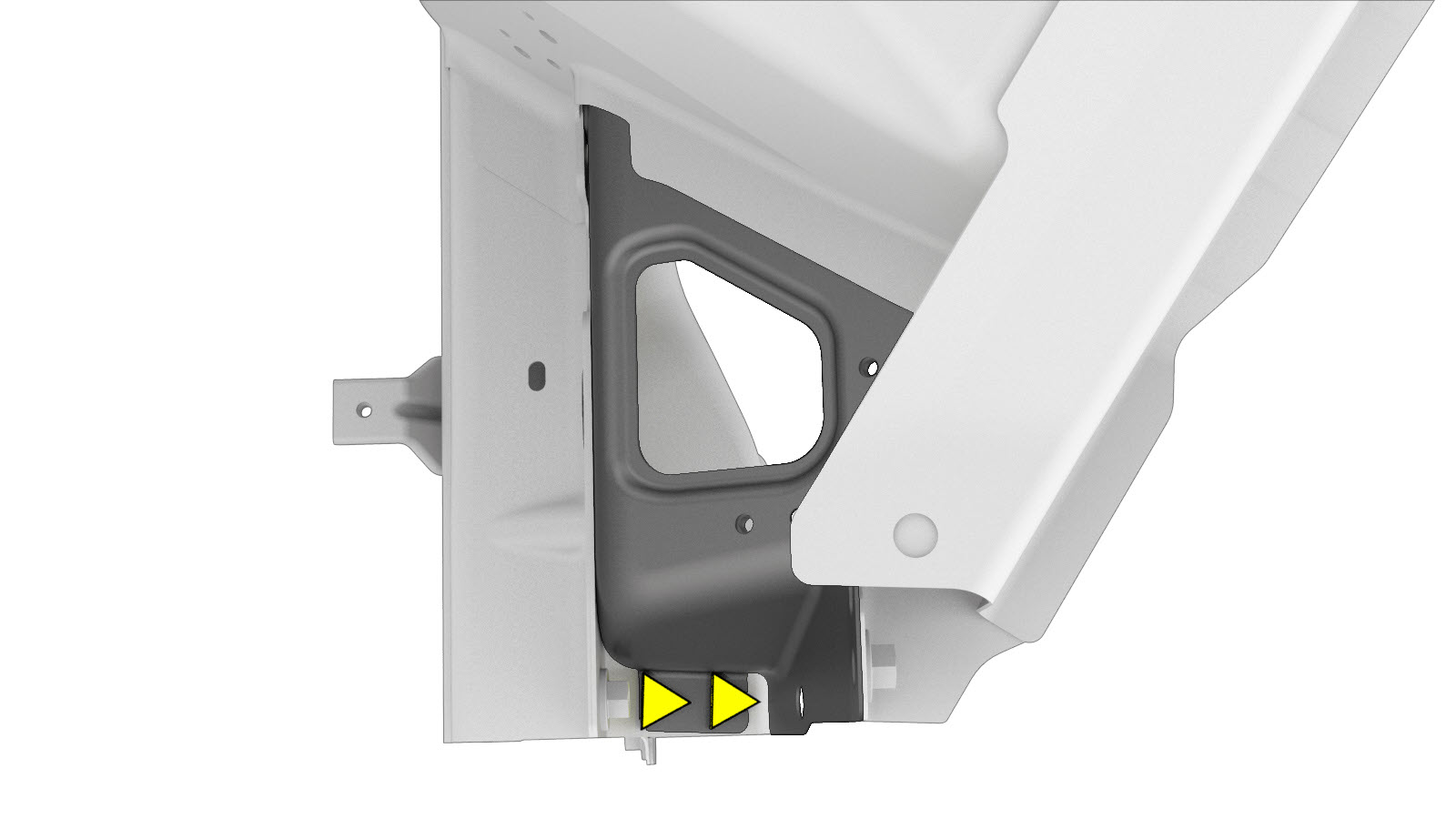

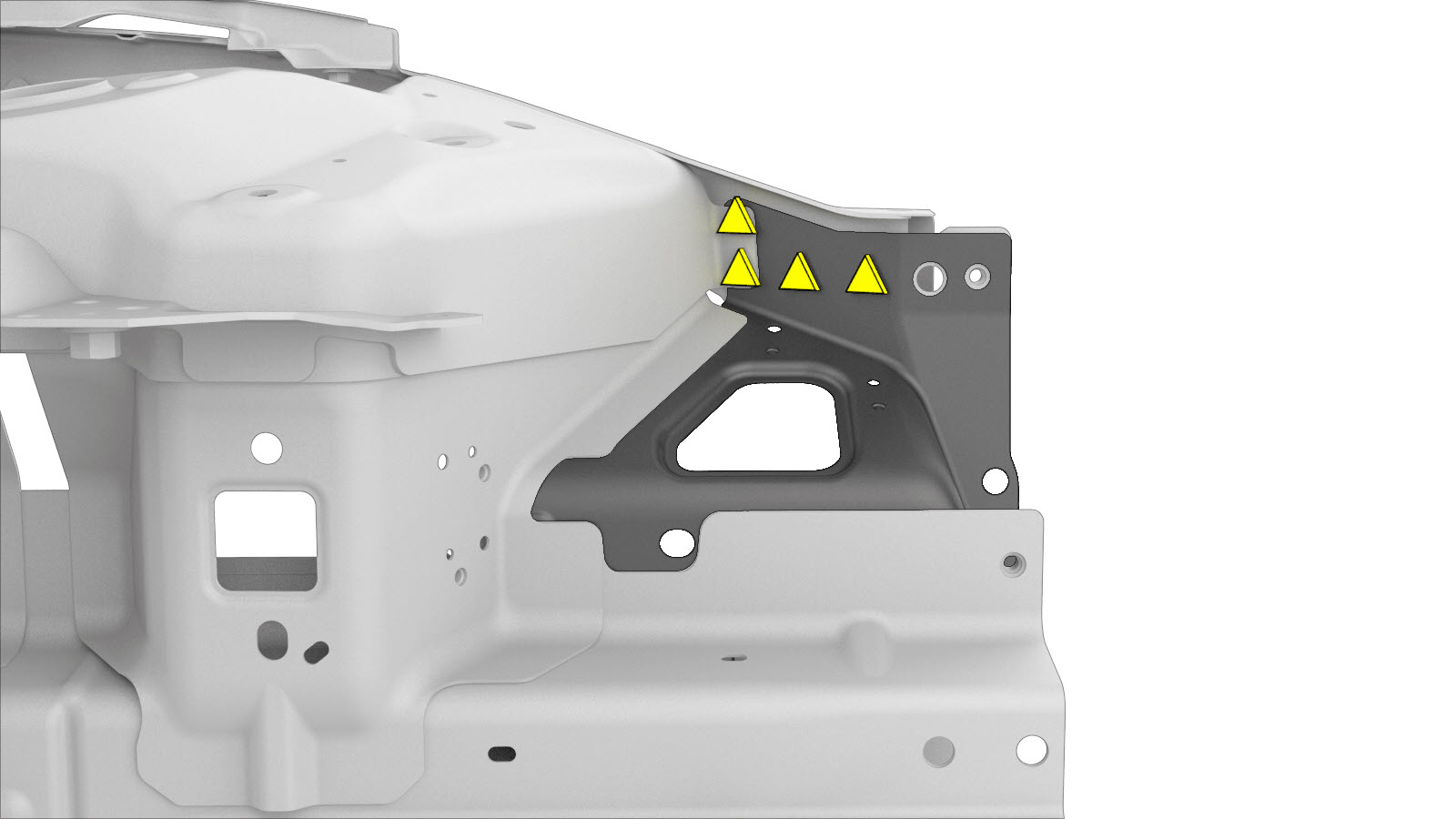

- Remove the original component.
-
Prepare for installation.
or

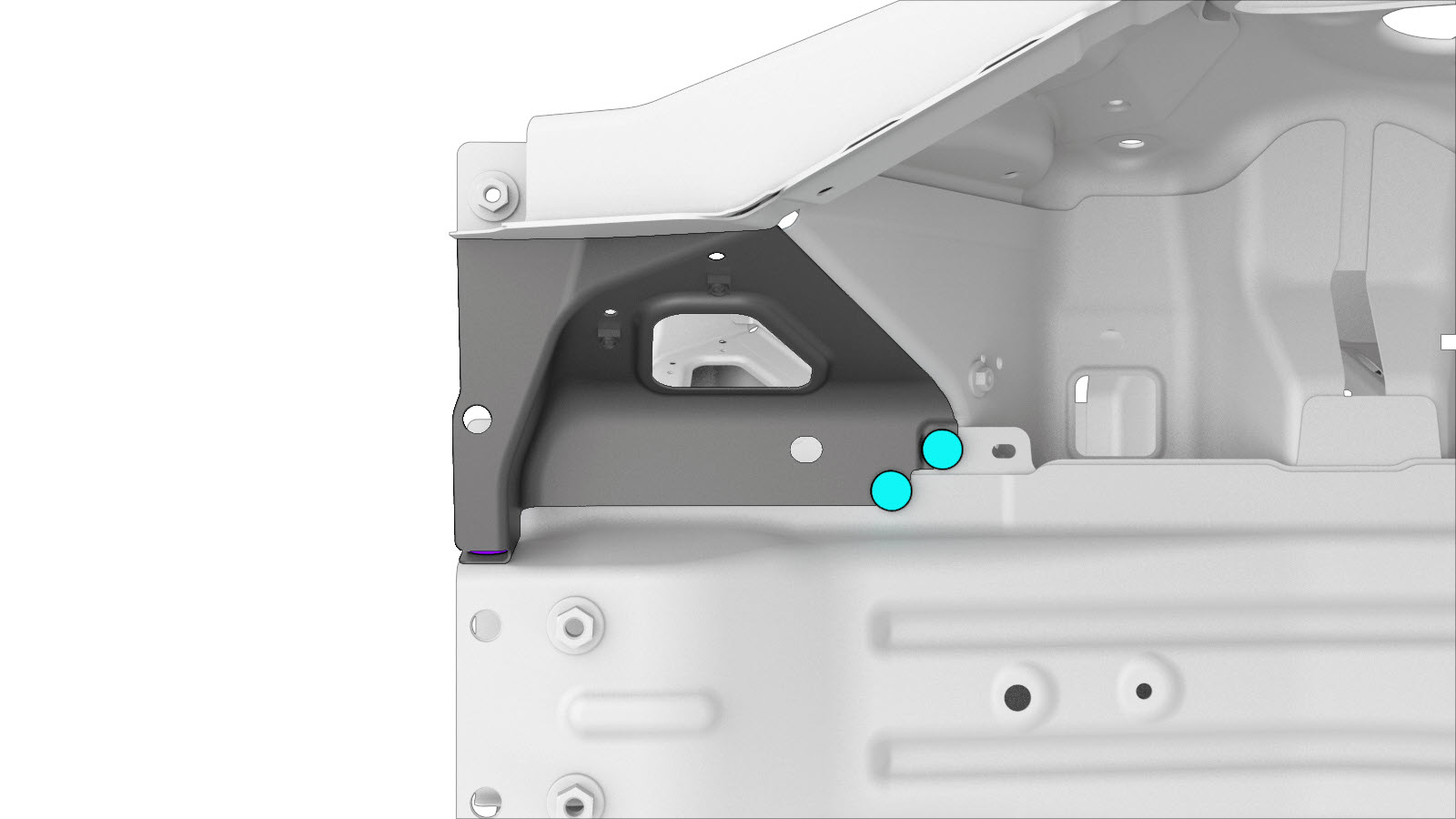

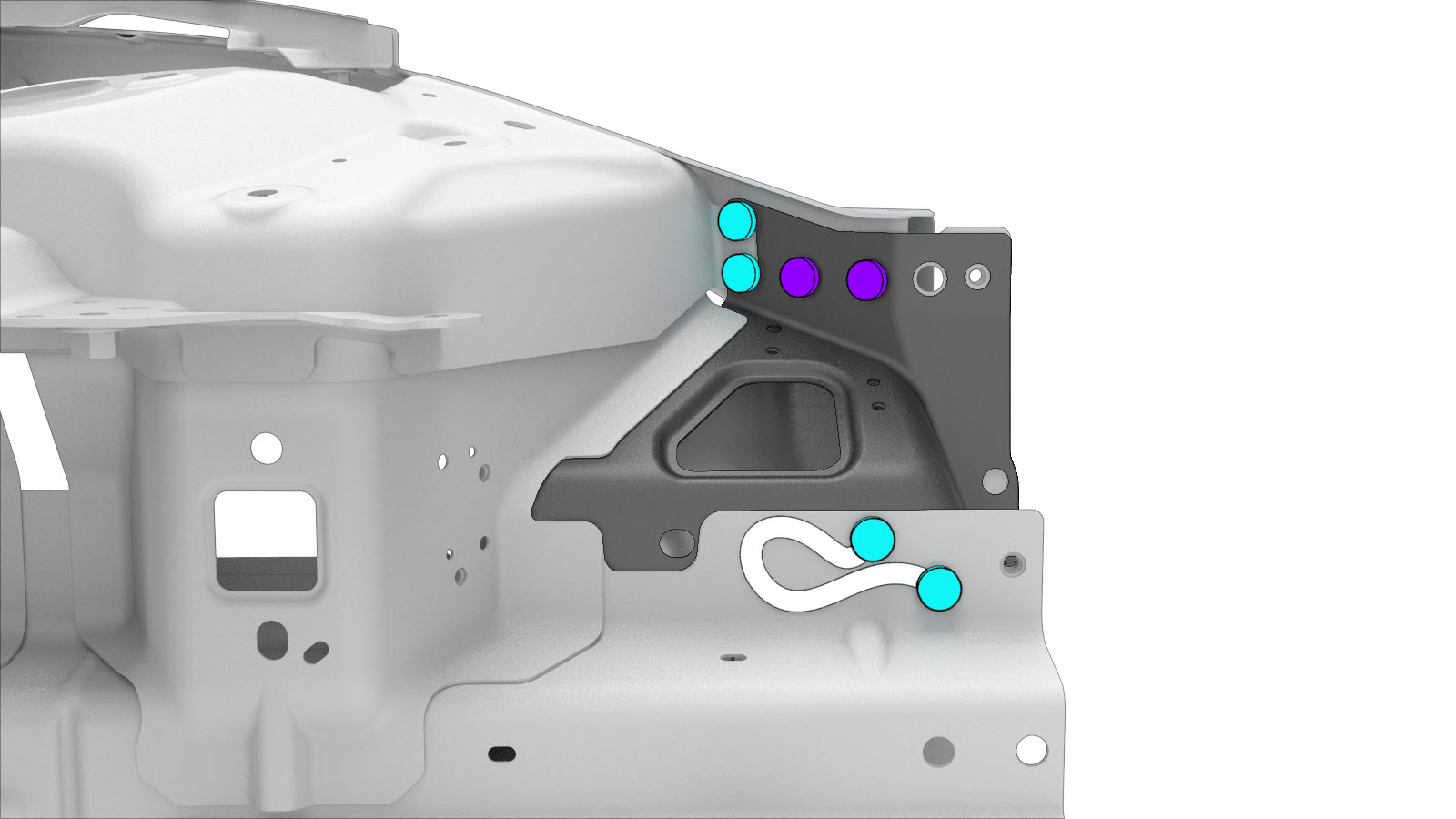

High Strength Structural Rivets, 6.5 mm
or
Structural Bulb Rivets, 6.5 mm

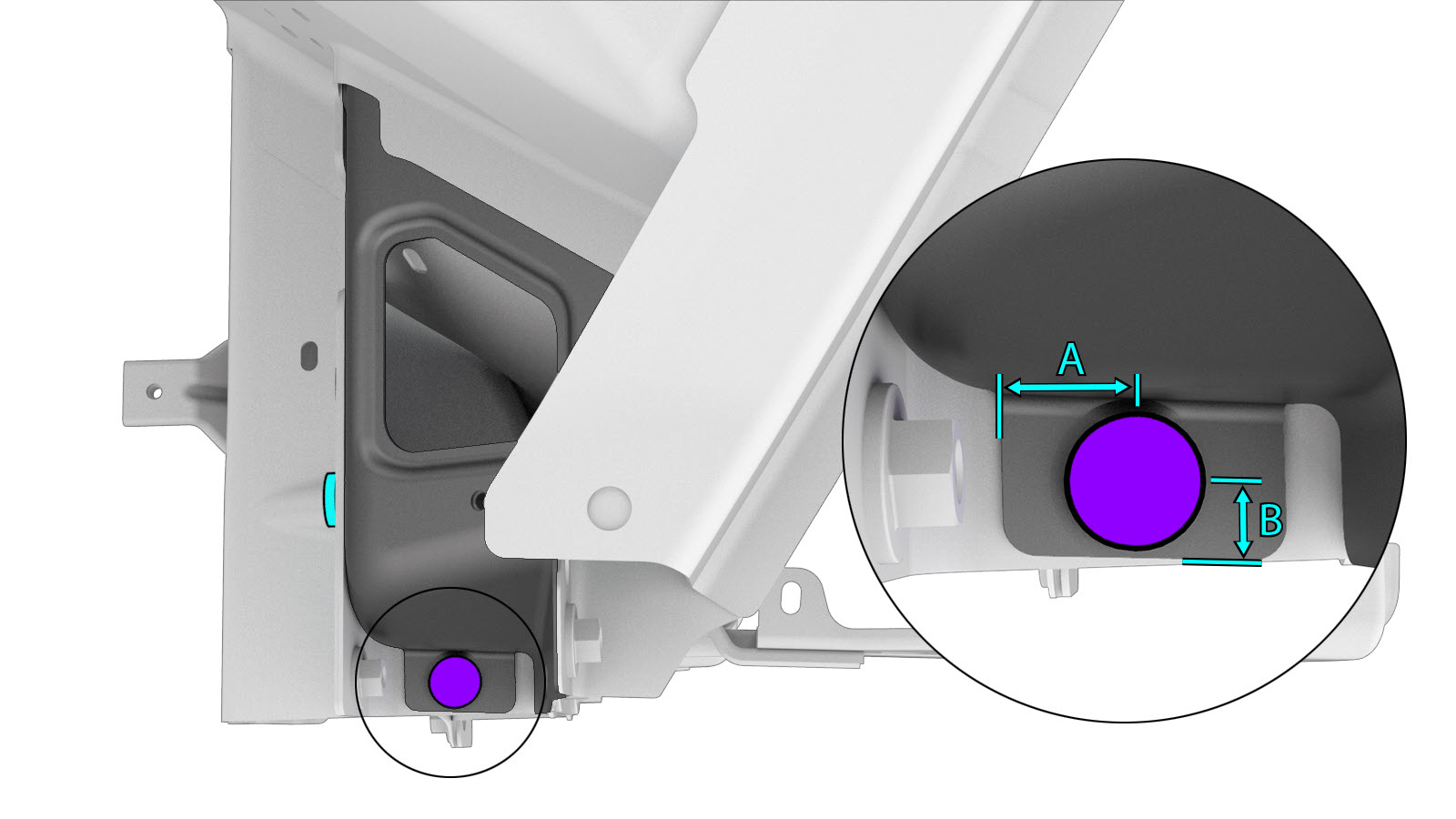

- A = 19 毫米
- B = 11 毫米
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
- 安装新前排座位塔。
- Perform any necessary post-repair operations.
