车顶行李架支架
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
Quantity | Description | Image / Notes |
---|---|---|

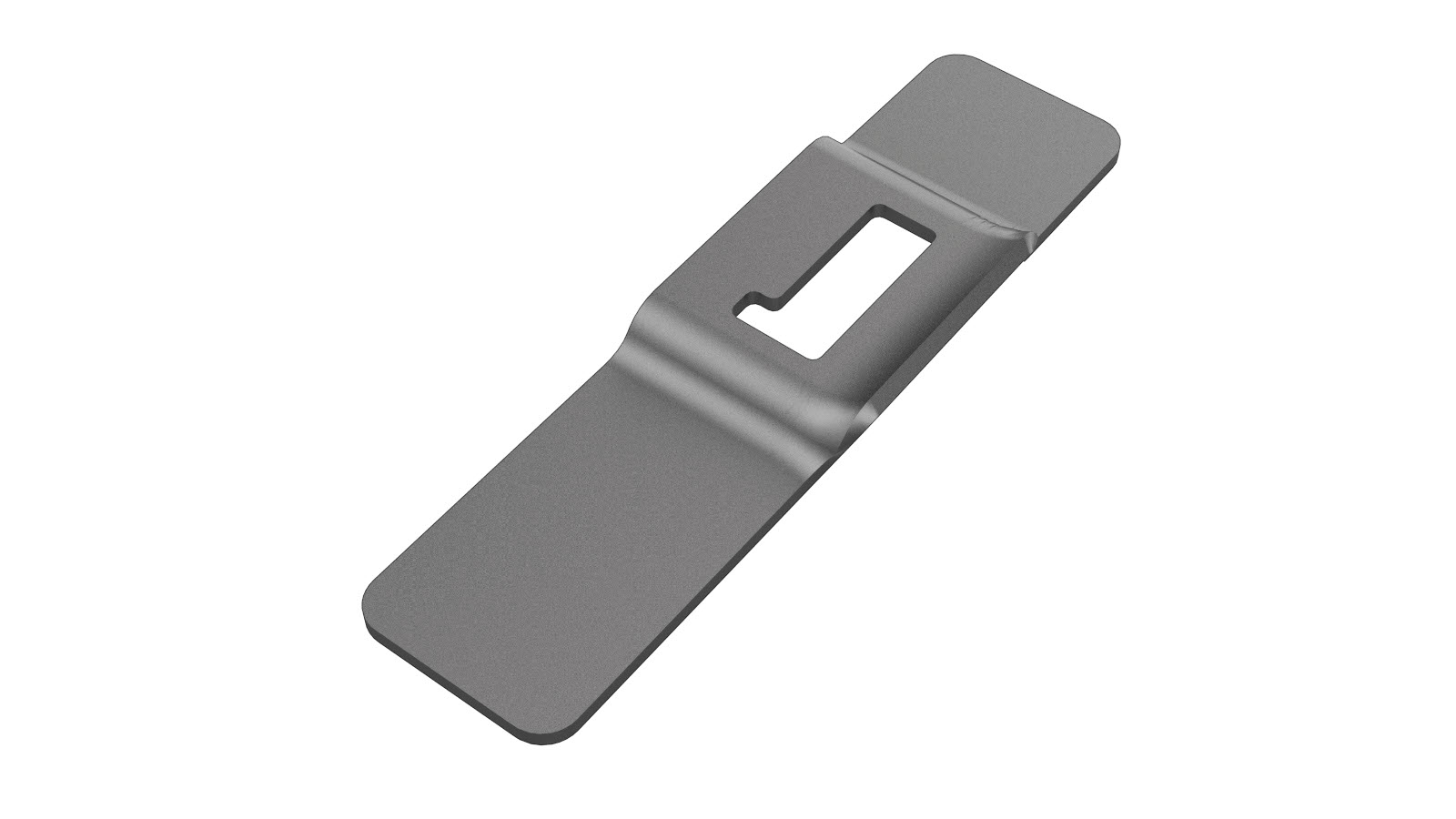

按照需要,每个角落 1 个 | M3, ROOF RACK, FR, LH(车顶行李架支架 - LH 前) M3, ROOF RACK, RR, LH(车顶行李架支架 - LH 后) M3, ROOF RACK, FR, RH(车顶行李架支架 - RH 前) M3, ROOF RACK, RR, RH(车顶行李架支架 - RH 后) |
![]() 注 各车顶行李架支架(LH 前、RH 前、LH 后和 RH 后)设有不同的零件号。请为所要更换的各支架订购正确的更换支架。 |
每个支架 2 个铆钉 |
![]() |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure

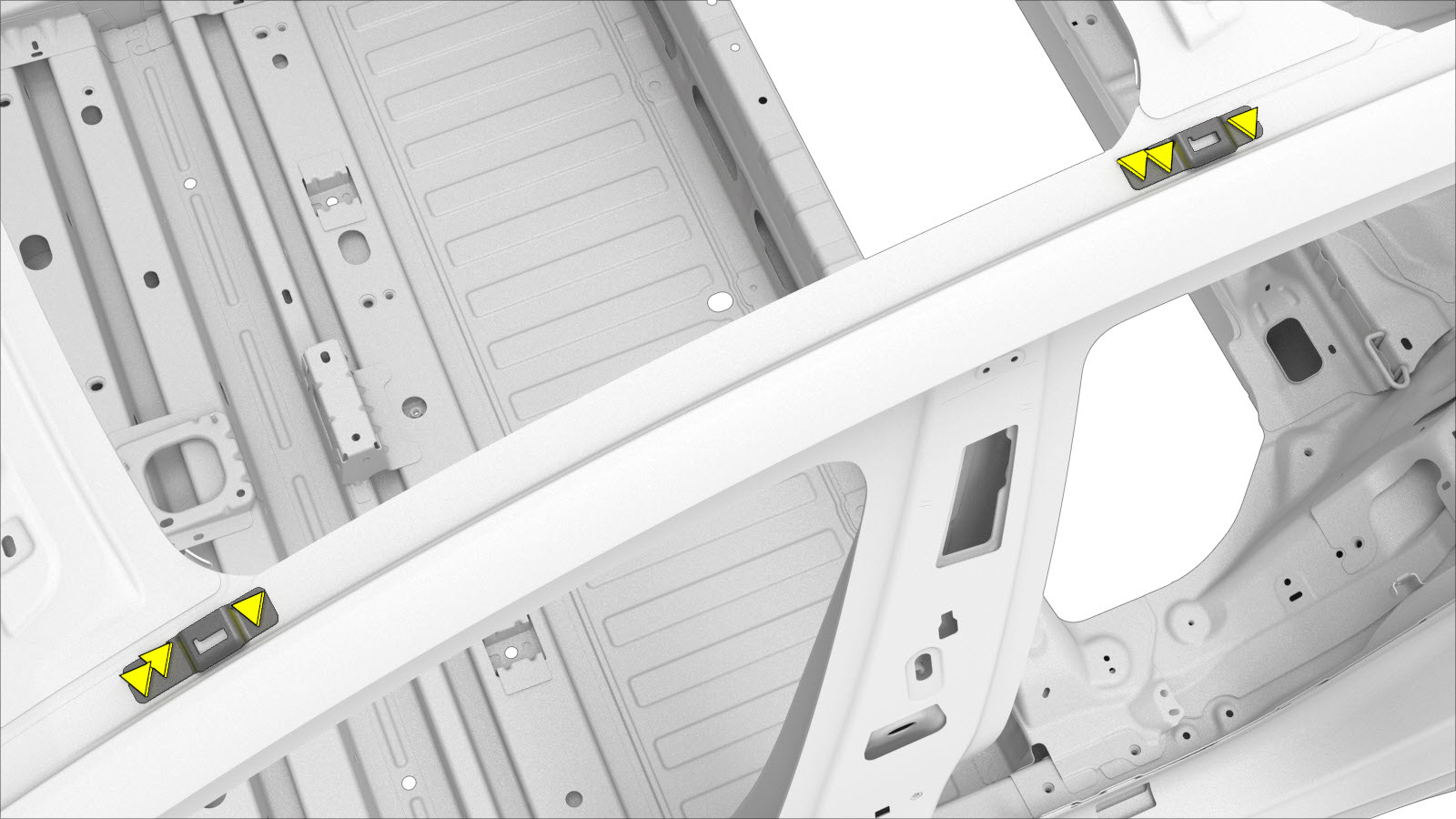

- Remove the original component.
-
Prepare for installation.

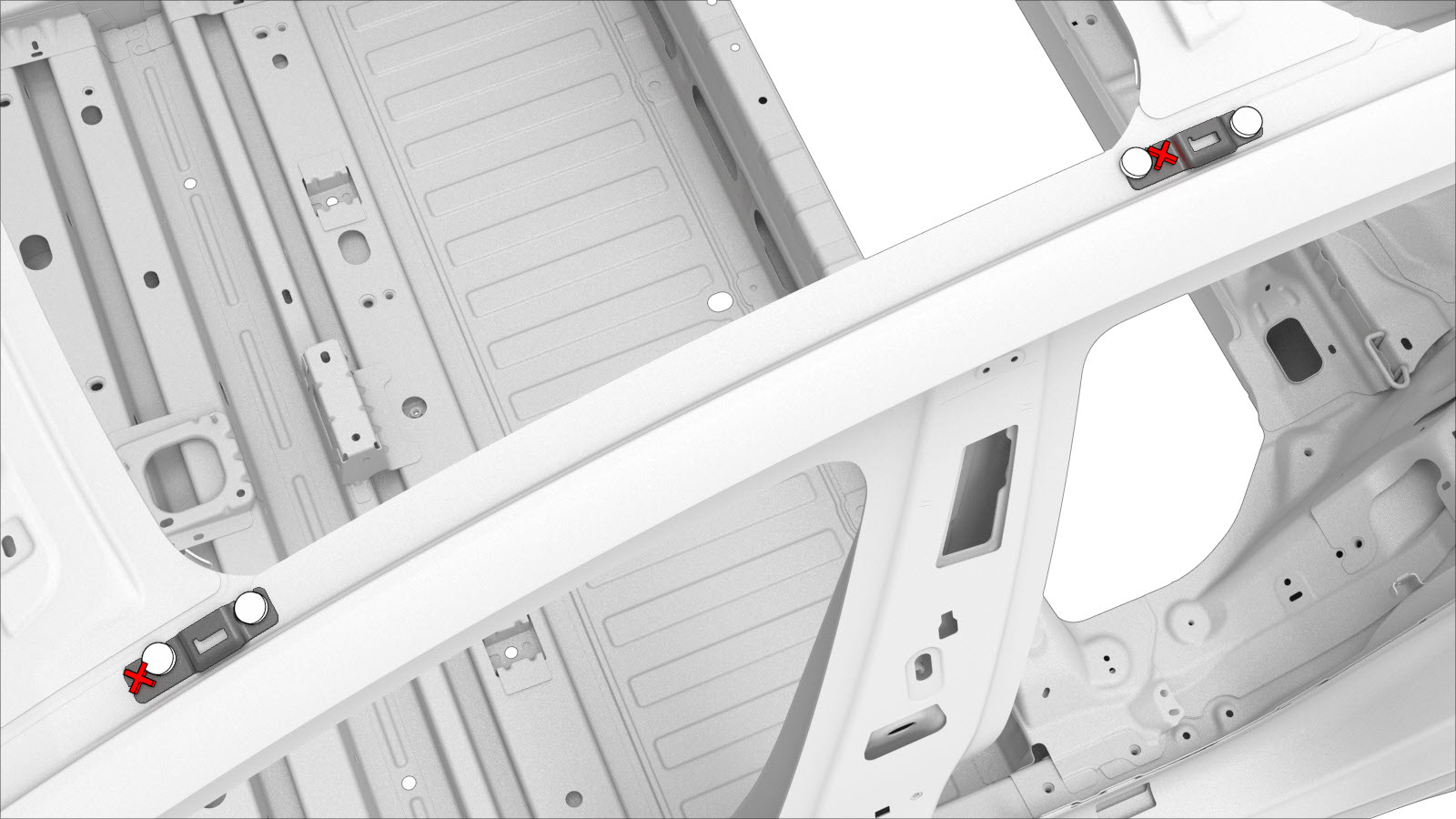

注A red X indicates a location where a factory-installed fastener is not being replaced.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
注去除新组件下方的一小块 NVH 泡沫,为铆钉留出空间。
- Perform any necessary post-repair operations.
