后车架纵梁加固板（下部）
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|
| 1 | REINF-REAR RAIL LOWER（后车架纵梁加固板 – 下部） |
|
| 2 |
High Strength Structural Rivet, 6.5 mm
|
|
| 4 |
Bolt
, M6-1.0X12,FHCS,DIN6921,G10.9,ZF720 |
Tesla 零件号 1008770-00。 |
| 4 |
Nut
, HEX,FLG,M6-1.0X14[ST]-P-04 |
Tesla 零件号 1016227-00。 |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
拆卸后车架纵梁（下部）。
-
拆卸后车架纵梁（上部）。
-
Remove the original component.
or

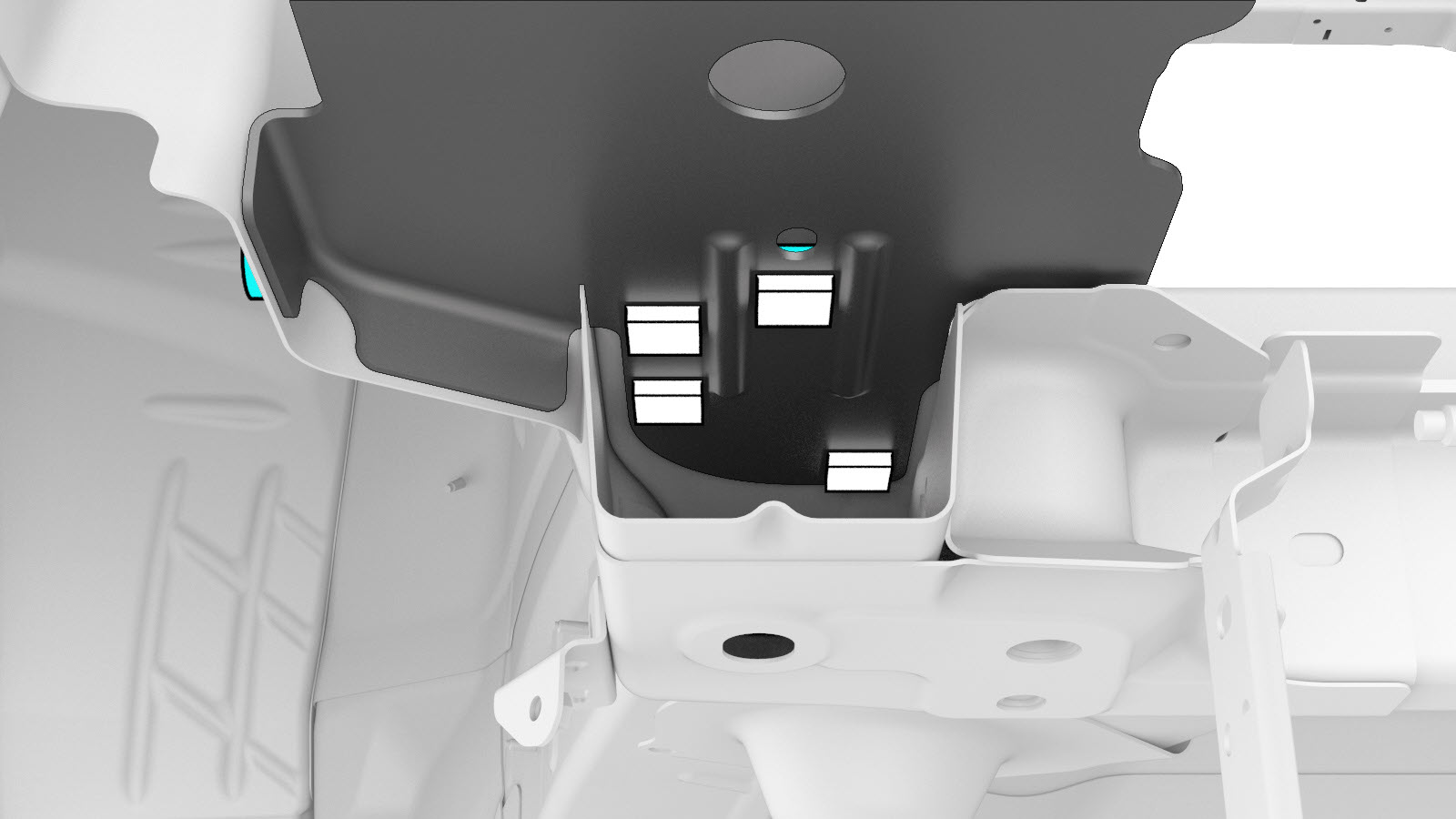

Factory Spot Welds
or

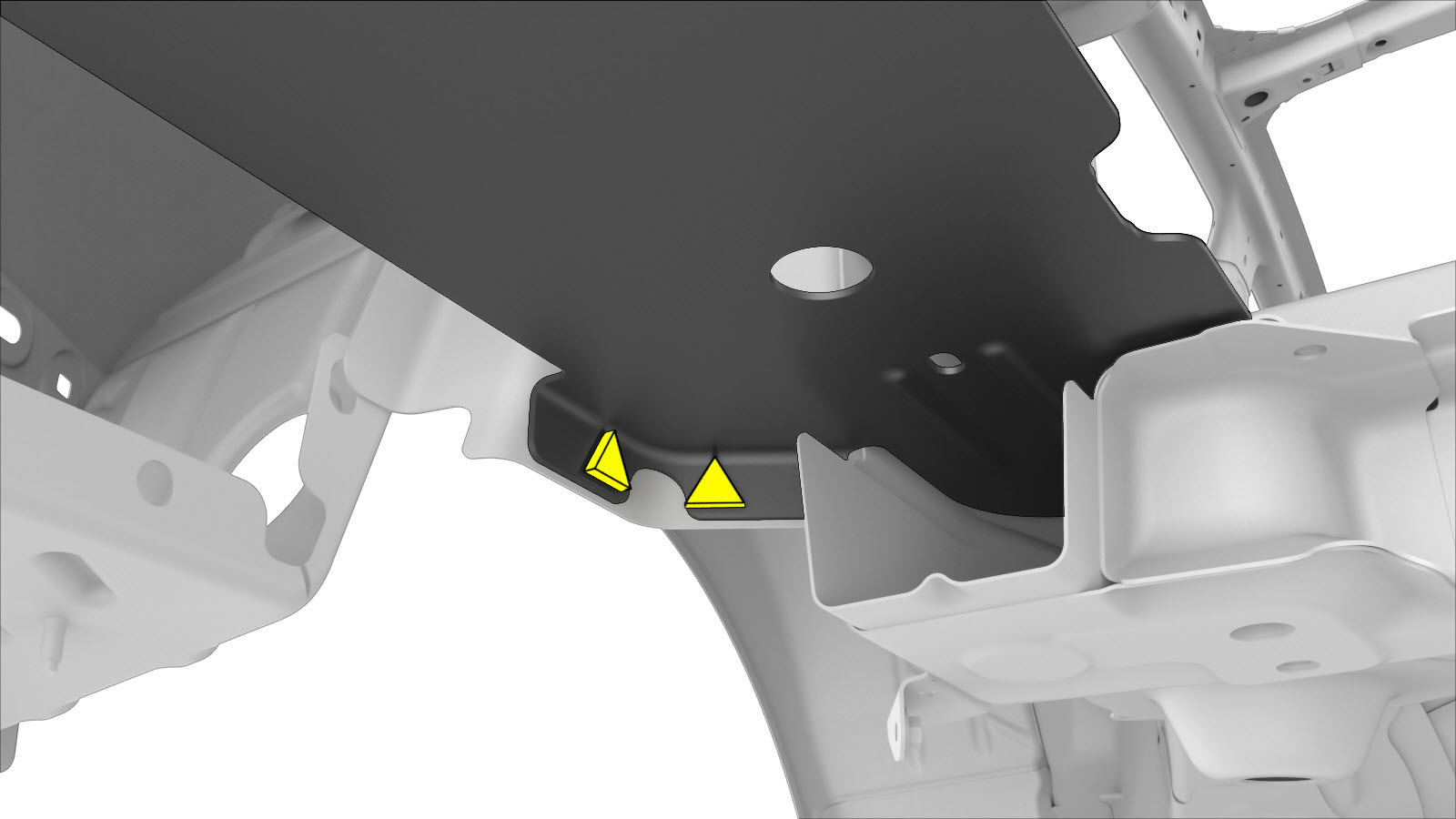

Factory SPRs
-
Prepare for installation.

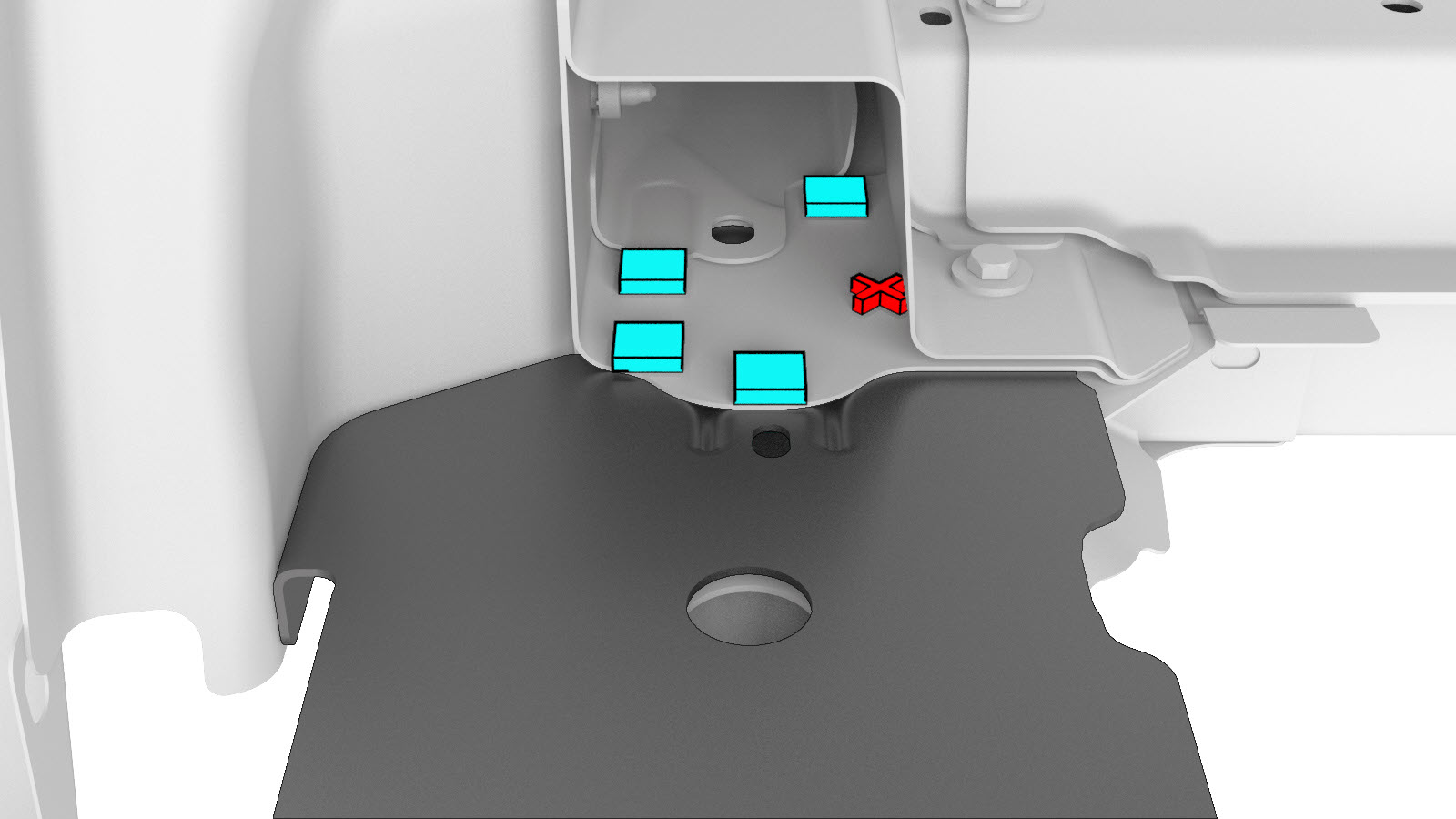

注A red X indicates a location where a factory-installed fastener is not being replaced.

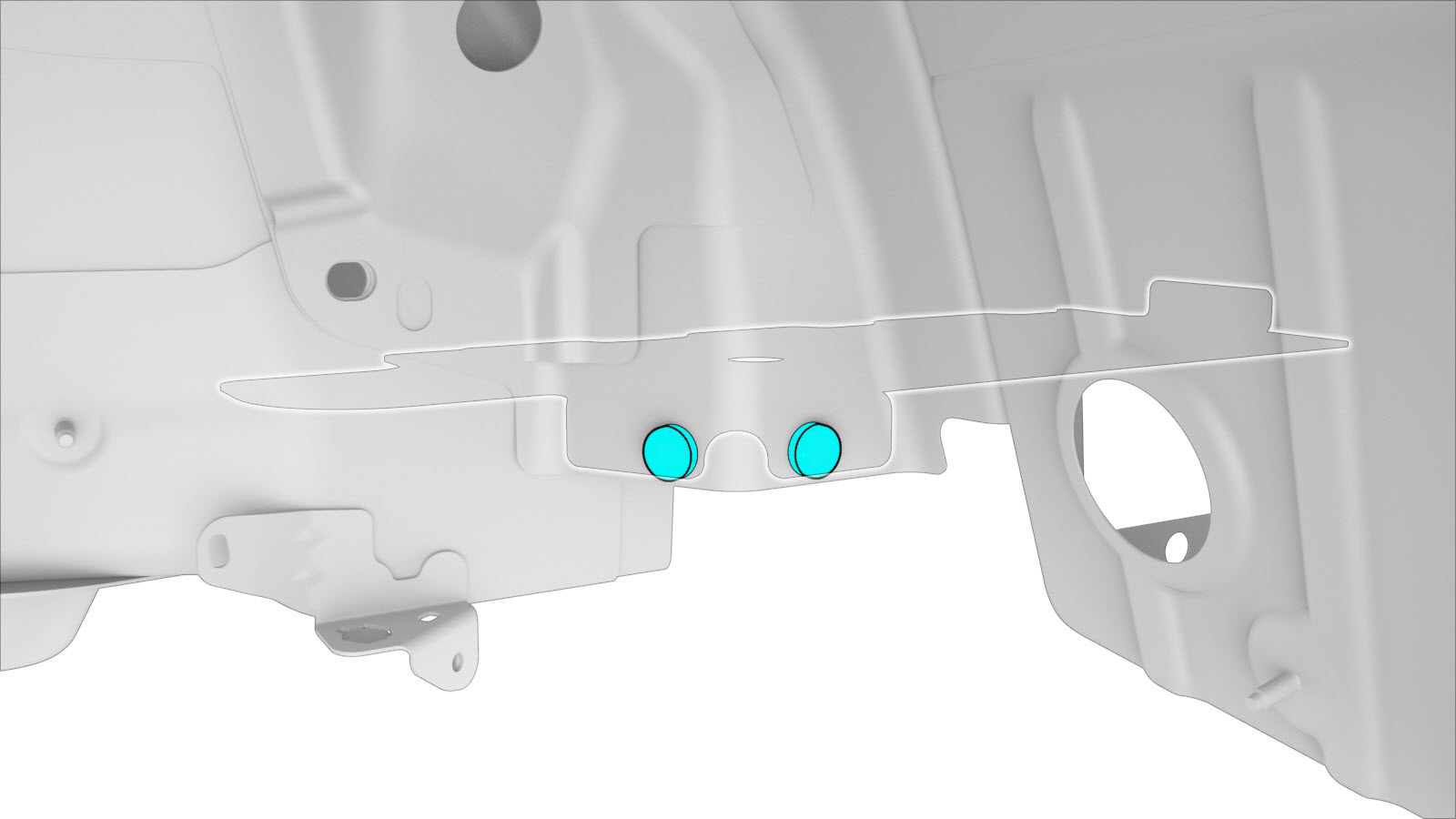

or High Strength Structural Rivets, 6.5 mm

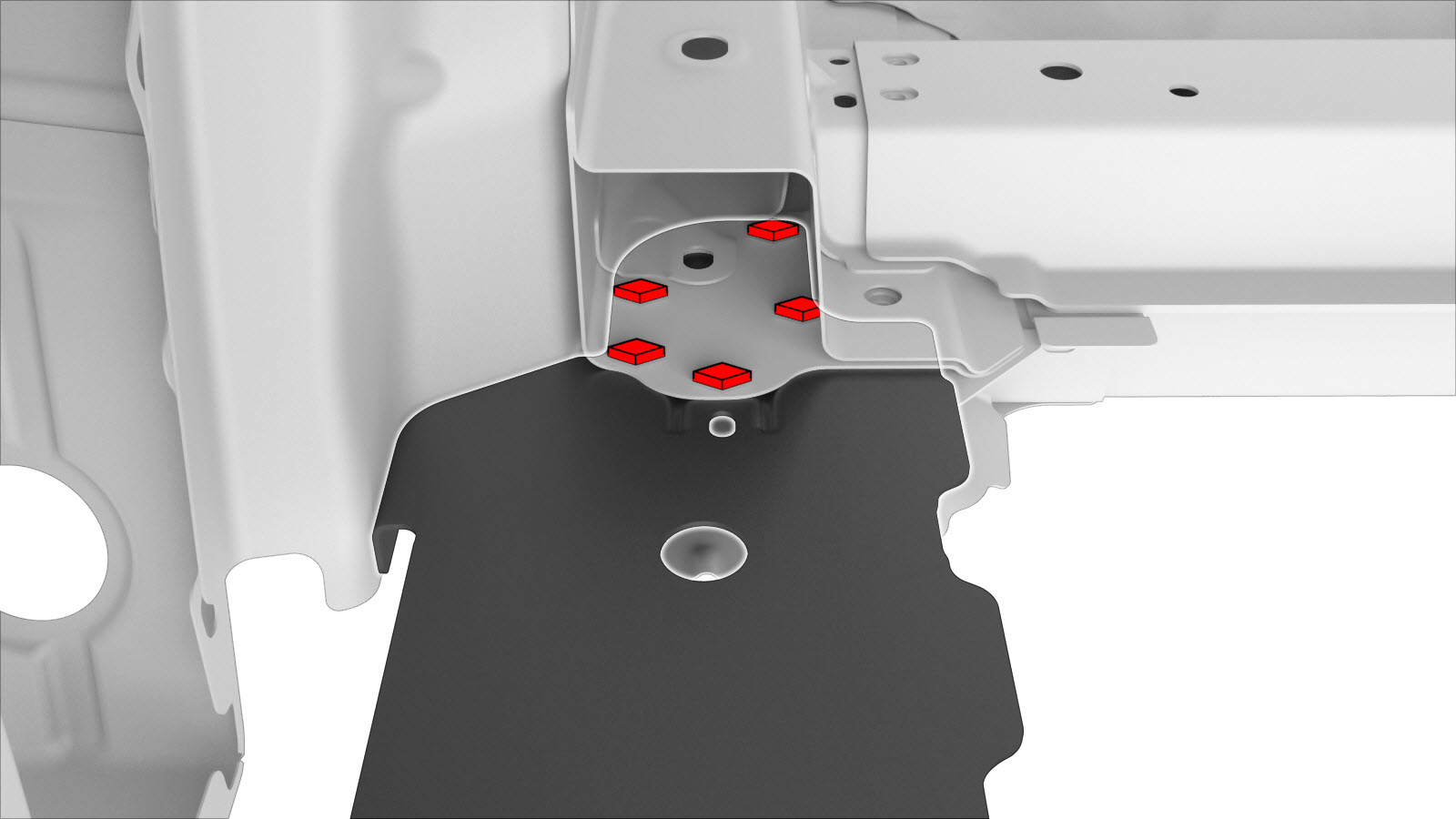

or Bolts
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
将这些螺母拧紧至 13 Nm。
-
安装后车架纵梁（上部）。
-
安装后车架纵梁（下部）。
- Perform any necessary post-repair operations.
