铰链柱

Parts List

Quantity Description Image / Notes

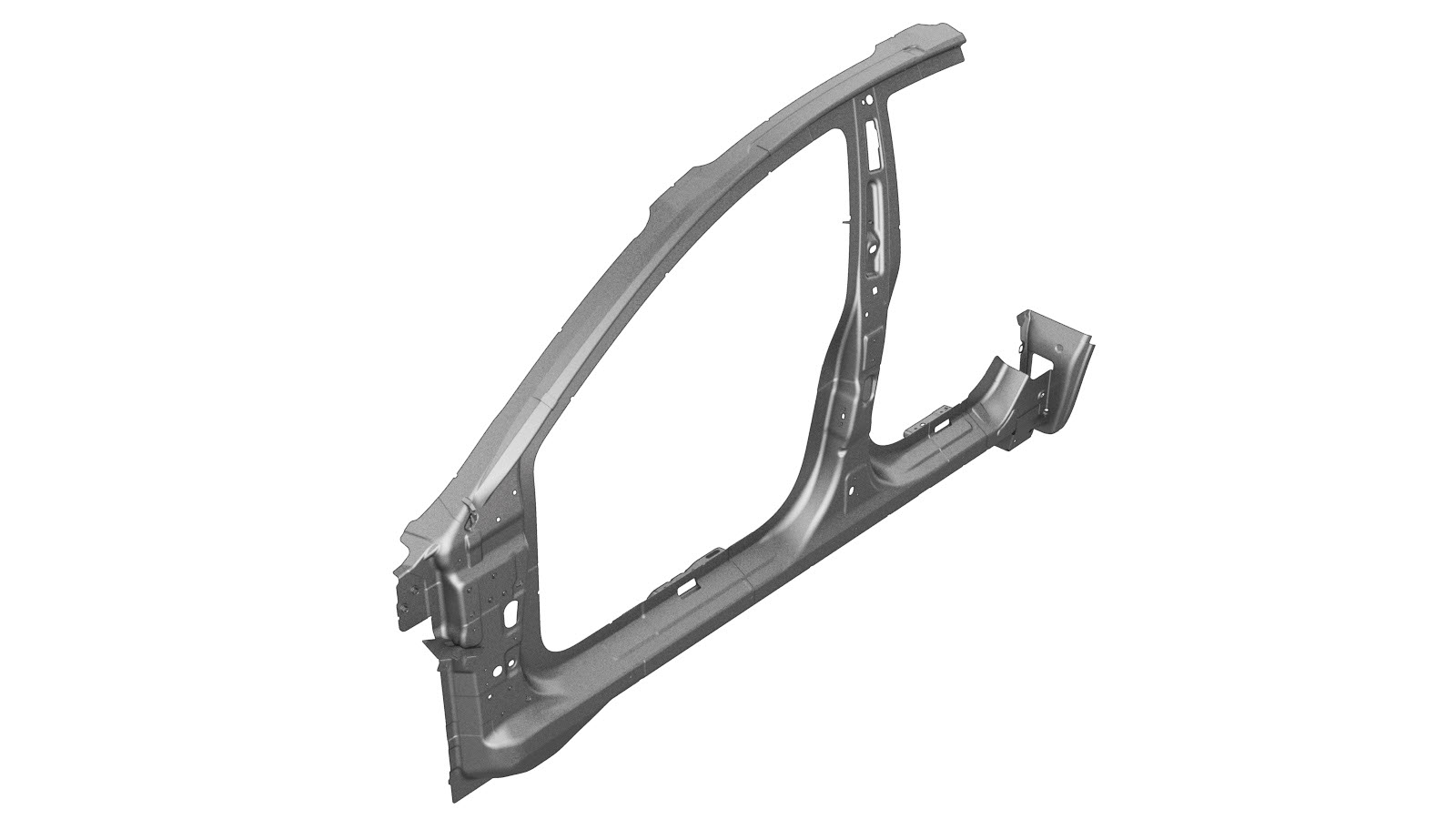

1 ASY - DOOR RING OUTER（车门安装环外件总成）
12 High Strength Structural Rivet, 6.5 mm
7 Structural Countersunk Rivet, 6.5 mm
2 Rivet, 4.8 mm
6 Flow Form Rivet S18
3 Flow Form Rivet S38

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 拆下车身侧外件的必要部分。
  2. 拆下前排座位外侧。

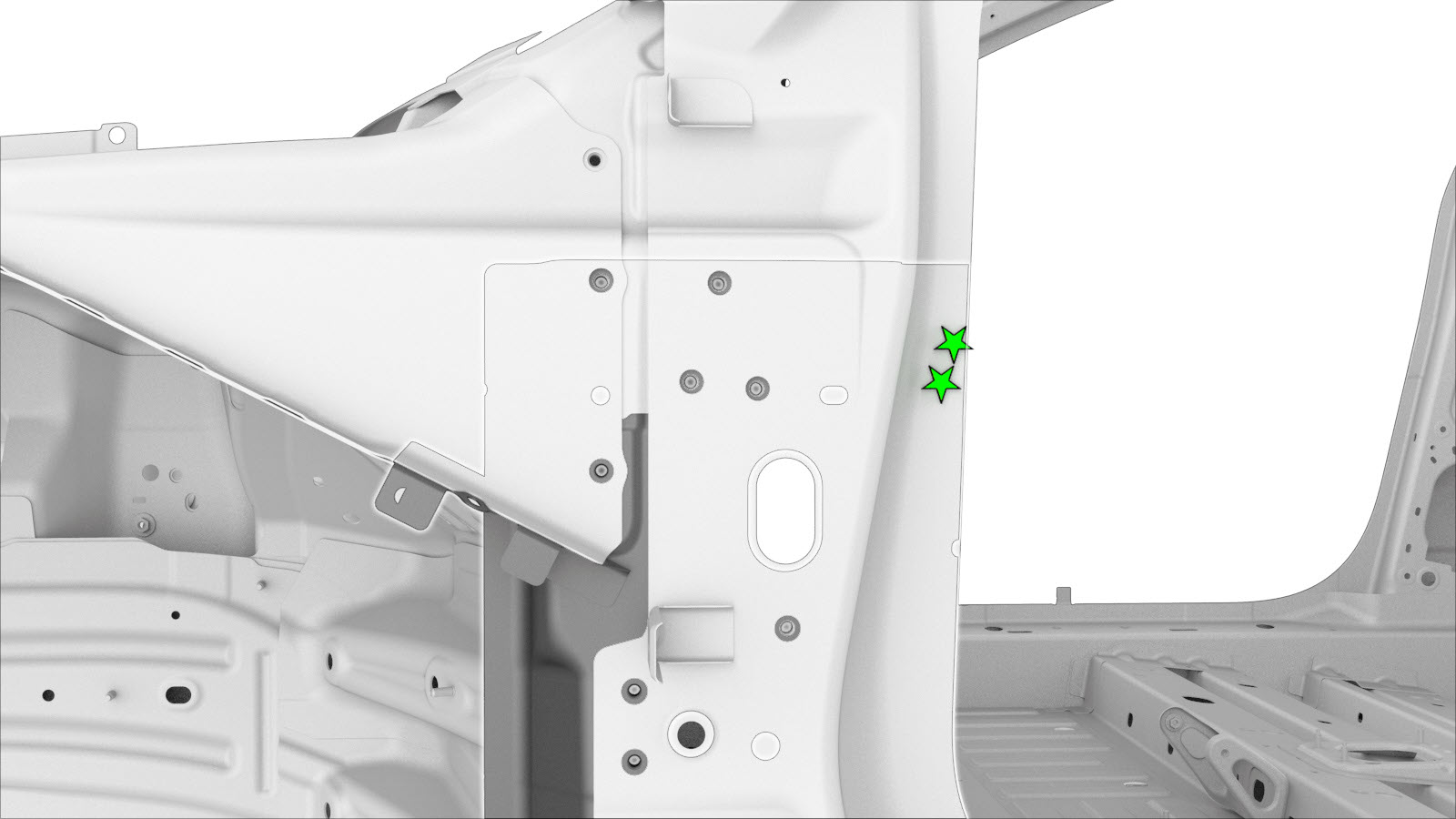

  3. 按下方所示切割新的车门安装环外件，以制作新组件。
  4. Remove the original component.

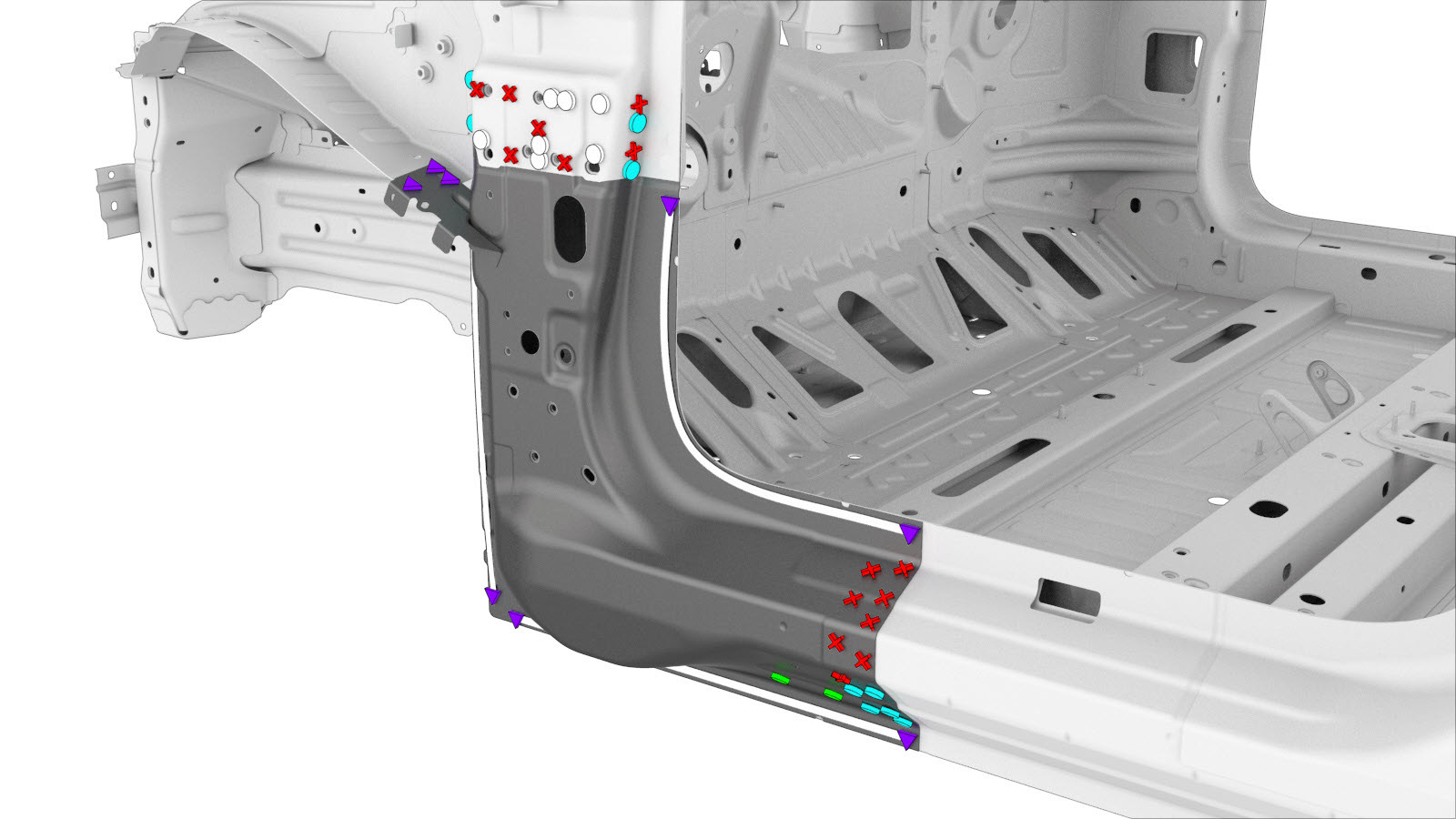

    or Factory Spot Welds

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

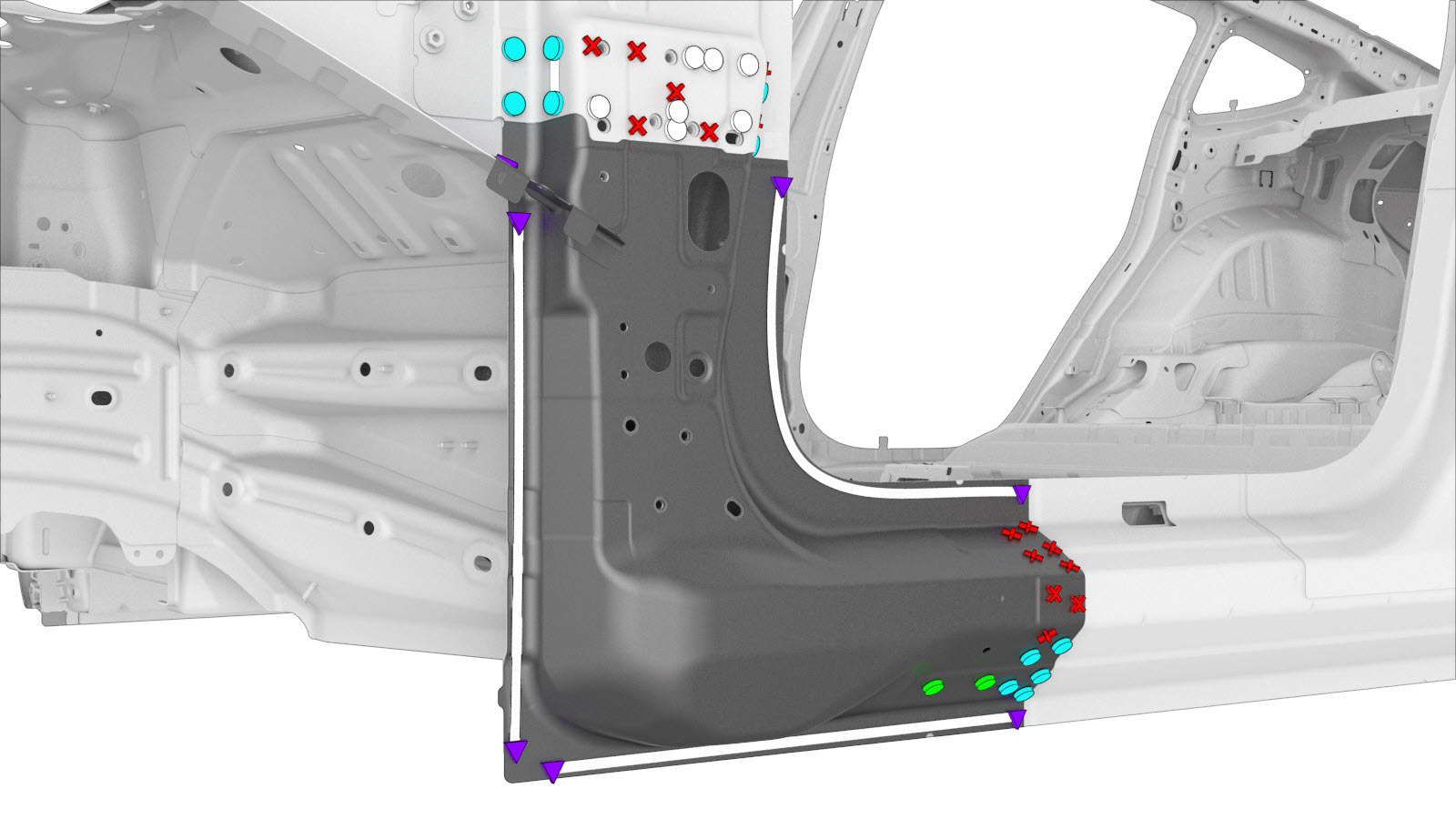

  5. 取下钻透所示原厂点焊焊缝的钻头，将 A 柱外件的底部与下方面板分开。
    或 钻透原厂点焊焊缝
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
    Informational PurposesAn informational icon, calling your attention
    注

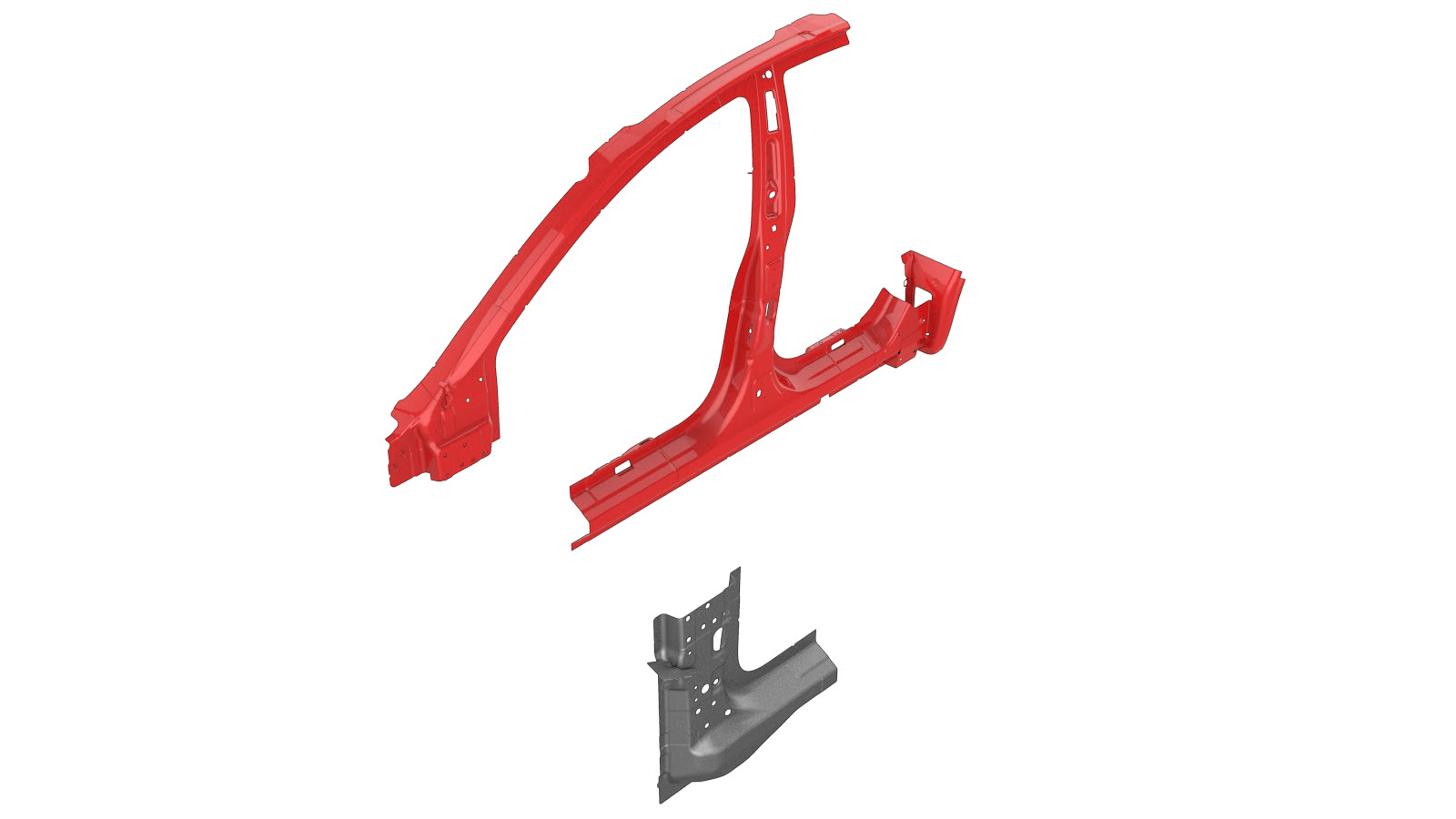

    新的铰链柱维修零件安装在 A 柱外件的底部下方。
  6. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    注
    A red X indicates a location where a factory-installed fastener is not being replaced.

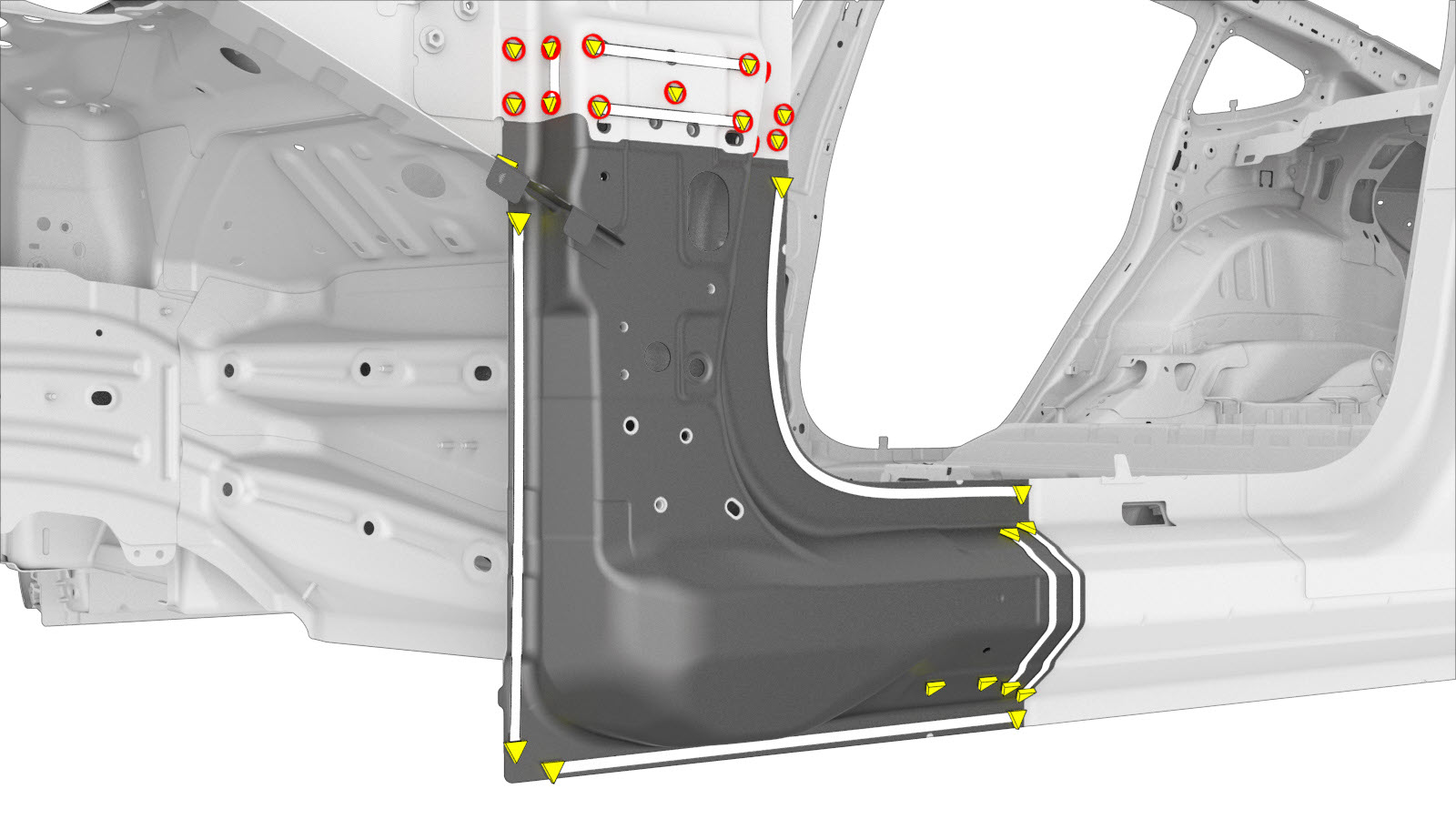

    or Installation Spot Welds

    or Rivets, 4.8 mm

    or Structural Countersunk Rivets, 6.5 mm

    or High Strength Structural Rivets, 6.5 mm
    Informational PurposesAn informational icon, calling your attention
    注
    新的铰链柱维修零件安装在 A 柱外件的底部下方。
    Informational PurposesAn informational icon, calling your attention
    注
    安装铆钉前，先临时以车门铰链螺栓替代。将螺栓拧紧至 27 Nm。
  7. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  8. Install the new component or components.
  9. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  10. 安装车身侧外件的必要部分。
  11. 安装前排座位外侧。
  12. 按指示安装紧固件。

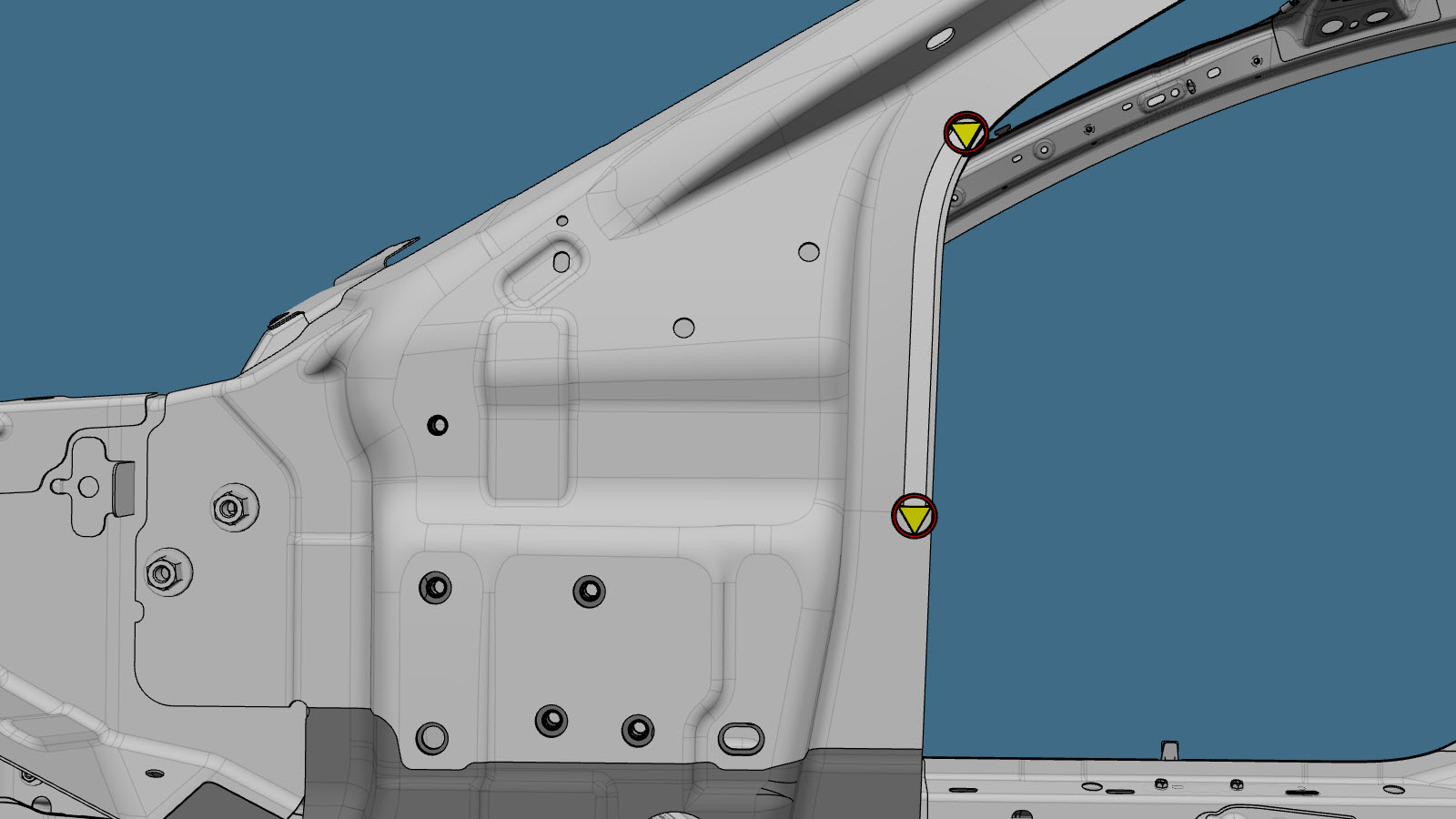

    or Flow Form Rivets, S18

    or Flow Form Rivets, S38

  13. Perform any necessary post-repair operations.
