后轮拱(整体)

Repair Information

  • Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
  • This procedure can be completed without using a frame bench.
  • 可使用 ASY, RR WHEELHOUSE OTR(后轮拱)维修零件和本文档“维修程序”部分的说明,在一次维修中作为一个整体更换此组件。或者,只要遵循分割指南中的指南,就可以更换后轮拱的任何一个区块或多个区块的任意组合。

分割指南

一般分割指南:
  • 如下所述,可以切开间隙孔或非功能孔(外饰孔)。
  • 不要在螺栓孔或螺柱中心 25 毫米范围内进行切割。
  • 除非特别说明,否则区块不需要在对接接头或搭接接头处使用紧固件。
  • 搭接和对接接头面板之间的间隙应尽可能小,以最大限度地提高接头强度。
  • 结构型粘合剂固化后,密封所有外露的接缝。

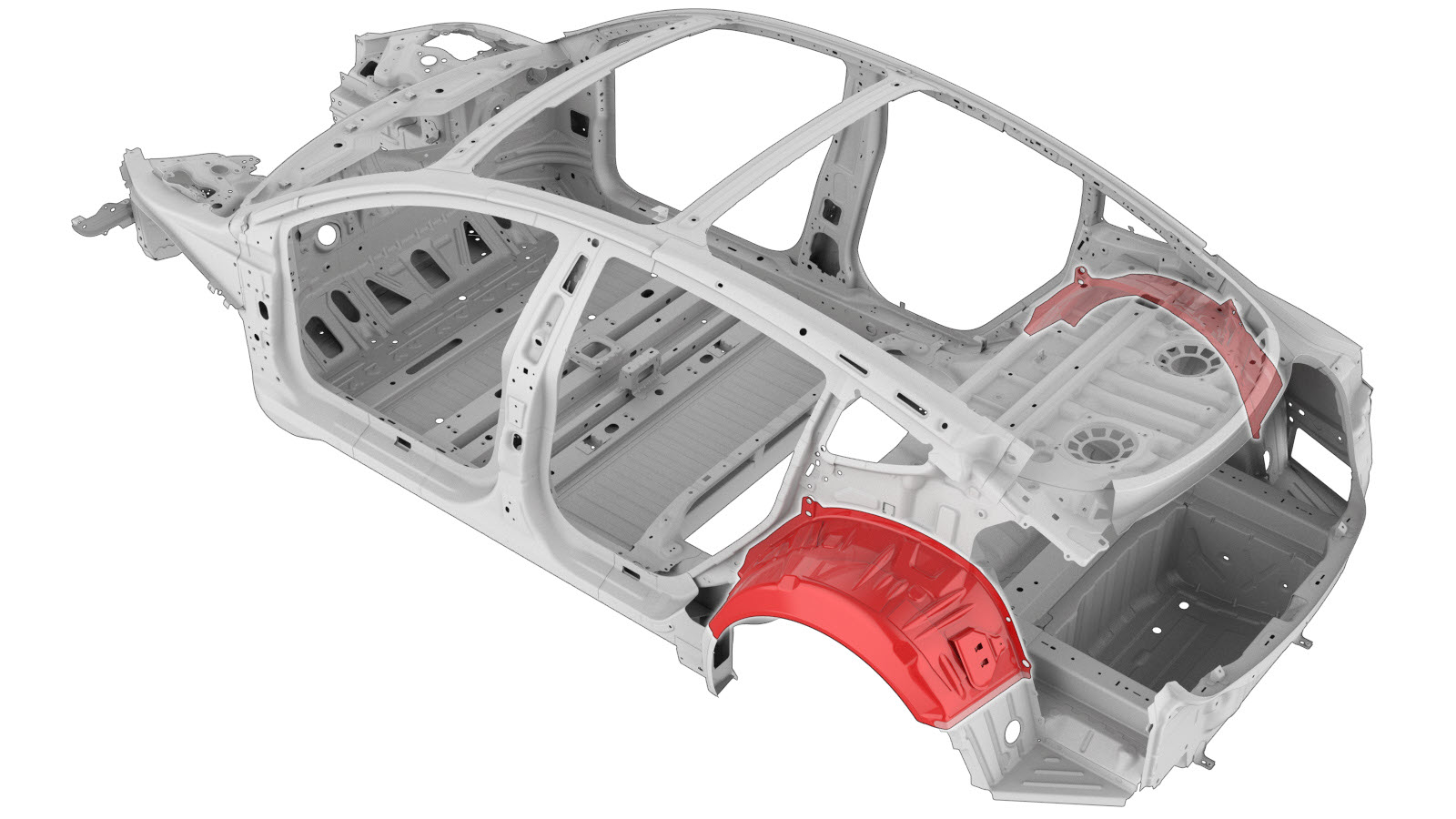

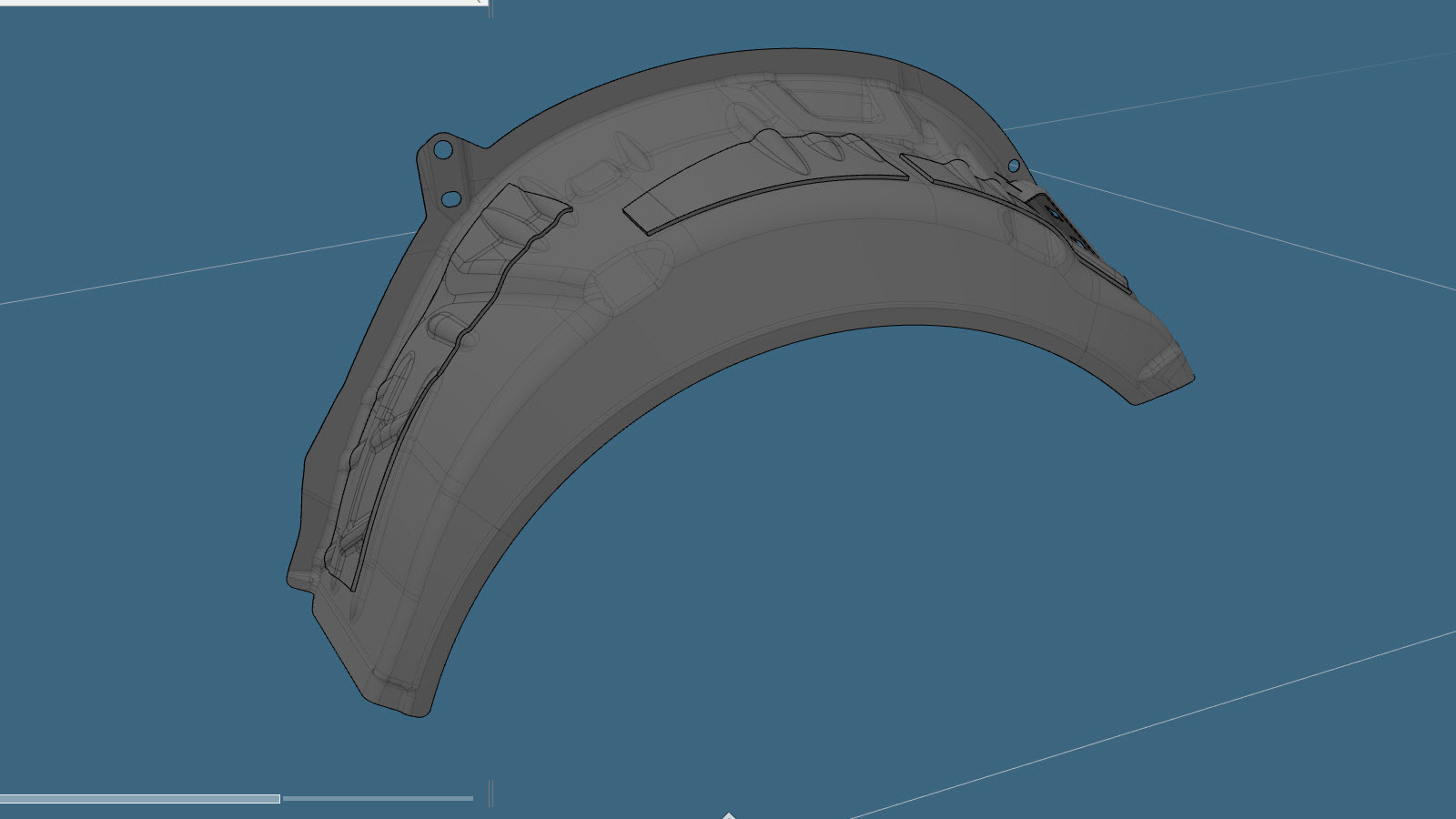

以下为后轮拱(整体)图。彩色区域表示是否允许分割。将车辆轮罩外件的损坏区域与下图进行比较,然后根据与突出显示区域的颜色对应的维修条件确定用于判断该组件损坏区域是否可分割的条件。

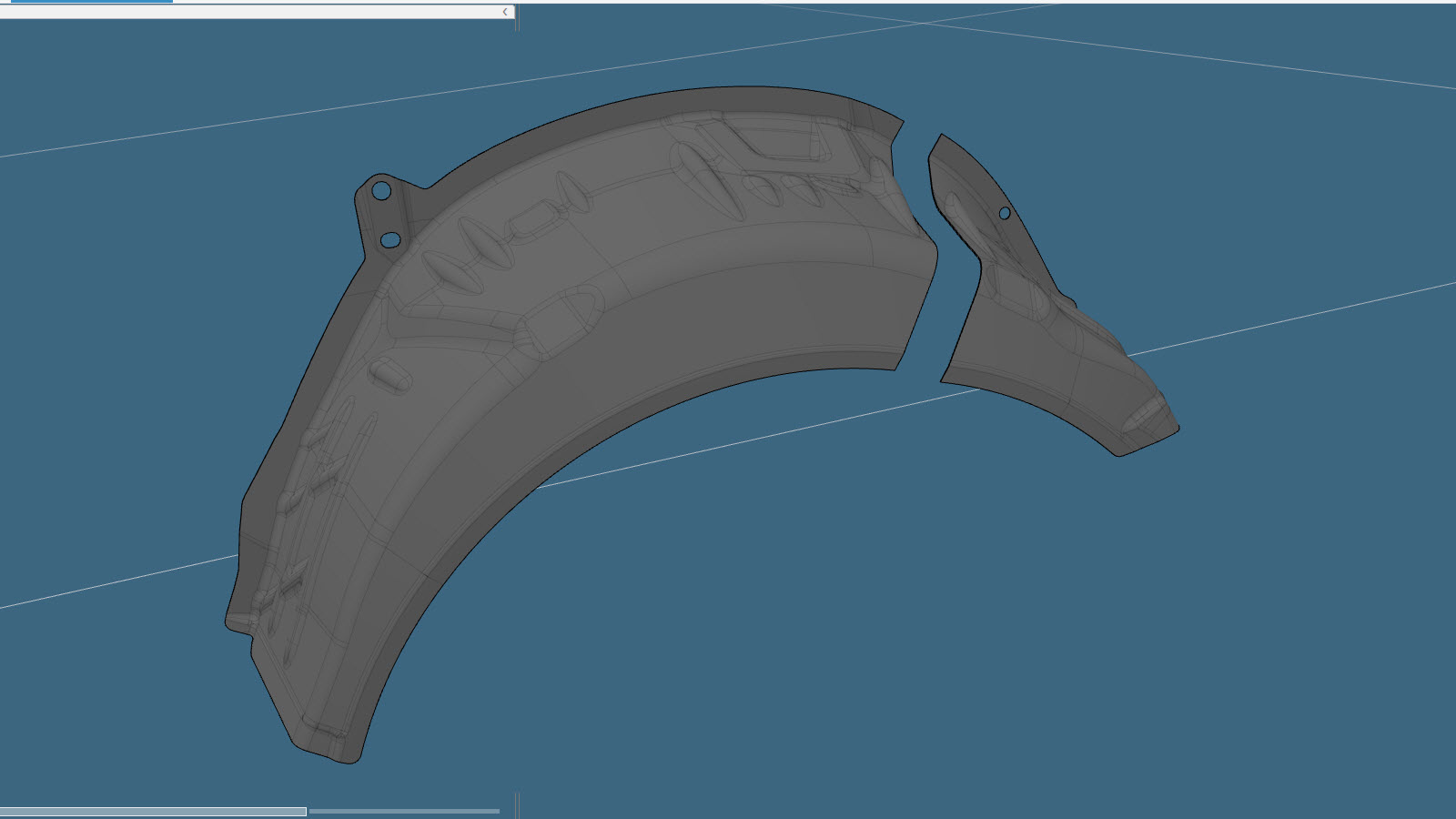

后轮拱(整体) 允许的分割

有关测量及其他重要信息,请参阅以下区块说明。

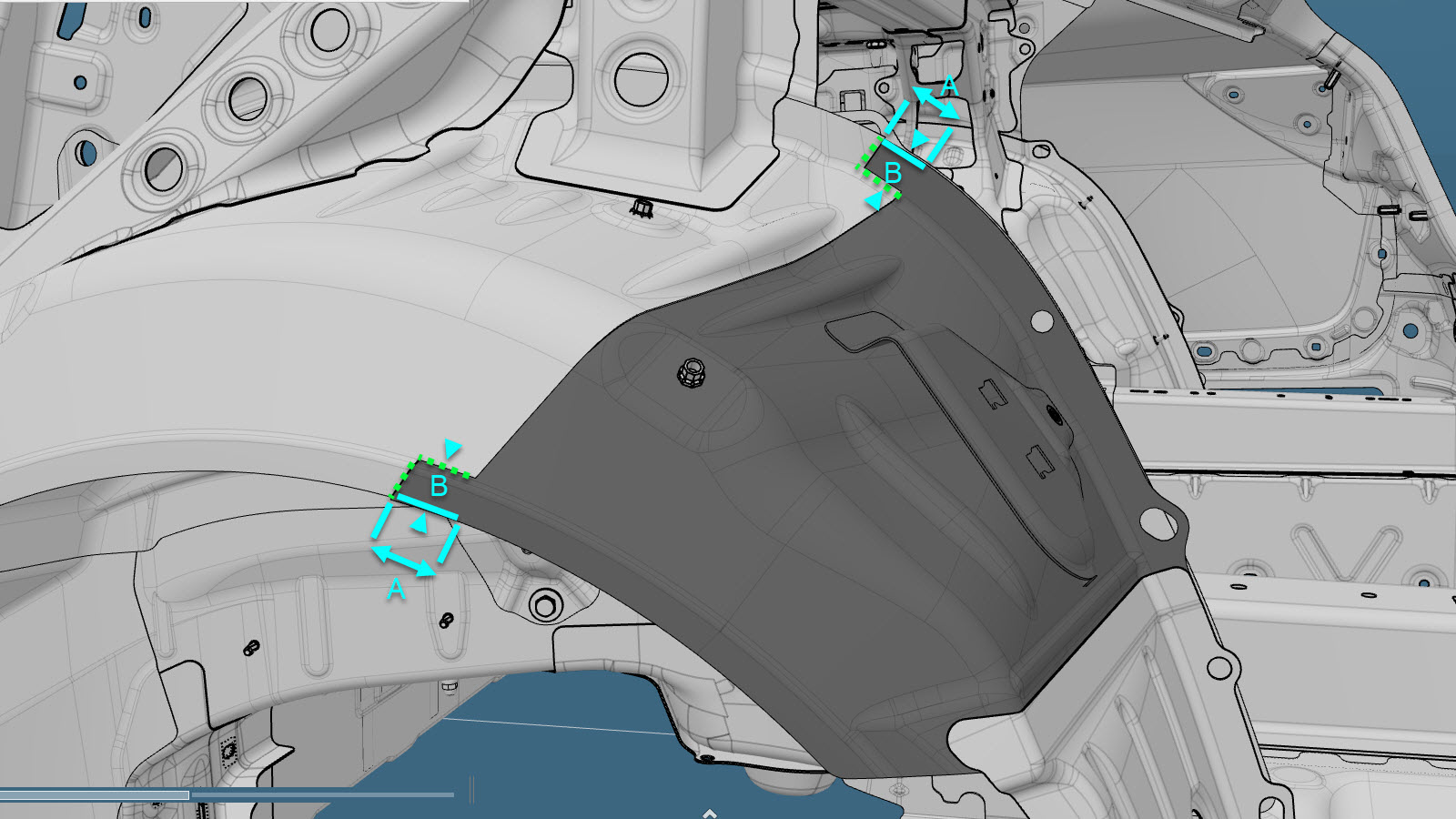

区块说明 接头说明

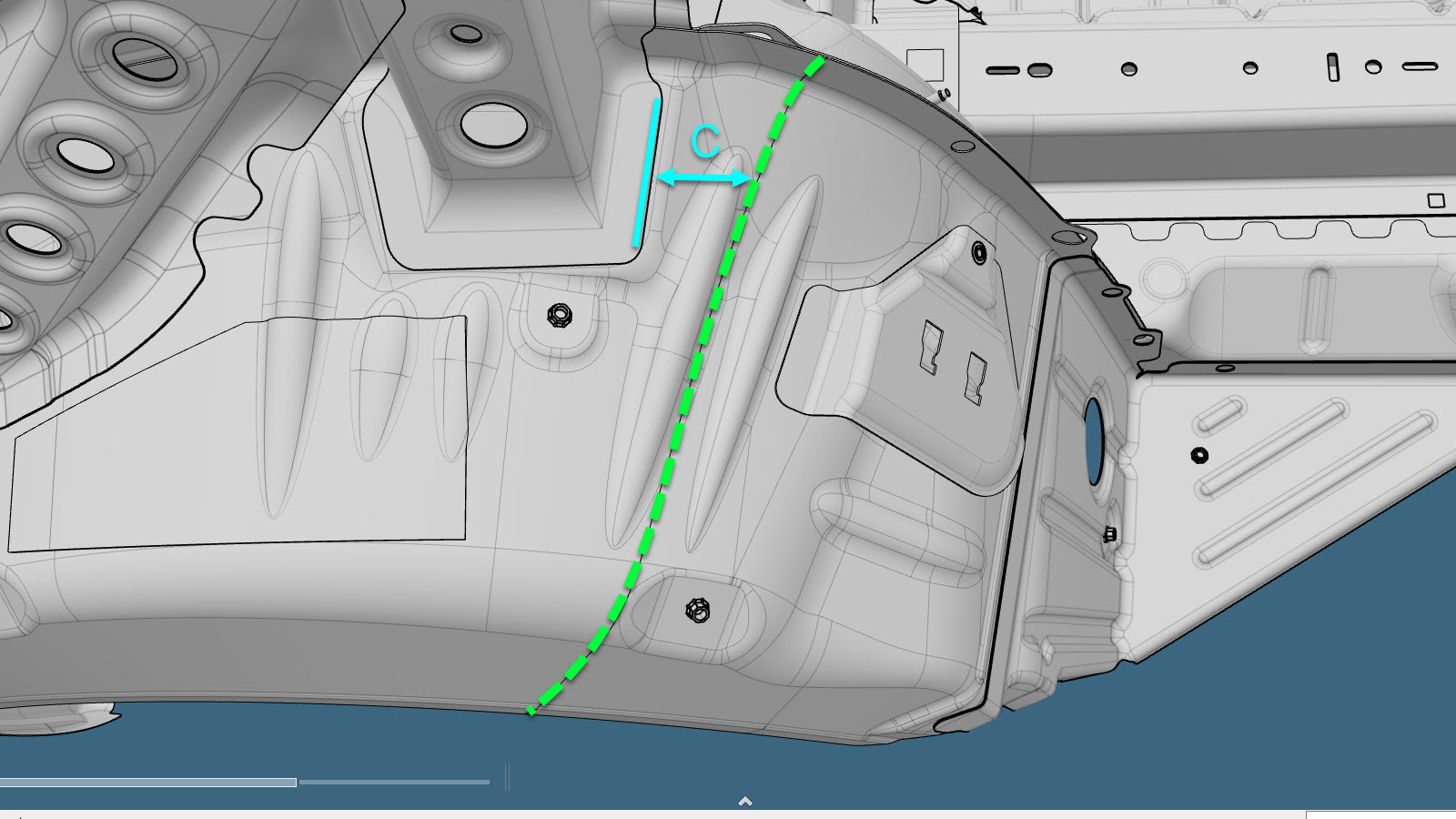

Cut Line

Reference Line/Point

  • A = 25 mm.
  • B = 20 mm.
  • C = 55 mm.
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
后轮拱的外侧边缘(后轮拱表面与车身侧外件连接的位置)必须平坦,以便正确装配上面的车身侧外件组件。
Informational PurposesAn informational icon, calling your attention
更换区块的前边缘安装在车上该组件的后边缘下方,重叠至少 25 毫米。该接头仅使用结构型粘合剂固定。
Informational PurposesAn informational icon, calling your attention
本区块对接接头的相邻面板之间的间隙应尽可能小,以最大限度提高连接强度。
Informational PurposesAn informational icon, calling your attention
必须更换为便于分割而取下的丁基补缀。更换的丁基补缀应具有相同的尺寸,并置于相同的位置。

Repair Procedure

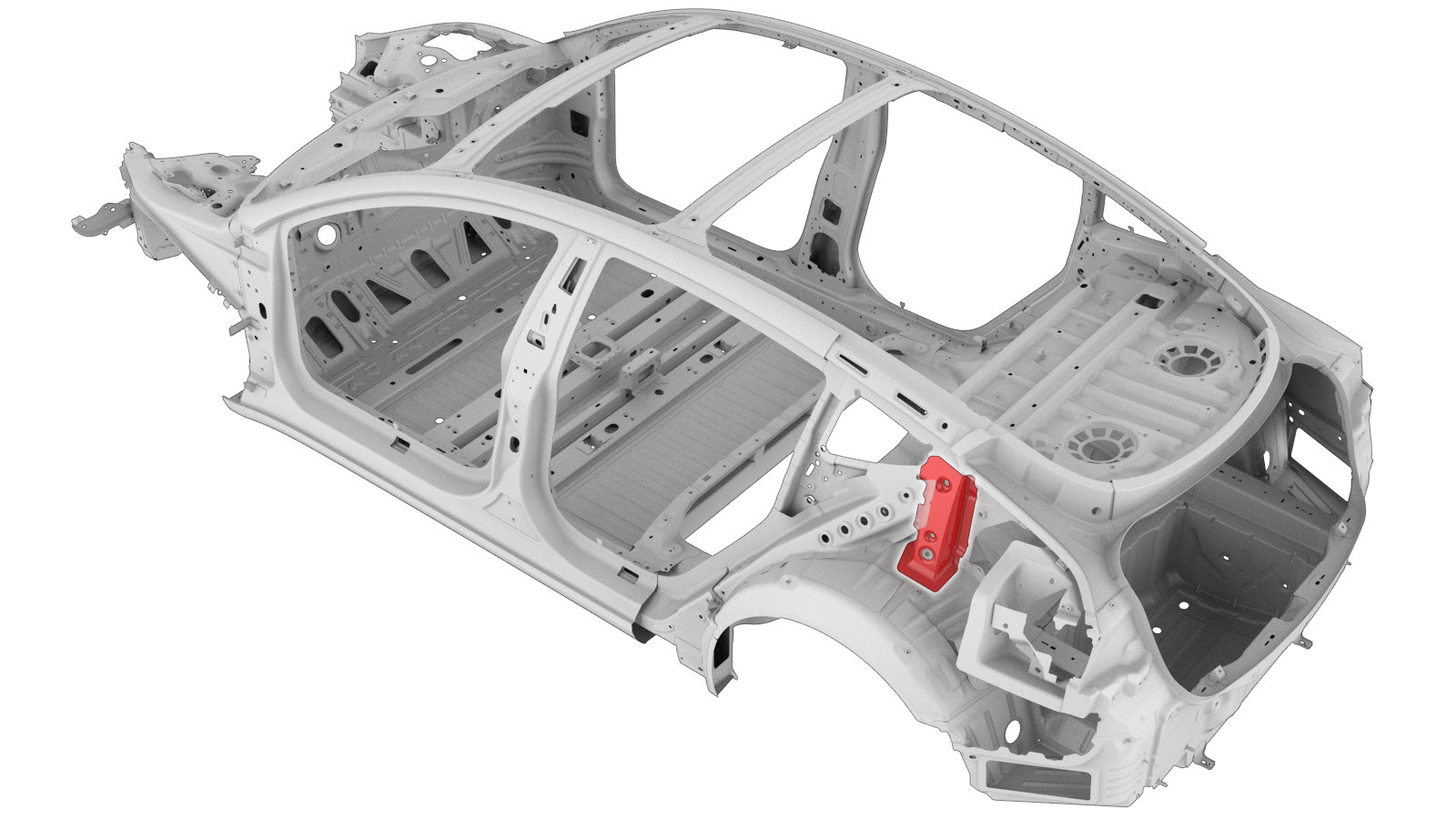

  1. 拆卸C 柱加固件
  2. 拆卸后轮罩加固件

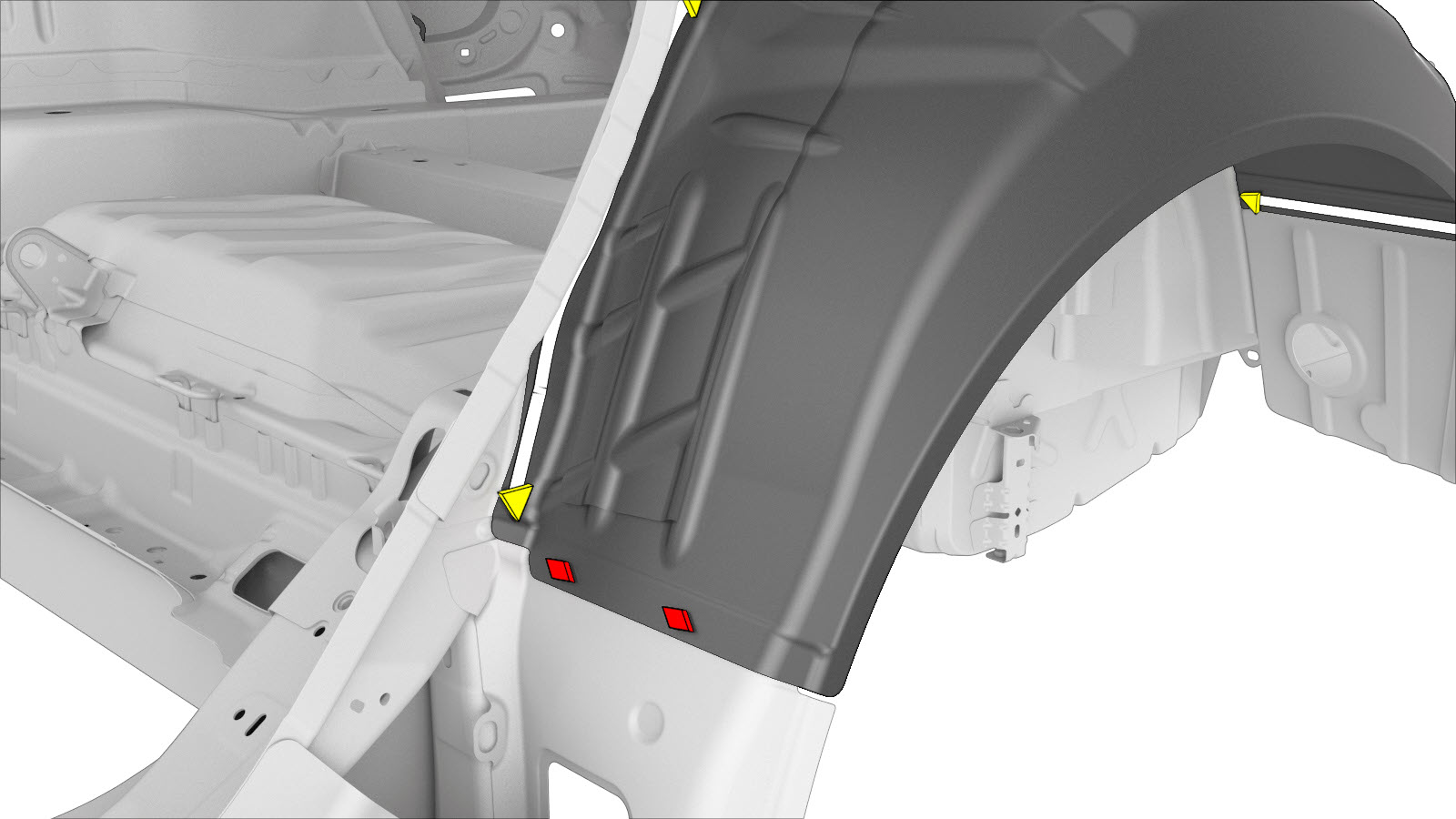

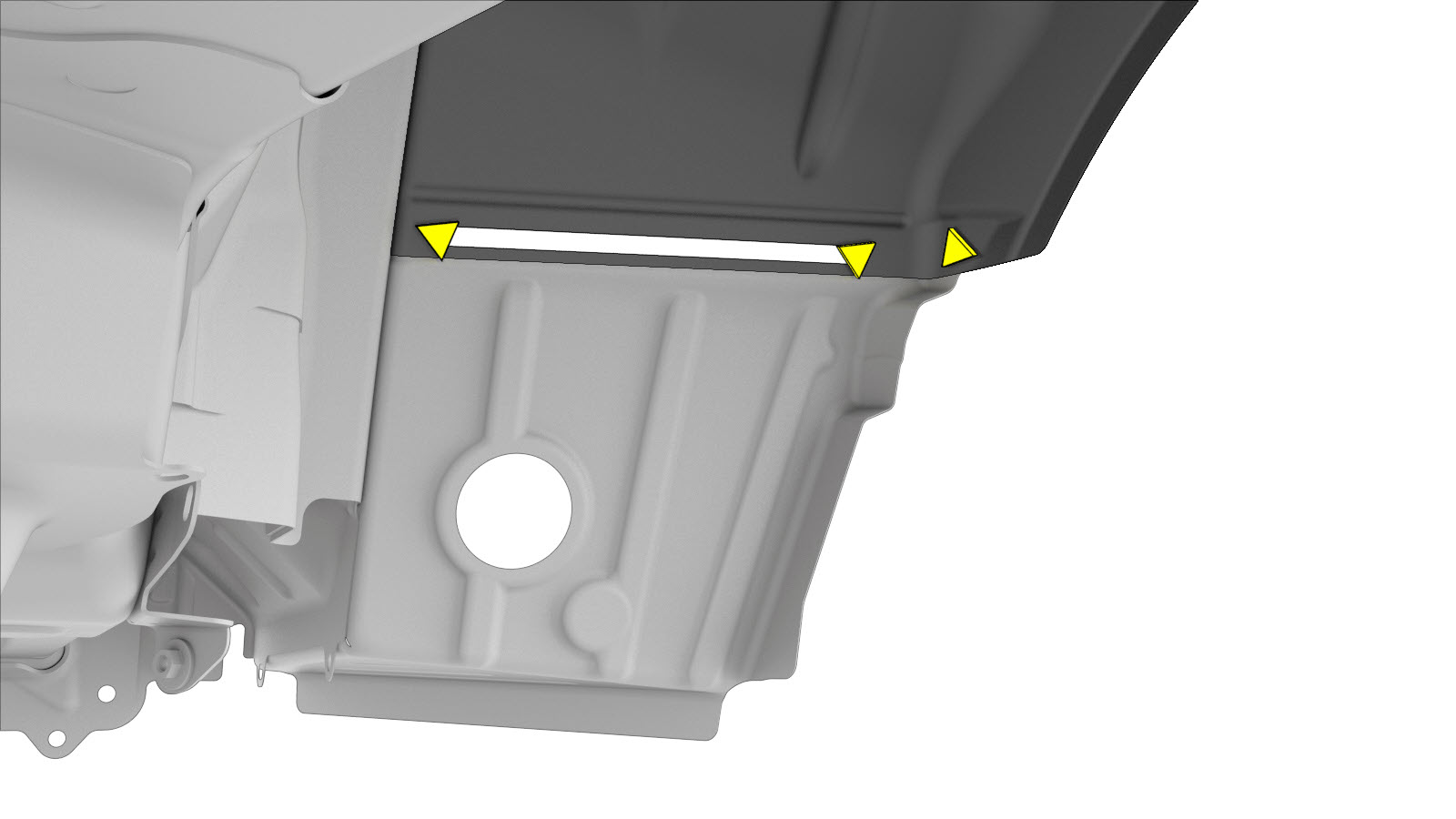

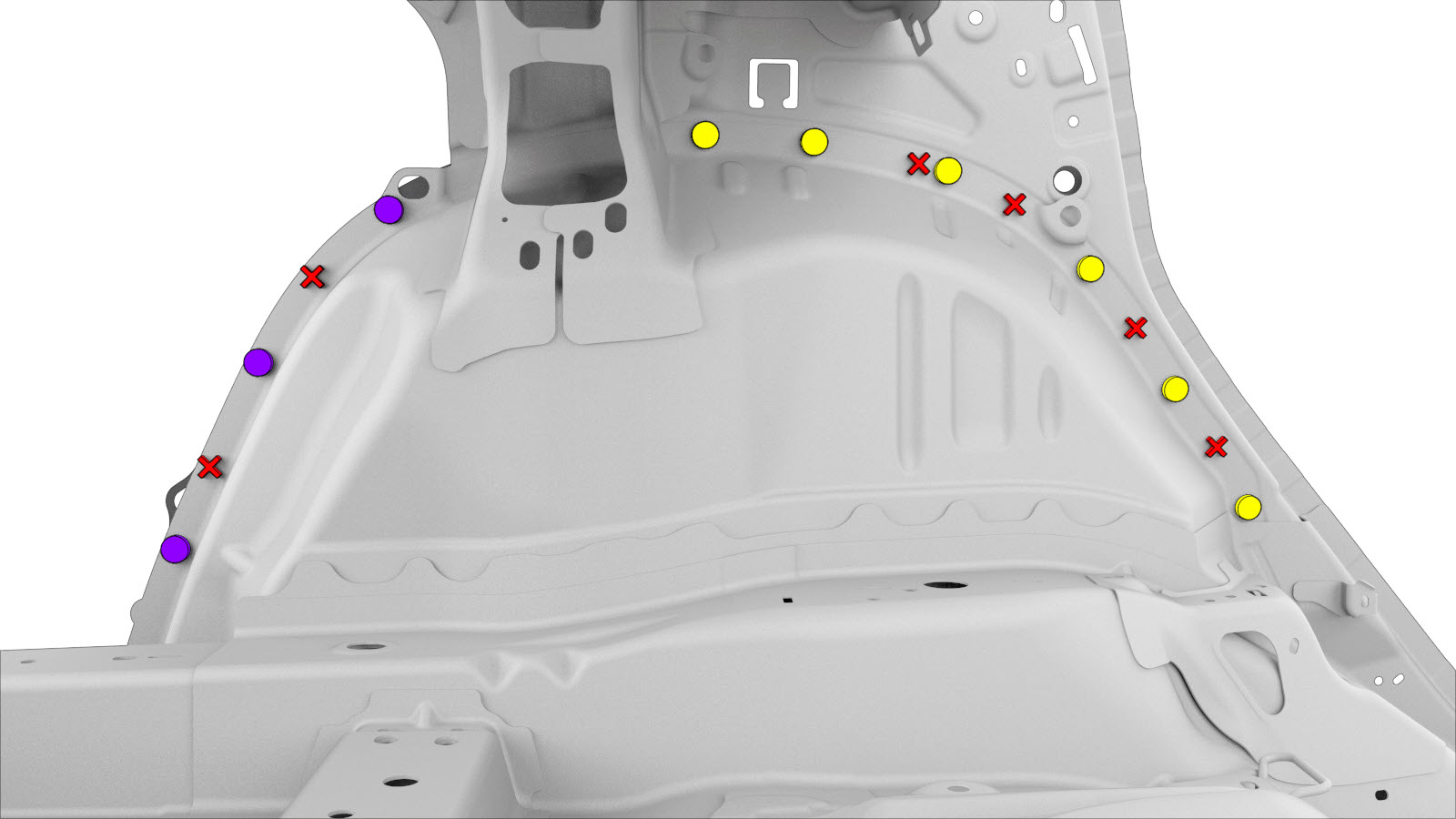

  3. Remove the original component.
    Informational PurposesAn informational icon, calling your attention
    A red X indicates a location where a factory-installed fastener is not being replaced.

    or Factory Spot Welds

    or Factory SPRs

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

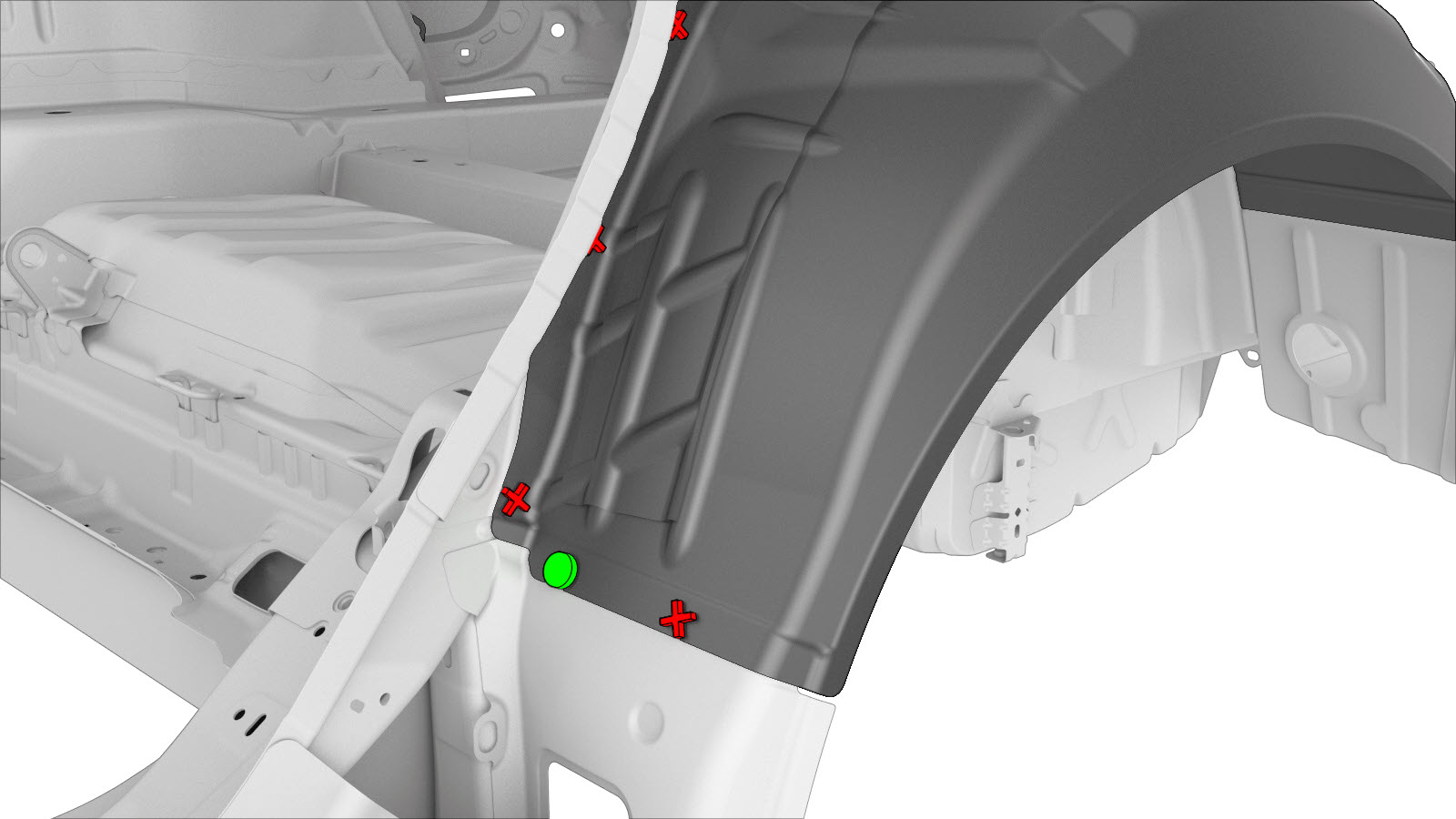

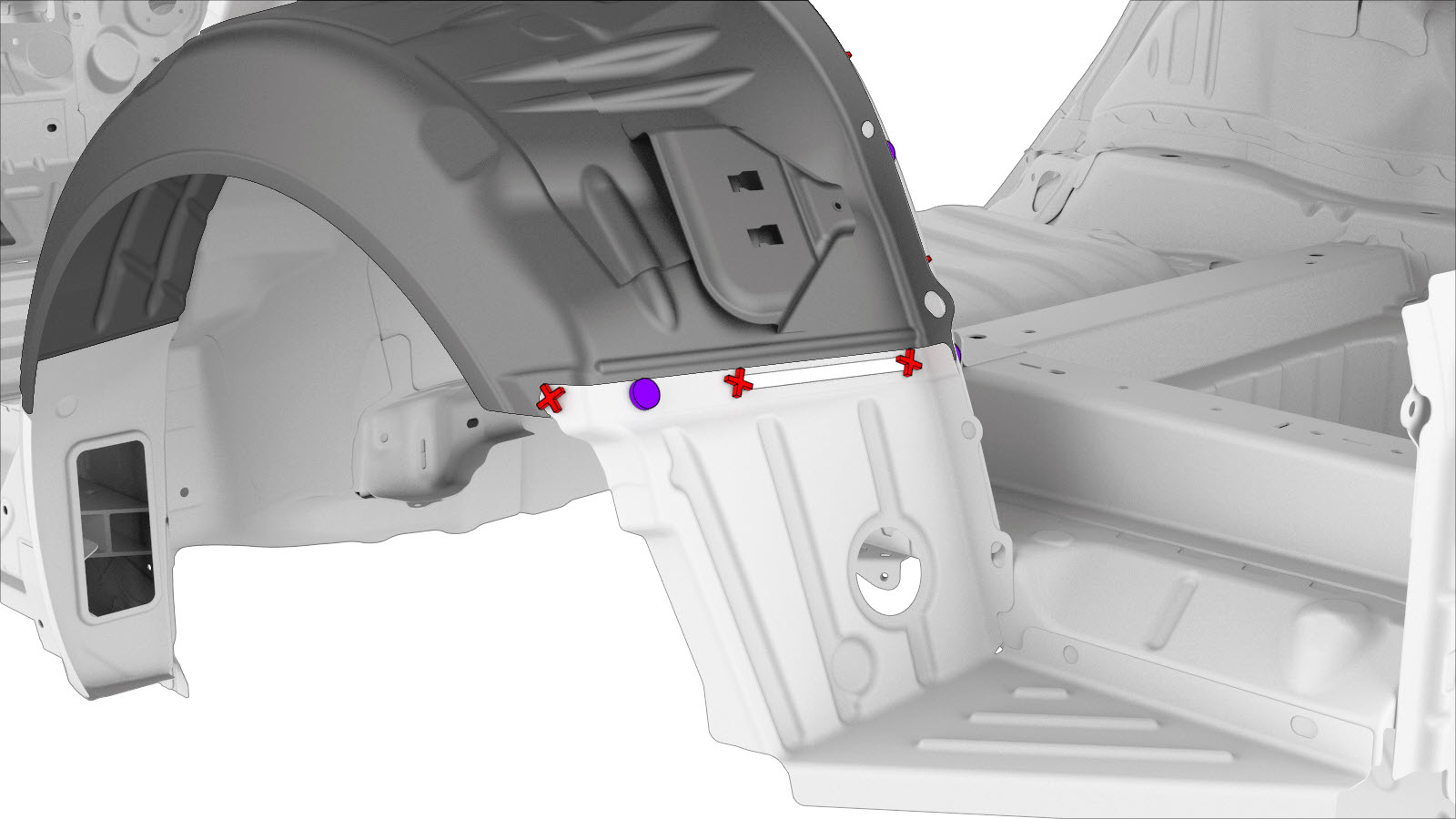

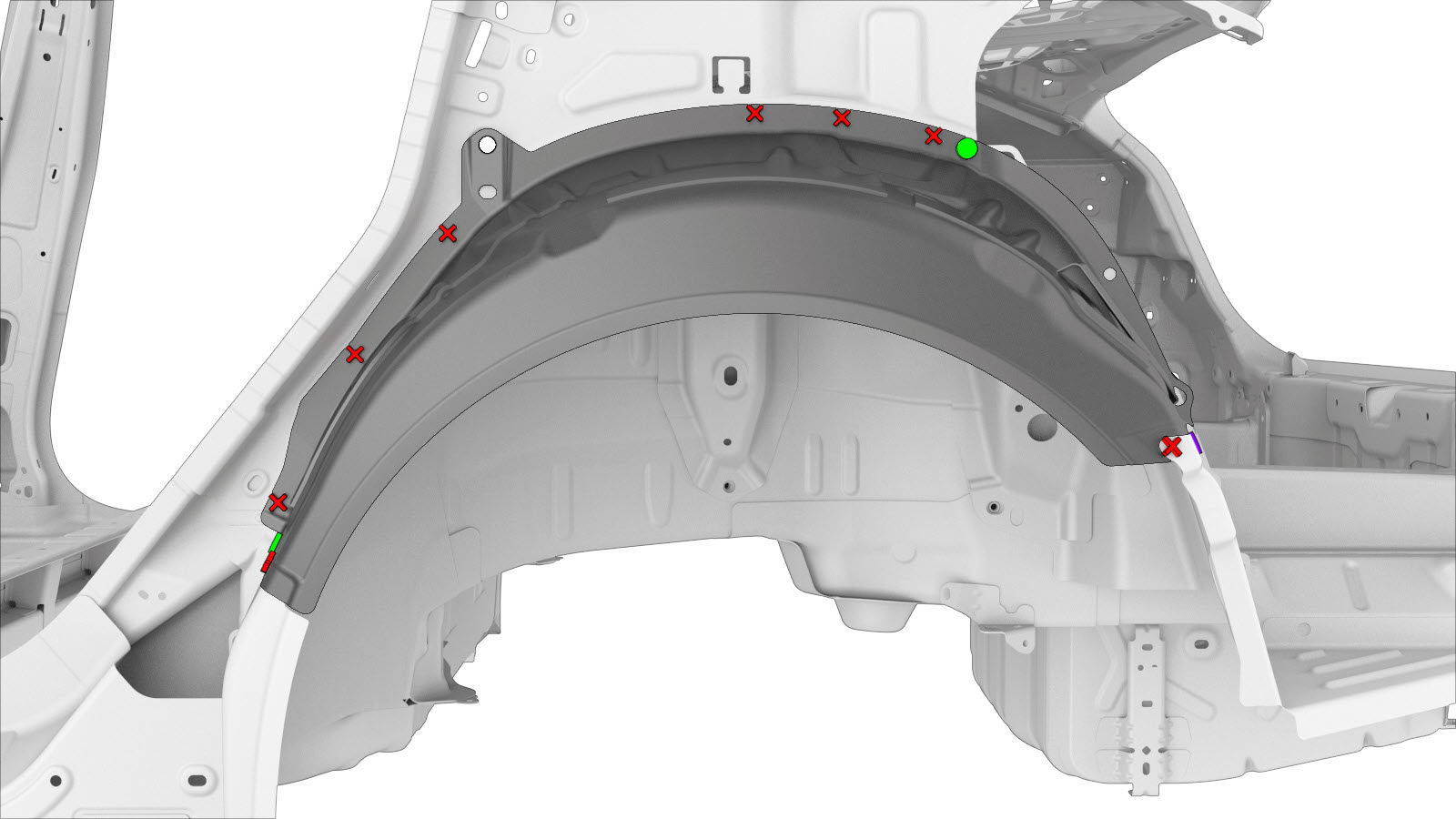

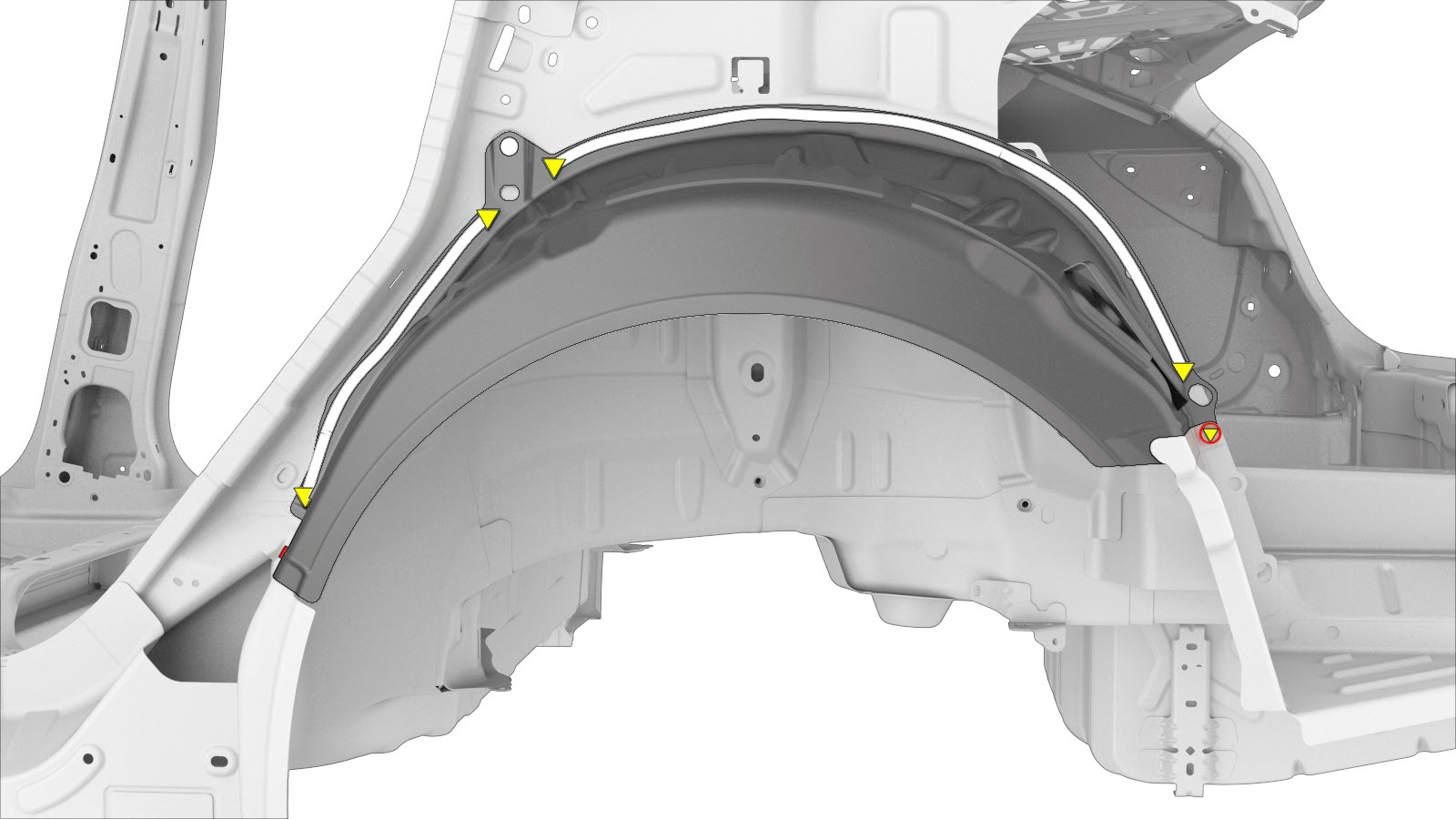

  4. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    A red X indicates a location where a factory-installed fastener is not being replaced.
    or Countersunk Rivets, 4.8 mm Long

    or Structural Bulb Rivets, 6.5 mm

    or Rivets, 4.8 mm

  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  6. Install the new component or components.
  7. 安装后轮罩加固件
  8. 安装C 柱加固件
  9. Perform any necessary post-repair operations.
