后车架纵梁手套箱（下部）
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

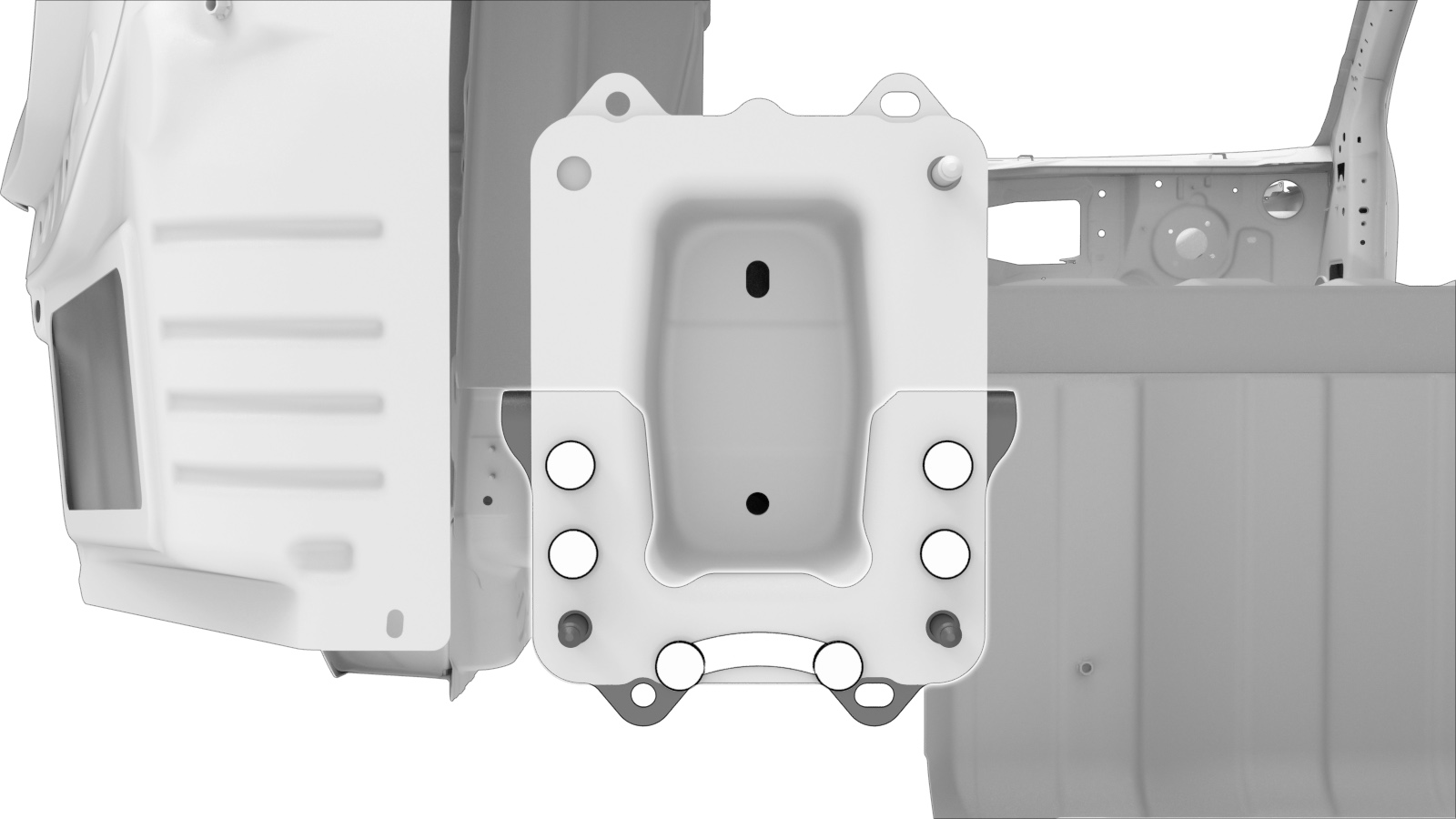

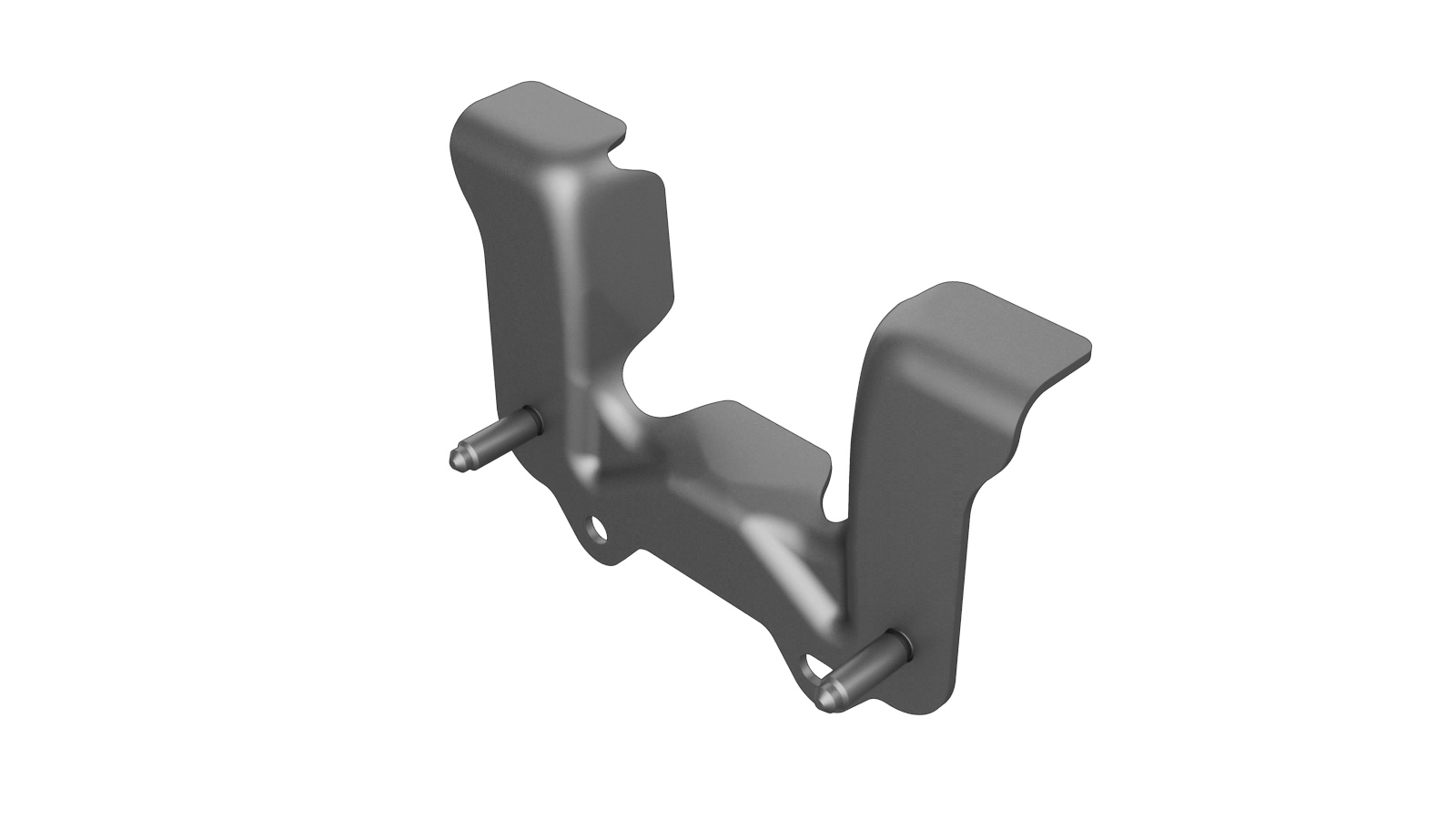

| 1 | ASY - RR RAIL GLOVE LOWER（后车架纵梁手套箱 – 下部） |
|
| 7 |
High Strength Structural Rivet, 6.5 mm
|
|
| 7 |
Structural Countersunk Rivet, 6.5 mm
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
拆卸后车身面板。
-
拆卸后车架纵梁至下部围板加长板。
-
拆卸行李箱底板总成（侧面板）。
-

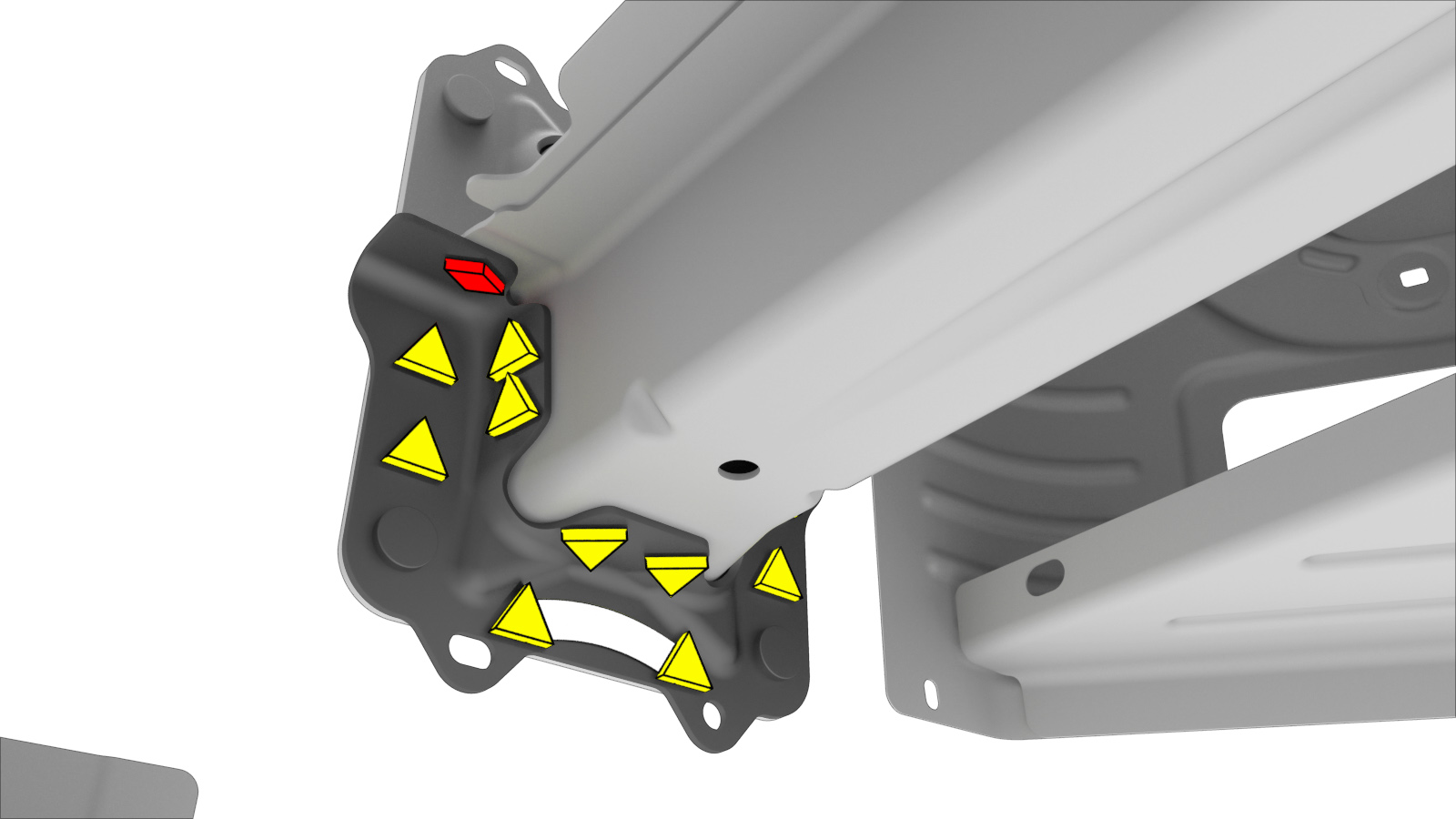

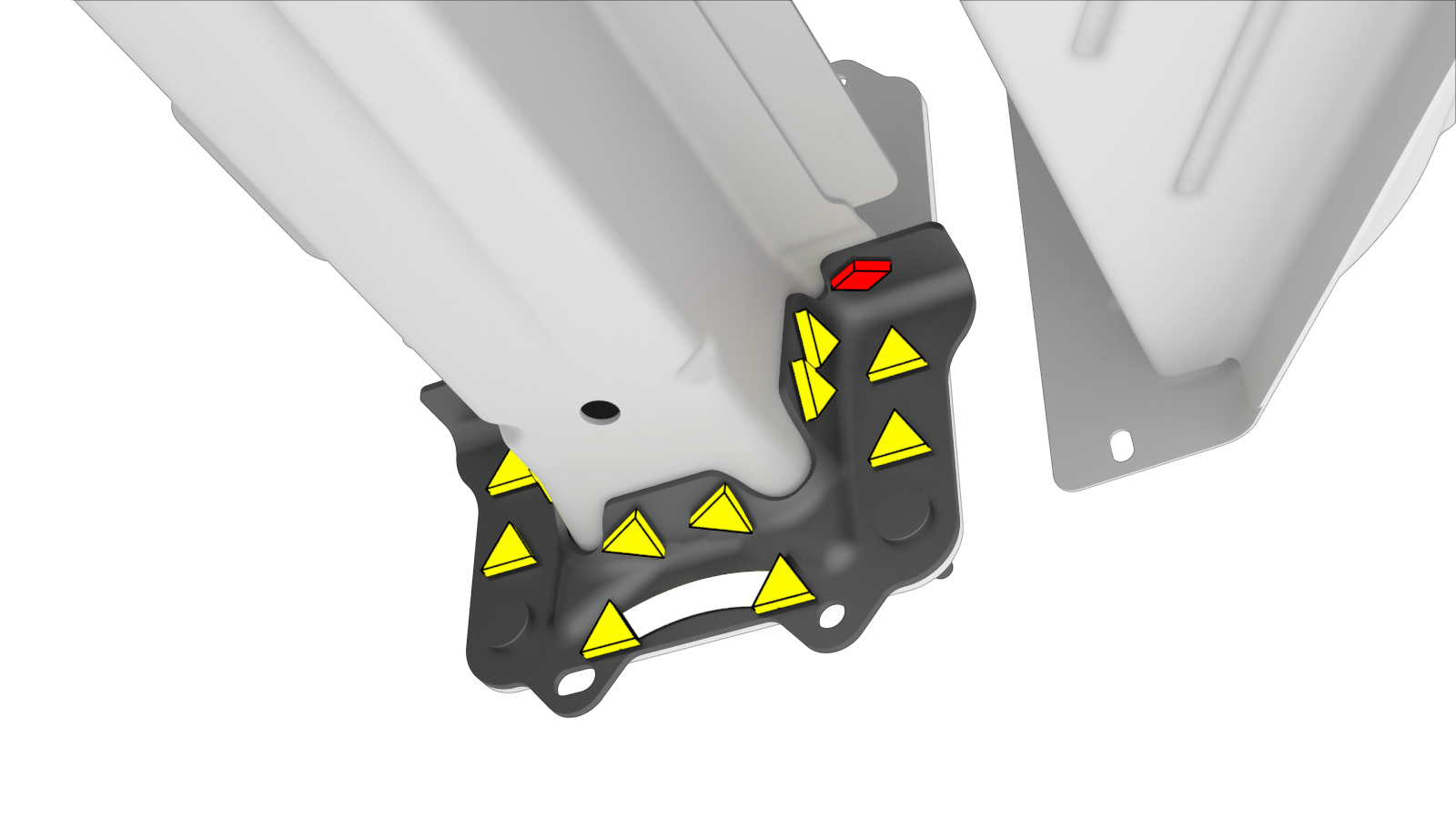

Remove the original component.
or
Factory Spot Welds
or
Factory SPRs
-

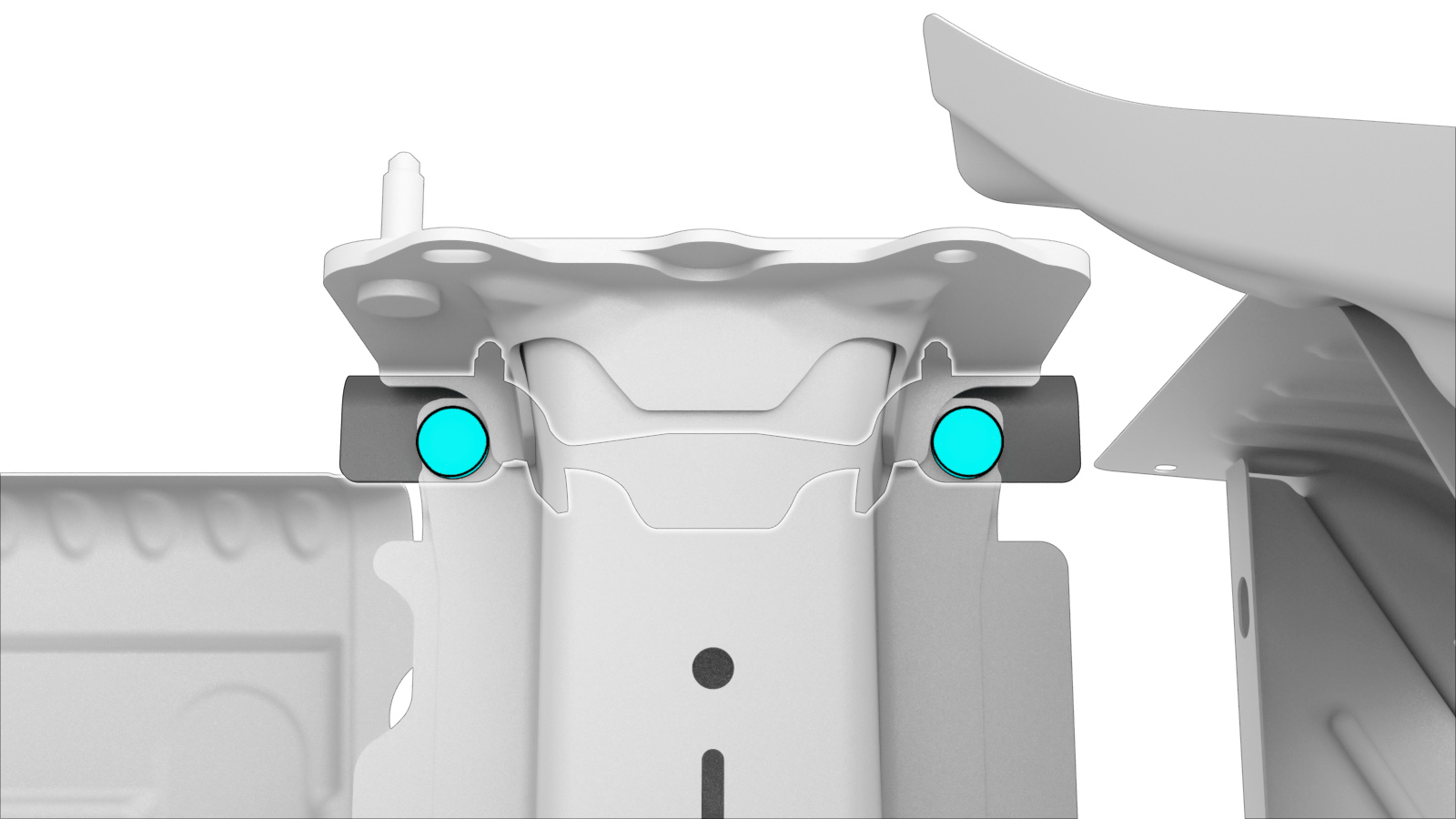

Prepare for installation.

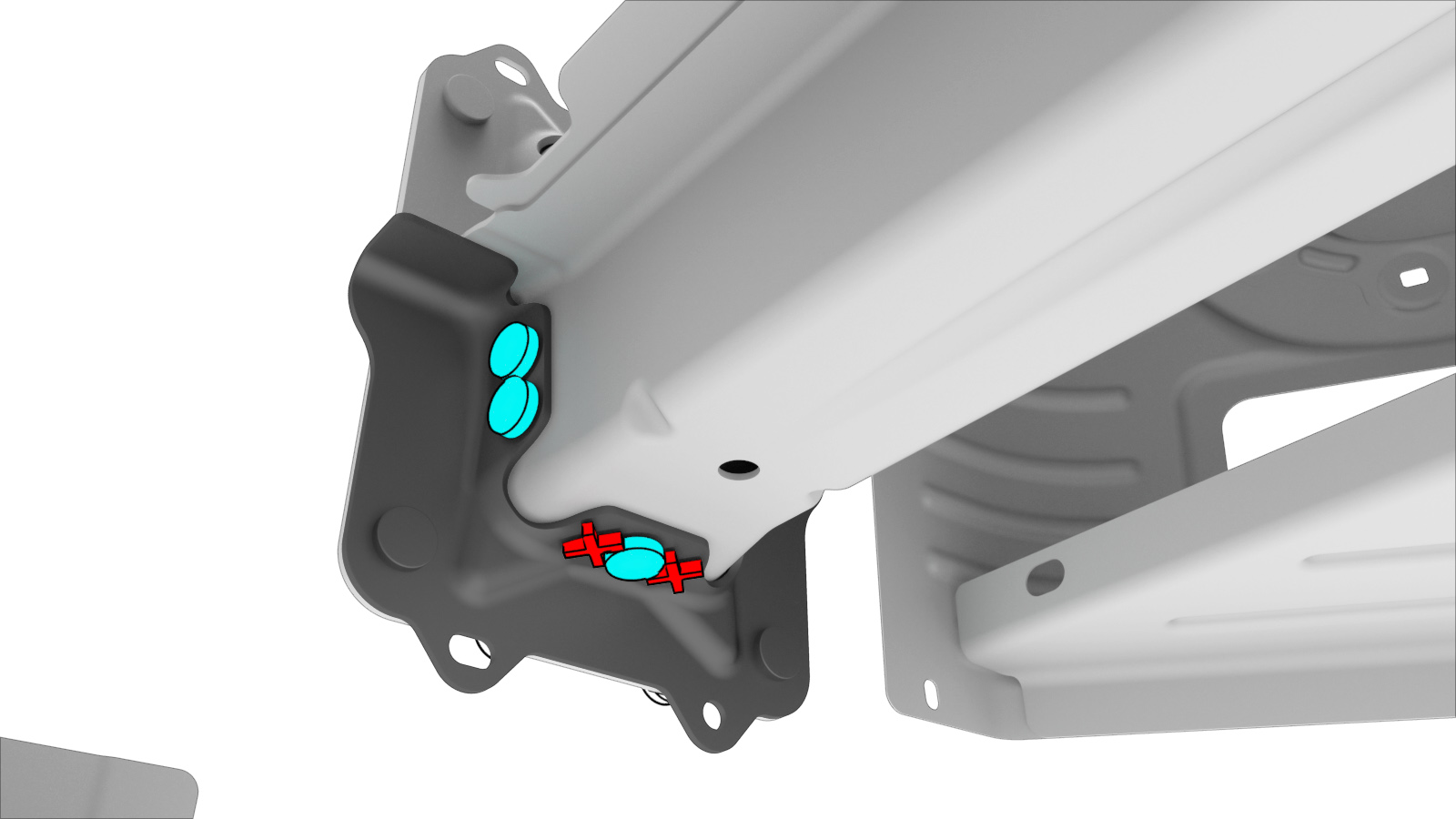

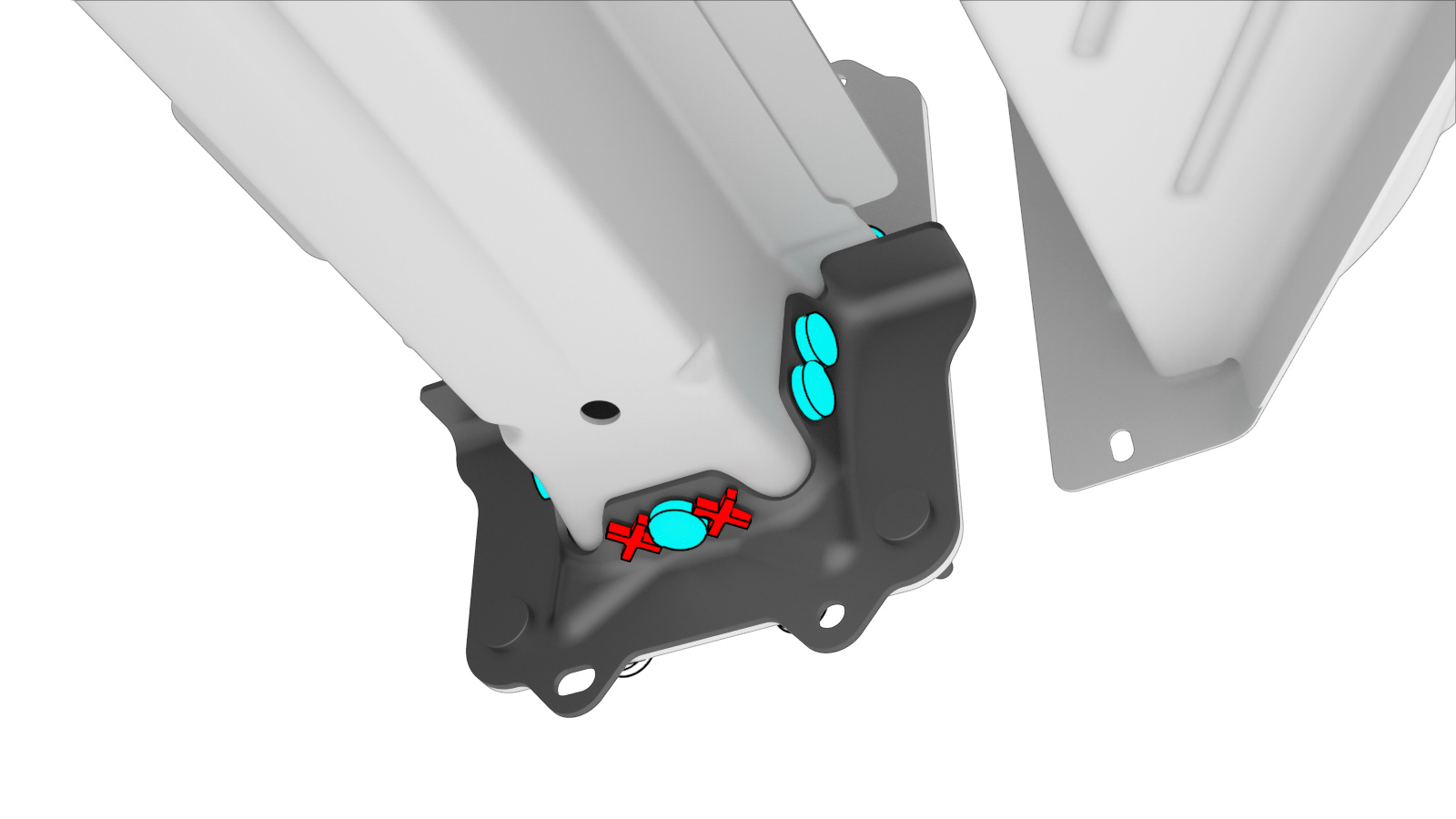

注A red X indicates a location where a factory-installed fastener is not being replaced.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
安装行李箱底板总成（侧面板）。
-
安装后车架纵梁至下部围板加长板。
-
安装后车身面板。
- Perform any necessary post-repair operations.
