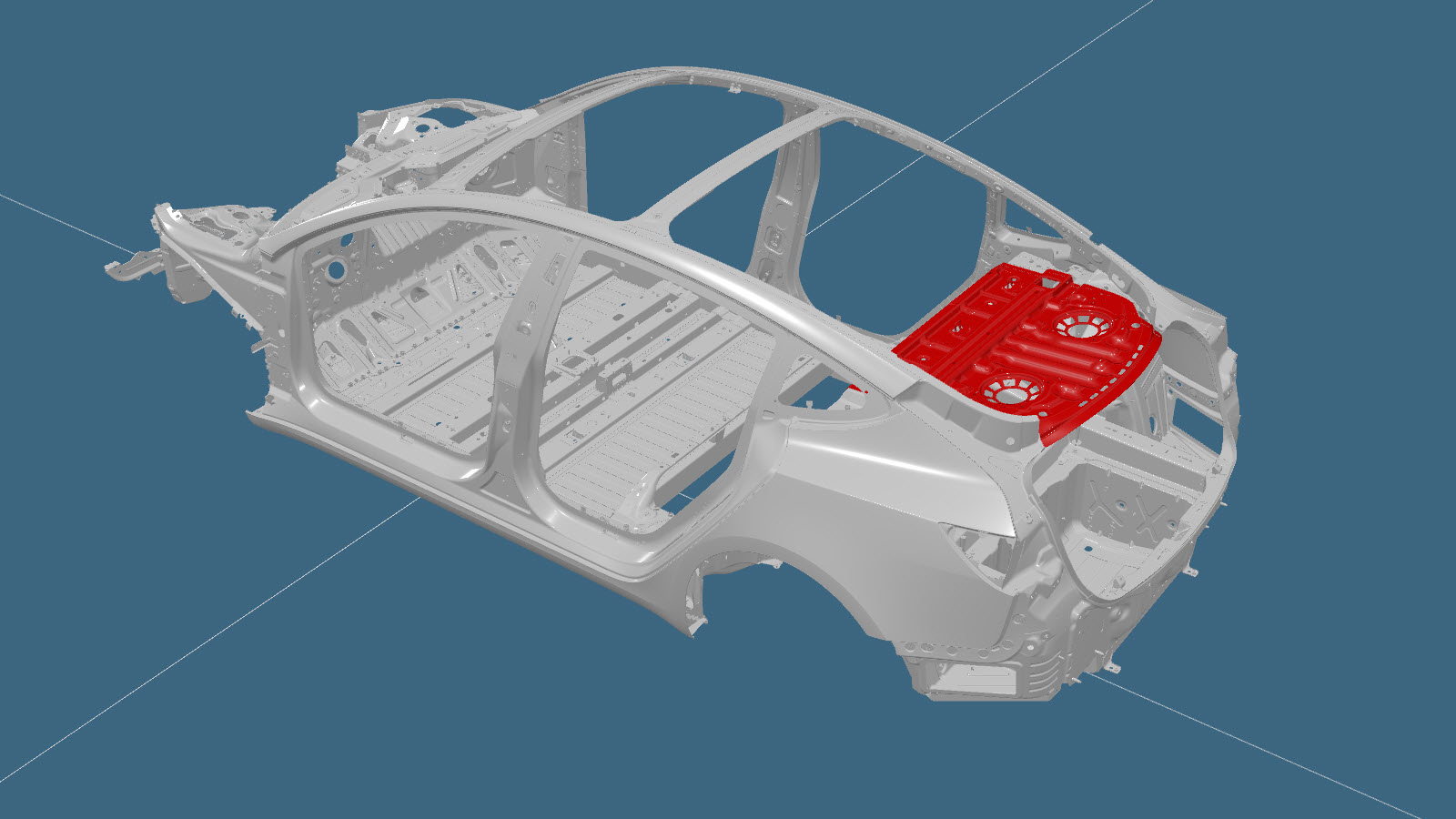

置物板横梁总成（无中间凹槽）

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

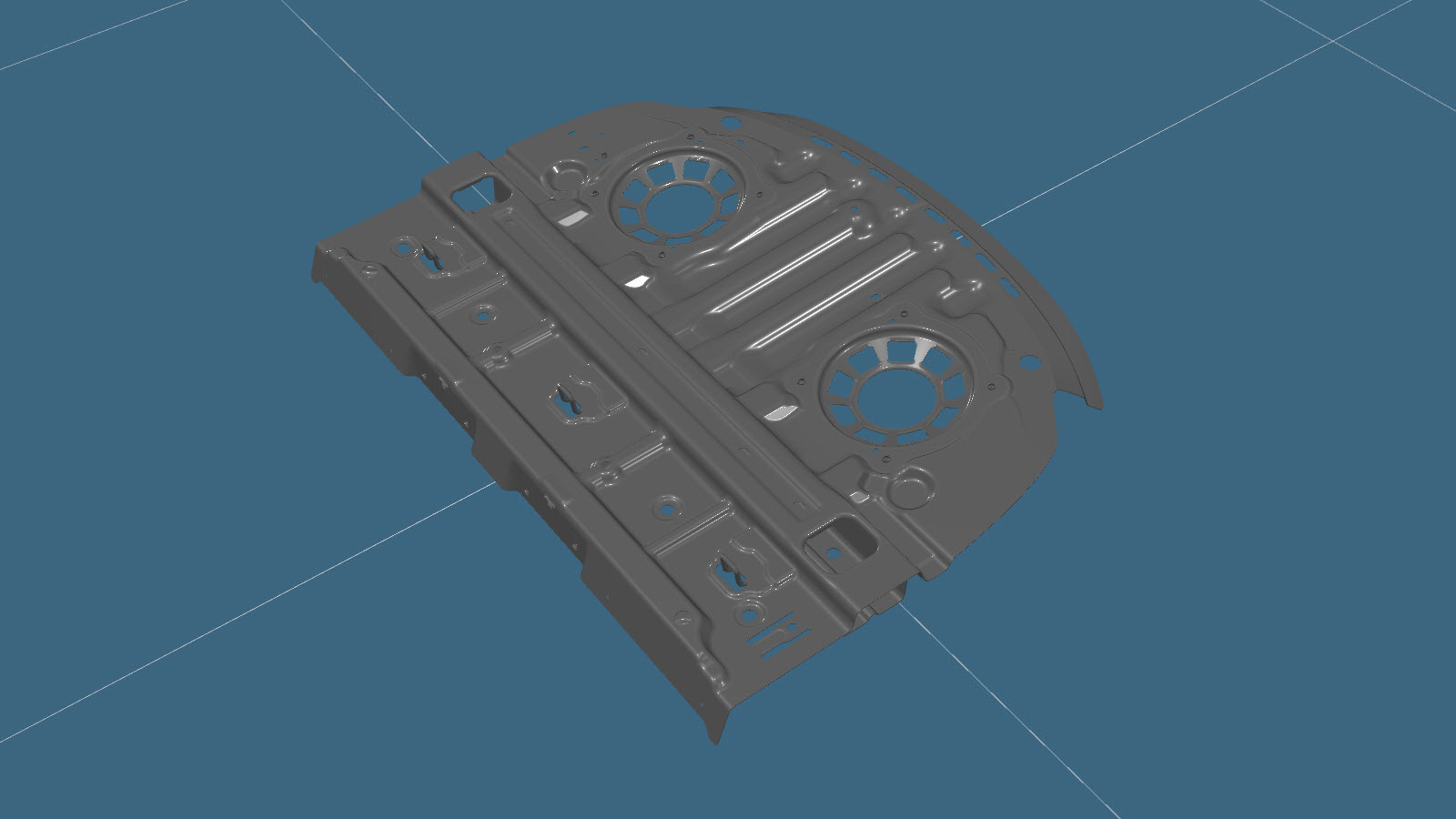

1	ASSEMBLY - PARCEL SHELF CROSSMEMBER（置物板横梁总成）
34	Structural Bulb Rivet, 6.5 mm
2	High Strength Structural Rivet, 6.5 mm
2	Rivet, 4.8 mm
4	Flow Form Rivet S18

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

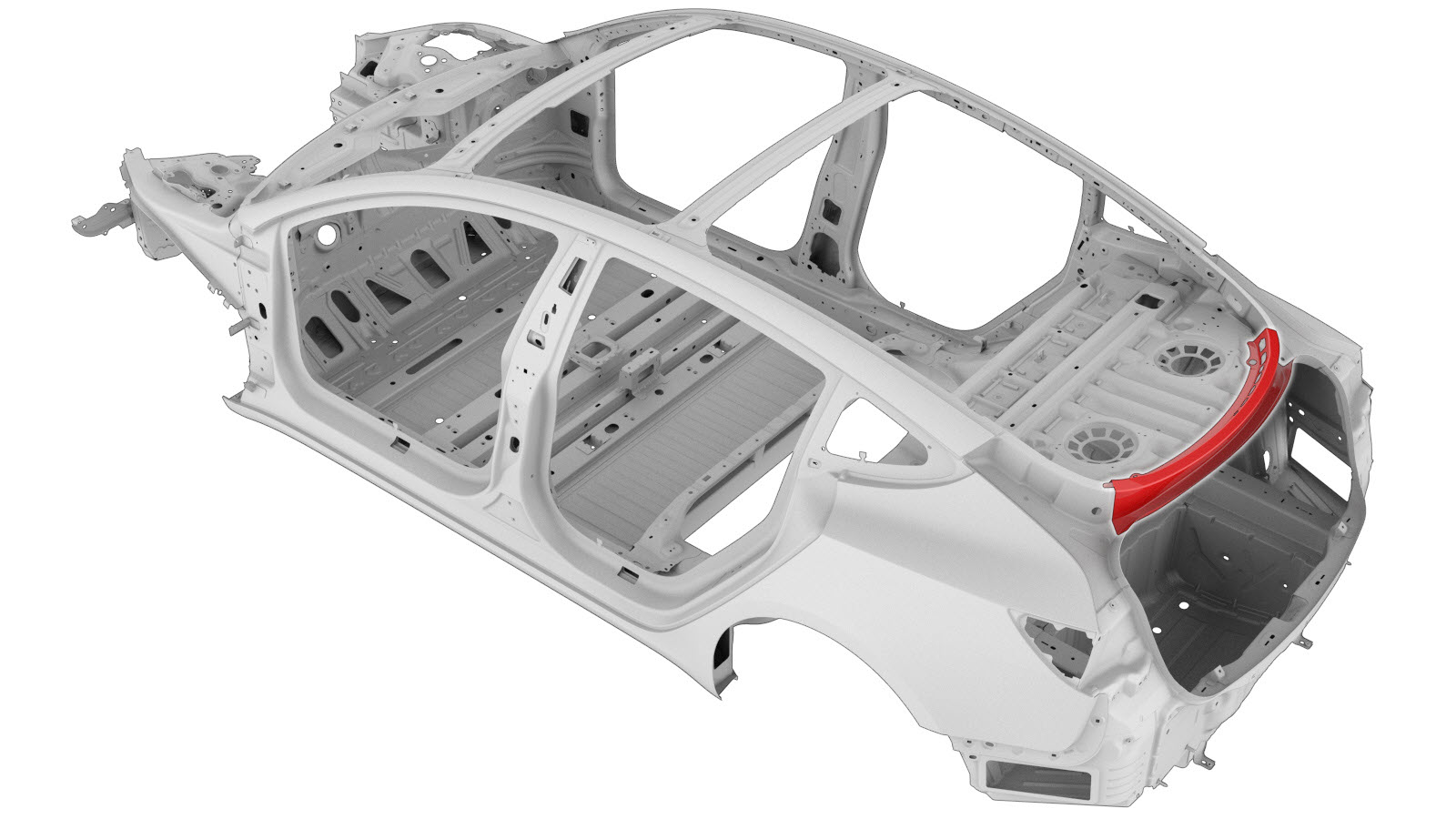

拆卸中后槽。

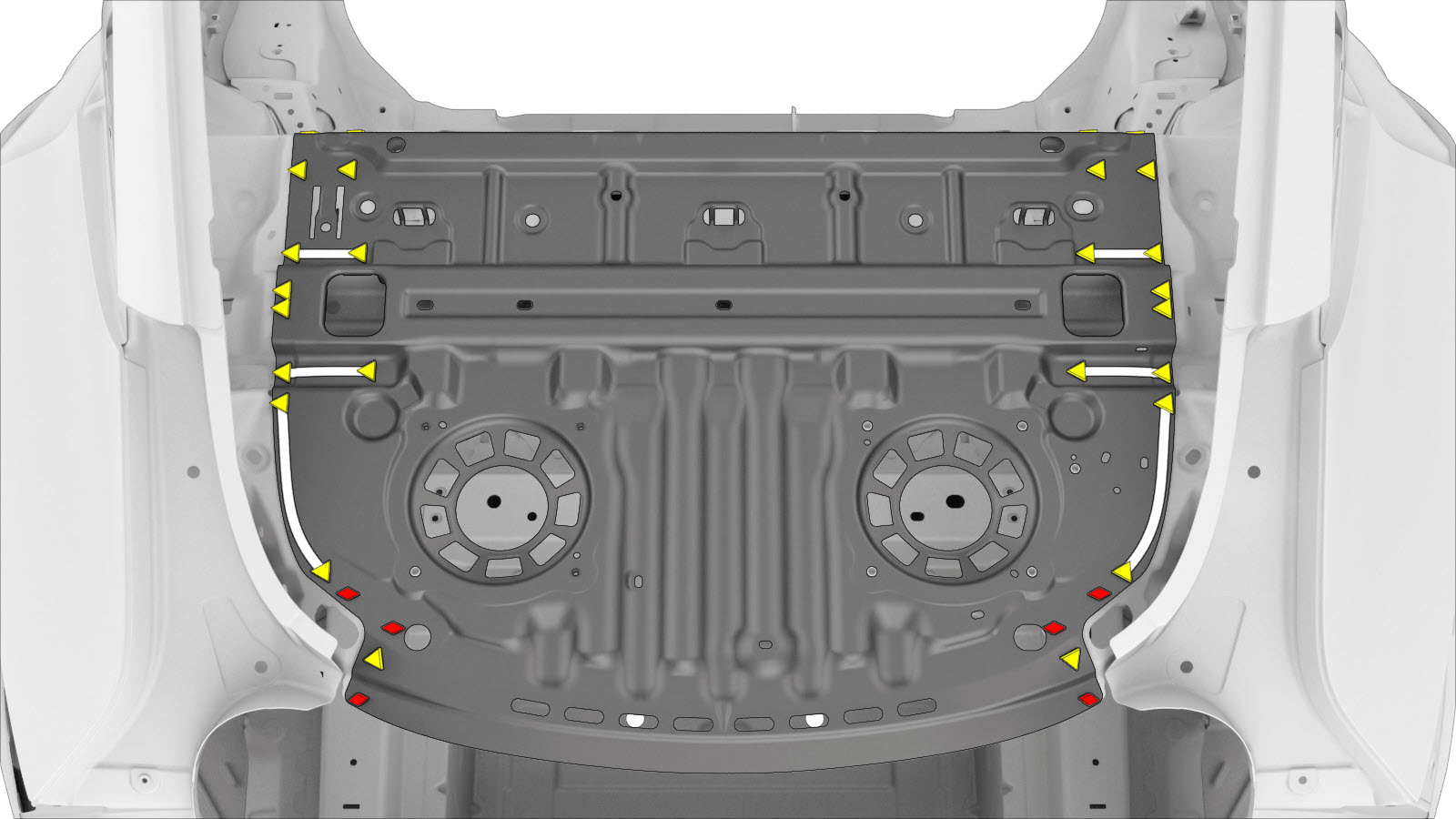

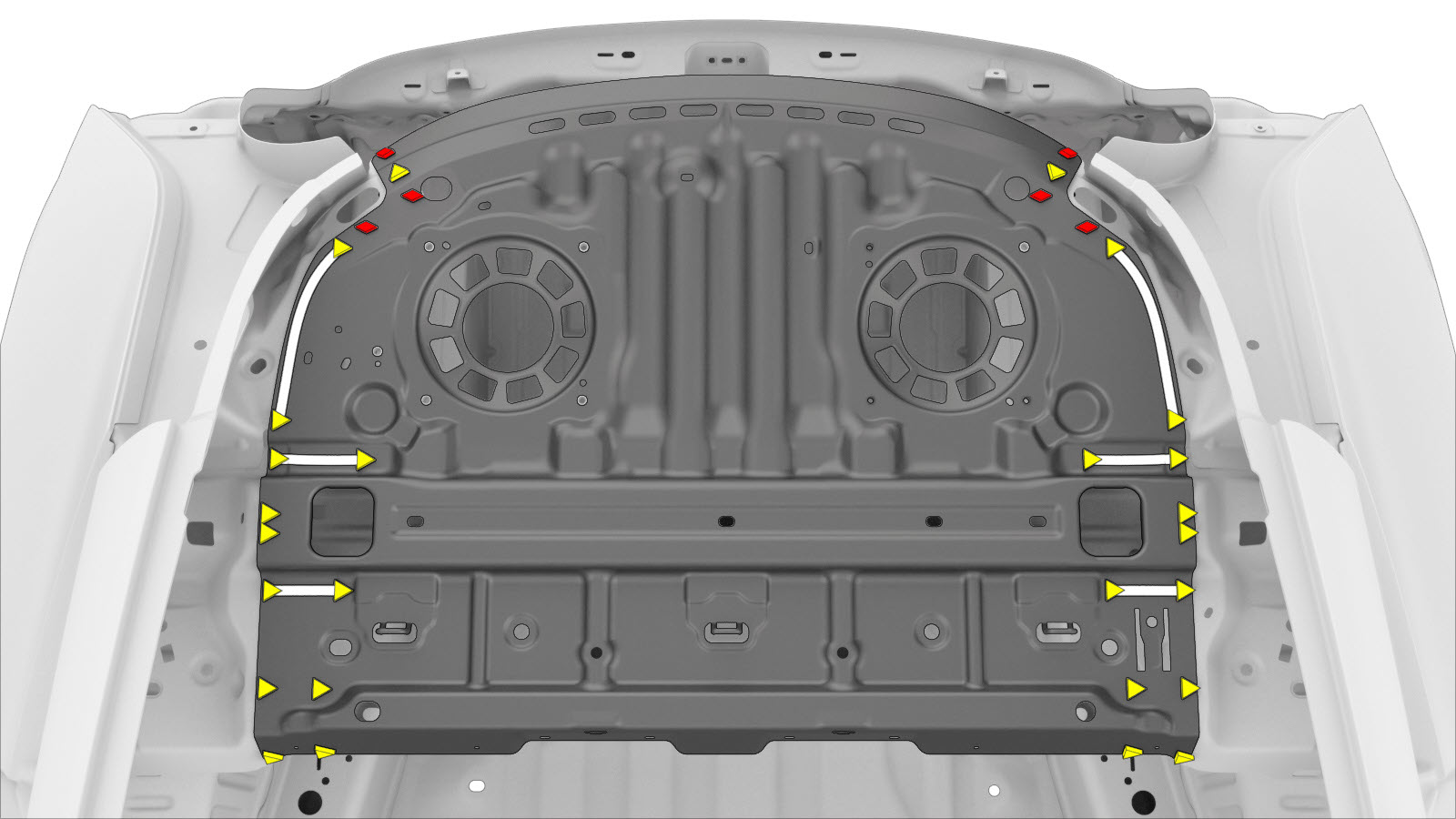

Remove the original component.
or Factory Spot Welds
or Factory SPRs

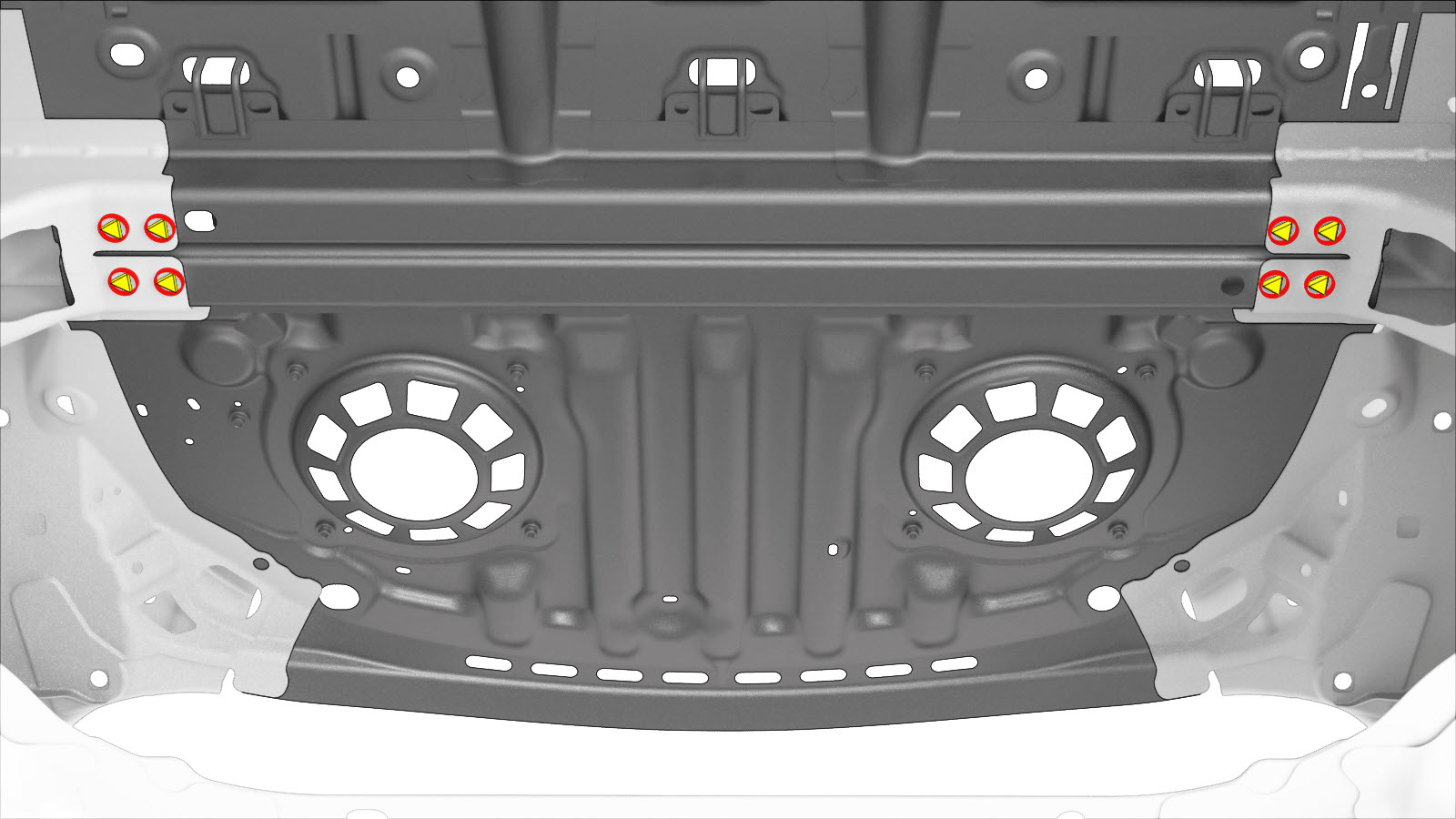

or Drill through factory spot welds
注
When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

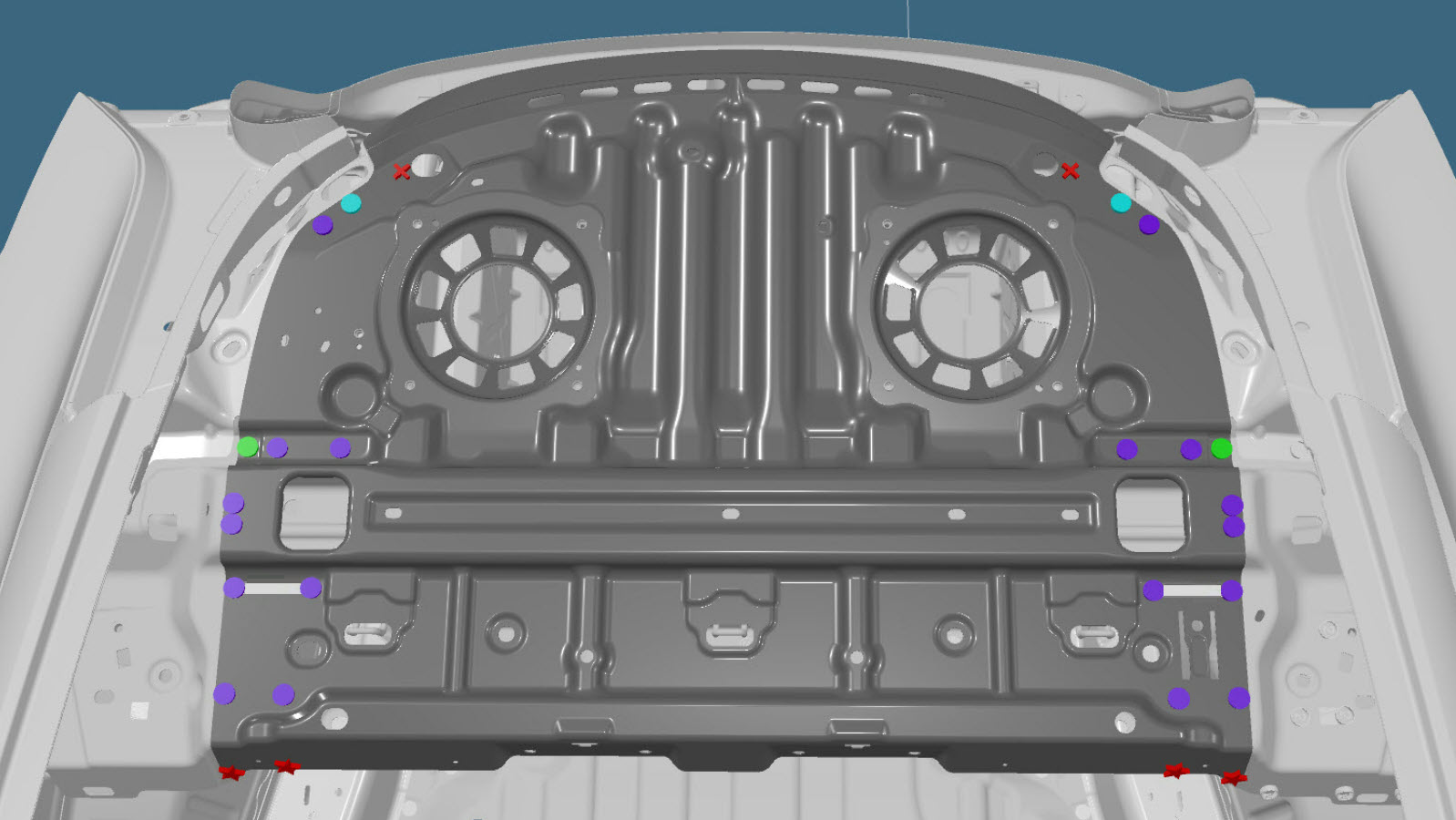

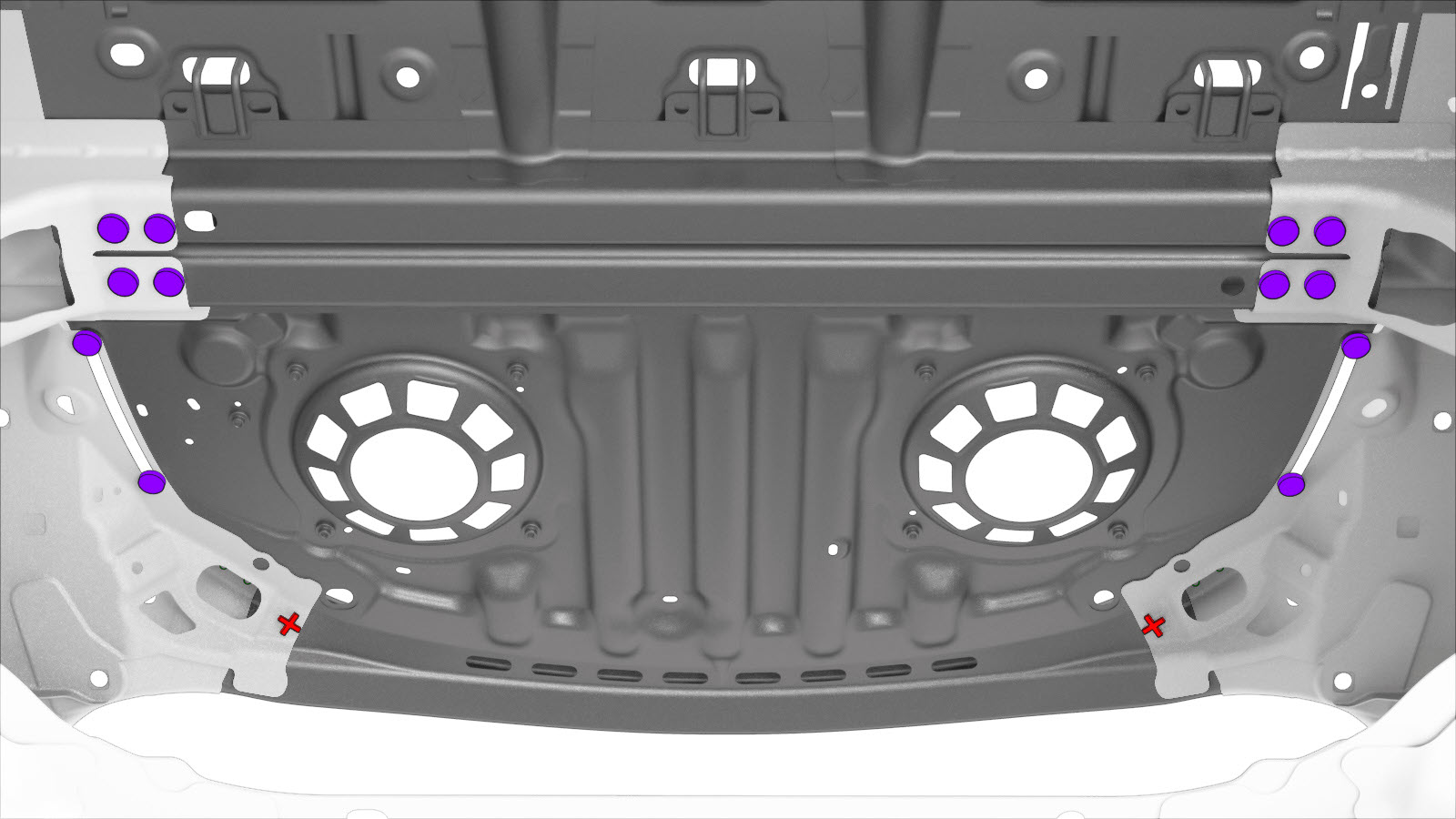

Prepare for installation.
or High Strength Structural Rivets, 6.5 mm
or Structural Bulb Rivets, 6.5 mm

or Rivets, 4.8 mm

or Flow Form Rivets, S18
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
安装中后槽。
