纵向上部件

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes
1	LONGITUDINAL UPPER（纵向上部件）
10	High Strength Structural Rivet, 6.5 mm
7	Countersunk Rivet, 4.8 mm Long
1	Rivet, 4.8 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

拆卸扭矩盒后上部。
拆卸围护侧板外件。

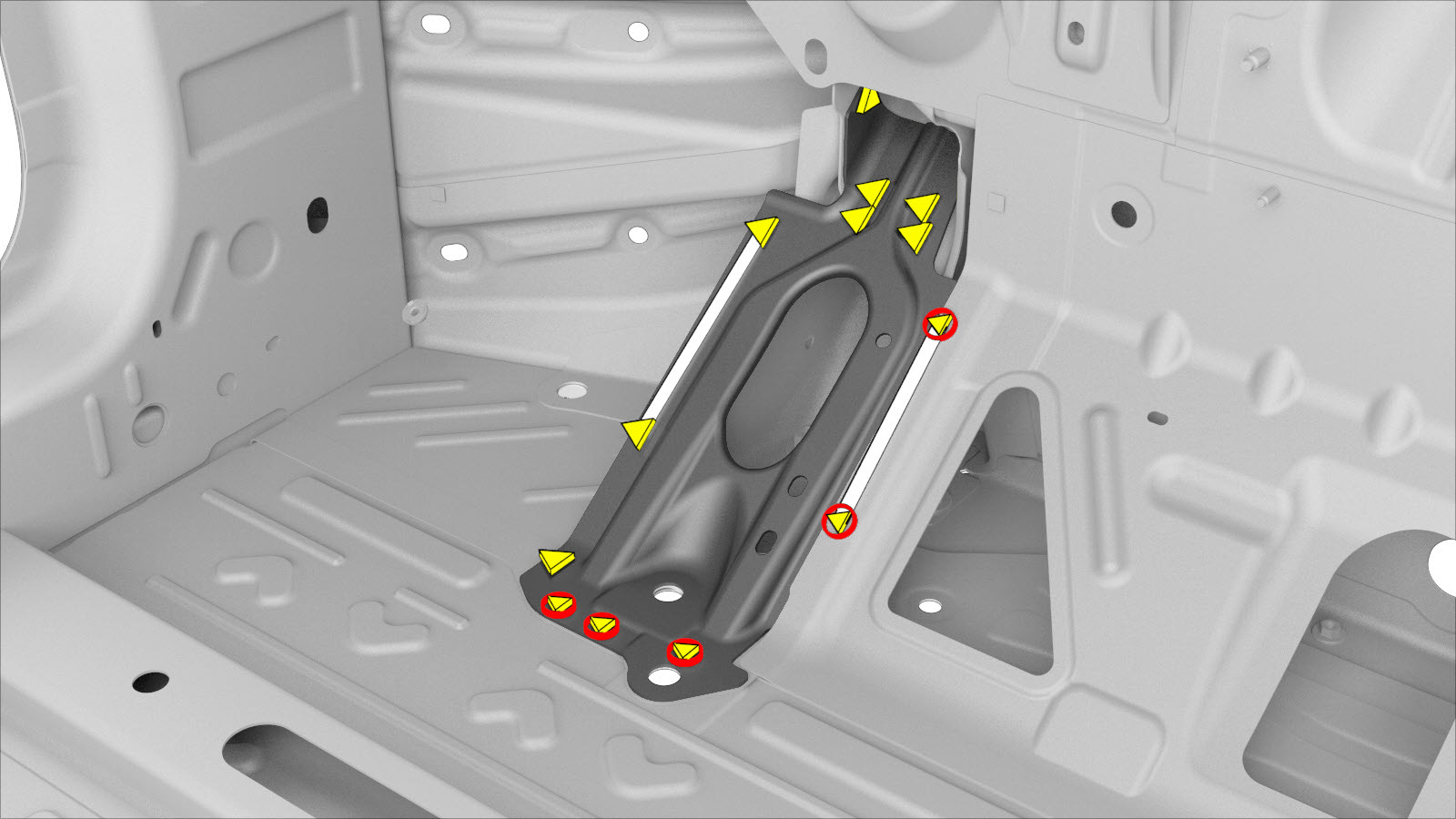

Remove the original component.

or Factory Spot Welds

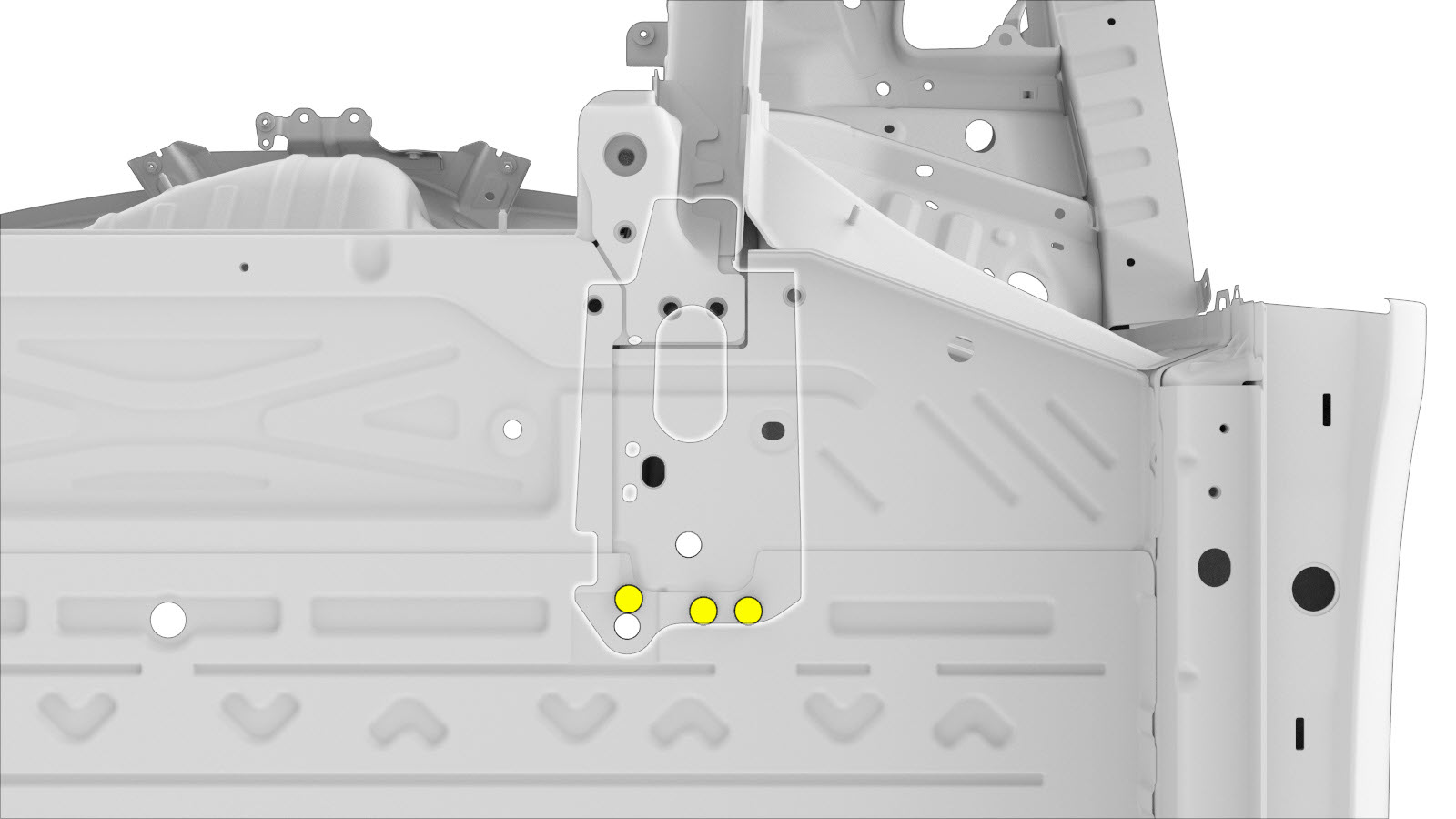

or Drill through factory spot welds
注
When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

注
对于钻透点焊焊缝，透过完整前围板上的检修孔定位纵向上部件背面的点焊焊缝，然后从车辆内部钻透这些点焊焊缝。
Prepare for installation.

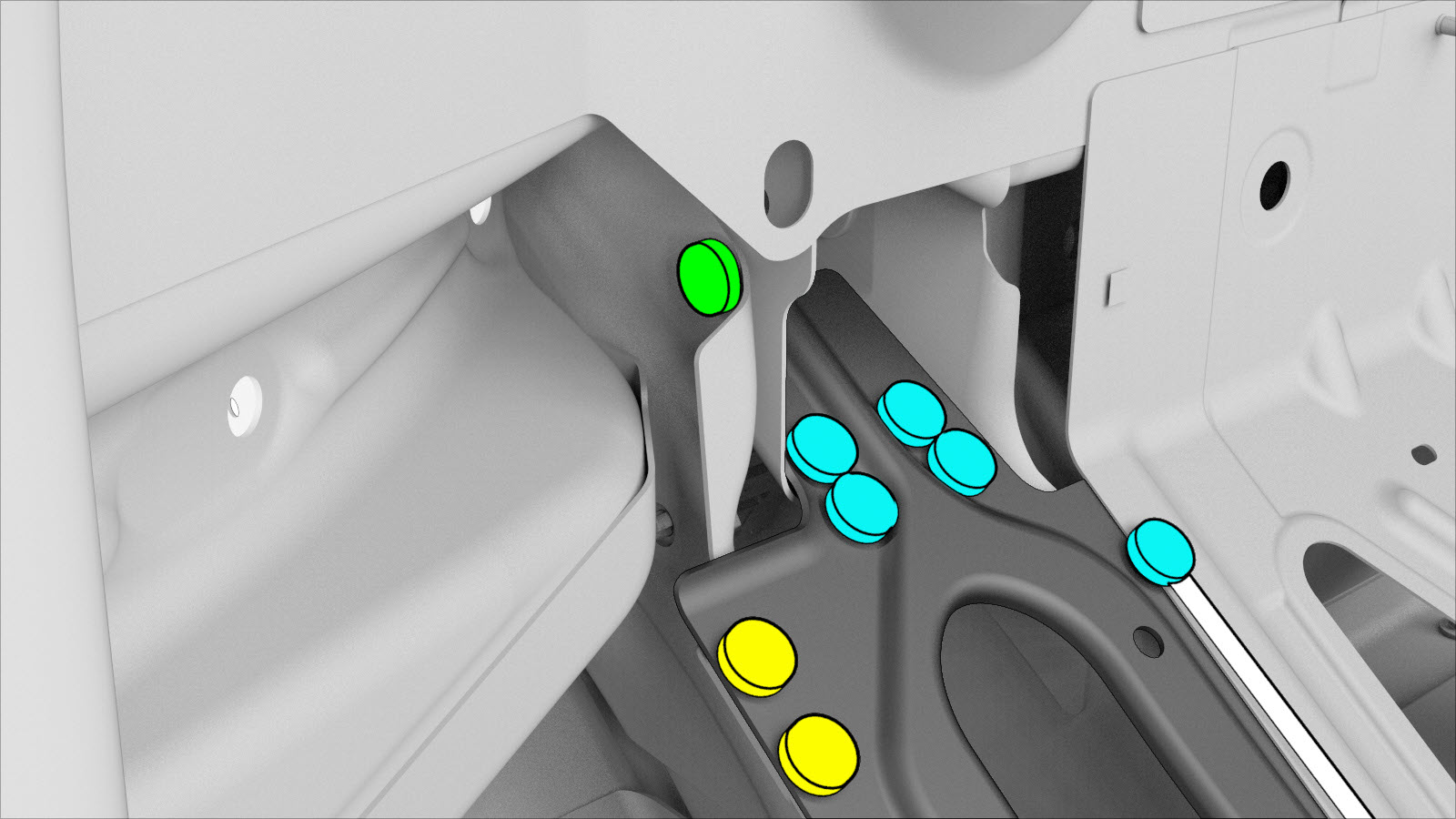

or High Strength Structural Rivets, 6.5 mm

or Countersunk Rivets, 4.8 mm Long

or Rivets, 4.8 mm
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
安装扭矩盒后上部。
安装围护侧板外件。
Perform any necessary post-repair operations.
