B 柱外件（下部）

Repair Procedure

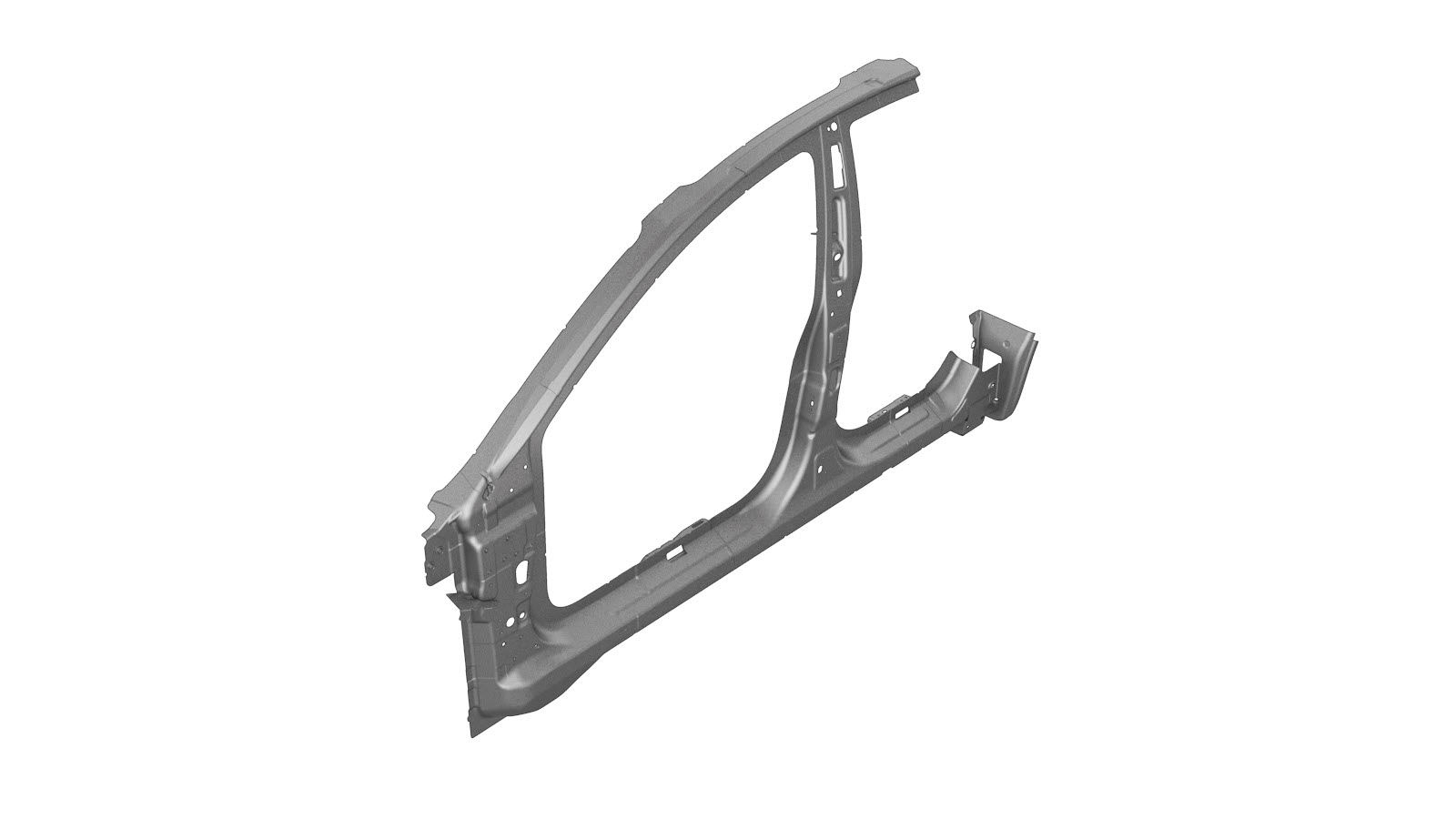

  1. 拆下 车身侧外件 的必要部分，露出要更换的底层组件。

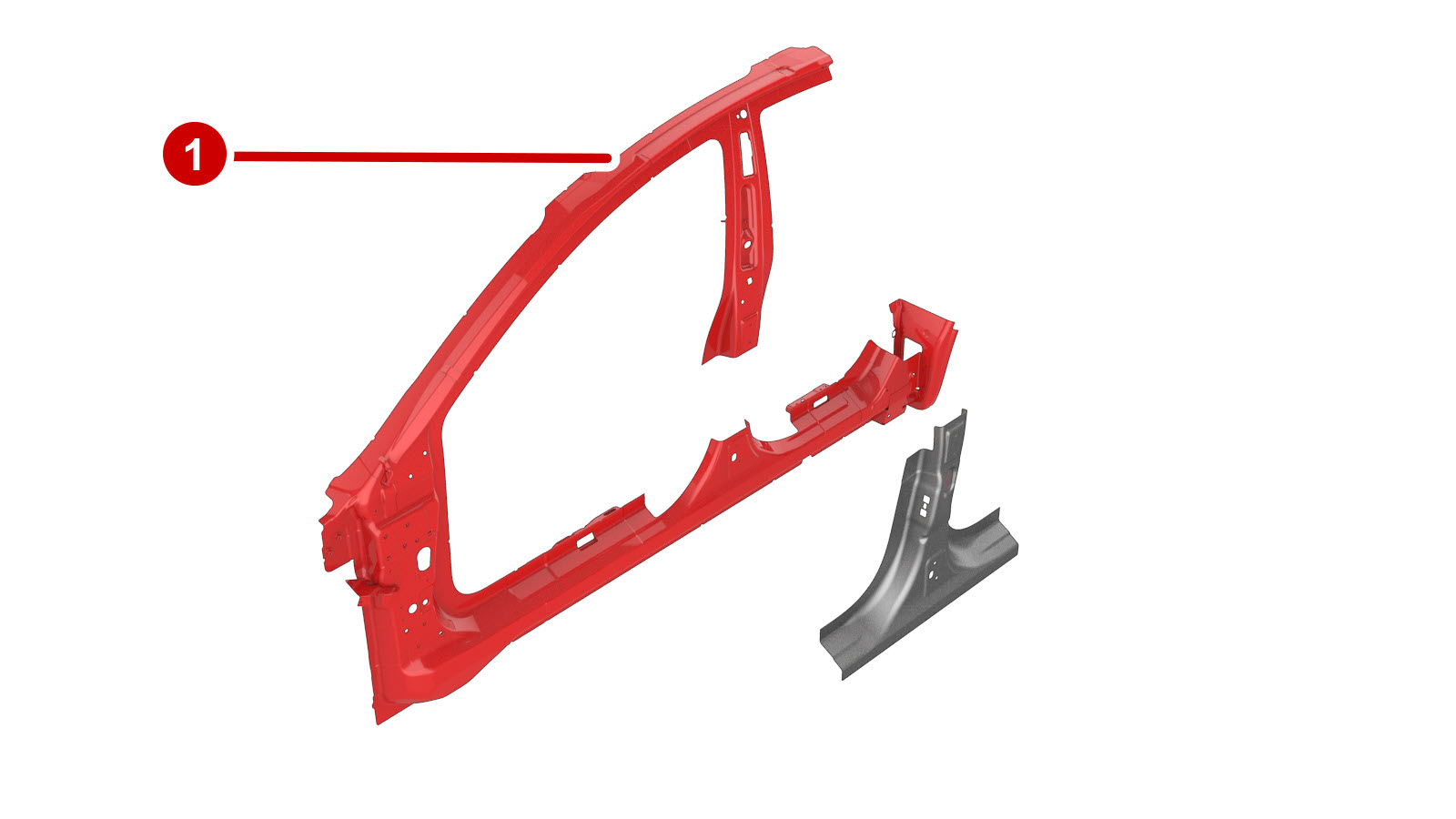

  2. 按下方所示从新的车门安装环外件维修零件上拆下 B 柱外件（下部），以制作新组件。
  3. Remove the original component.

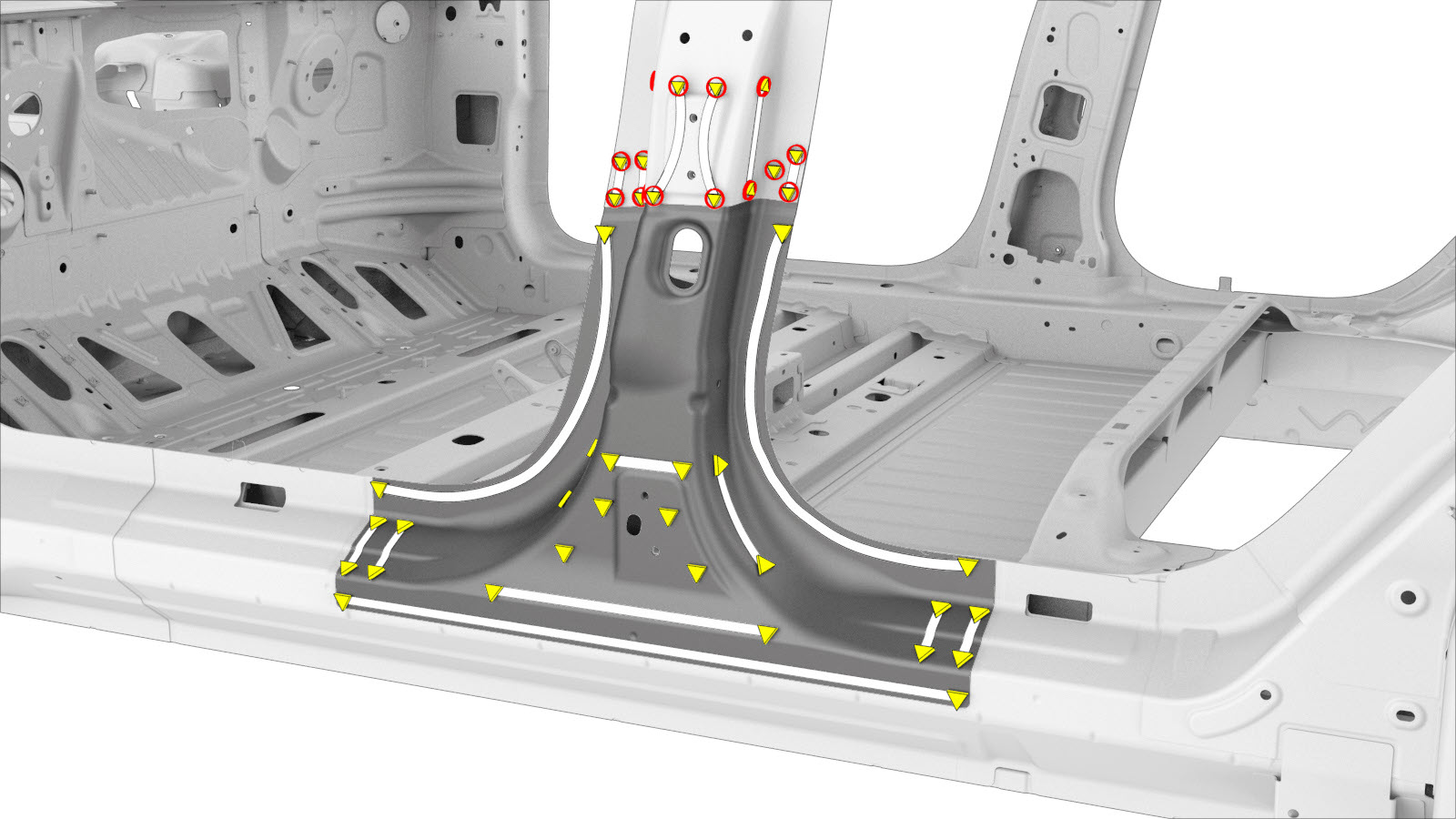

    or Factory Spot Welds

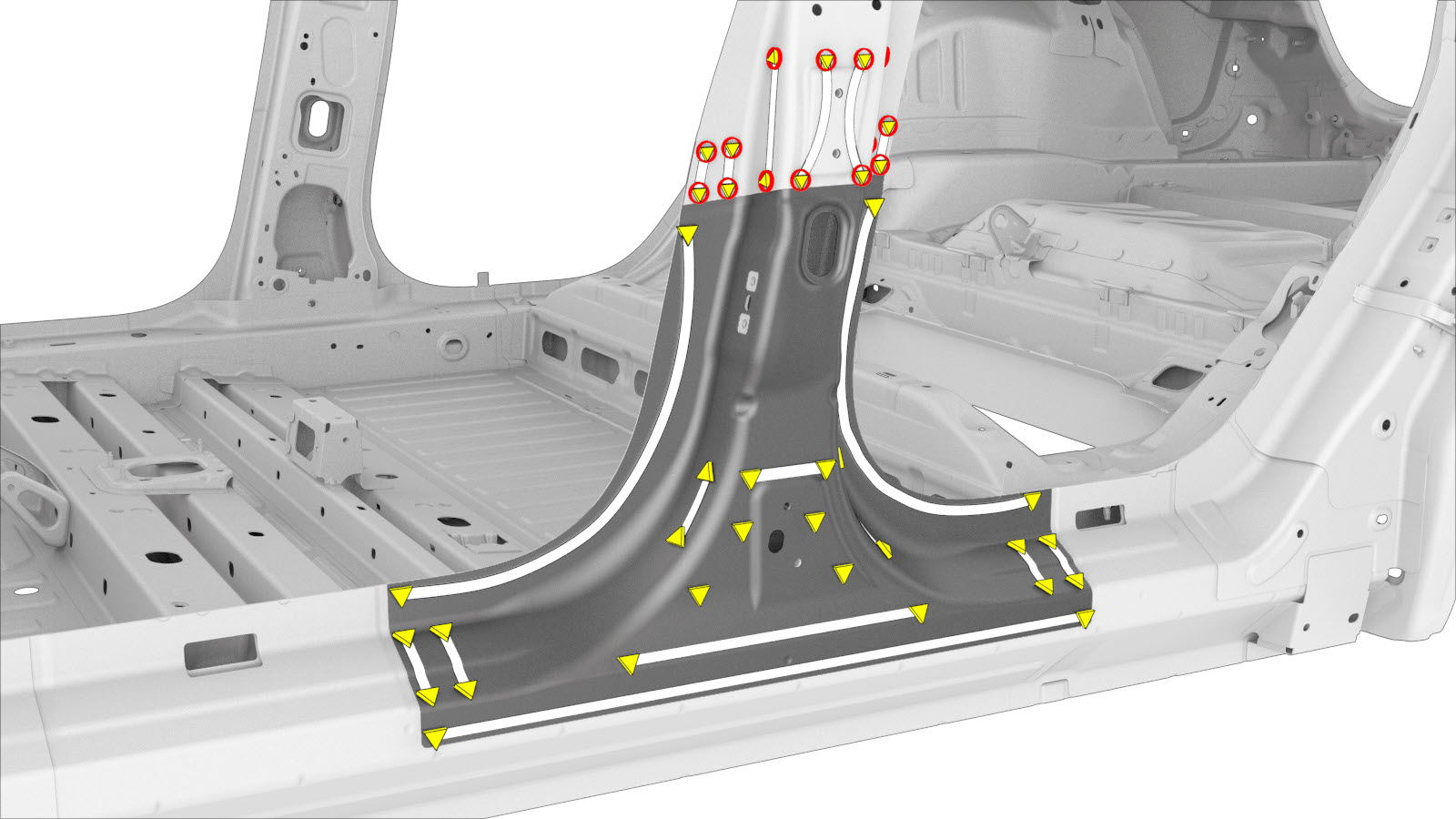

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
  4. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    注
    A red X indicates a location where a factory-installed fastener is not being replaced.

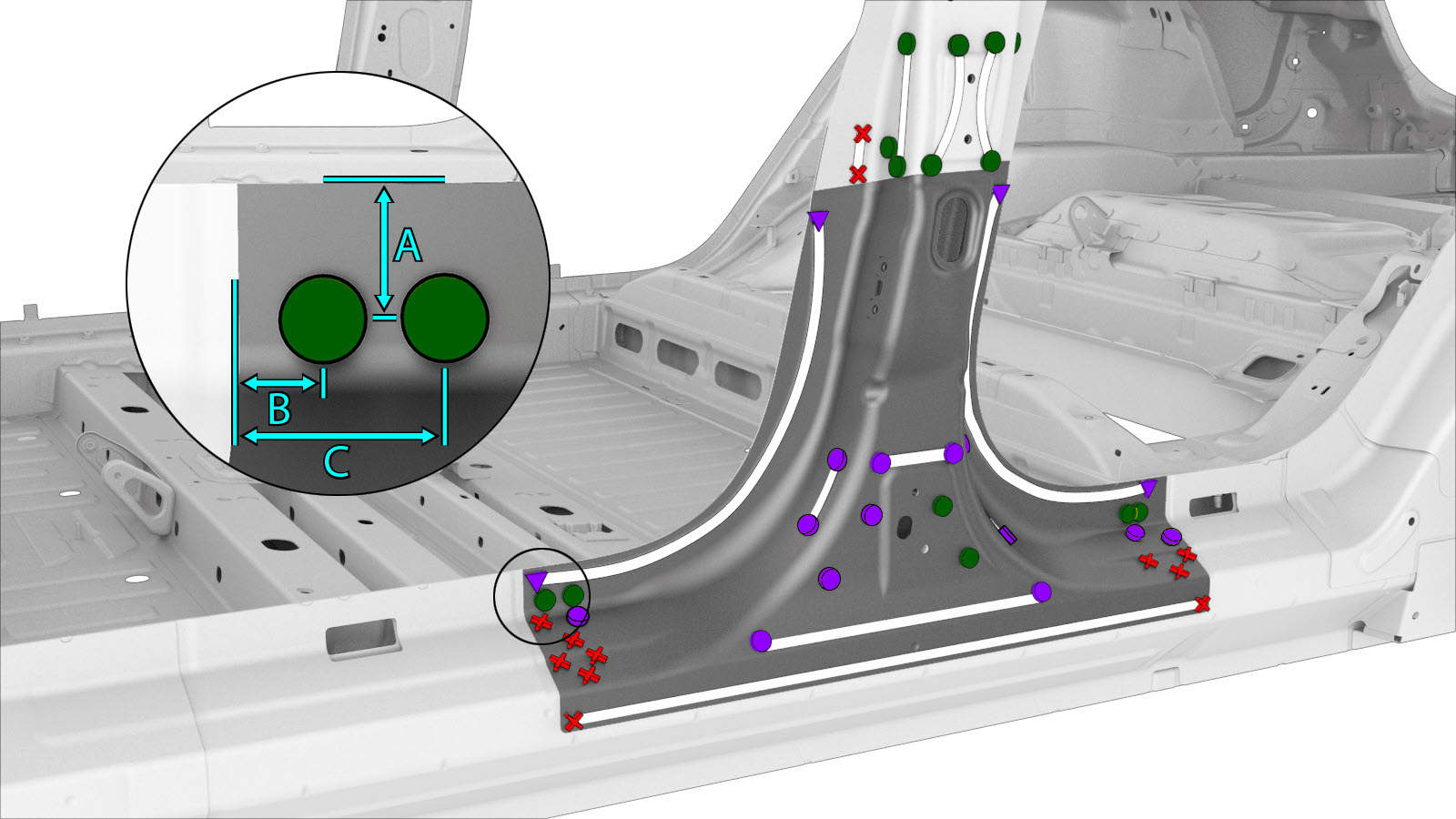

    or Installation Spot Welds

    or Countersunk Rivets, 4.8 mm Short
    • A = 30 毫米。
    • B = 19 毫米。
    • C = 46 毫米。

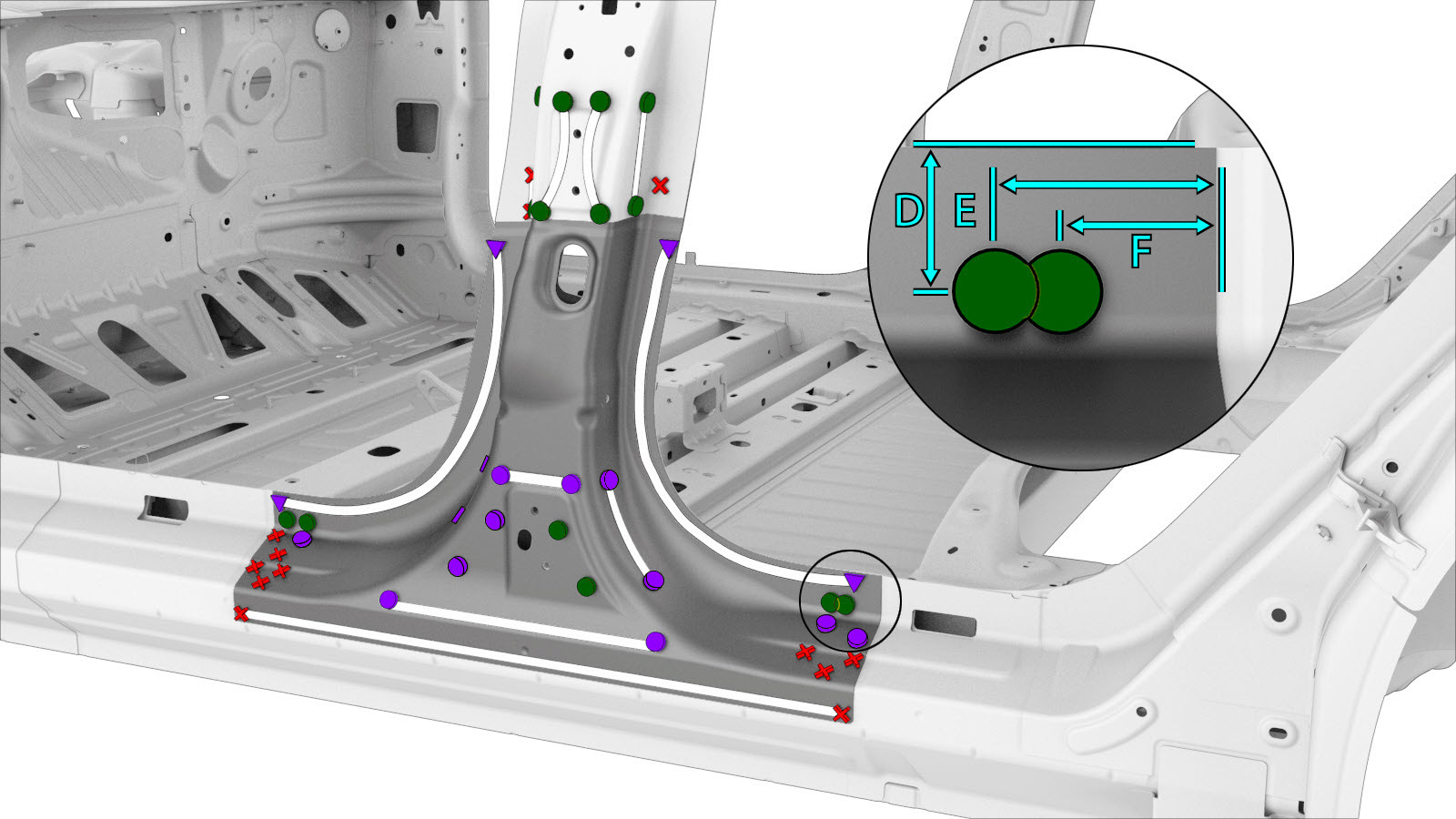

    • D = 33 毫米。
    • E = 51 毫米。
    • F = 36 毫米。

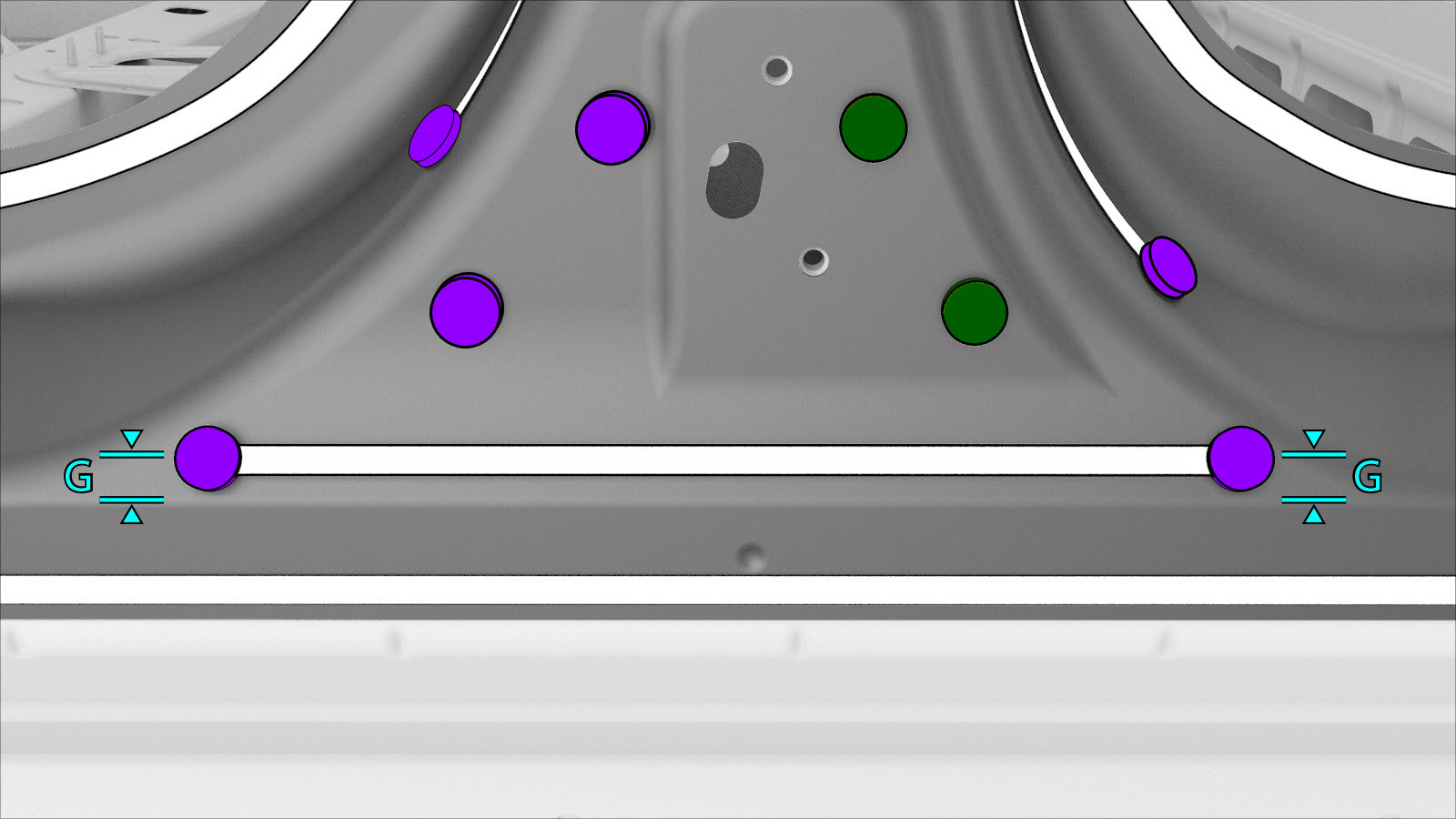

    or Structural Bulb Rivets, 6.5 mm
    • G = 10 毫米。
  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  6. Install the new component or components.
  7. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  8. 安装先前为更换组件而从 车身侧外件 拆下的部分。
  9. Install the fastener as indicated.

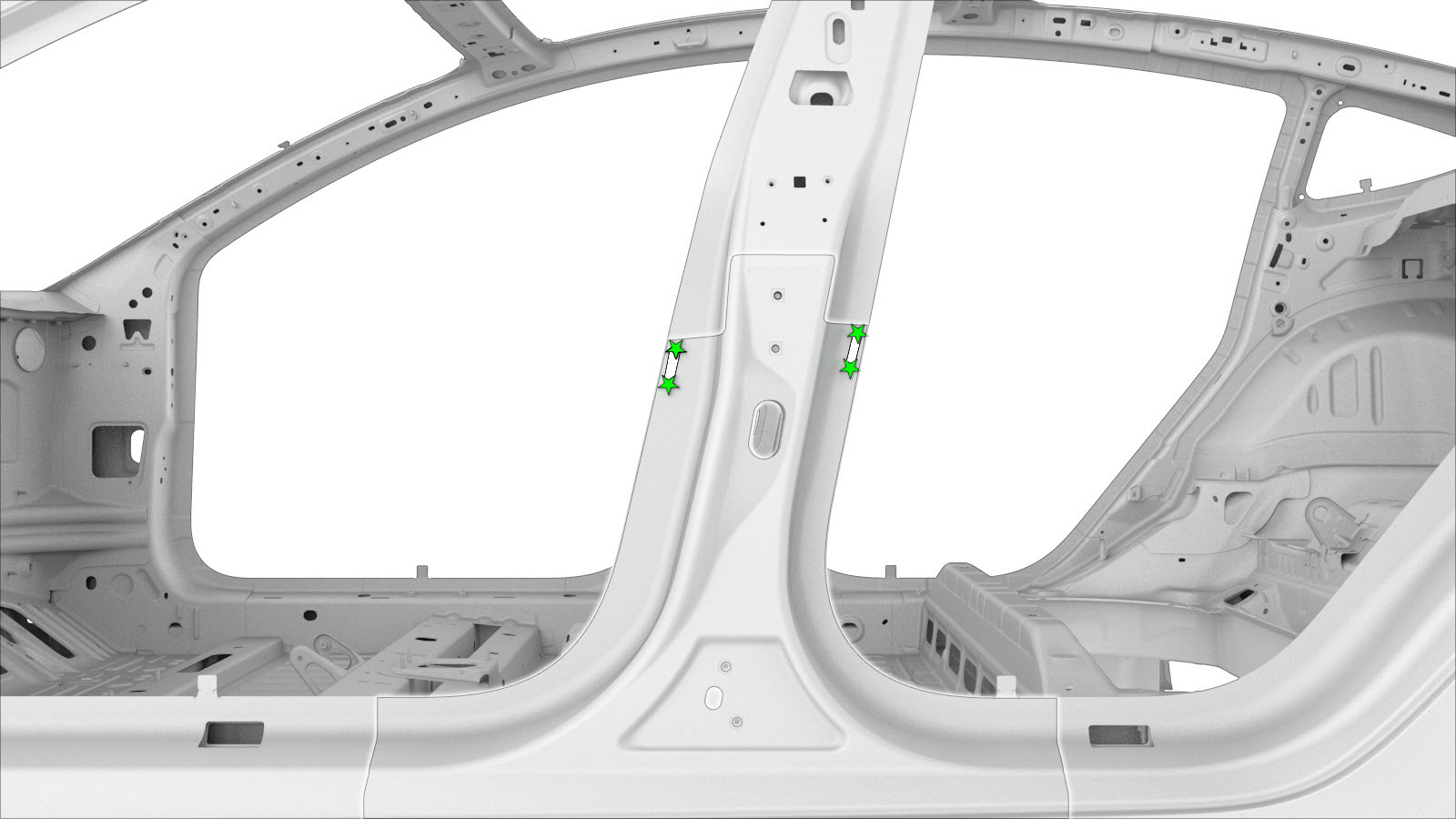

    or Flow Form Rivets, S38
  10. Perform any necessary post-repair operations.
