挡泥板固定支架（下部）
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

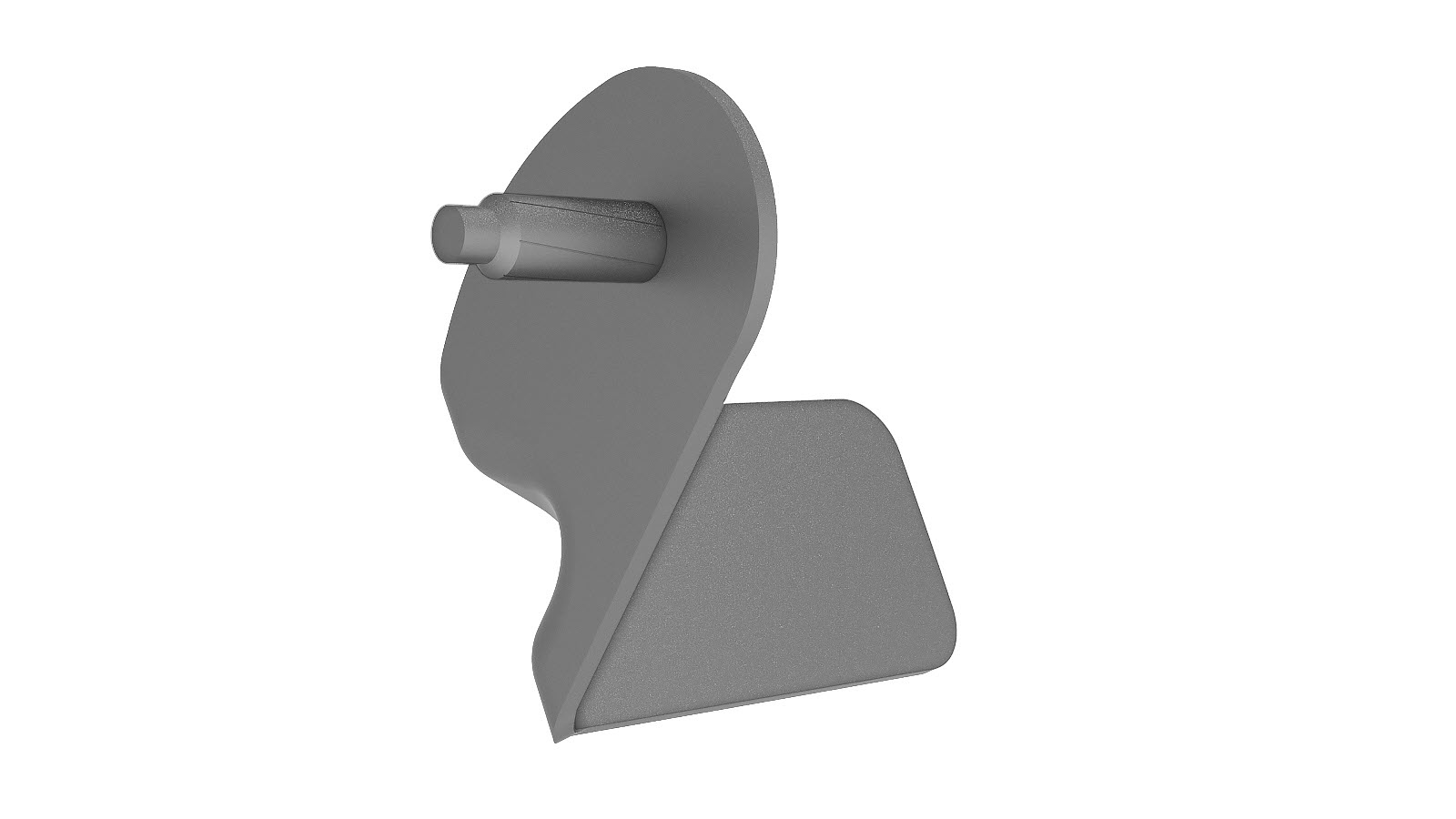

| 1 | M3S BIW FENDER ATTACH BRKT LOWER |
|
These part numbers were current at the time of publication. Use the revisions listed or later, unless otherwise specified in the Parts Manual.
Repair Procedure
-

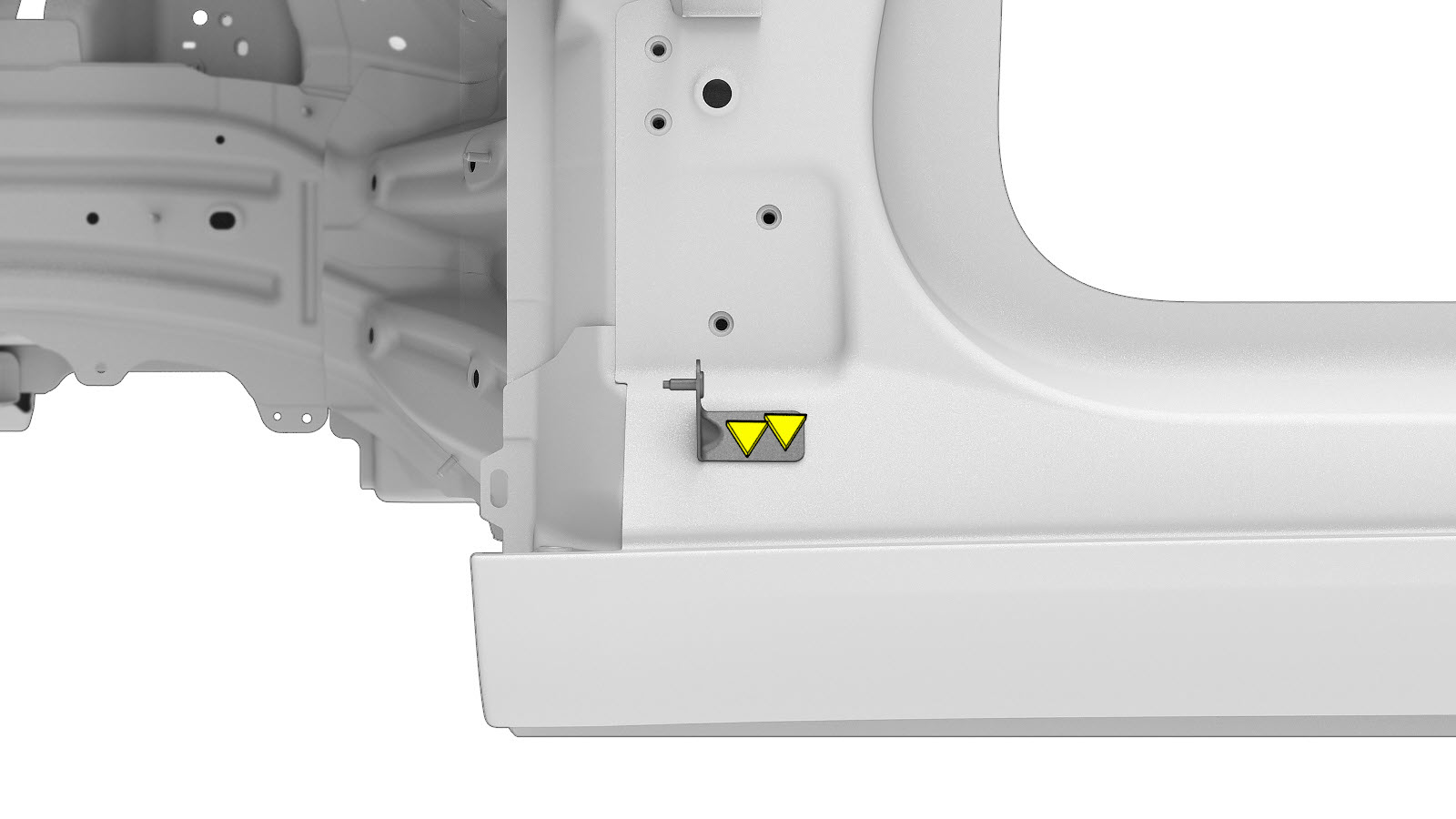

Remove the original component.
or
Factory Spot Welds
-
Prepare for installation.
or

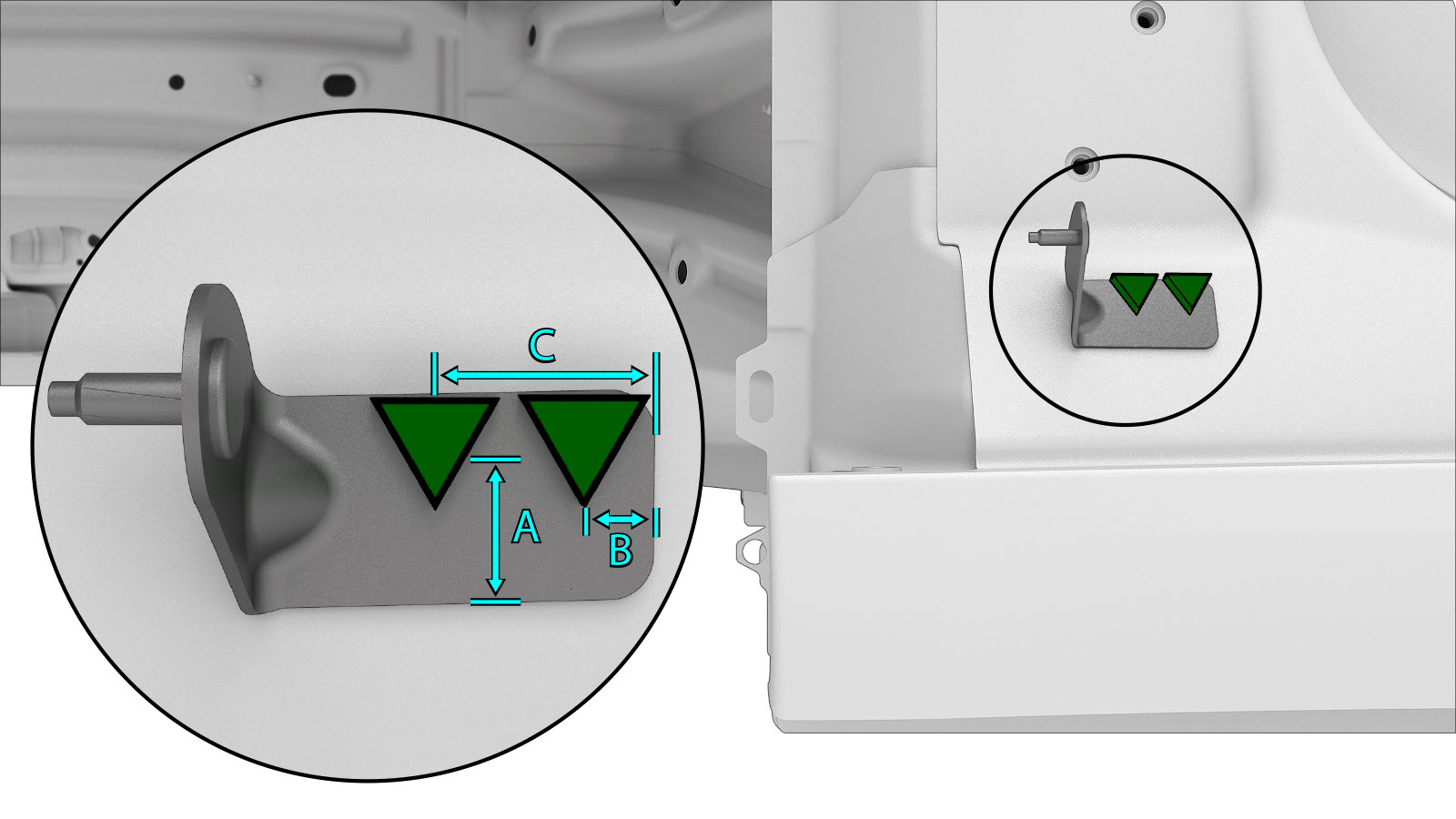

Steel Plug Welds
- A = 23 mm.
- B = 10 mm.
- C = 30 毫米。
- Install the new component or components.
-
Perform GMA welding.
or Steel Plug Welds
警告Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.警告To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to 已批准的气体保护金属极弧 (GMA) 焊接器和焊丝 for information on approved GMA welders and welding wire.警告Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.注Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint.
