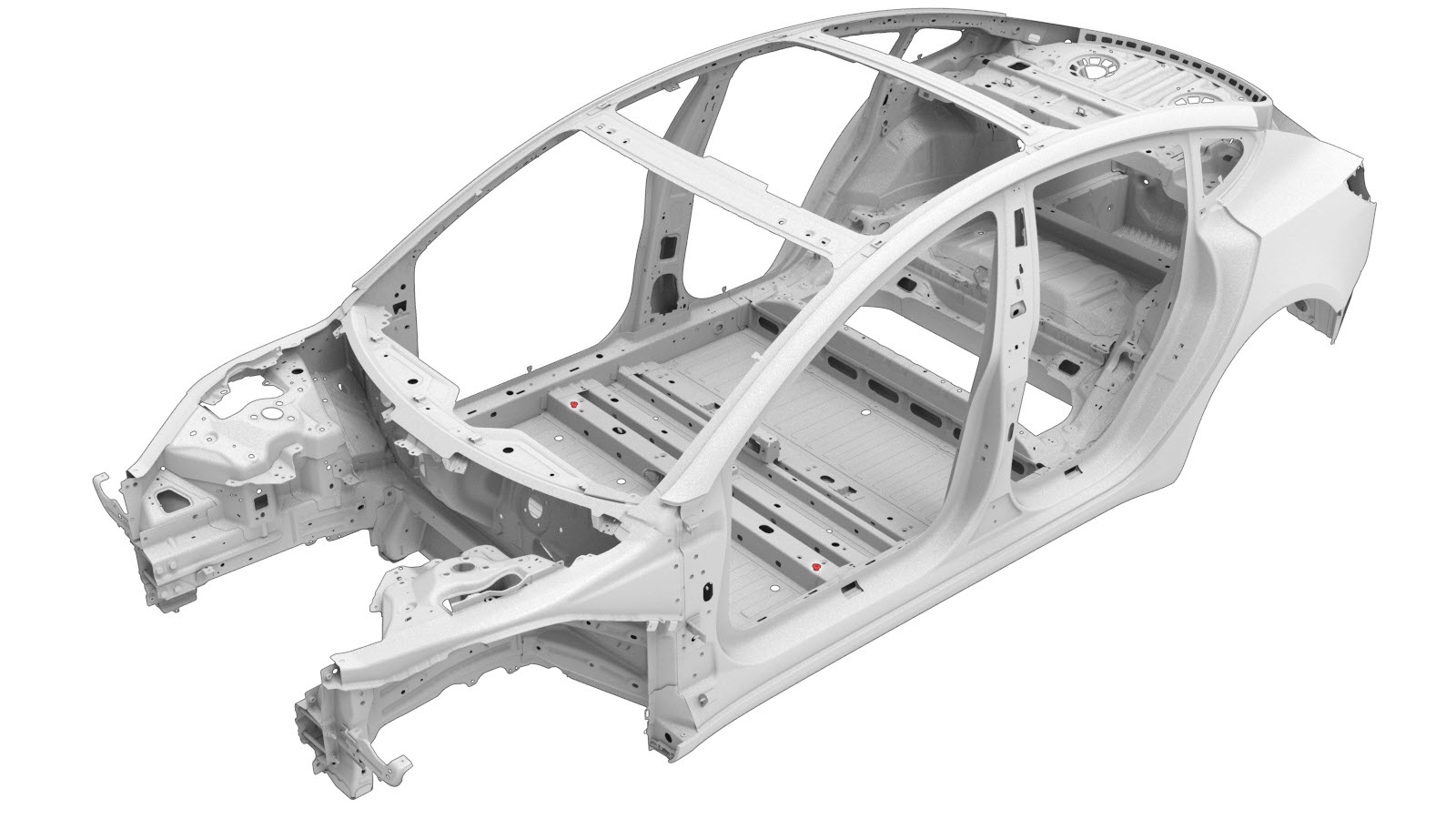

前排座椅支座加固板(前部外侧)

Parts List

Quantity Description Image / Notes

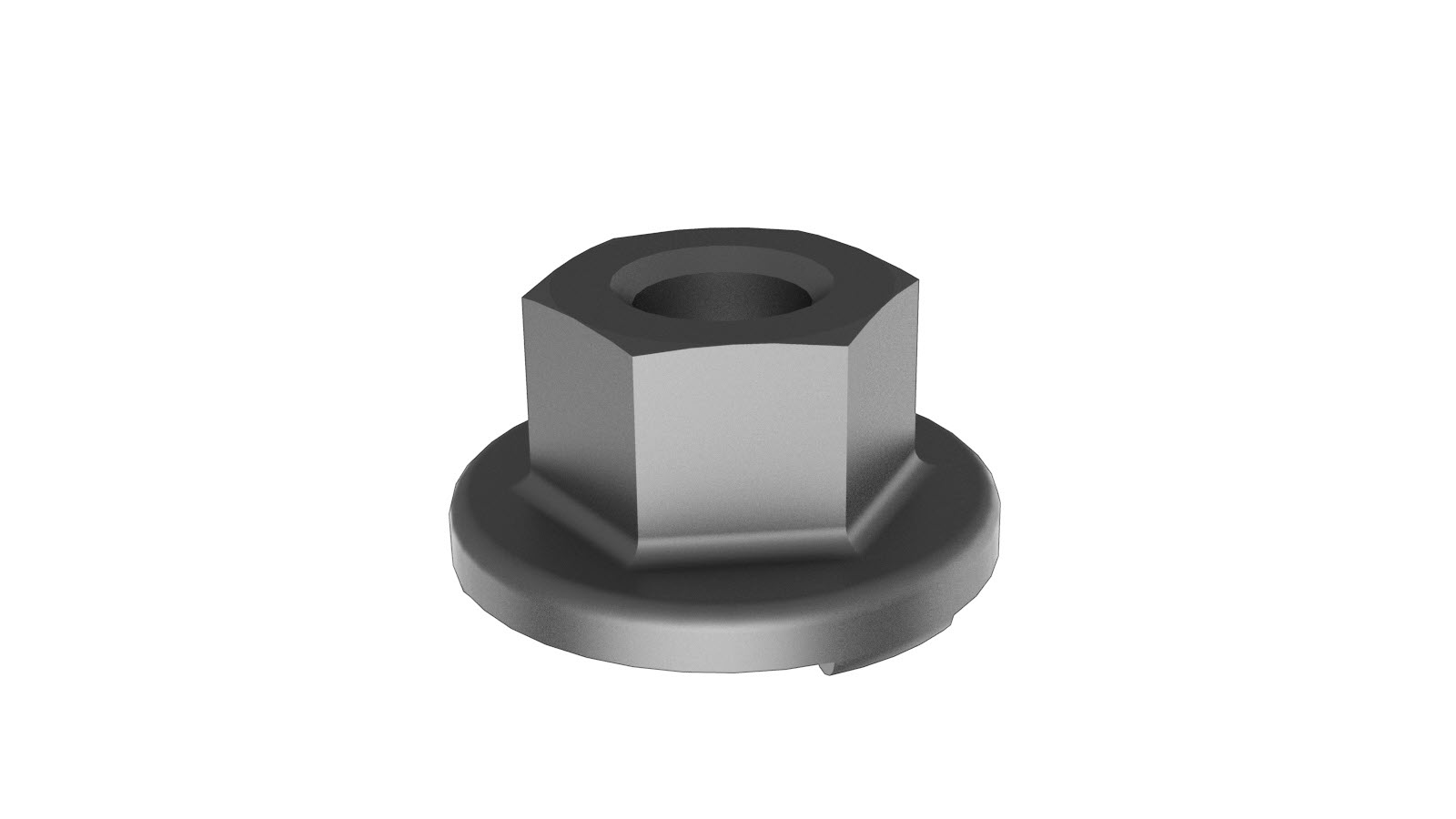

1 WELD NUT,HF,M10

Tesla 零件号 1077797-00。

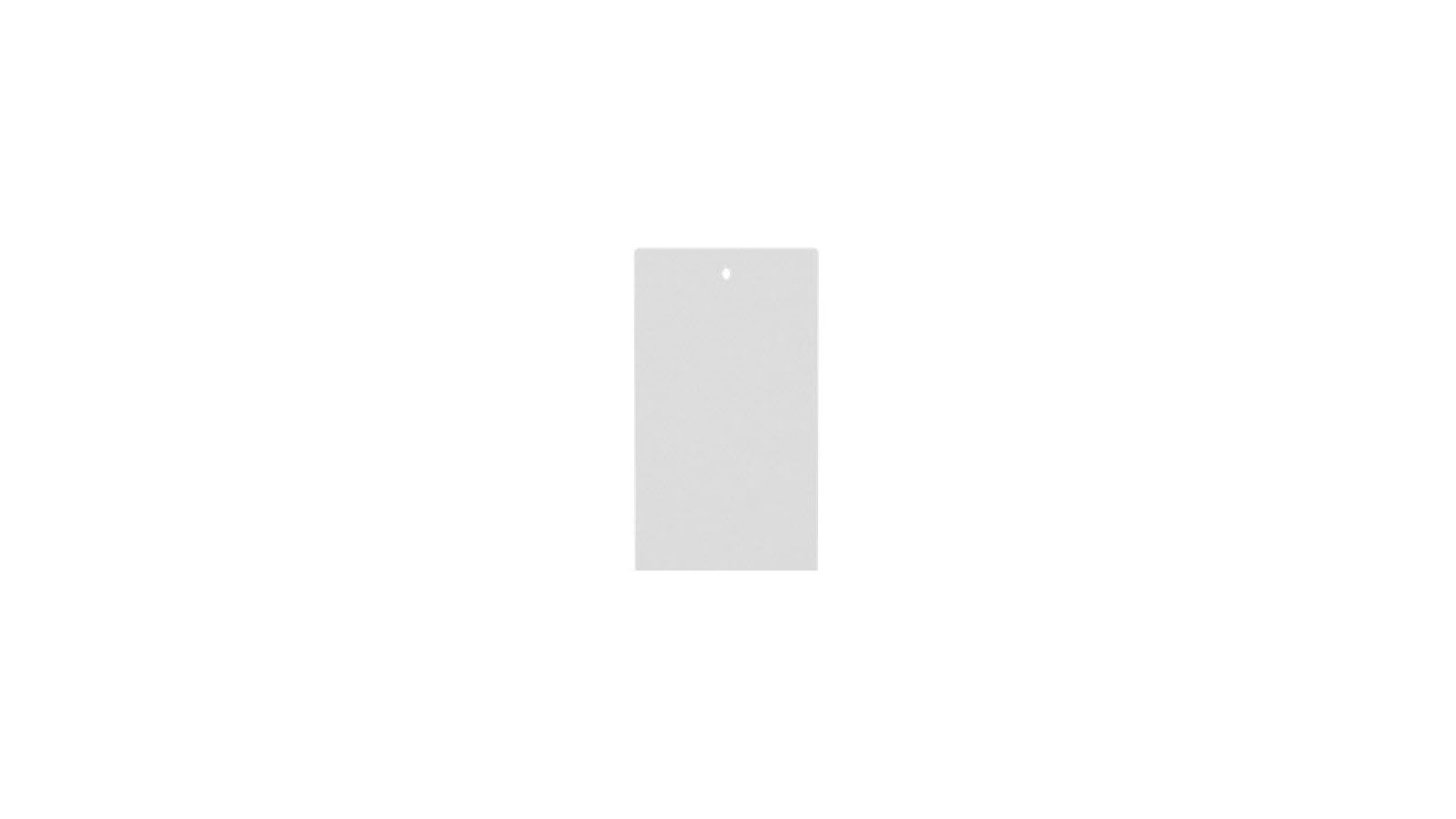

1 底板补片

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

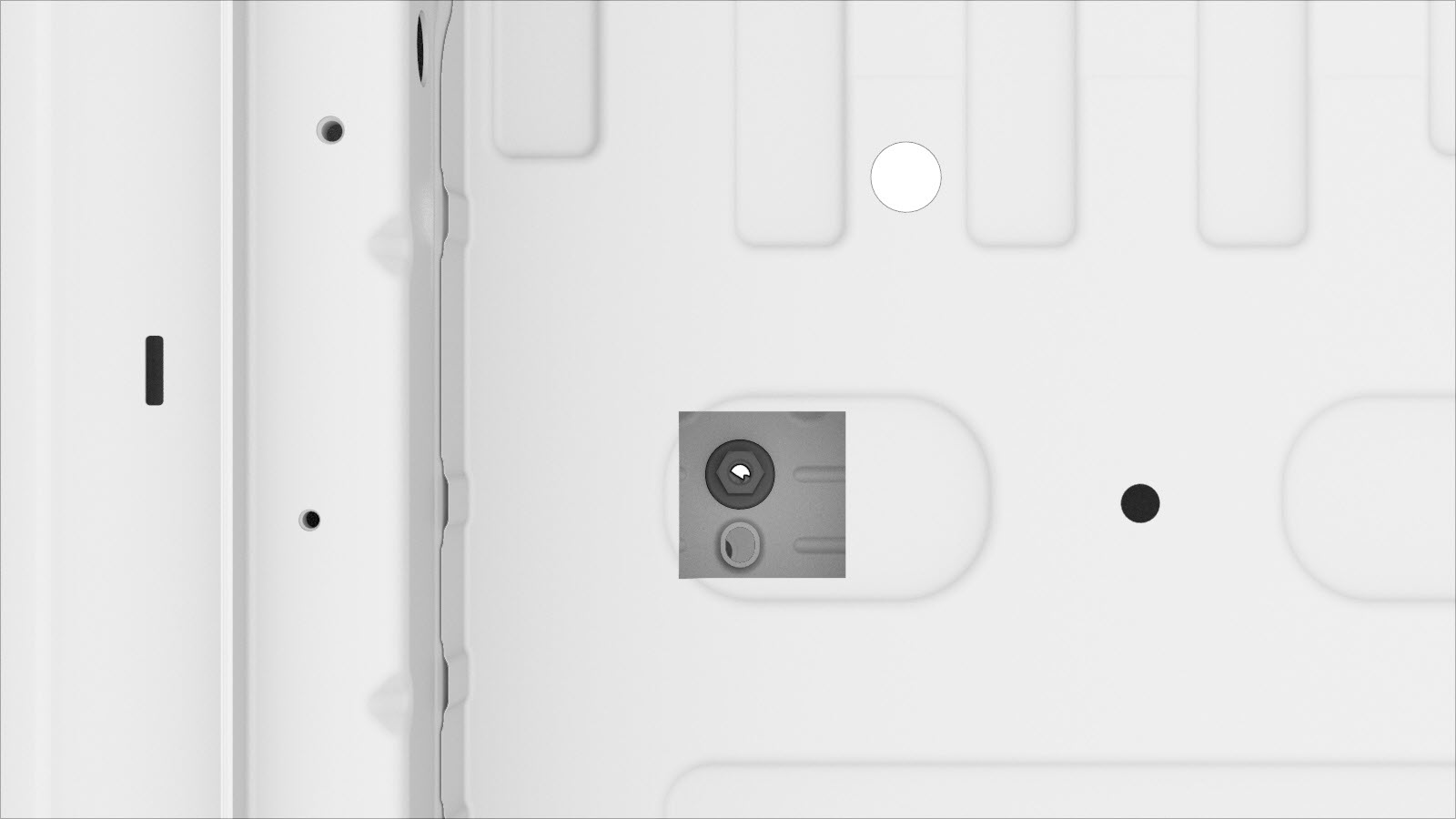

  1. 针对即将更换的座椅支座加固板螺母,在底板底面切出一个检修口,以便对受损的组件进行操作。

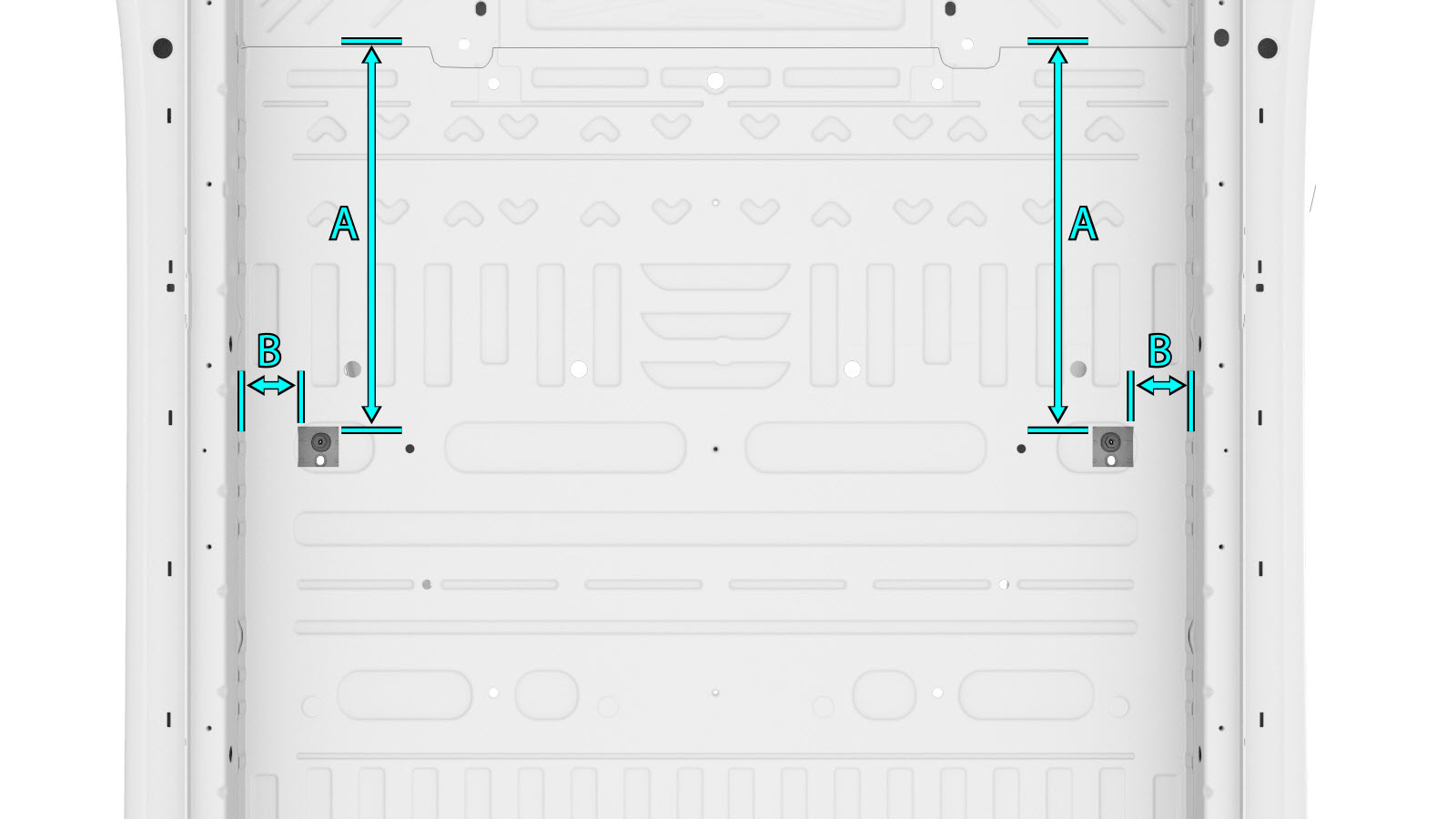

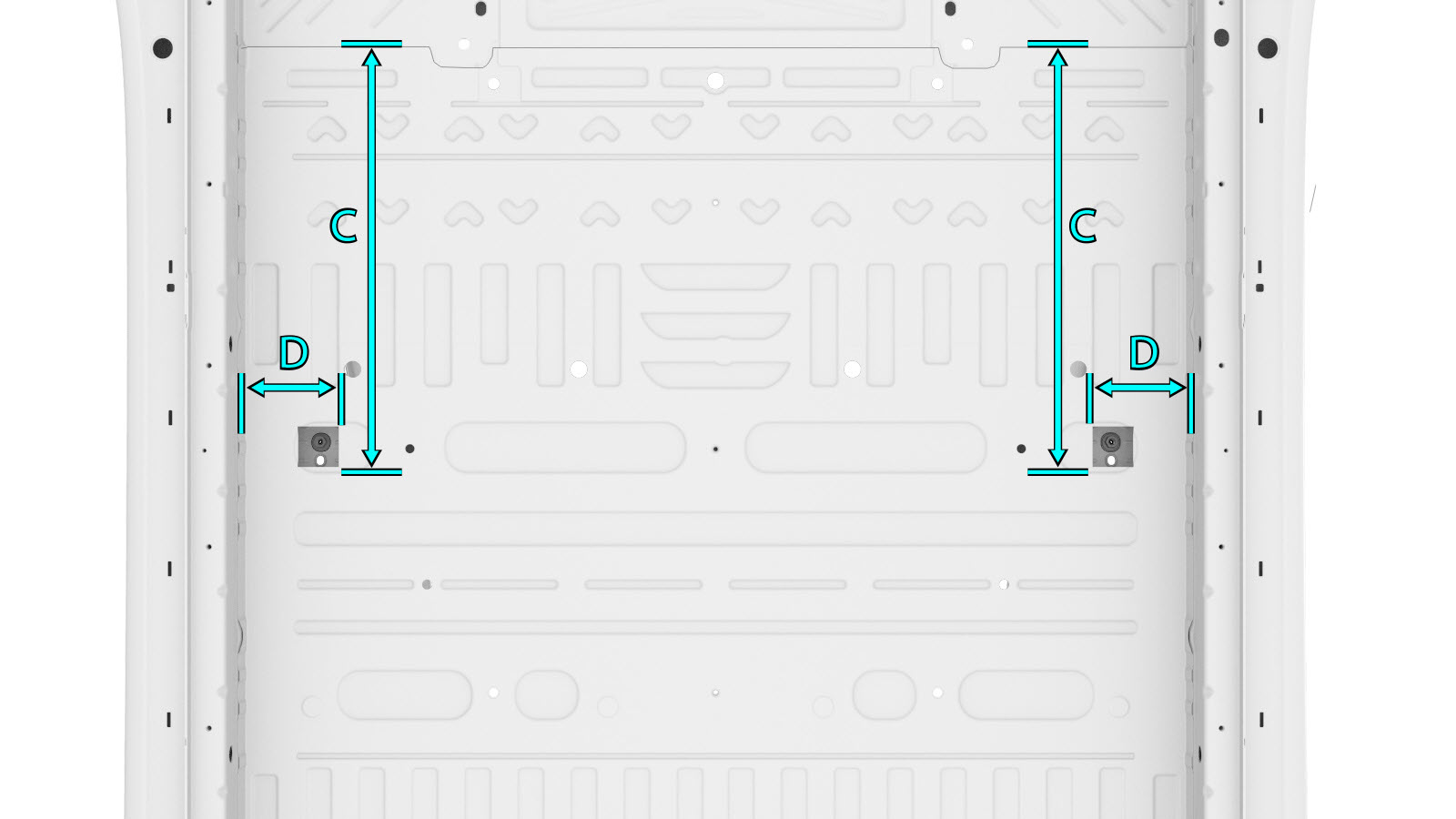

    Reference Line/Point

    • A = 557 毫米。
    • B = 79 毫米。
    • C = 617 毫米。
    • D = 137 毫米。
  2. Remove the original component.
  3. 按下方所示切割底板补片,以便为底板维修区域制作一个盖子。

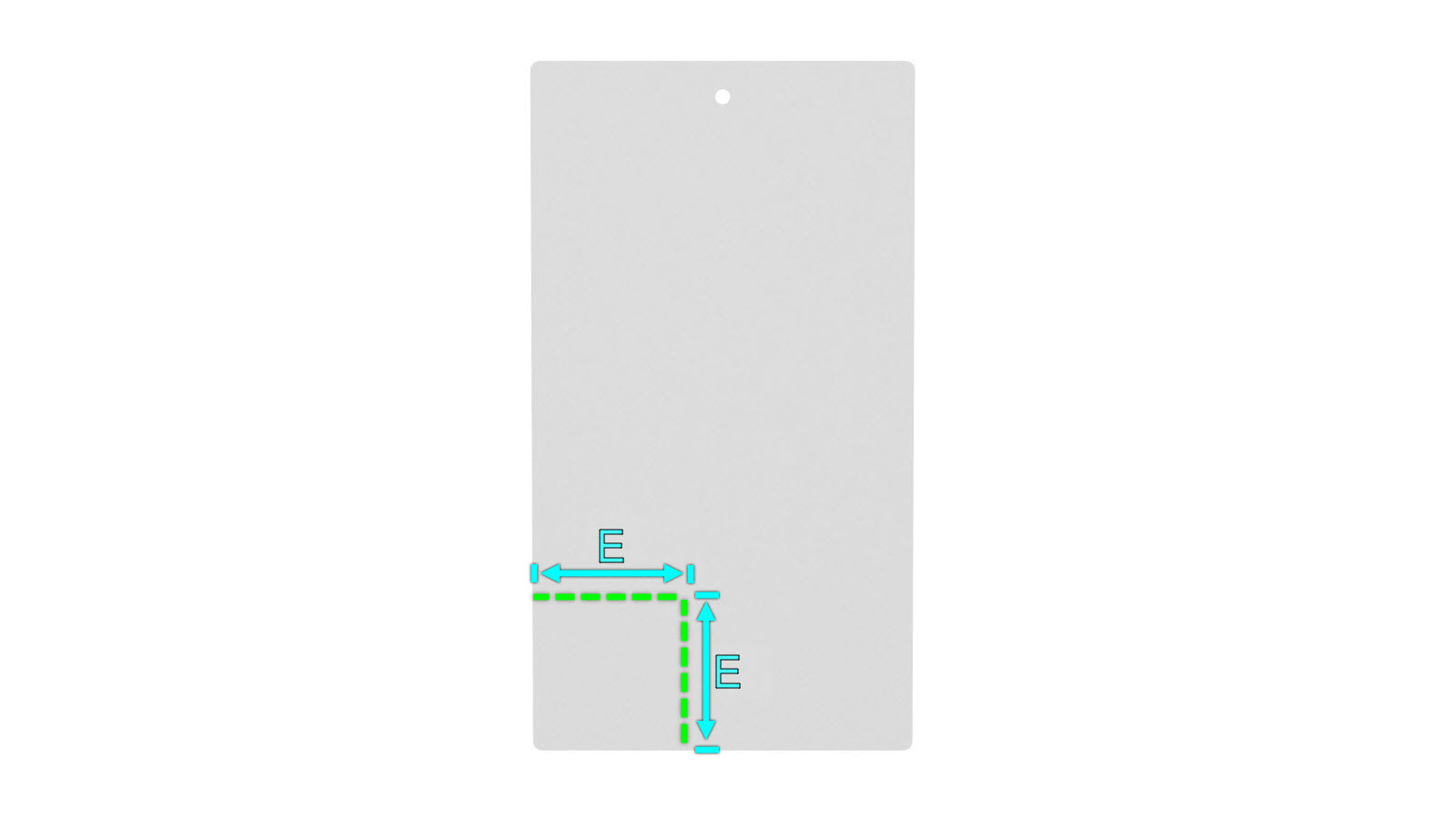

    Cut Line

    Reference Line/Point

    • E = 78 毫米。
  4. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    仅可使用结构型粘合剂安装新组件。
  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  6. Install the new component or components.
    Informational PurposesAn informational icon, calling your attention
    使用螺栓或夹具将座椅支座加固板临时固定在横梁下方,直至结构型粘合剂凝固。

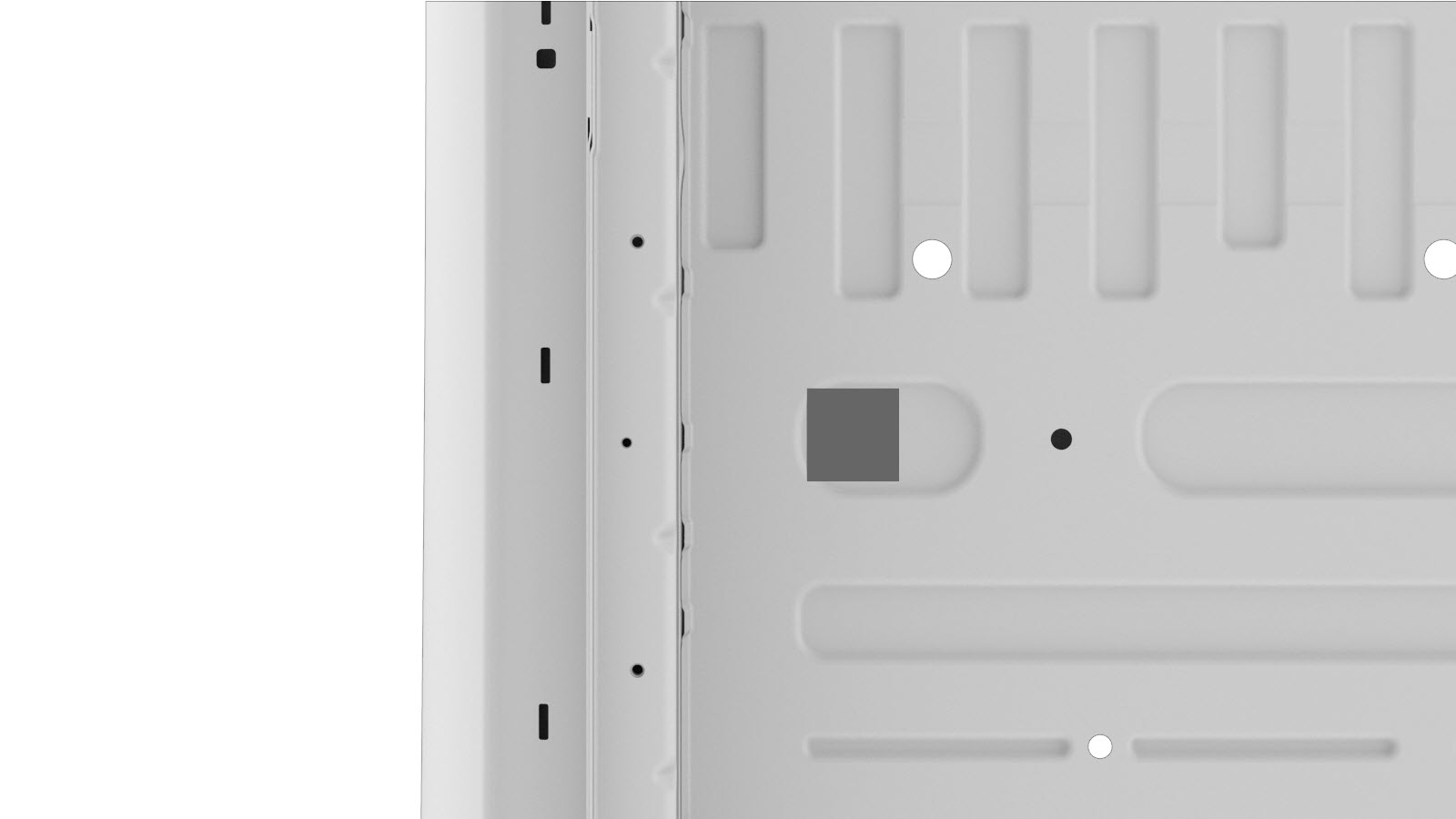

  7. 用底板补片盖住检修口。
  8. Perform any necessary post-repair operations.
