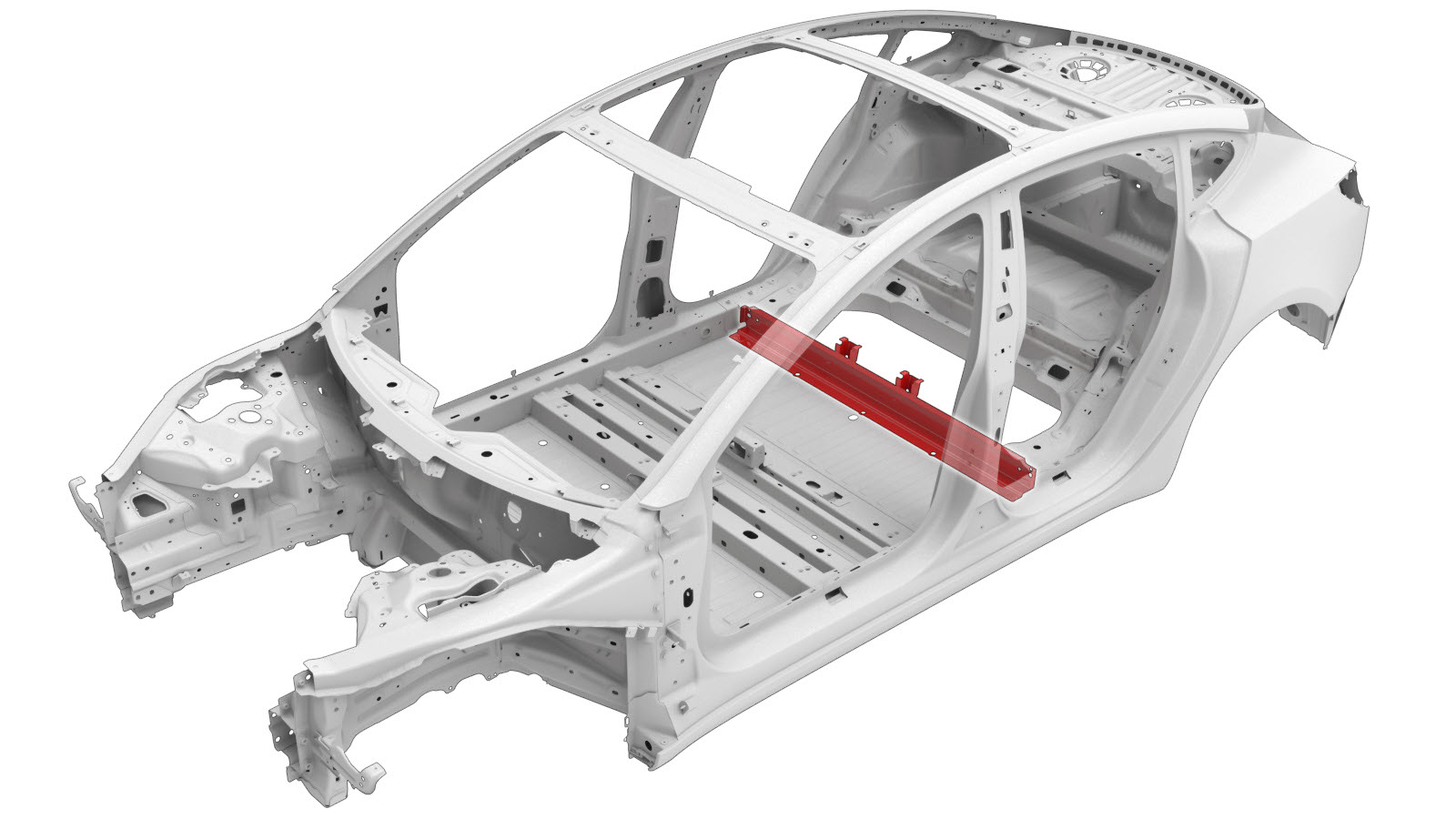

踵板横梁（后）
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

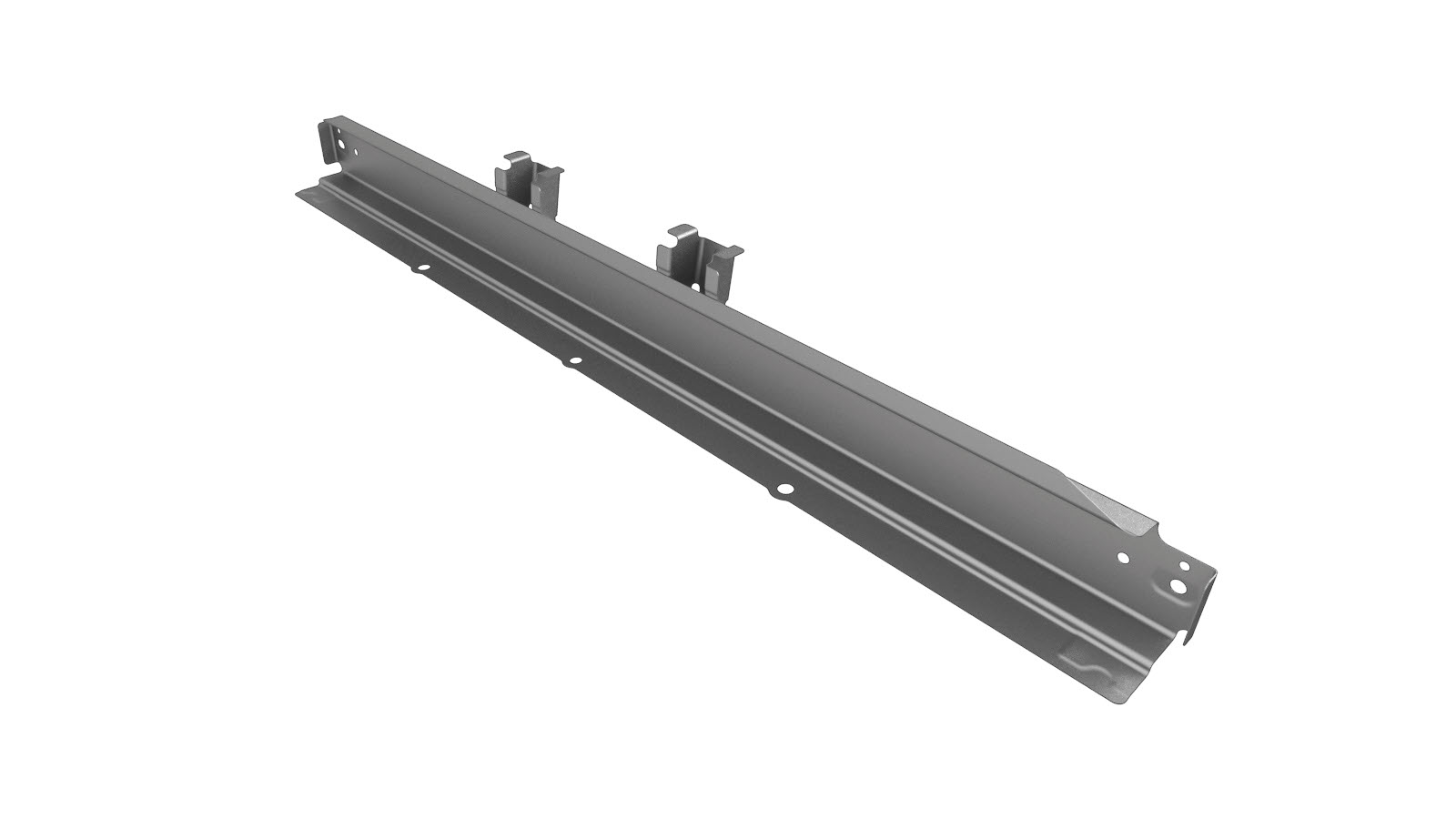

| 1 | ASY - CROSSMEMBER HEELBOARD REAR（踵板横梁 - 后） |
|
| 12 |
Rivet, 4.8 mm
|
|
| 2 |
Countersunk Rivet, 4.8 mm Long
|
|
| 8 |
Countersunk Rivet, 4.8 mm Short
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

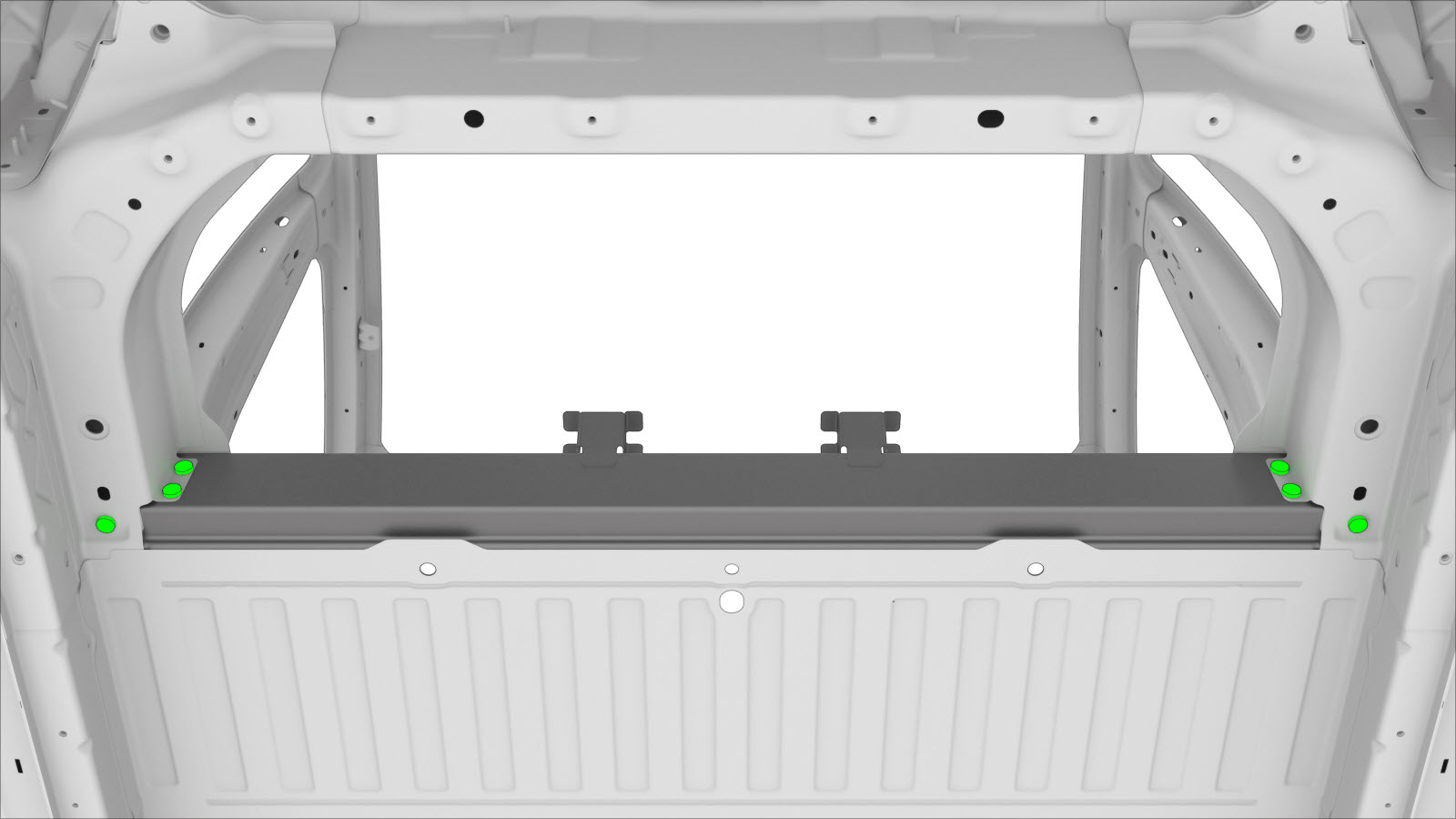

拆卸踵板横梁（前）。
-
Remove the original component.
or
Factory Spot Welds
-
Prepare for installation.

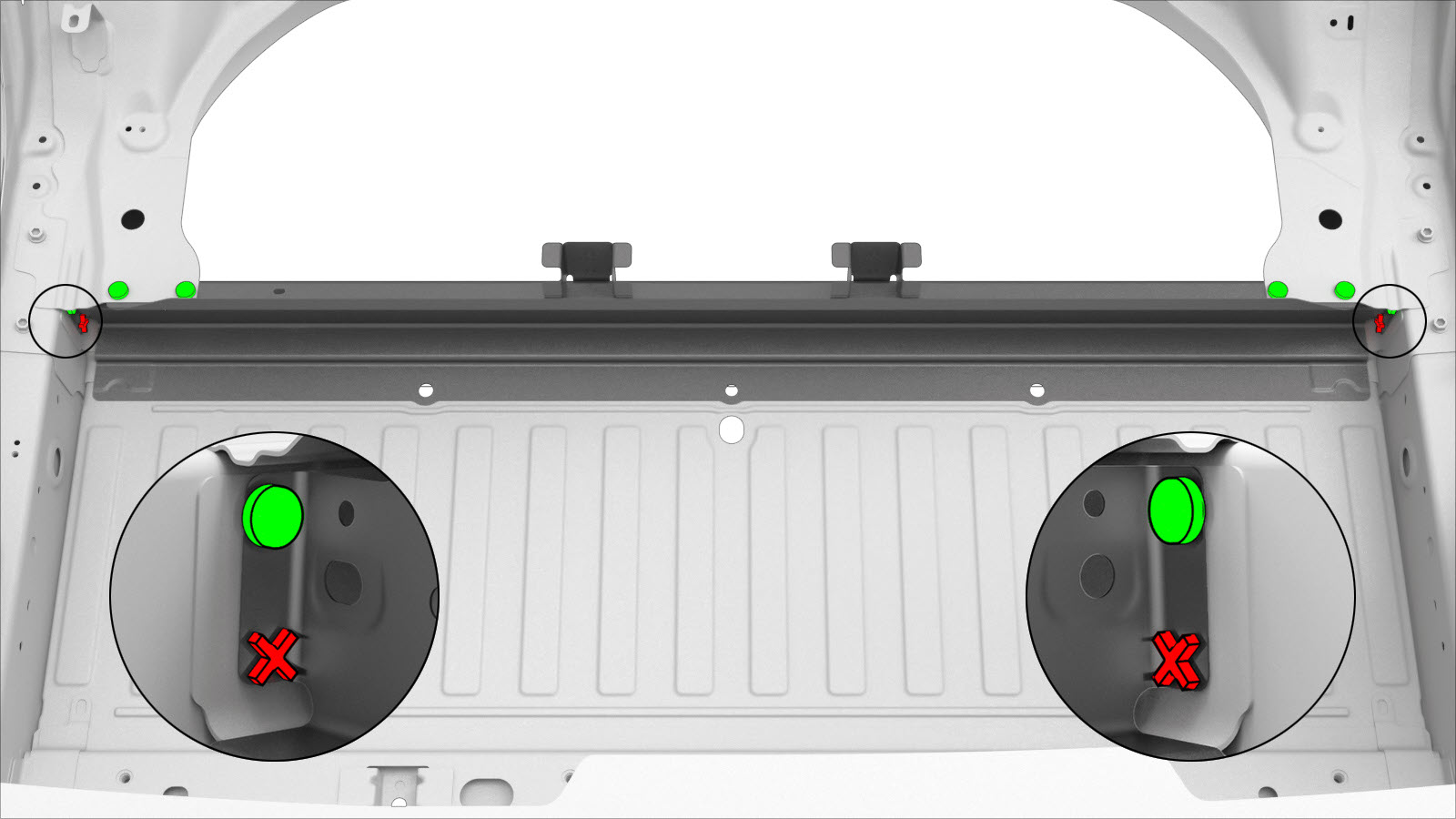

注A red X indicates a location where a factory-installed fastener is not being replaced.

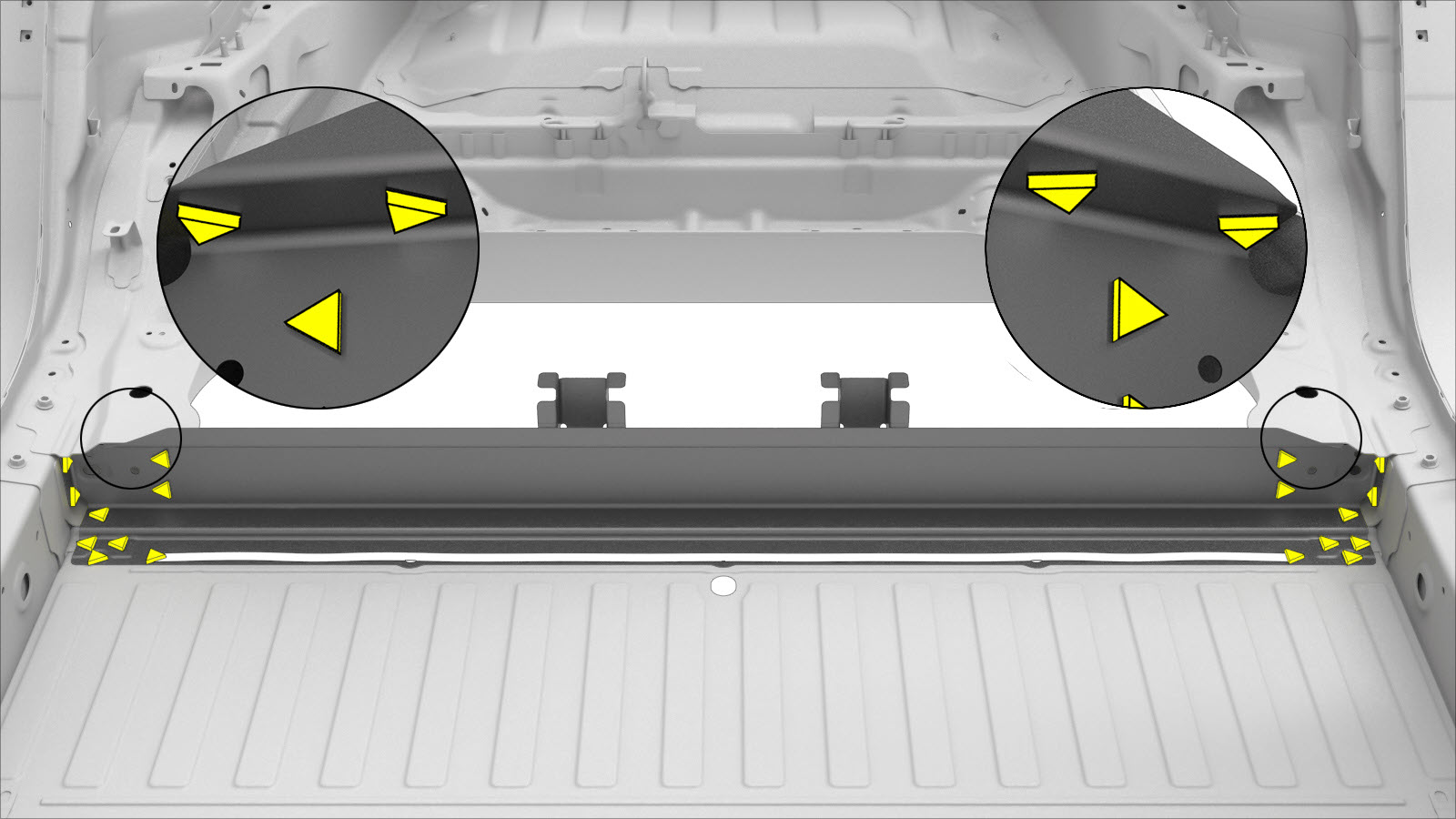

- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
安装踵板横梁（前）。
-

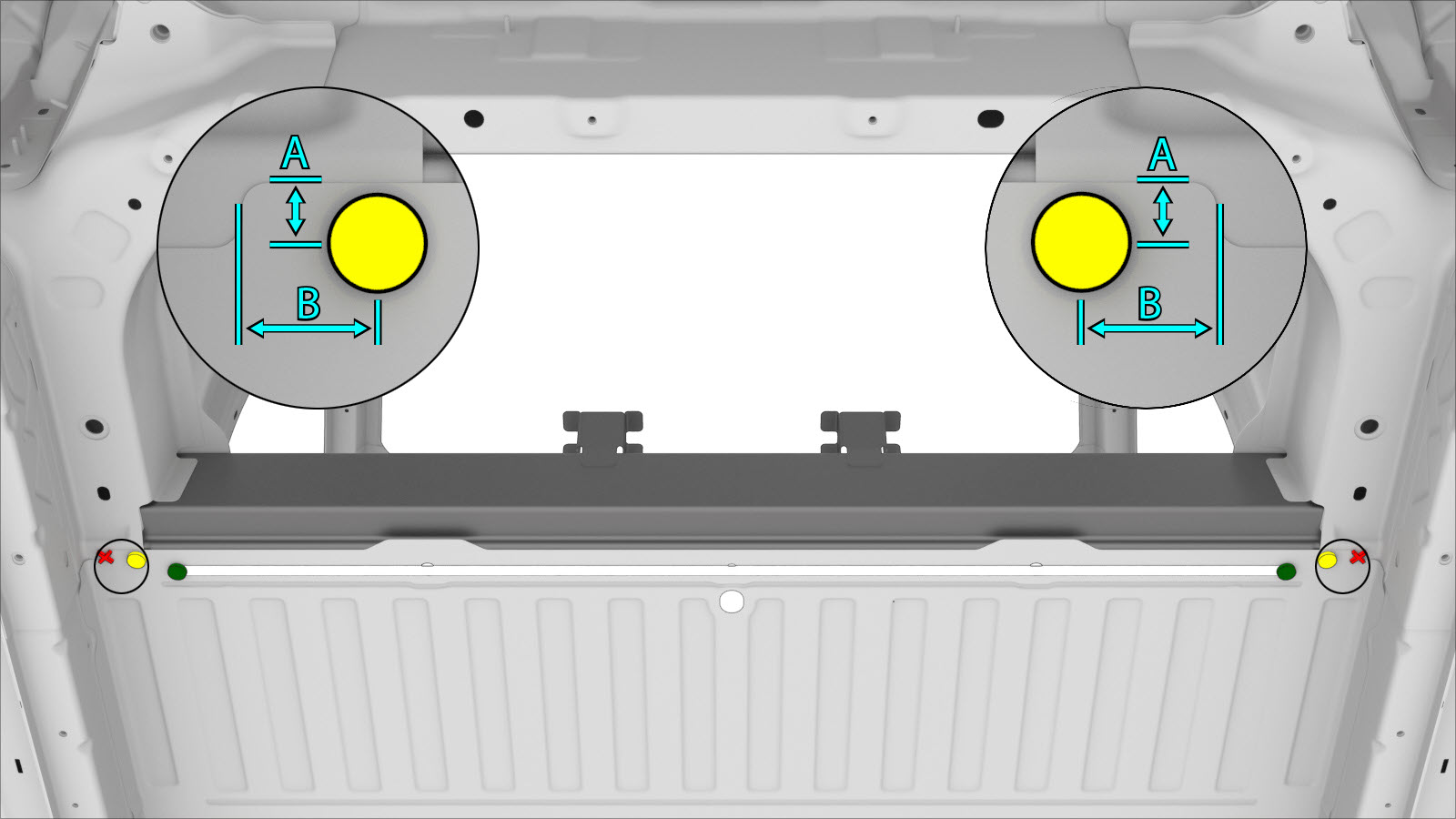

Install the fasteners as indicated.
or Countersunk Rivets, 4.8 mm Short
or Countersunk Rivets, 4.8 mm Long
- A = 12 毫米。
- B = 27 毫米。
- Perform any necessary post-repair operations.
