充电端口外壳总成

Parts List

Quantity Description Image / Notes

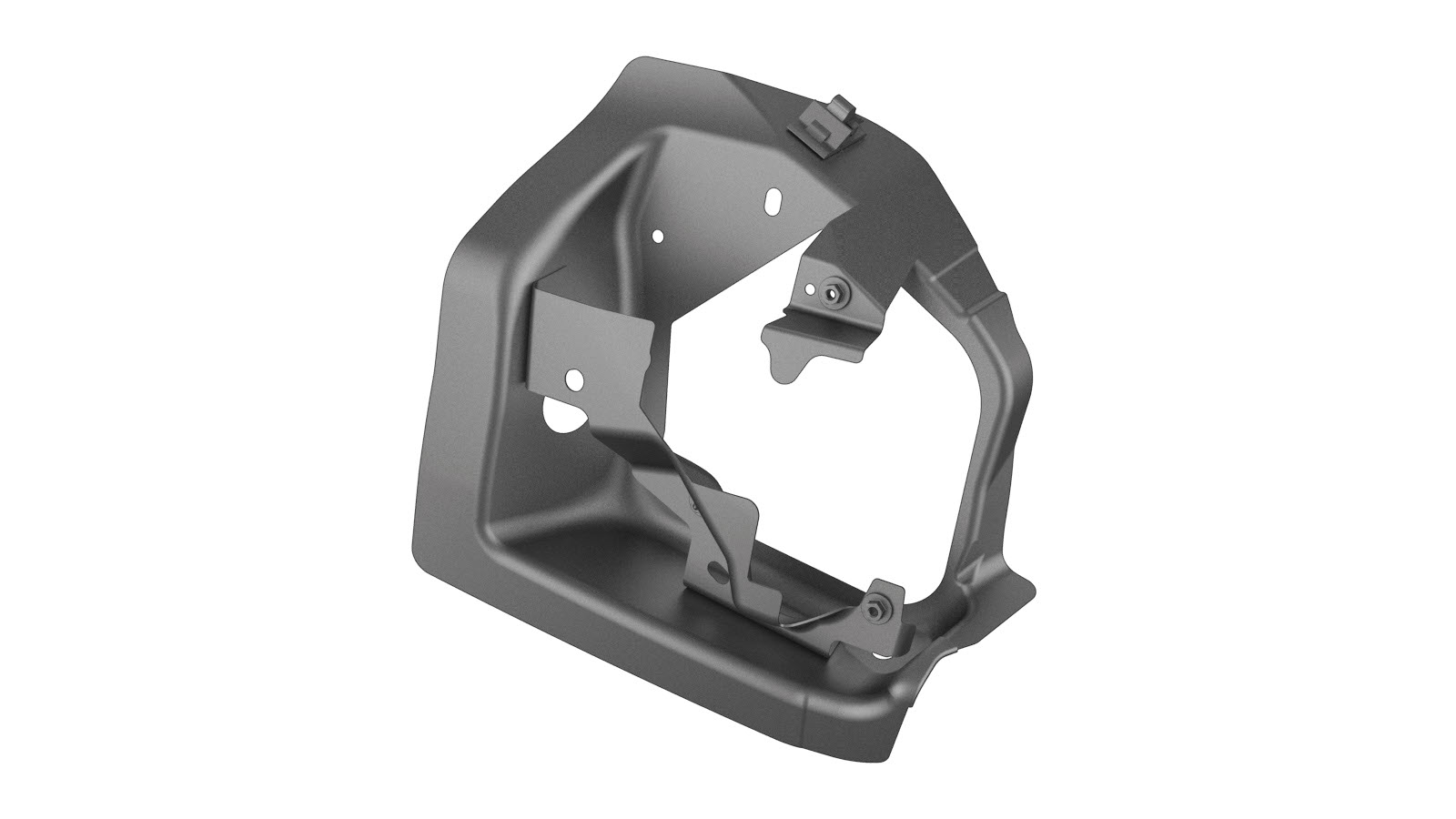

1 CHARGE PORT HOUSING AND ASSY(充电接口外壳支架)

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

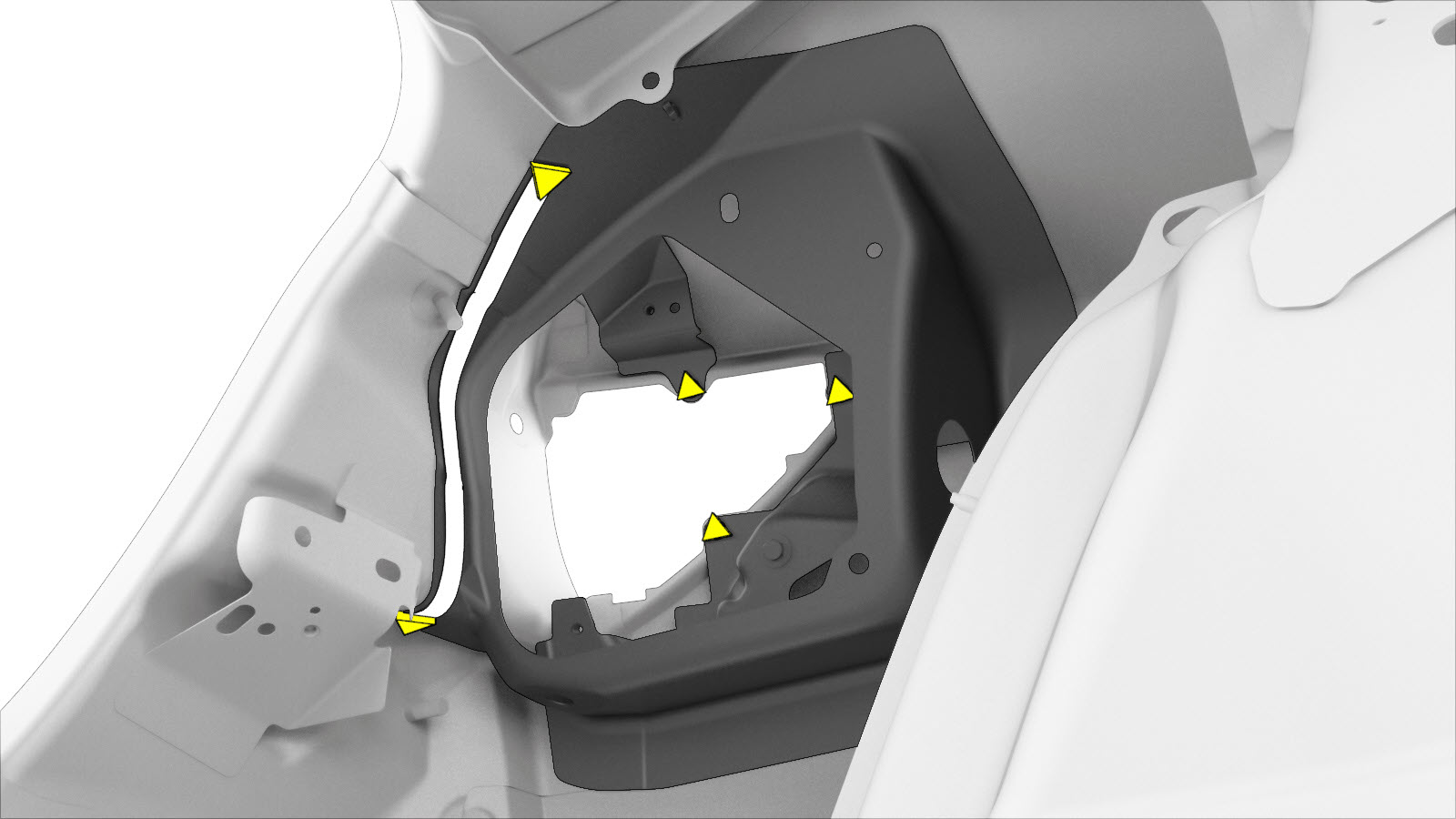

  1. Remove the original component.
    Factory Spot Weld
  2. Prepare for installation.

    Installation Spot Weld

    Steel Plug Weld

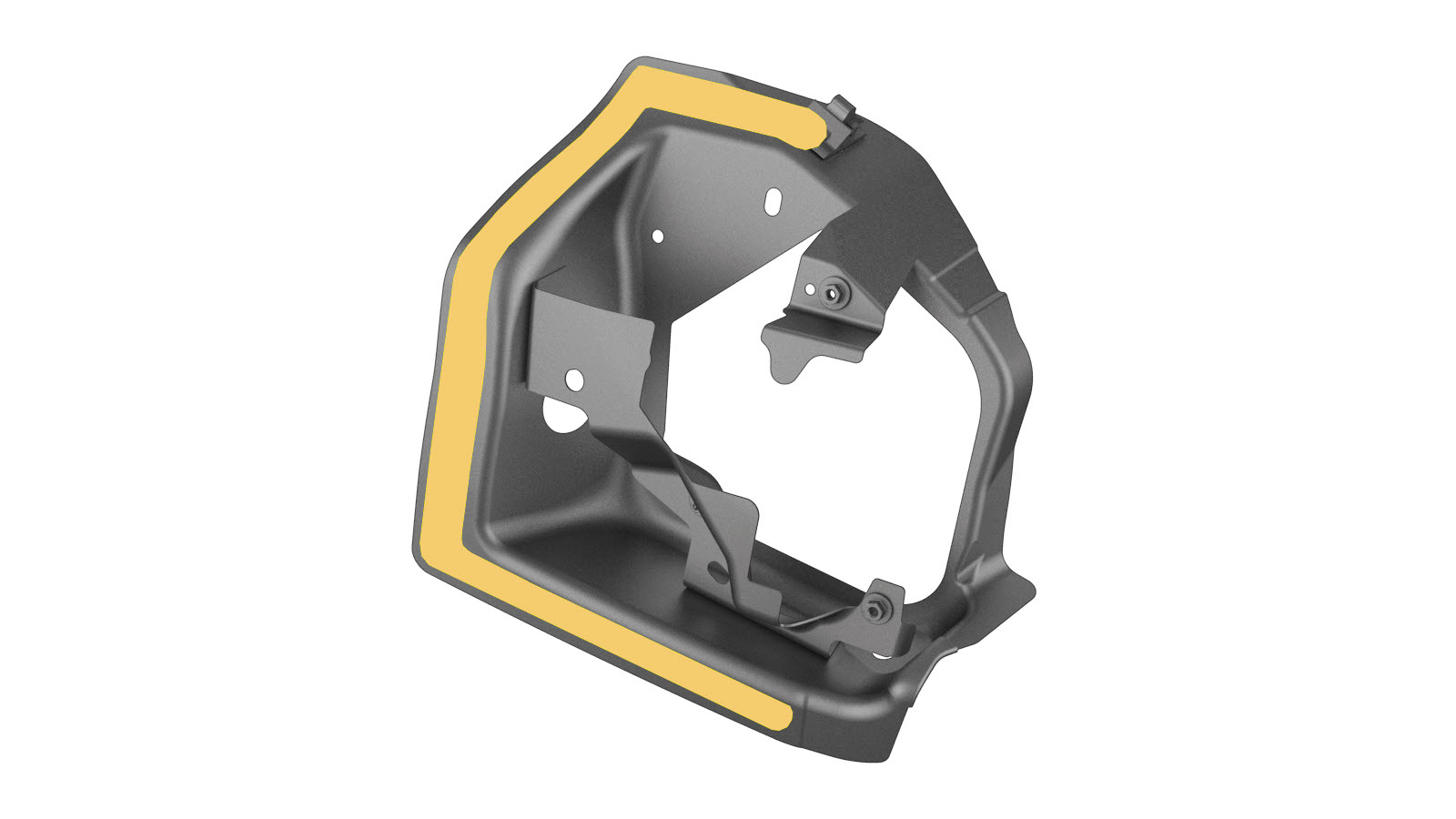

  3. 在充电接口外壳支架与围板外壳和原厂泡沫隔板(橙色所示)直接接触的区域涂抹接缝密封剂。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    本程序要求接缝密封剂的凝固延展率高于 150%。这可避免围板外表面——充电端口外壳支架粘合到面板内侧的位置——出现肉眼可见的变形。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    如果使用的接缝密封剂不适用于裸露金属表面,那么围板内侧的接合面首先需要进行表面修整,再安装充电端口外壳总成。请参阅所使用的接缝密封剂的技术数据表。
  4. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  5. Install the new component or components.
  6. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  7. Perform GMA welding.
    or Steel Plug Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to 已批准的气体保护金属极弧 (GMA) 焊接器和焊丝 for information on approved GMA welders and welding wire.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
    Informational PurposesAn informational icon, calling your attention
    Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint.
  8. Perform any necessary post-repair operations.
