门槛外件（整体）

Parts List

Quantity Description Image / Notes

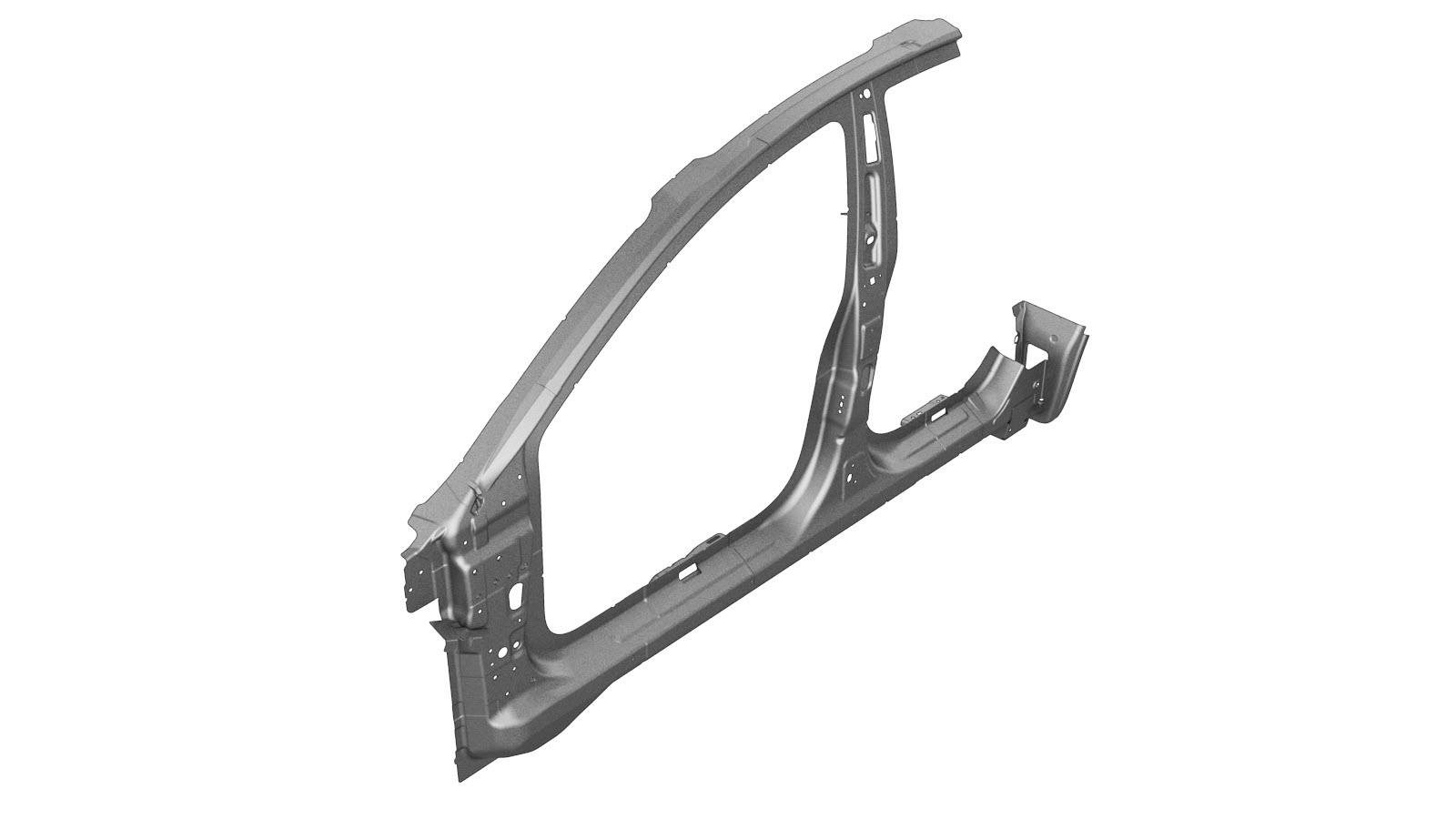

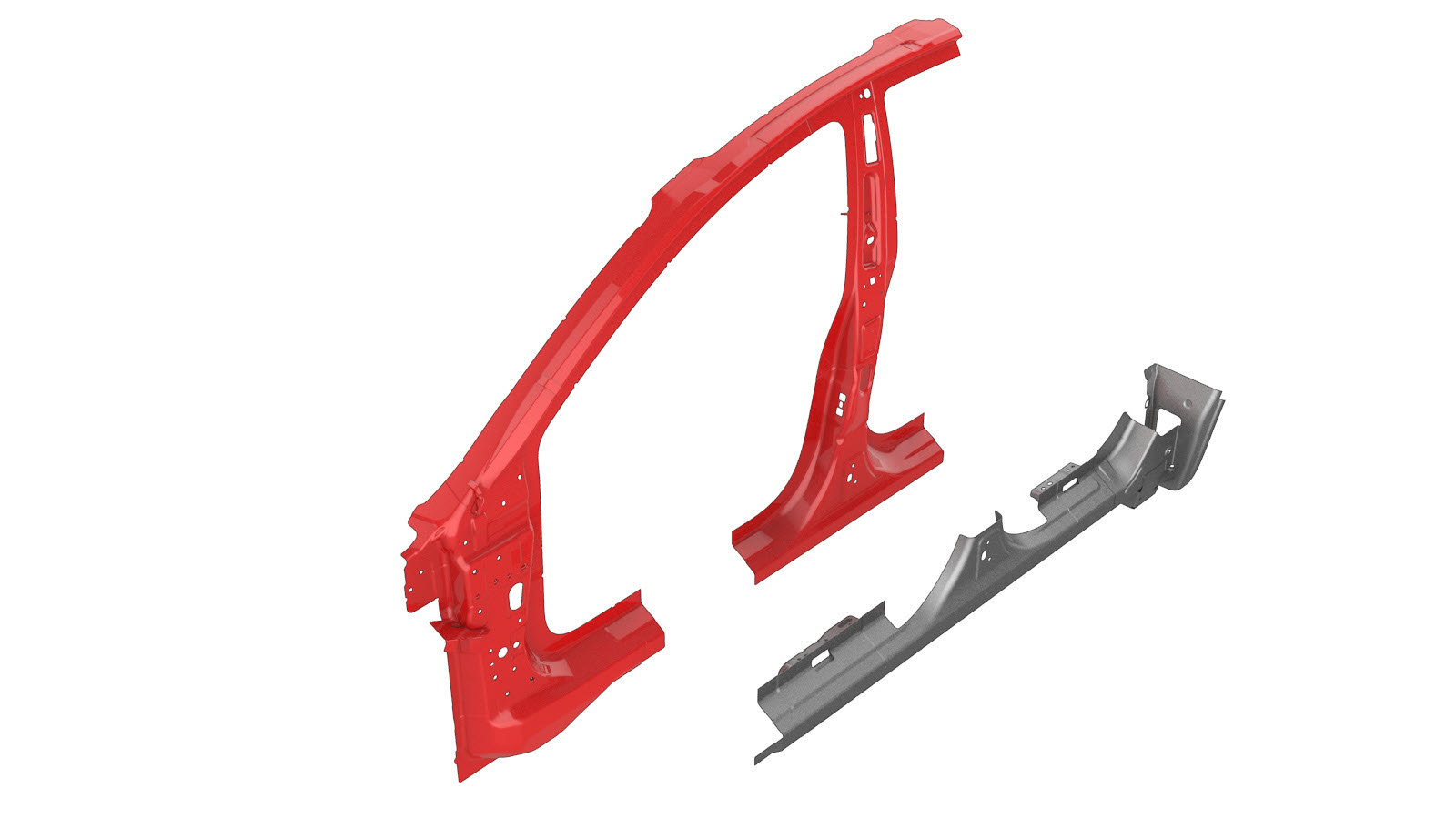

1 ASSEMBLY - DOOR RING OUTER（车门安装环外件总成）
5 Rivet, 4.8 mm
1 Flow Form Rivet S08
1 Flow Form Rivet S18
4 Bolt Tesla 零件号 1623708-00。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 拆下车身侧外件总成的必要部分，以便露出下方所要更换的组件。
  2. 拆下C 柱加固件下部。

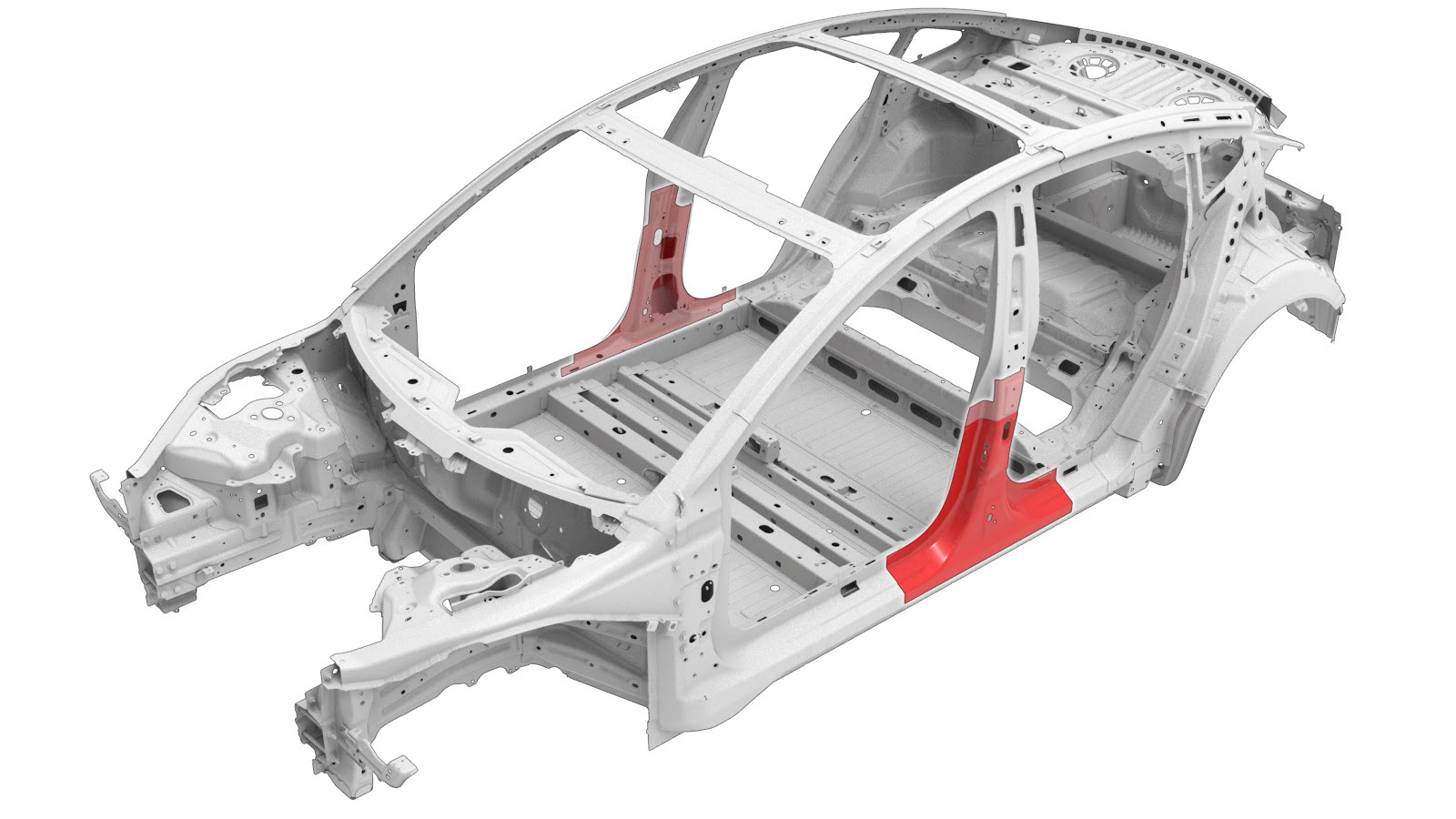

  3. 拆卸B 柱外件（下部）。

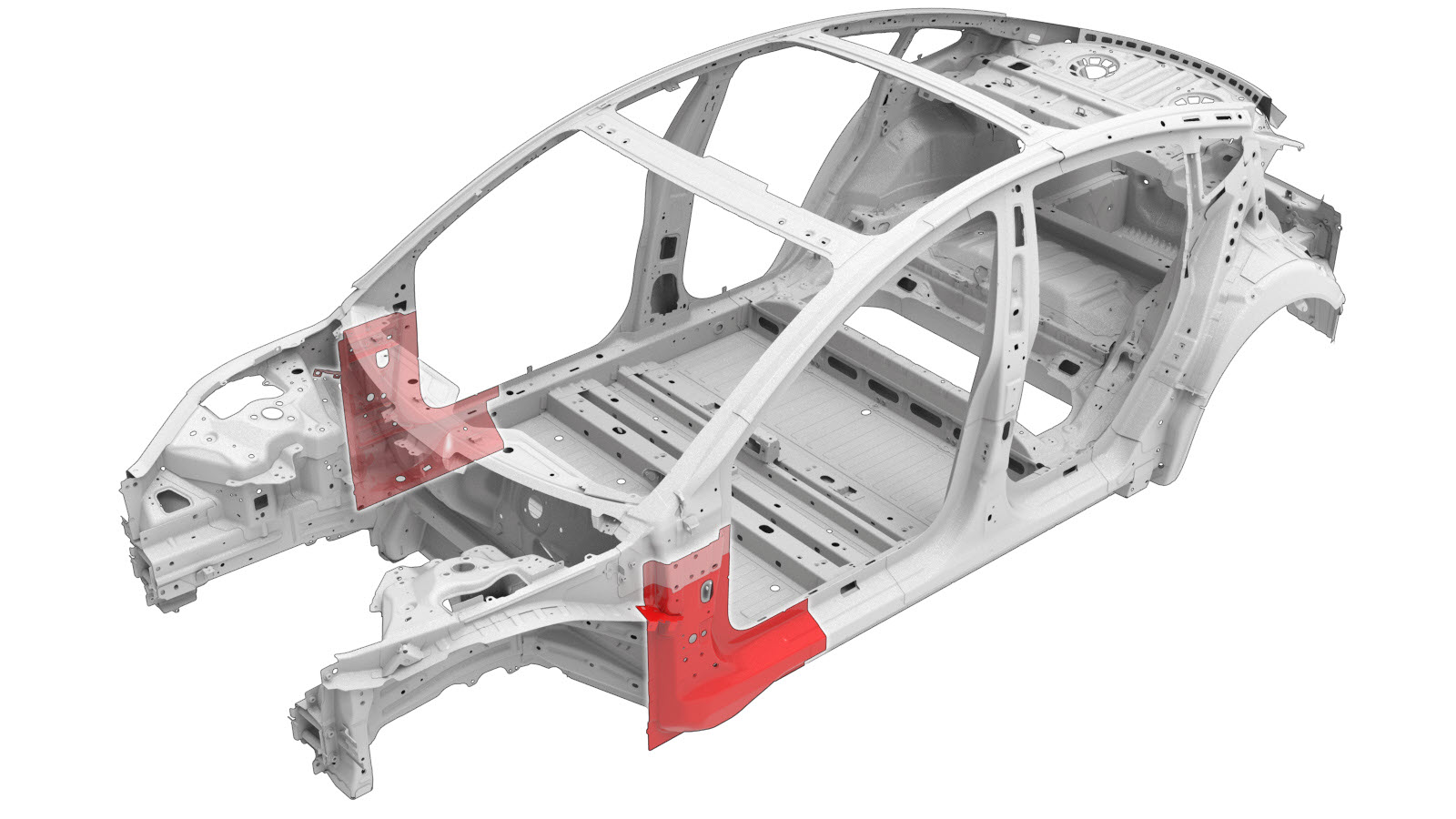

  4. 拆卸铰链柱。

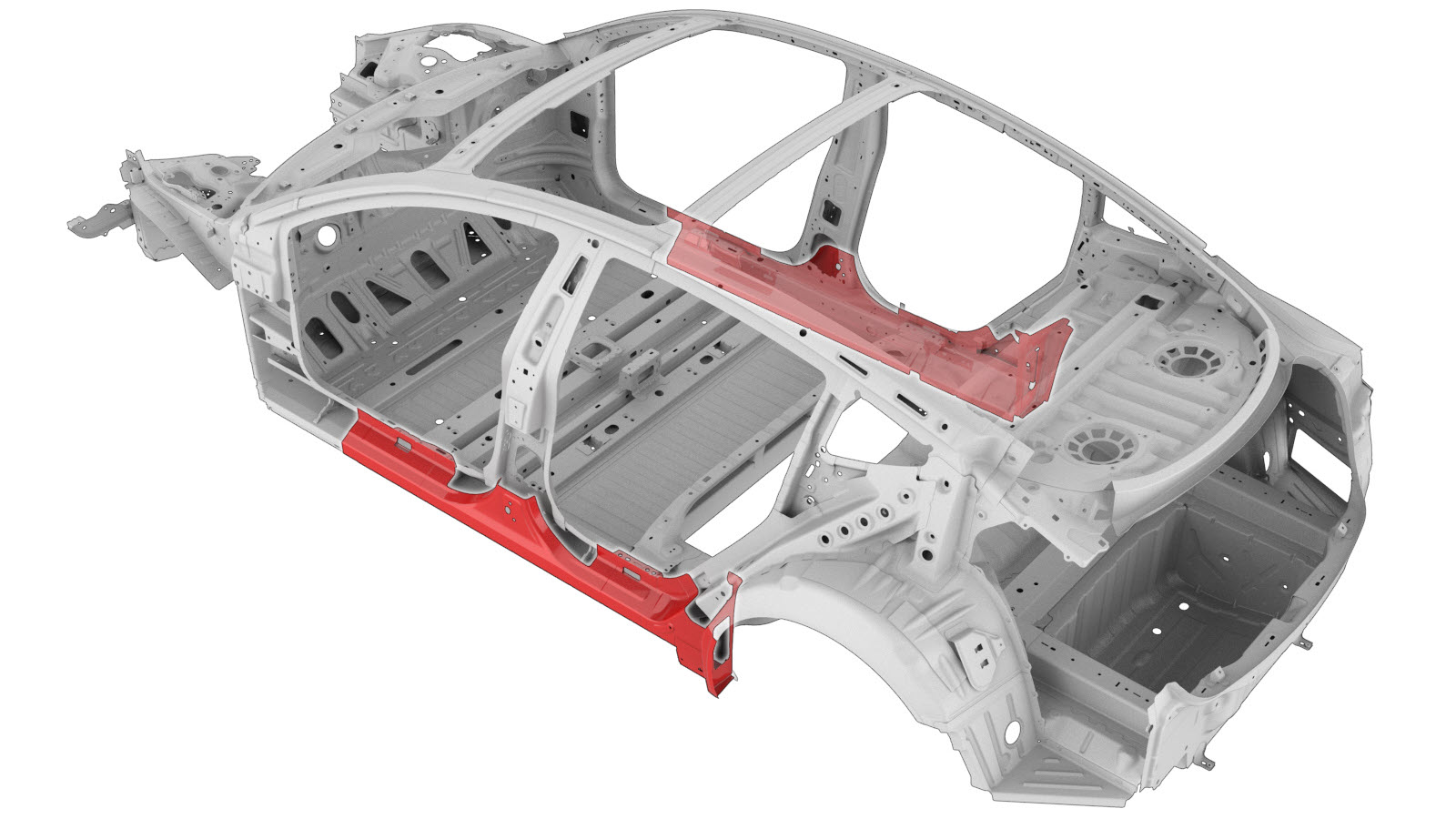

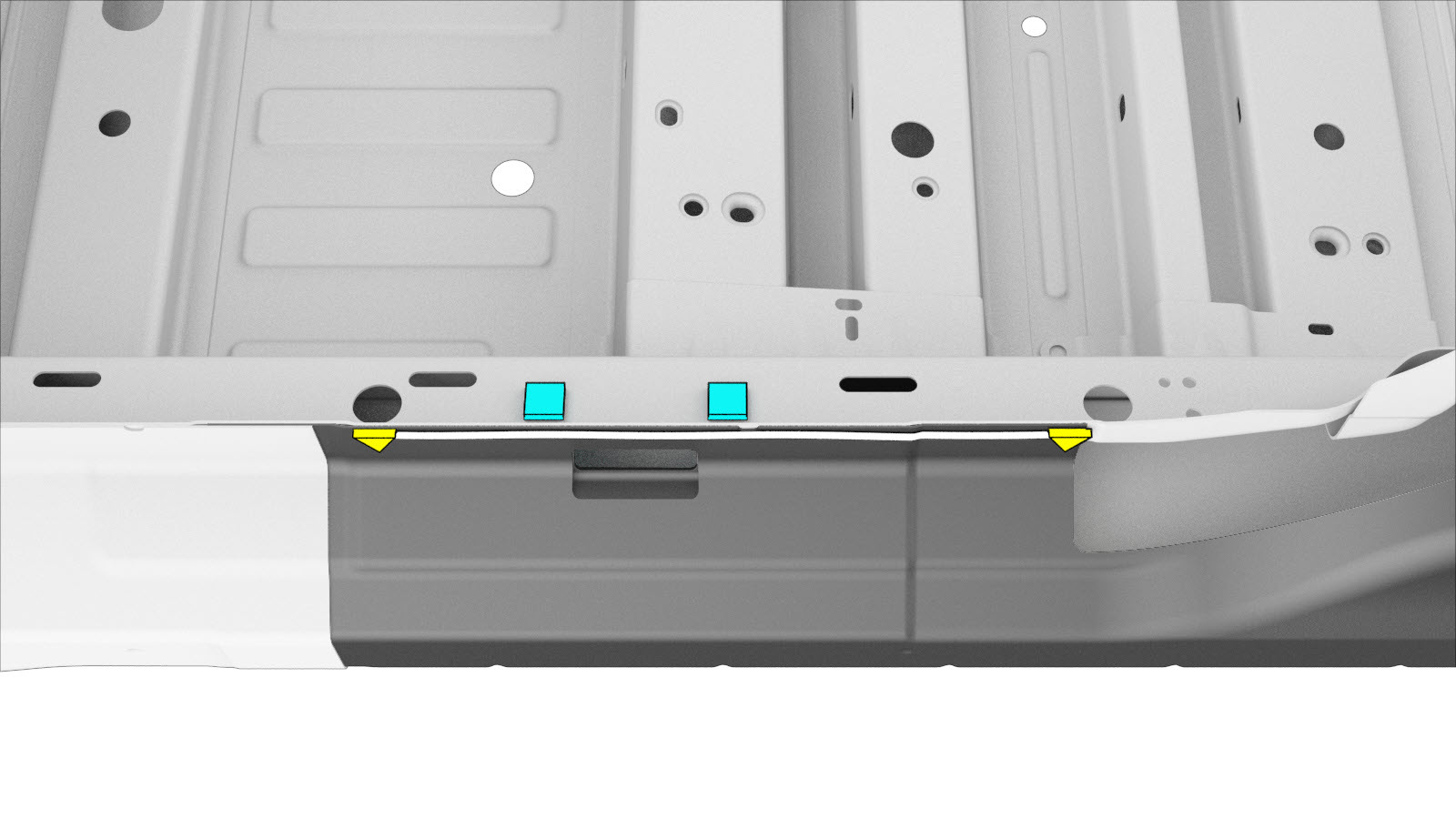

  5. 按下方所示切割新的车门安装环外件，以制作新组件。
  6. Remove the original component.

    or Factory SPRs

    or Bolts

    or Factory Spot Welds

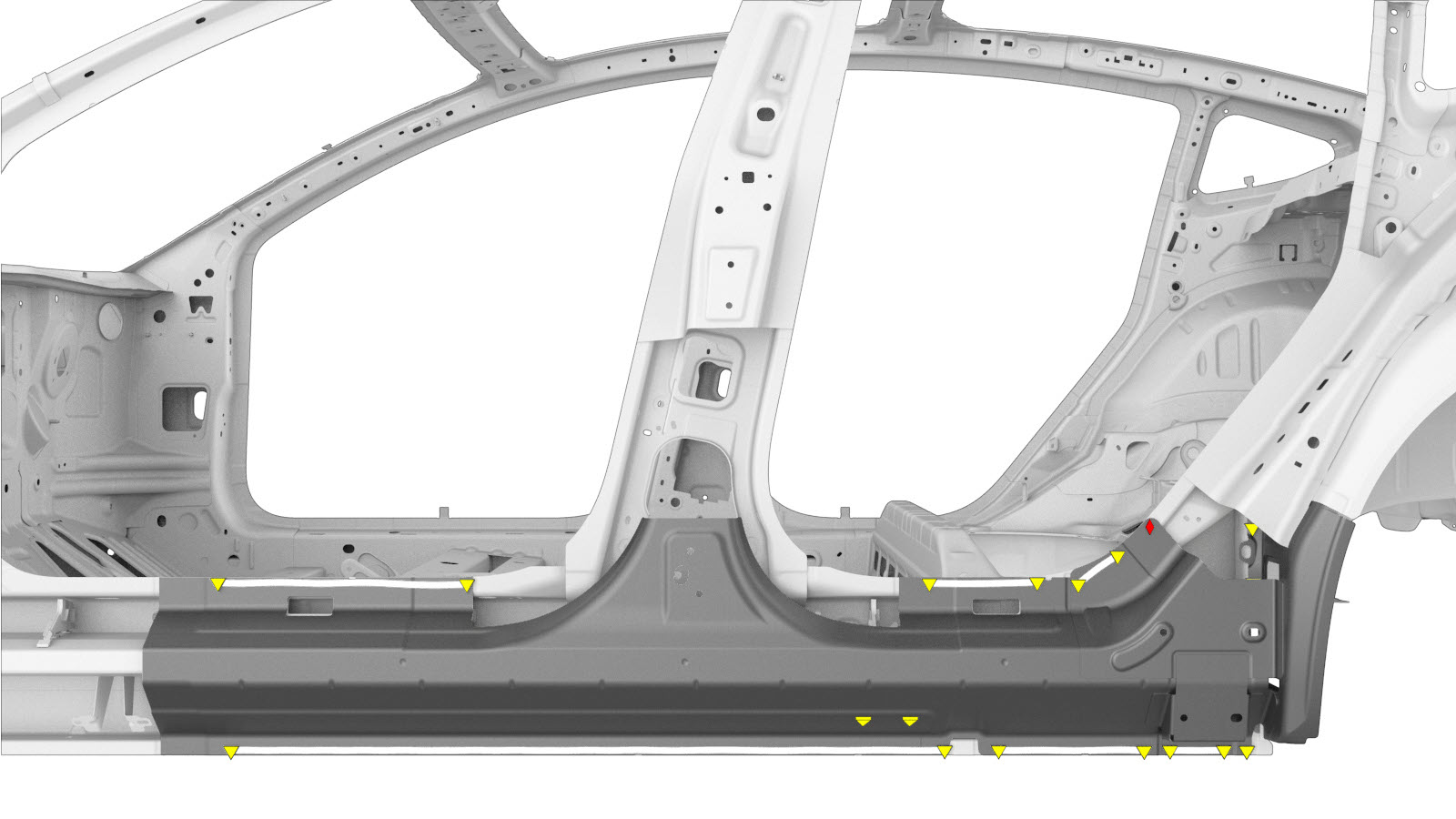

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

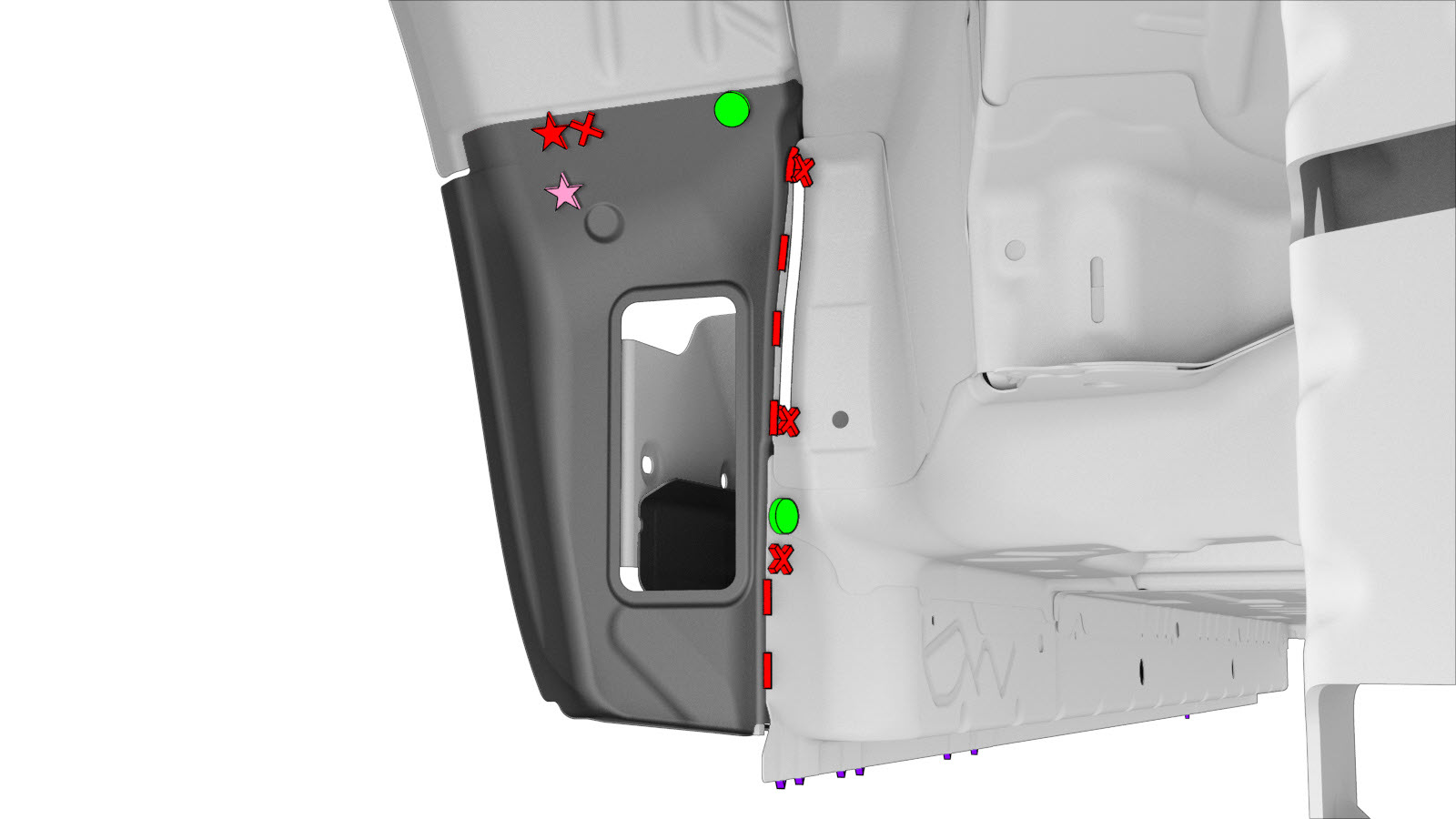

  7. Prepare for installation.

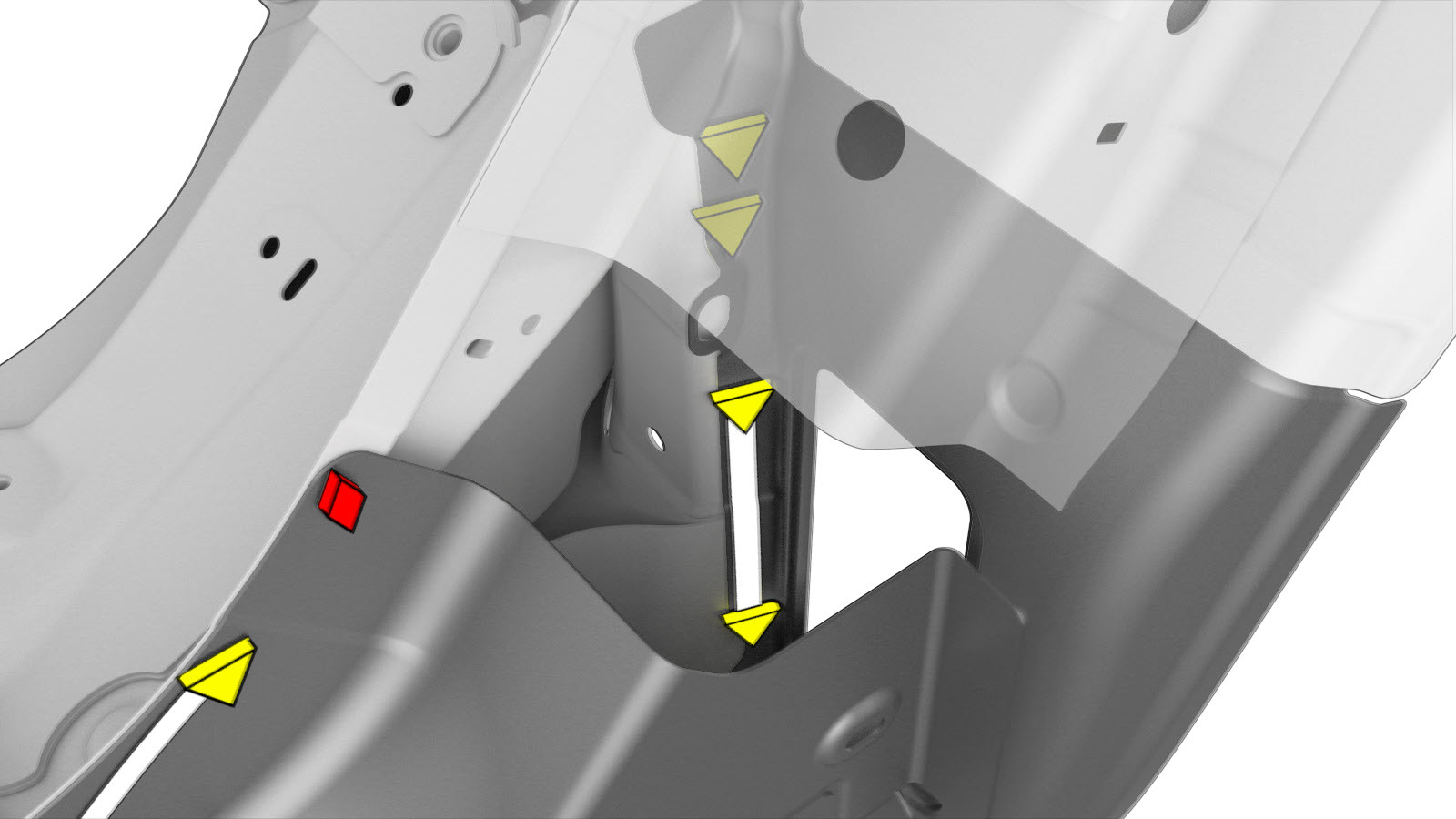

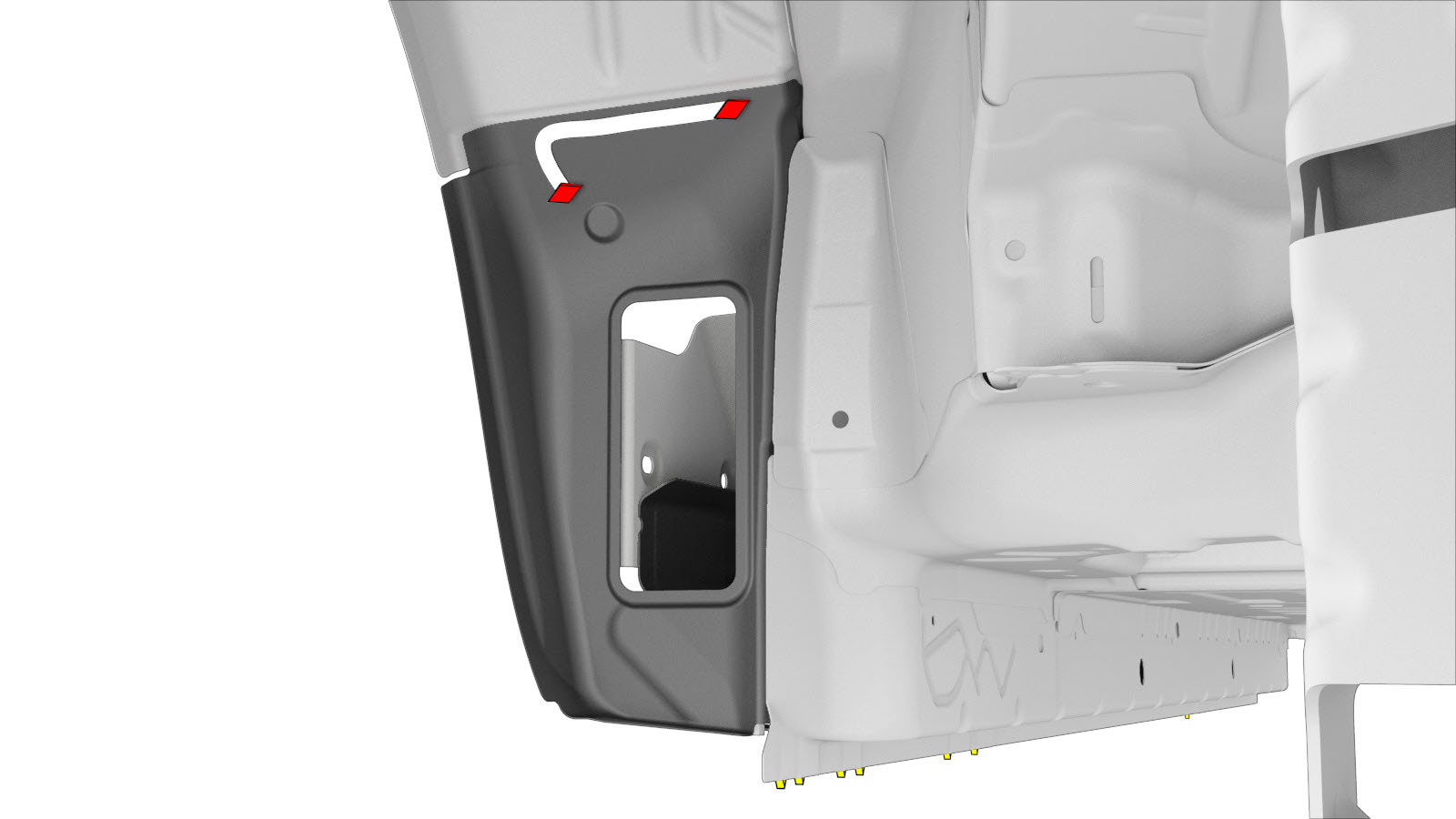

    or Installation Spot Welds

    or Rivets, 4.8 mm

    or Flow Form Rivets, S08

    or Flow Form Rivets, S18

    or Bolts

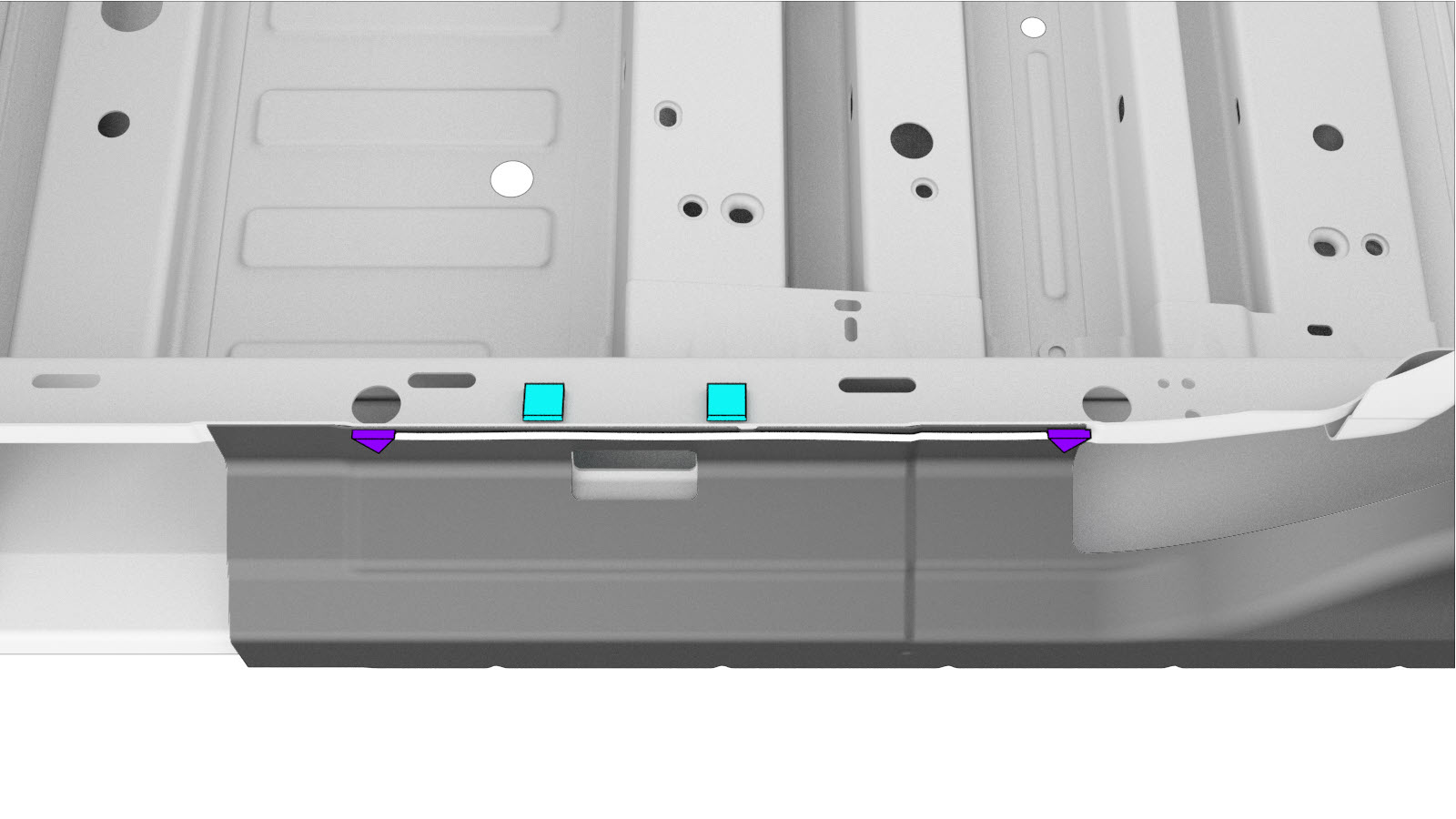

    GMA Weld

    Informational PurposesAn informational icon, calling your attention
    注
    搭焊焊缝必须为 20 毫米长。
  8. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  9. Install the new component or components.
    将这些螺栓拧紧至 19 Nm。
  10. Perform GMA welding.

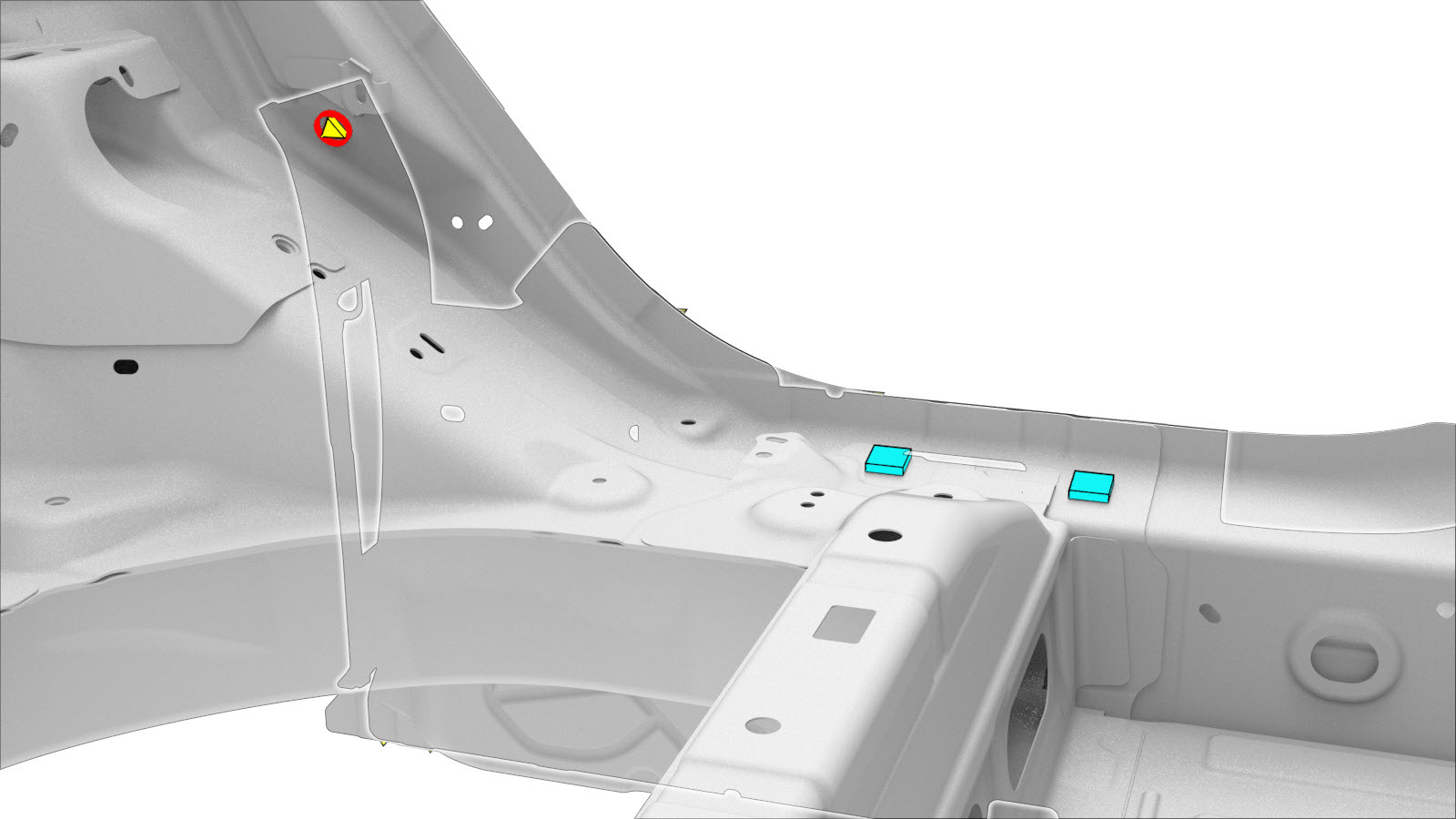

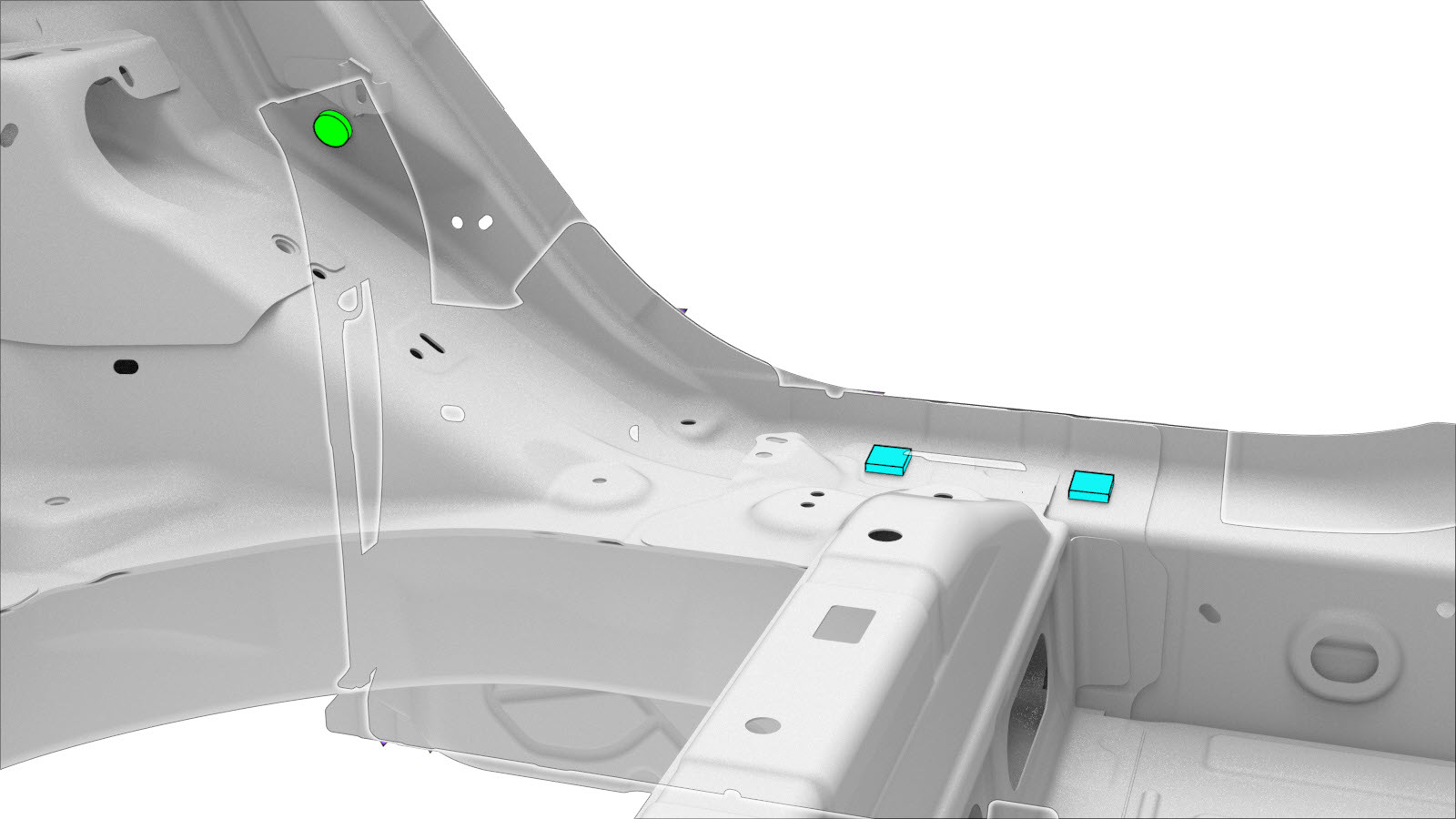

    GMA Weld

    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to 已批准的气体保护金属极弧 (GMA) 焊接器和焊丝 for information on approved GMA welders and welding wire.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
    Informational PurposesAn informational icon, calling your attention
    注
    Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint.
  11. 安装铰链柱。
  12. 安装B 柱外件（下部）。
  13. 安装C 柱加固件下部。
  14. 安装为露出所要更换的组件而被拆下的车身侧外件总成必要部分。
  15. Perform any necessary post-repair operations.
