行李箱底板总成（侧面板）

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes
1	ASY - TRUNK FLOOR（行李箱底板总成）
17	Rivet, 4.8 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

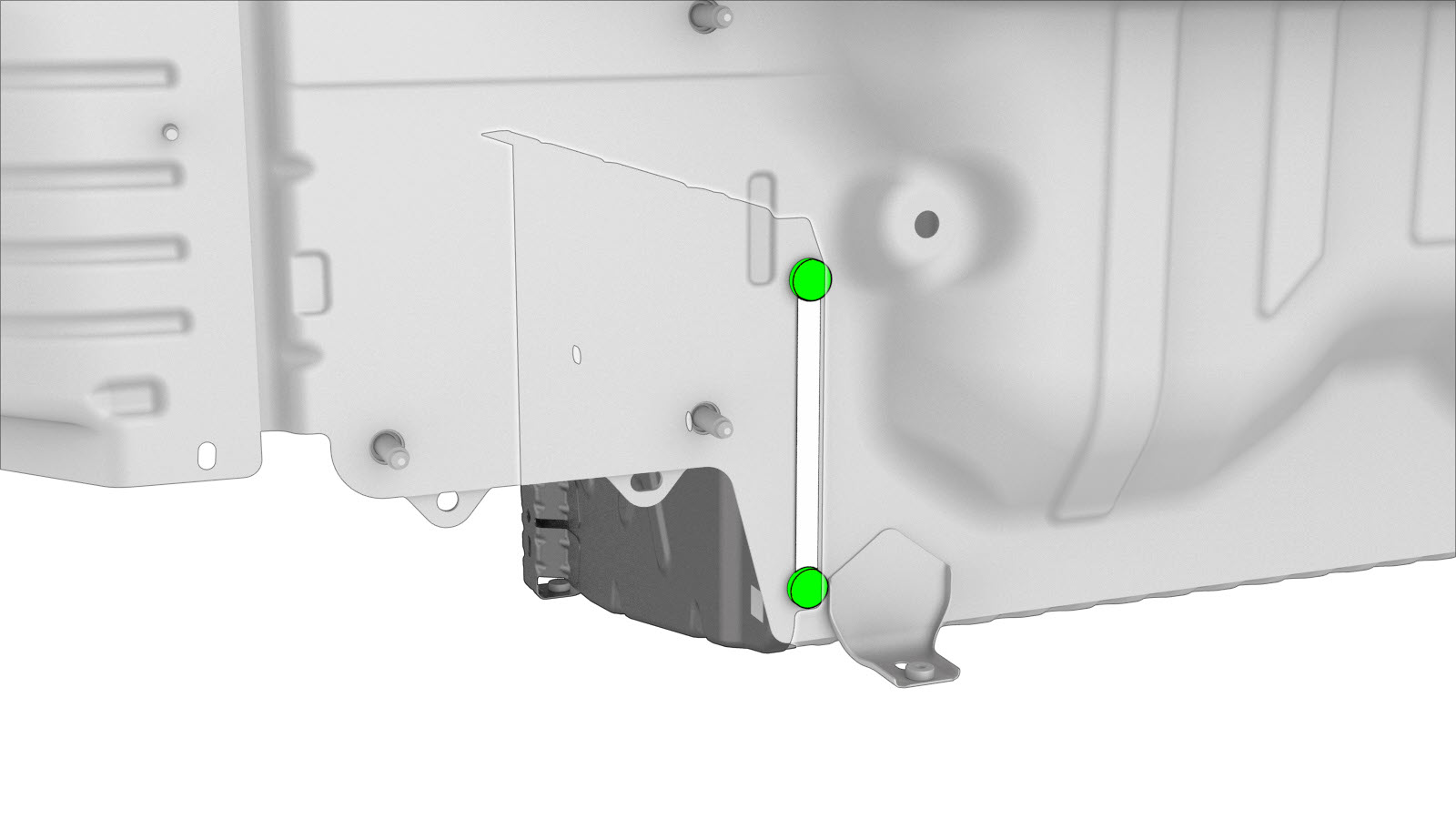

Remove the original component.

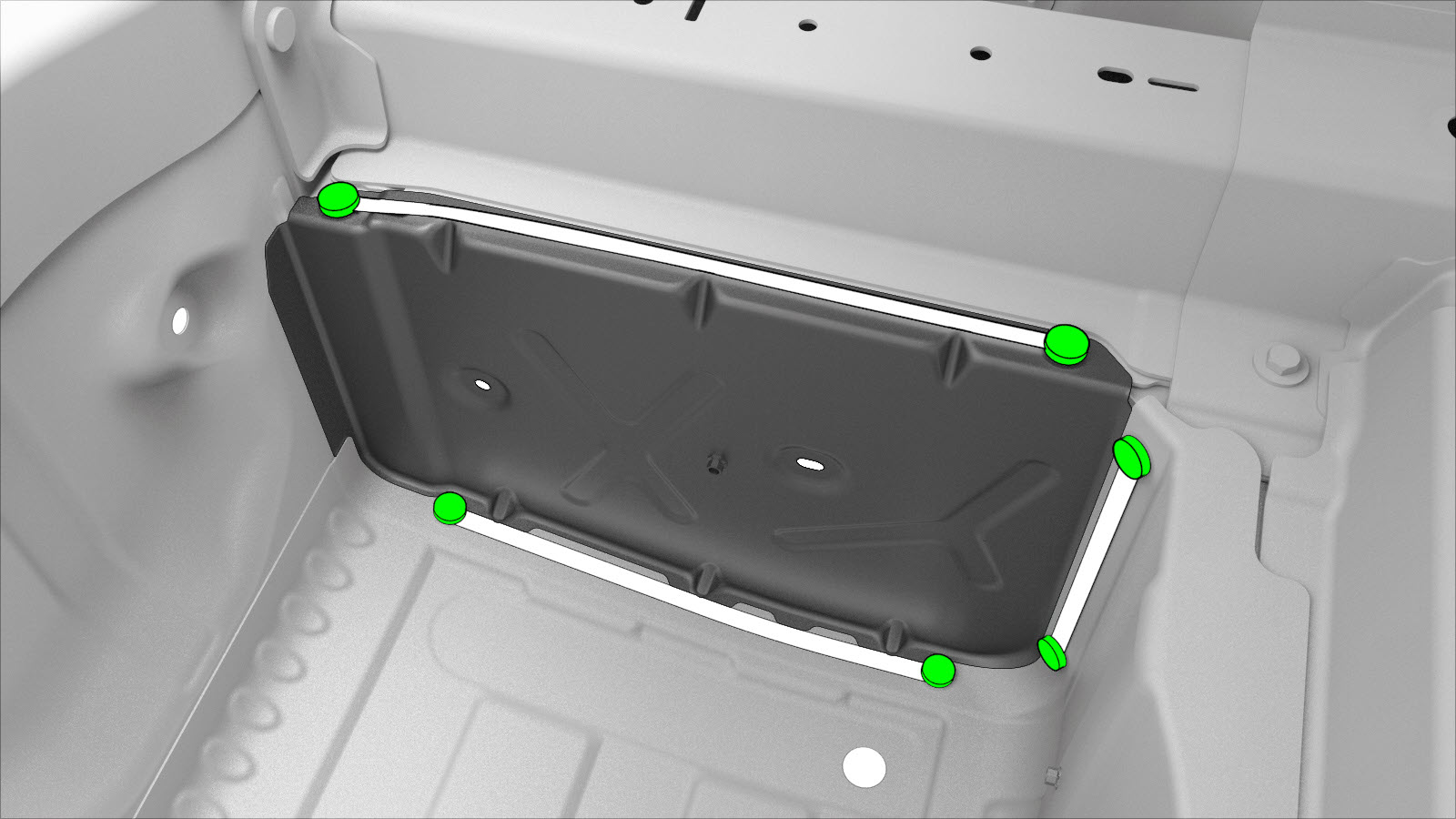

or Factory Spot Welds

or Drill through factory spot welds
注
When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

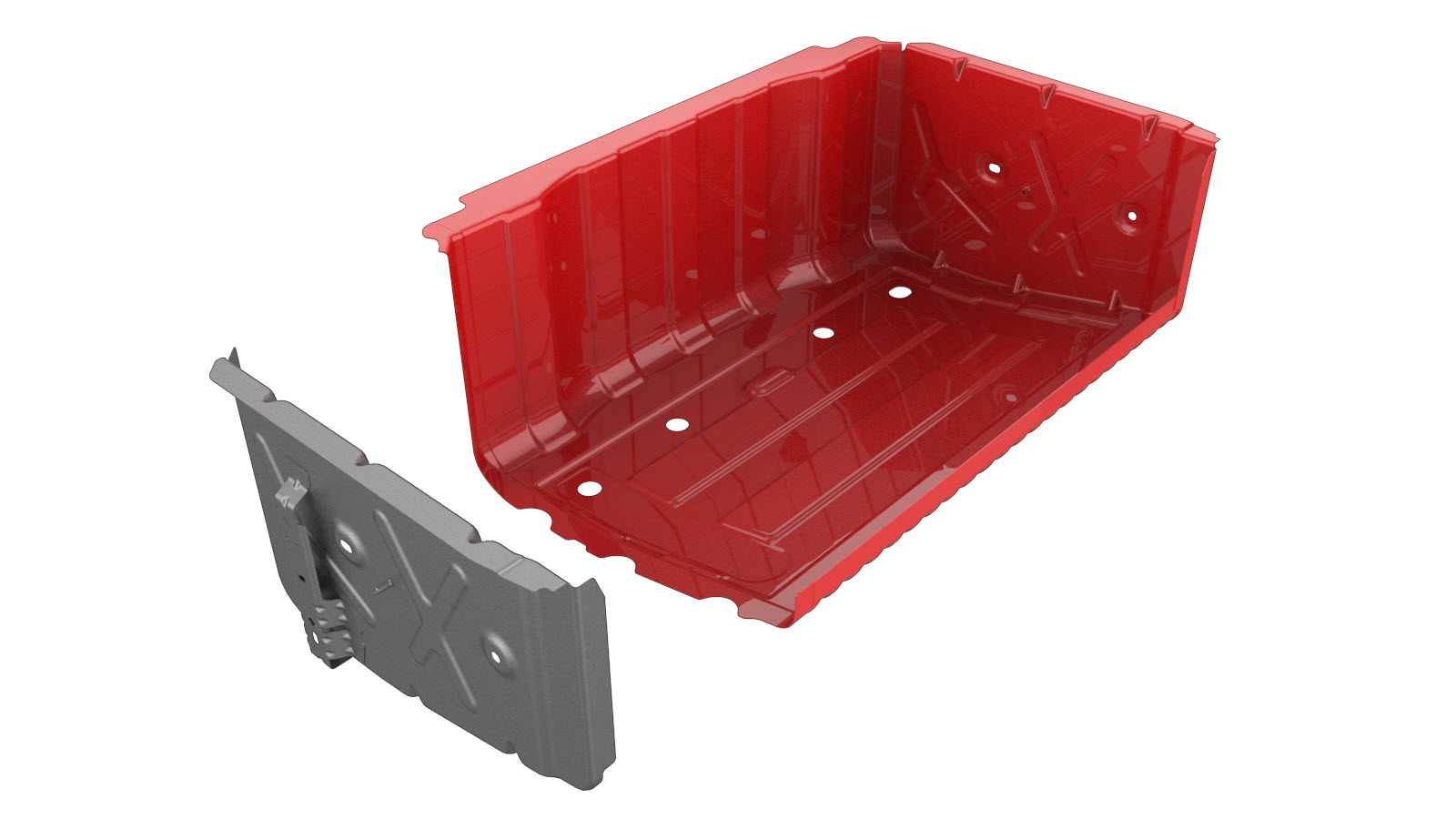

将新组件从维修零件中拆下，以制作新组件。
有关紧固件的拆卸信息，请参考上一步。
注
此处以拆卸维修零件中的 LH 组件为例，RH 组件的拆卸与之类似。

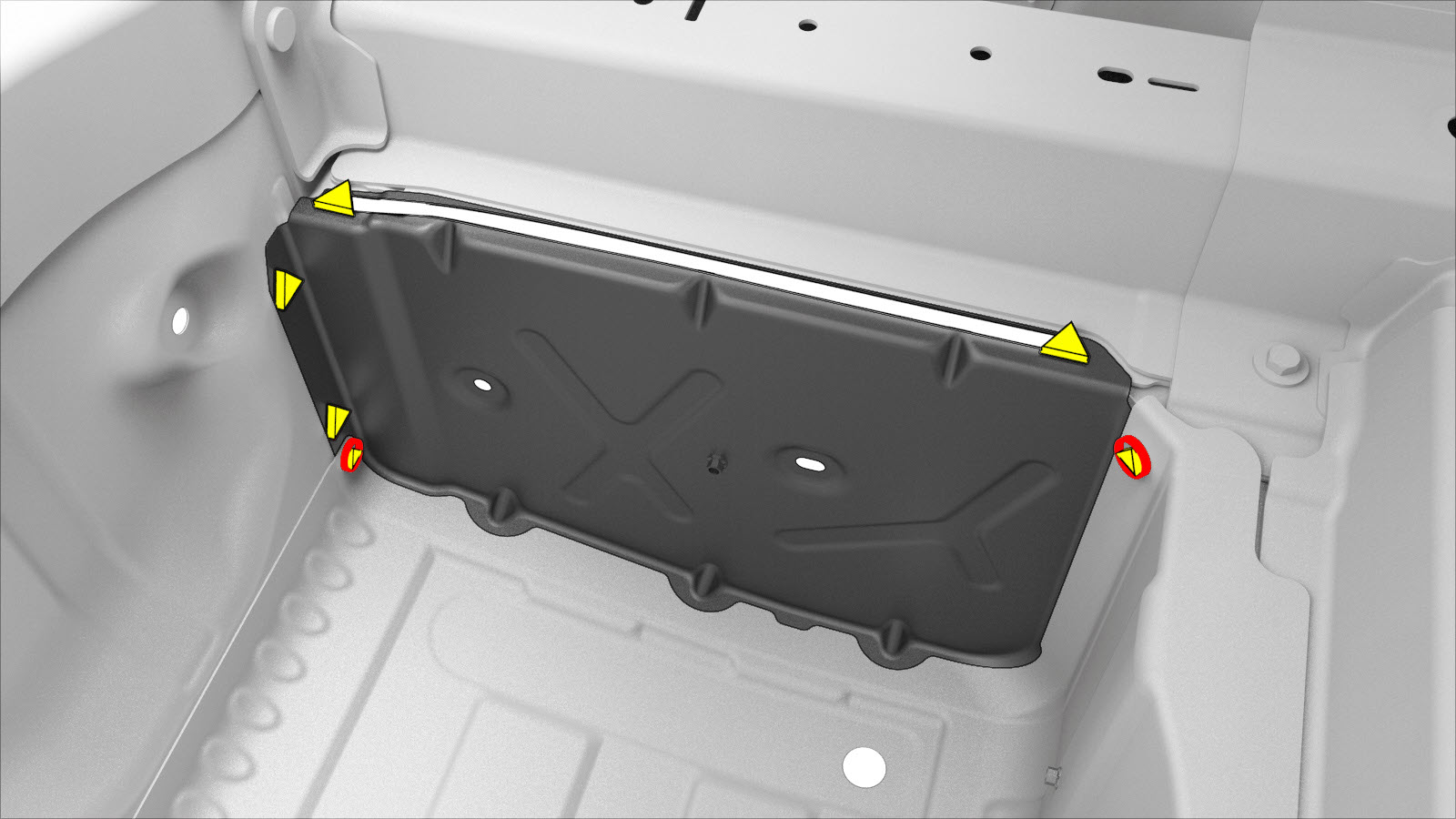

Prepare for installation.

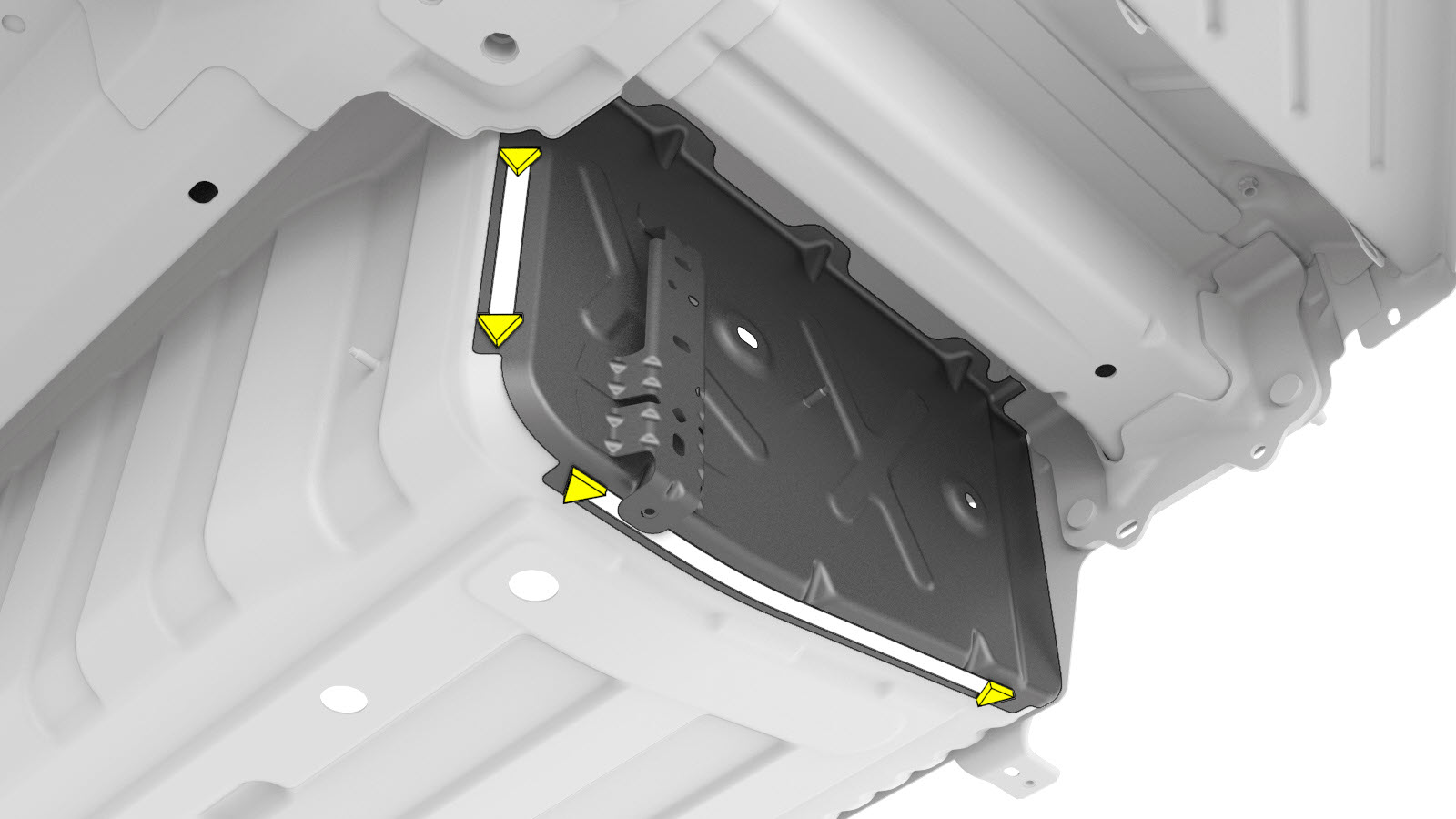

or Rivets, 4.8 mm
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Perform any necessary post-repair operations.
