后流线型护板固定支架（后部）
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

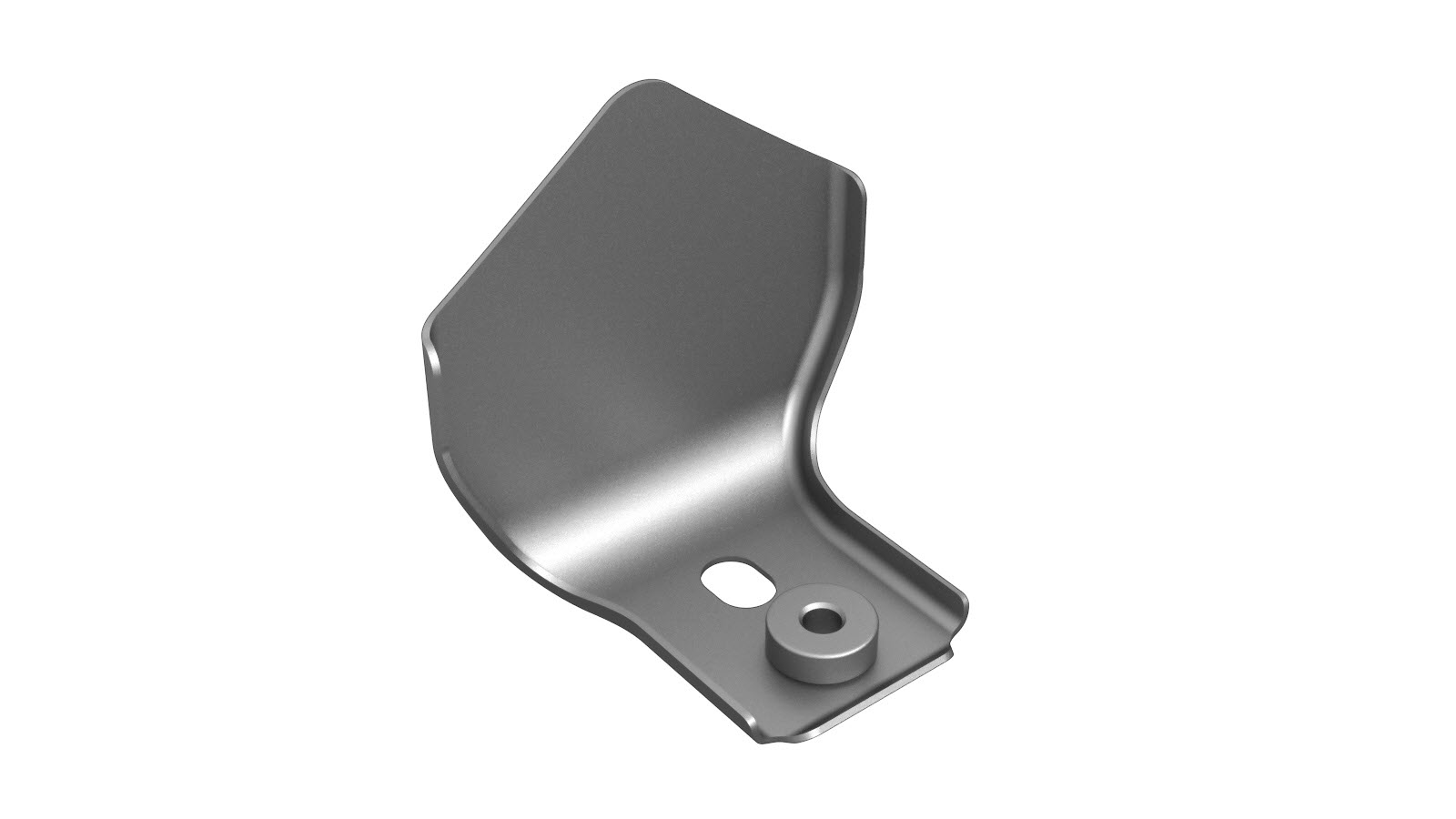

| 1 | ASY - RR AEROSHIELD RR BRKT（后流线型护板后部固定支架） |
|
| 3 |
Structural Bulb Rivet, 6.5 mm
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the original component.
or
Factory Spot Welds
-
Prepare for installation.

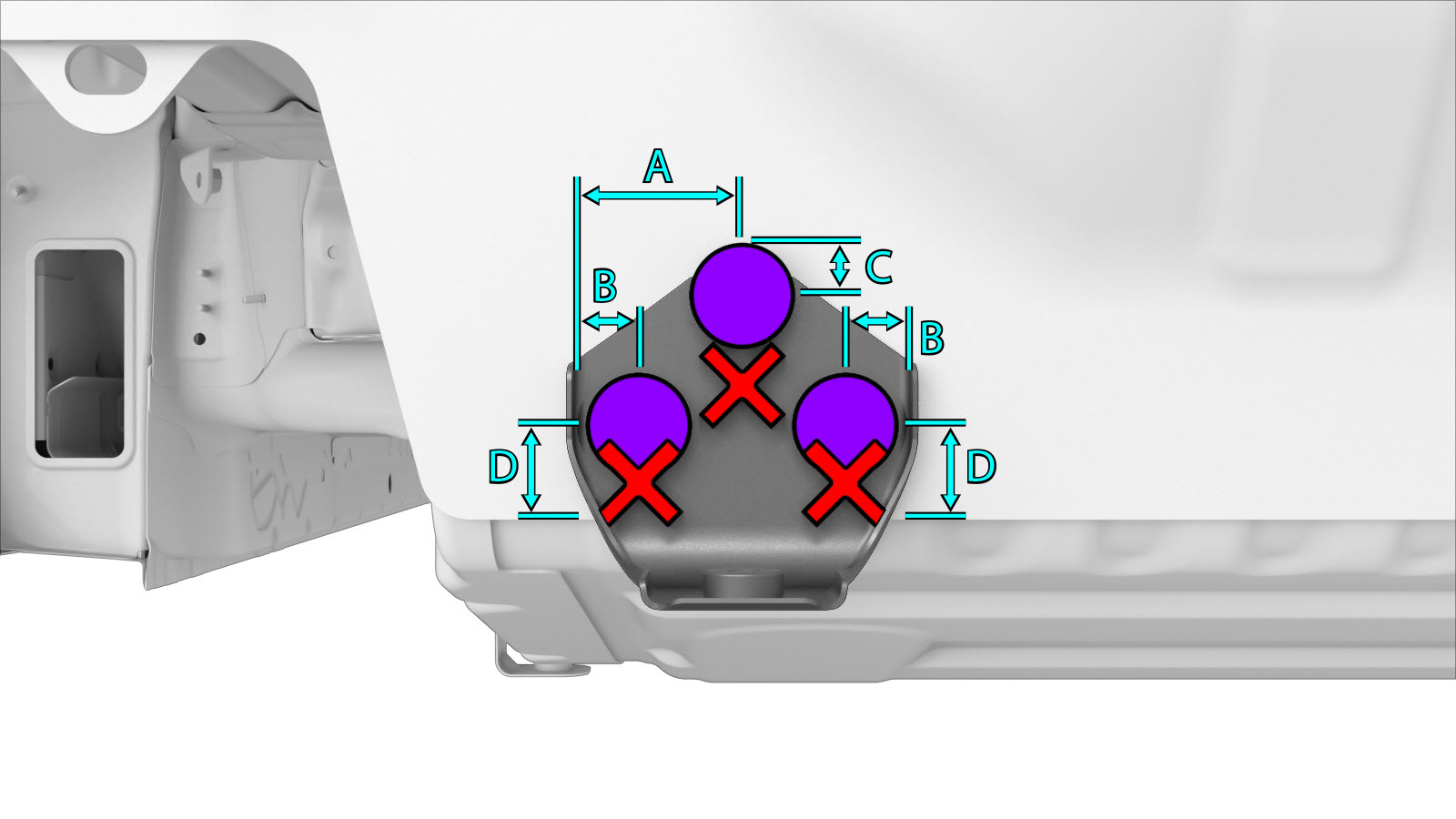

注A red X indicates a location where a factory-installed fastener is not being replaced.
or Structural Bulb Rivets, 6.5 mm
- A = 32 毫米。
- B = 13 毫米。
- C = 9 毫米。
- D = 18 毫米。

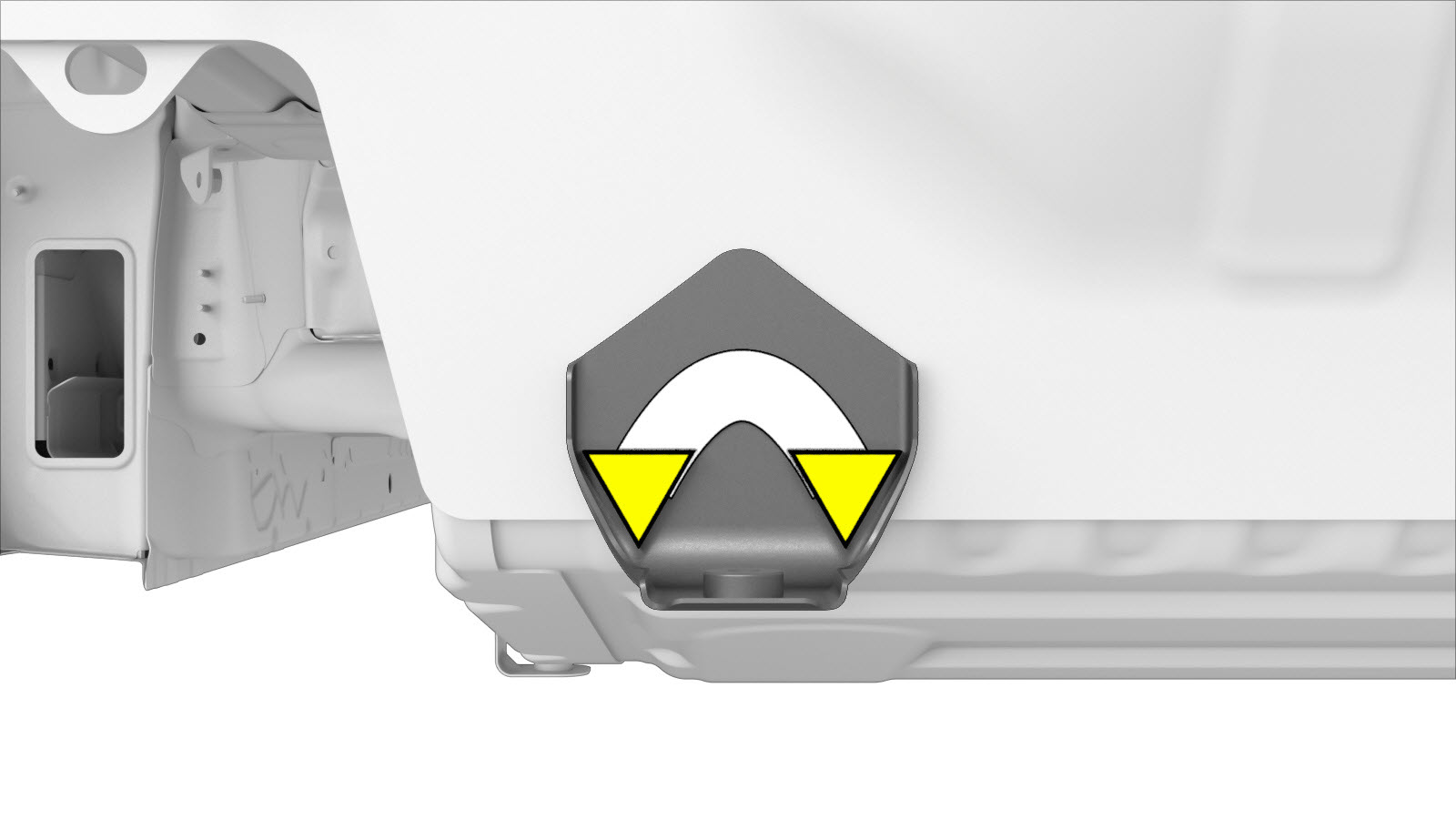

- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
