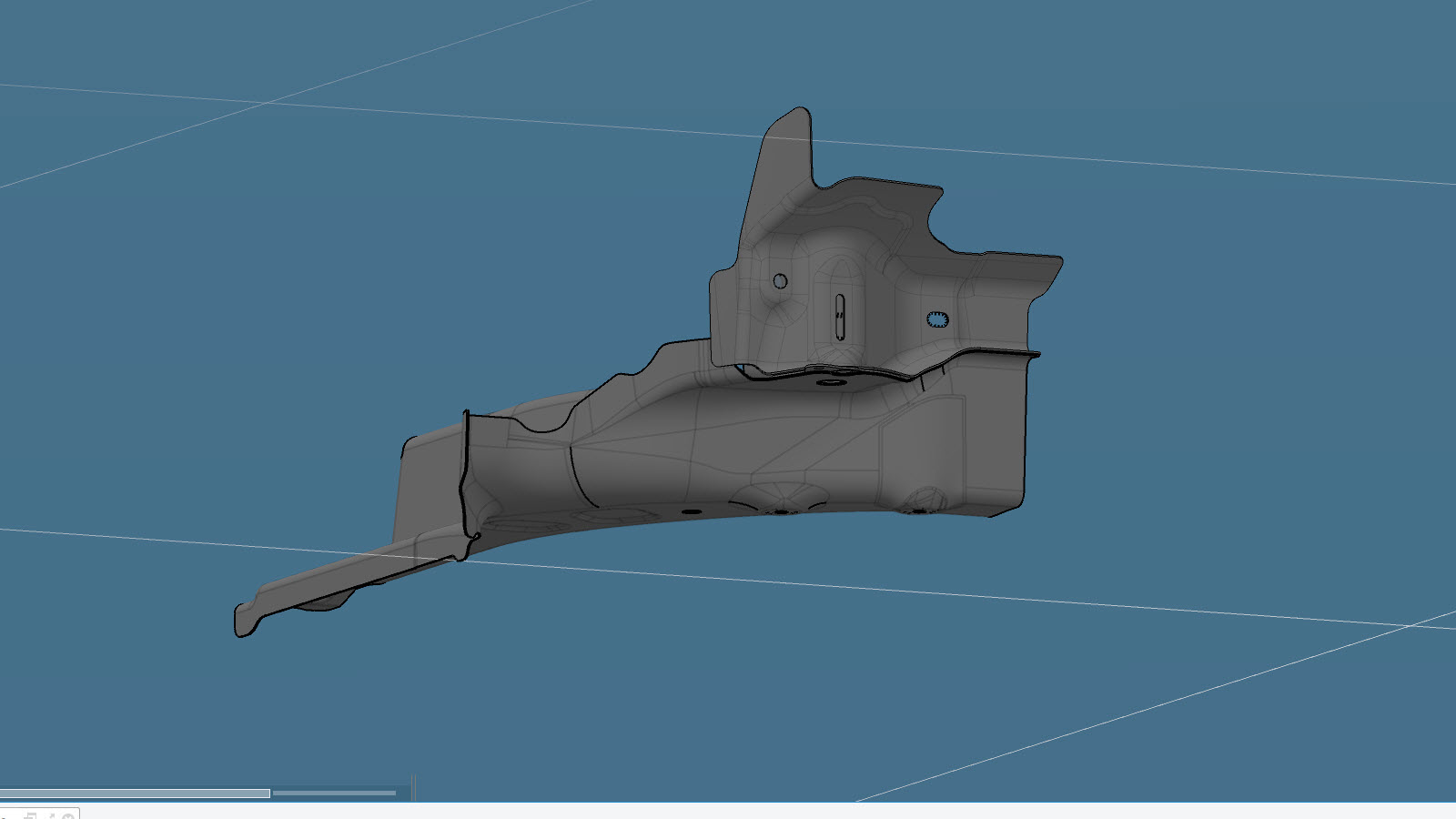

后副框架支座

Repair Procedure

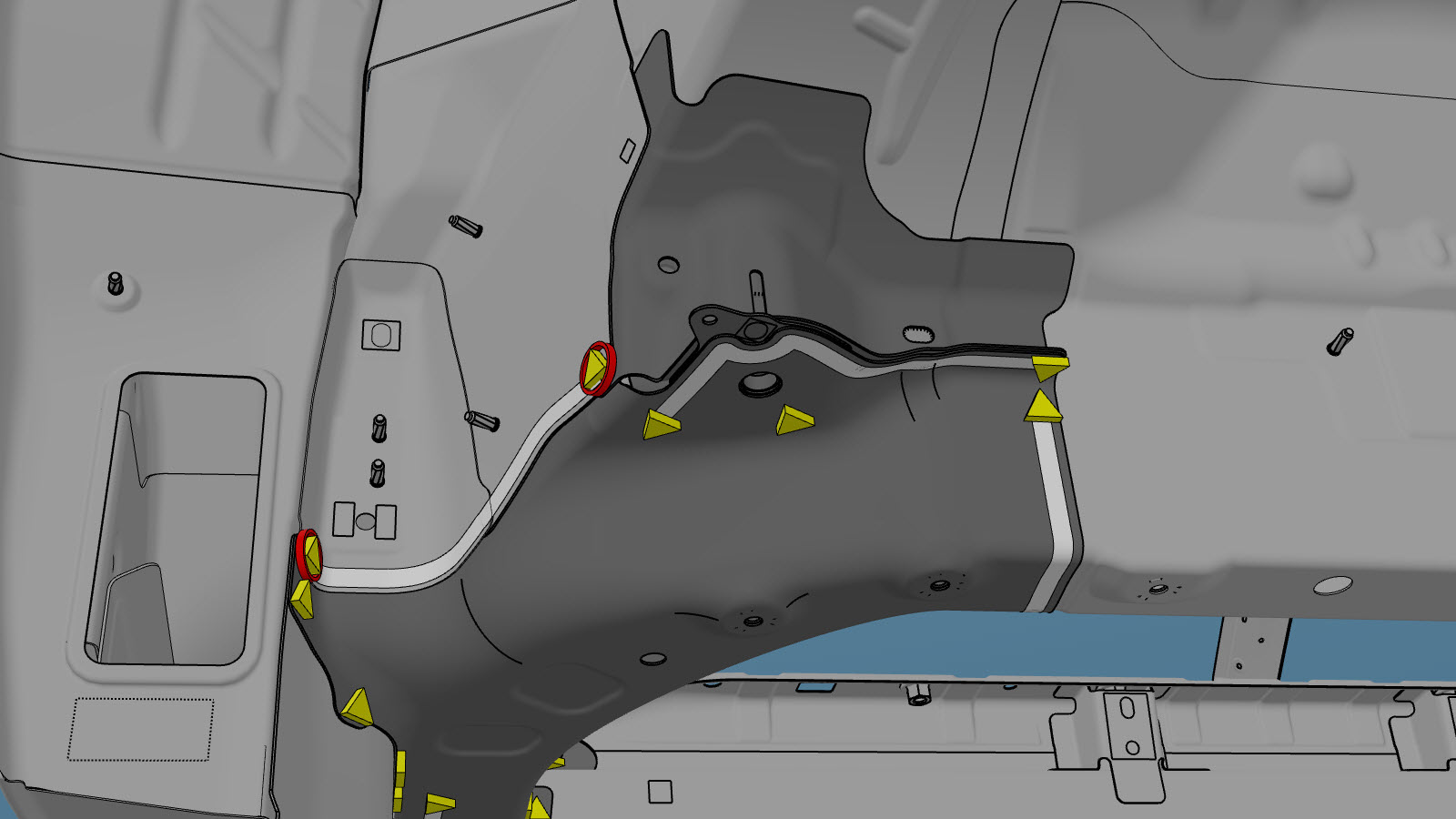

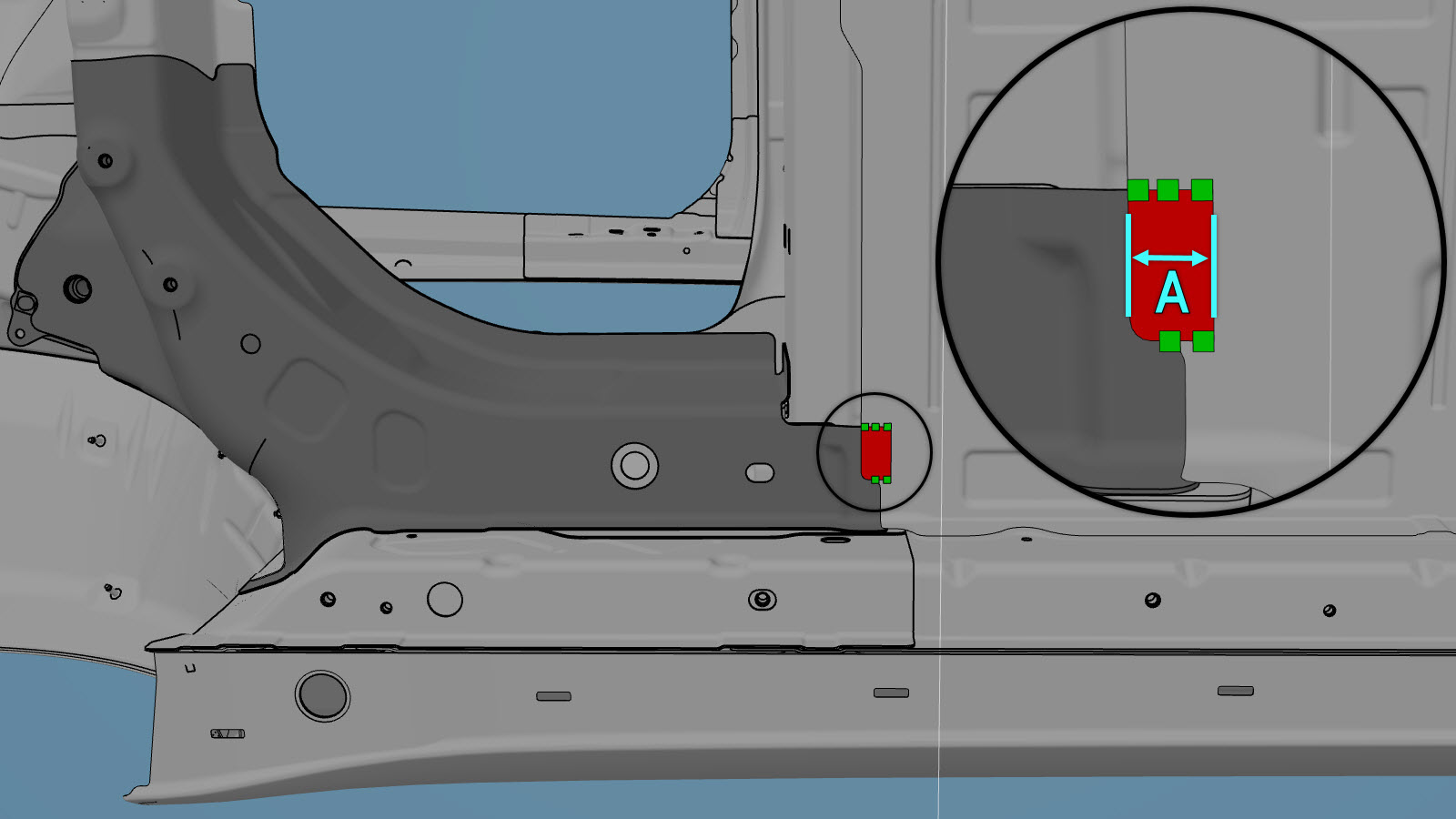

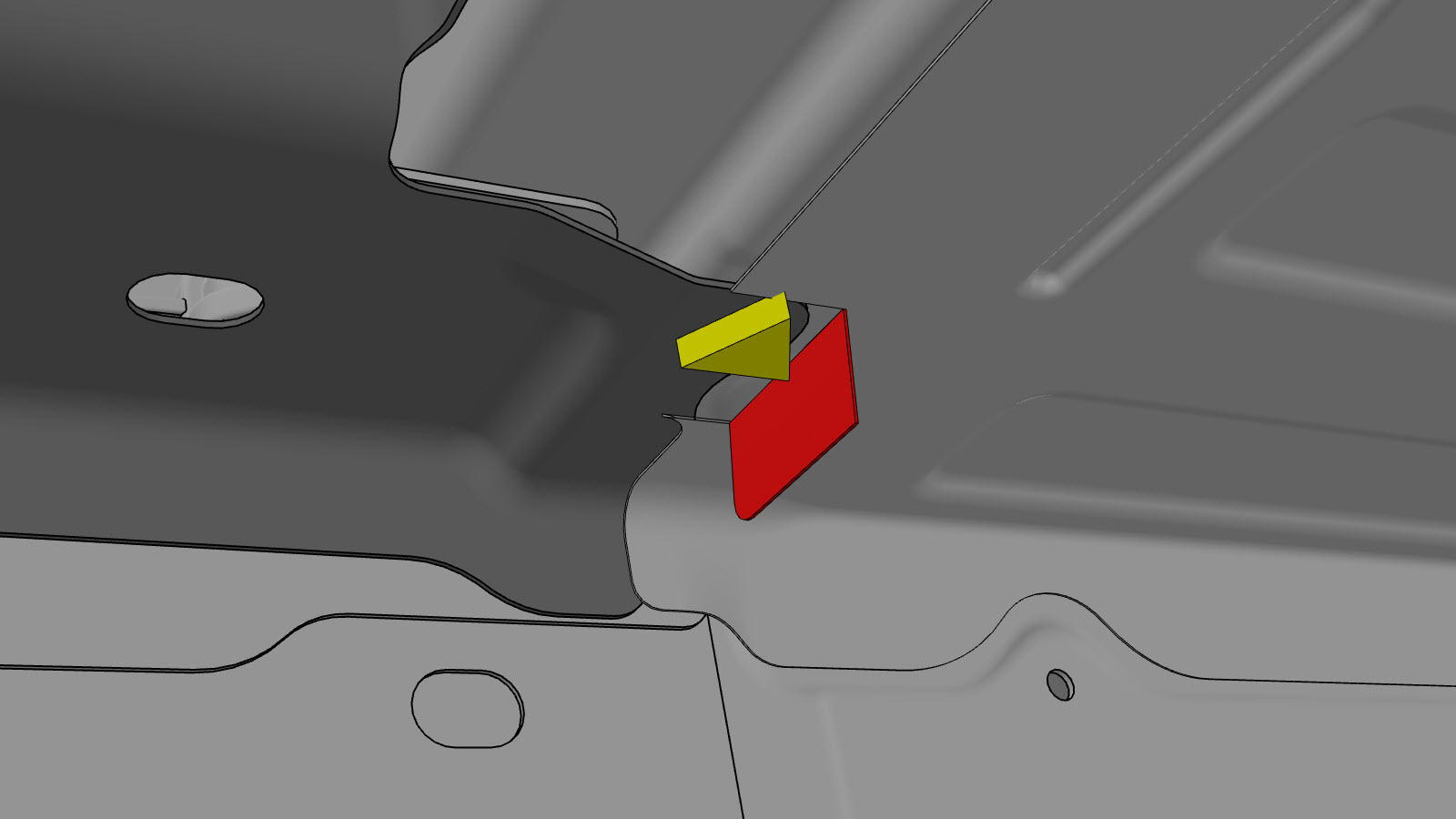

  1. 于指示位置切割底板,然后向后弯折制作翻门,翻门尺寸应足以拆下后副框架支座,并使点焊焊缝露出,以便在拆卸车辆原厂后副框架支座时清除。

    Cut Line

    Reference Line/Point

    • A = 20 毫米。

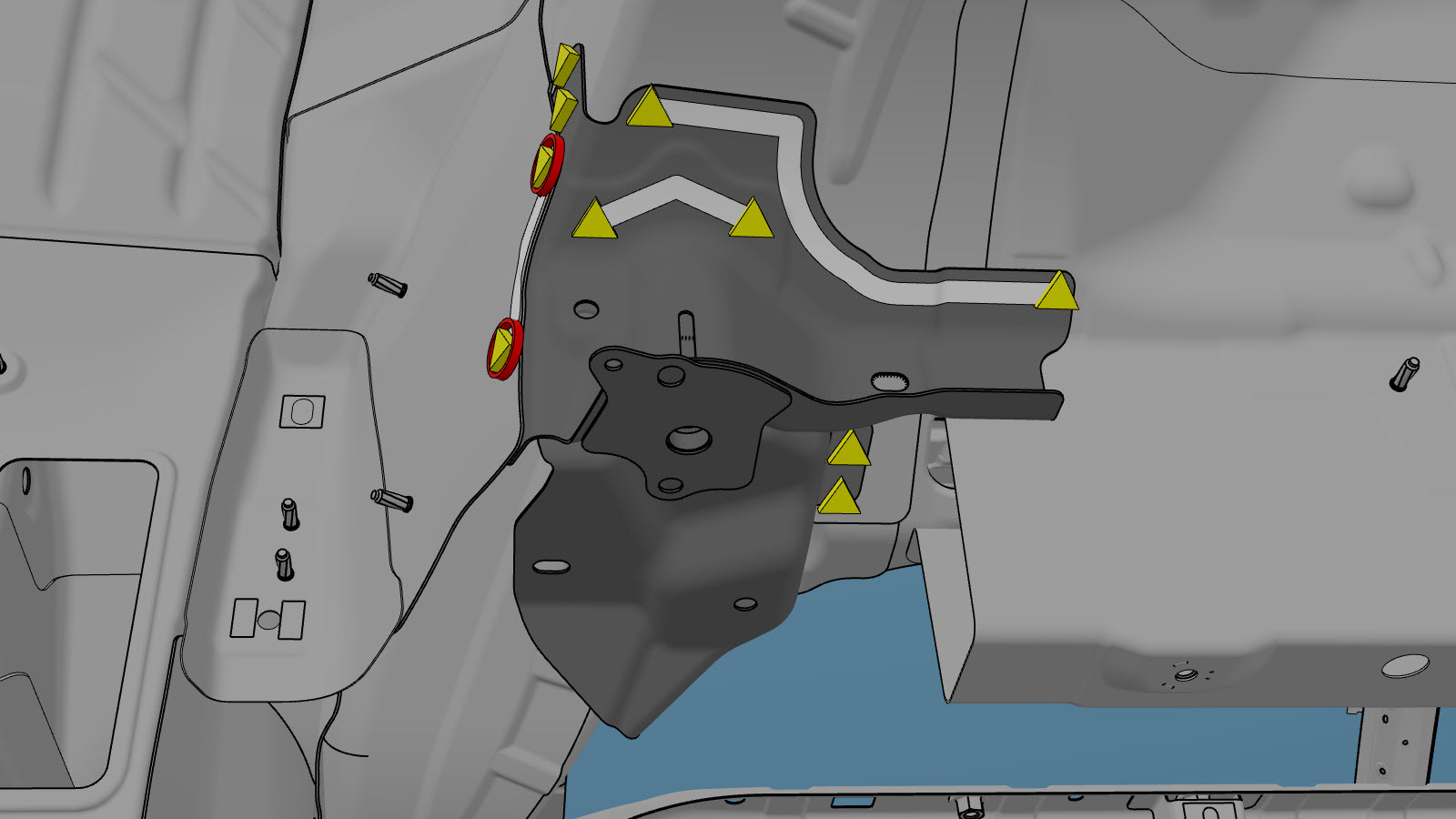

  2. 拆下原装组件的外侧部分

    or Factory Spot Welds

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
  3. 拆下原装组件的内侧部分

    or Factory Spot Welds

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

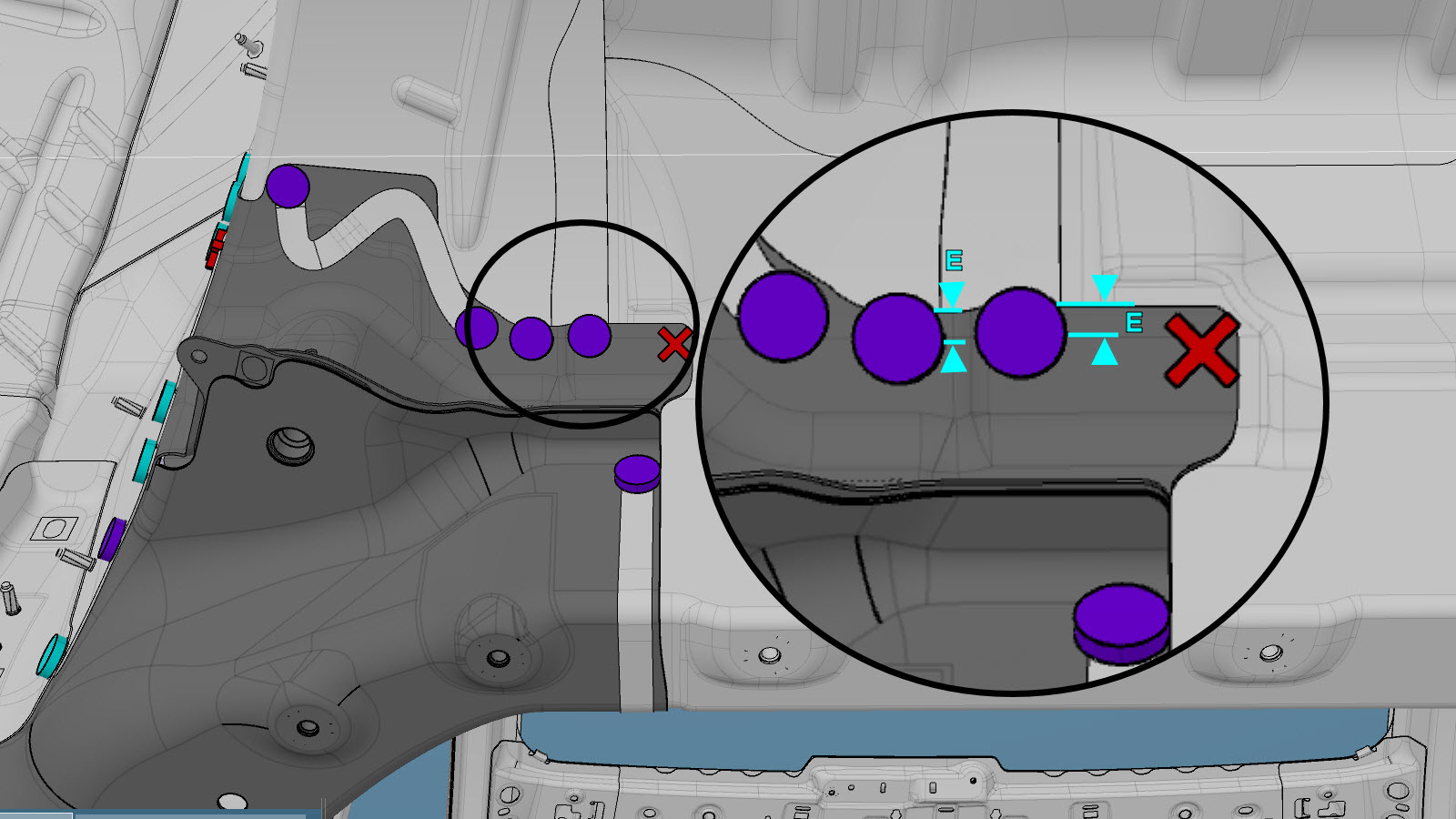

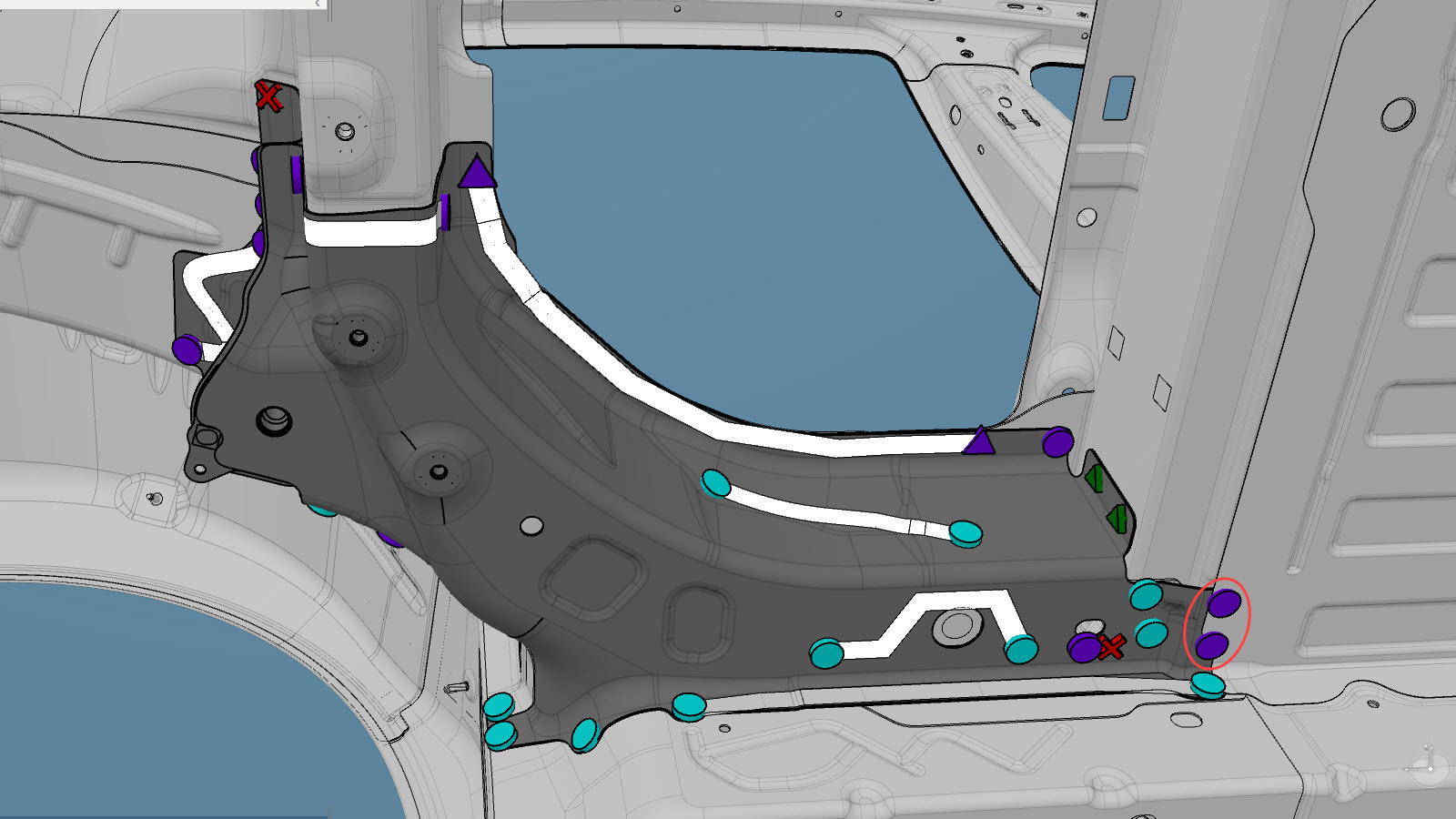

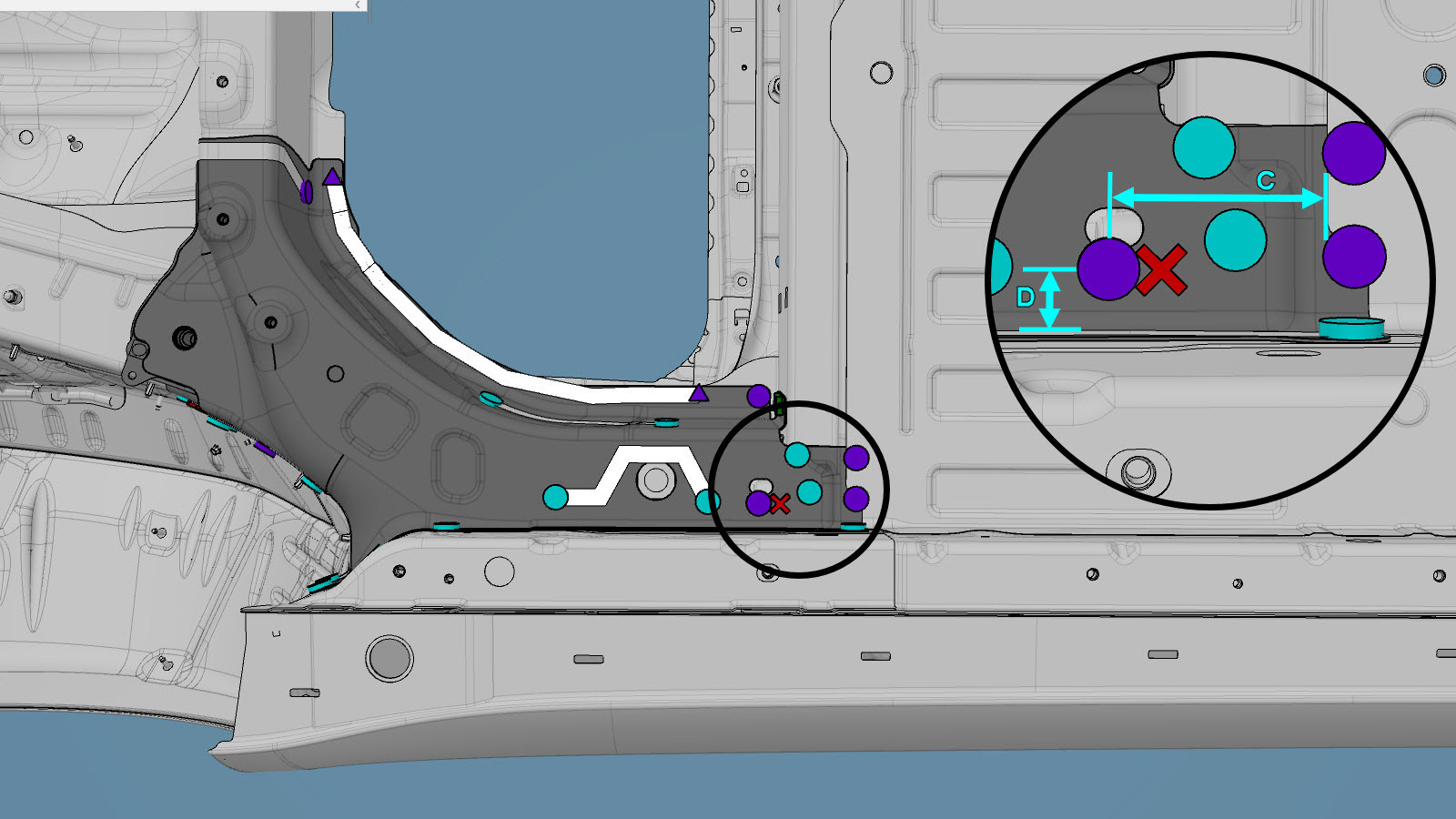

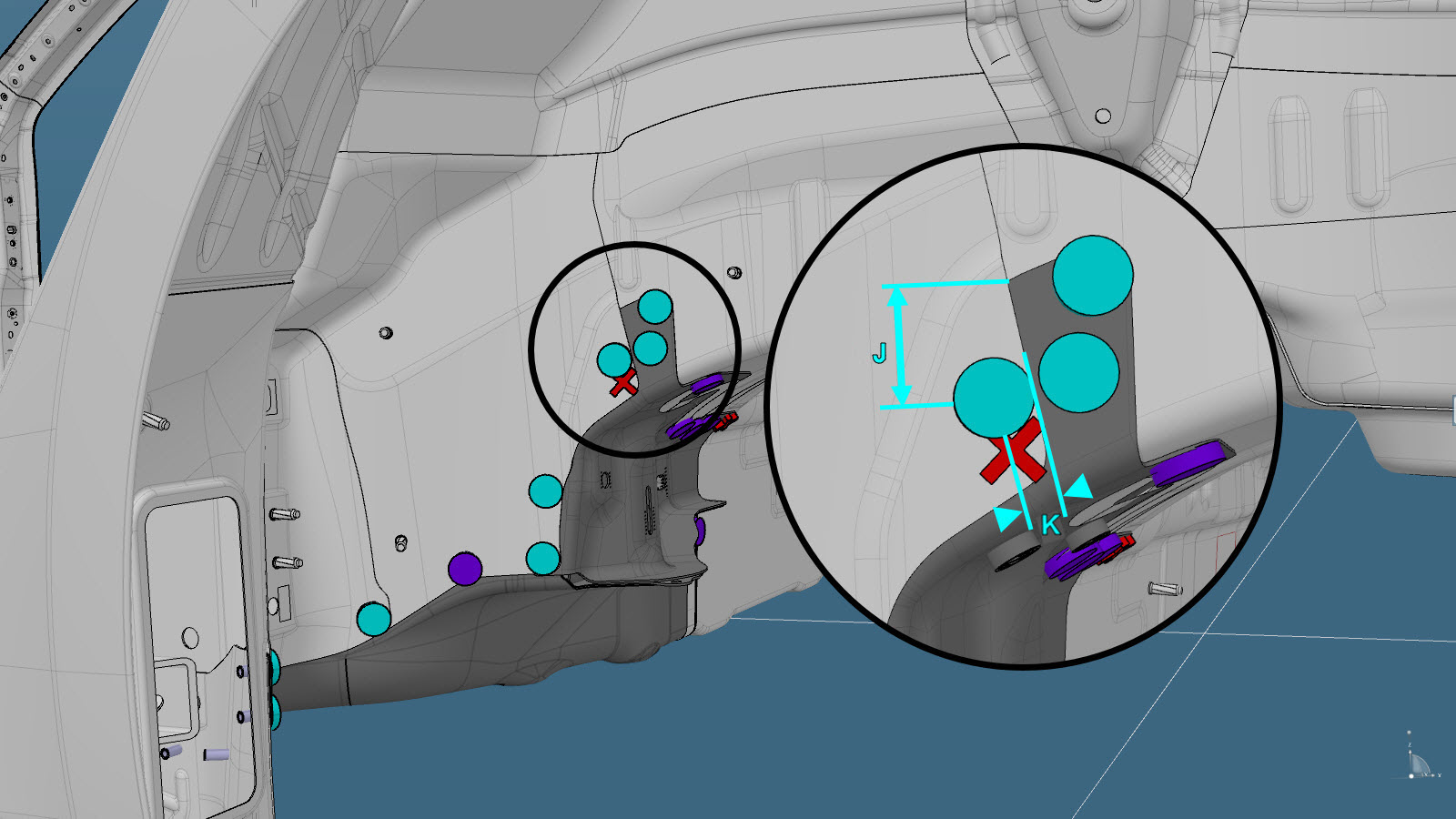

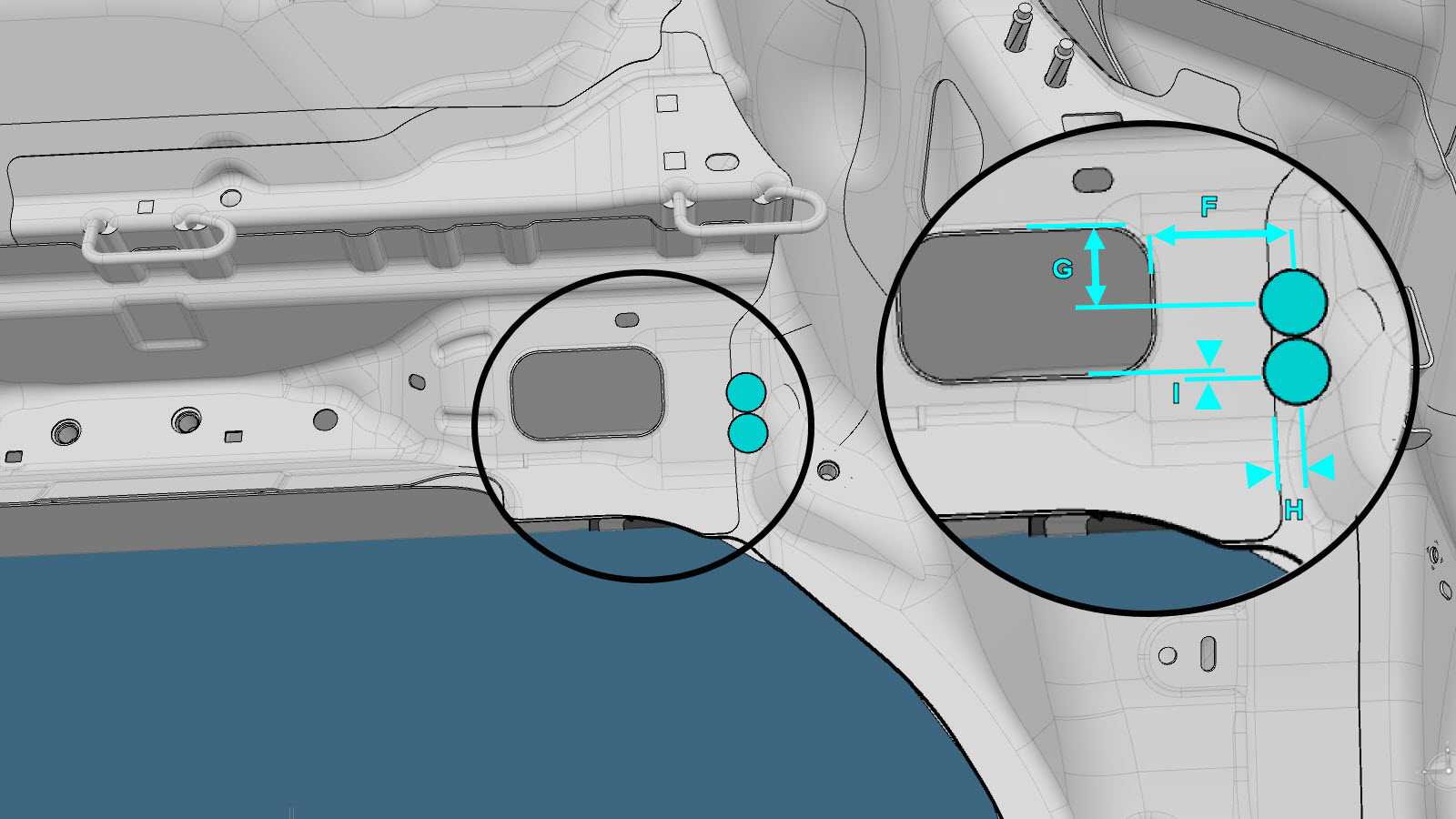

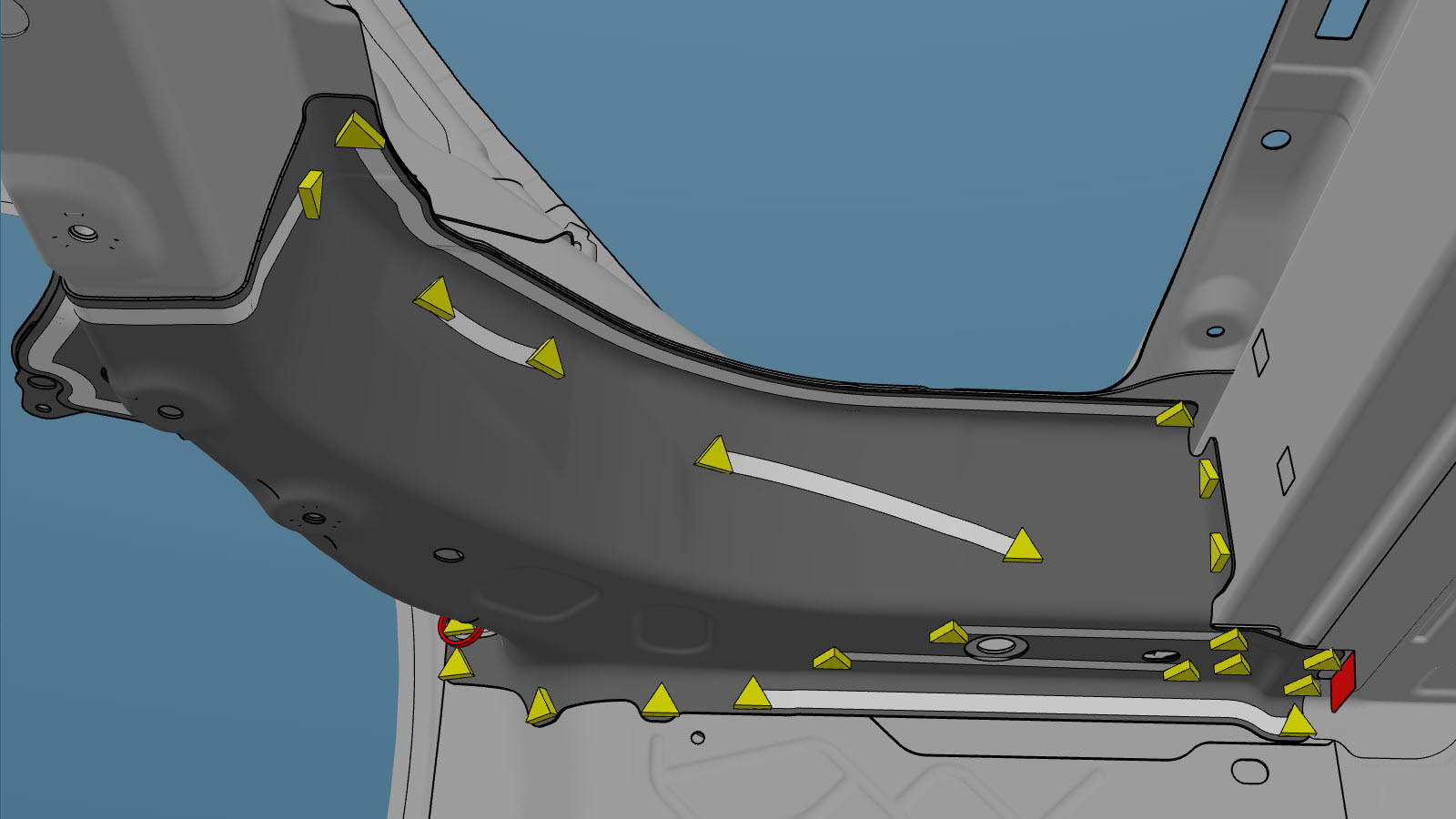

  4. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    A red X indicates a location where a factory-installed fastener is not being replaced.

    or Steel Plug Welds

    or Installation Spot Welds

    or High Strength Structural Rivets, 6.5 mm

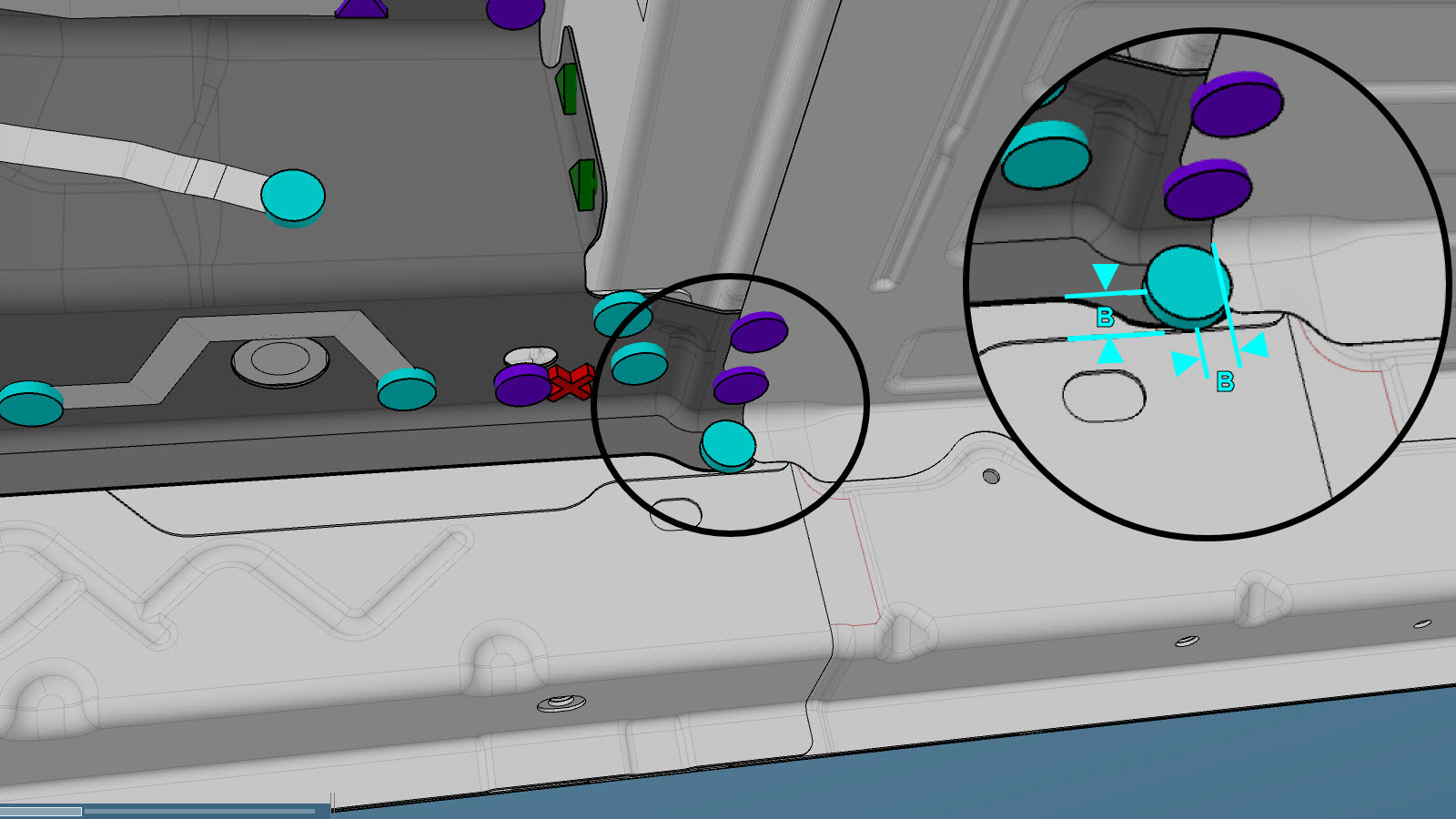

    • B = 8 毫米。
    • F = 43 毫米。
    • G = 25 毫米。
    • H = 7 毫米。
    • I = 2 毫米。
    • J = 30 毫米。
    • K = 20 毫米。
    or Structural Bulb Rivets, 6.5 mm
    • C = 70 毫米。
    • D = 30 毫米。
    • E = 6 毫米。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    对于以红圈标示的结构型灯笼铆钉:将拆卸步骤中弯折的底板恢复原始位置后,安装三颗铆钉。
  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
    Informational PurposesAn informational icon, calling your attention
    向之前制作的底板翻门的顶部涂抹少量的结构型粘合剂。
  6. 将底板翻门折回原始位置。
  7. Install the new component or components.
  8. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  9. Perform GMA welding.
    or Steel Plug Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to 已批准的气体保护金属极弧 (GMA) 焊接器和焊丝 for information on approved GMA welders and welding wire.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
    Informational PurposesAn informational icon, calling your attention
    Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint.
  10. Perform any necessary post-repair operations.
