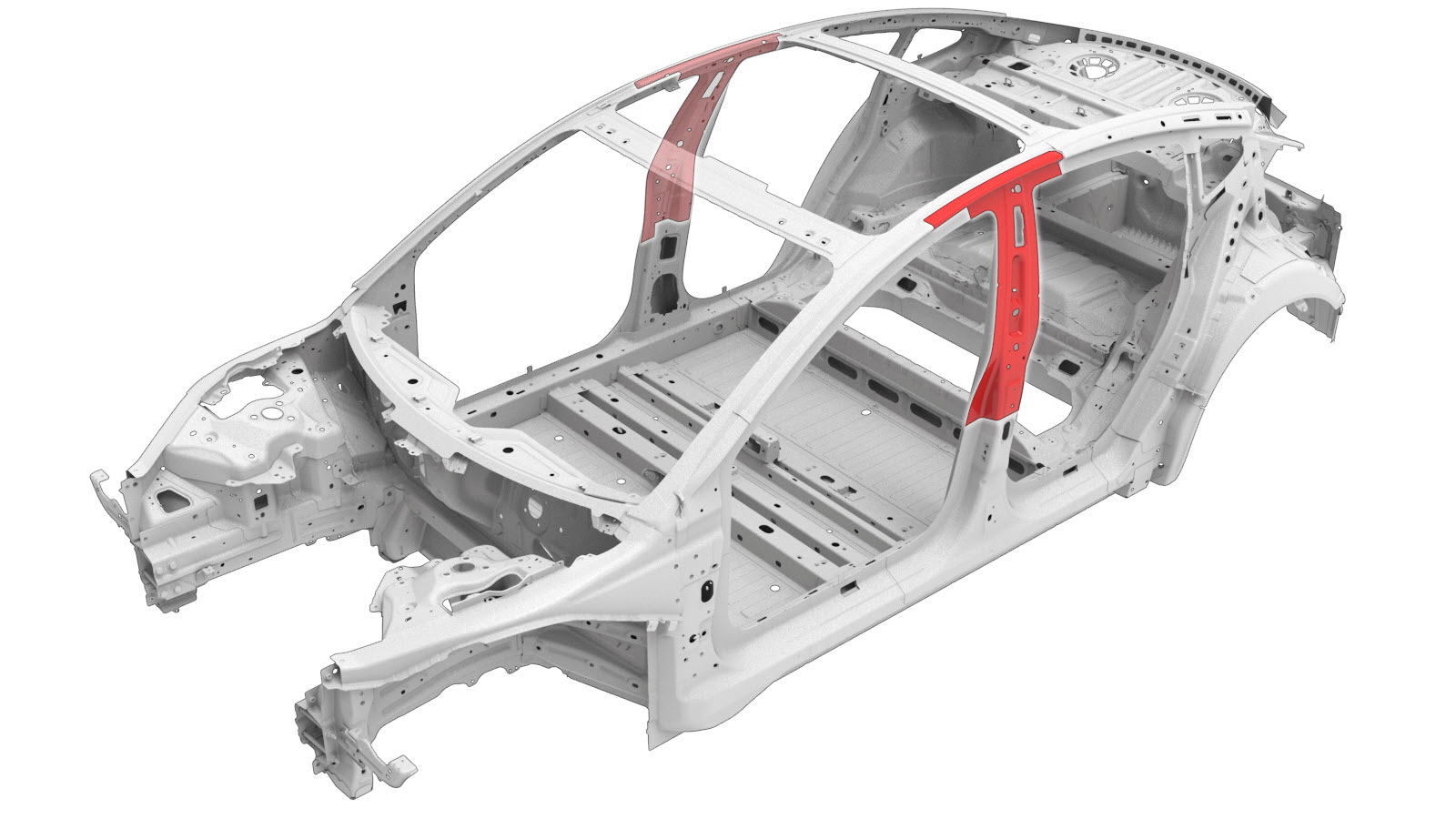

B 柱外件（上部）

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
Properly mount the vehicle on a frame bench when performing this procedure.

Parts List


Quantity	Description	Image / Notes
1	ASY - DOOR RING OUTER LH（车门安装环外件总成）
24	Structural Bulb Rivet, 6.5 mm
17	Countersunk Rivet, 4.8 mm Short

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

拆下车身侧外件的必要部分，露出要更换的底层组件。
按下方所示切割新的车门安装环外件总成，以制作新组件。
Remove the original component.

or Factory Spot Welds
Prepare for installation.

注
A red X indicates a location where a factory-installed fastener is not being replaced.

or Installation Spot Welds

or Structural Bulb Rivets, 6.5 mm

or Countersunk Rivets, 4.8 mm Short
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Perform resistance spot welding.
or Installation Spot Welds
警告
Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.

警告
Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
安装先前为露出更换组件而拆下的车身侧外件部分。
Perform any necessary post-repair operations.
