C 柱加固件

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

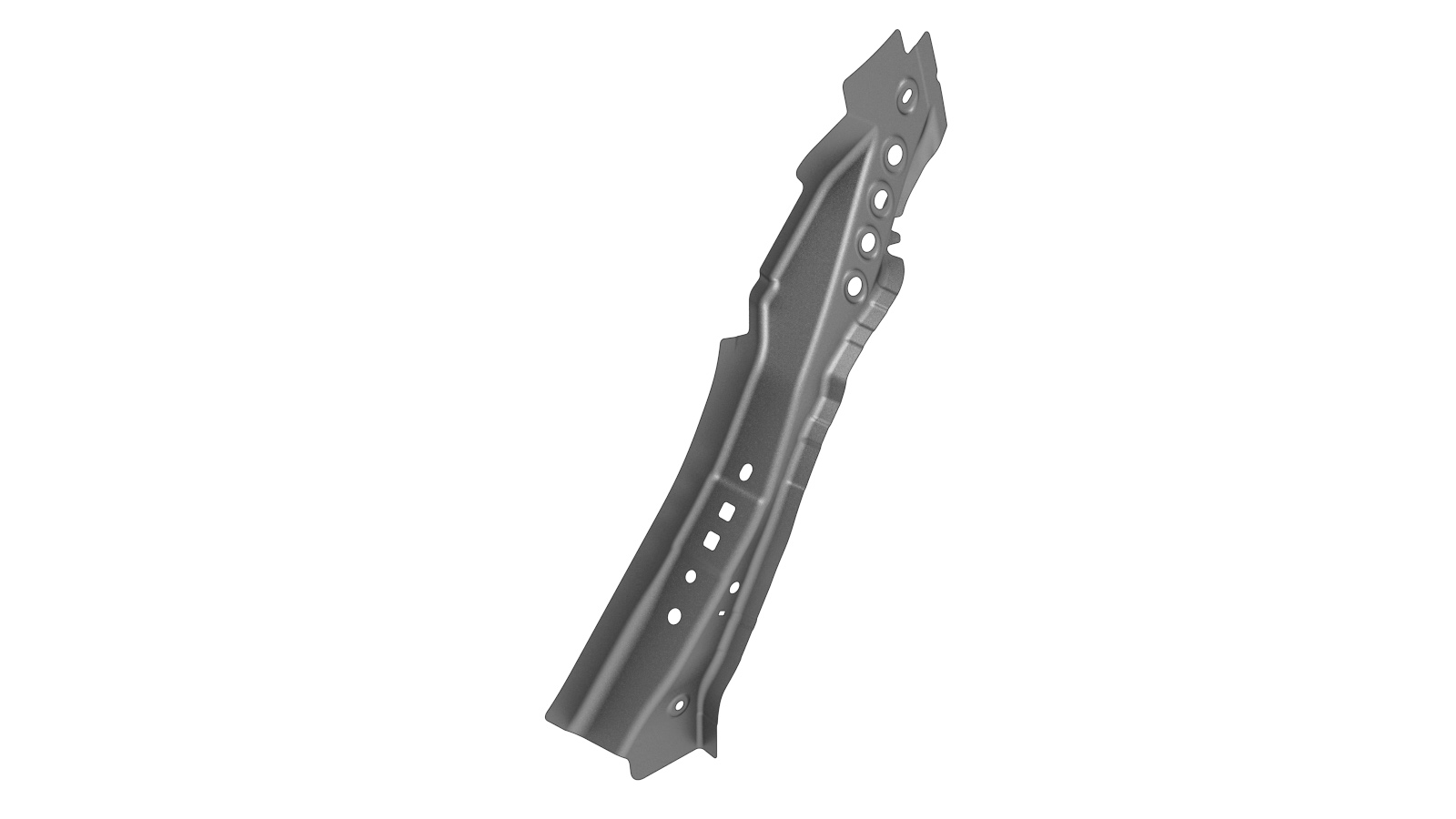

1	C PILLAR LOWER EXTENSION（C 柱加固件）
11	Rivet, 4.8 mm
1	Structural Bulb Rivet, 6.5 mm
仅适用于区块维修：6	Countersunk Rivet, 4.8 mm Short
1	or Flow Form Rivets, S08
4	or Flow Form Rivets, S18
2	or Flow Form Rivets, S28

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

C 柱加固件区块说明


C 柱加固件分割

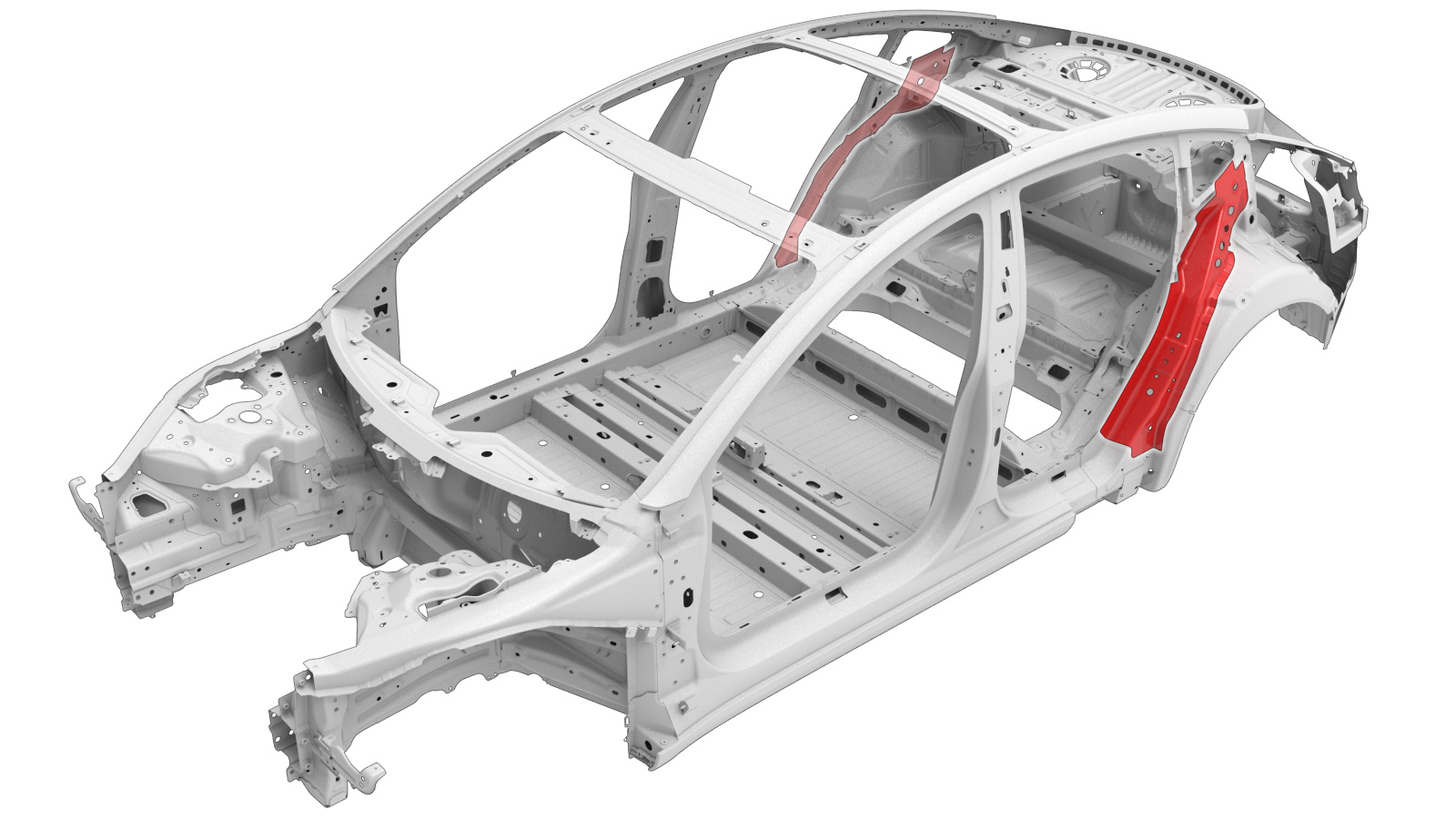

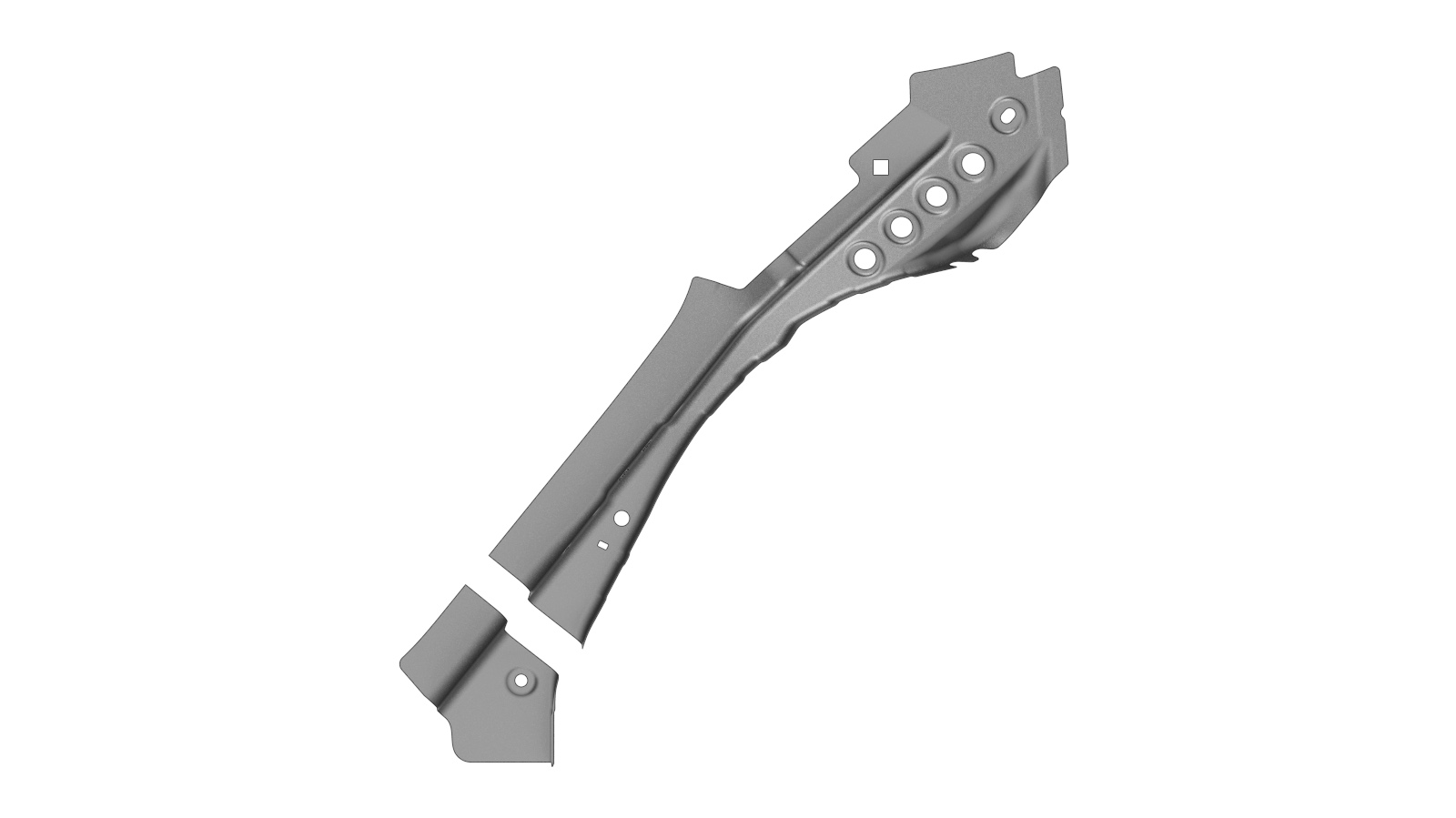

C 柱加固件（如下所示）属于单个组件，可整体更换：

此外，如不更换整个 C 柱加固件，也可使用本文档中所述的切割线更换 C 柱加固件的下部。

C 柱加固件区块


C 柱加固件区块说明

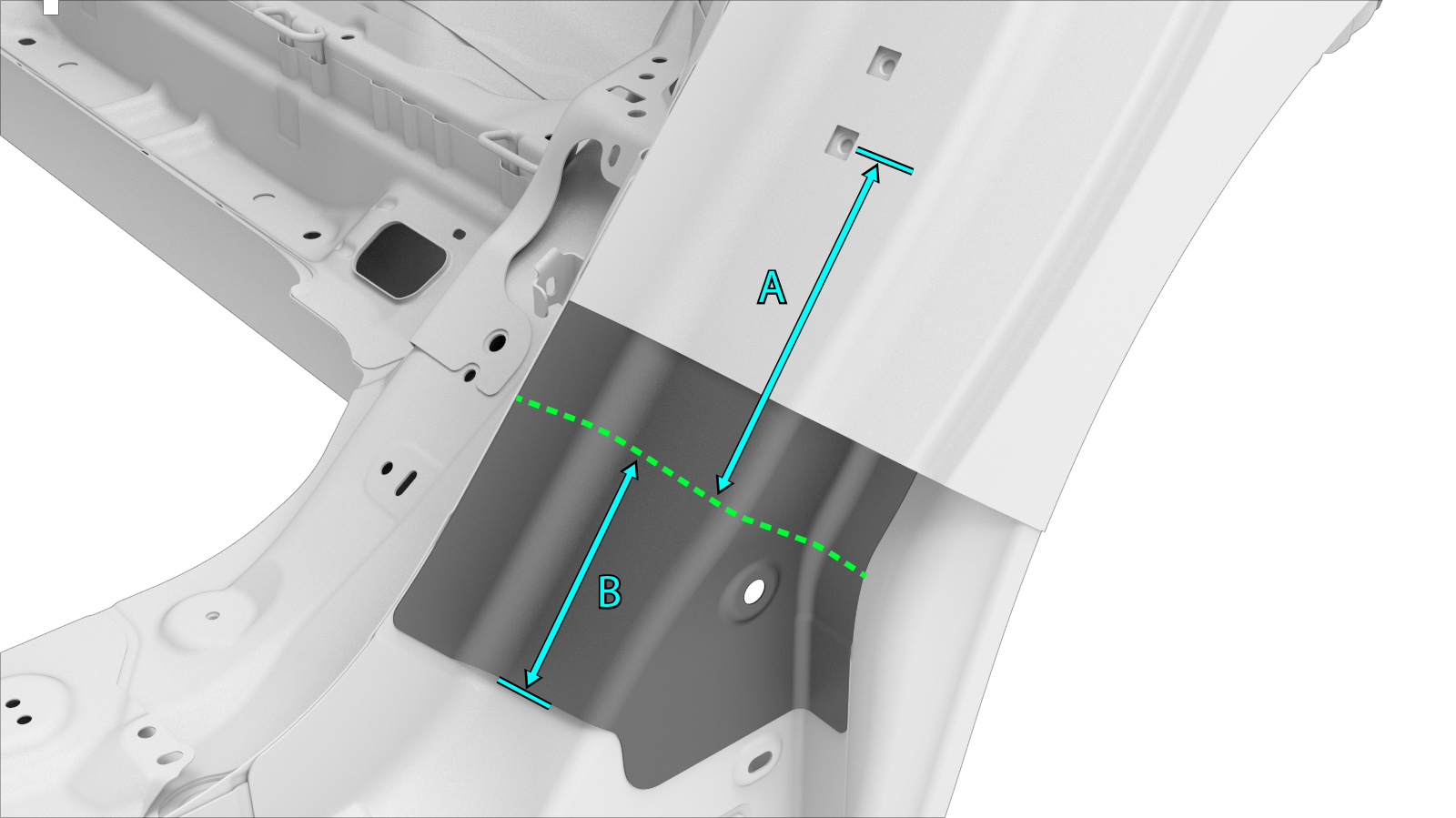

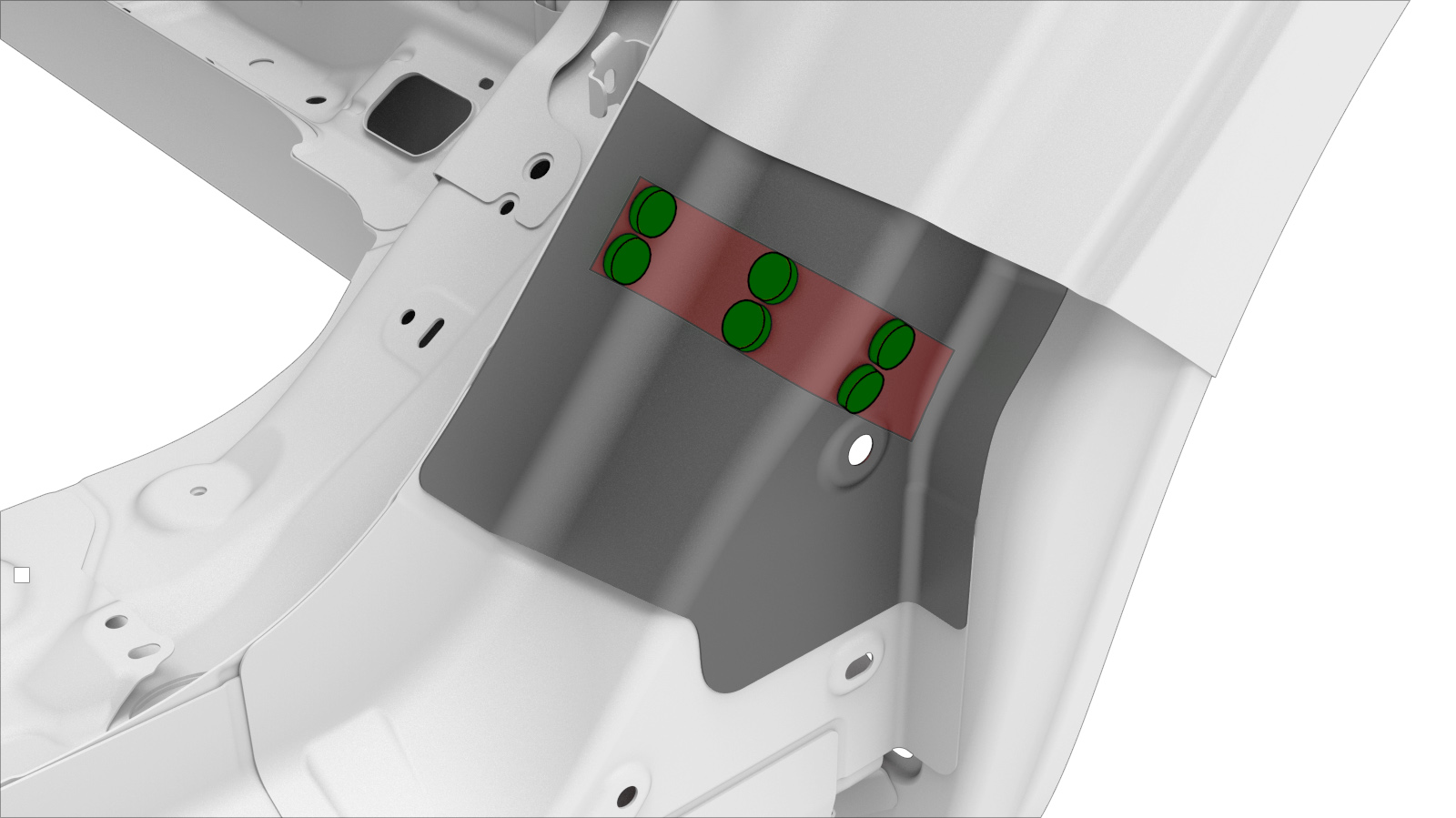

C 柱加固件下部 Cut Line Reference Line/Point A = 169 mm B = 124 mm 注 Create a backing plate 从新组件的剩余部分，按指示对其进行安装。

Repair Procedure

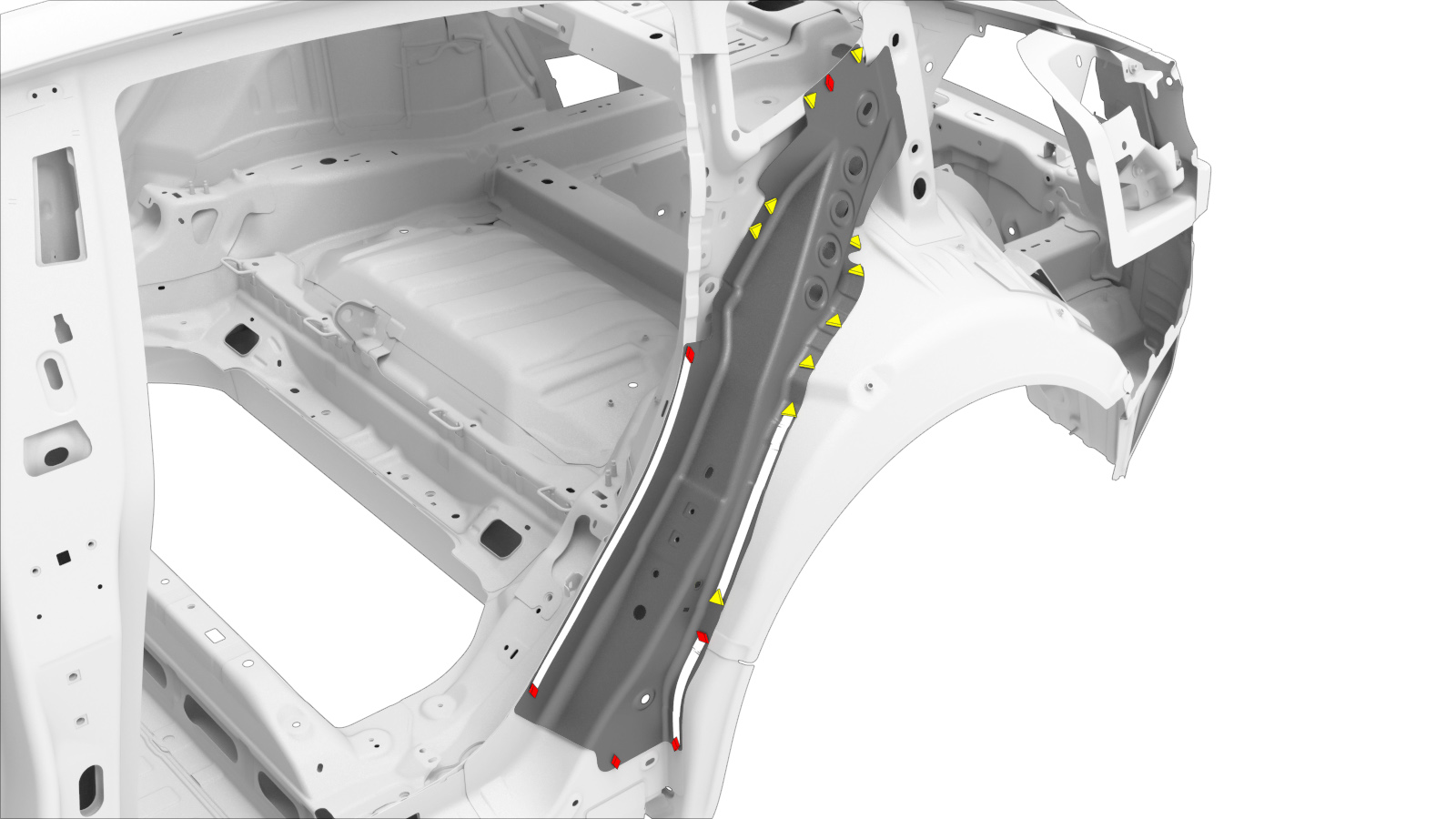

拆下车身侧外件的必要部分，露出要更换的底层组件。
Remove the original component.
or Factory Spot Welds
or Factory SPRs
Prepare for installation.

or Rivets, 4.8 mm

or Structural Bulb Rivets, 6.5 mm

or Flow Form Rivets, S18

or Flow Form Rivets, S08
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
安装先前为露出更换组件而拆下的车身侧外件部分。
Install the fasteners as indicated.

or Flow Form Rivets, S18

or Flow Form Rivets, S28
Perform any necessary post-repair operations.
