扭矩盒盖总成
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

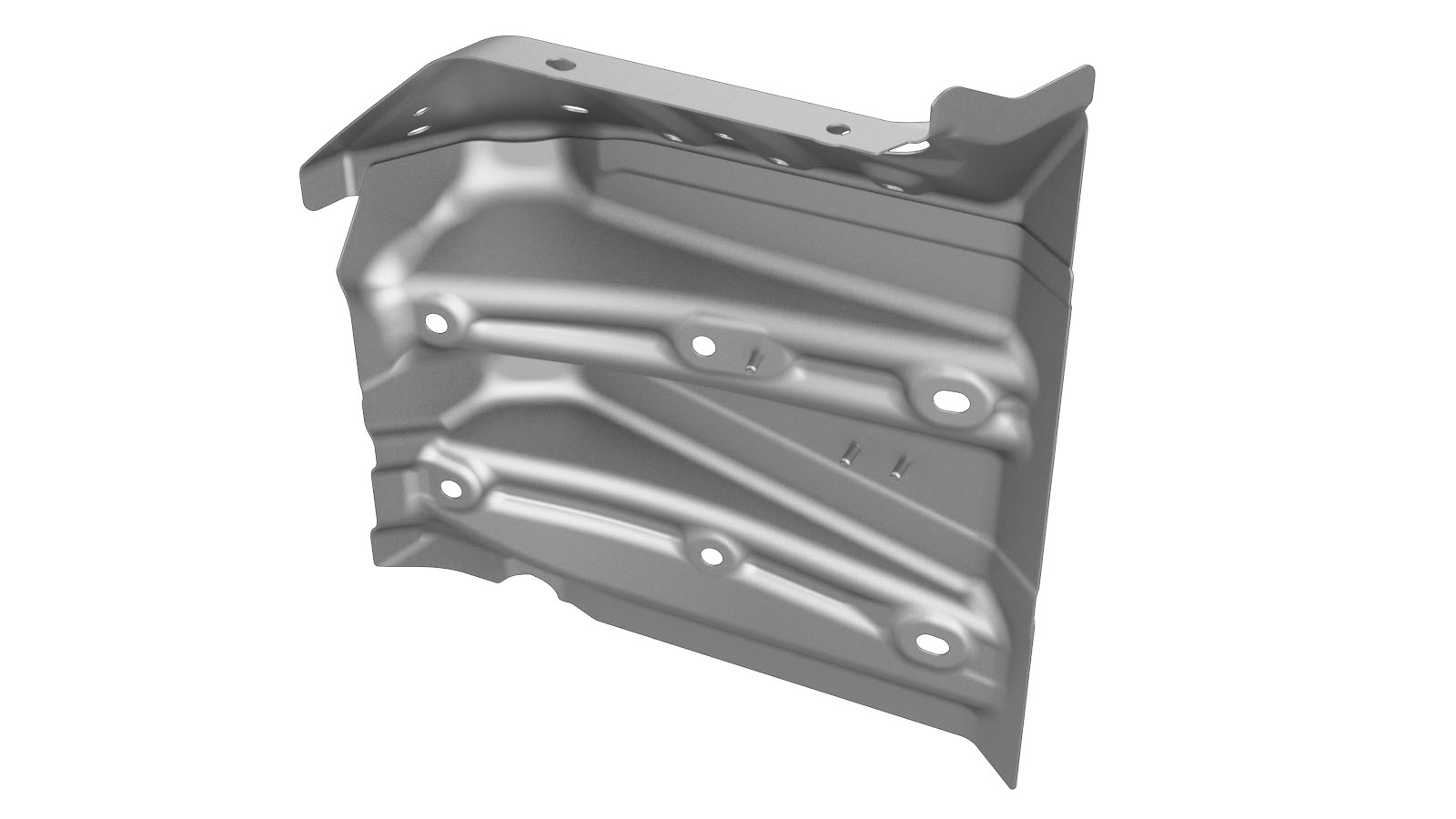

| 1 | ASSEMBLY - TORQUE BOX OUTER（扭矩盒盖总成） |
|
| 43 |
High Strength Structural Rivet, 6.5 mm
|
|
| 6 |
Structural Bulb Rivet, 6.5 mm
|
|
| 1 |
Bolt
|
Tesla 零件号 1011818-00-A。 |
| 1 |
Nut
|
Tesla 零件号 1006628-01-A。 |
| 丁基胶箔补缀 | 用于覆盖维修区域中的铆钉。 |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

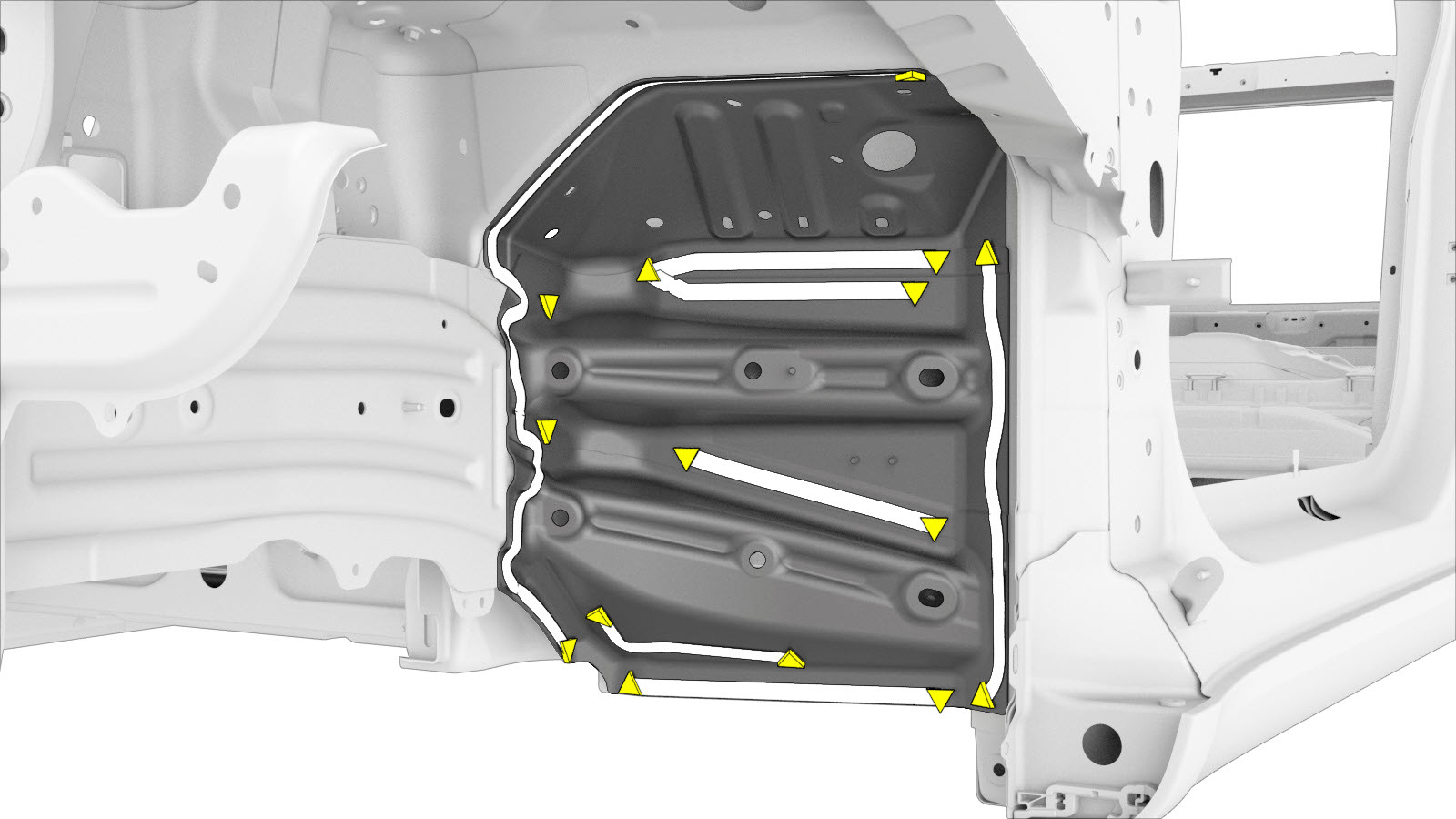

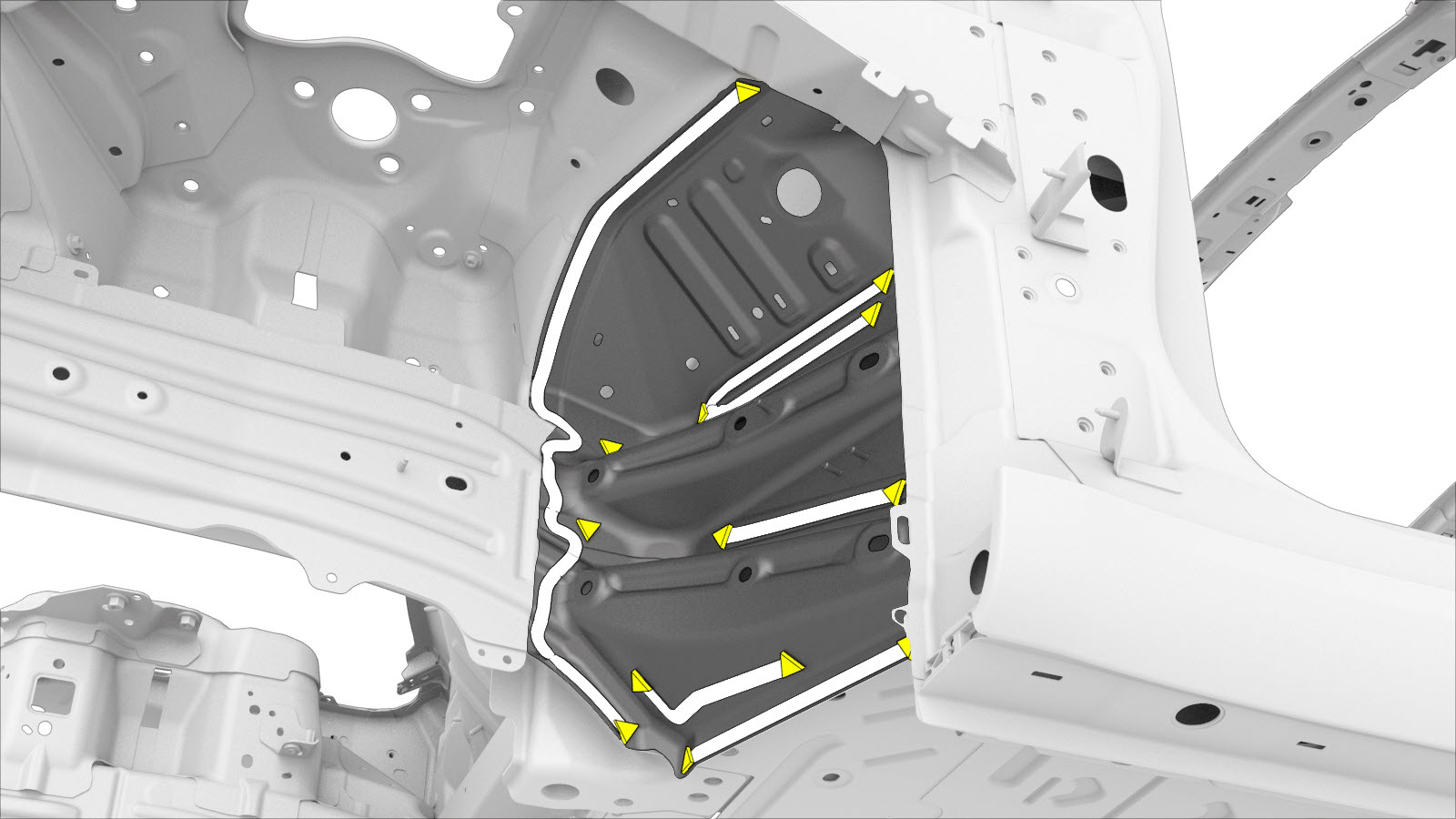

Remove the original component.
or
Factory Spot Welds
-

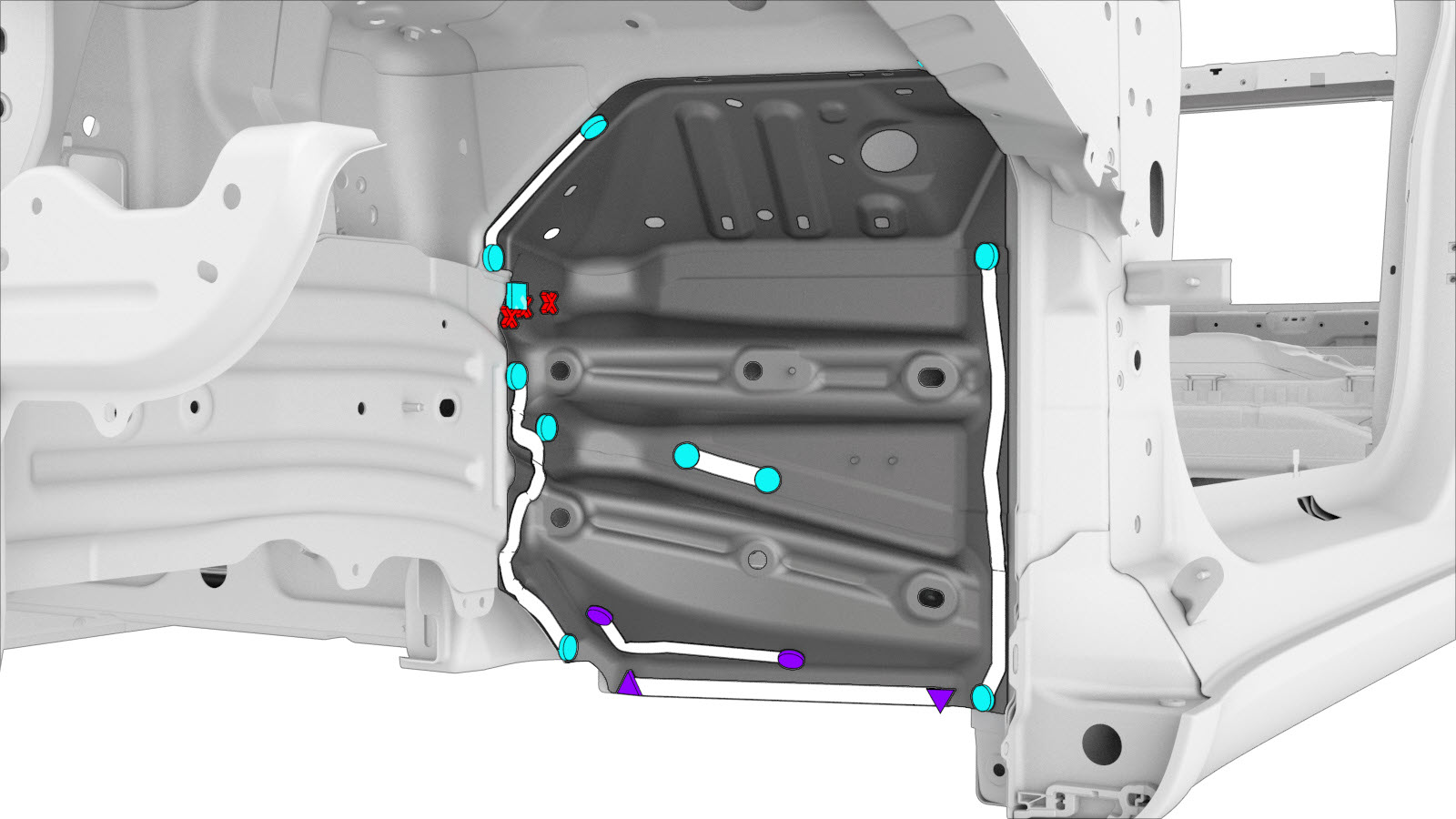

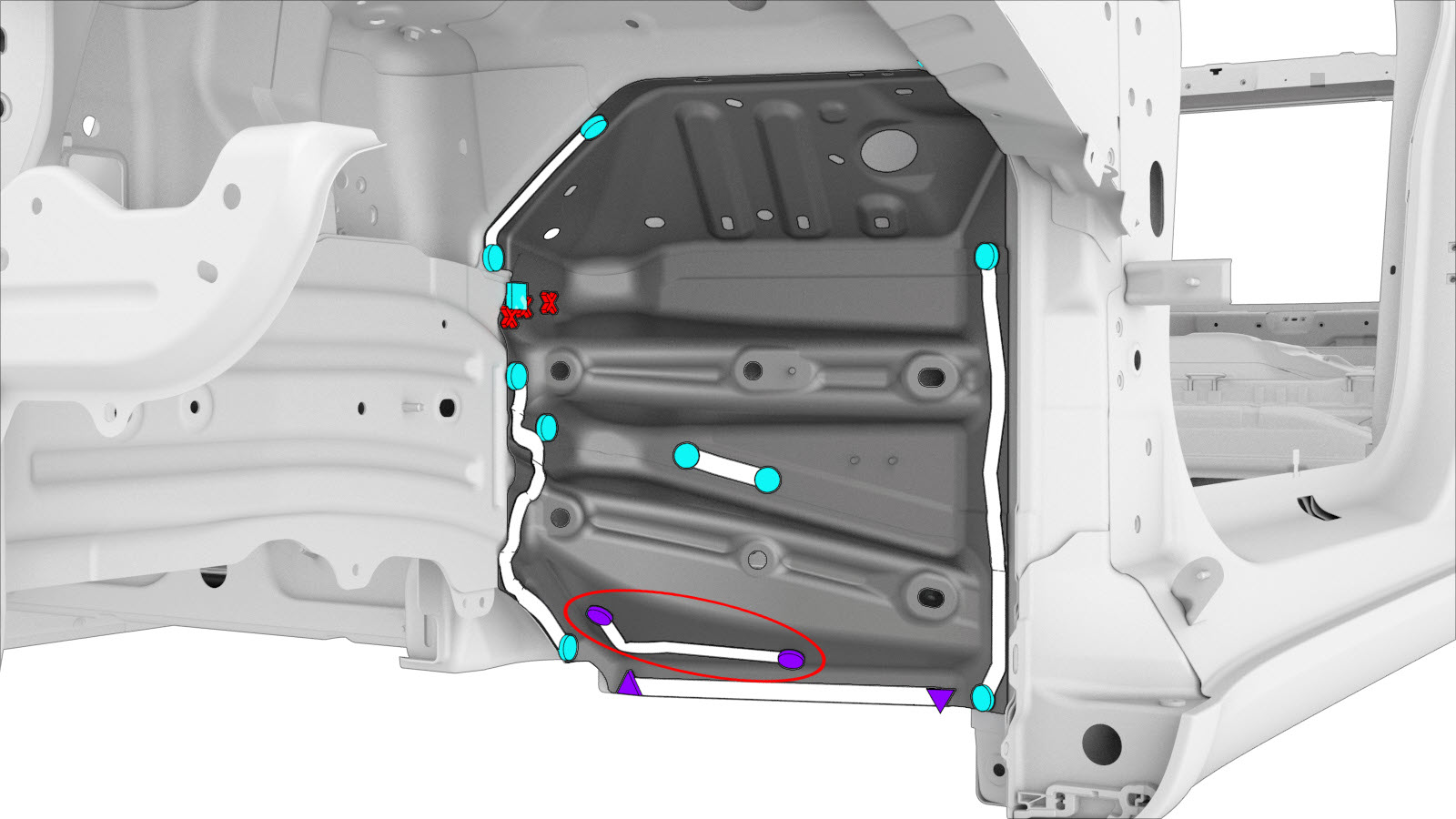

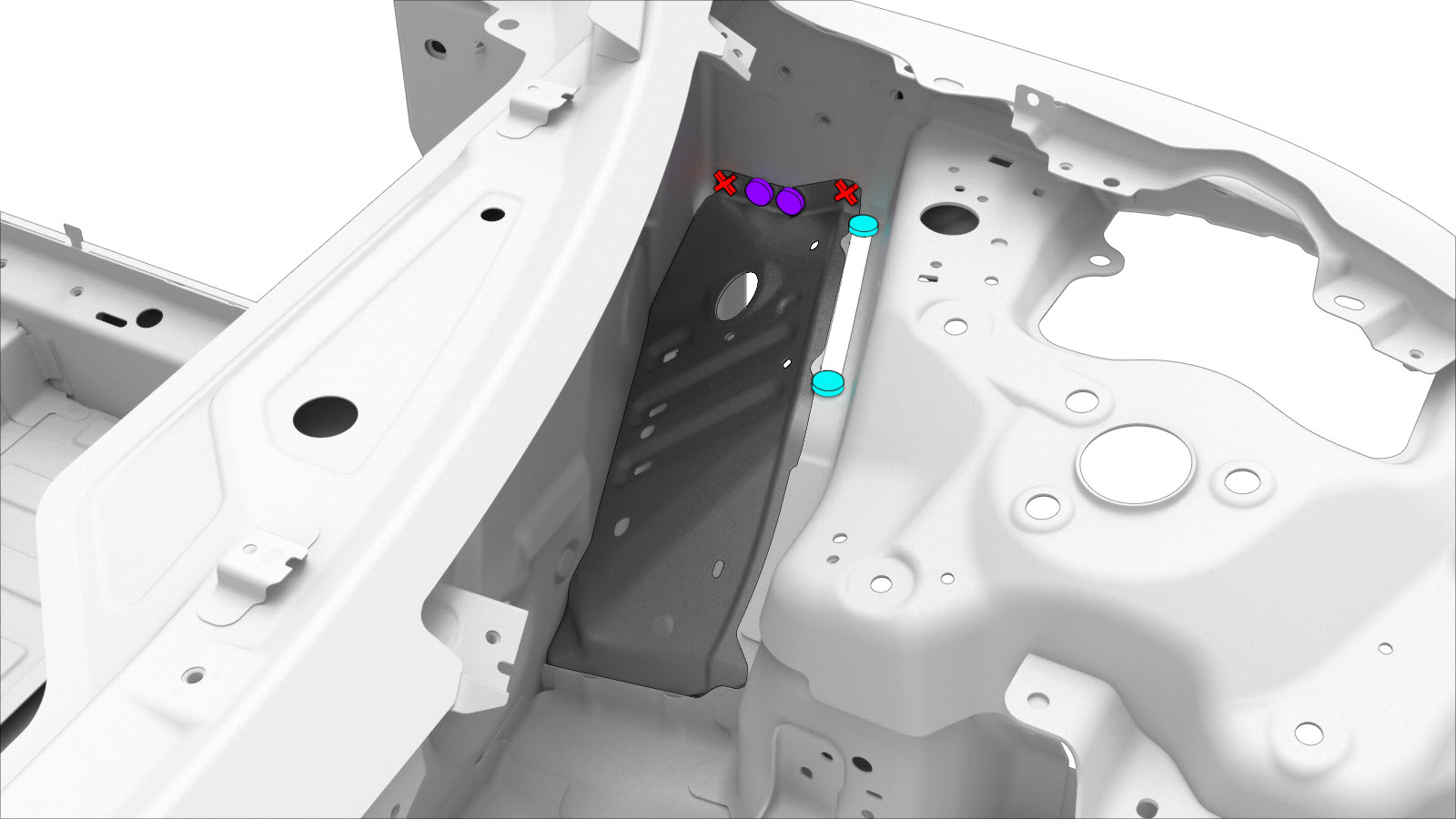

Prepare for installation.
注A red X indicates a location where a factory-installed fastener is not being replaced.
or High Strength Structural Rivets, 6.5 mm
or Bolts

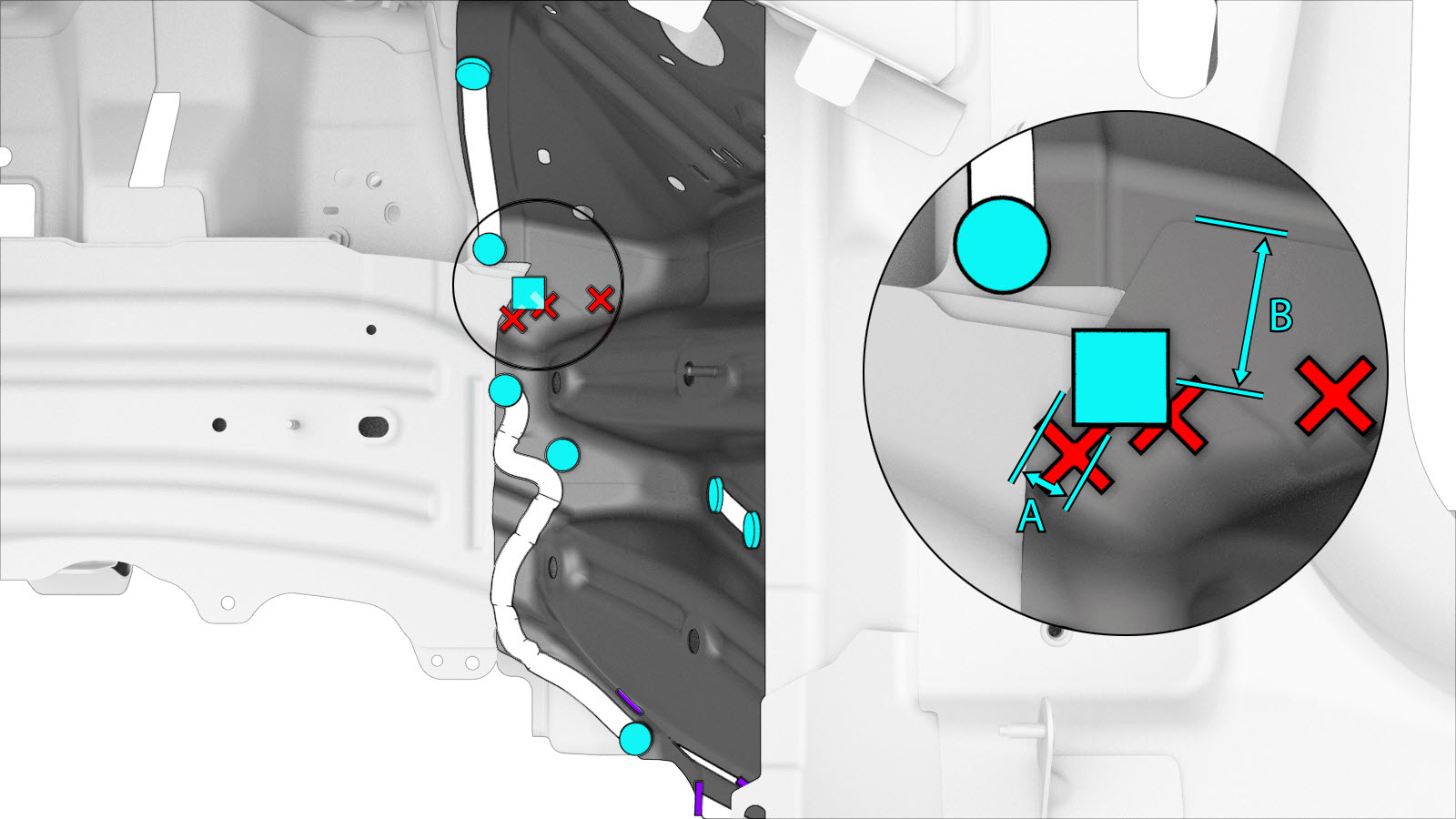

- A = 8 毫米。
- B = 34 毫米。
or Structural Bulb Rivets, 6.5 mm
or

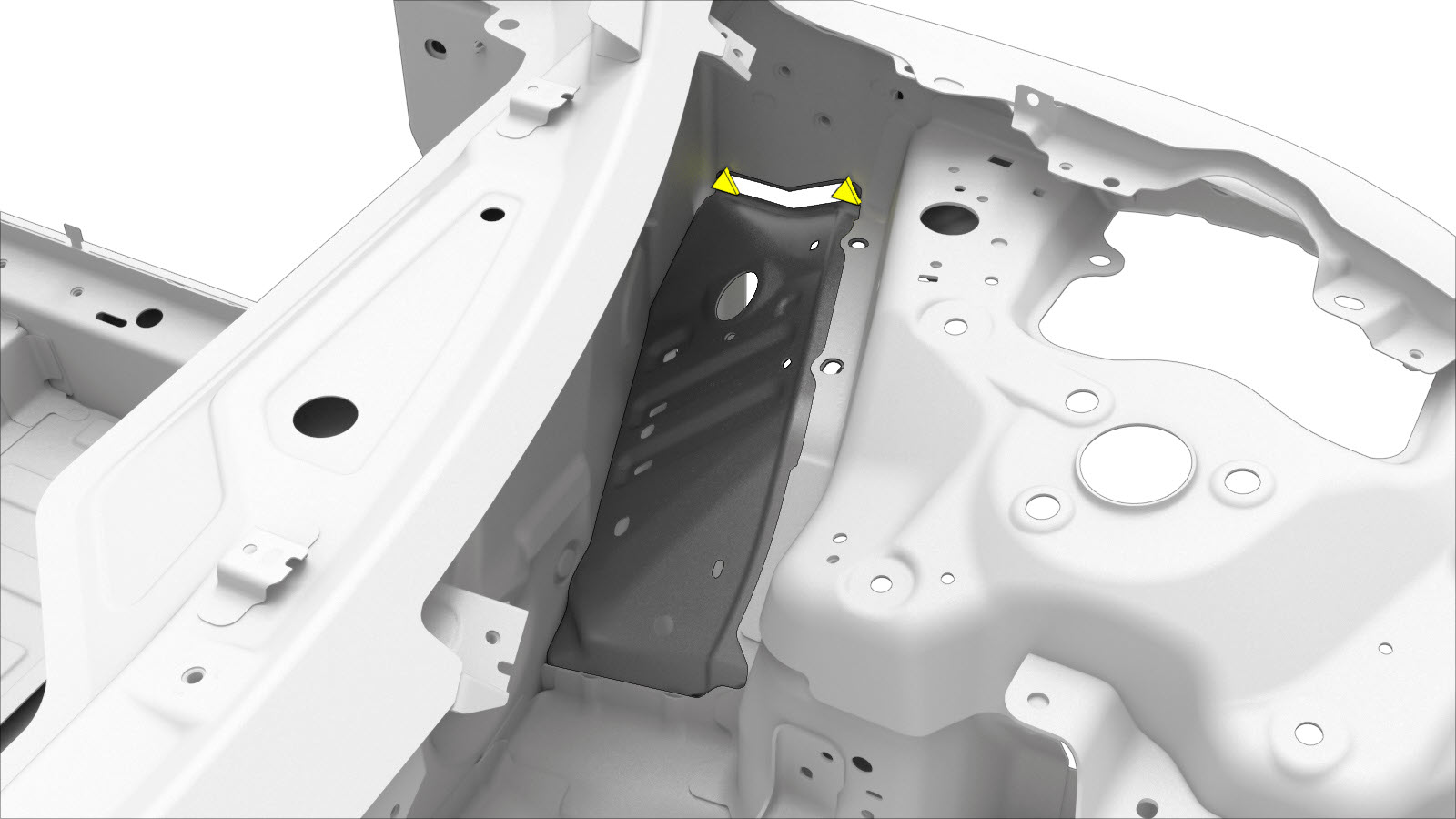

Installation Spot Welds
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
注将螺栓拧紧至 22 Nm。注对于穿过扭矩盒盖总成装入车辆驾驶室的所有铆钉，请确保这些铆钉不会摩擦到地毯下方的绝缘垫。如需要，请稍微修剪绝缘垫，以留出间隙。
-
Perform resistance spot
welding.
or Installation Spot Welds
警告Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.警告Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
-
完成喷漆后，请使用丁基补缀覆盖突出显示的铆钉。如需要，请使用多个小丁基补缀。
- Perform any necessary post-repair operations.
