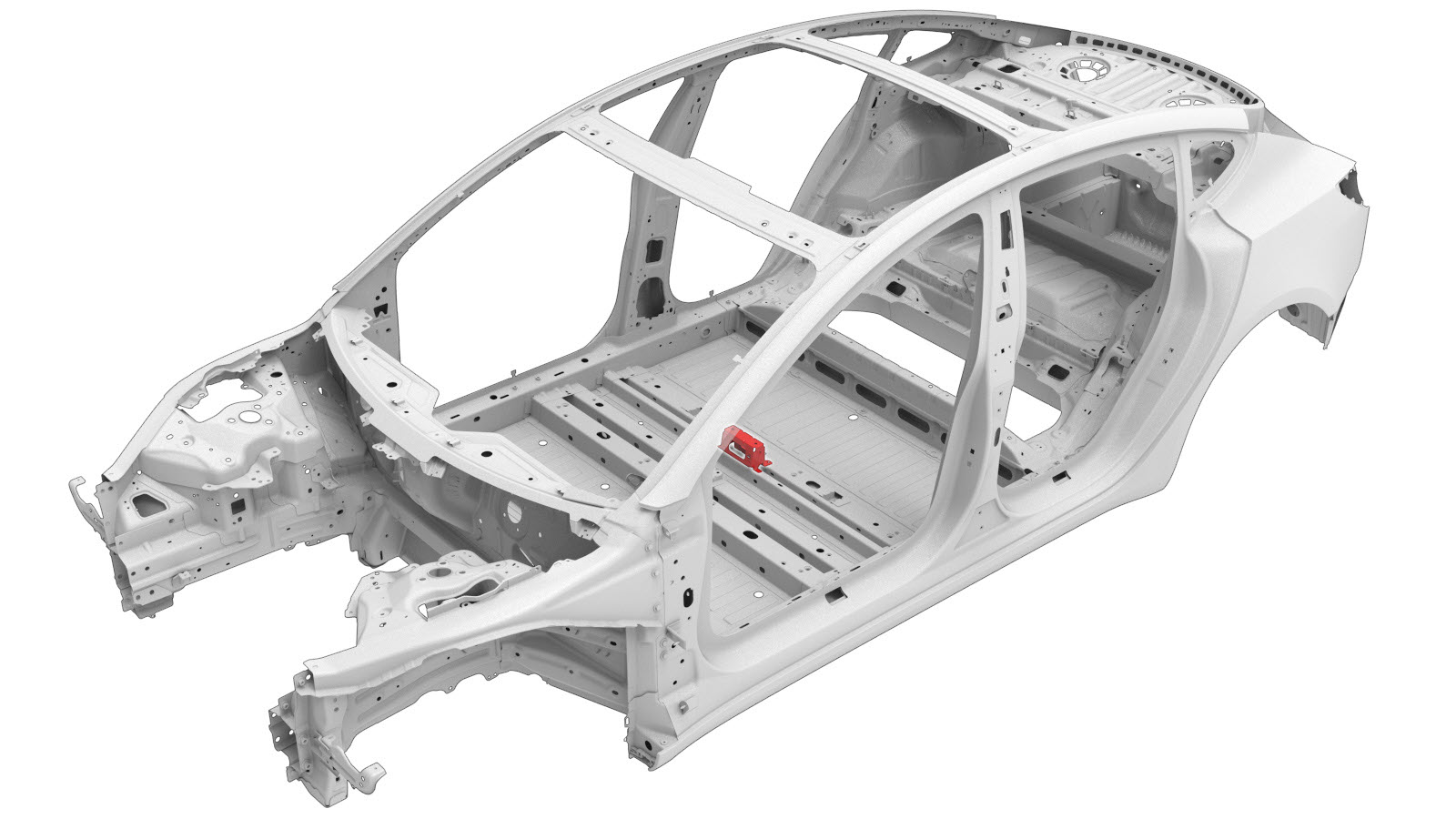

中央车底

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

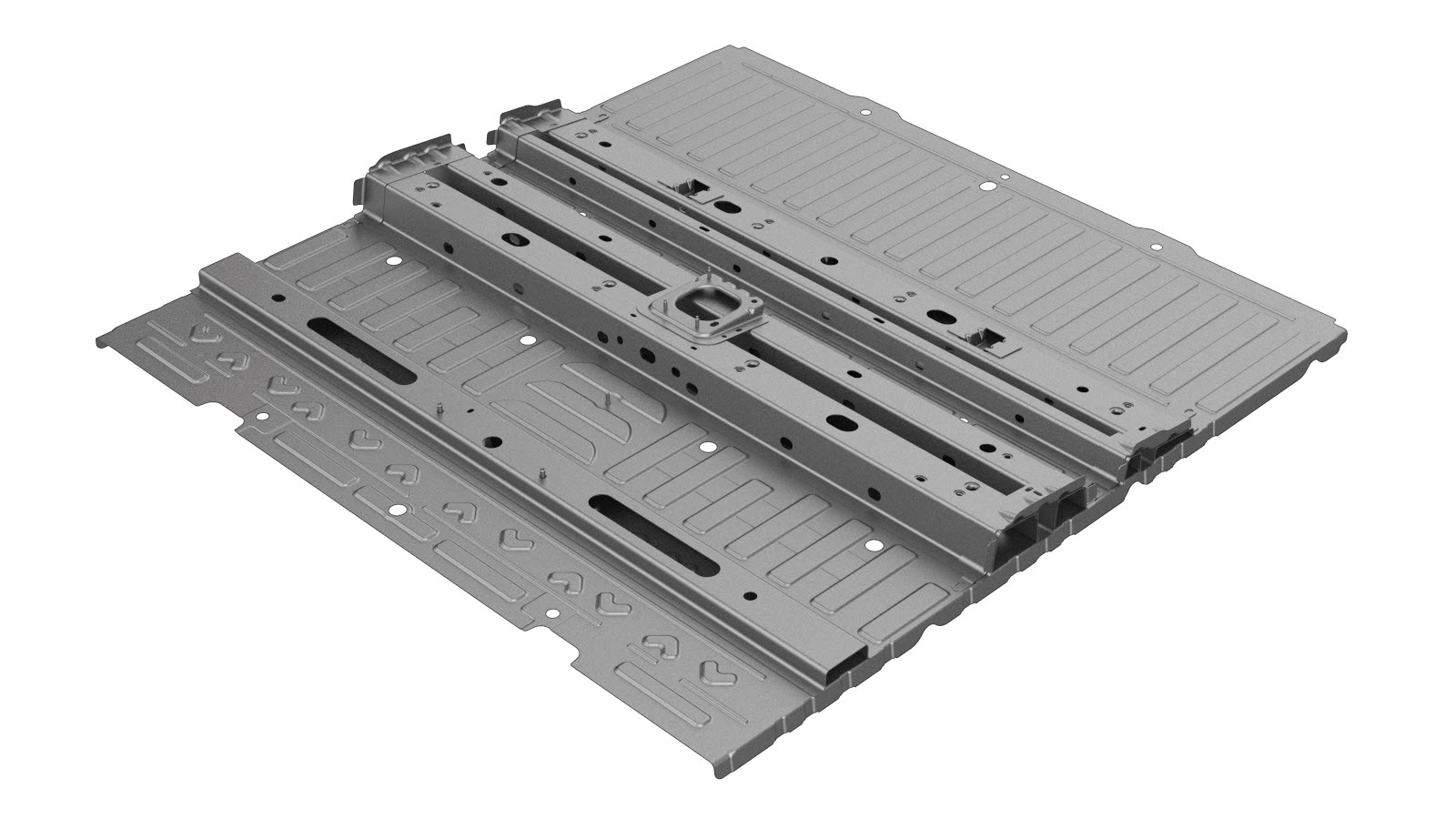

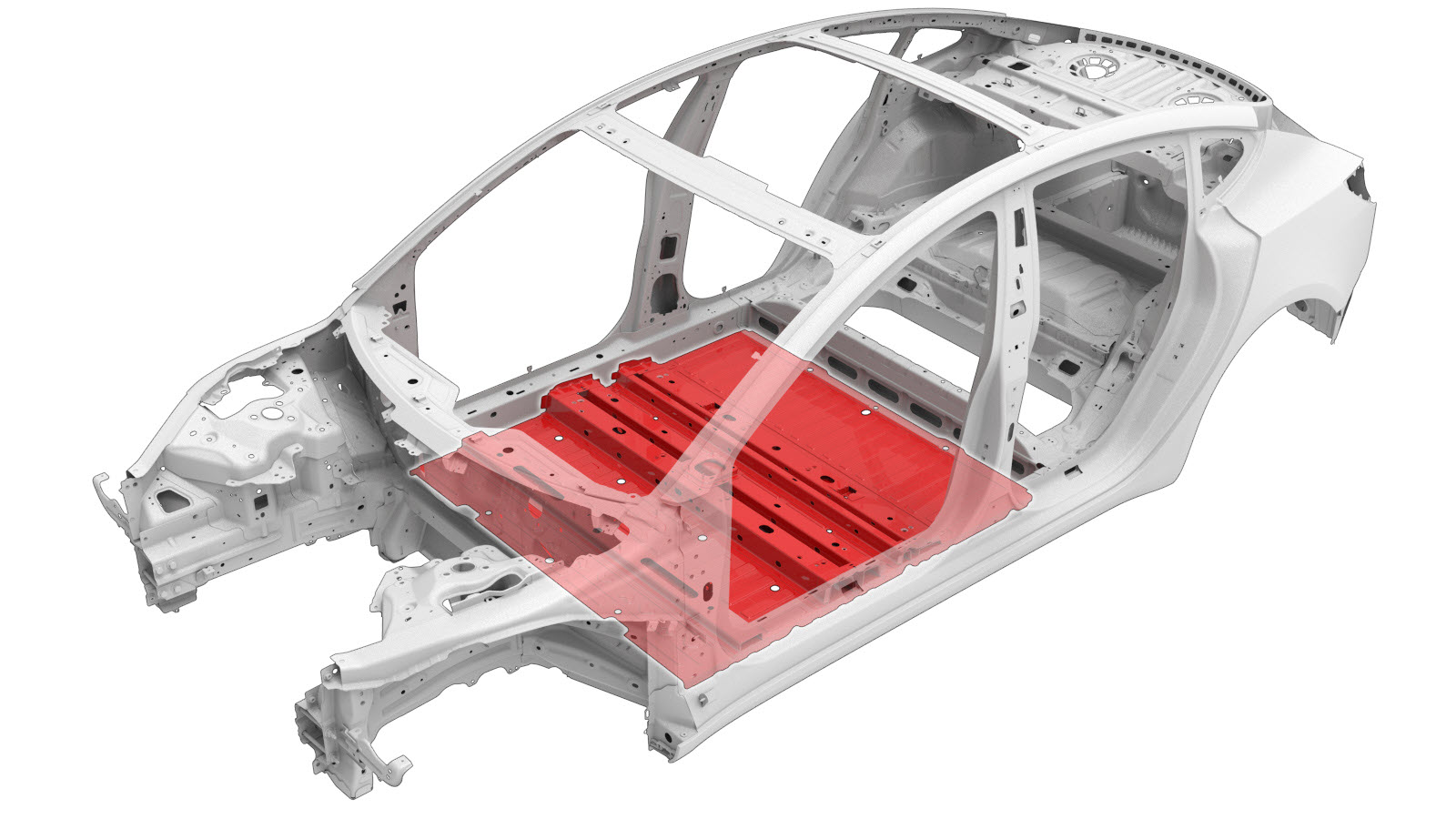

1	MODULE - CENTER UNDERBODY STRUCTURE（中央车底）
24	Countersunk Rivet, 4.8 mm Short
19	Countersunk Rivet, 4.8 mm Long
18	High Strength Structural Rivet, 6.5 mm
38	Rivet, 4.8 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

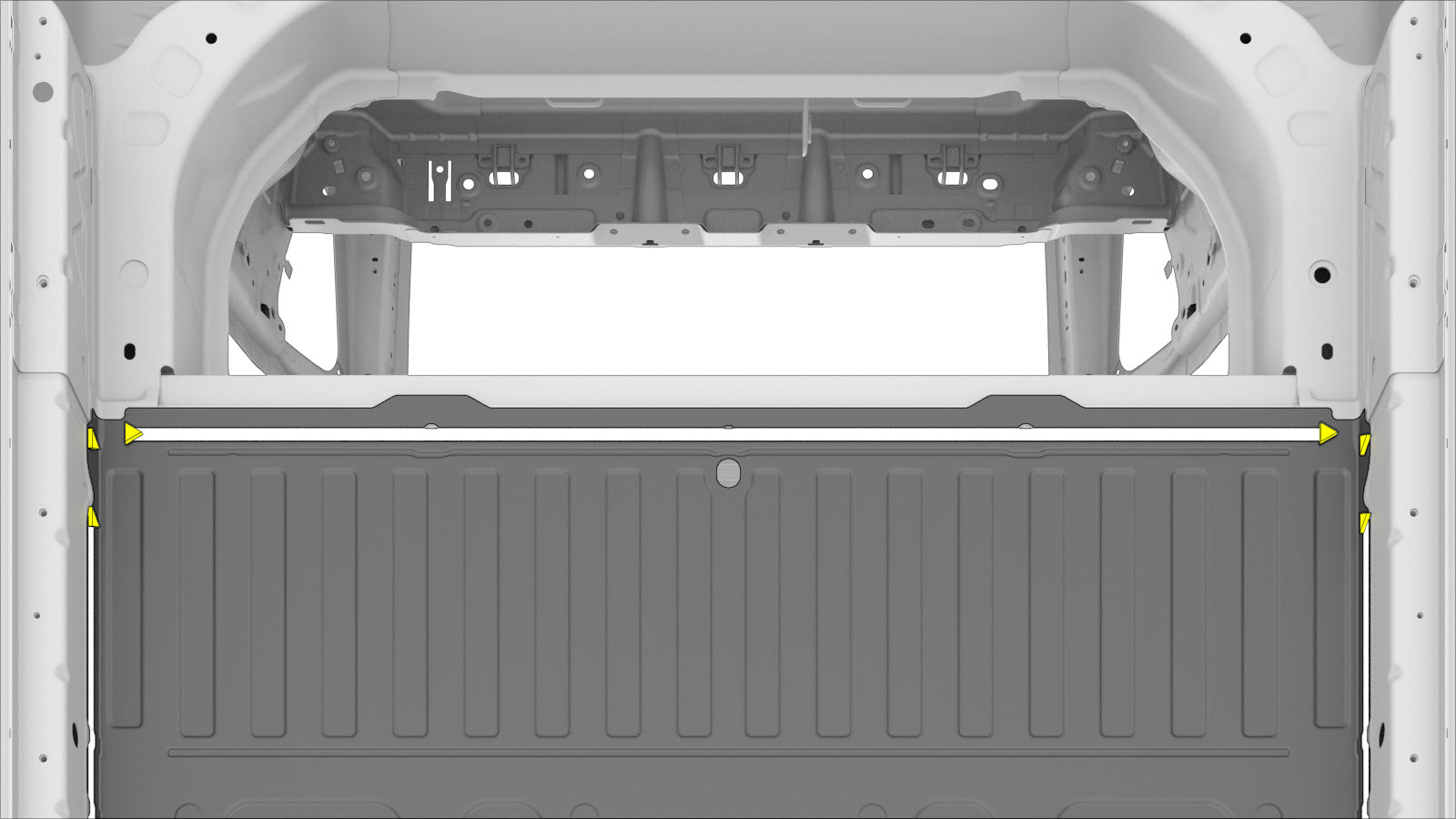

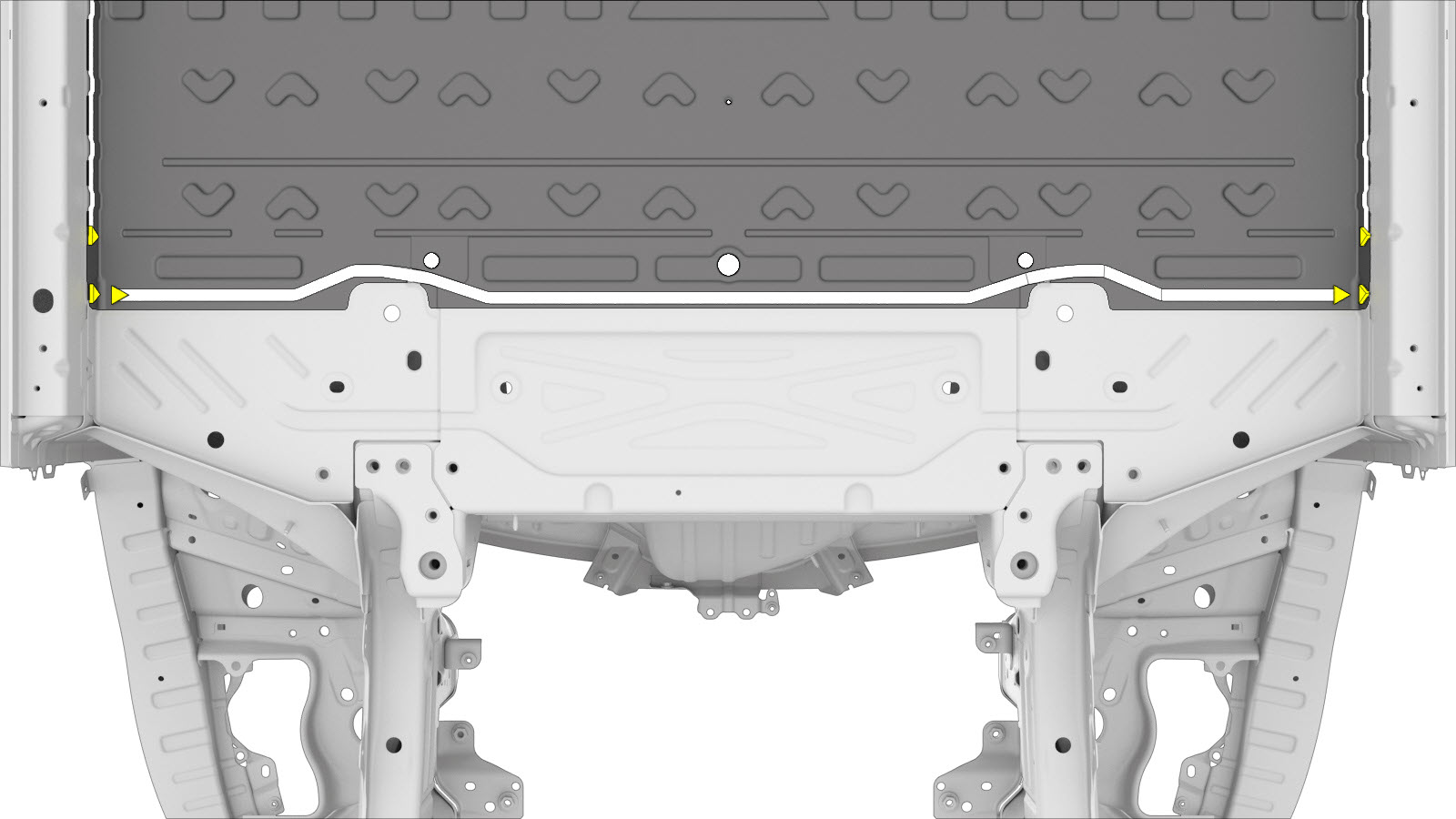

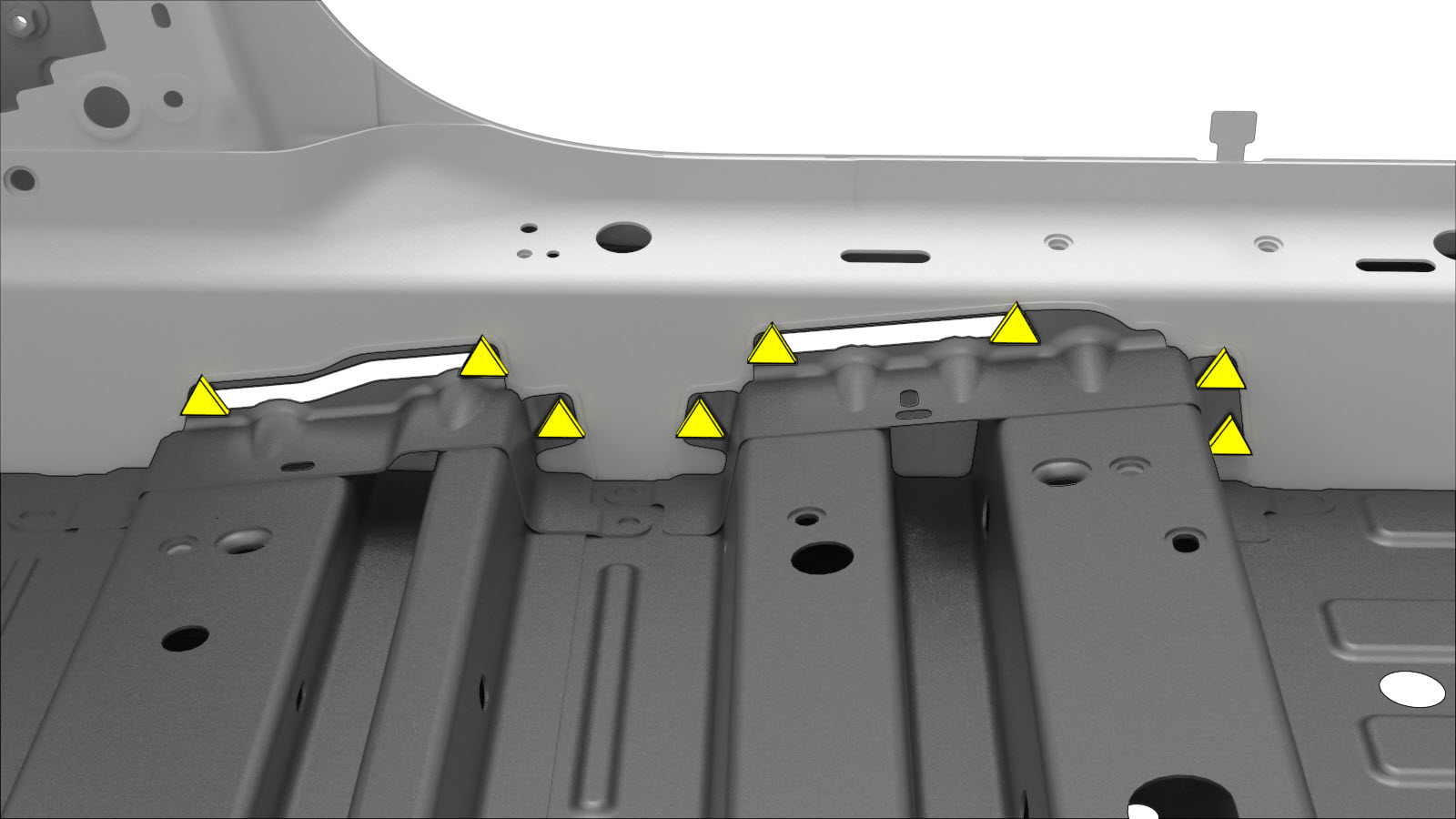

Remove the original component.

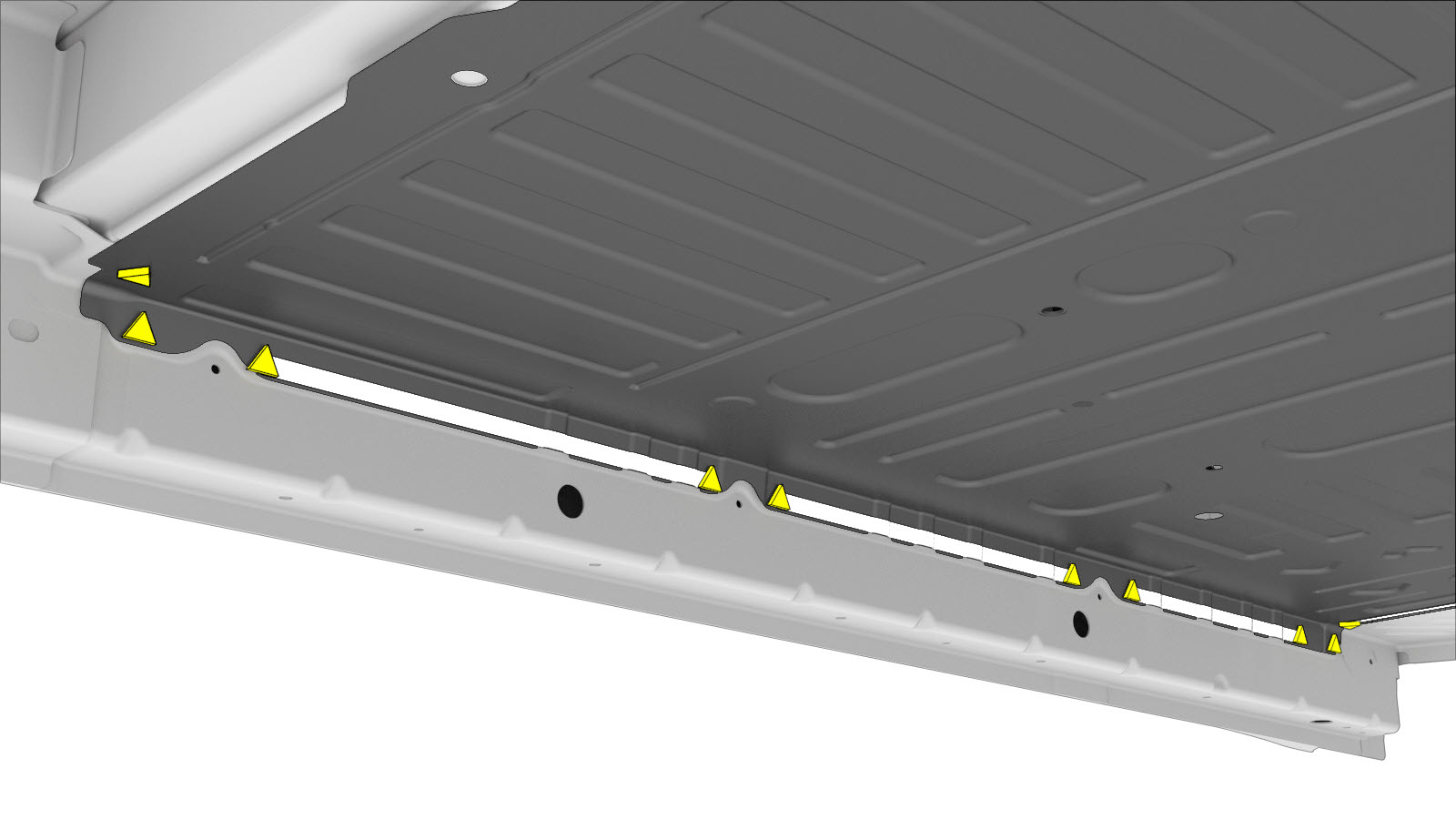

or Factory Spot Welds
Prepare for installation.
注

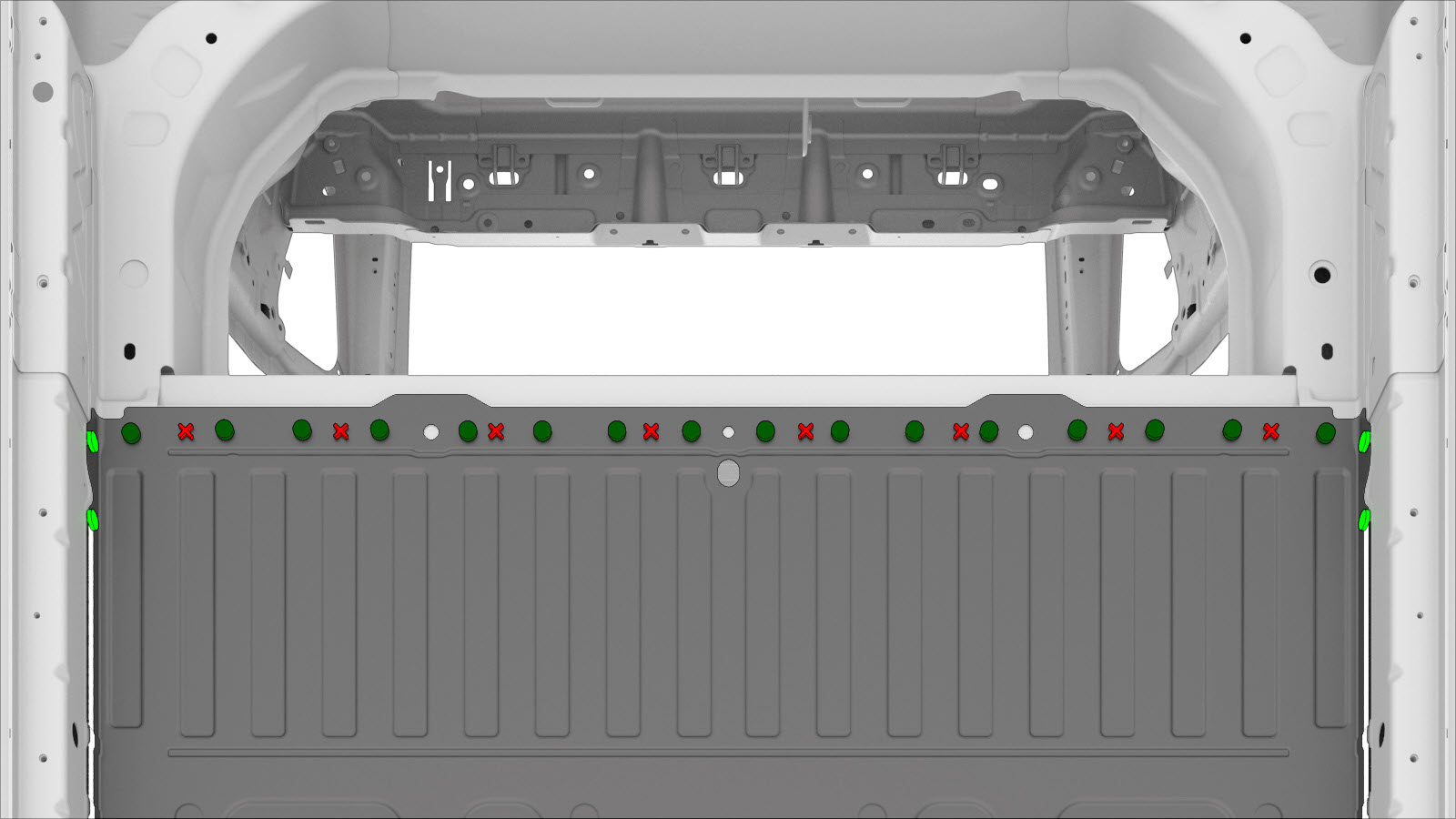

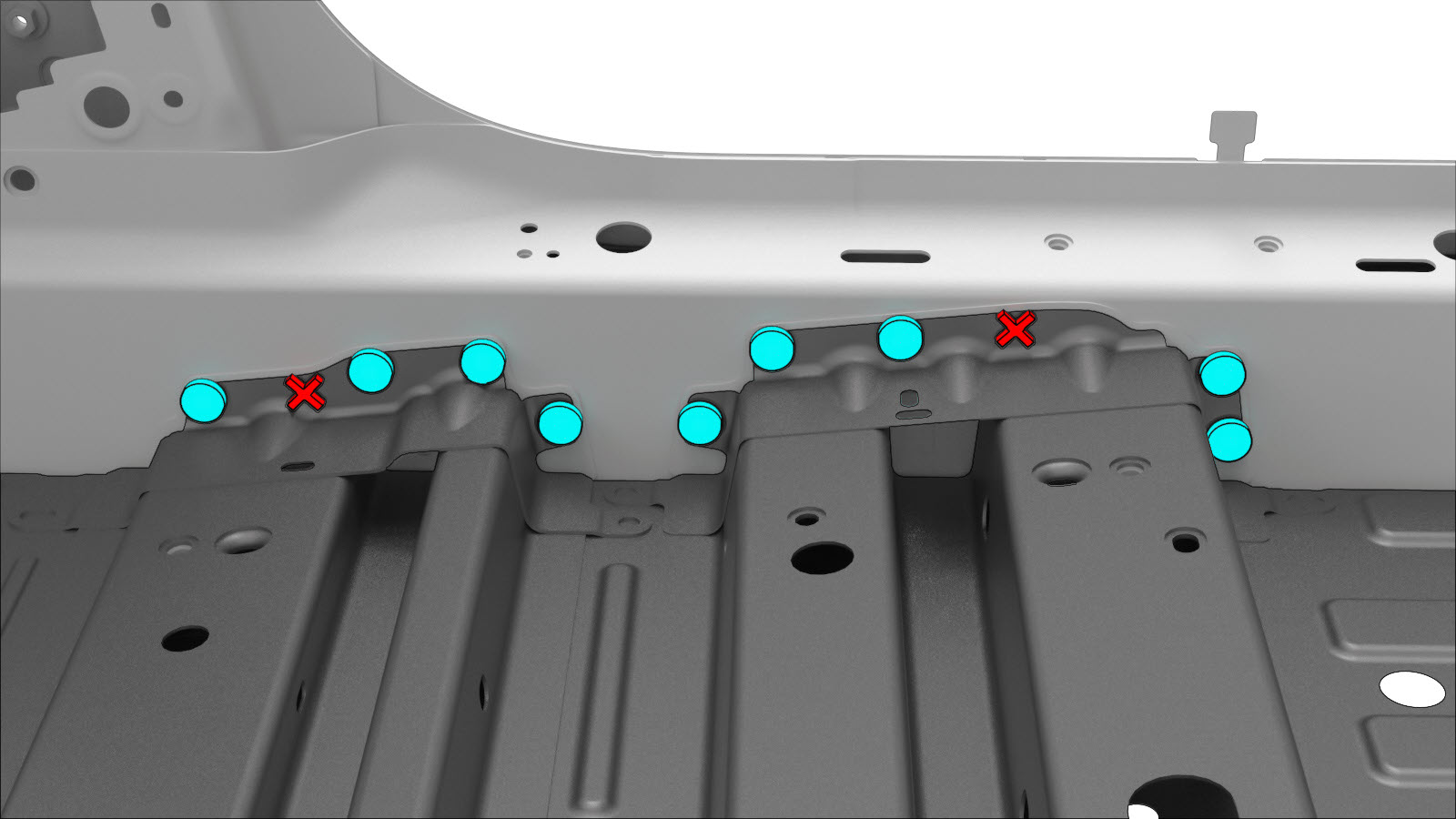

A red X indicates a location where a factory-installed fastener is not being replaced.

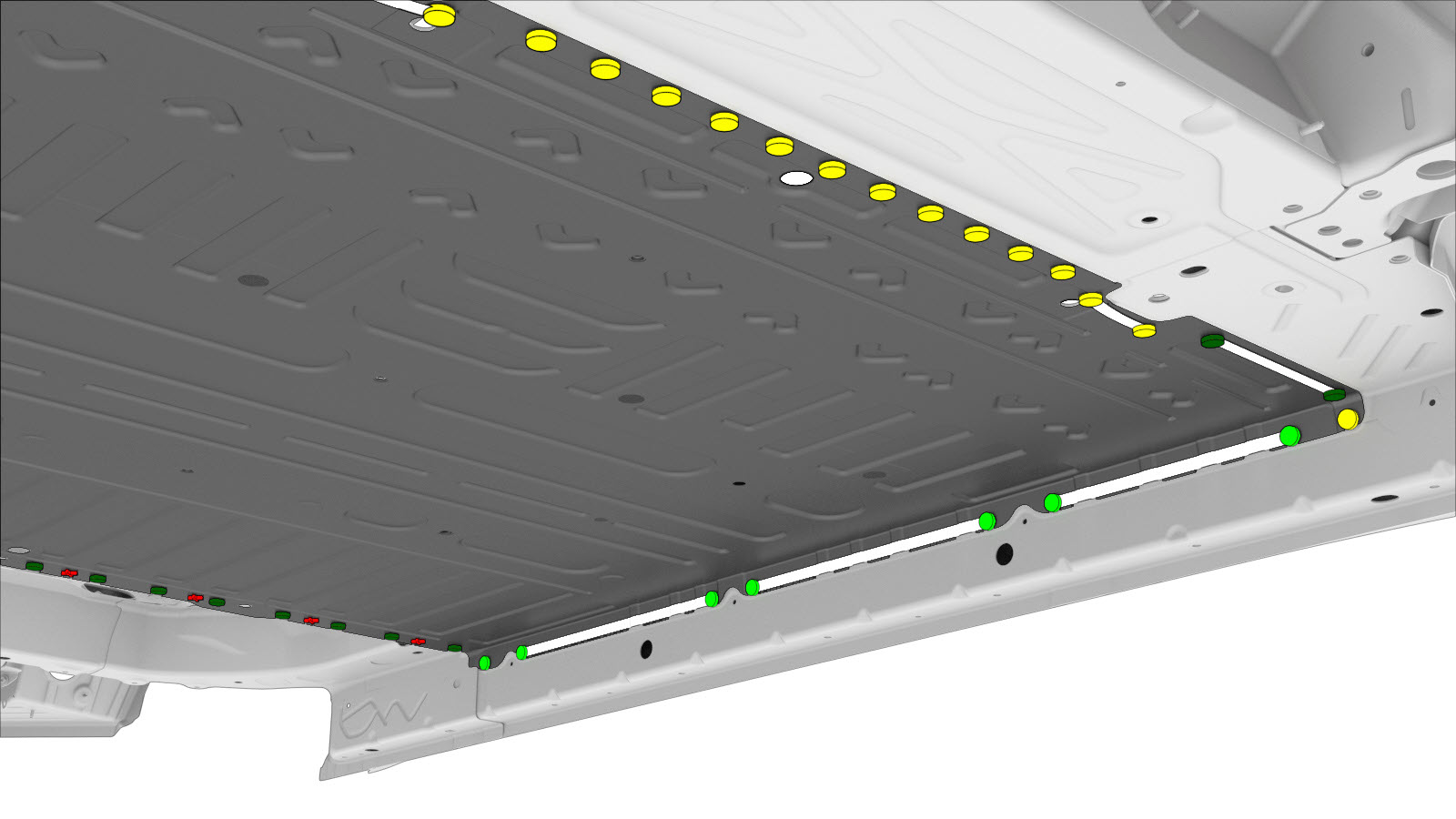

or Countersunk Rivets, 4.8 mm Short
or Countersunk Rivets, 4.8 mm Long

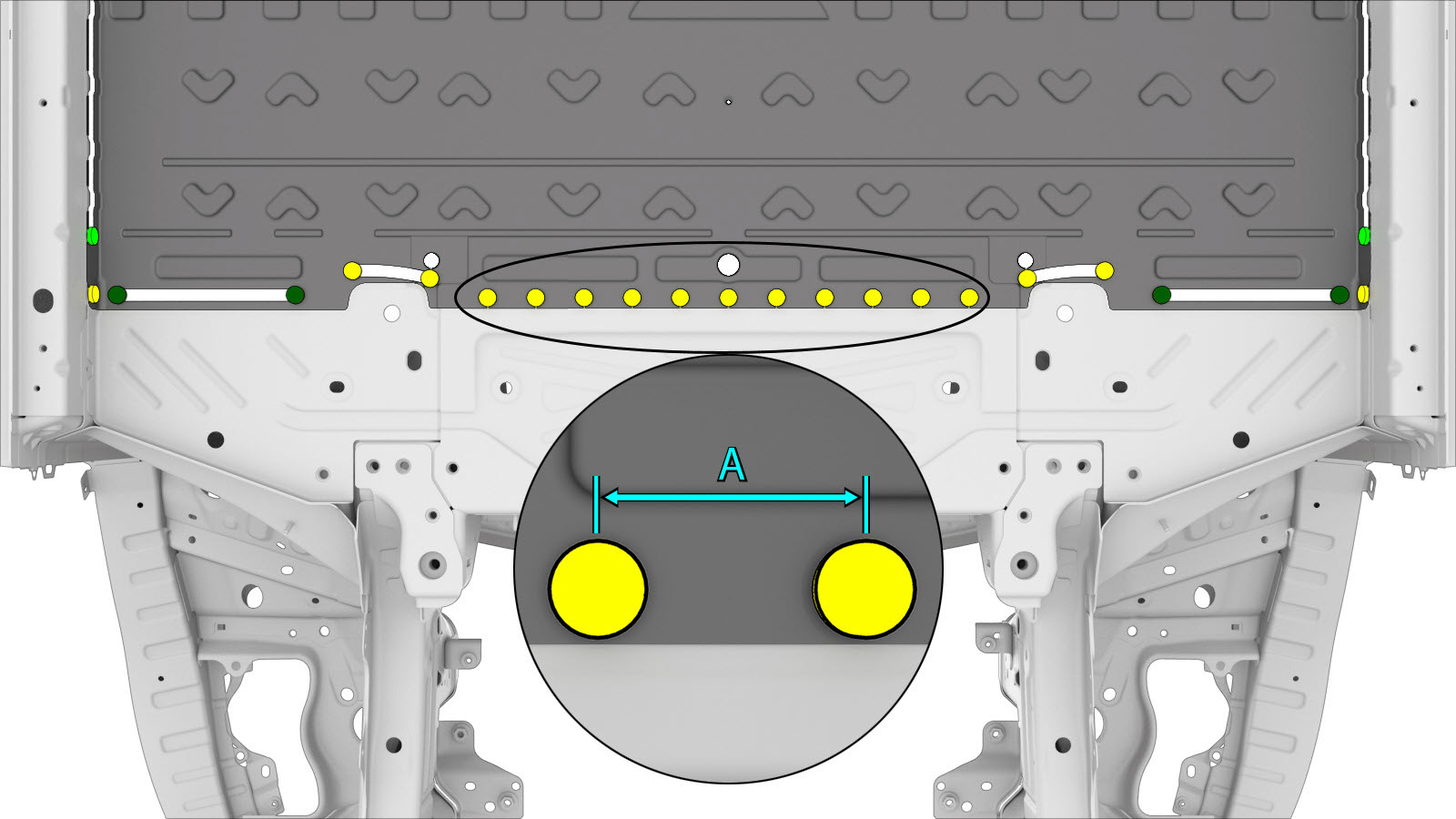

- A = 52.8 毫米
or High Strength Structural Rivets, 6.5 mm

or Rivets, 4.8 mm
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
安装控制台支座（前）。
安装控制台支座（后）。
Perform any necessary post-repair operations.
