轮罩外件加长板

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

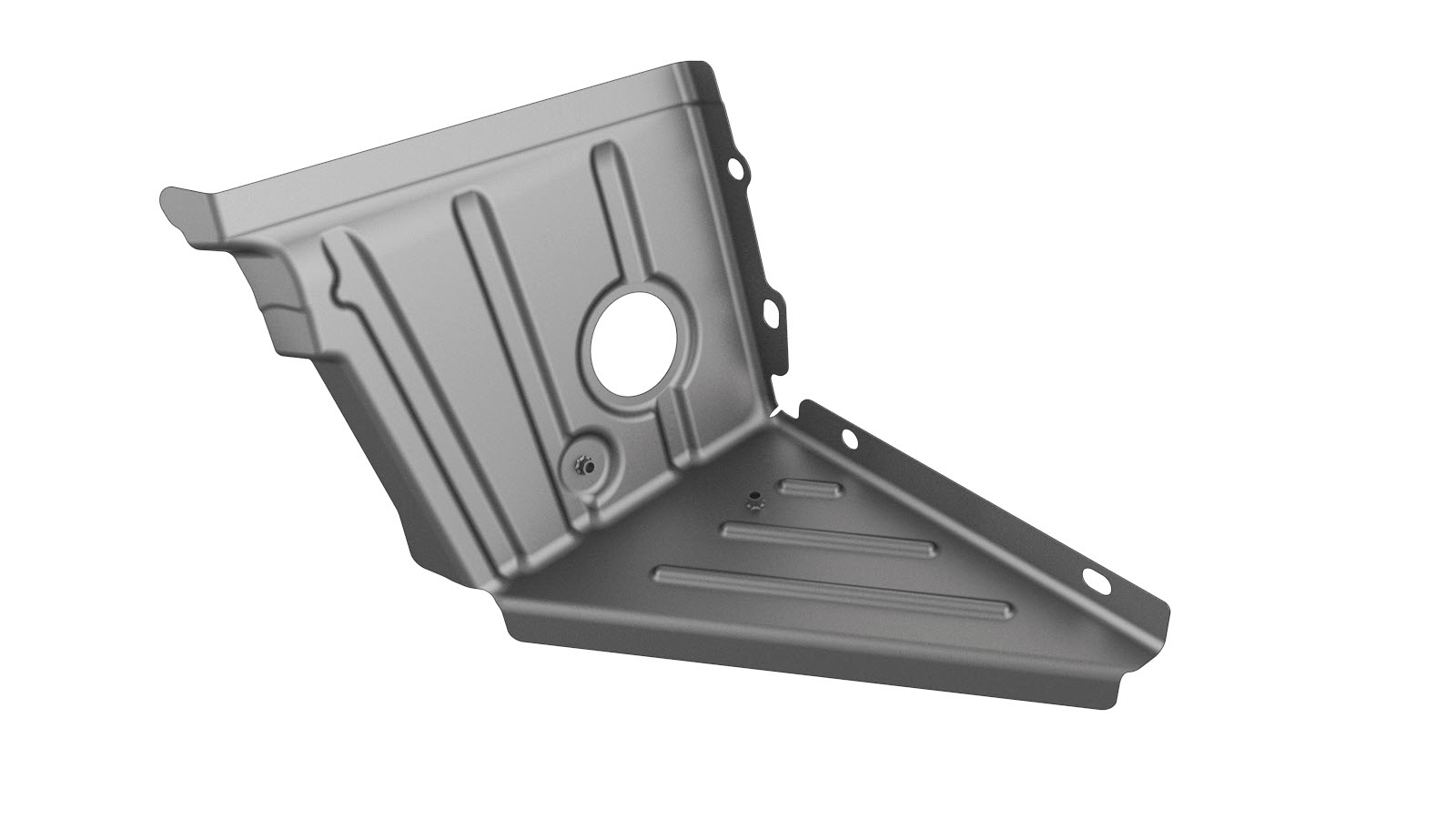

1	EXTN, WHEELHOUSE OTR（轮罩外件加长板）
9	Rivet, 4.8 mm
5	Structural Bulb Rivet, 6.5 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

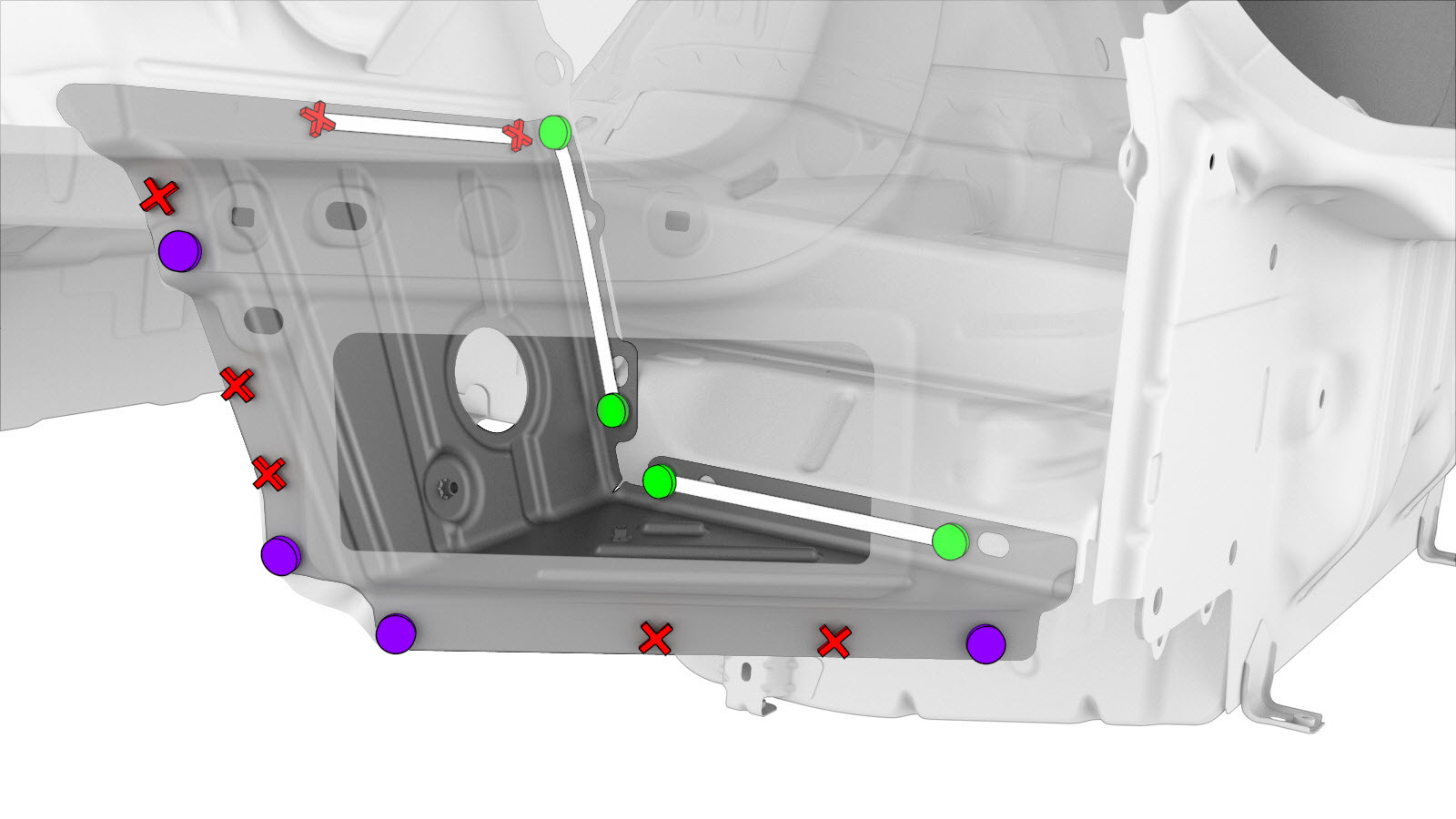

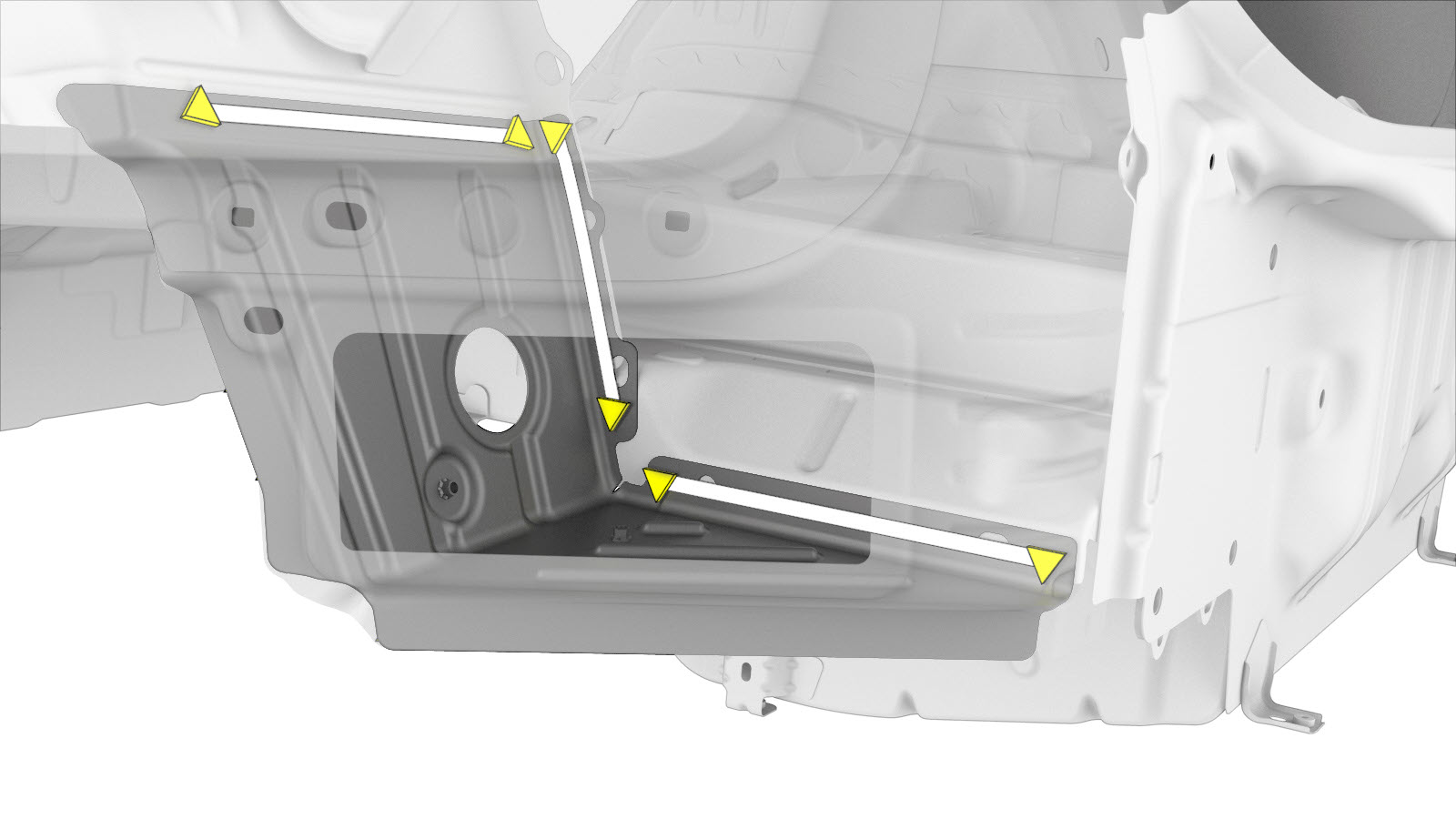

Remove the original component.

or Factory SPRs

or Factory Spot Welds

or Drill through factory spot welds
注
对于这种钻通原厂点焊焊缝的操作，仅钻通 2 块内部面板；不要钻通车身侧外件面板。

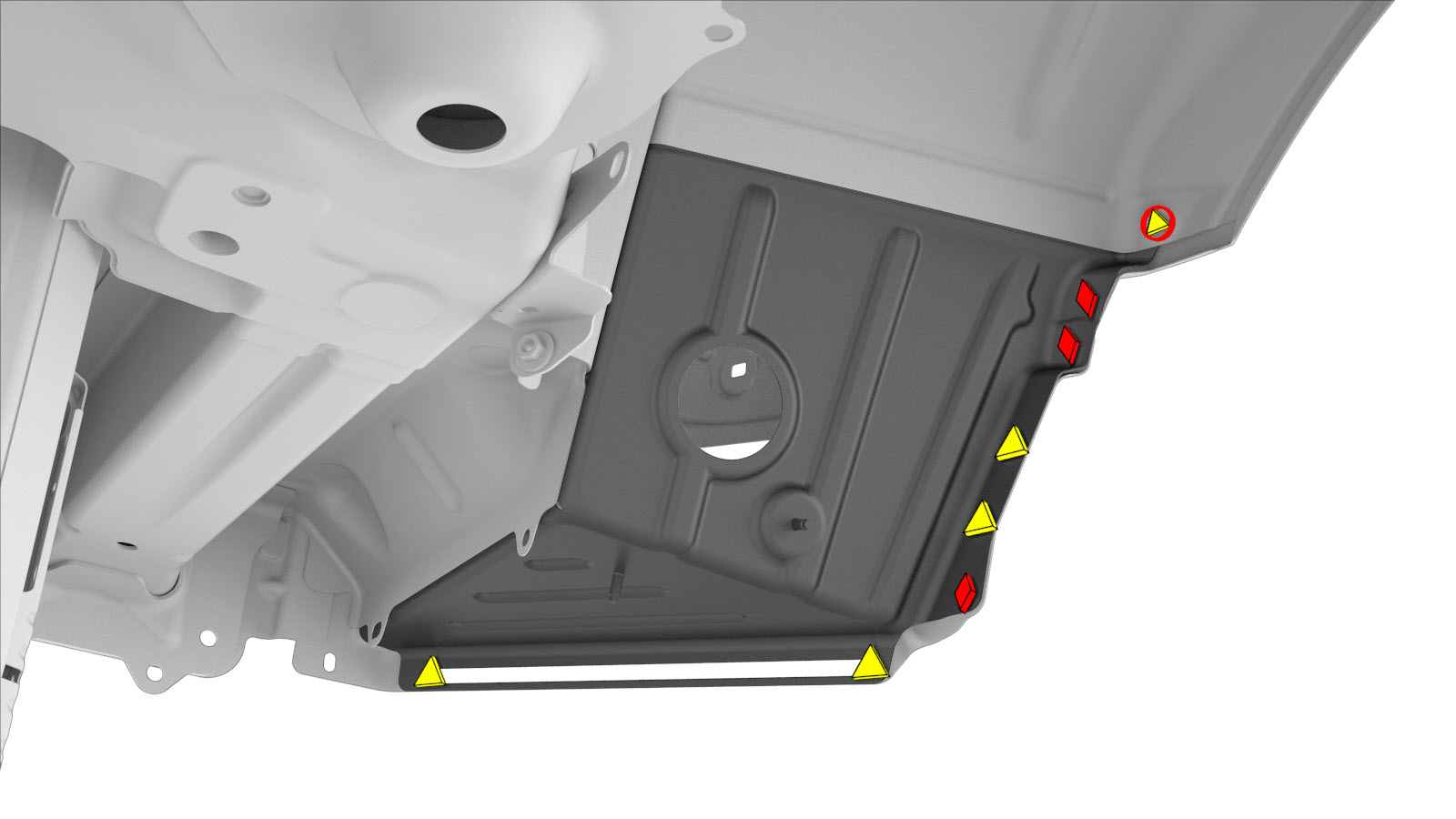

Prepare for installation.

注

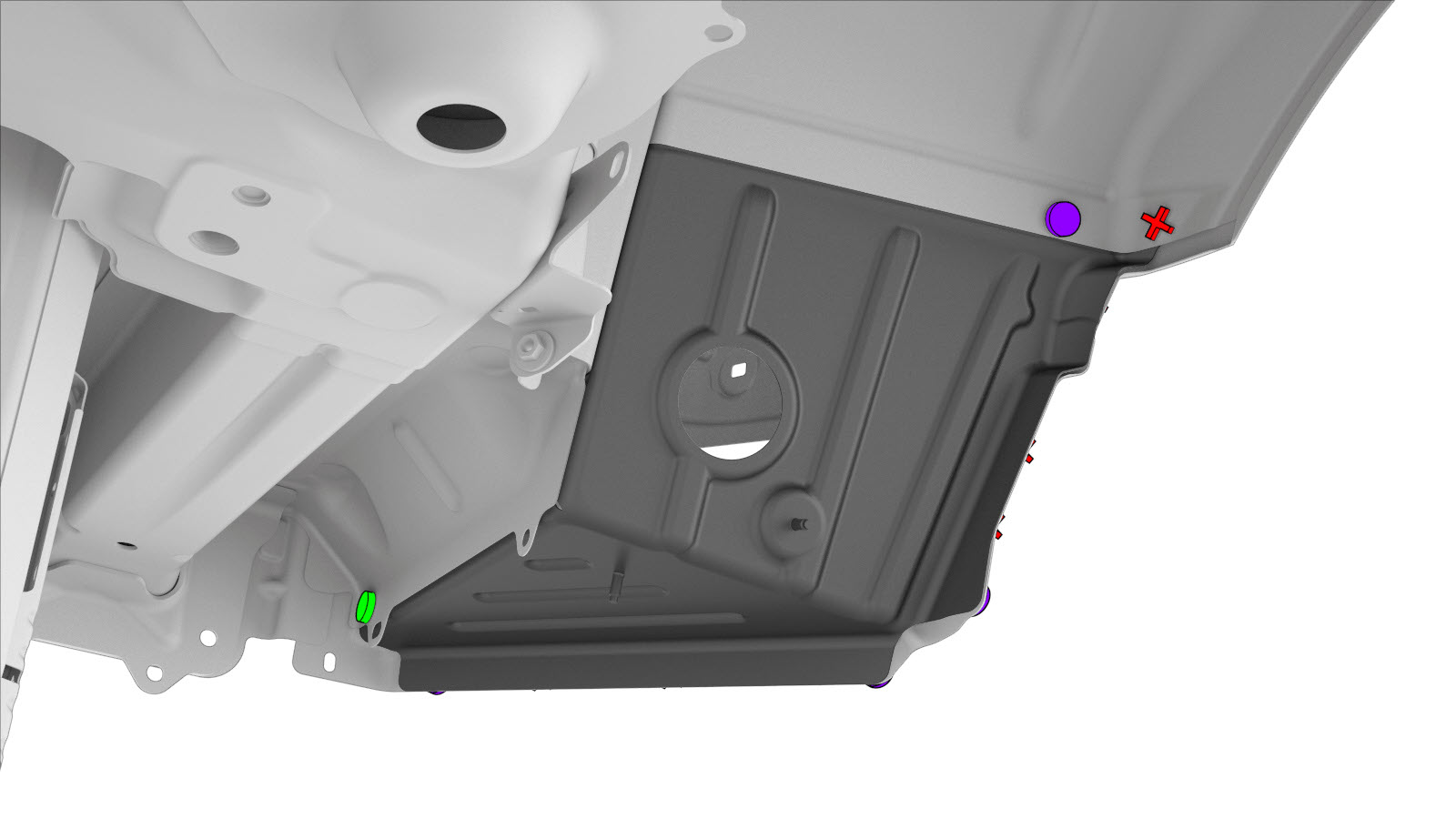

A red X indicates a location where a factory-installed fastener is not being replaced.

or Rivets, 4.8 mm

or Structural Bulb Rivets, 6.5 mm
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Perform any necessary post-repair operations.
