前围侧总成

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
Properly mount the vehicle on a frame bench when performing this procedure.

Parts List


Quantity	Description	Image / Notes

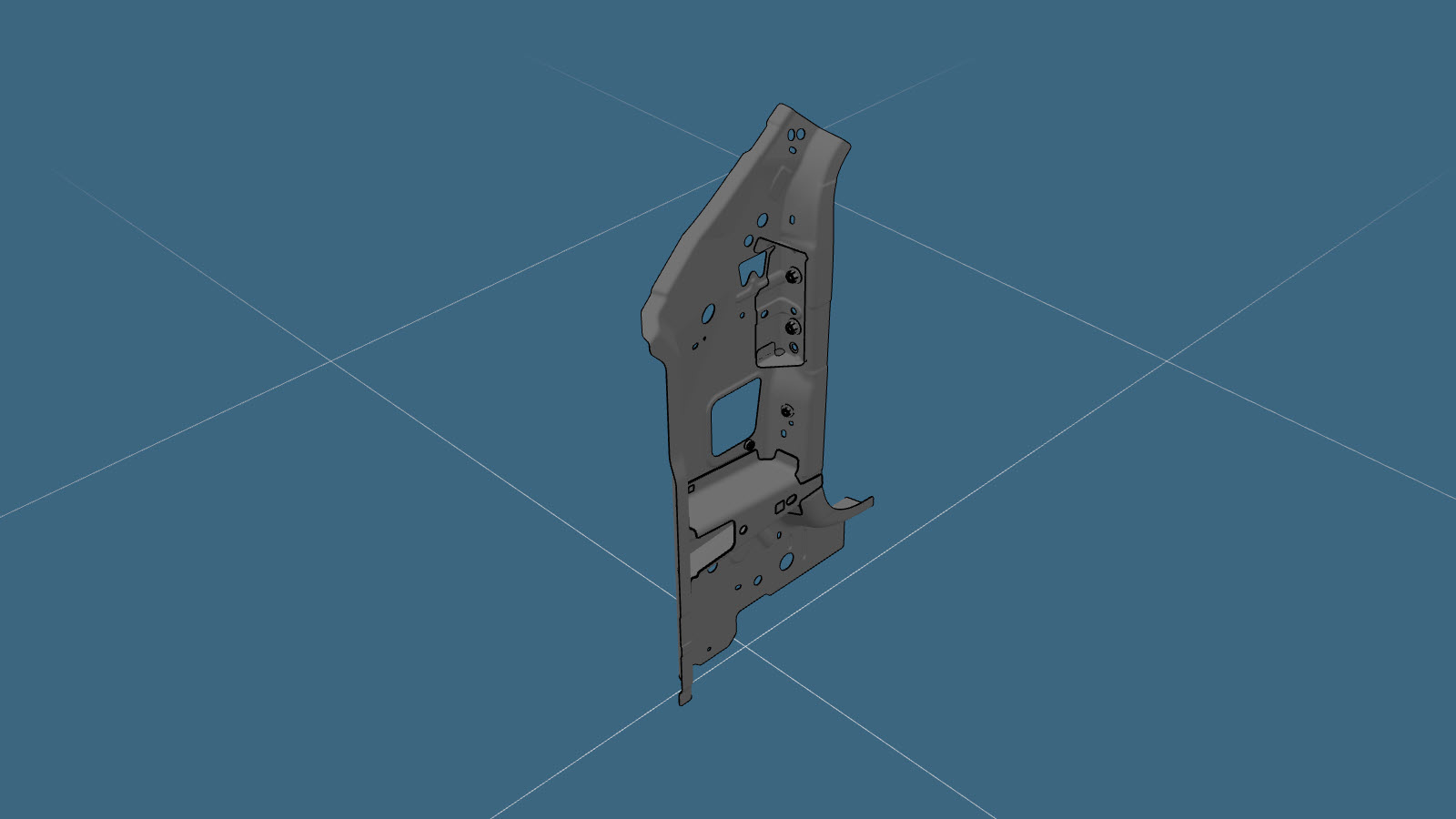

1	ASY - COWL SIDE（前围侧总成）
3	Structural Bulb Rivet, 6.5 mm
13	Rivet, 4.8 mm
39	High Strength Structural Rivet, 6.5 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

拆卸铰链柱。
拆卸A 柱外件加固板。

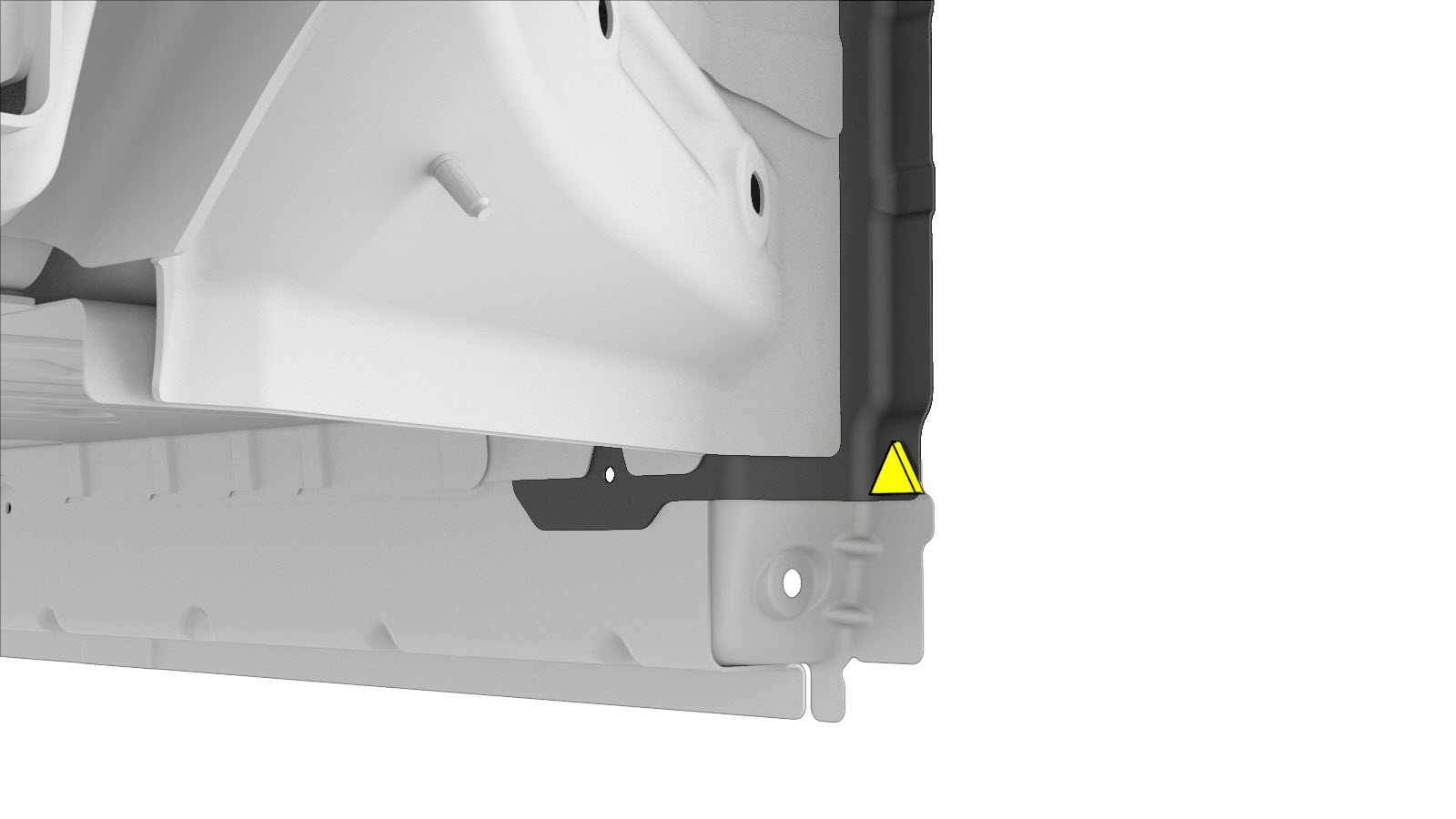

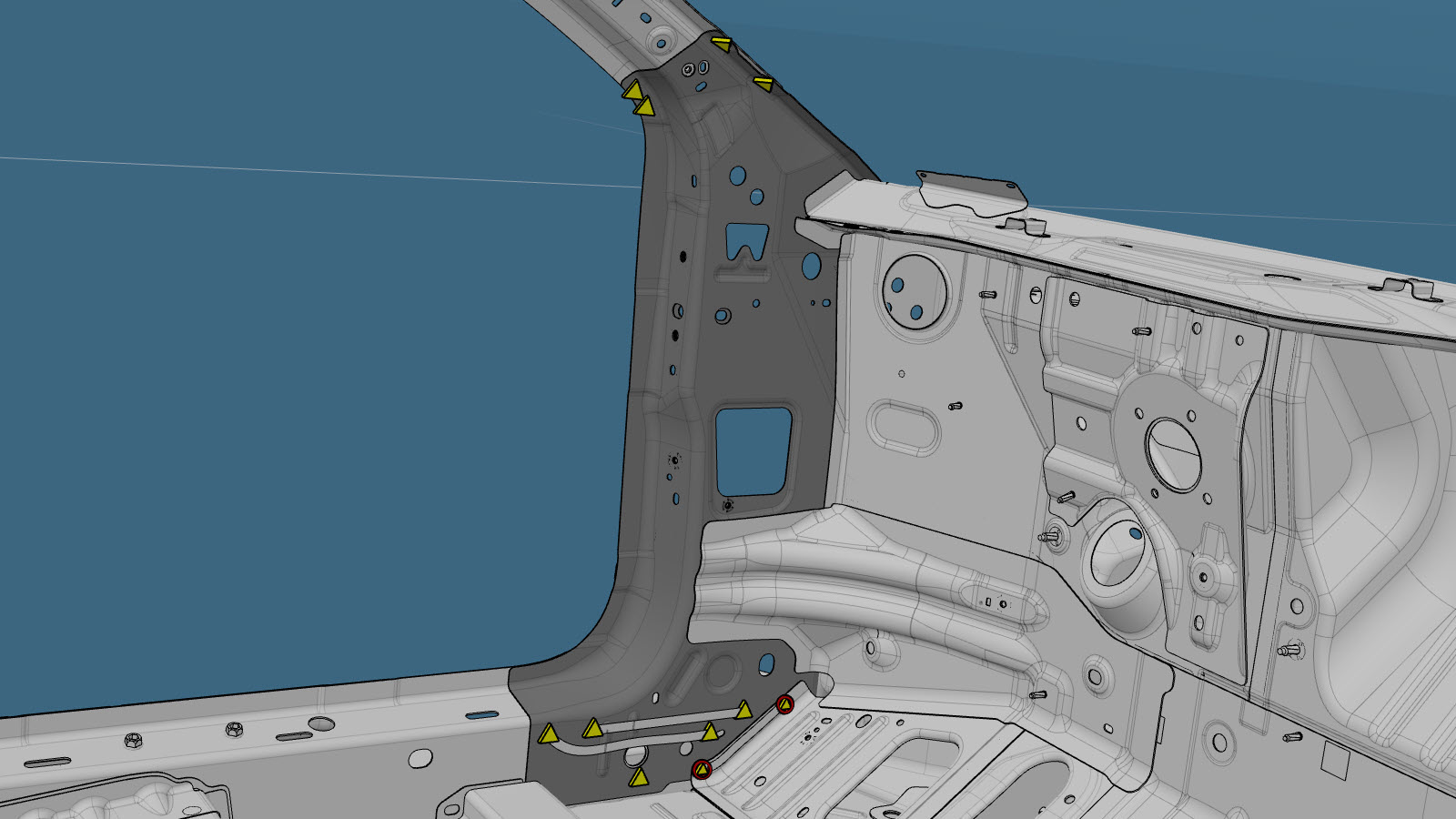

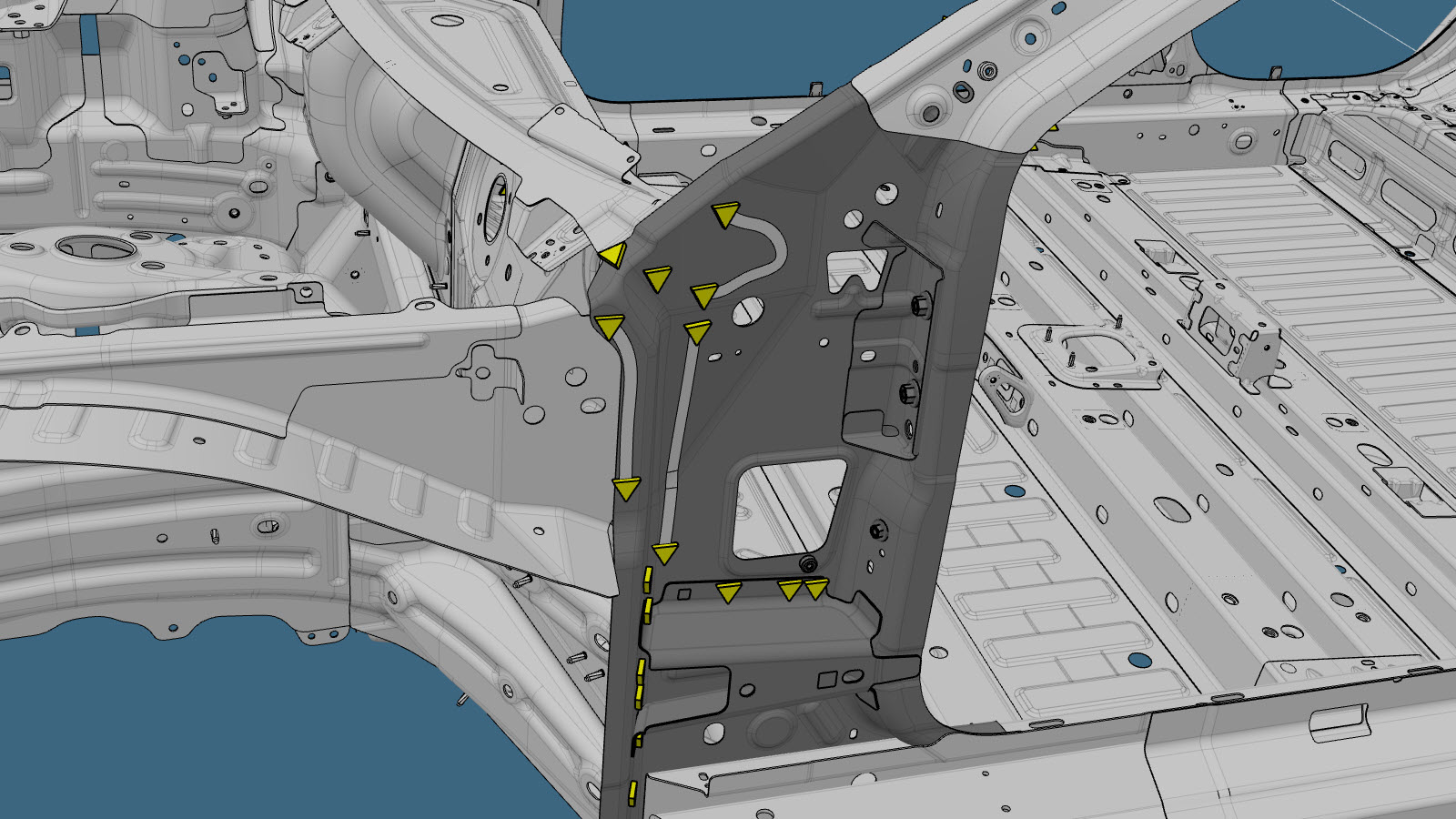

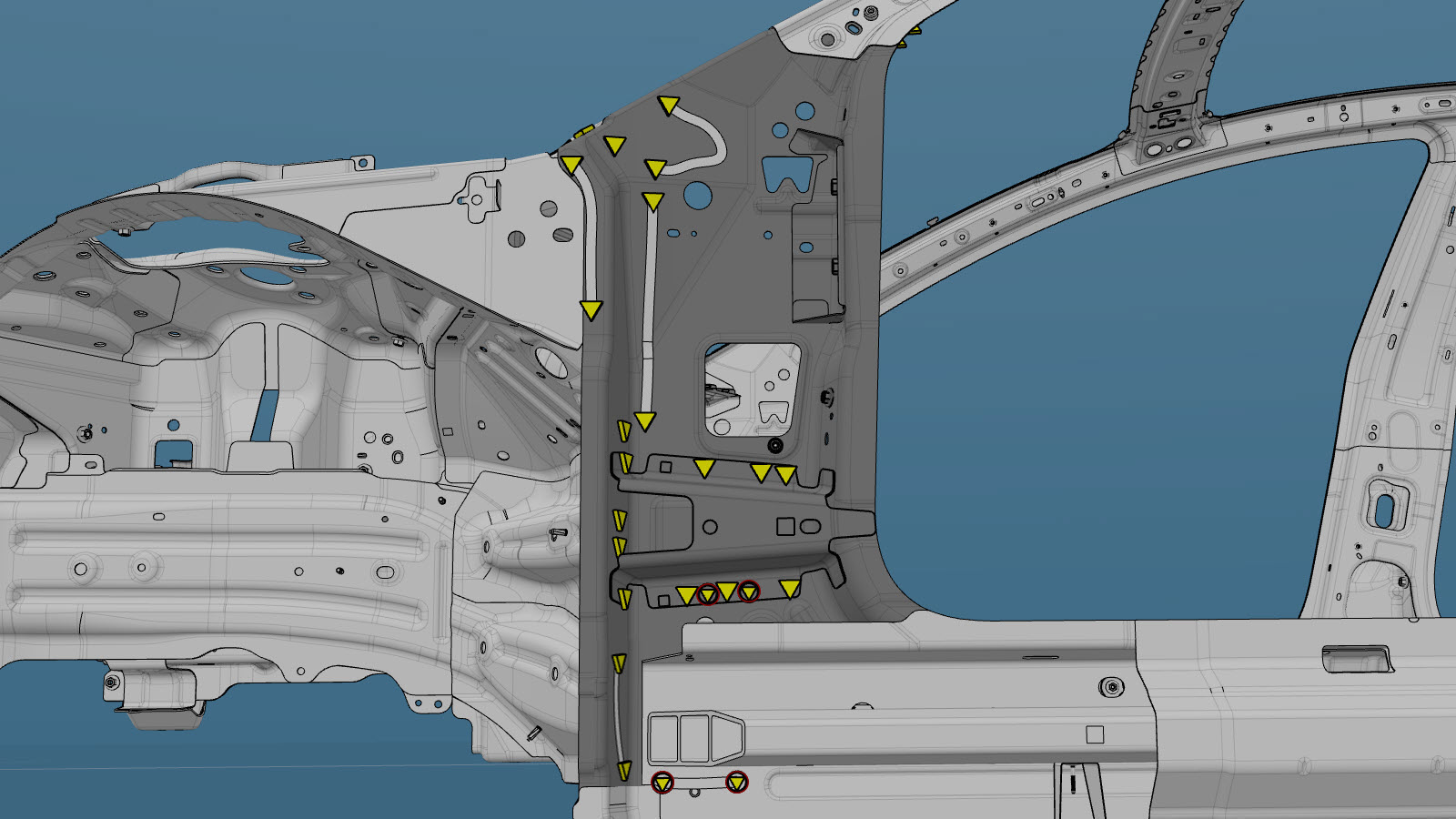

Remove the original component.

or Factory Spot Welds

or Drill through factory spot welds
注
When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

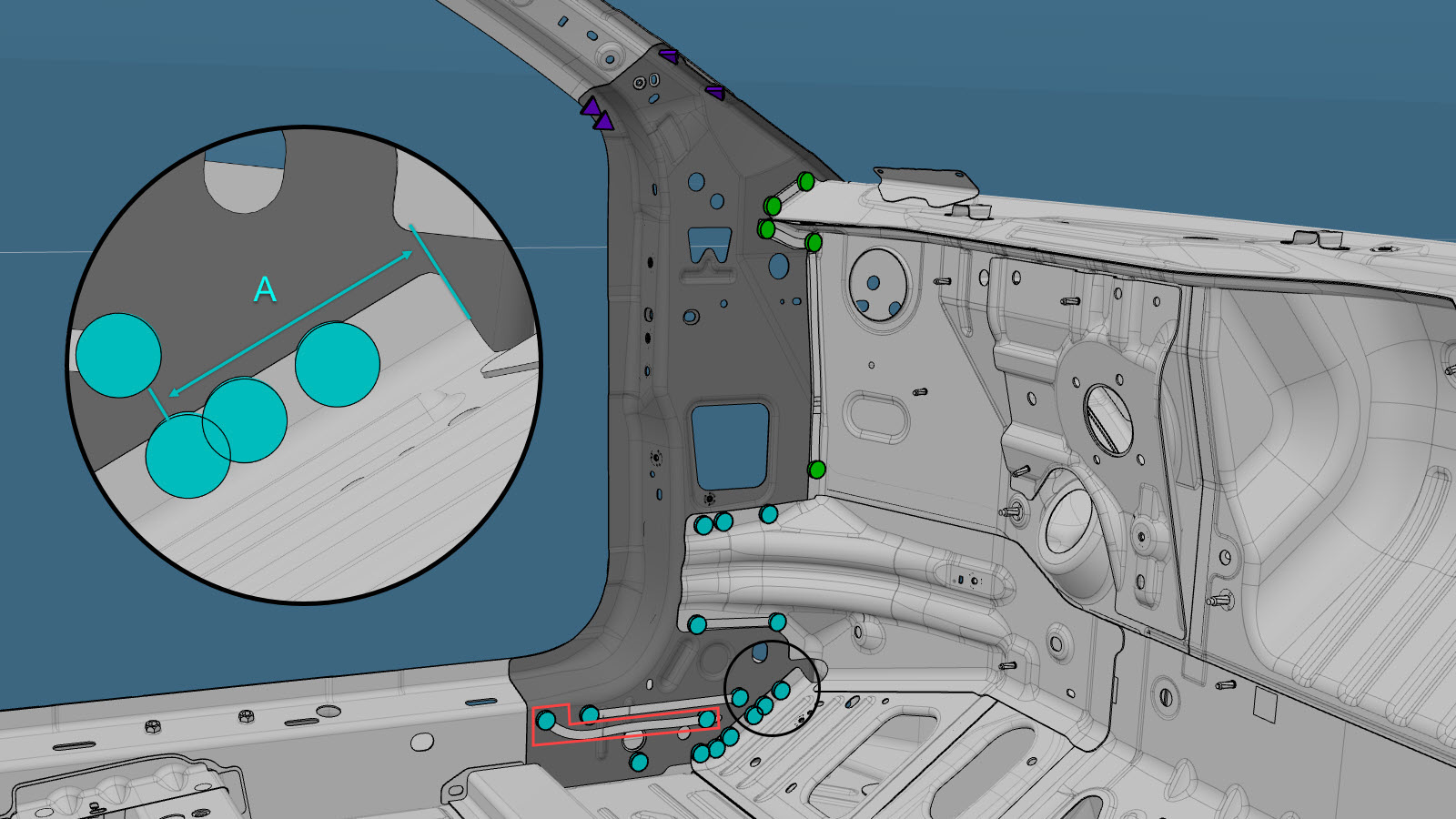

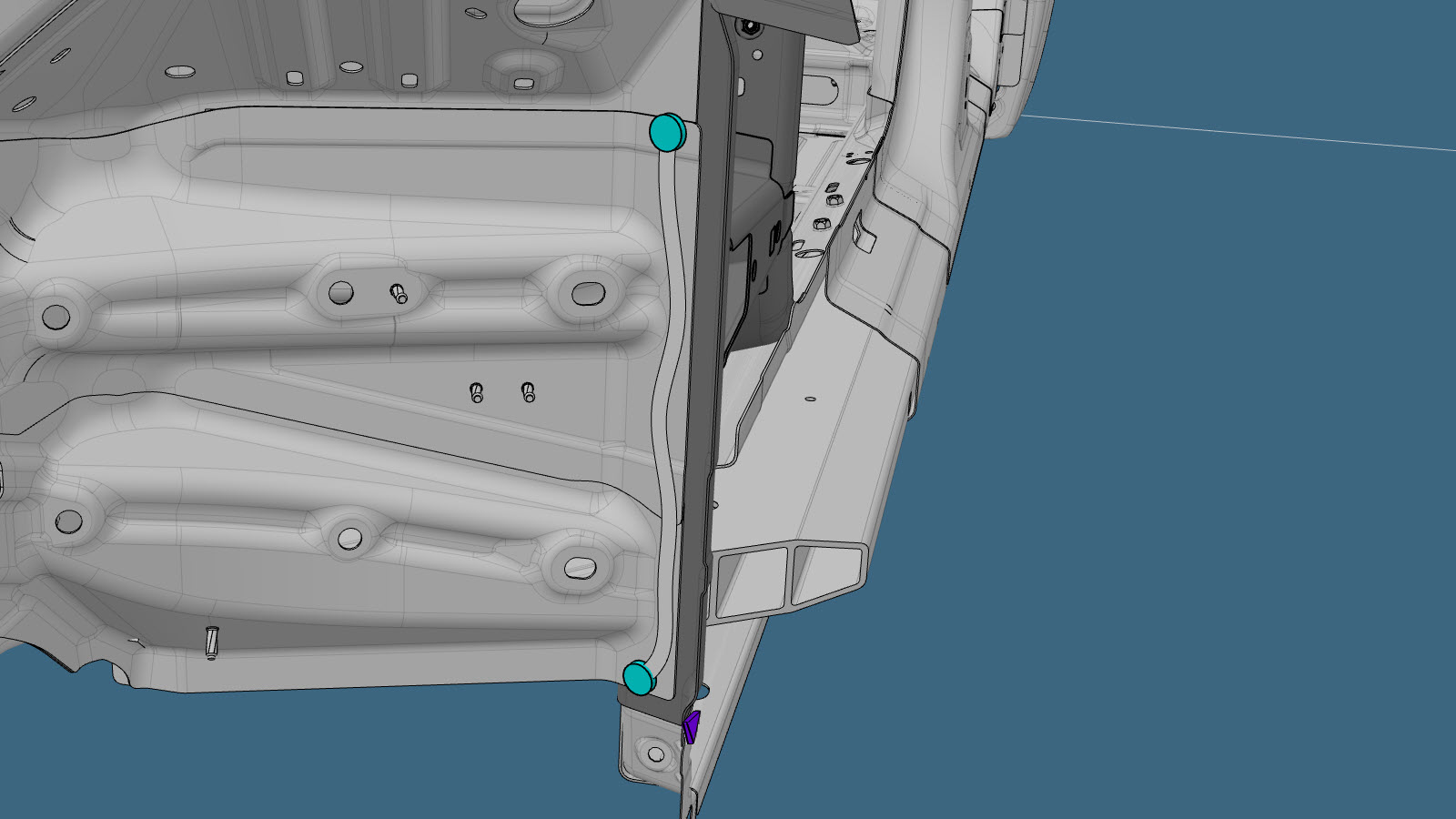

Prepare for installation.
or Installation Spot Welds

or Structural Bulb Rivets, 6.5 mm

or Rivets, 4.8 mm
or High Strength Structural Rivets, 6.5 mm
- A = 75 毫米。
注

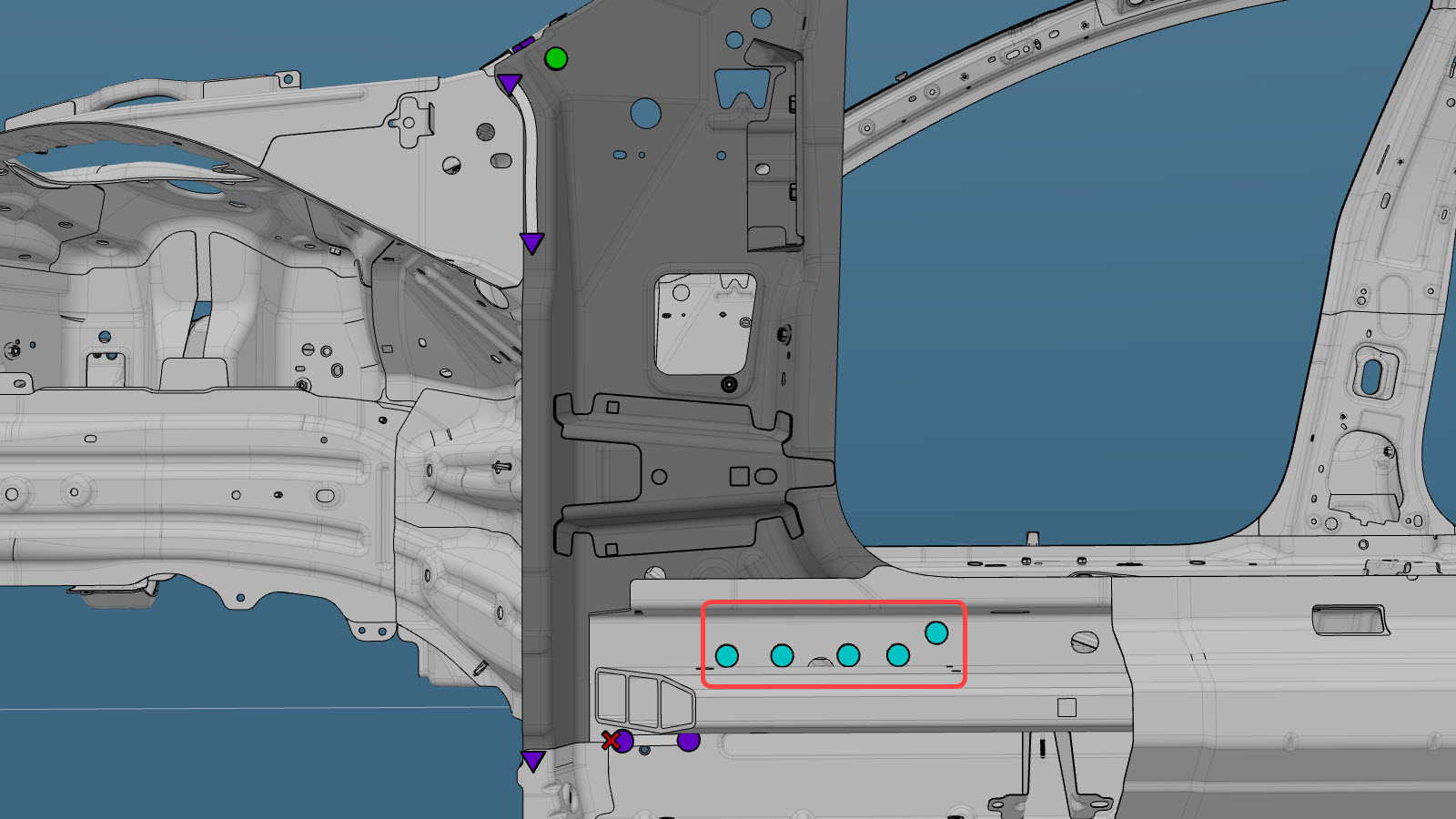

为避免与门槛插件发生碰撞，以红色突出显示的铆钉孔于车辆外部钻出，但铆钉的安装从车辆内部进行。
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Perform resistance spot welding.

警告
Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.

警告
Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
安装泡沫挡板。
安装新A 柱外件加固板。
安装铰链柱。
Perform any necessary post-repair operations.
