前减震塔罩

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
Properly mount the vehicle on a frame bench when performing this procedure.

Parts List


Quantity	Description	Image / Notes

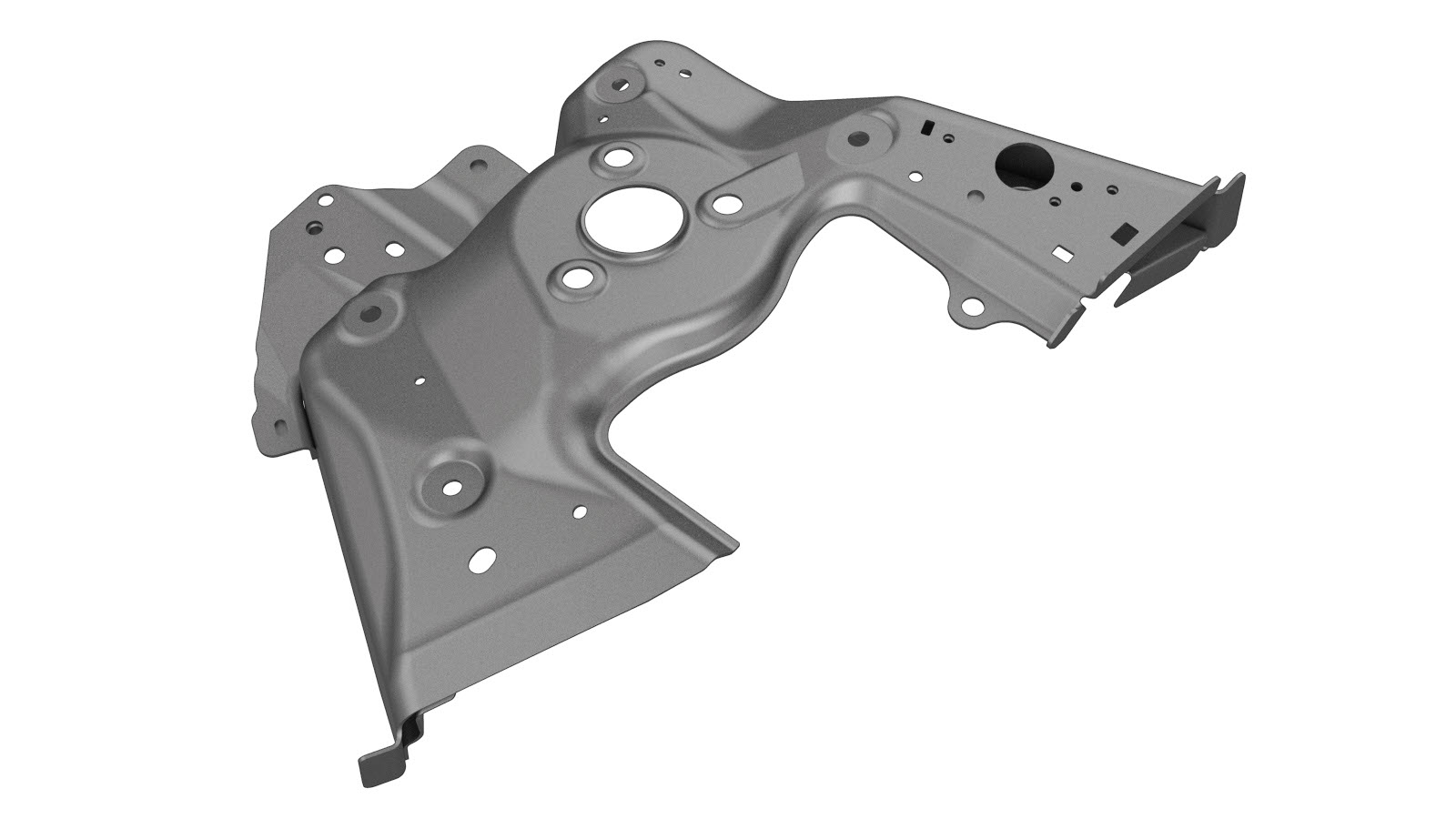

1	M3 ASY, SHOCK TOWER UPR（前减震塔罩）
18	Structural Bulb Rivet, 6.5 mm
27	High Strength Structural Rivet, 6.5 mm
5	Bolt	Tesla 零件号 1011818-00-A。
5	Nut	Tesla 零件号 1006628-01-A。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

拆卸前排座位外侧。

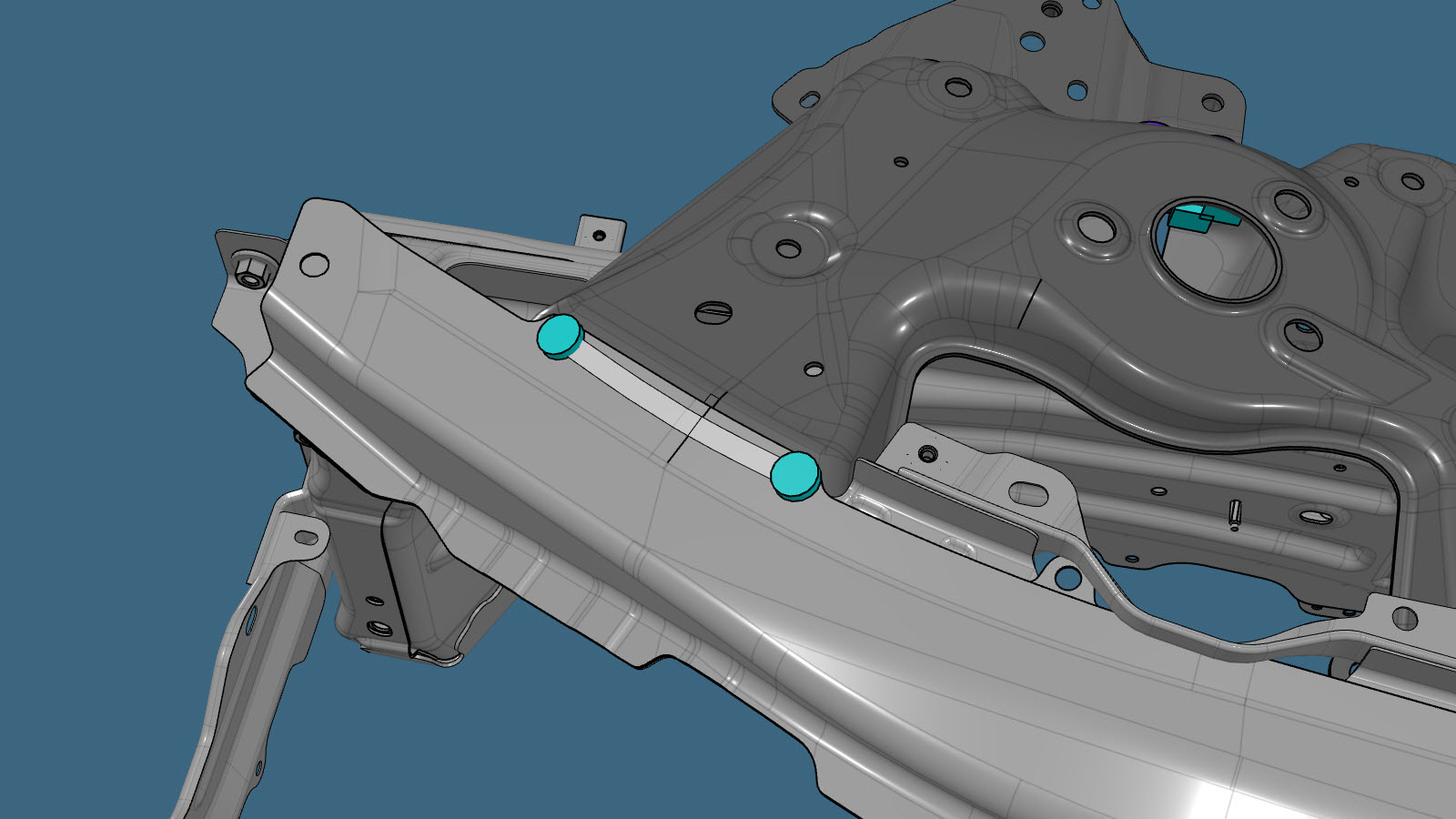

Remove the original component.

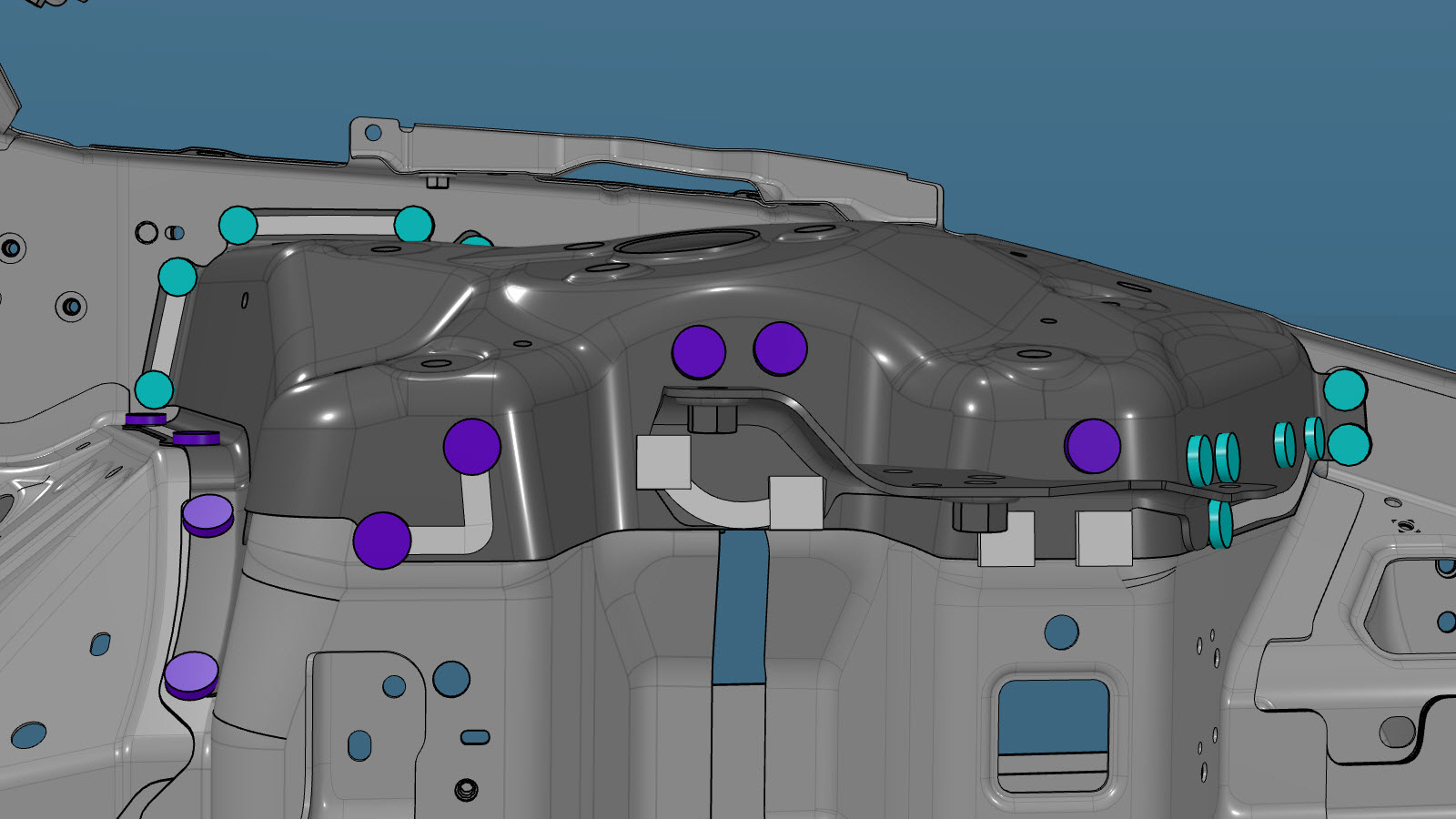

or Factory Spot Welds

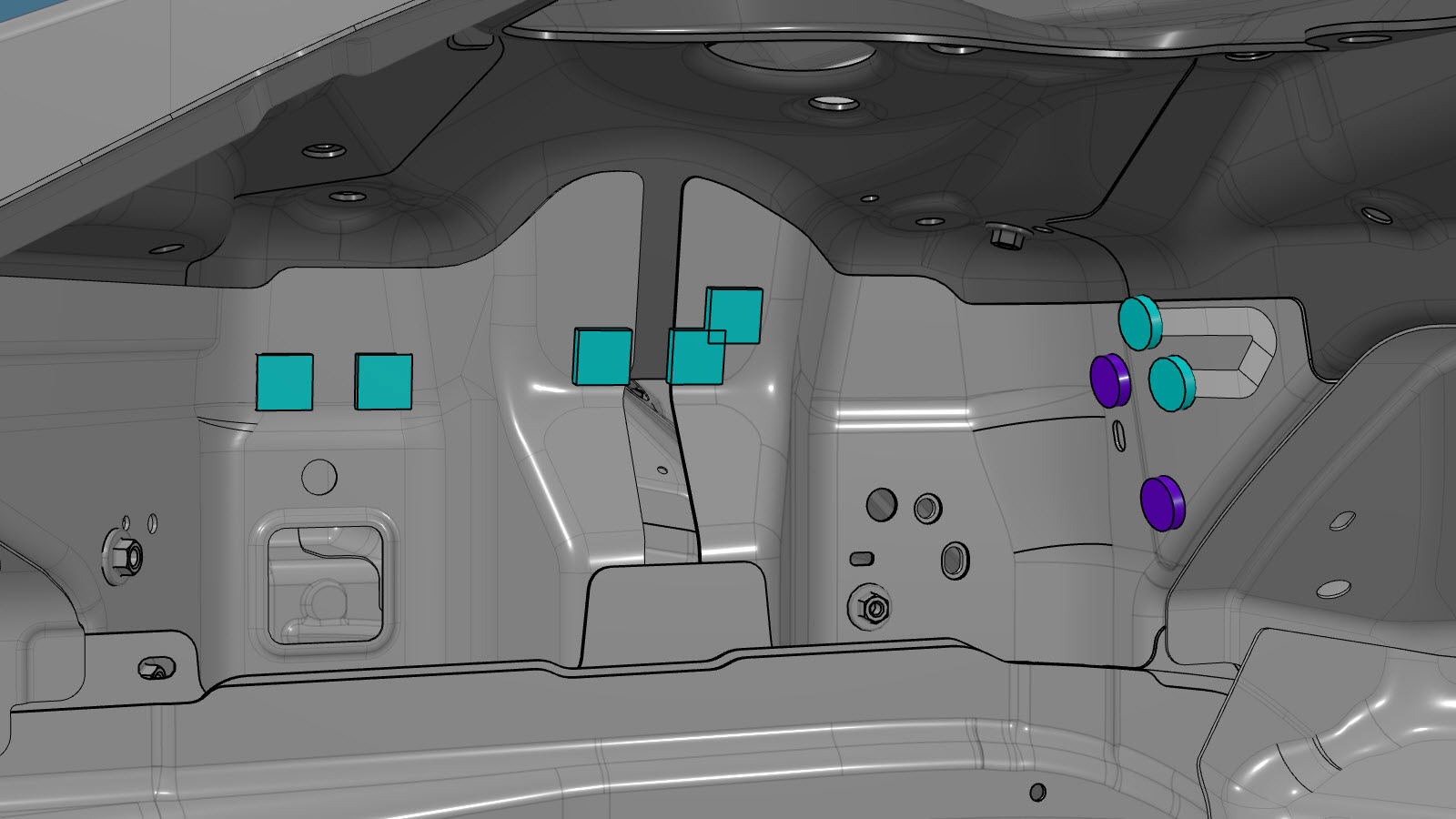

Prepare for installation.
Structural Bulb Rivet, 6.5 mm
High Strength Structural Rivet, 6.5 mm

Bolt

Nut

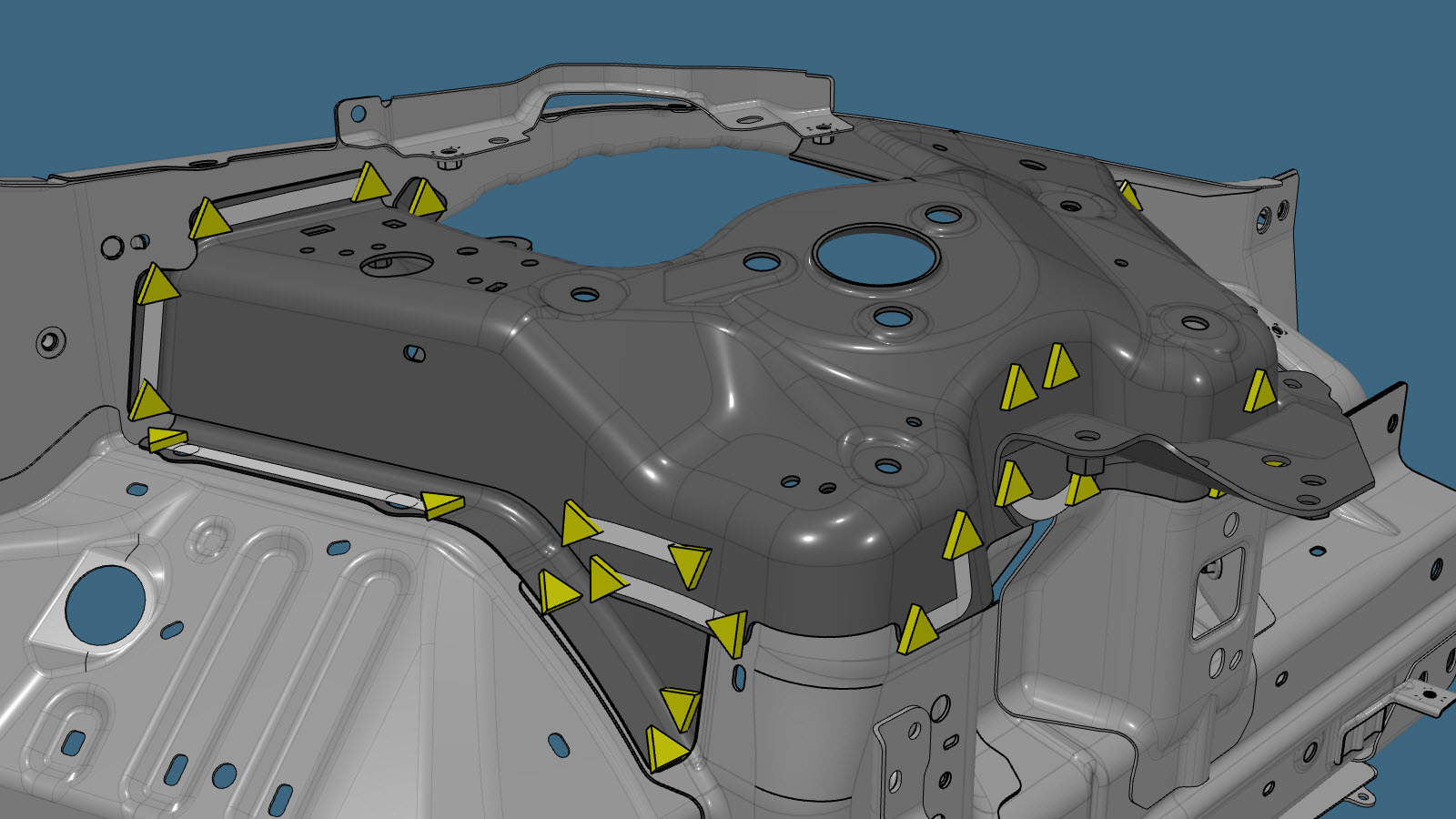

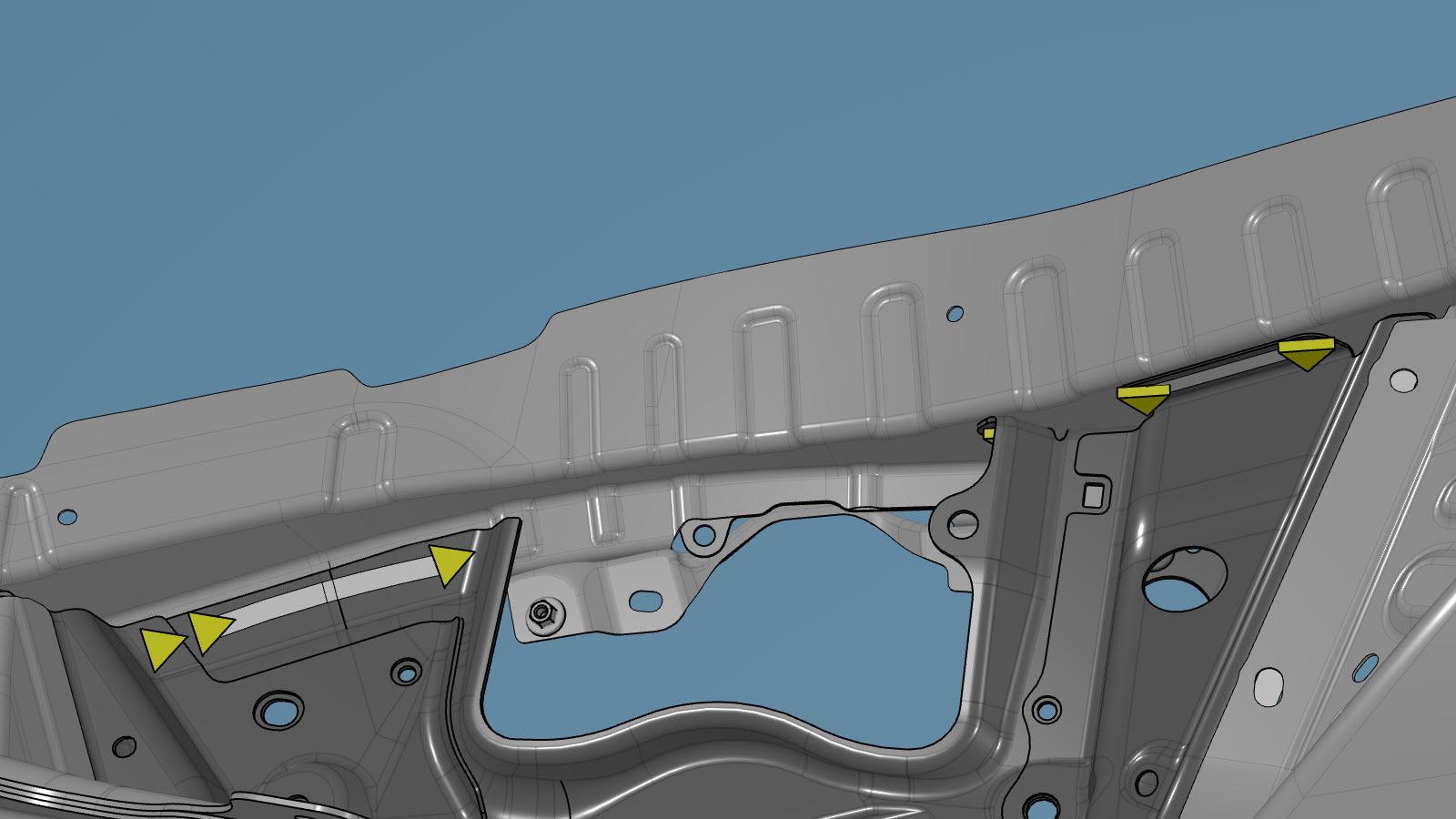

Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.

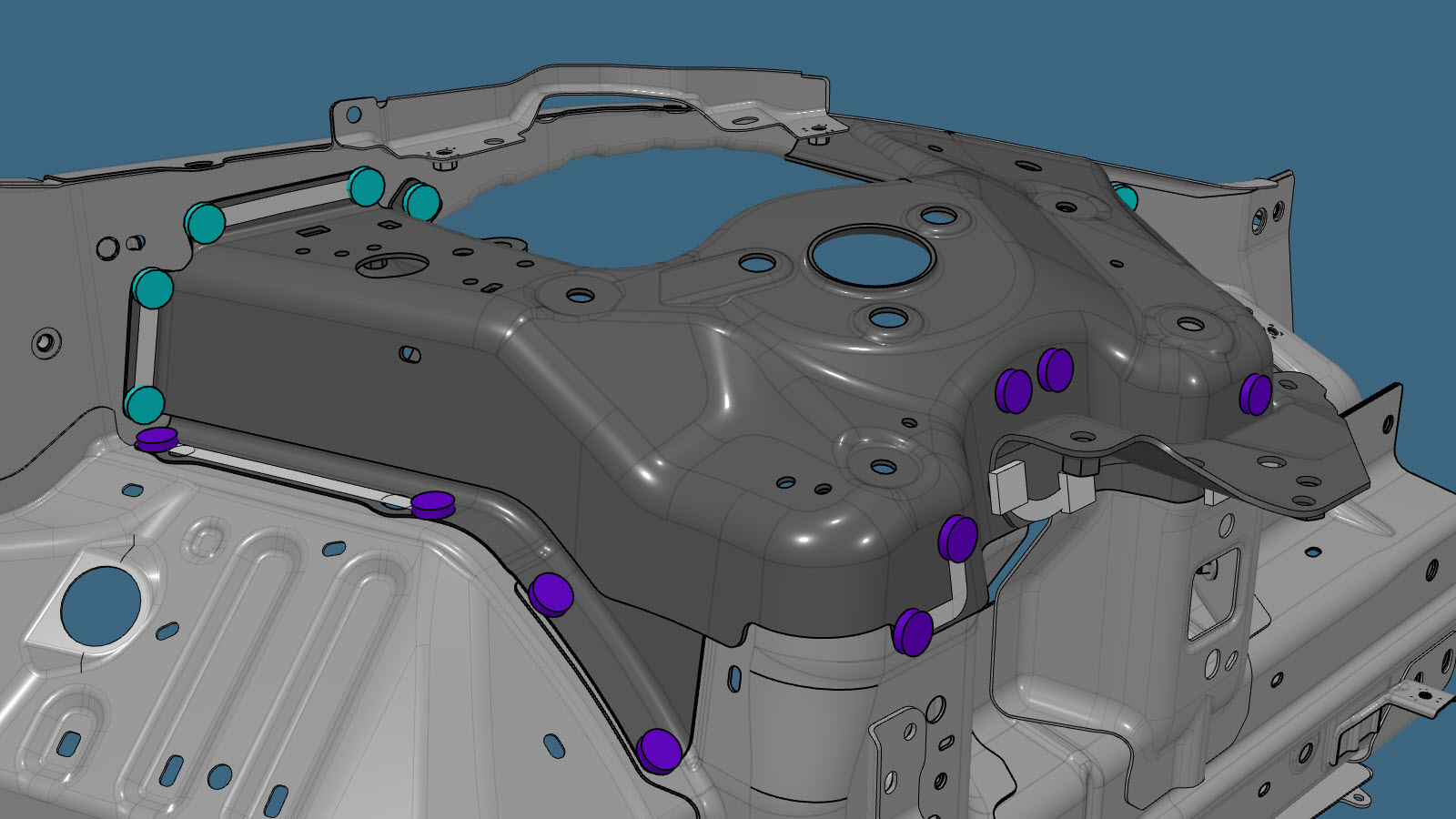

Install the new component or components.

注
将螺栓拧紧至 22 Nm。
安装前排座位外侧。

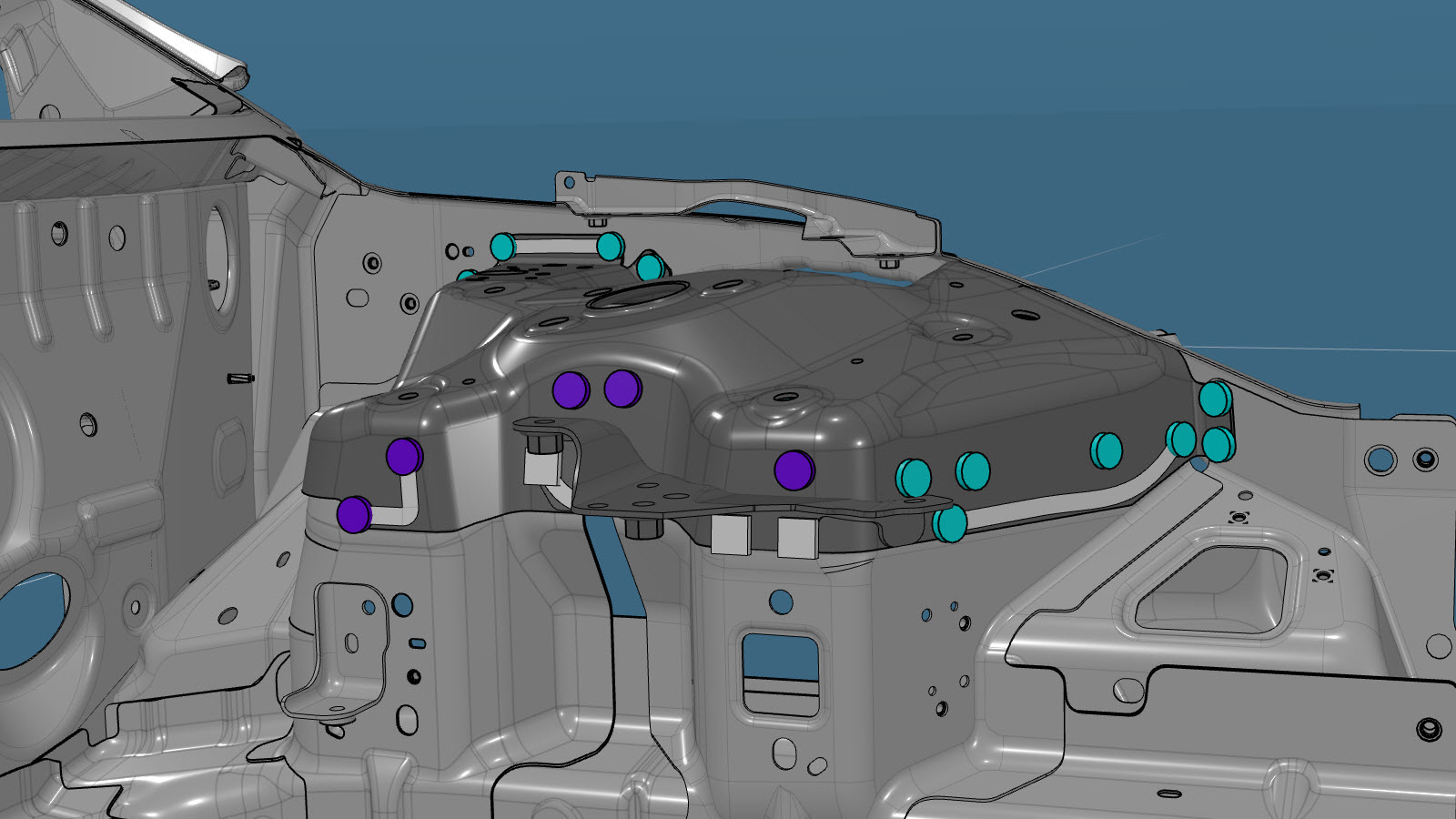

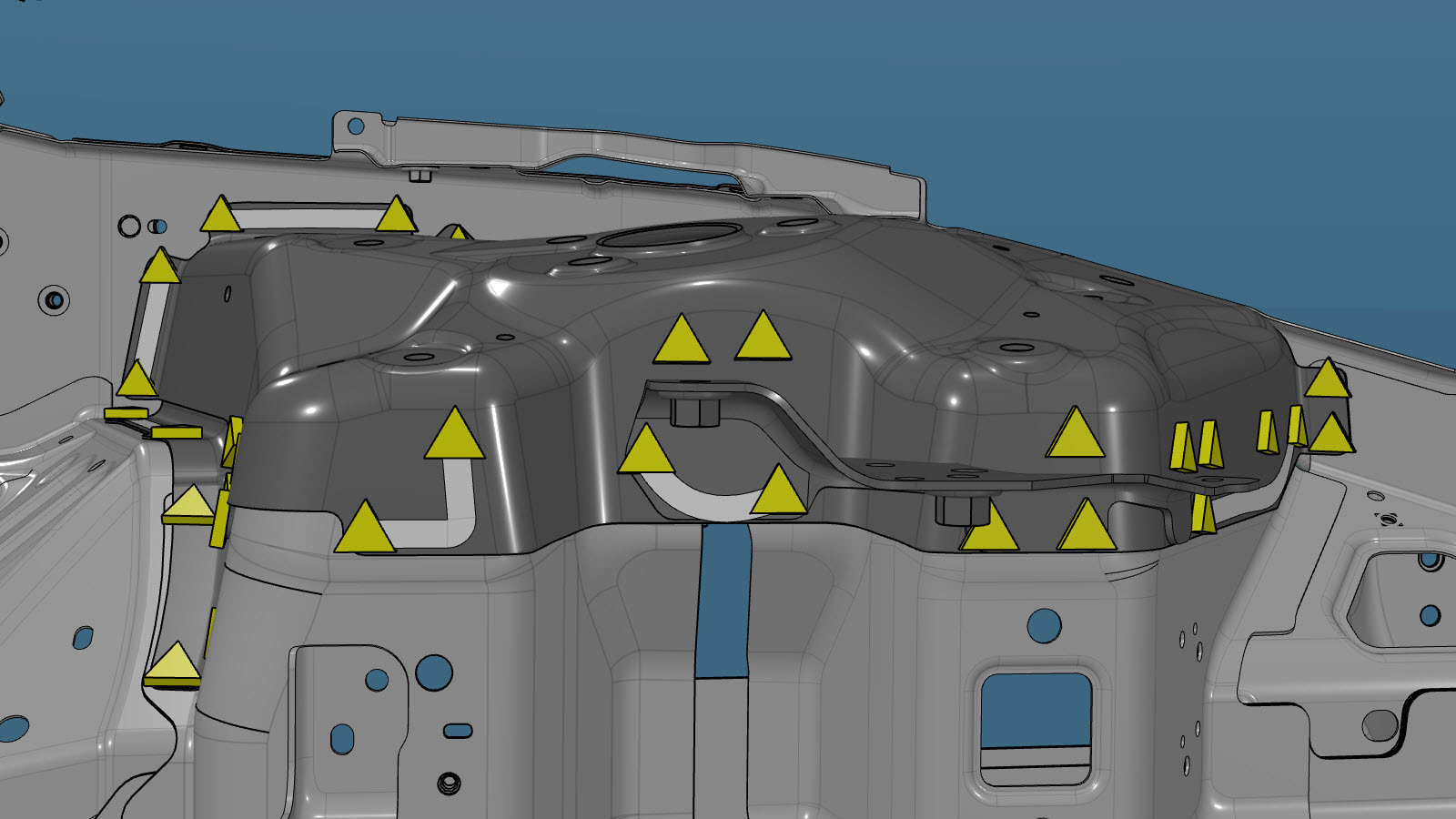

Install the fasteners as indicated.
High Strength Structural Rivet, 6.5 mm
Perform any necessary post-repair operations.
