Headlight - LH (Remove and Install)

Correction code 17400101 0.66 NOTA: Salvo explicitamente indicado em contrário no procedimento, o código de correção acima e o FRT refletem todo o trabalho necessário para a realização deste procedimento, incluindo os procedimentos associados. Não acumule códigos de correção, salvo se explicitamente instruído. NOTA: Consulte Tempos de taxa fixa para saber mais sobre FRT e sobre a respetiva criação. NOTA: Consulte Proteção pessoal para garantir que utiliza o EPI adequado durante a realização do procedimento abaixo. NOTA: Consulte para conhecer as práticas seguras e saudáveis de trabalho.

Torque Specifications

Tabela 1. Torque Specifications: #GUID-FF5D0BE4-B85F-4616-B3B6-0908123A45F4
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws that attach the headlight to the body
5.9 Nm (4.4 lbs-ft)
  • Torx T30 socket
 Reuse

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Remove the underhood storage unit access panel. See #GUID-47E22130-D127-42A9-85BE-6909652DEC6D.
  3. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  4. Remove the front fascia. See Fascia - Front (Remove and Install).

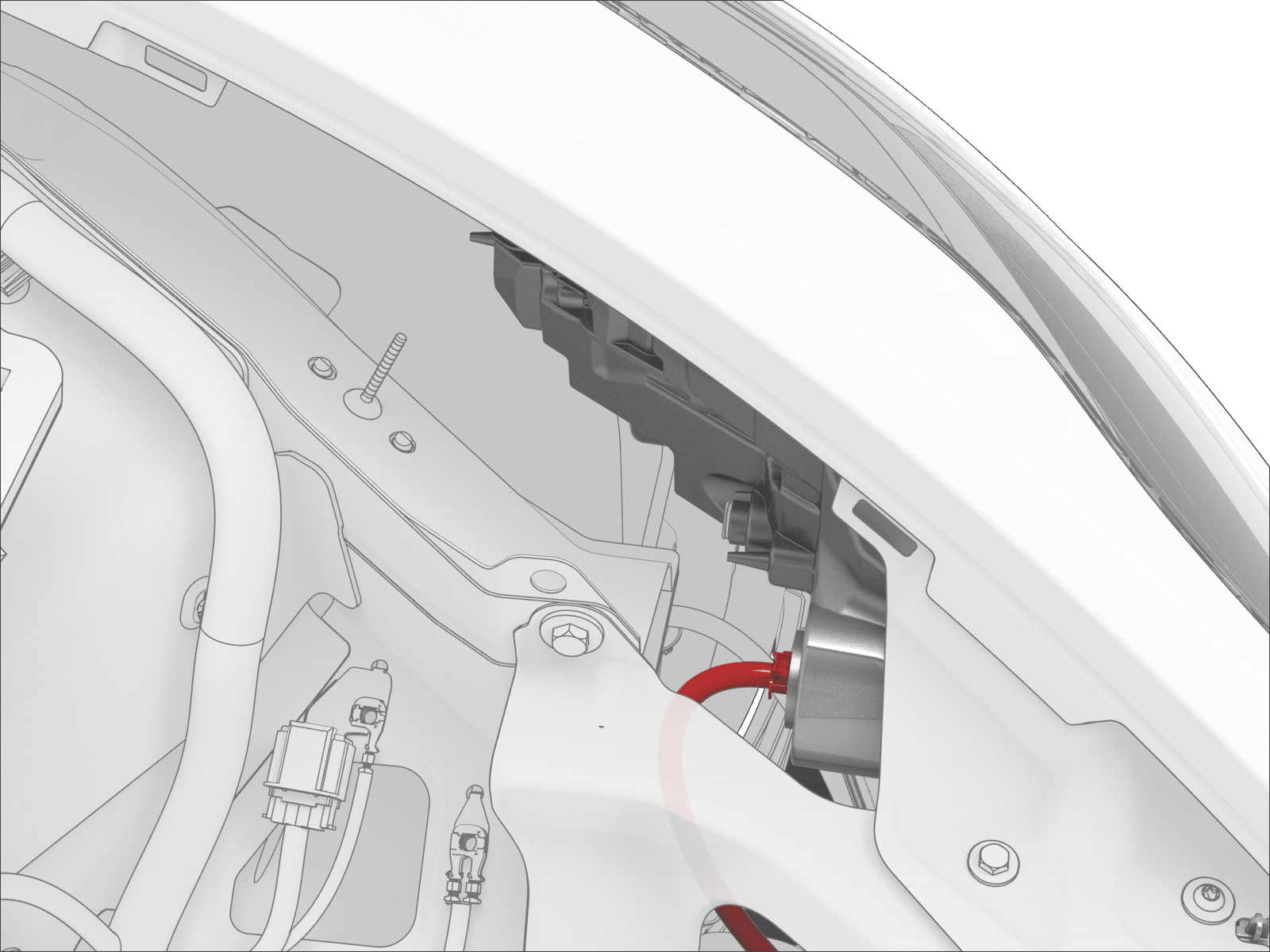

  5. Disconnect the electrical connector from the LH headlight.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the connector has a red locking tab: NÃO pressione a patilha de bloqueio vermelha para baixo. Afaste a patilha do conetor até este desbloquear. Em seguida, continue a puxar a estrutura principal do conetor até o libertar completamente.
  6. Remove the fastener(s) that attach the LH headlight to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    The headlight might not be equipped with a lower fastener.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
  7. Remove the headlight from the vehicle.

Install

  1. Position the LH headlight onto the body, and then insert the alignment stud into the correct position.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not damage the headlight during installation.
  2. Install the fasteners that attach the LH headlight to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    The headlight might not be equipped with a lower fastener.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
  3. Connect the electrical connector for the LH headlight.
  4. Install the front fascia. See Fascia - Front (Remove and Install).
  5. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  6. Install the underhood storage unit access panel. See #GUID-47E22130-D127-42A9-85BE-6909652DEC6D
  7. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  8. Adjust the headlights:
