Front Row Seat Floor (Section)

10100304302 10100304202

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes
1	ASSEMBLY - PANEL FRONT FLOOR (Front Row Seat Floor)
LH: 5 or RH: 8	Countersunk Rivet, 4.8 mm Short
1	Countersunk Rivet, 4.8 mm Long

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the Carpet - Interior Complete (Remove and Replace).
Remove the Insulator - Dash (HW3) (Remove and Replace).
Remove the HV Battery (AWD) (Remove and Install).
Remove the HV Battery (AWD) (Remove and Install).
Remove the Insulator - Dash (HW4) (Remove and Replace).
Remove the Carpet - Interior Complete (Remove and Replace).
Remove the Harness - Body - RH (Remove and Replace).

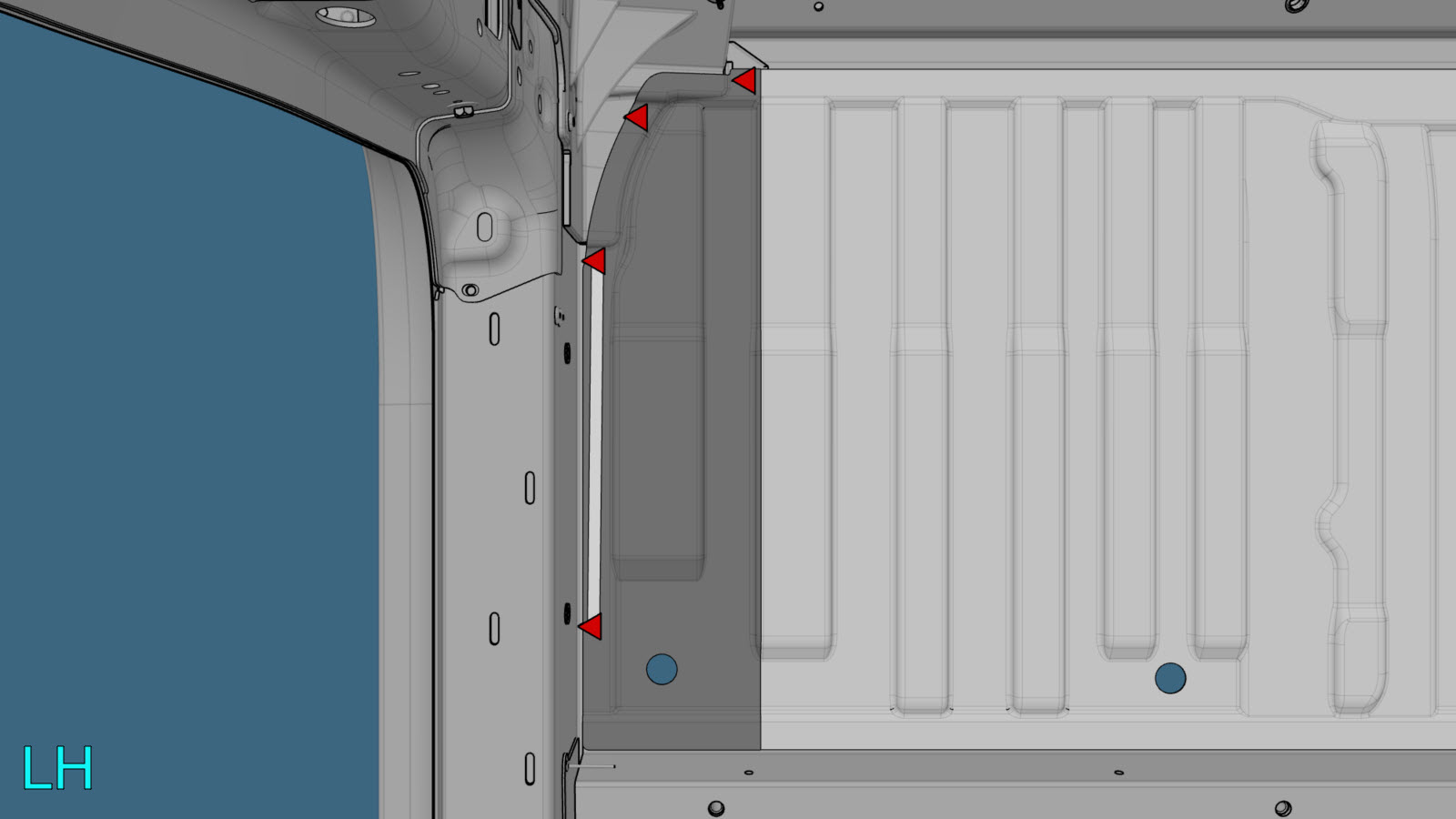

Remove the original component.
or Factory Spot Welds
or Factory SPRs

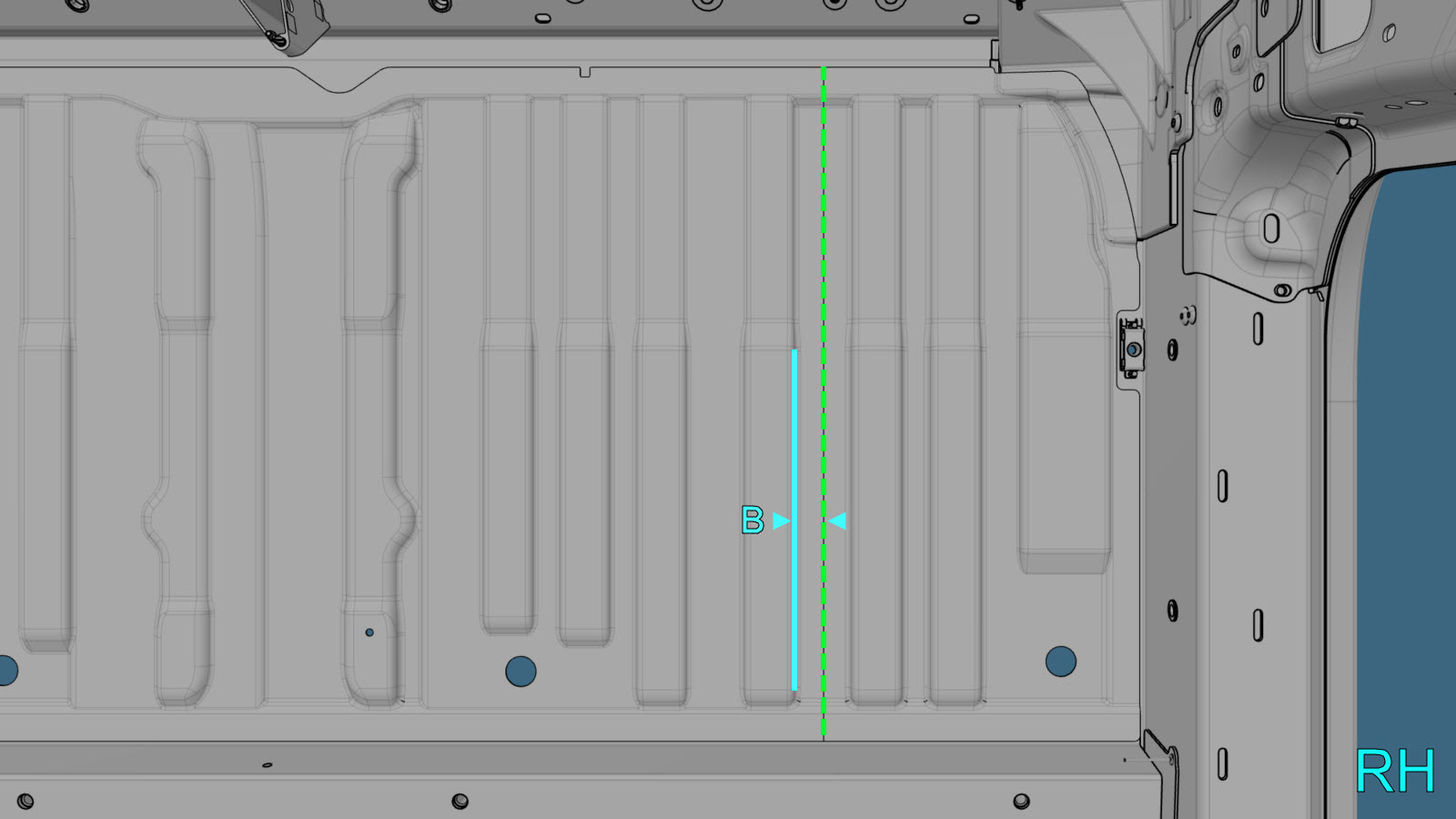

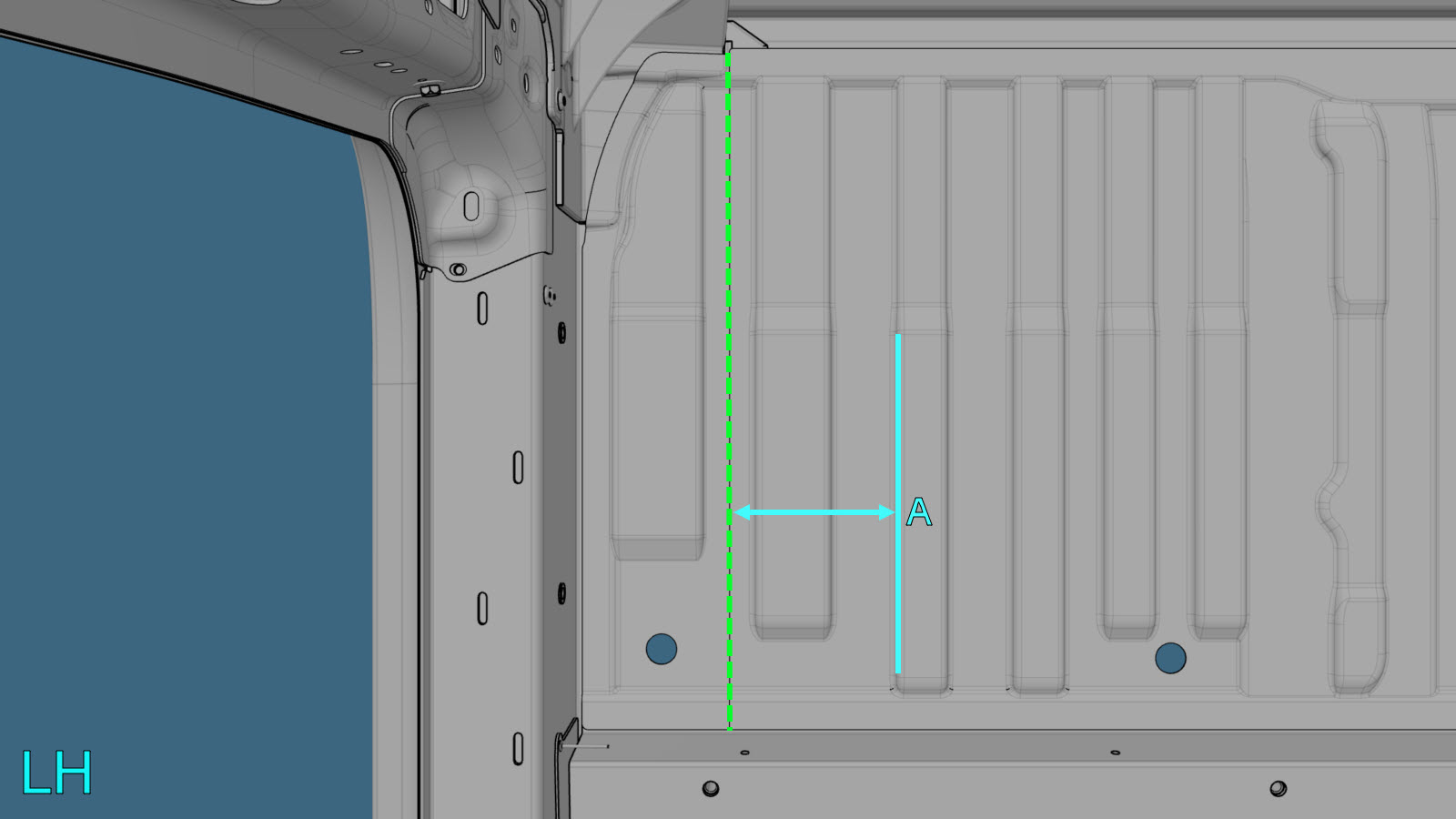

Reference Line/Point
Cut Line
- A = 136 mm
- B = 24 mm

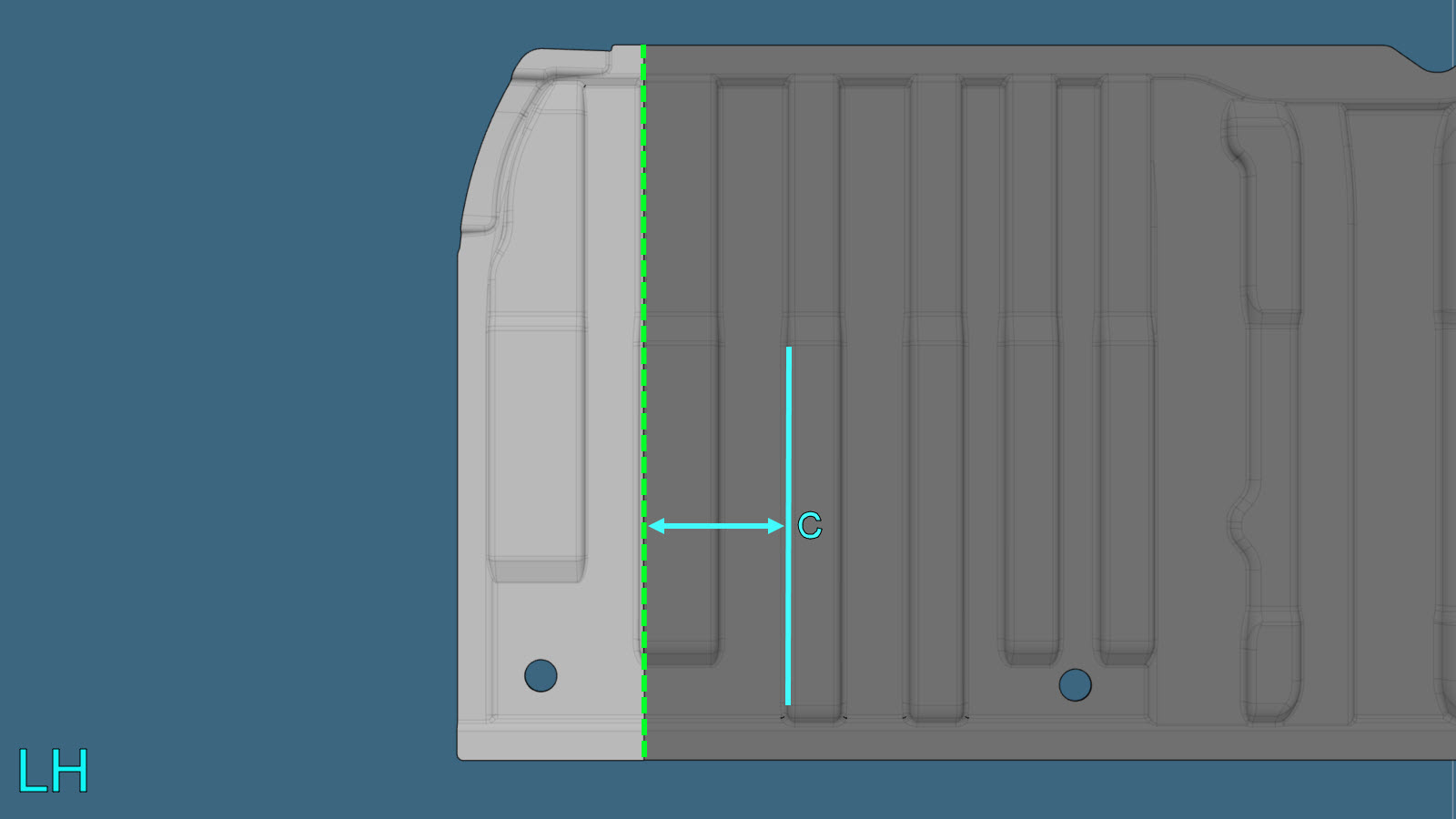

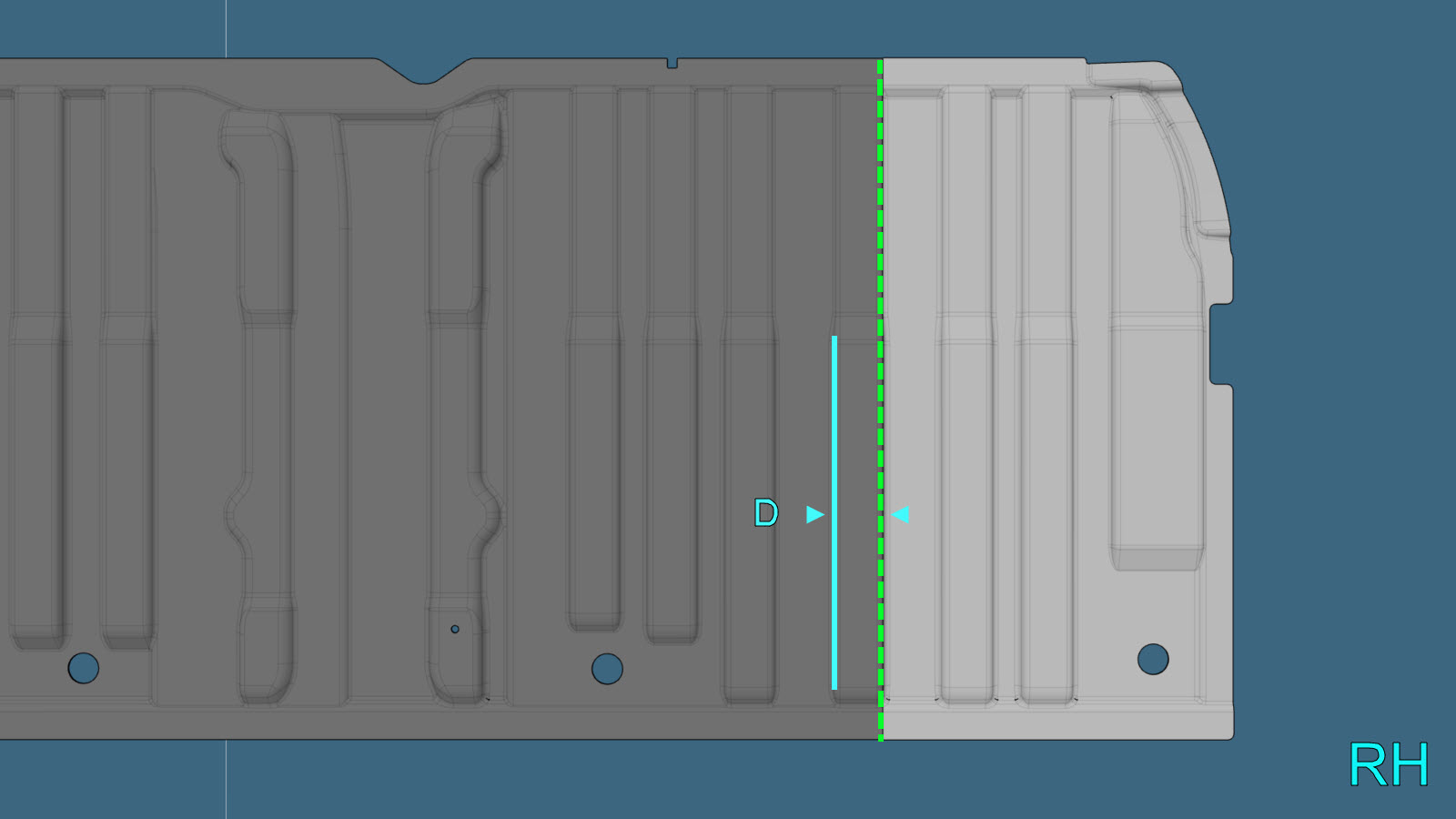

Cut the new Front Row Seat Floor service part as indicated below to make the new component.
Reference Line/Point
Cut Line
- C = 111 mm
- D = 40 mm

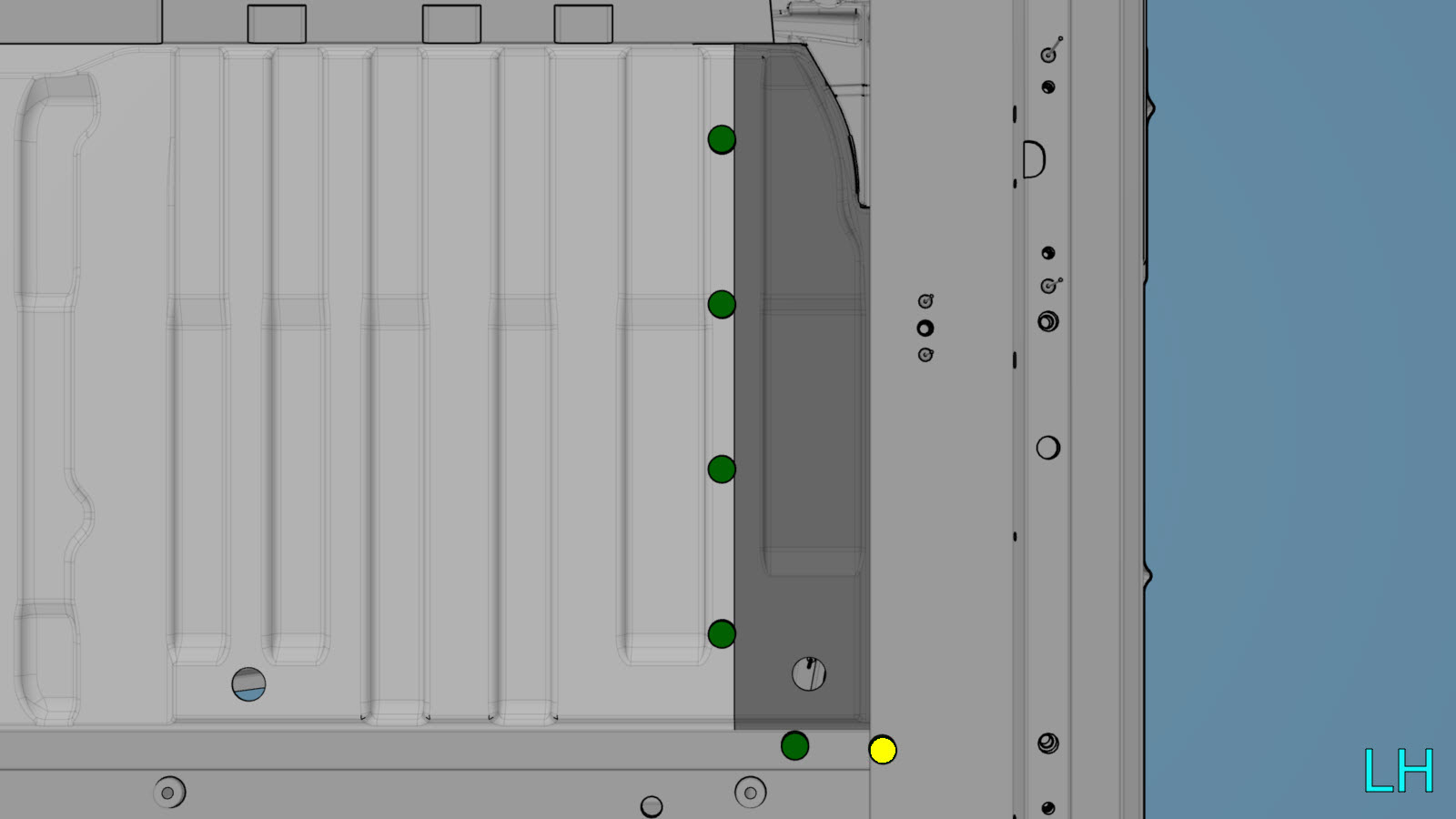

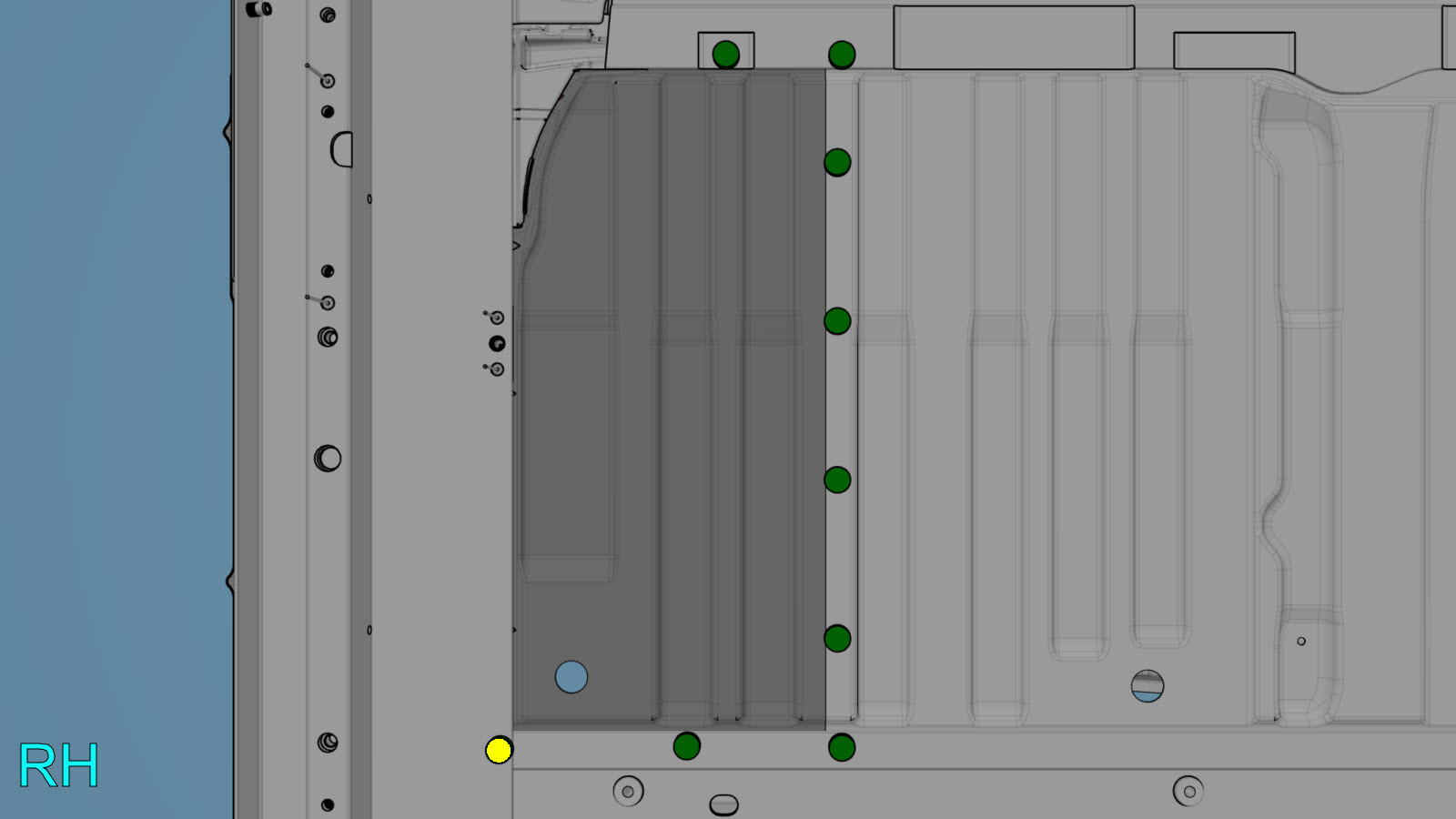

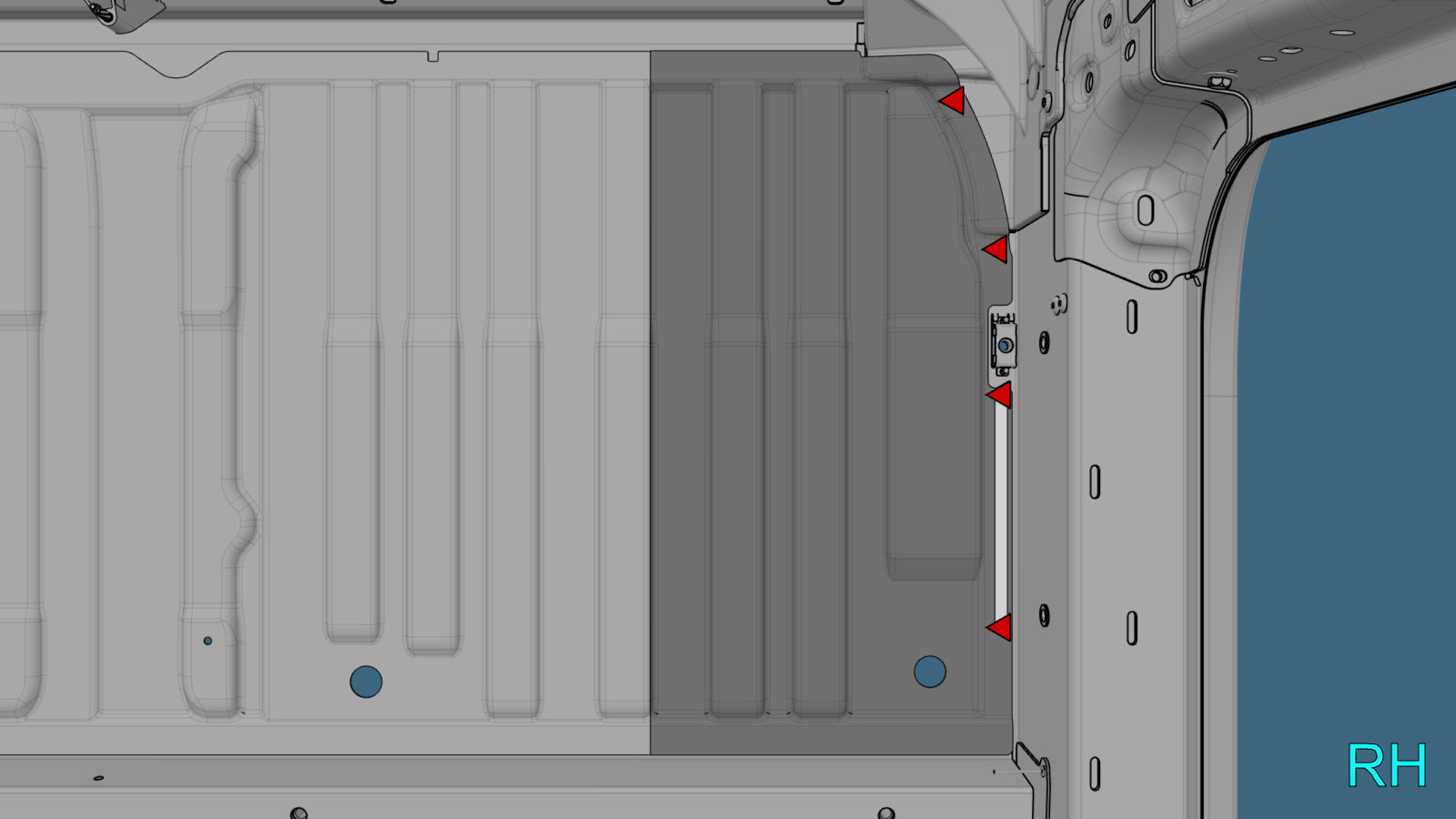

Prepare for installation.
or Countersunk Rivets, 4.8 mm Short
or Countersunk Rivets, 4.8 mm Long
or Aluminum Plug Welds
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.

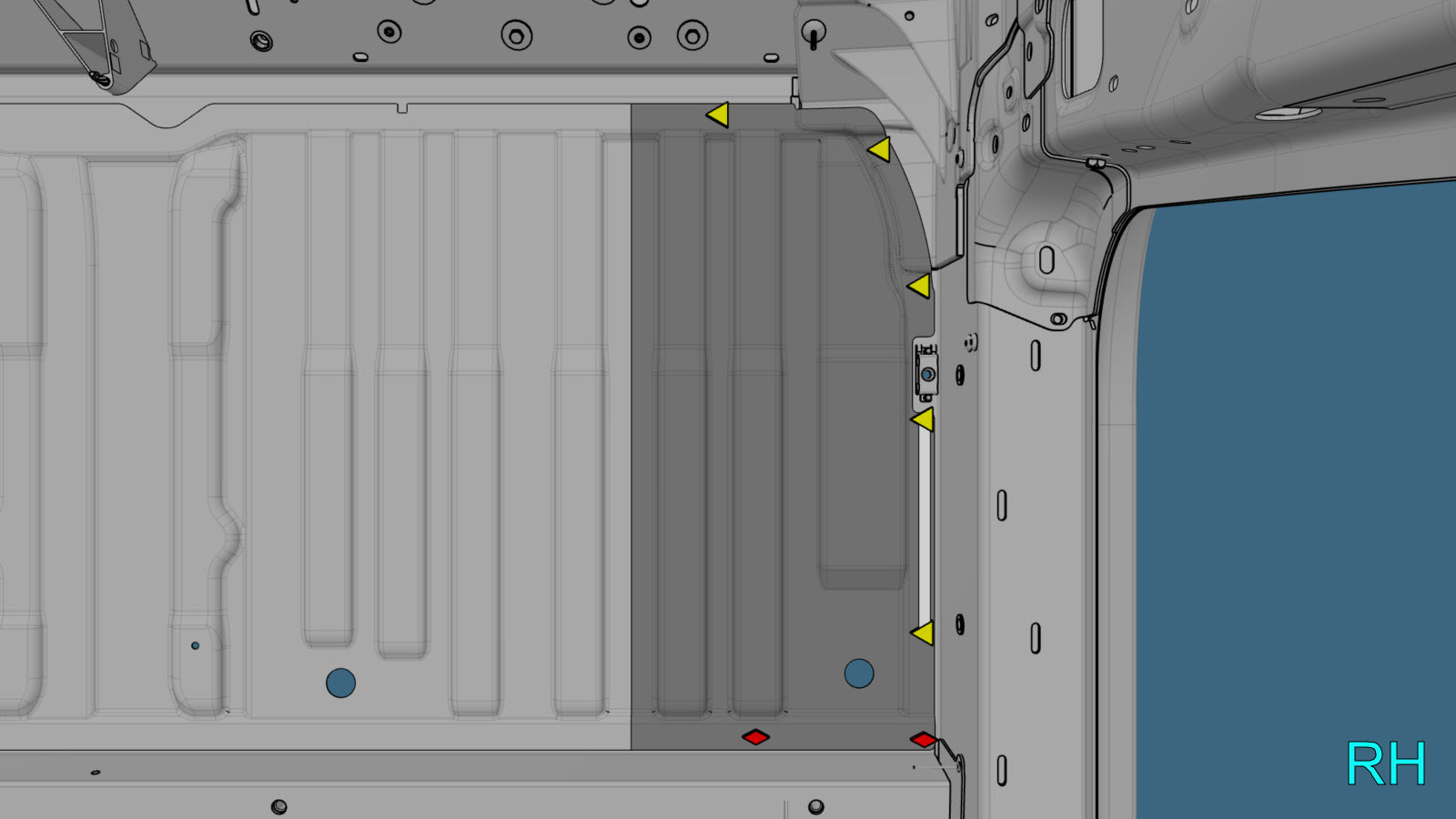

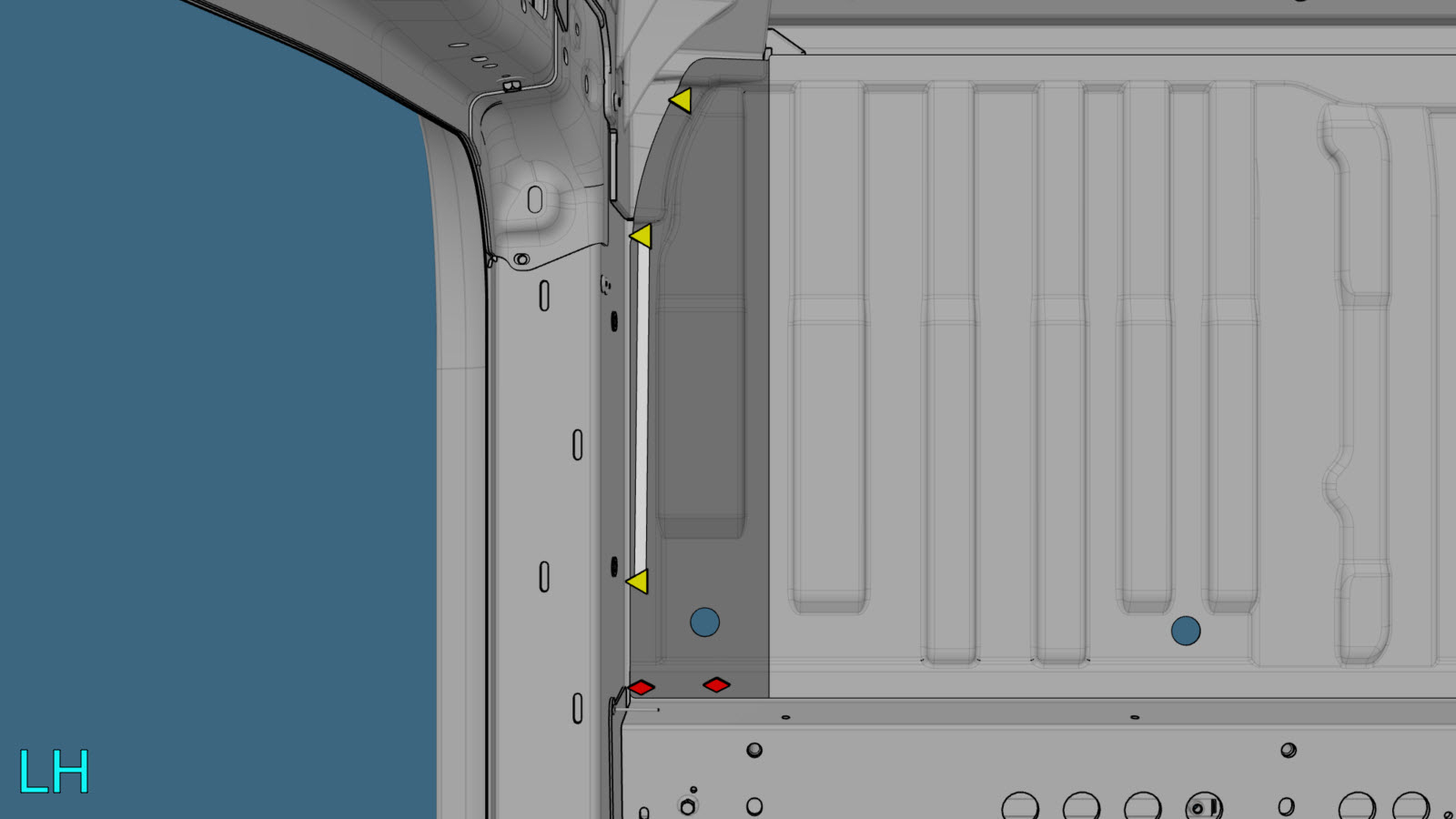

Perform GMA welding.
or Aluminum Plug Welds
Warning
Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.

Warning
To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to Approved Gas Metal Arc (GMA) Welders and Welding Wire for information on approved GMA welders and welding wire.

CAUTION
Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.

Note
Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint.
Perform any necessary post-repair operations.
Install the Harness - Body - RH (Remove and Replace).
Install the Carpet - Interior Complete (Remove and Replace).
Install the Insulator - Dash (HW4) (Remove and Replace).
Install the HV Battery (AWD) (Remove and Install).
Install the HV Battery (AWD) (Remove and Install).
Install the Insulator - Dash (HW3) (Remove and Replace).
Install the Carpet - Interior Complete (Remove and Replace).
