Trunk Waterfall Panel (Vehicles Built Through May 21, 2024)

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes
1	PNL, TRUNK, RR WATERFALL, MDLS (Trunk Waterfall Panel)
10	High Strength Structural Rivet, 6.5 mm
4	Structural Flange Rivet
20	Flow Form Rivet S08
2	Bolt , SCRW HF M8-1.25x20 [10.9]ZnAl	Tesla part number 1007580-00-A.
2	Nut , NUT,M8-1.25,HF,Steel[10],ZnAl,BLACK	Tesla part number 1006628-01-A.

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the original component.

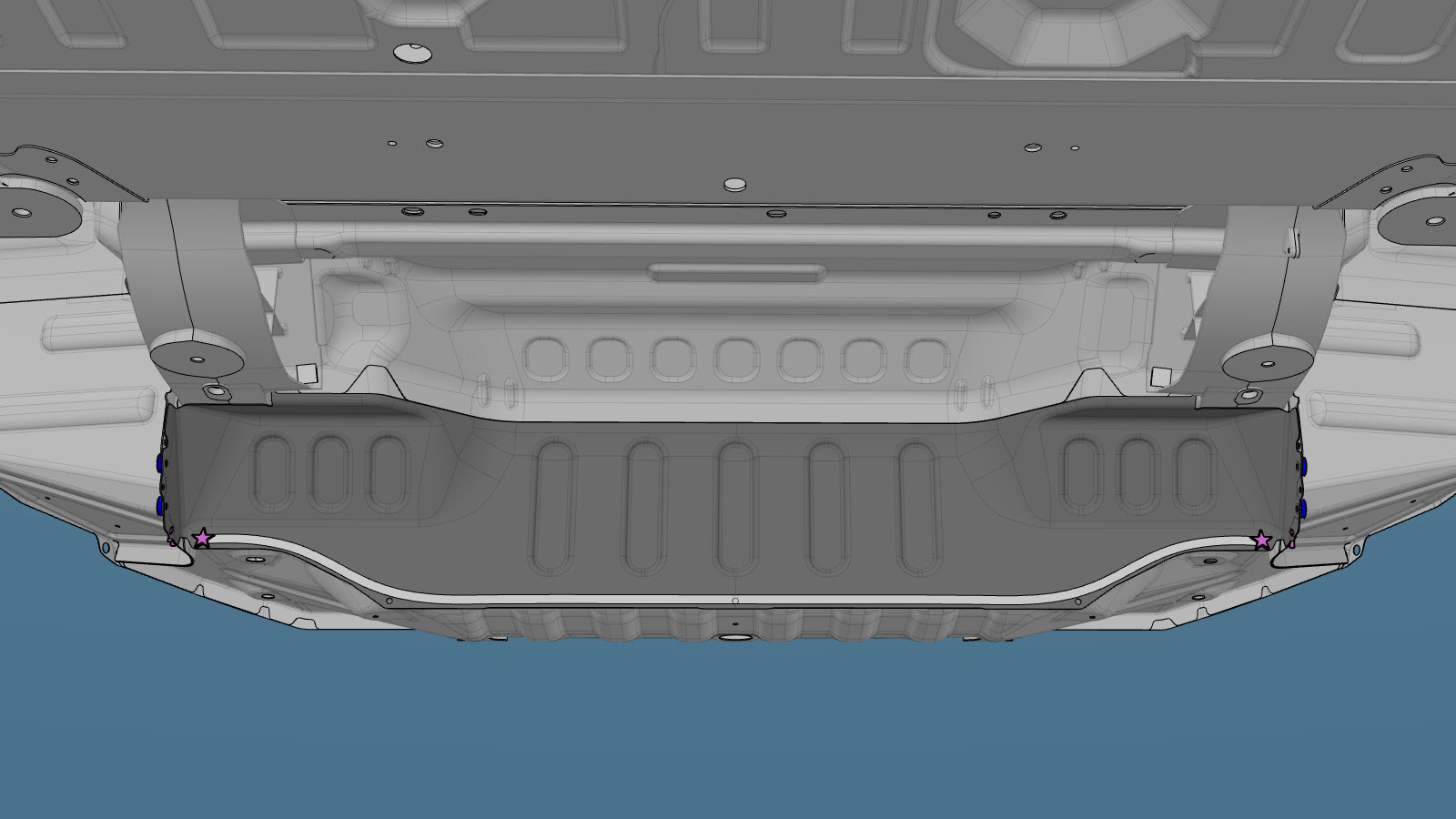

or Factory Spot Welds

or Factory Structural Rivets

BOM
Prepare for installation.

Note

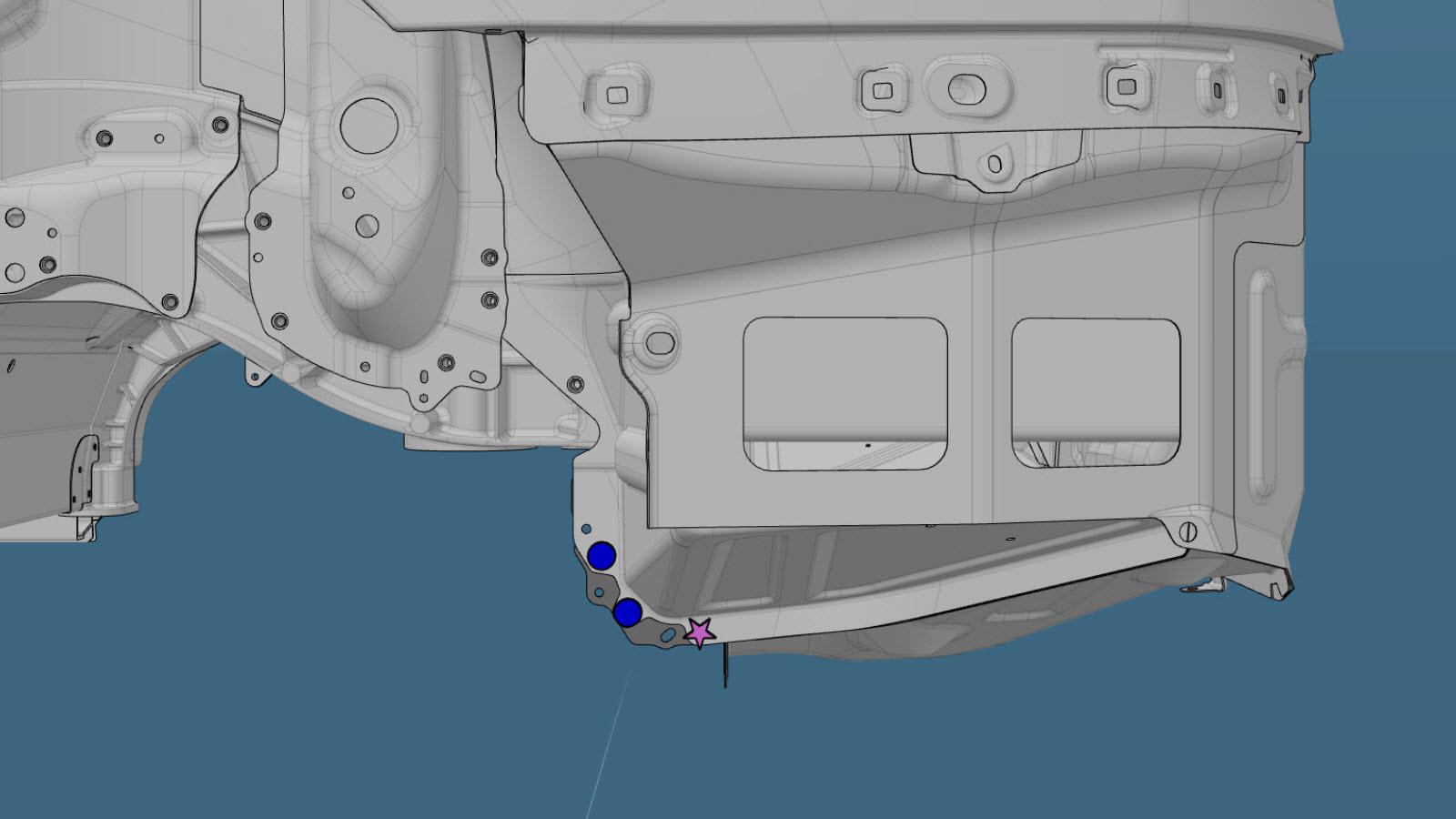

A red X indicates a location where a factory-installed fastener is not being replaced.

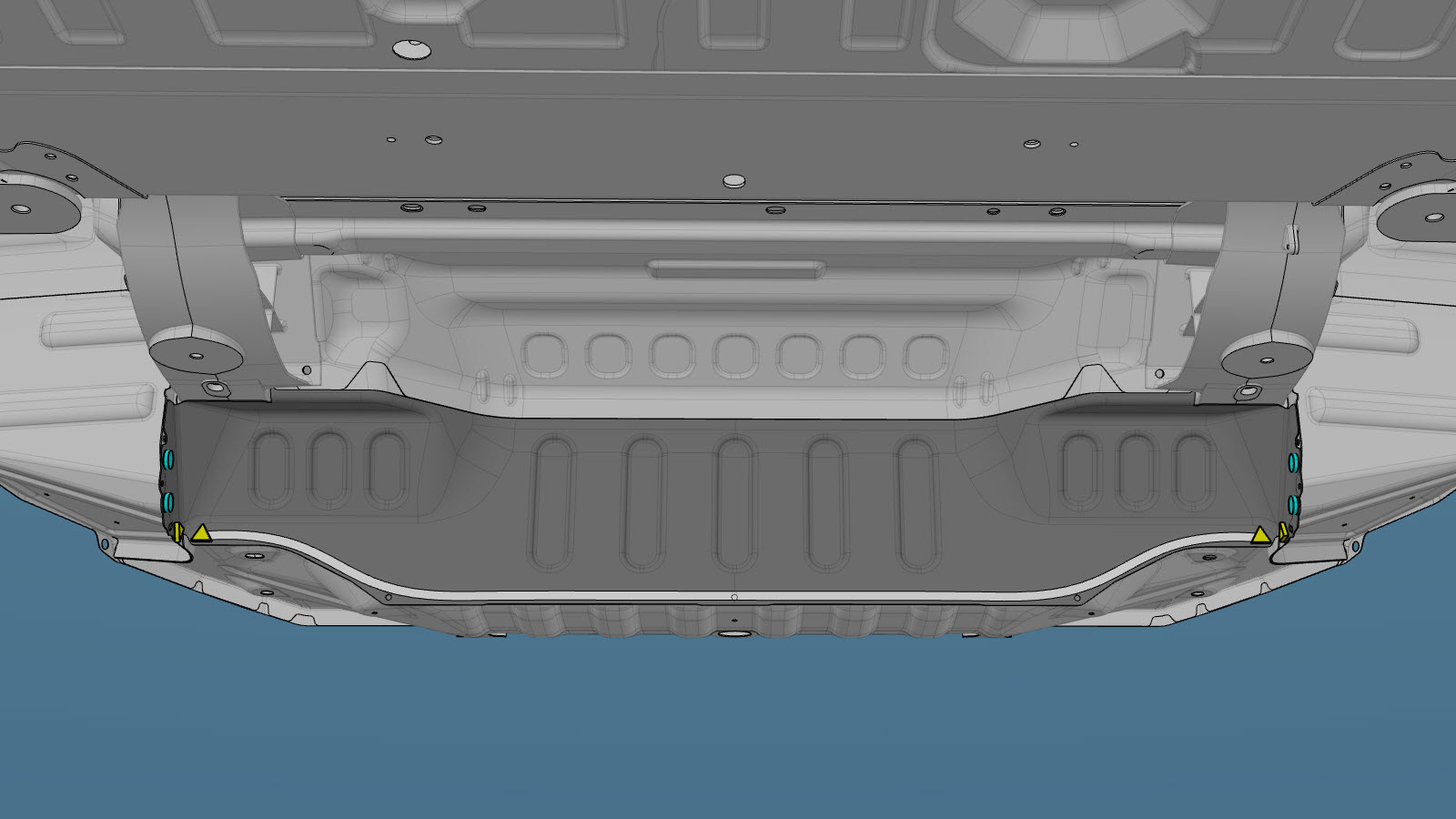

or High Strength Structural Rivets, 6.5 mm

or Structural Flange Rivets, 6.5 mm

or Flow Form Rivets, S08

or Bolts

Nut
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Torque the bolts to 25 Nm.
Perform any necessary post-repair operations.
