Seam Sealer Locations

Shows locations where seam sealer was applied when the vehicle was built, and where seam sealer should be applied when repairing the vehicle.

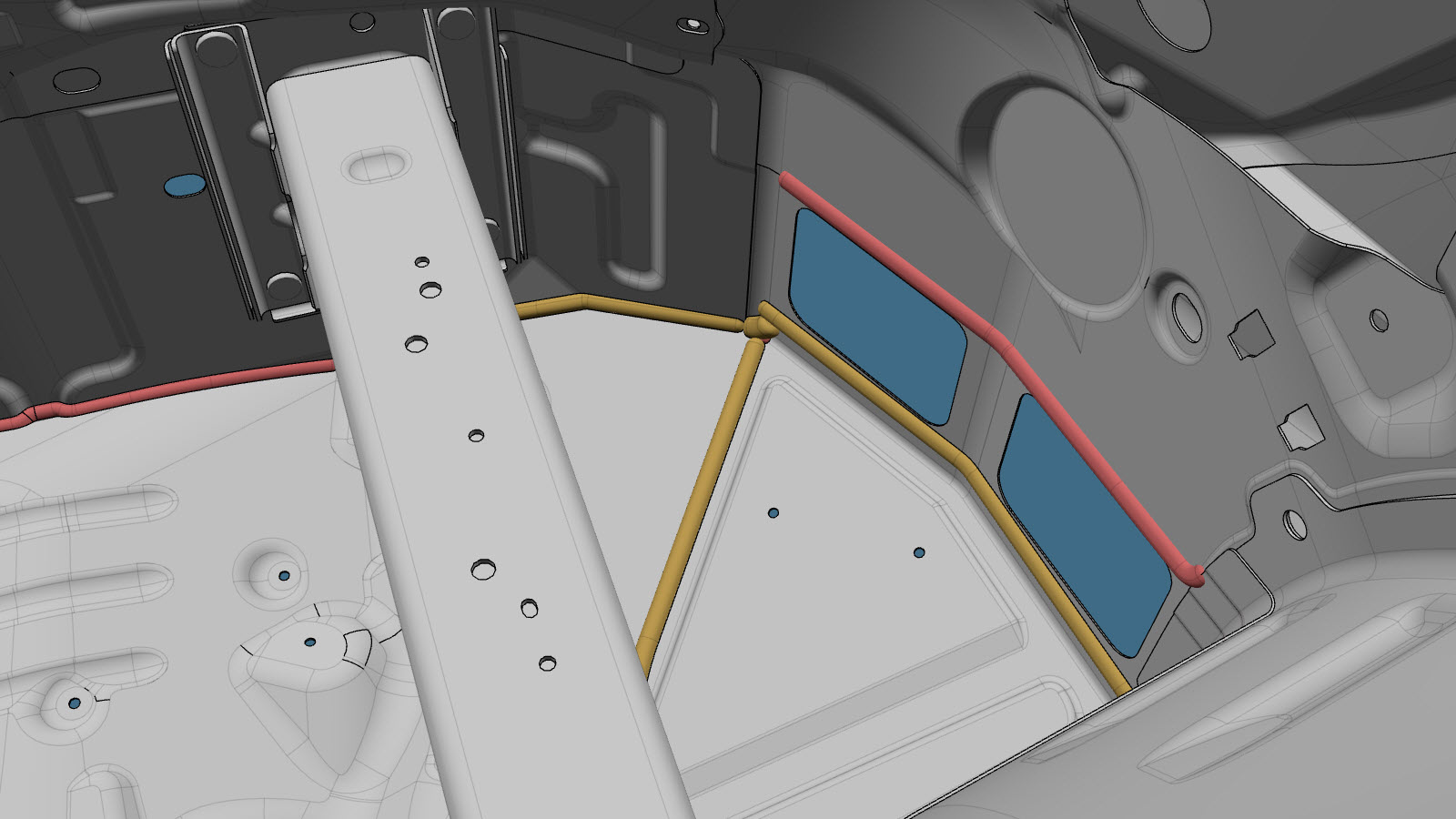

In the following images, two colors are used to indicate seam sealer:
topSeam sealer applied when the vehicle was built (applied at the factory).
Seam sealer that must be applied in the repair area as a part of the repair procedure.
Informational PurposesAn informational icon, calling your attention
Note
Before applying seam sealer, refer to the Applying Seam Sealer section of Post-Repair Operations.
Informational PurposesAn informational icon, calling your attention
Note
When applying seam sealer in any area between the HV battery pack and the floor, do not apply a layer of seam sealer more than 2 mm thick. Make sure that the seam sealer does not put pressure on either the top of the HV battery pack or on any floor panel.
Informational PurposesAn informational icon, calling your attention
Note
Do not apply seam sealer in a way that will cause issues with the operation of a closure component (door, hood, trunk, or liftgate) or with the fitment of any other component that may be attached in the repair area (headlight, tail light, roof glass).

Refer to Approved Chemicals for the list of approved seam sealer products.

Informational PurposesAn informational icon, calling your attention
Note
The seam sealer paths shown are for reference to indicate the locations where seam sealer should be applied, and do not depict actual seam sealer.

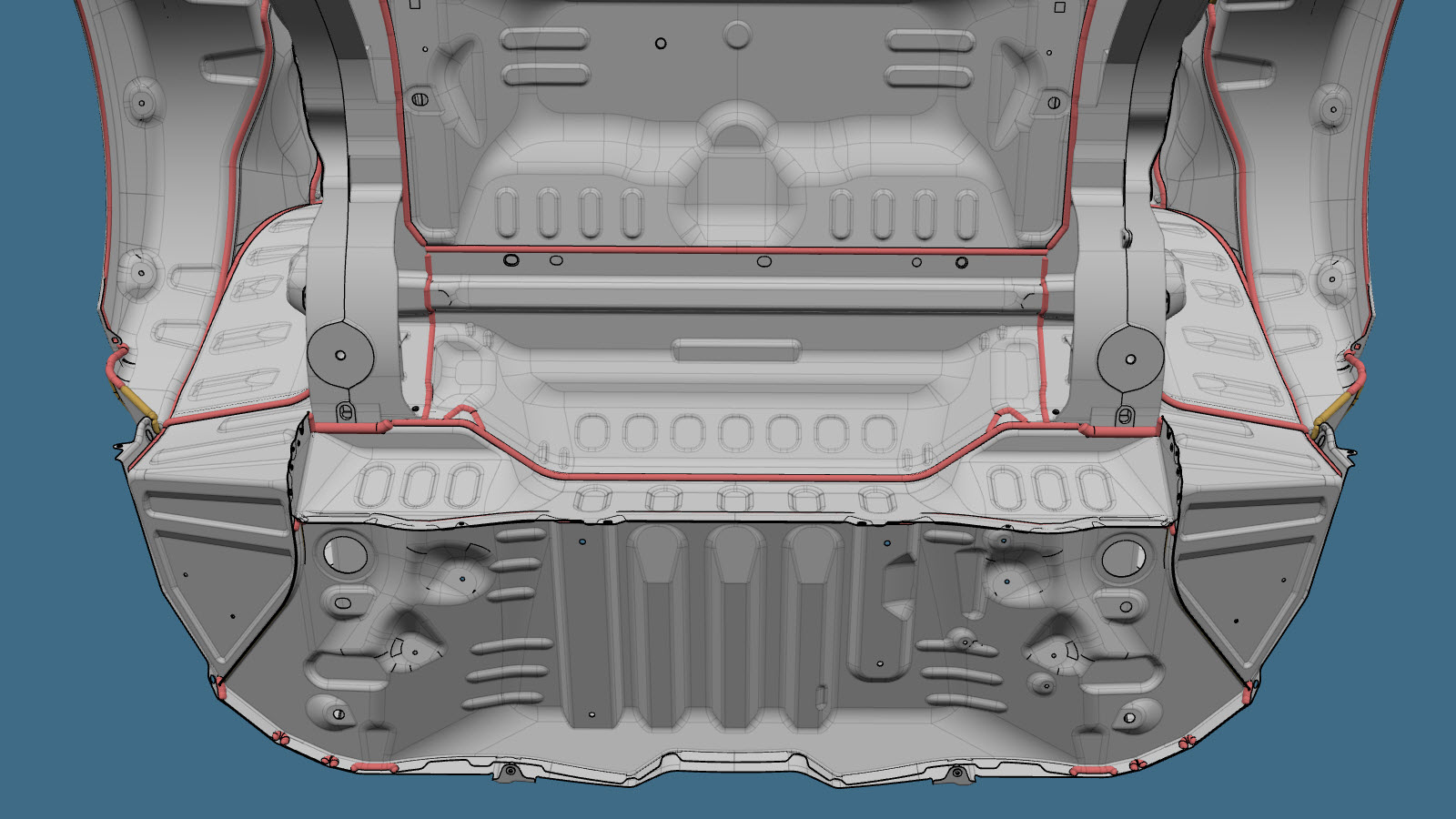

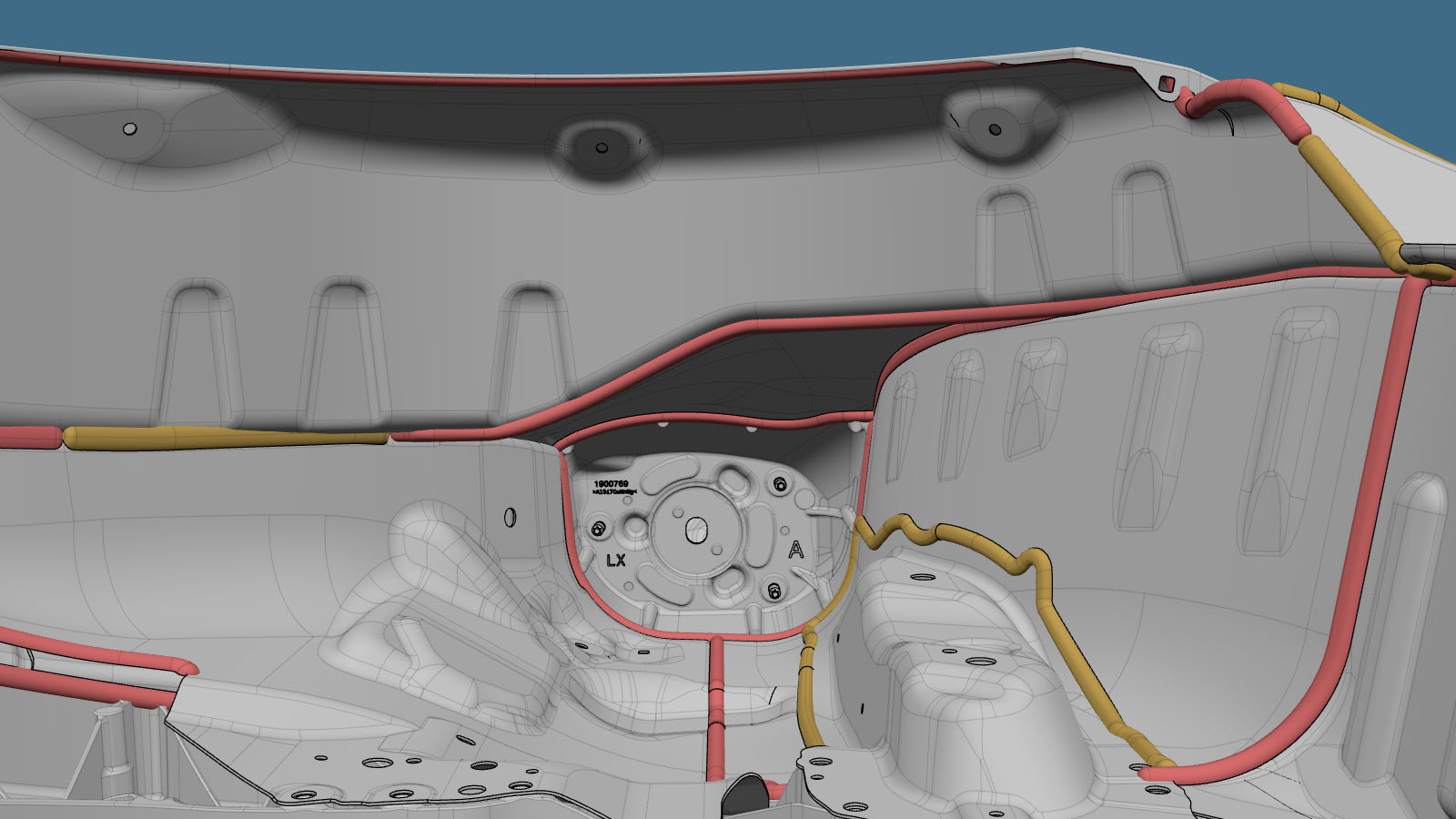

Table 1. Front Under Body

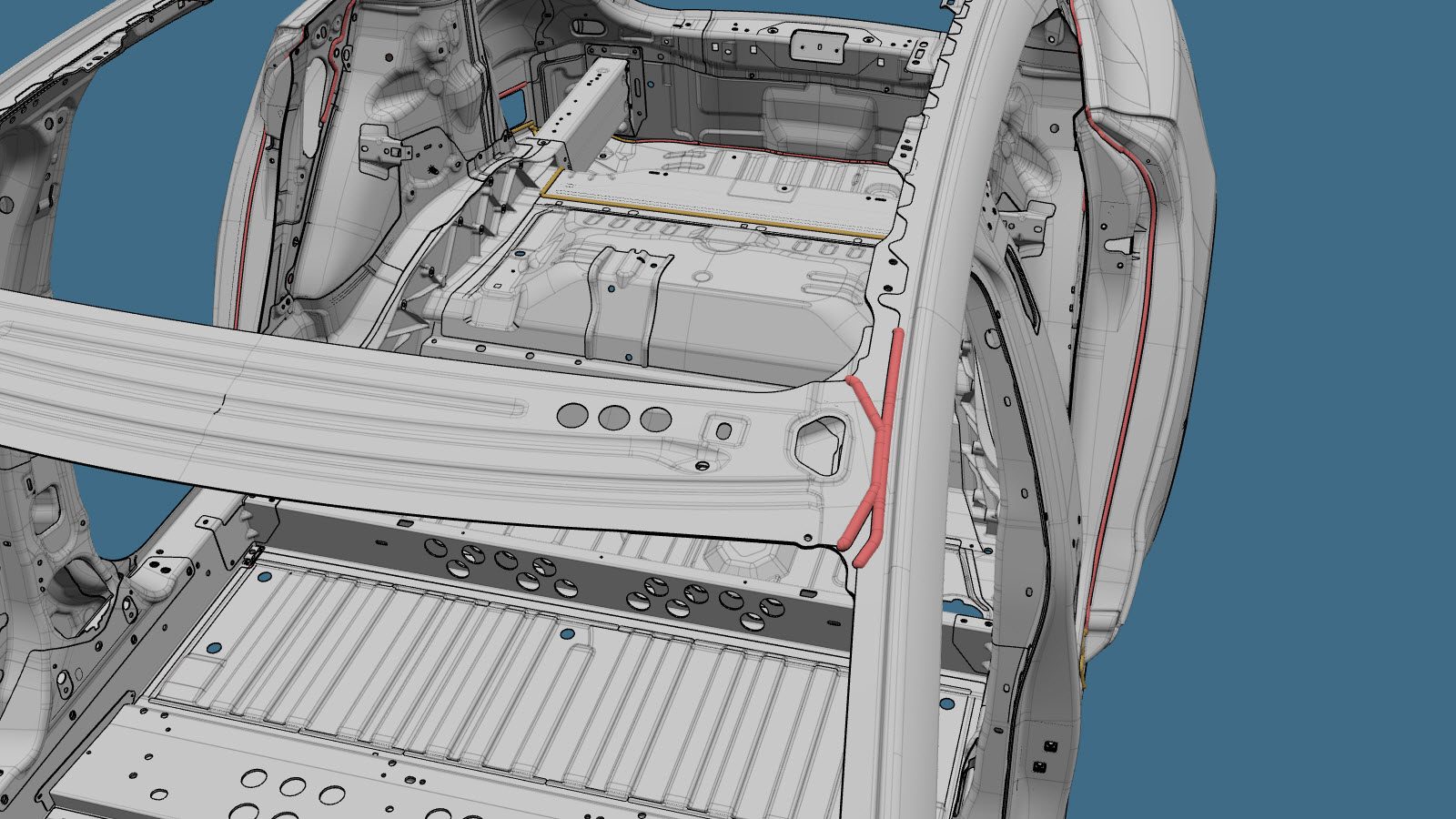

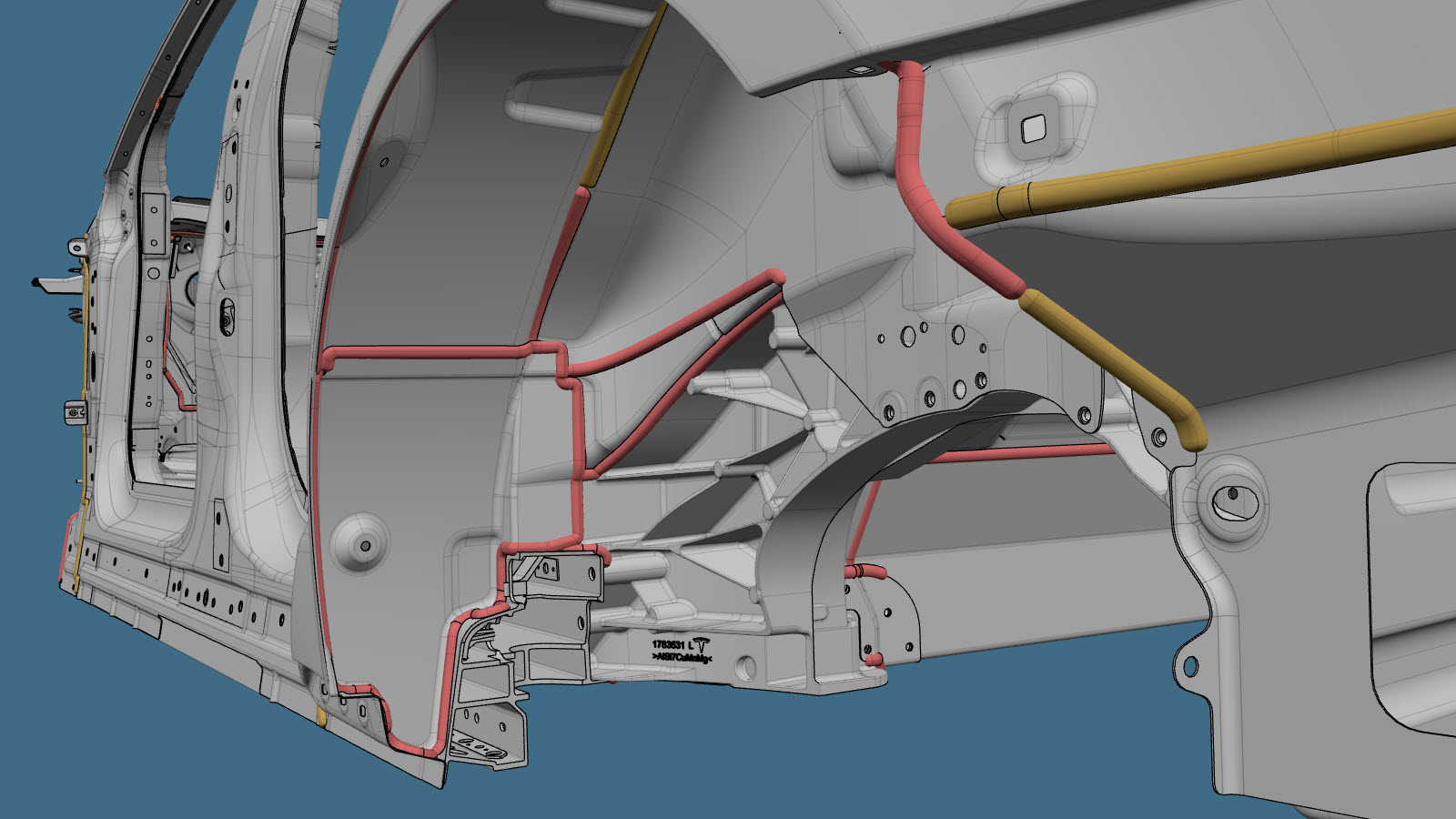

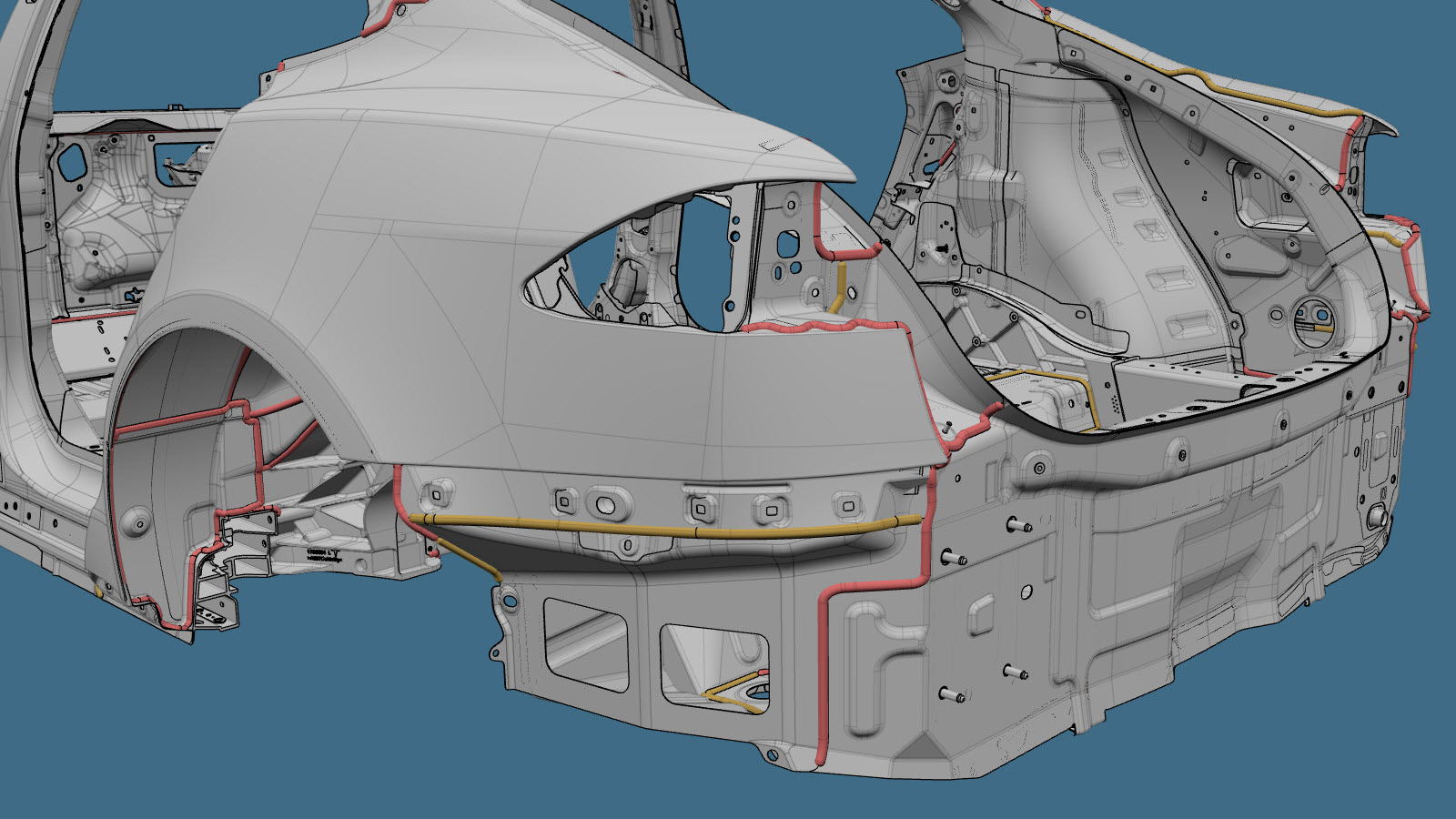

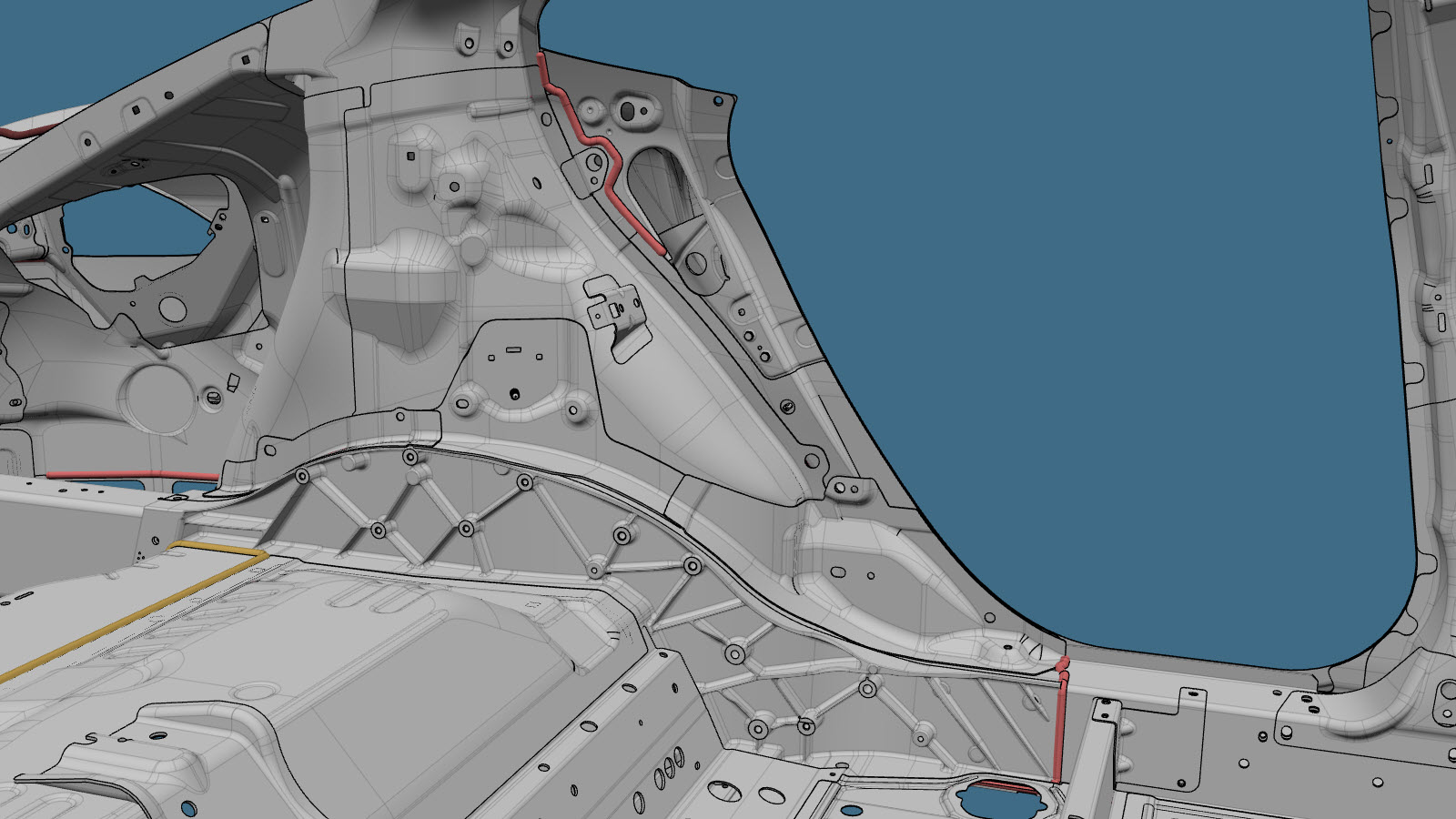

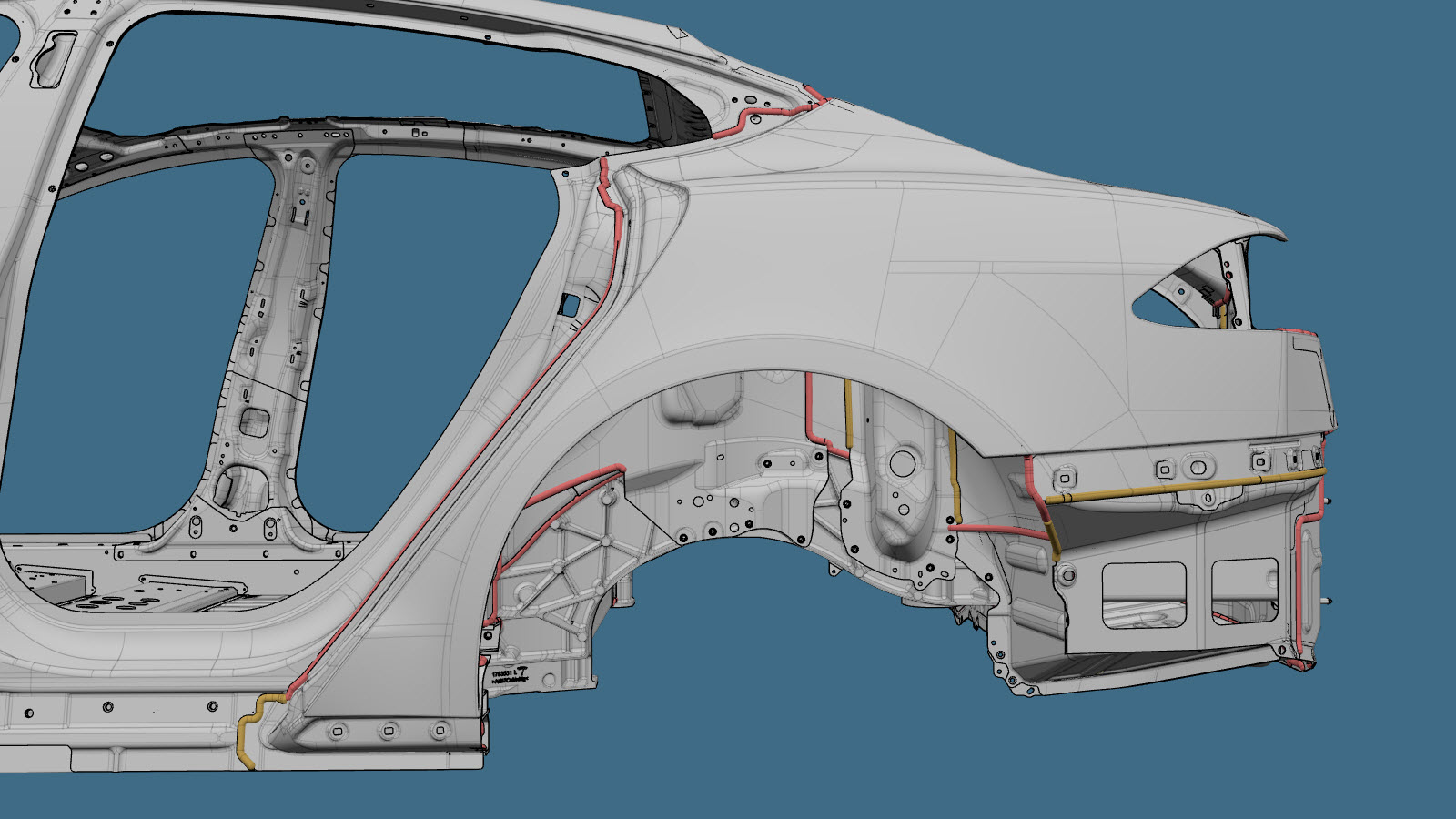

Table 2. Body Side

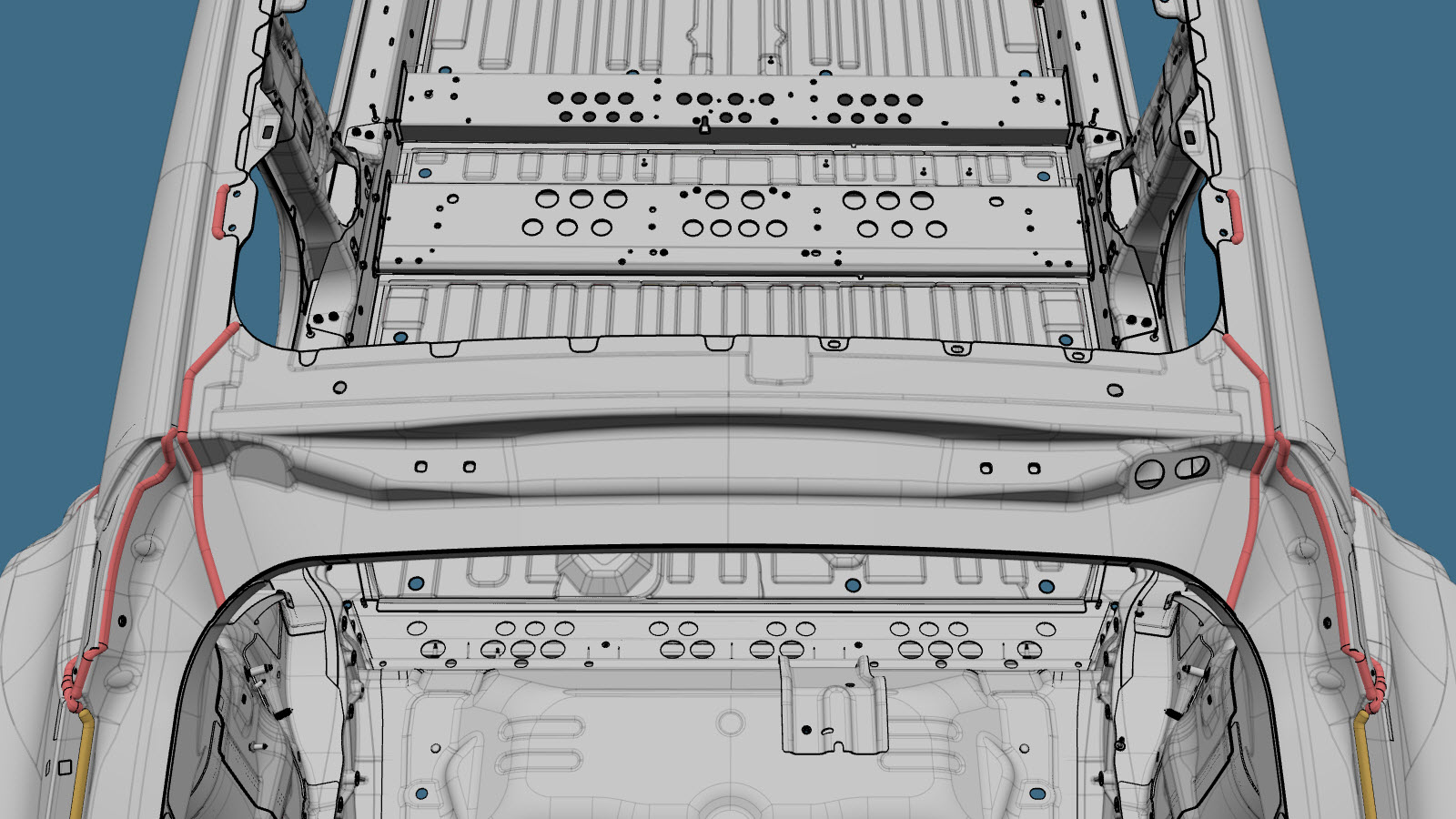

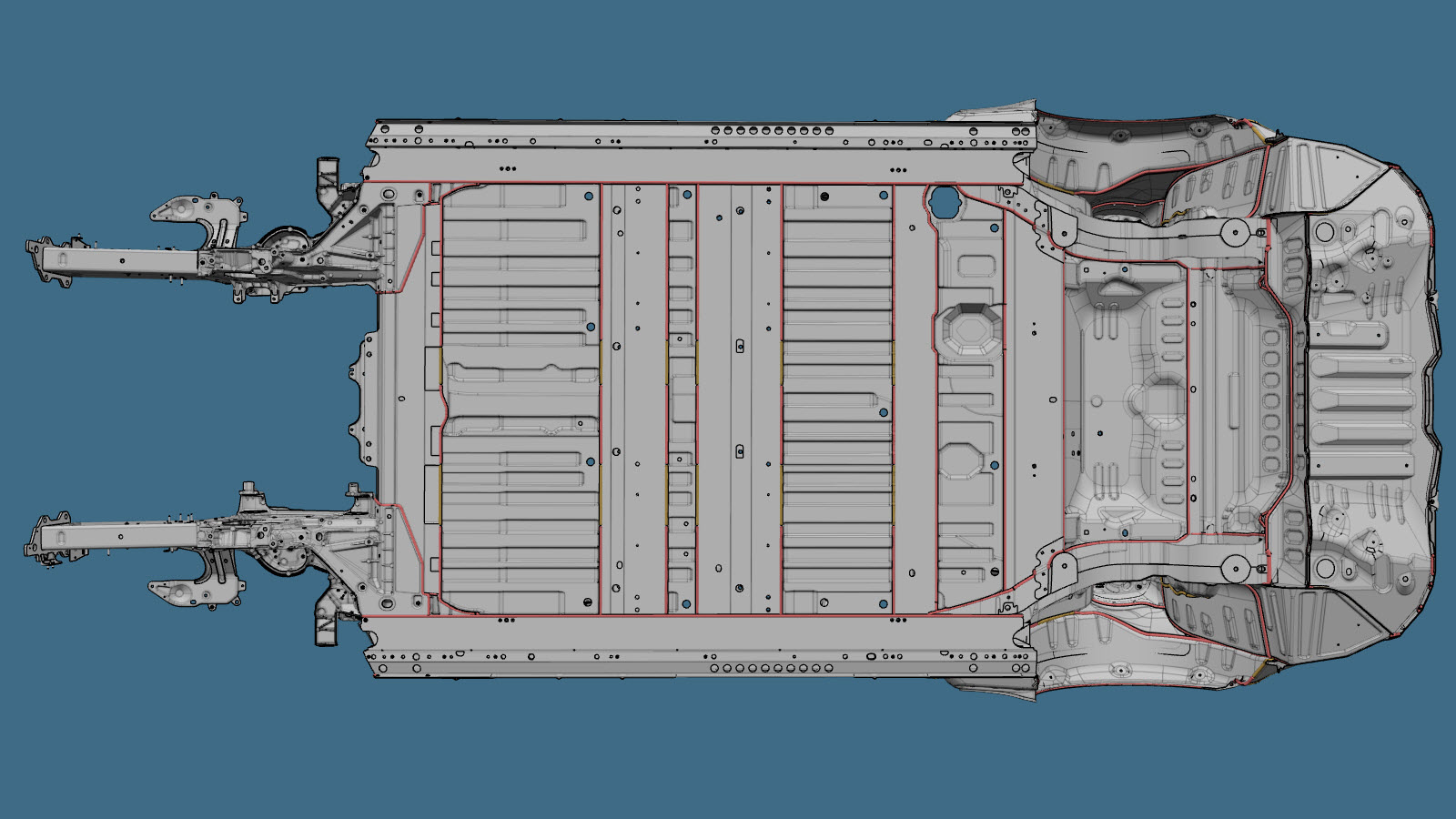

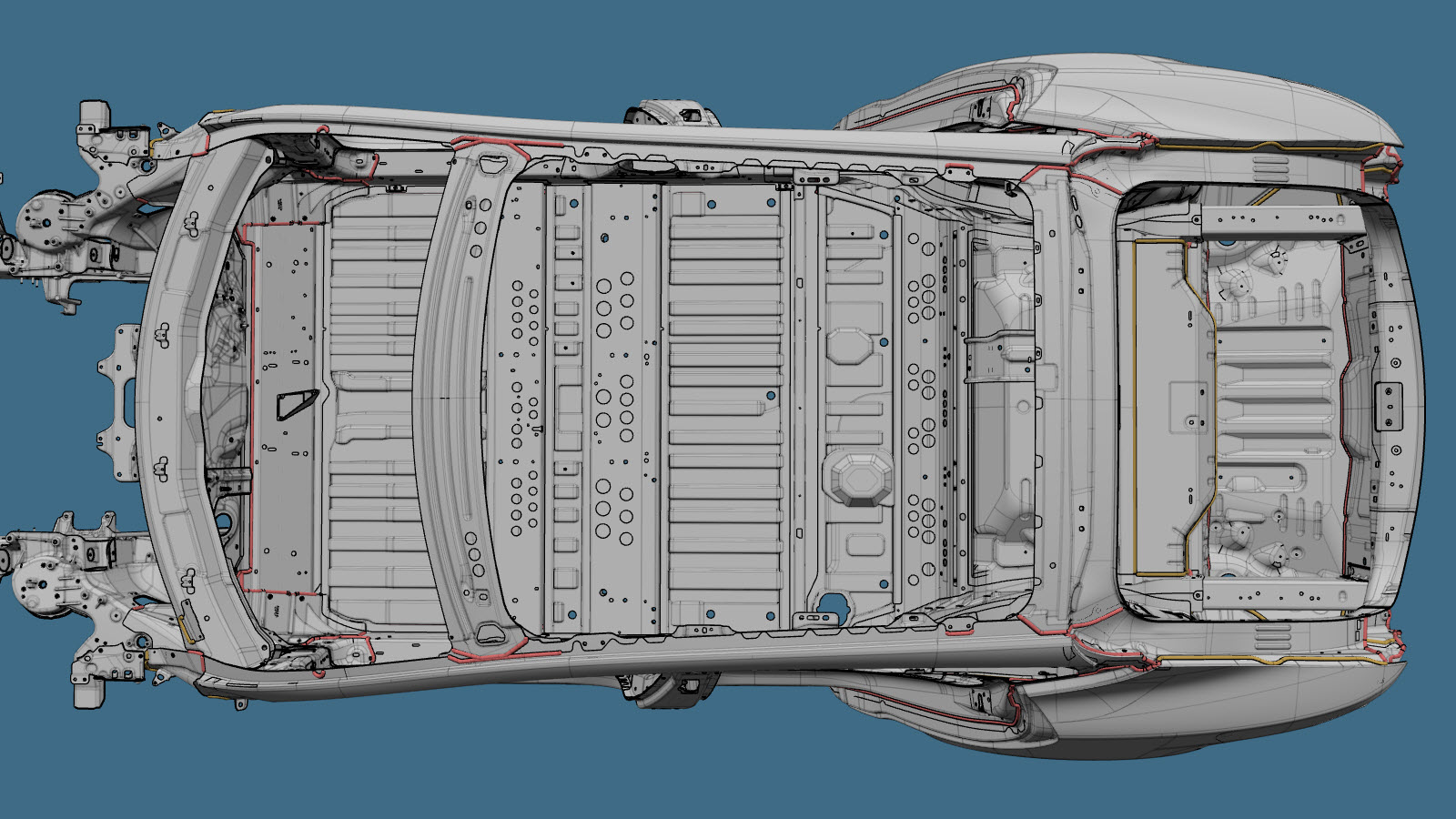

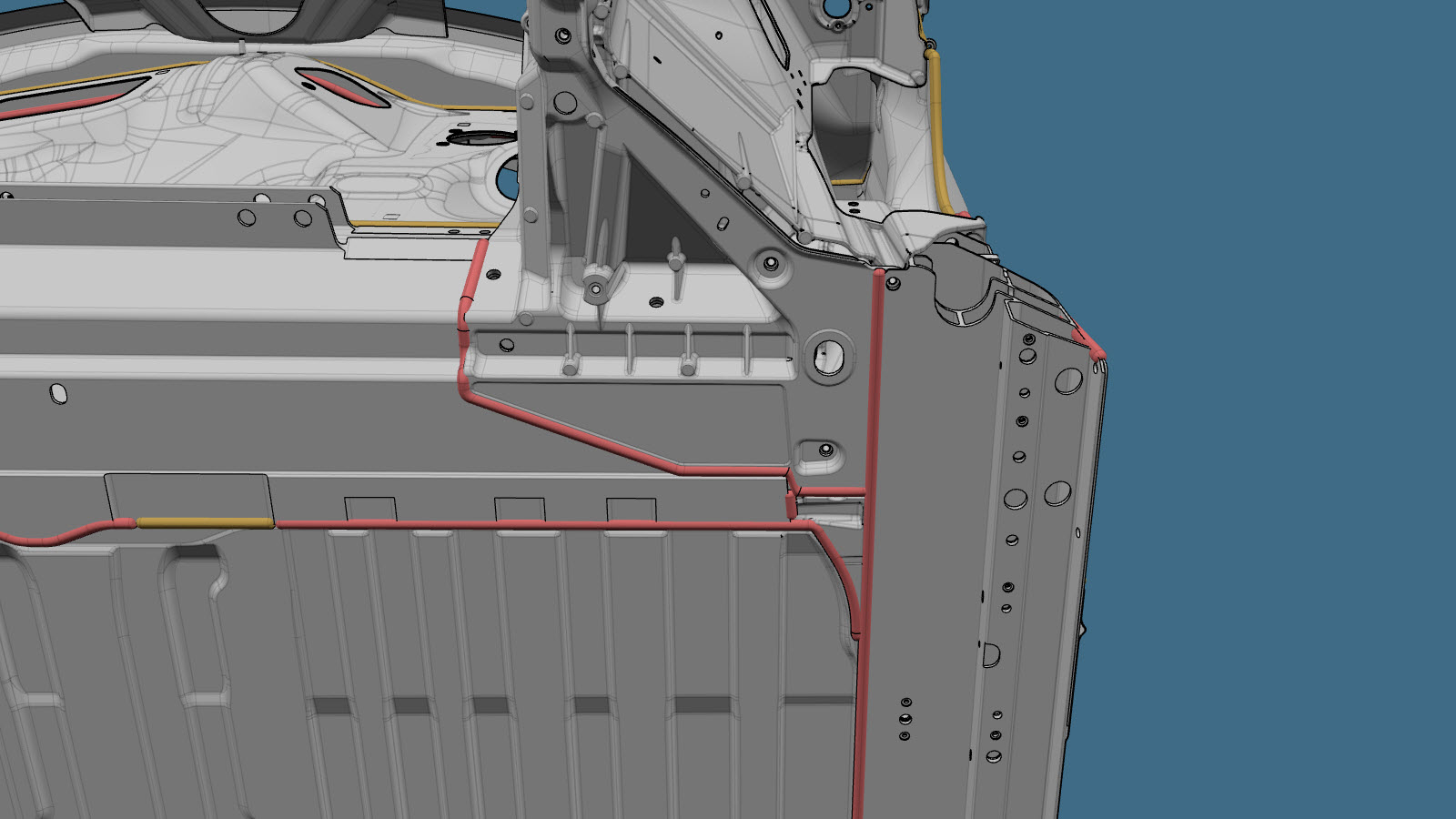

Table 3. Center Under Body

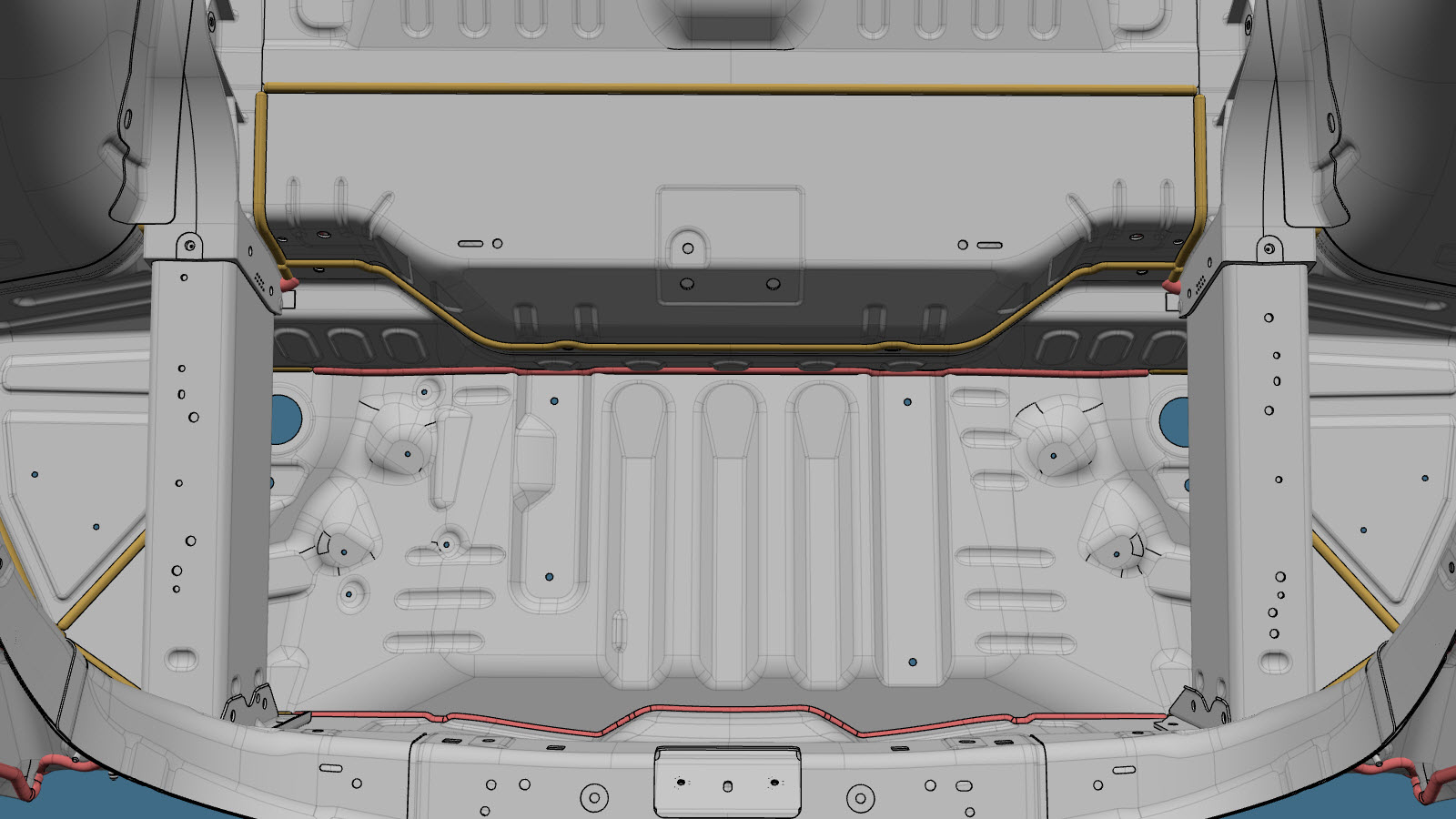

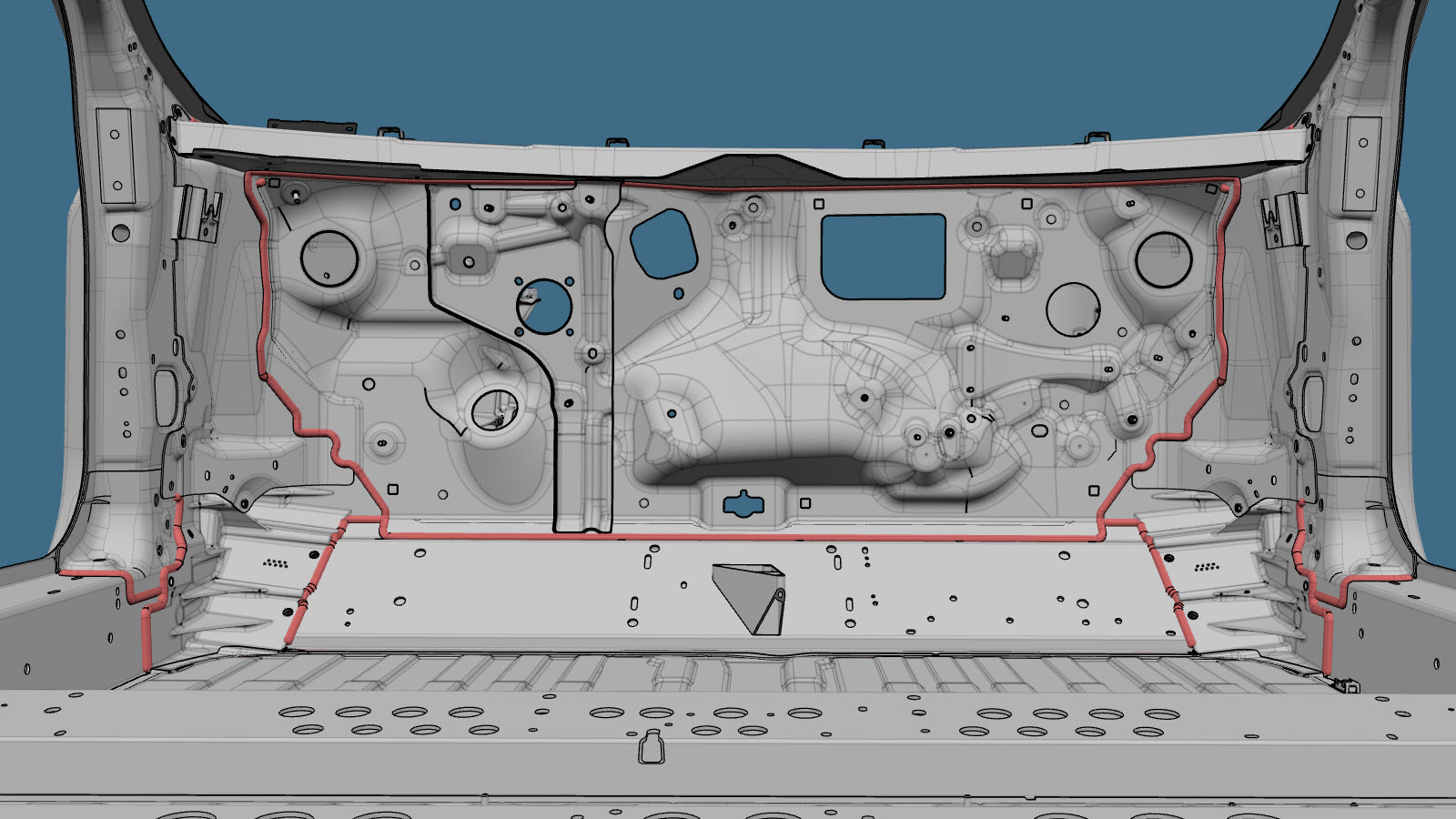

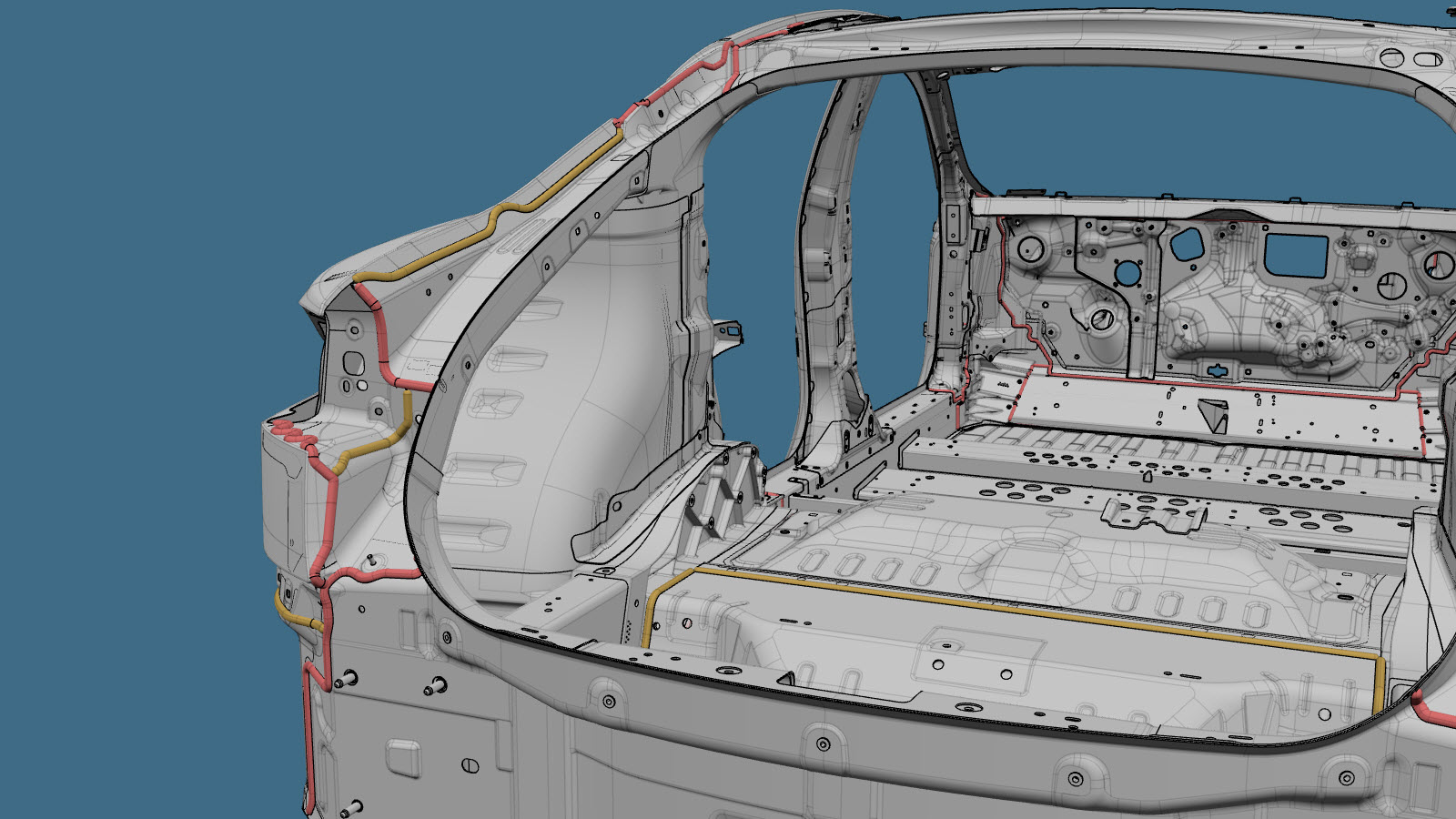

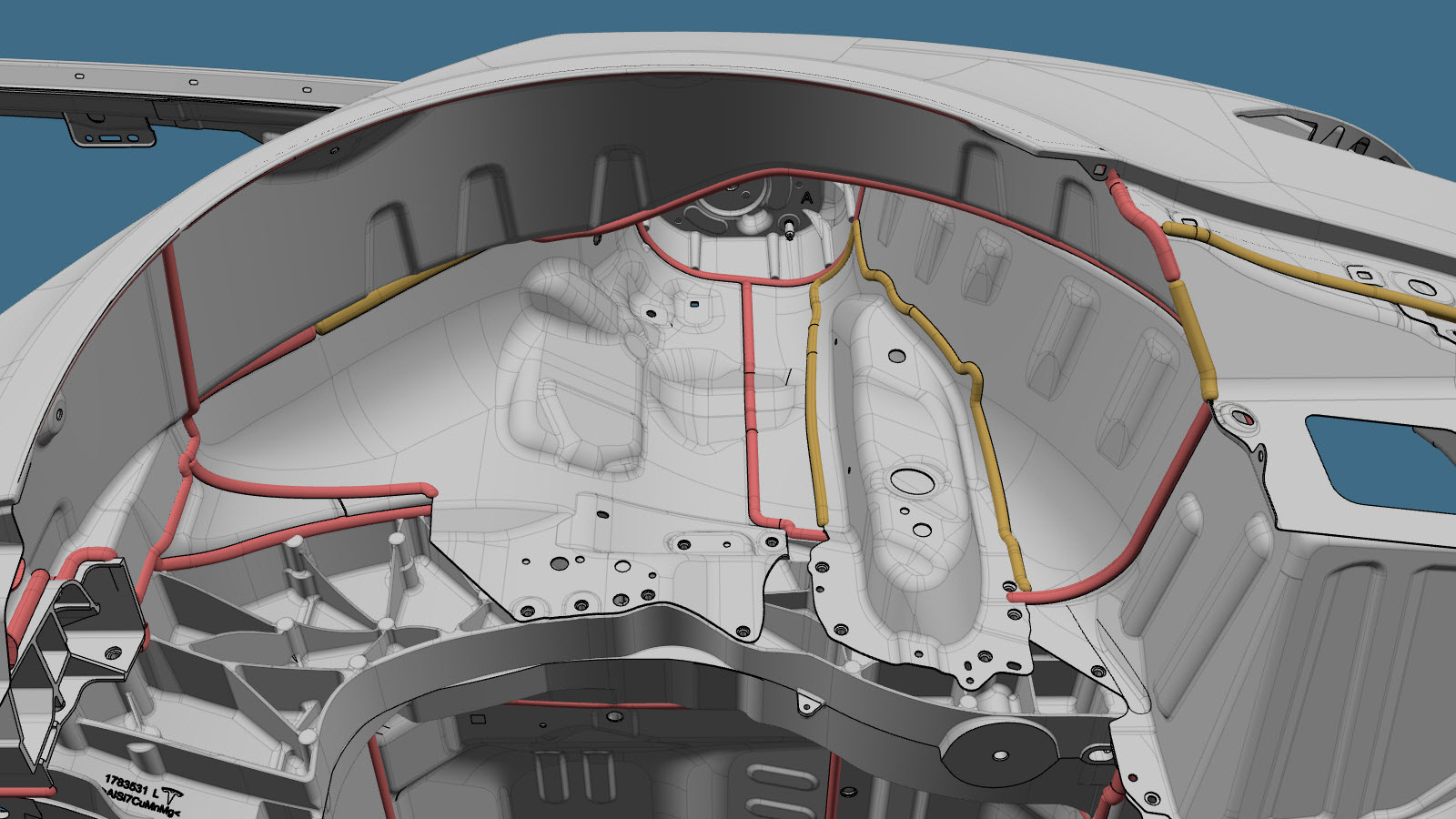

Table 4. Rear Under Body
Table 5. Roof

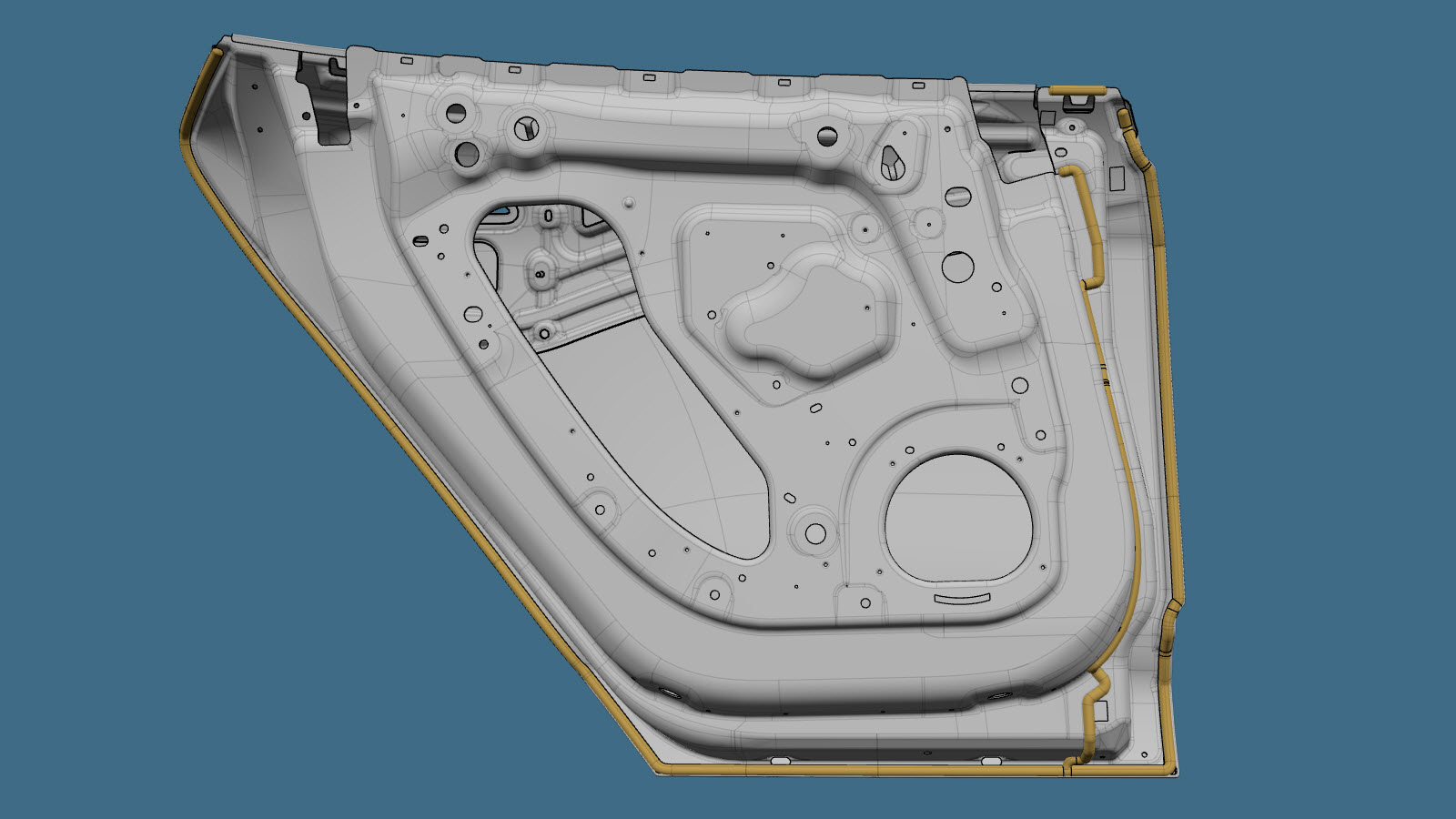

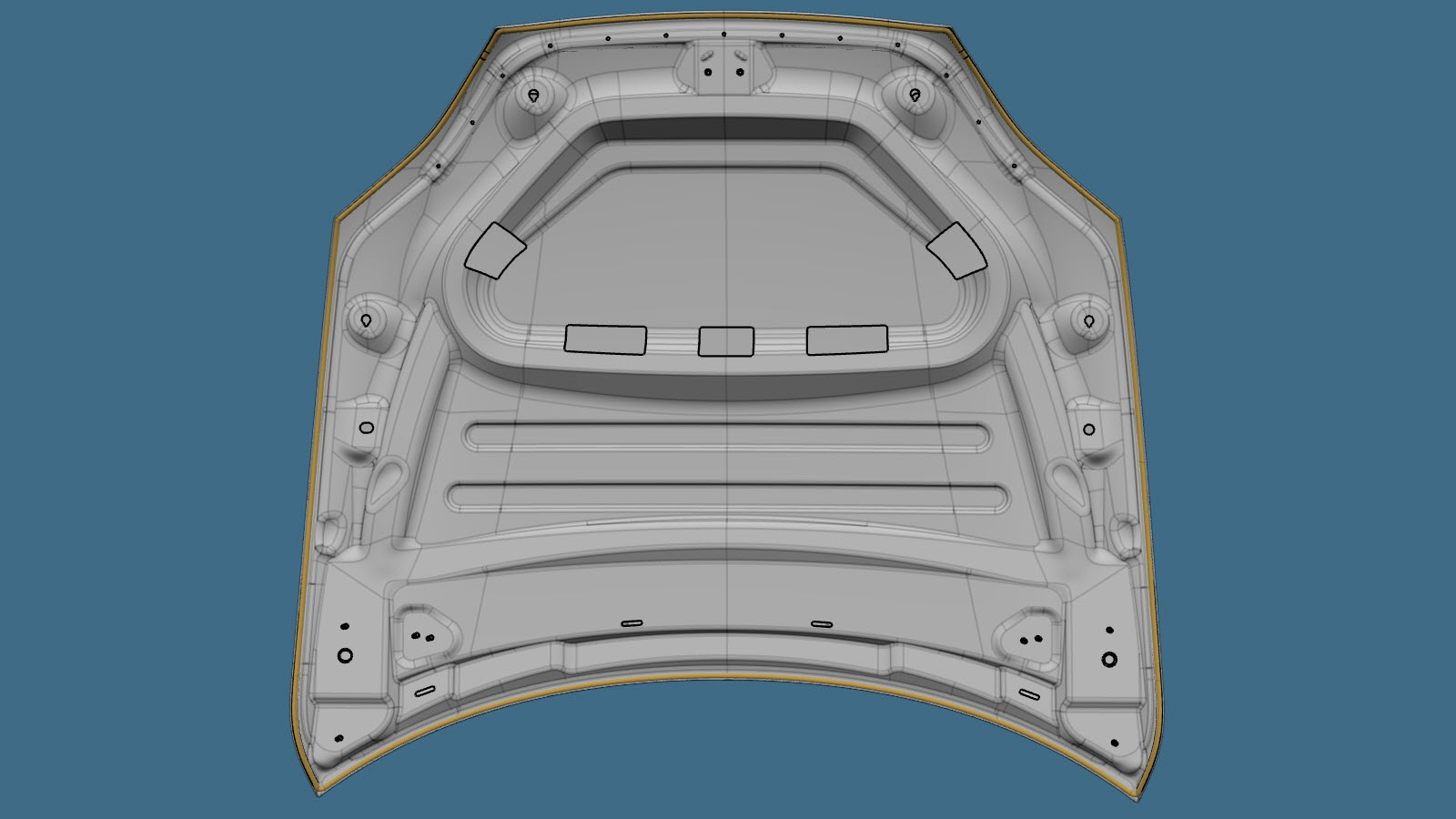

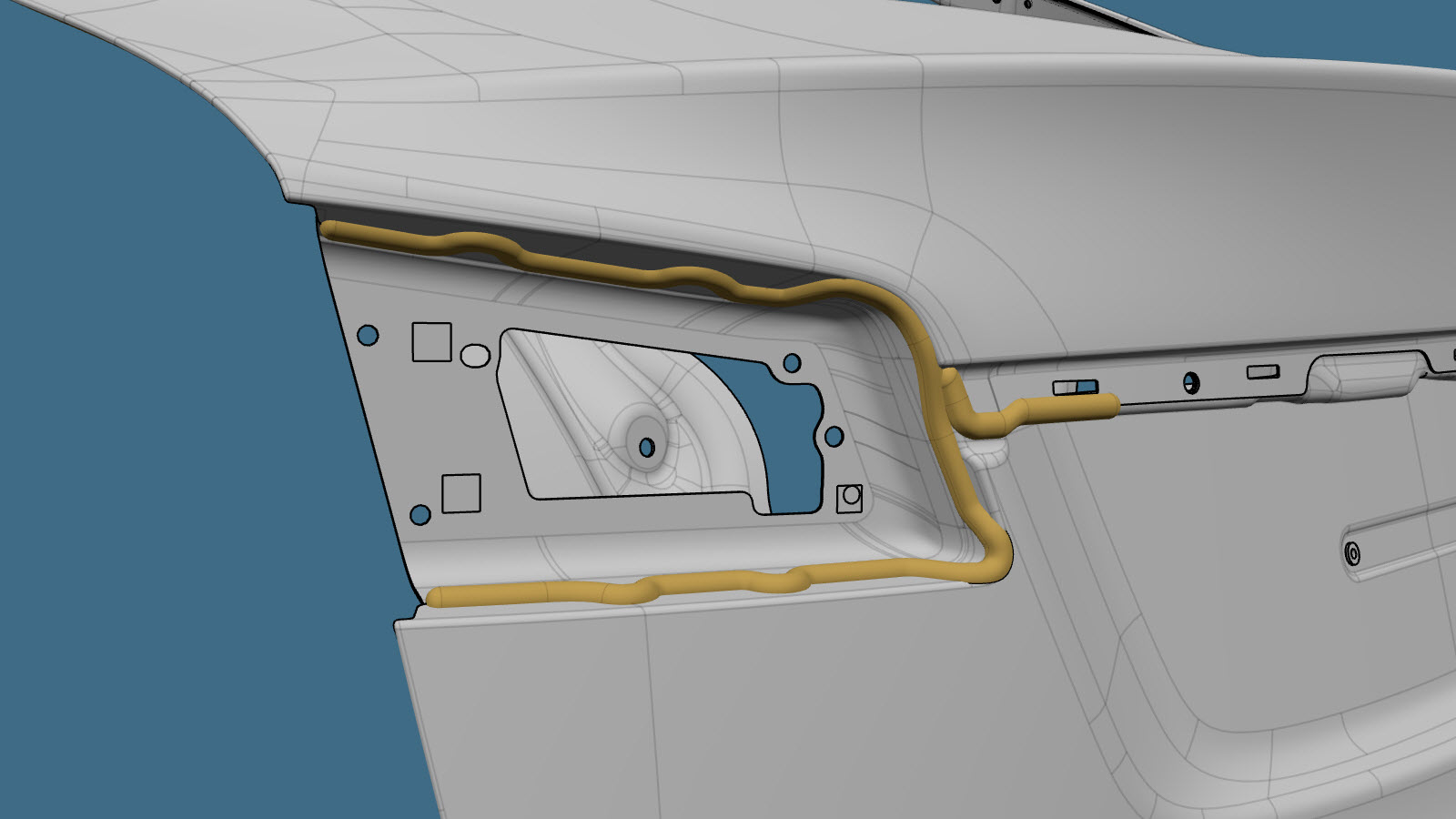

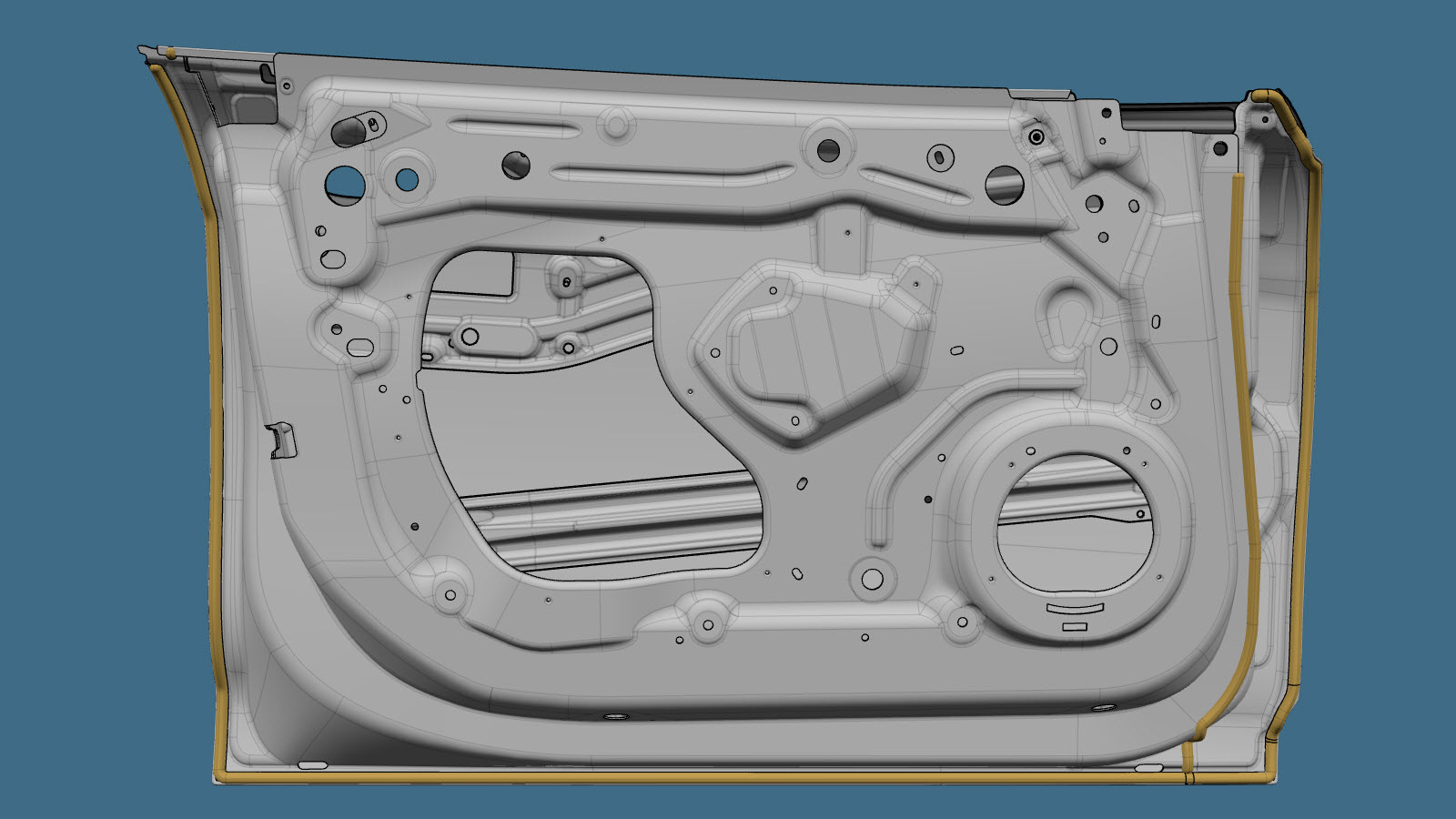

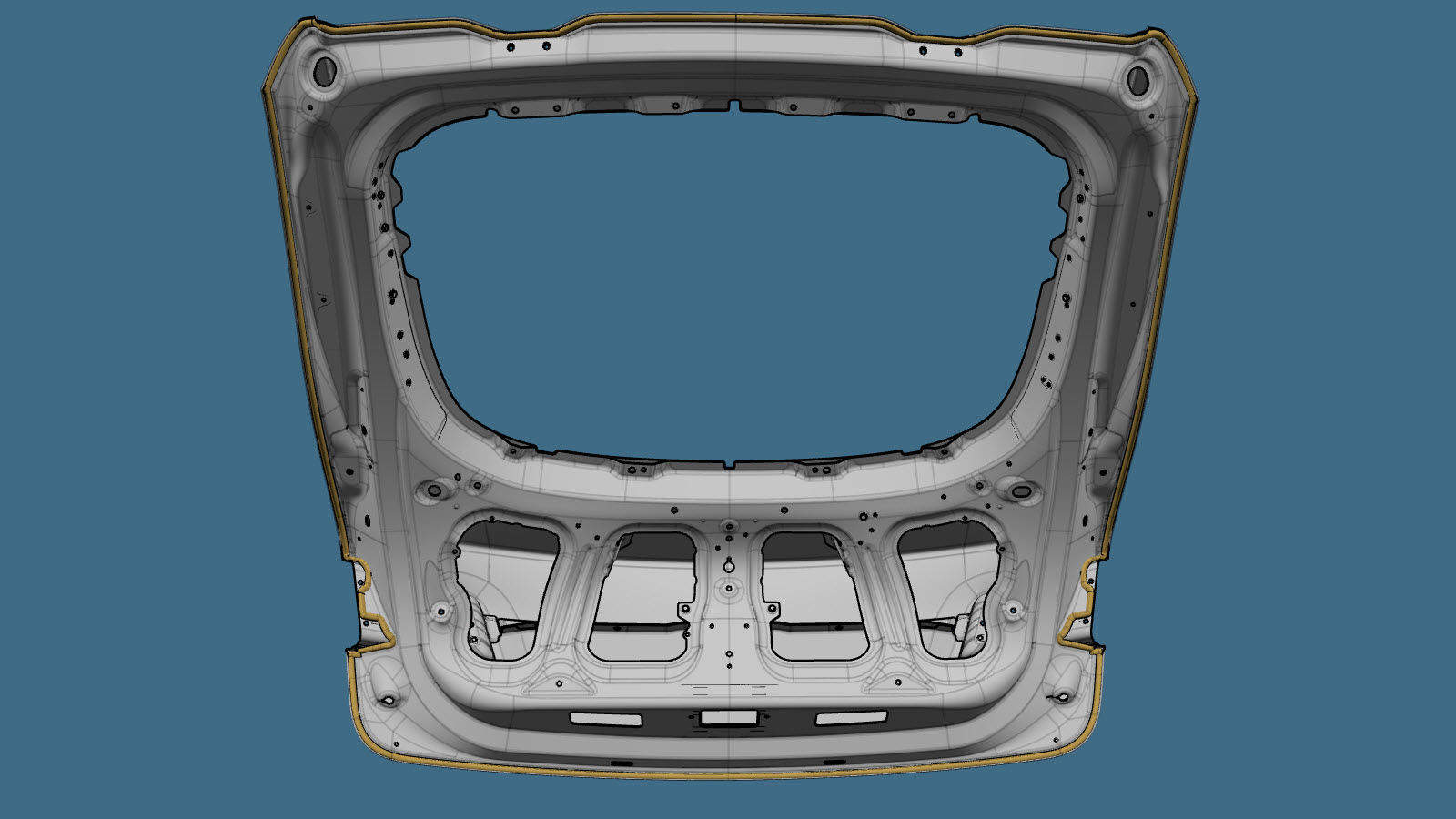

Table 6. Closures
