Toeboard Outer

Parts List

Quantity Description Image / Notes
1 M3 ASY – TOEBOARD OUTER PNL (Toeboard Outer)
15

High Strength Structural Rivet, 6.5 mm

When ordering parts, refer to the Parts Manual and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Manual to find a specific part for the vehicle.

Repair Procedure

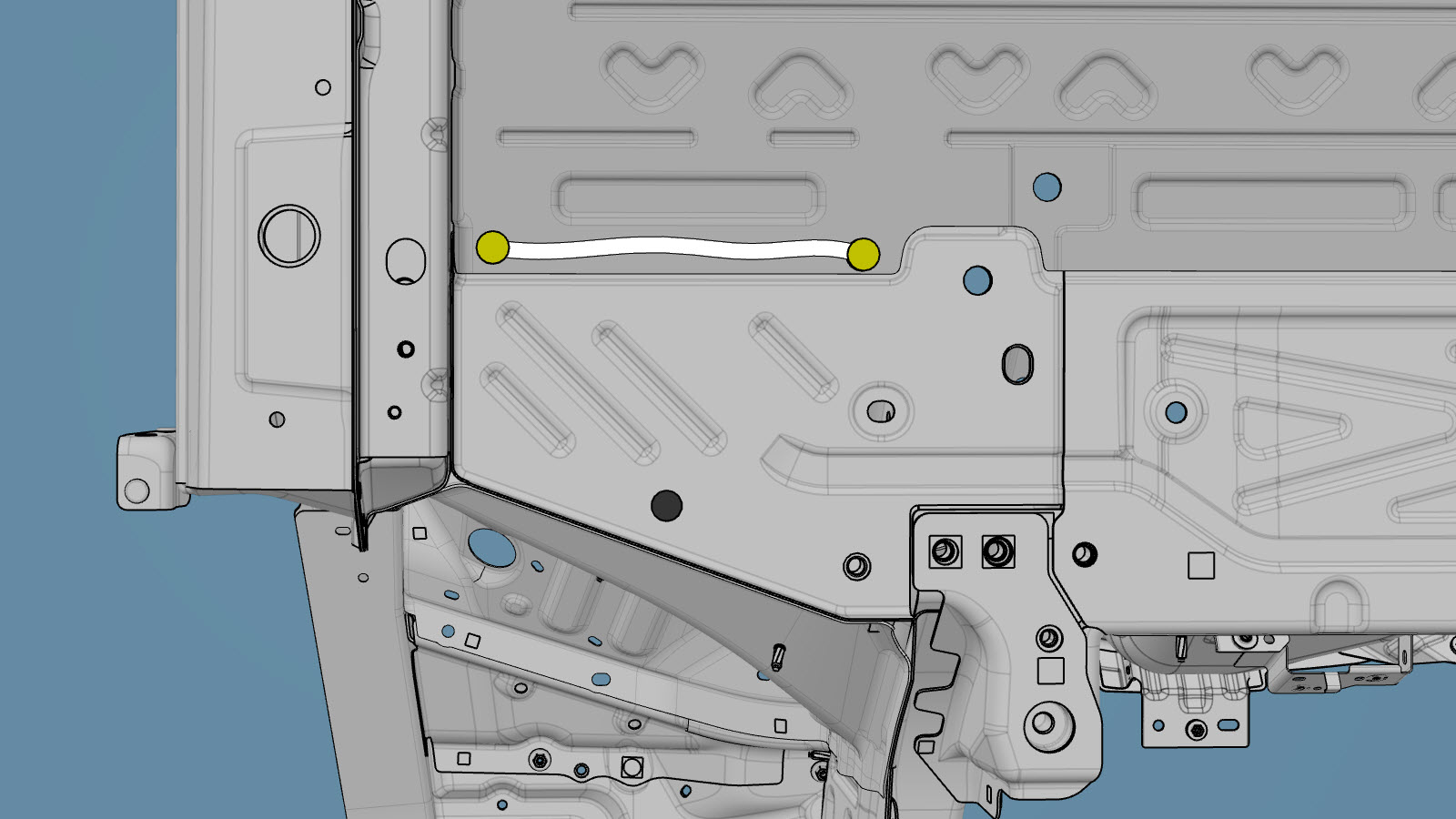

  1. Remove the original component.

    or Factory Spot Welds

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    Note
    Drill a 6.7 mm hole completely through each indicated spot weld.
  2. Prepare for installation.
    or High Strength Structural Rivets, 6.5 mm
    • A = 110 mm
    • B = 75 mm

    or Steel Plug Welds

    Informational PurposesAn informational icon, calling your attention
    Note
    For these plug welds, drill a hole in each of the indicated locations for 8 mm Steel Plug Welds.
  3. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  4. Install the new component or components.
  5. Perform GMA welding.
    Informational PurposesAn informational icon, calling your attention
    Note
    Weld 8 mm Steel Plug welds in the locations marked earlier.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to Approved Gas Metal Arc (GMA) Welders and Welding Wire for information on approved GMA welders and welding wire.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
    Informational PurposesAn informational icon, calling your attention
    Note
    Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint.
