Cast Rear Under Body (1–Piece)

Parts List

Quantity Description Image / Notes
1 CAST RUB-SP E-COATED (Rear Under Body 1–Piece)
1 ASSEMBLY - EXTENSION REAR WHEEL HOUSE - LEFT HAND SERVICE E-COATED (Wheelhouse Extension – Front – LH)
1 ASSEMBLY - EXTENSION REAR WHEELHOUSE - RIGHT HAND SERVICE E-COATED (Wheelhouse Extension – Front – RH)
21 High Strength Structural Rivet, 6.5 mm
12 Rivet, 4.8 mm
4 Bolt , HF,M6x20,[88],ZNFL,MAT Tesla part number 1120935-00-A.
10 Bolt , BOLT&WSHR[FL],M8-1.25x32 Tesla part number 1119448-00-A.
2 Rivnut, FH,M8,3.5-5.5,[10],ZN Tesla part number 1469780-00-B.

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. Remove the LH and RH Rear Panel Side Assembly (for 1–Piece Cast Under Body).
  2. Remove the LH and RH Wing Bracket (Lower).

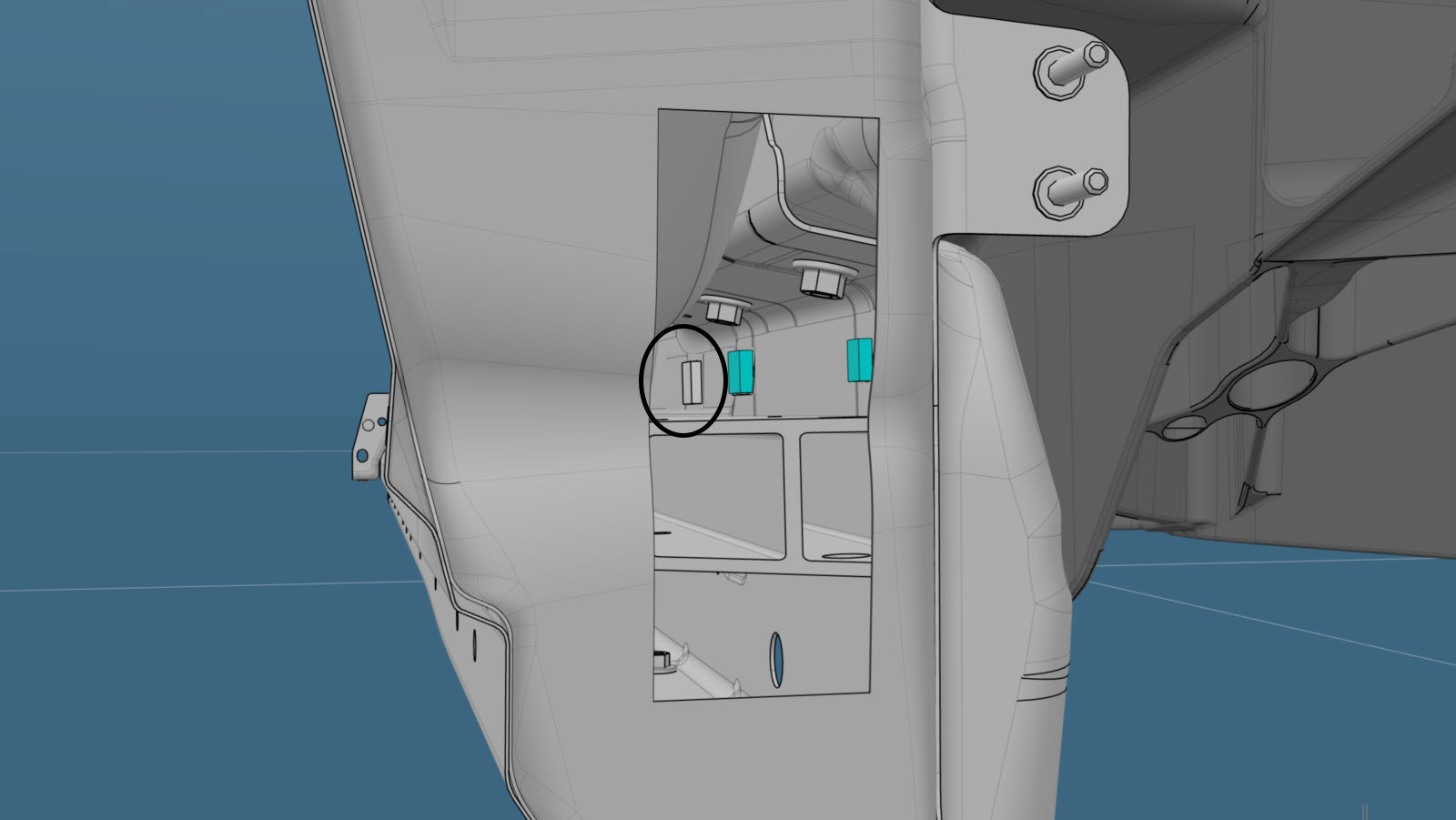

  3. Create an access window in the Wheelhouse Extension (Front).
    • A = 50 mm.
    • B = 130 mm.
    • C = 75 mm.
    • D = 21 mm.
  4. Cut the new Wheelhouse Extension components to create LH and RH access window covers.
    The finished cover should be approximately 32 mm. wider and 10 mm. taller than the access window. Black dashed lines indicate the the access window.
    Informational PurposesAn informational icon, calling your attention
    Note
    When positioned poperly, the cover overlaps the top, bottom, and inboard edges of the access window by 5 mm . The cover also overlaps the outboard edge of the access window by 27 mm.
    • E = 82 mm.
    • F = 140 mm.
  5. Remove the Rivnut from the new component.
    Rivnut
  6. Remove the original component.

    or Factory Spot Welds

    or Factory SPRs

    Rivnut

    or Bolts

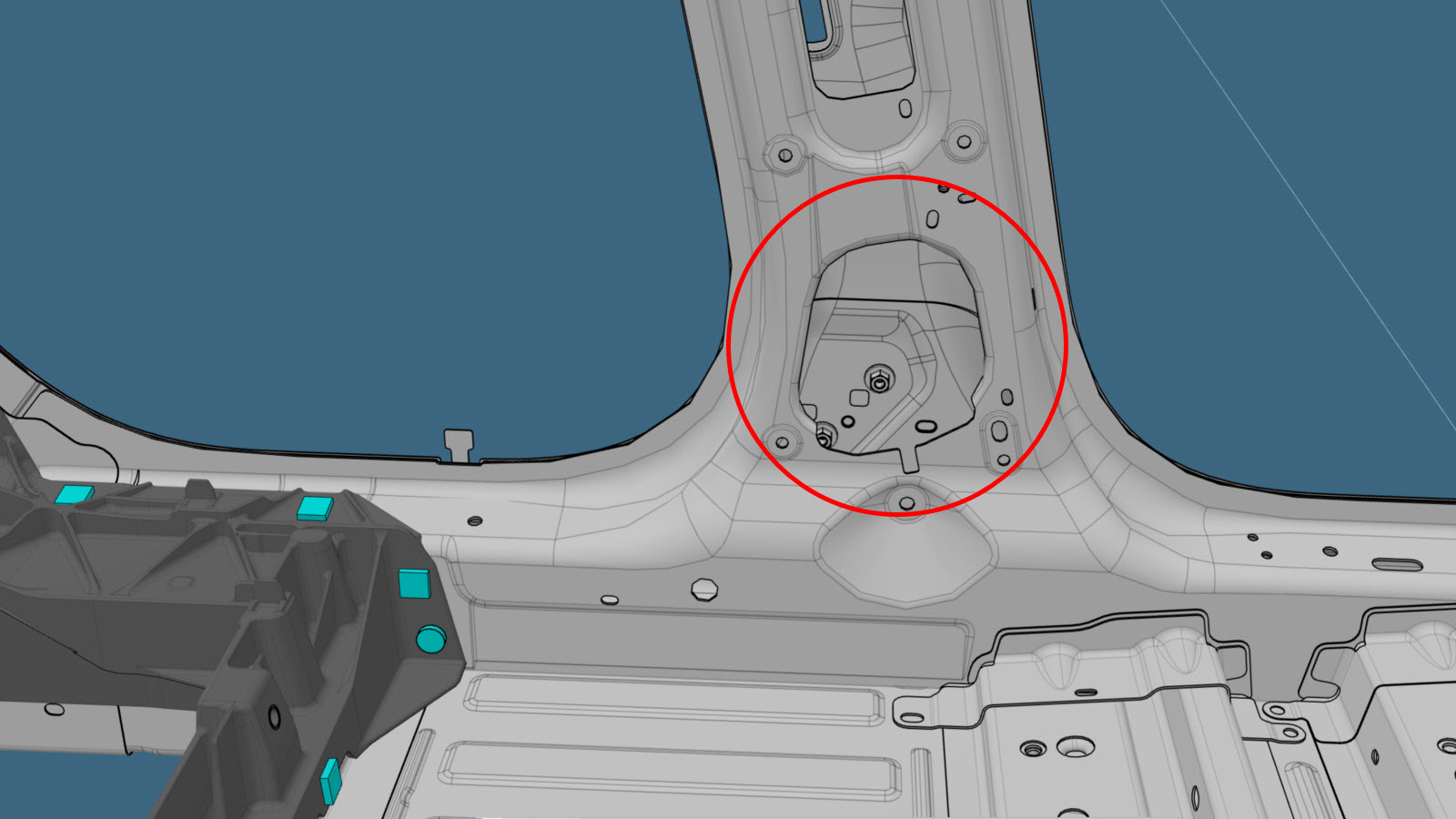

  7. Install the rivnut in the Door Ring Inner.
    Rivnut
    Informational PurposesAn informational icon, calling your attention
    Note
    The Rivnut is installed from inside the vehicle.
  8. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    Note
    A red X indicates a location where a factory-installed fastener is not being replaced.
    or Rivets, 4.8 mm
    • G = 79 mm.
    • H = 24 mm.
    • I = 28 mm.
    • J = 26 mm.
    or Bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt in circled in red is replaced only if it was present on the original component.
  9. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  10. Install the new component or components.
    Torque bolts as follows:
    • Bolts vertically installed in the Sill: 35 Nm.
    • Bolts horizontally installed in the Sill: 31 Nm.
    • Bolts securing the Floor Crossmember to the Cast Rear Under Body (Tesla part number 1120935-00-A): 28 Nm.
  11. Install the LH and RH Rear Rail End Plate (For 1–Piece Cast Under Body).
  12. Install the LH and RH Wing Bracket (Lower).
  13. Prepare to install the Access Window Covers.

    or Rivets, 4.8 mm

    Informational PurposesAn informational icon, calling your attention
    Note
    When positioned poperly, the cover overlaps the top, bottom, and inboard edges of the access window by 5 mm . The cover also overlaps the outboard edge of the access window by 27 mm.
  14. Apply structural adhesive to the mating surfaces on the vehicle and the Access Window Covers.
  15. Install the Access Window Covers.
  16. Install the Rear Panel Side Assembly (for 1–Piece Cast Under Body).
  17. Perform any necessary post-repair operations.
