X971M

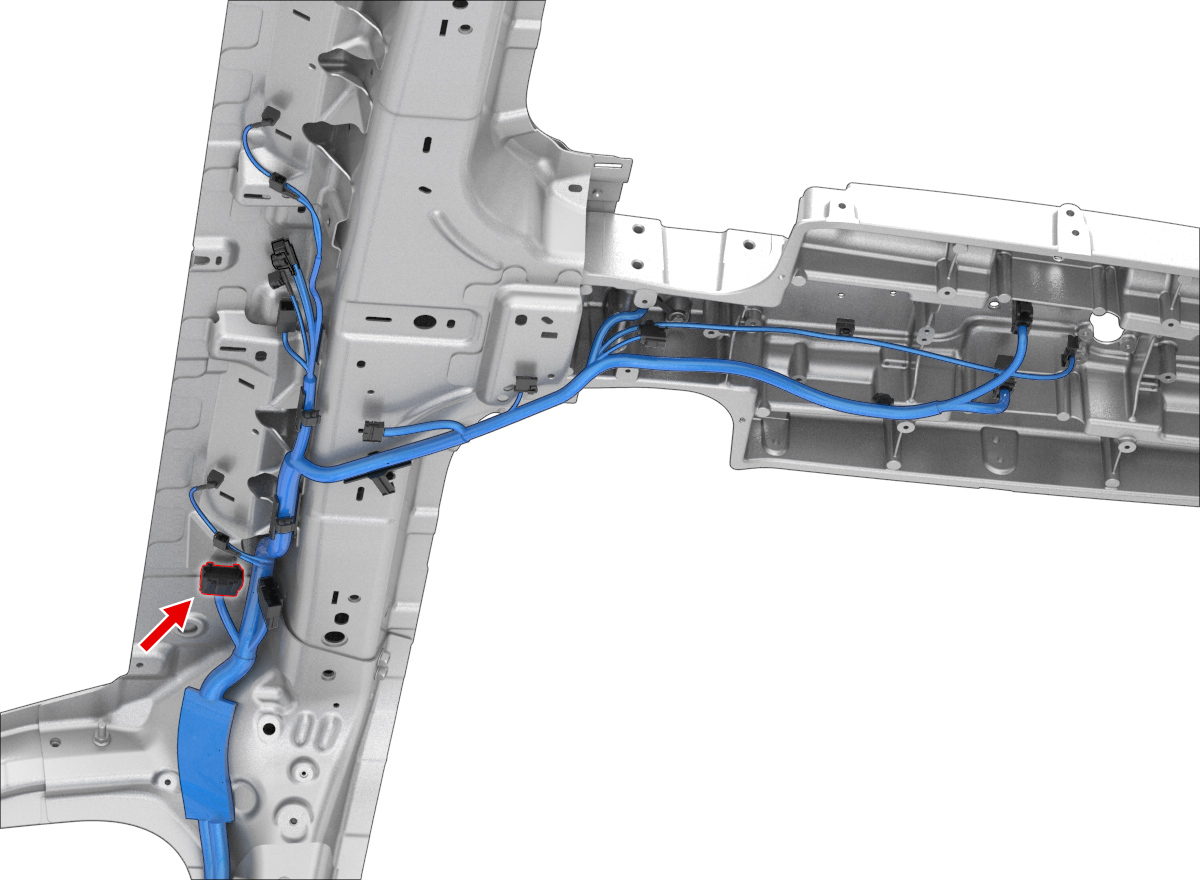

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35091060 | 1.2x0.6M | GN | 1.50 | X050B | 7 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | DELPHI | 35091060 | 1.2x0.6M | BU | 1.50 | X054 | 6 | ||
| 9 | DELPHI | 35091060 | 1.2x0.6M | TN | 1.50 | X050B | 9 | ||
| 10 | DELPHI | 35412744 | 1.2x0.6M | GN | 0.35 | X060A | 13 | ||
| 11 | DELPHI | 35412744 | 1.2x0.6M | YE | 0.35 | X052 | 28 | ||
| 12 | DELPHI | 35412744 | 1.2x0.6M | BU/WH | 0.35 | X792 | 2 | ||
| 13 | DELPHI | 35412744 | 1.2x0.6M | BU | 0.35 | X792 | 13 | ||
| 14 | unused | ||||||||
| 15 | DELPHI | 35412744 | 1.2x0.6M | BN/YE | 0.35 | X052 | 27 | ||
| 16 | DELPHI | 35091060 | 1.2x0.6M | BK | 1.50 | G350 | 1 | ||
