X055

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

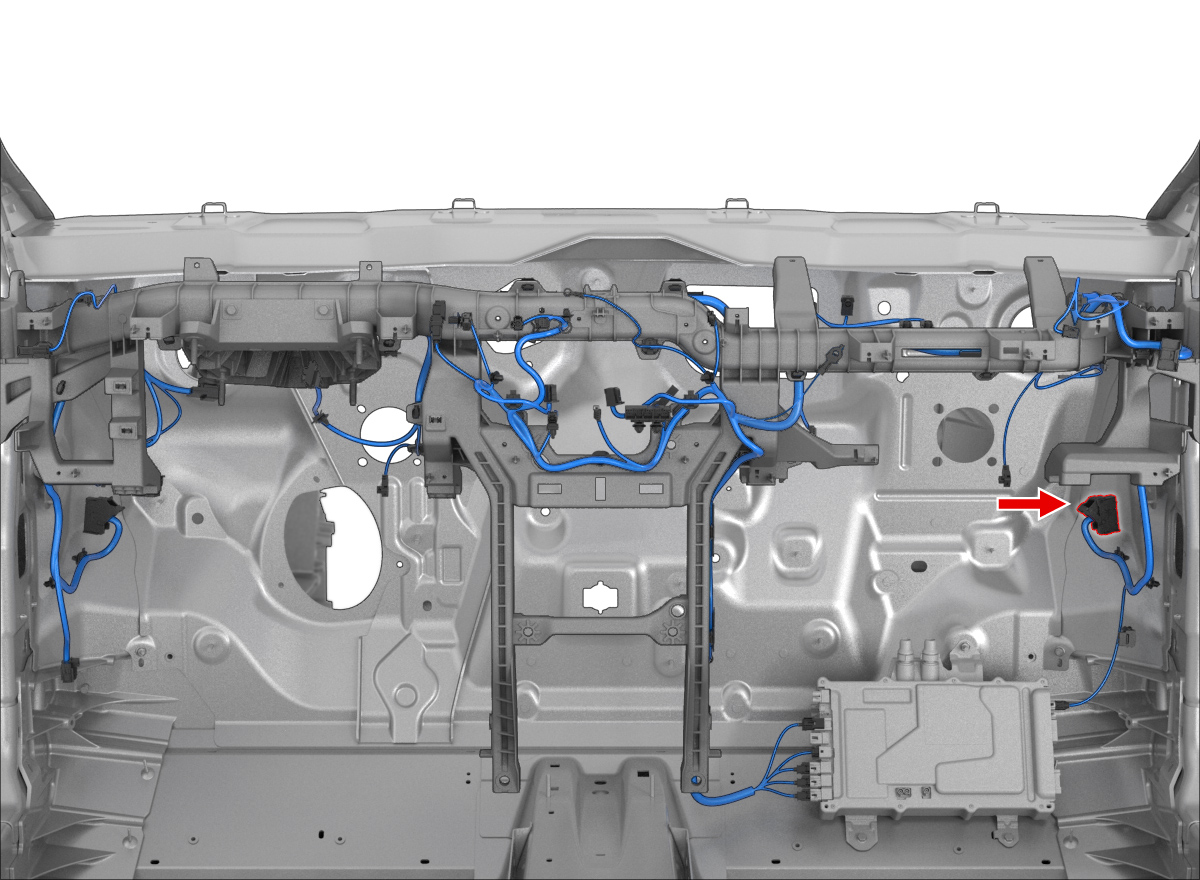

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	GY	0.75			X950F	14
2	SUMITOMO	8240-0213	1.5x0.64F	RD	0.75			X950F	26
3	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X487	3
4	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X280	1
5	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X494	3
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X281	3
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X437	14
8	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X437	13
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X071	3
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X071	2
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X437	5
12	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X437	4
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X596	4
14	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X437	18
15	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X950F	17
16	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X950F	16
17	unused
18	SUMITOMO	8240-0213	1.5x0.64F	GY	0.75			X186	1
19	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X281	1
20	unused
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X280	3
22	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X073	A
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
25	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X071	4
26	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X071	1
27	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X072	A
28	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X126	17
29	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X126	18
30	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X437	19
31	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X950F	1
32	SUMITOMO	8240-0213	1.5x0.64F	WH	0.75			X950F	15
33	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X187	1
34	SUMITOMO	8240-0213	1.5x0.64F	BN/YE	0.75			X186	2
35	unused
36	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50
37	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X950F	5
38	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X950F	4
39	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X950F	7
40	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X950F	6
41	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X950F	11
42	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X950F	10
43	unused
44	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X950F	12
45	unused
