X850

Tesla Part Number
1815125-04-B
Connector
AMP 2-2330270-5
Color
GN

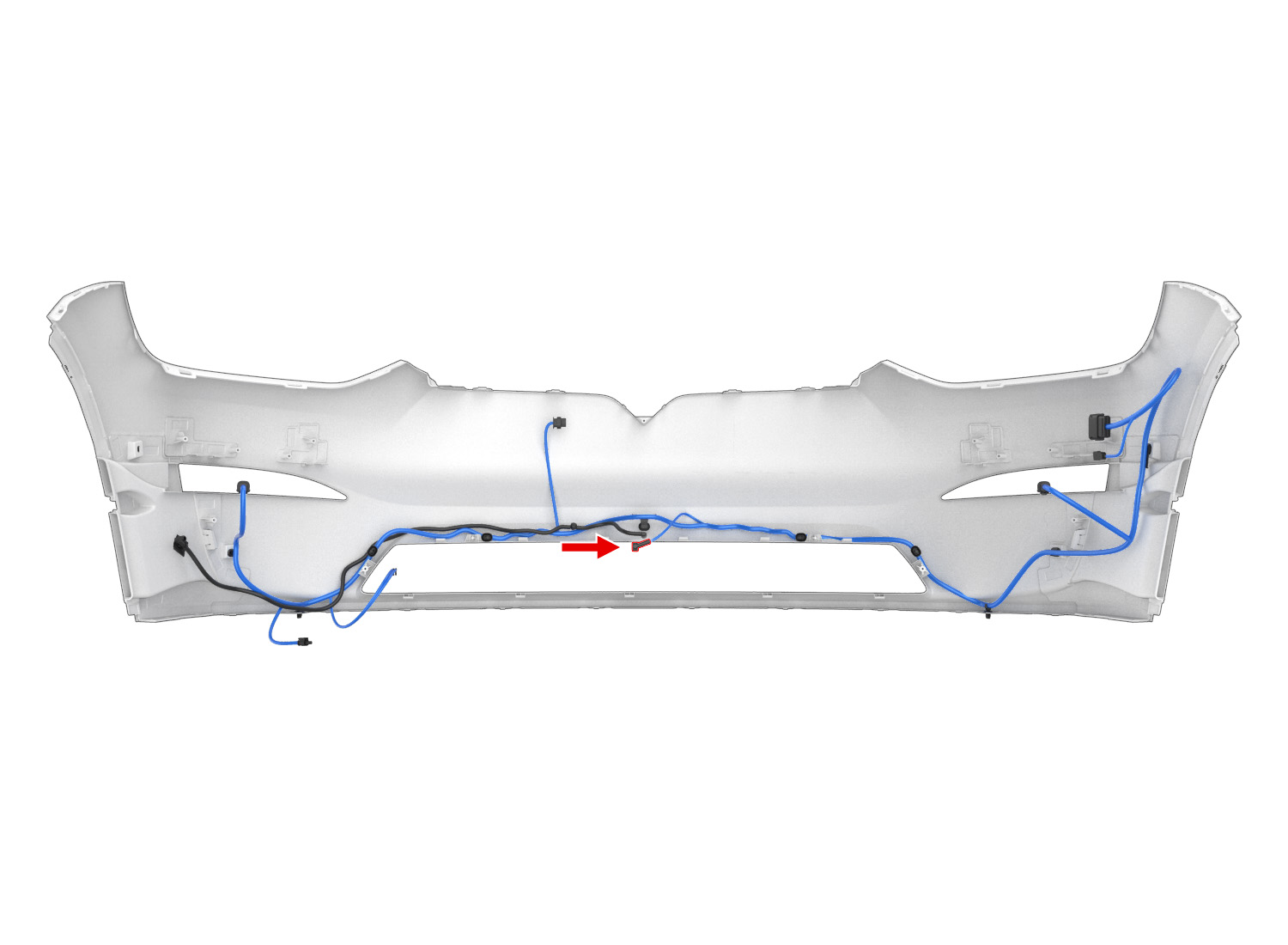

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2439501-2COAXBKD302PIAPIA-SEALX865F1
