X336

Tesla Part Number
2066997-00-A
Connector
AMP 1-1355470-5
Color
BK

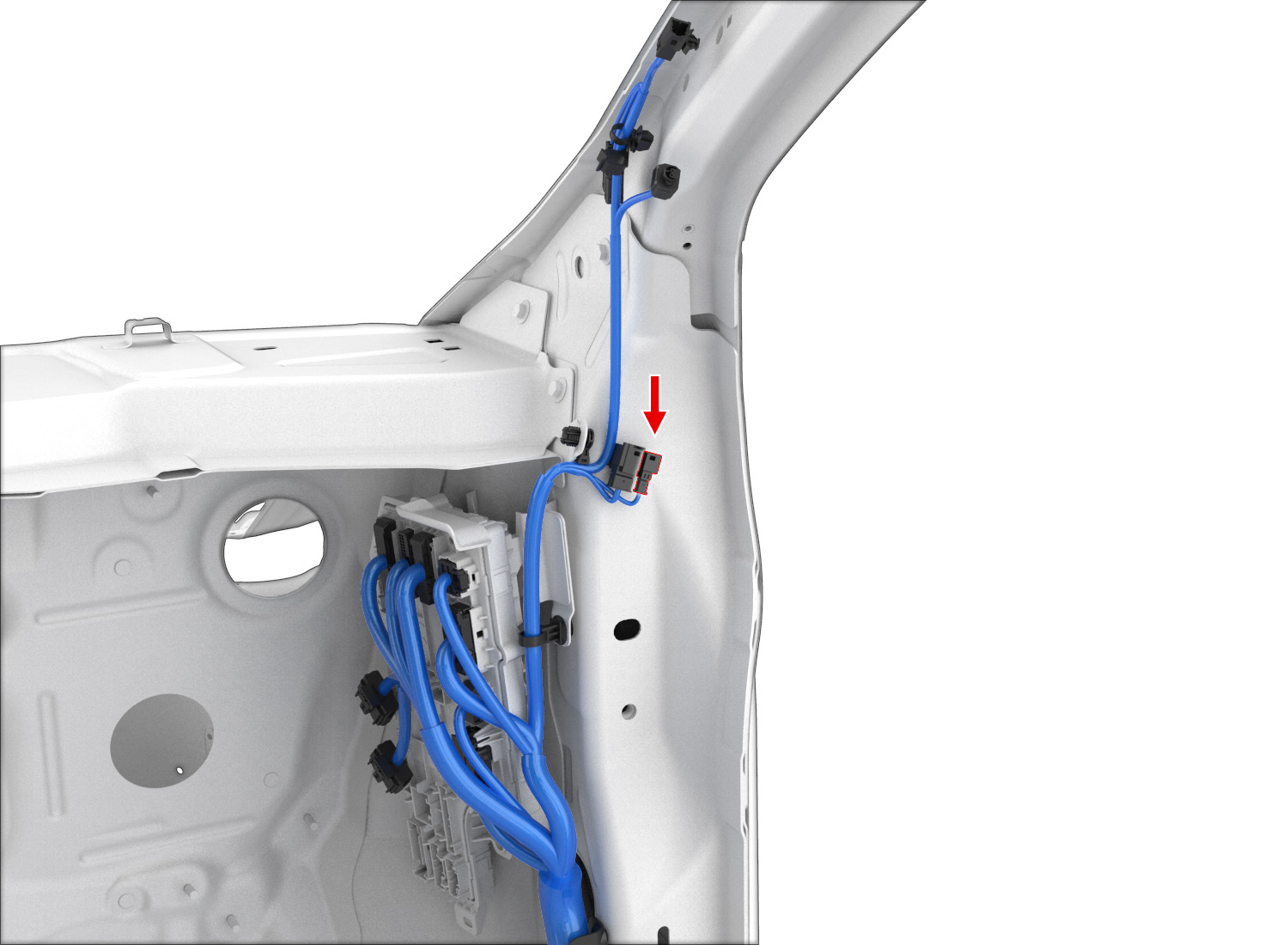

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP6-928918-10.63x0.63MRD/WH0.35X06217
2AMP6-928918-10.63x0.63MBN0.35X06216
