X261A

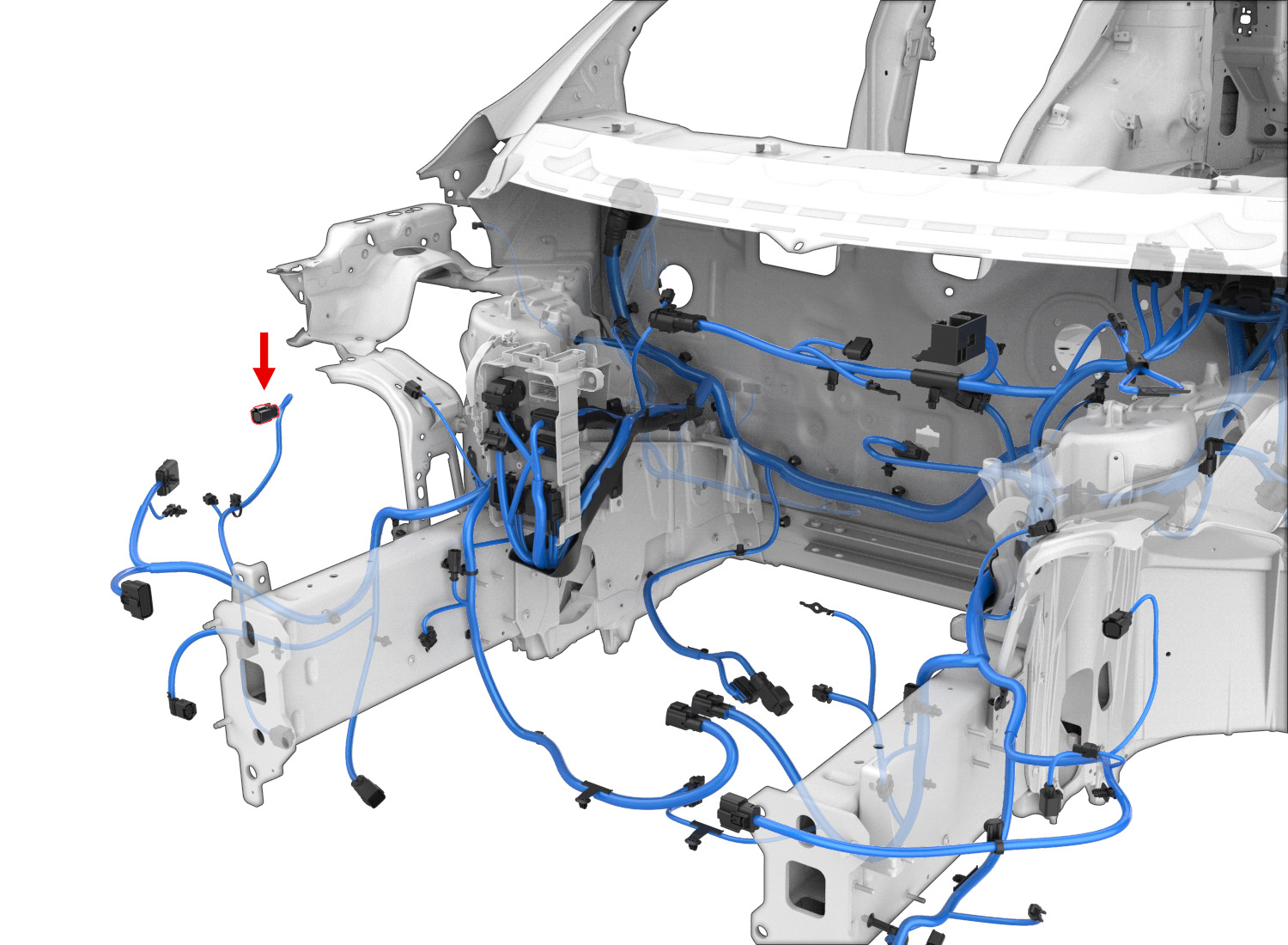

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452671-1 | 1.2x0.6FS | GY | 1.00 | AMP | 967067-1 | X010 | K2 |
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | TN | 0.35 | AMP | 967067-2 | X011 | 36 |
| 3 | AMP | 7-1452671-1 | 1.2x0.6FS | BK | 1.00 | AMP | 967067-1 | G160 | 9 |
